Team Details

UoP Racing

University	University of Patras GR Patras U short 82
Location	Patras, Greece
Homepage	https://uopracing.com/
Social Media
CV Team	UoP Racing
Short Link	tid.fsg.one/420
Event Details	car 86 - waiting

Team Description

The UoP Racing Team is a racing team of the University of Patras(Department of Mechanical Engineering and Aeronautics) . We develop, design and manufacture a racing car that competes at the Formula Student series competition around the globe, alongside with hundreds of teams from all over the world.

Our team consists of passionate students divided in several modules with each module having one leader who coordinates the other members. Building a racing car in such a small amount of time with limited resources, it takes a lot of time and even more hard work to get the job done. The team only works when all students and their supervisors sacrifice their free time to the project.

Working in the team gives students a great opportunity to gain a lot of experiences and qualifications.The main goal of the team is education. Every year many new students start on a year of Formula Student, most of them have no or very little experience in designing and building a race car. Even though, they are allowed and needed to design a part of the car in their first year. Therefore team and each subteam are organized at the start of every season to teach the team vital knowledge and skills. Older members of the team will assist the newcomers during the year, assuring the quality of the work and further educating the new engineers. Most members indicate that their year, or years, was one of the most educating experiences of their study.

Event Profile

Past Events

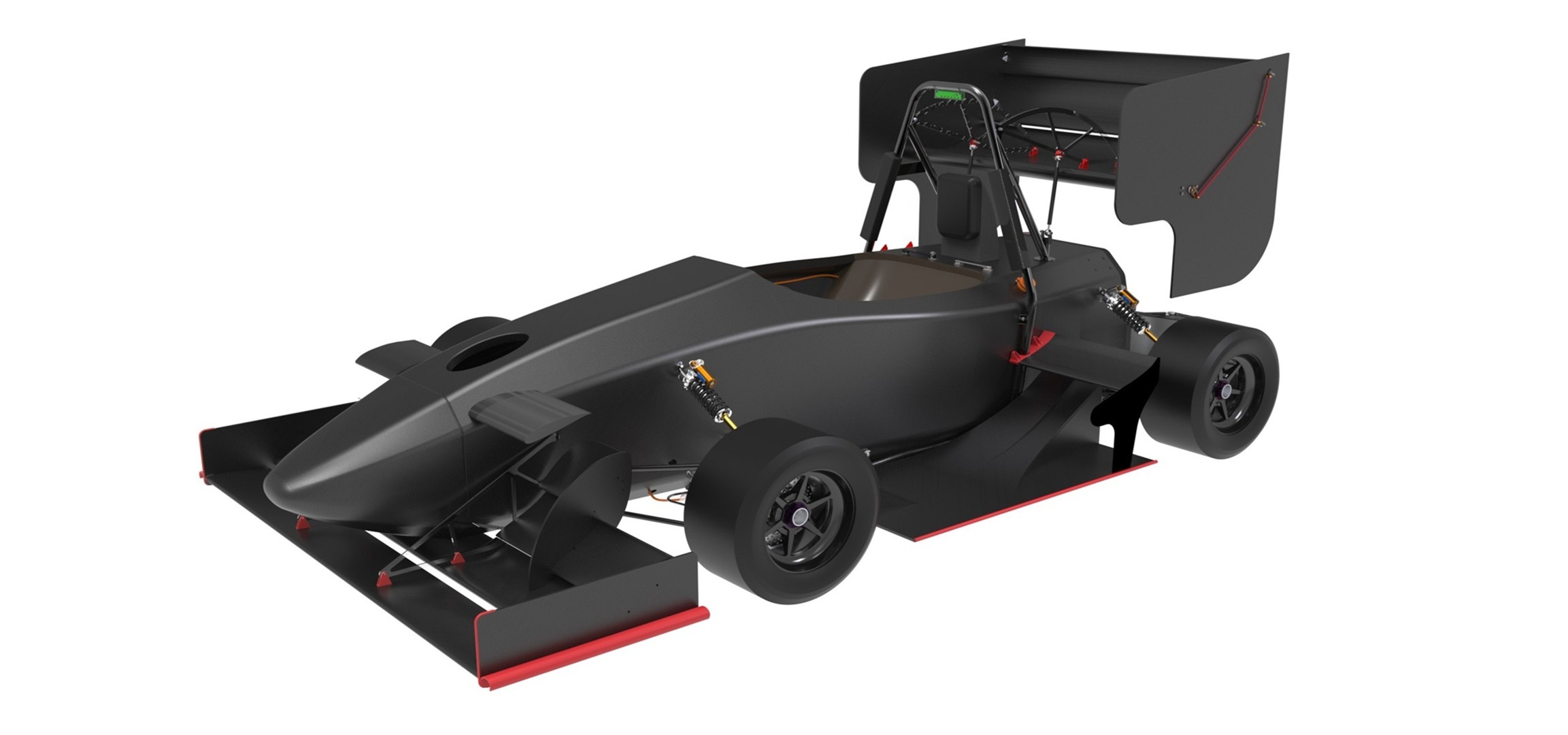

2025

Car #86

Info

UoP Racing FS team is located at the University of Patras. After developing 5 combustion and 5 e-cars, we are presenting UoP8e. The focus is improved performance, simplicity and reliability, achieved by cost-effective solutions and good-engineering practices. UoP8e is built on a CFRP monocoque chassis and four in-wheel AMK motors, orchistrated by self-developed electronics (VCU, AMS, Telemetry system, Sensor nodes) and an advanced aerodynamic package. Eager to learn more. Come and visit us!

Engineering Design Priorities:

ElectricVehicle Performance Simplicity Reliability MonocoqueChassis FourIn-WheelMotors

Car Specifications

General

Frame Construction	CFRP sandwich monocoque with steel roll bar
Material	CFRP sandwich with aluminium honeycomb
Overall Length (mm)	2850
Overall Width (mm)	1452
Overall Height (mm)	1177
Wheelbase (mm)	1530
Track Front (mm)	1240
Track Rear (mm)	1240
Weight Front (kg)	137
Weight Rear (kg)	149
Suspension	Double Unequal Length Wishbones, Direct Actuation Springs and Dampers, 4way adjustable
Tyres	Hoosier R20 16x7.5-10
Wheels	10'' Hybrid CFRP with aluminium Center
Drive Type	2-Stage Compound Planetary Gear
Differential	Custom Torque Vectoring Algorithms
Cooling	One radiator dedicated to cooling of inverters and one to the electric motors
Brake System	4-Disc system, self-designed rotors 181mm diameter front and 186mm rear
Electronics	Custom VCU with self-developed traction control and torque vectoring algorithms.

Powertrain

Number of Motors	4
Motor Location	One motor per wheel
Max Motor Power	35kW
Motor Type	AMK DD5-14-10-POW
Max Motor RPM	20000
Motor Controller	KW 26-S5-FSE-4Q
Max System Voltage (V)	598
Electrode Materials	Lithium Polymer (Li-Po)
Accumulator Capacity	7.23kWh
Transmission Ratio Primary	1:12.45
Transmission Ratio Secondary	-

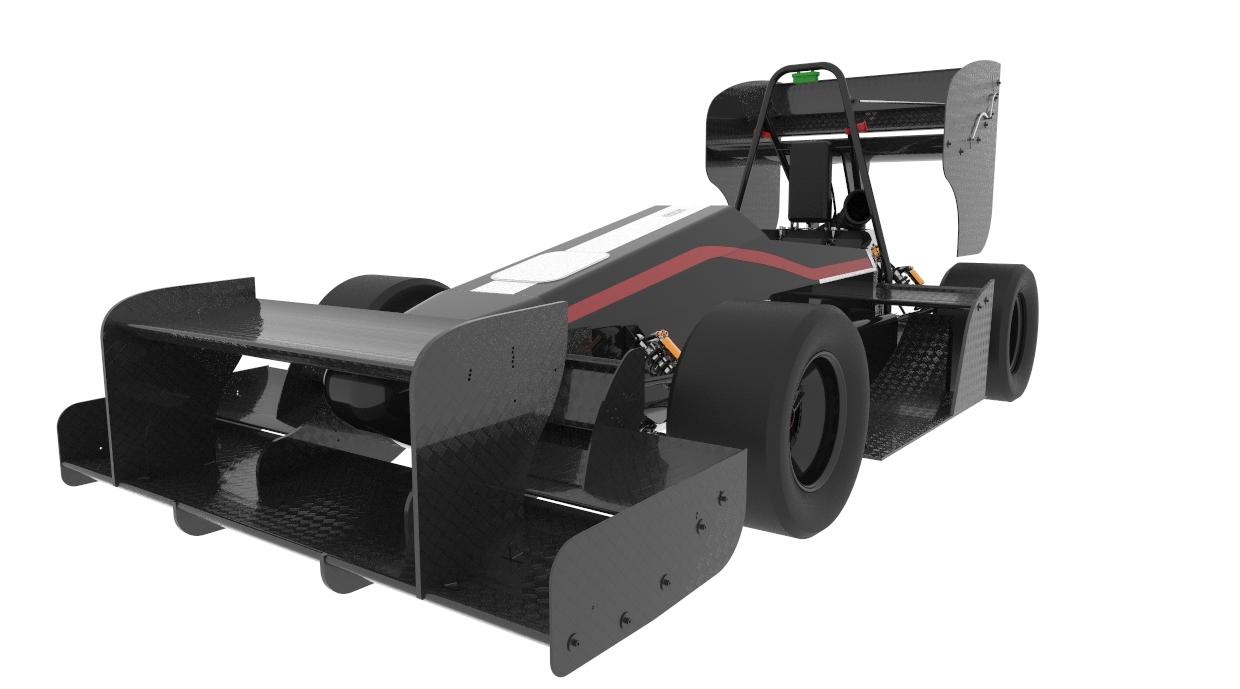

2018

Car #86

Info

UoP Racing is the University of Patras FS team. After 5 combustion and 3 e-cars, we are presenting UoP6e. The overall focus is "resource efficiency", adopting cost-effective solutions. Simplicity, reliability and high performance were also top priorities. UoP6e utilizes an aluminum panel cut-n-fold monocoque chassis and a single e-motor, accompanied by self-developed electronics (VCU, AMS, Telemetry system, CAN nodes) and an advanced aerodynamic package. Eager to learn more? Come visit us!

Engineering Design Priorities:

Resource efficiency Low cost Simplicity Reliability

Car Specifications

General

Frame Construction	Aluminum Sandwich panel monocoque, bonded and riveted aluminum lap-joint
Material	Aluminum skin with aluminum honeycore comb (25mm core-0.8mm skin on sides and 15mm core -1mm ski
Overall Length (mm)	2869
Overall Width (mm)	1460
Overall Height (mm)	1172
Wheelbase (mm)	1580
Track Front (mm)	1160
Track Rear (mm)	1160
Weight Front (kg)	108
Weight Rear (kg)	162
Suspension	Double unequal length carbon fiber A-arms with direct acting Ohlins damper attached to the
Tyres	18.0x7.5 R10, R25B / 18.0x7.5 R10, R25B
Wheels	7.0x10, 4mm offset, 3 pc Alum Rim / 7.0x10, 4mm offset, 3 pc Alum Rim
Drive Type	Single-Speed, Parallel Shaft Gearbox
Differential	Drexler FSAE Limited Slip Differential
Cooling	Single radiator, fanless, 3D printed air duct for air supply, water cooled, electric water pump
Brake System	Fr./ ISR 22-048 OB four piston,radial mount- Re./ISR 22-049 two piston, radial mount
Electronics	Self designed live telemetry system, Custom VCU-Logging Unit-CAN nodes, CANbus channels

Powertrain

Number of Motors	1
Motor Location	Rear Middle
Max Motor Power	100 kW(restricted to 80)
Motor Type	Brushless Permanent Magnet Synchronus Motor
Max Motor RPM	4800
Motor Controller	Unitek Bamocar-D3
Max System Voltage (V)	504V
Electrode Materials	LiCoO2
Accumulator Capacity	7.1kWh
Transmission Ratio Primary	1:3.625
Transmission Ratio Secondary	-

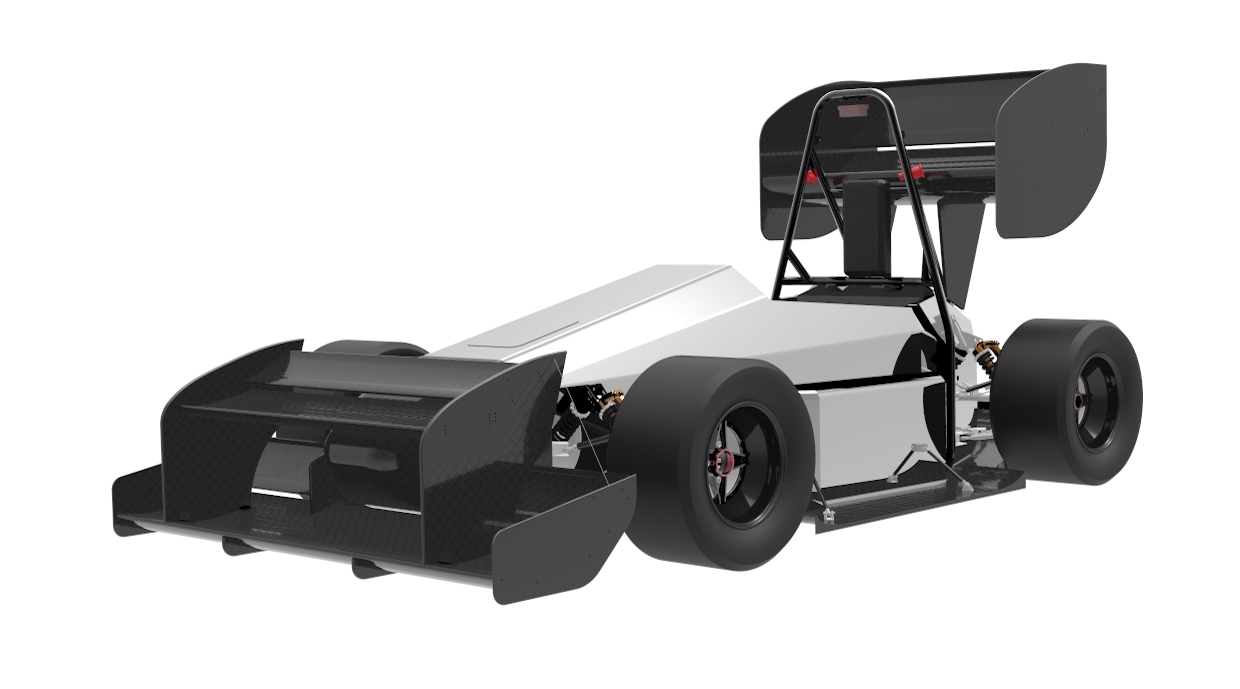

2017

Car #186

Info

UoP Racing is one of the most unconventional teams in the electric class of Formula Student. Our design mentality could be summarized as resource efficiency; using unconventional design and manufacturing methods to achieve the best performance/cost ratio. Reliability and sustainability are top priorities as well. Point sensitivity analysis indicated the areas of focus, where clever solutions and sound engineering practices were applied, allowing for the manufacturing of a 210kg electric car.

Engineering Design Priorities:

Resource efficiency New manufacturing methods Reliability Sustainability Performance Efficiency

Car Specifications

General

Frame Construction	5-piece aluminum panel monocoque, bonded and riveted aluminum lap joints
Material	5052 aluminum skin with aluminum honeycomb core, 23mm core/0.8mm skin on sides a
Overall Length (mm)	2762
Overall Width (mm)	1405
Overall Height (mm)	1195
Wheelbase (mm)	1580
Track Front (mm)	1165
Track Rear (mm)	1095
Weight Front (kg)	114
Weight Rear (kg)	164
Suspension	Double unequal length carbon fiber A-arms with direct acting Ohlins TTX25 damper attached
Tyres	18.0x7.5-10, Hoosier R25B / 18.0x7.5-10, Hoosier R25B
Wheels	7x10
Drive Type	Self developed parallel axis 2-stage str
Differential	Clutchpack limited slip differential, 50Nm preload, 45/60 Deg. ramp angle
Cooling	Single radiator integrated in the rear interior, fed via custom airduct
Brake System	Floating, Cast Iron, hub mounted, 180mm outer diam drilled rotors,adjustable brake balance
Electronics	Smart torque truncation based on batery state, Traction Control (TC), multimap switch

Powertrain

Number of Motors	1
Motor Location	Rear interior
Max Motor Power	80kW
Motor Type	ENSTROJ/EMRAX 228 HV CC, Brushless PM AC
Max Motor RPM	4700
Motor Controller	Unitek Bamocar D3
Max System Voltage (V)	504V
Electrode Materials	Lipo
Accumulator Capacity	7,104kWh
Transmission Ratio Primary	1:3,625
Transmission Ratio Secondary	-

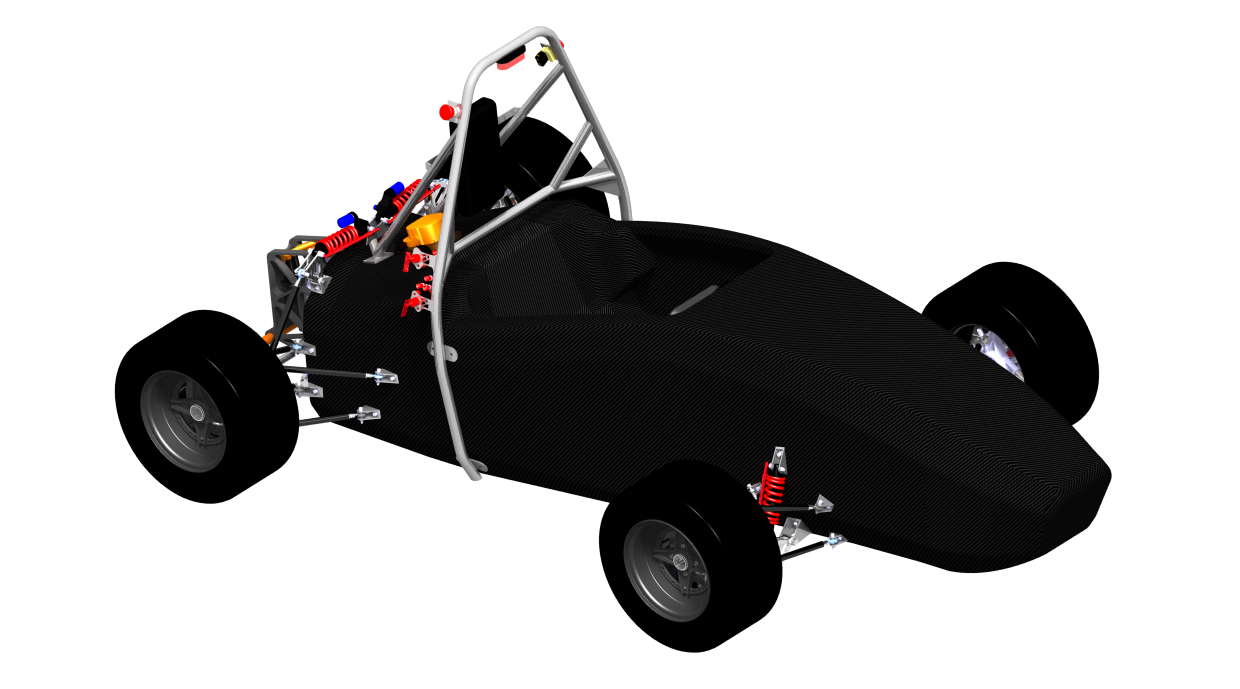

2013

Car #86

Info

With the powertrain being completely new grounds for the team, UoP4e is an evolution of the designs developed over the last years, a carbon fiber monocoque chassis, combined with lightweight but powerful motor and 10” wheels, focused on being simple, reliable and adjustable. Keeping in mind the targets set at the very beginning of the design process, the team refined neuralgic areas to aid the vehicles’ overall performance. UoP4e is based on the 3rd generation of the CF monocoque chassis and is powered by a single YASA 750 electric motor and a self-developed battery pack with Li-Po cells. Torque is transmitted by a modified Drexler LSD, placed inside the motor, to the 10” aluminum wheels. A number of sensors signals are logged and transmitted over WiFi in real time. Adjustable Steering wheel and seat padding improve driver’s ergonomics. We would like to thank the University of Patras and our sponsors for their support on tackling this design and motorsport challenge.

Car Specifications

General

Frame Construction	2-piece carbon fiber monocoque sandwich structure
Material	200gr/m^2 carbon fiber plain weave, AIREX C70.75 rigid Cross-linked 75 kg/m^3, Balsa wood 200kg/m^3
Overall Length (mm)	2630
Overall Width (mm)	1430
Overall Height (mm)	1135
Wheelbase (mm)	1600
Track Front (mm)	1240
Track Rear (mm)	1220
Weight Front (kg)	123
Weight Rear (kg)	162
Suspension	Double unequal length A-Arm. Pull/Push rod actuated (F/R), vertically oriented spring and damper
Tyres	18x6-10 LC0 Hoosier slicks/19.5x7.5-10 hoosier R25B
Wheels	6x10in./7x10in (F/R), Single lug 3 piece design, 46mm offset, Al Rim, AL7075 center
Drive Type	Direct Drive, motor integrated diff.
Differential	Drexler FSAE LSD, 60Nm preload, 60%/40% lockup
Cooling	Sidepod mounted 13row radiator, Electric Pump, 2x120 fans, Opticool coolant, 0,4bar relief valve
Brake System	4-Disk system, ISR 180mm floating rotors, ISR 4pot calipers, AP Racing pull type MC, adj. balance
Electronics	Motec ADL3 data logger/ECU, CAN bus network, WiFi data transmission, AWG 5/17/20/22 wiring

Powertrain

Number of Motors	1
Motor Location	Rear, on center of car
Max Motor Power	85kW
Motor Type	YASA-750, Permanent Magnet Asychronous
Max Motor RPM	2000
Motor Controller	Sevcon GEN4 Size 8 AC Motor control
Max System Voltage (V)	403V
Electrode Materials	LiPo
Accumulator Capacity	6,45kWh
Transmission Ratio Primary	1:1
Transmission Ratio Secondary	1:1
