Team Details

AMZ Racing Team

University	ETH Zürich CH Zürich ETH short 94
Location	Zürich, Switzerland
Homepage	https://amzracing.ch
Social Media
CV Team	Akademischer Motorsportverein Zürich
DV Team	AMZ Driverless
Short Link	tid.fsg.one/248
TIS Status
Event Details	car 33 - active

Team Description

Since the Academic Motorsports Club Zurich (AMZ) was founded in 2006 by students of ETH Zurich it has produced a prototype to compete in various Formula Student competitions in Europe every year. After having built three cars powered by combustion engines, AMZ has moved forward to developing electric racing cars since 2010. Throughout the years, we have continuously been at the top of innovation, not only developing new CFRP monocoques, complete aerodynamics packages and suspension but also designing our own motors, gearbox and controllers.

The association is financially independent and supported by numerous financial, manufacturing and parts sponsors as well as various institutes of Swiss universities ETH Zurich and the Lucerne University of Applied Sciences and Arts. AMZ is the first Swiss team in Formula Student. The active team counts approximately 70 people, backed by the crucial support of their alumni.

We look forward to competing with the whole Formula Student Community this summer with our 19th car nera.

Past Events

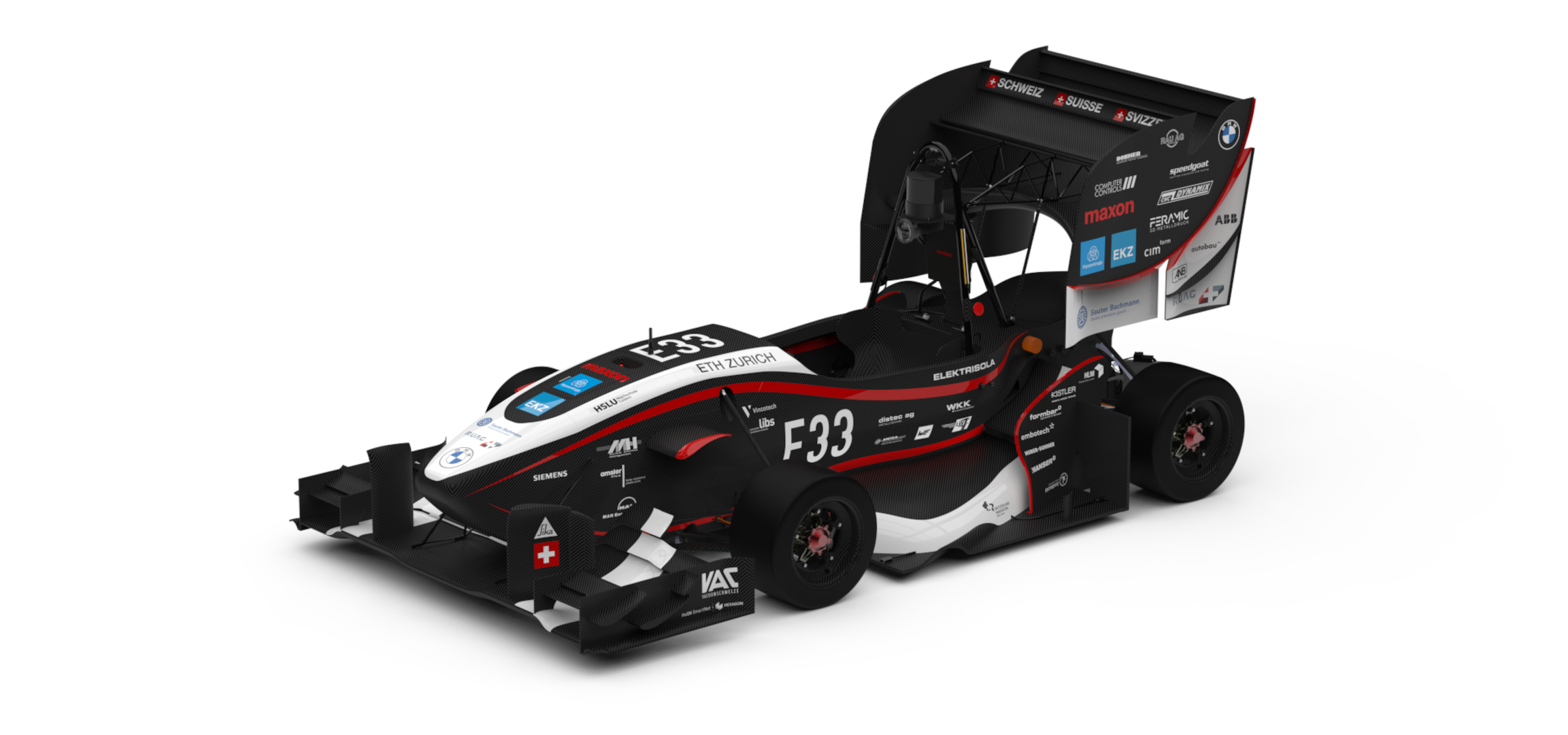

2025

Car #33

Info

342x

Founded in 2006 by ETH Zurich and HSLU students, AMZ Racing initially built three combustion cars before switching to electric in 2010. This season, they unveiled their eighteenth car, aurona. It features self-developed power electronics and motors as well as a sensor setup with sequential sensor-fusion perception. The car also boasts a revolutionary hybrid suspension and a redesigned aerodynamic kit with 3D front and rear wings to enhance grip.

Engineering Design Priorities:

reliability performance maintainability efficiency lightweight data-driven

Car Specifications

General

Frame Construction	CFRP / aluminium honeycomb sandwich structure monocoque
Material	T800 / M46J / M55J fibers with epoxy resin matrix, 5056 aluminium honeycomb
Overall L	2845 mm
Overall W	1500 mm
Overall H	1182 mm
Wheelbase	1530 mm
Track (Fr)	1220 mm
Track (Rr)	1220 mm
Weight with 68kg driver (Fr)	120 kg
Weight with 68kg driver (Rr)	121 kg
Suspension	Double A-Arm, mechanical heave-pitch on each axle, roll & warp hydraulically decoupled
Tyres (Fr / Rr)	16.0'x7.5'-10', Hoosier R20
Wheels (Fr / Rr)	8'x10', 48.75 mm offset, CFRP rim
Drive Type	Self-developed coupled planetary gearbox
Differential	n/a
Cooling	Water Cooling for the Motors and Inverters. Air Cooling for the Accumulator. Two Radiators
Brake System	Floating rotors with 197mm diameter, SLM printed, topology otpimized brake calipers
Electronics	Live Telemetry System, Torque Vectoring & Traction Control

Powertrain

Number of Motors	4
Motor Location	Wheel hubs
Max Motor Power (per motor)	43.5kW kW
Motor Type	PMSM in-runner
Max Motor RPM (highest)	28000 rpm
Motor Controller	Electrophorus Engineering GmbH
Max System Voltage	588V V
Electrode Materials	LiCoO2
Combined Accumulator Capacity	6.838kWh kWh
Transmission Ratio (Primary)	17.99 : 1
Transmission Ratio (Secondary)	n/a : 1

Driverless System

Processing unit(s)	Speedgoat Unit open frame
Floating Point Operations Per Second of all processing units that are working for the DV system	786 GigaFLOPS
Power consumption of all processing units that are working for the DV system	319.5W W
Camera(s)	1x Basler acA2500-20gc, with wide-angle 4.7mm Kowa LM4HC lens
Radar sensor(s)	n/a
Lidar sensor(s)	Hesai OT128
Other sensors	n/a
Highlights of the DV system	Lightweight and redundant sensor setup, birds eye fusion perception, graphSLAM with iSAM 2, nonlinear/linear dynamic bicycle/4-wheel model MPC, Minimum Curvature and Laptime Optimization for Path Planning

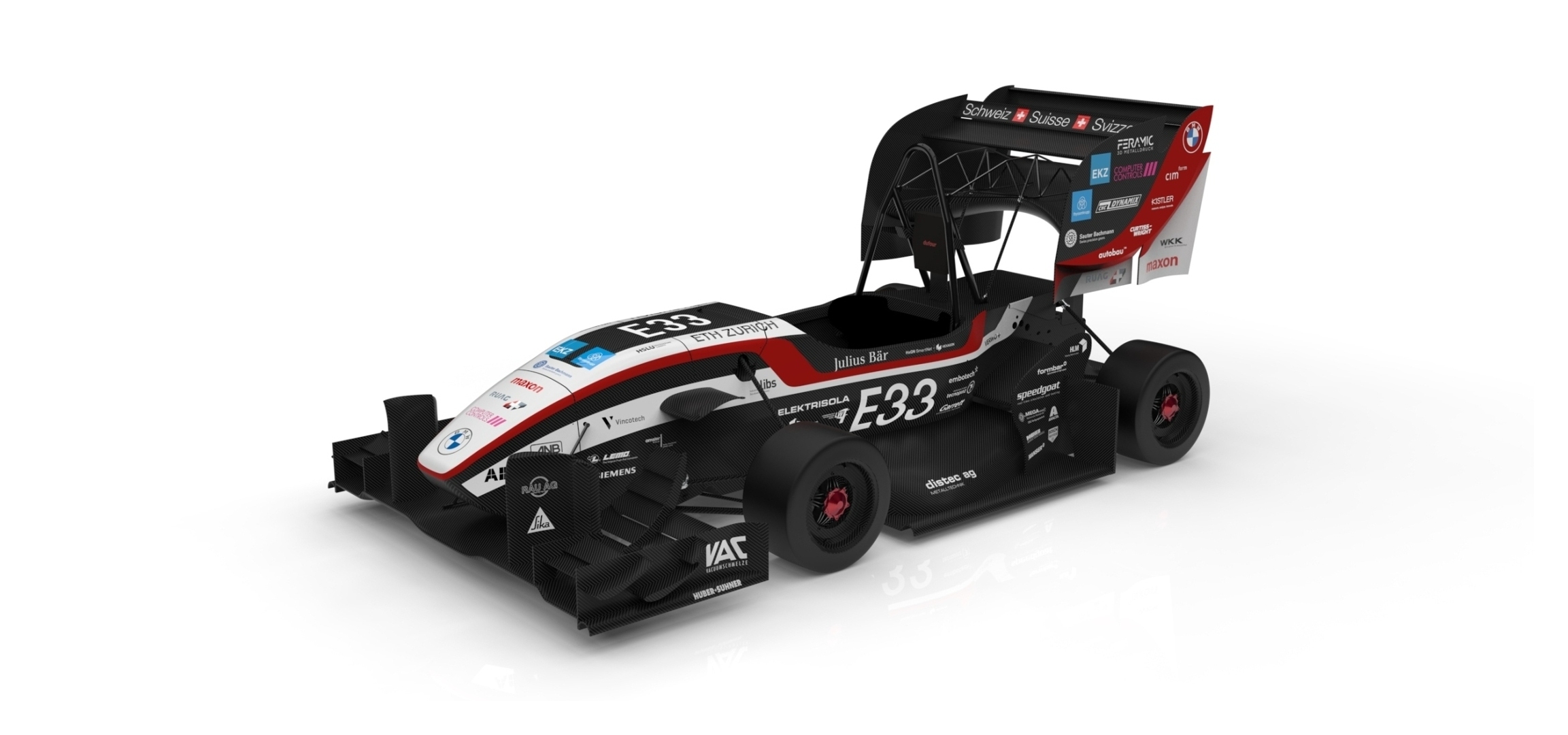

2024

Car #33

Info

299x

Founded in 2006 by ETH Zurich students, AMZ Racing initially built three combustion cars before switching to electric in 2010. This season, they unveiled their seventeenth car, dufour. It features self-developed power electronics and motors, a minimal sensor setup with sequential sensor-fusion perception, and a powered ground effect system. The car also boasts a revolutionary hybrid suspension and a redesigned aerodynamic kit with 3D front and rear wings to enhance grip.

Engineering Design Priorities:

reliability maintainability performance efficiency lightweight

Car Specifications

General

Frame Construction	CFRP / aluminum honeycomb sandwich structure monocoque
Material	T800 / M46J fiber with epoxy resin matrix, 5056 auminum honeycomb
Overall L	2840 mm
Overall W	1500 mm
Overall H	1180 mm
Wheelbase	1530 mm
Track (Fr)	1220 mm
Track (Rr)	1220 mm
Weight with 68kg driver (Fr)	182 kg
Weight with 68kg driver (Rr)	247 kg
Suspension	Double A-arm, mechanical heave-pitch on each axle, roll & warp hydraulically decoupled
Tyres (Fr / Rr)	Hoosier R20
Wheels (Fr / Rr)	8'x10', 54mm offset, CFRP rim
Drive Type	Self-developed coupled planetary gearbox
Differential	N/A
Cooling	Water Cooling for the Motors and Inverters. Air Cooling for the Accumulator. Two Radiators, located
Brake System	Floating rotors with 195.5mm diameter, SLM printed, topology otpimized brake calipers
Electronics	Live Telemetry System, Torque Vectoring & Traction Control

Powertrain

Number of Motors	4
Motor Location	Wheel hub
Max Motor Power (per motor)	43.5 kW
Motor Type	FL,FR,RL,RR: PMSM in-runner
Max Motor RPM (highest)	FL,FR,RR,RL: 28.000 rpm
Motor Controller	Electrophorus Engineering GmbH, b
Max System Voltage	588V V
Electrode Materials	LiCoO2
Combined Accumulator Capacity	6.838 kW kWh
Transmission Ratio (Primary)	18.31 : 1
Transmission Ratio (Secondary)	n/a : 1

Driverless System

Processing unit(s)	Speedgoat Unit open frame
Floating Point Operations Per Second of all processing units that are working for the DV system	786 & 2984 GigaFLOPS
Power consumption of all processing units that are working for the DV system	279.5 W
Camera(s)	1x Basler acA2500-20gc, with wide-angle 4.7mm Kowa LM4HC lens
Radar sensor(s)	N/A
Lidar sensor(s)	Hesai OT128
Other sensors	N/A
Highlights of the DV system	A non-linear model predictive controller with a dynamic model and sensor fusion combine camera and lidar data.

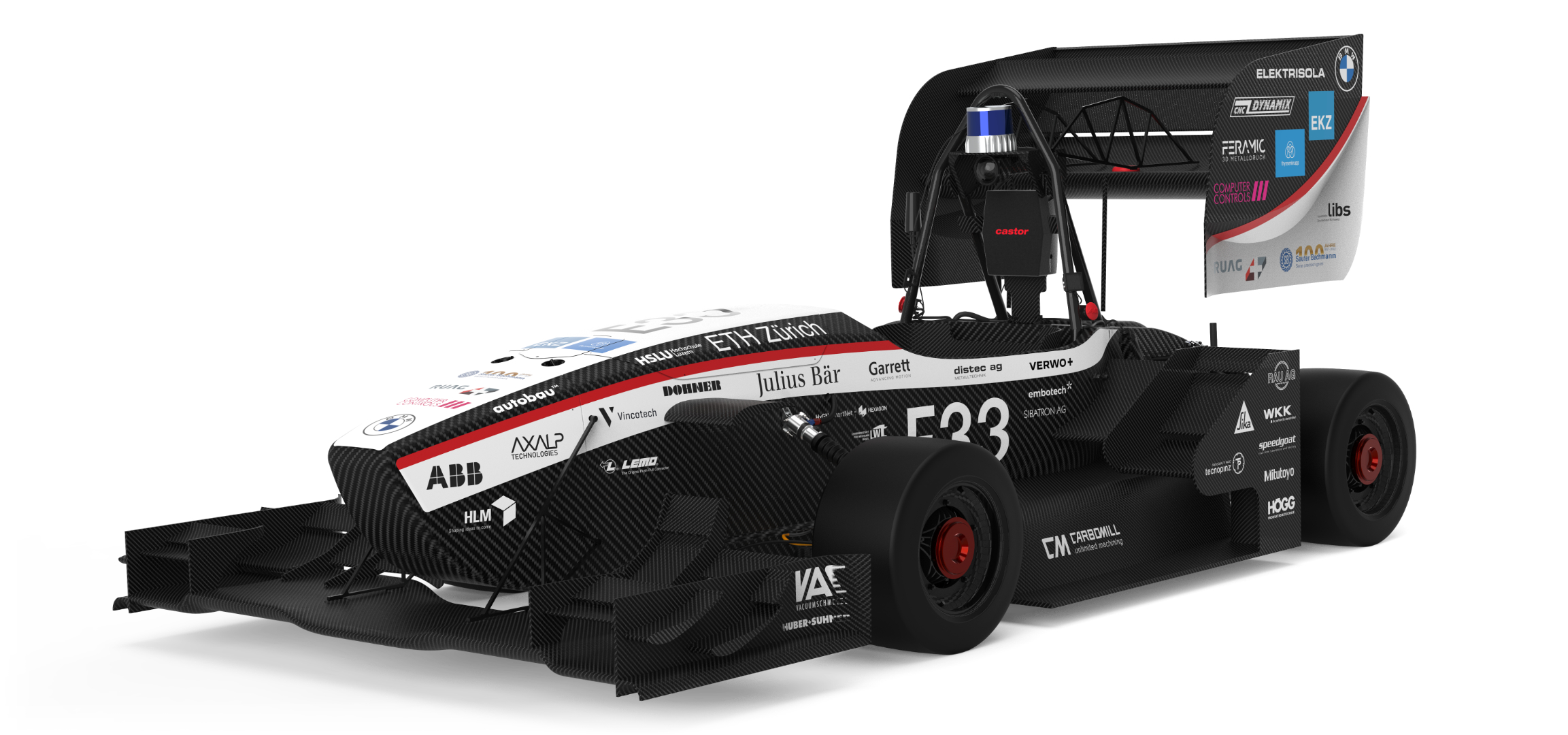

2023

Car #33

Info

192x

The AMZ Racing team was founded in 2006 by students of ETH Zurich. Since 2010 AMZ Racing has been developing electric race cars. For this season the AMZ Racing Team built their 16th car, castor. It is powered by self-developed power electronics and motors. A hydraulic roll and warp-decoupled suspension is also implemented on the car. The aerodynamic kit increases grip with the help of a 3D front wing main element and tire wake control features. The car features a fully integrated driverless kit.

Engineering Design Priorities:

Reliability Performance Maintainability Performance Efficiency Leightweight

Car Specifications

General

Frame Construction	Single-piece CFRP monocoque
Material	T800S/M46J fibers & 5056 honeycomb
Overall L	2840 mm
Overall W	1500 mm
Overall H	1180 mm
Wheelbase	1530 mm
Track (Fr)	1220 mm
Track (Rr)	1220 mm
Weight with 68kg driver (Fr)	123 kg
Weight with 68kg driver (Rr)	121 kg
Suspension	Double A-Arm, pushrod hydraulically actuated, roll and warp decoupled
Tyres (Fr / Rr)	Hoosier R20 16.0x7.5-10
Wheels (Fr / Rr)	8.0x10, 54mm offset, CFRP Rim
Drive Type	Planetary gearset with staged planets
Differential	-
Cooling	Water cooling with SLM printed radiators
Brake System	Floating rotors with 195.5mm diameter, SLM printed brake calipers
Electronics	Live Telemetry System, Torque Vectoring & Traction Control

Powertrain

Number of Motors	4
Motor Location	Wheel Hubs
Max Motor Power (per motor)	4x 43.5kW kW
Motor Type	4x Self-developed AMZ M12
Max Motor RPM (highest)	28000 rpm
Motor Controller	2x Self-developed AMZ I5
Max System Voltage	554V V
Electrode Materials	LiCoO2
Combined Accumulator Capacity	6.447kWh kWh
Transmission Ratio (Primary)	17.86 : 1
Transmission Ratio (Secondary)	-

Driverless System

Processing unit(s)	Speedgoat Unit ECU, AMD Ryzen V1000, GeForce GTX1650
Floating Point Operations Per Second of all processing units that are working for the DV system	4814 GigaFLOPS
Power consumption of all processing units that are working for the DV system	133 W
Camera(s)	1x Basler acA2500-20gc
Radar sensor(s)	-
Lidar sensor(s)	1x Ouster OS2-32
Other sensors	2x IMU, Dual-antenna GNSS, Correvit SFII
Highlights of the DV system	Lightweight and redundant sensor setup, sequential fusion perception, iSAM2-based SLAM, 4-wheel model MPC controller, online grip estimation, bayesian optimization-based controller autotuner

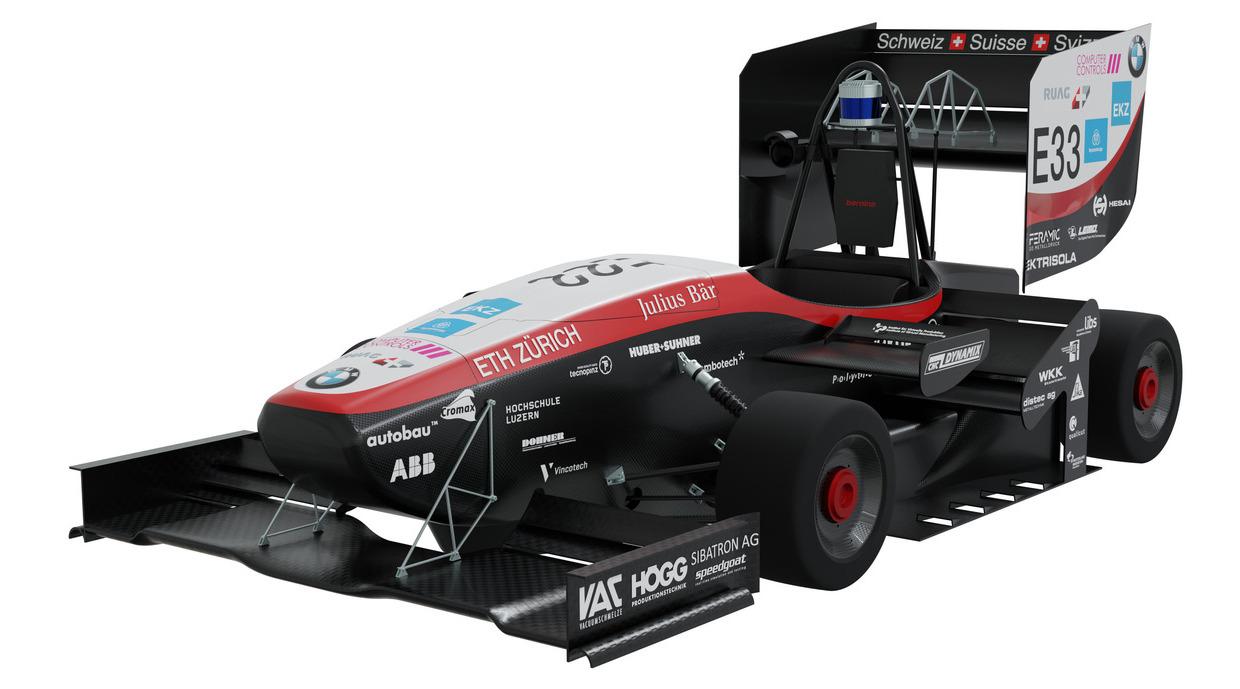

2022

Car #33

Info

113x

The AMZ Racing team was founded in 2006 by students of ETH Zurich. After having built three cars powered by combustion engines, AMZ has moved forward to developing electric racing cars since 2010. For this season the AMZ electric Team built their fifteenth car, bernina.

Engineering Design Priorities:

Reliability Lightweight Maintenance performance

Car Specifications

General

Frame Construction	Single piece carbon fibre reinforced polymer (CFRP) Monocoque
Material	CFRP&AFRP(Plain/Twill/UD), aluminium honeycomb core with variable thickness
Overall L	2850 mm
Overall W	1500 mm
Overall H	1180 mm
Wheelbase	1530 mm
Track (Fr)	1220 mm
Track (Rr)	1200 mm
Weight with 68kg driver (Fr)	132 kg
Weight with 68kg driver (Rr)	123 kg
Suspension	Double A-Arm, pushrod hydraulically actuated, roll and warp decoupled
Tyres (Fr / Rr)	Hoosier 16.0'x7.5'-10' LC0 / Hoosier 16.0'x7.5'-10' LC0
Wheels (Fr / Rr)	Hoosier 16.0'x7.5'-10' LC0 / Hoosier 16.0'x7.5'-10' LC0
Drive Type	/
Differential	/
Cooling	Rear mounted additively manufactured raidator with 8-inch (20.32cm) fans
Brake System	4-Disk system, self developed rotors with 245mm diameter, adjustable brake balance, RIT de
Electronics	Multifunctional Steering Wheel,4WD Torque Vectoring Optimisation Algorithm,

Powertrain

Number of Motors	4
Motor Location	Front Right, Front Left,
Max Motor Power (per motor)	40kW, 40W, 40kW, 40kW kW
Motor Type	AMZ M11(11th generation self-developed)
Max Motor RPM (highest)	28000 rpm
Motor Controller	AMZ I4 (4th generation self-dev.)
Max System Voltage	559V V
Electrode Materials	Lithium-ion-Pouch construction
Combined Accumulator Capacity	6.495kWh kWh
Transmission Ratio (Primary)	17.26 : 1
Transmission Ratio (Secondary)	/ : 1

Driverless System

Processing unit(s)	AMD V1807B CPU + GTX 1060 GPU
Floating Point Operations Per Second of all processing units that are working for the DV system	4929 GigaFLOPS
Power consumption of all processing units that are working for the DV system	200 W
Camera(s)	Basler 5MP Camera with Kowa 4.7mm Lens providing 106° field-of-view
Radar sensor(s)	/
Lidar sensor(s)	Hesai Pandar 64-beam LiDAR
Other sensors	/
Highlights of the DV system	Model Predictive Controller using a spatial (for autoX) and temporal (for trackdrive) discretized curvilinear abscissa formulation with a non-linear 4-wheel model

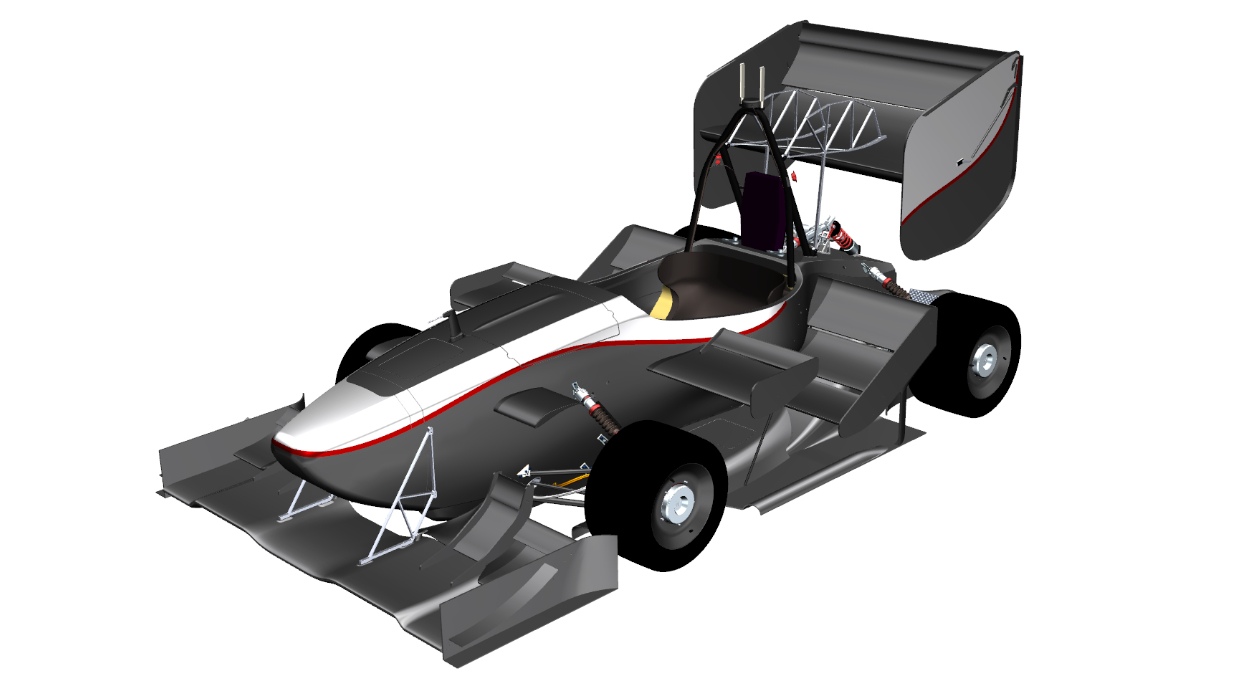

2021

Car #33

Info

94x

For this season the AMZ electric Team built their fourteenth car alvier. It is powered by completely self-developed power electronics and motors. Furthermore it is the first race car built by AMZ featuring an active rideheight. Additionally, an improved hydraulic roll and warp decoupled suspension is implemented on the car. A full aerodynamic kit increases grip with the help of a 3D front wing main element and tire wake control features.

Engineering Design Priorities:

powerful efficient reliable innovative

Car Specifications

General

Frame Construction	Single piece carbon fibre reinforced polymer (CFRP) monocoque
Material	CFRP & AFRP (Twill/UD), aluminum honeycomb core with variable thickness
Overall L	2858 mm
Overall W	1500 mm
Overall H	1208 mm
Wheelbase	1530 mm
Track (Fr)	1220 mm
Track (Rr)	1220 mm
Weight with 68kg driver (Fr)	114 kg
Weight with 68kg driver (Rr)	120 kg
Suspension	double a-arm, push rod, hydraulically actuaded, roll and warp decoupled
Tyres (Fr / Rr)	16.0x7.5-10.0, Hoosier LC0
Wheels (Fr / Rr)	8 x 10, 63mm offset, self developed CFRP Rim with aluminum inserts
Drive Type	self developed planetary gearset with st
Differential	N/A
Cooling	rear motors & controllers water cooled, front motors aircooled, 2 radiators behind the rear a-arms
Brake System	4-Disk system, self developed rotors, 196mm diameter, adjustabe brake balance, SLM caliper
Electronics	Optical AMS,multifunctional steering wheel with flex PCB with 10 buttons 4 rotary switches

Powertrain

Number of Motors	4
Motor Location	FR, FL, RR, RL
Max Motor Power (per motor)	39.25kW x 4 kW
Motor Type	AMZ M10
Max Motor RPM (highest)	28000 rpm
Motor Controller	self-developed AMZ I3 controller
Max System Voltage	558V V
Electrode Materials	LiPo
Combined Accumulator Capacity	6.5kWh kWh
Transmission Ratio (Primary)	1:17.18 : 1
Transmission Ratio (Secondary)	N/A : 1

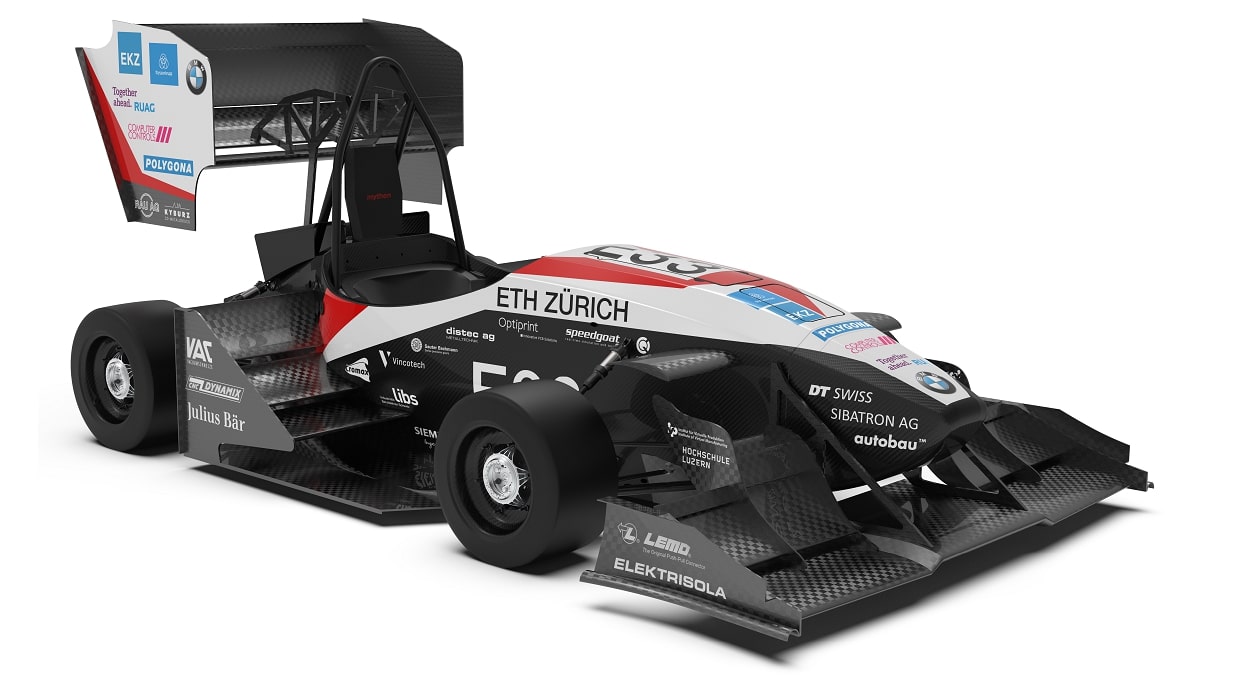

2019

Car #33

Info

63x

The AMZ Racing Team was found in 2006 by students of the ETH Zurich.All cars in AMZ history are named after Swiss alpine passes or mountains such as flüela, gotthard, pilatus, eiger and the this year’s car mythen. mythen features a completly self-developed drivetrain (SLM upright, motors in the 9th generation, gearbox, controller, electronics and accumulator), a warp and roll decoupled hydraulic suspension, a single piece CFRP monocoque, CFRP rims, RWS and wind tunnel validated aerodynamics.

Engineering Design Priorities:

Motor controller I2 Motor M9 Warp decoupled suspension Upright SLM & cooling Aerodynamic devices Data analysis

Car Specifications

General

Frame Construction	CFRP single piece monocoque
Material	CFRP pre-preg (Twill, UD), aluminum honeycomb and Rohacell core
Overall L	2851 mm
Overall W	1538 mm
Overall H	1189 mm
Wheelbase	1530 mm
Track (Fr)	1210 mm
Track (Rr)	1210 mm
Weight with 68kg driver (Fr)	107 kg
Weight with 68kg driver (Rr)	119 kg
Suspension	warp and roll decoupled hydraulic suspension
Tyres (Fr / Rr)	Hoosier 16.0x7.5-10 R25B
Wheels (Fr / Rr)	8x10.42 mm offset, CFRP hub, aluminum star
Drive Type	self-developed planetary gearset
Differential	N/A
Cooling	passive CFD optimized radiatorcooling
Brake System	4-Disk system, self developed SLM bracke calipers
Electronics	optical AMS, live telemetry, Multifunctional Steering Wheel

Powertrain

Number of Motors	4
Motor Location	FR, FL, RR, RL
Max Motor Power (per motor)	37 kW x4 kW
Motor Type	self-developed AMZ M9 PMSM in-runners
Max Motor RPM (highest)	24000 rpm
Motor Controller	self-developed AMZ I2 controller
Max System Voltage	546V V
Electrode Materials	LiCoO2
Combined Accumulator Capacity	6.35 kWh kWh
Transmission Ratio (Primary)	1:15.98 : 1
Transmission Ratio (Secondary)	N/A : 1

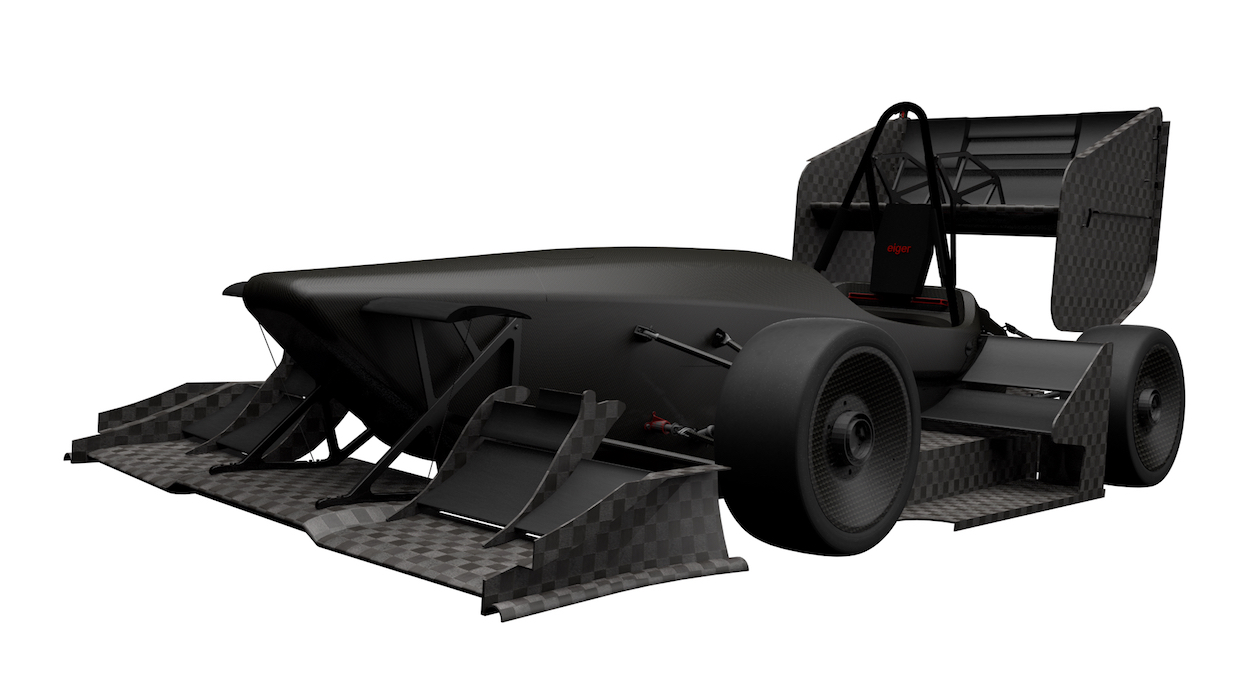

2018

Car #33

Info

105x

The AMZ Racing team was founded in 2006 by students of ETH Zurich. After three combustion cars, the AMZ switched to electric racing cars in 2010 and started an ongoing collaboration with the University of Lucerne. The active team counts approximately 35 people, backed by the crucial support of their alumni. In 2017, AMZ finished the season at the top of FSE rankings, but also grew up to the challenge as „official“ raclette (swiss molten cheese) provider of FSG, FSA and FSS.

Engineering Design Priorities:

powerful efficient innovative

Car Specifications

General

Frame Construction	CFRP one-piece monocoque
Material	intermediate modulus CFRP prepreg (twill & UD) with aluminium honeycomb core
Overall L	2929 mm
Overall W	1463 mm
Overall H	1188 mm
Wheelbase	1530 mm
Track (Fr)	1220 mm
Track (Rr)	1220 mm
Weight with 68kg driver (Fr)	115 kg
Weight with 68kg driver (Rr)	125 kg
Suspension	double A-arm, hydraulically actuated pullrod,
Tyres (Fr / Rr)	205/470 R13; custom C18 Continental tyre (Fr & Rr)
Wheels (Fr / Rr)	7'', CFRP rim, 53 mm wheel offset (Fr & Rr)
Drive Type	planetary gear with staged planets
Differential	N/A
Cooling	single serial cooling circuit with two radiators actively cooled by two fans, mounted on the back
Brake System	self developed, one piece, 3D printed callipers, 227 mm floating rotors
Electronics	in-house optical AMS, live telemetry system, CAN communication, self developed CAN modules

Powertrain

Number of Motors	4
Motor Location	FL, FR, RL, RR
Max Motor Power (per motor)	4x 41.9 kW kW
Motor Type	AMZ M8, self developed, PMSM inrunner
Max Motor RPM (highest)	24'000 RPM rpm
Motor Controller	AMZ I1, self developed inverters
Max System Voltage	470V V
Electrode Materials	LiPo
Combined Accumulator Capacity	5.5 kWh kWh
Transmission Ratio (Primary)	17.75 : 1
Transmission Ratio (Secondary)	N/A : 1

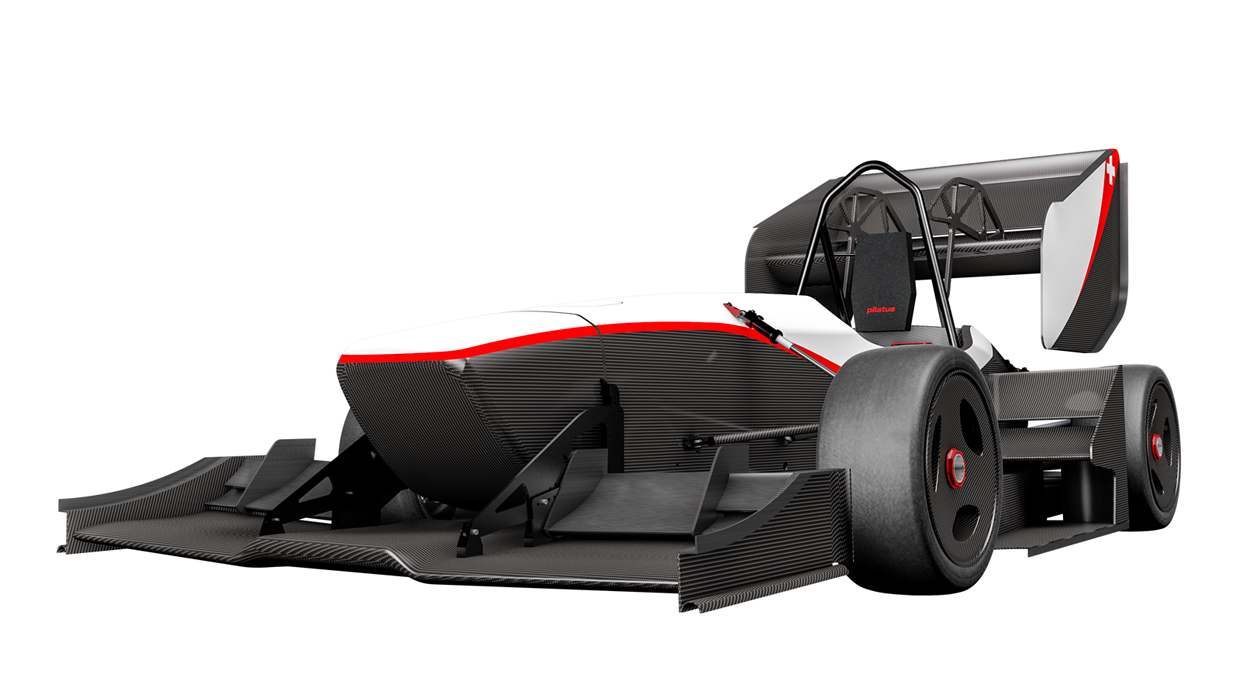

2017

Car #33

Info

68x

The AMZ Racing team was founded in 2006 by students of ETH Zurich. After three combustion cars, the AMZ switched to electric racing cars in 2010 and started an ongoing collaboration with the University of Lucerne. The active team counts approximately 35 people, backed by the crucial support of their alumni. AMZ grew up to the new challenge as „official“ raclette (swiss molten cheese) provider of FSG, FSA and FSS.

Engineering Design Priorities:

powerful lightweight efficient

Car Specifications

General

Frame Construction	CFRP one-piece monocoque
Material	high modulus CFRP-prepreg (twill and UD) with aluminium honeycomb core
Overall L	2932 mm
Overall W	1422 mm
Overall H	1156 mm
Wheelbase	1530 mm
Track (Fr)	1220 mm
Track (Rr)	1220 mm
Weight with 68kg driver (Fr)	118 kg
Weight with 68kg driver (Rr)	120 kg
Suspension	double A-arms, hydraulic actuated, mode decoupled
Tyres (Fr / Rr)	205/470 R13 - Continental C17 (Fr and Rr)
Wheels (Fr / Rr)	7''x13'', 24.6 mm offset, CFRP rim (Fr and Rr)
Drive Type	planetary gear with staged planets
Differential	N/A
Cooling	Single serial cooling circuit with two radiators actively cooled by two fans, mounted on the back
Brake System	Self developed callipers, CMC rotors, 190mm diameter floating rotors, adjustable brake
Electronics	in-house optical BMS, live telemetry system, CAN communication, self developed can modules

Powertrain

Number of Motors	4
Motor Location	wheelhub mounted
Max Motor Power (per motor)	4x 38.44 kW kW
Motor Type	AMZ M6, self-developed brush-less inrunner
Max Motor RPM (highest)	24000 rpm
Motor Controller	1 Lenze-Schmidhauser Dual DCU
Max System Voltage	462V V
Electrode Materials	LiPo
Combined Accumulator Capacity	6.19kWh kWh
Transmission Ratio (Primary)	18.28 : 1
Transmission Ratio (Secondary)	N/A : 1

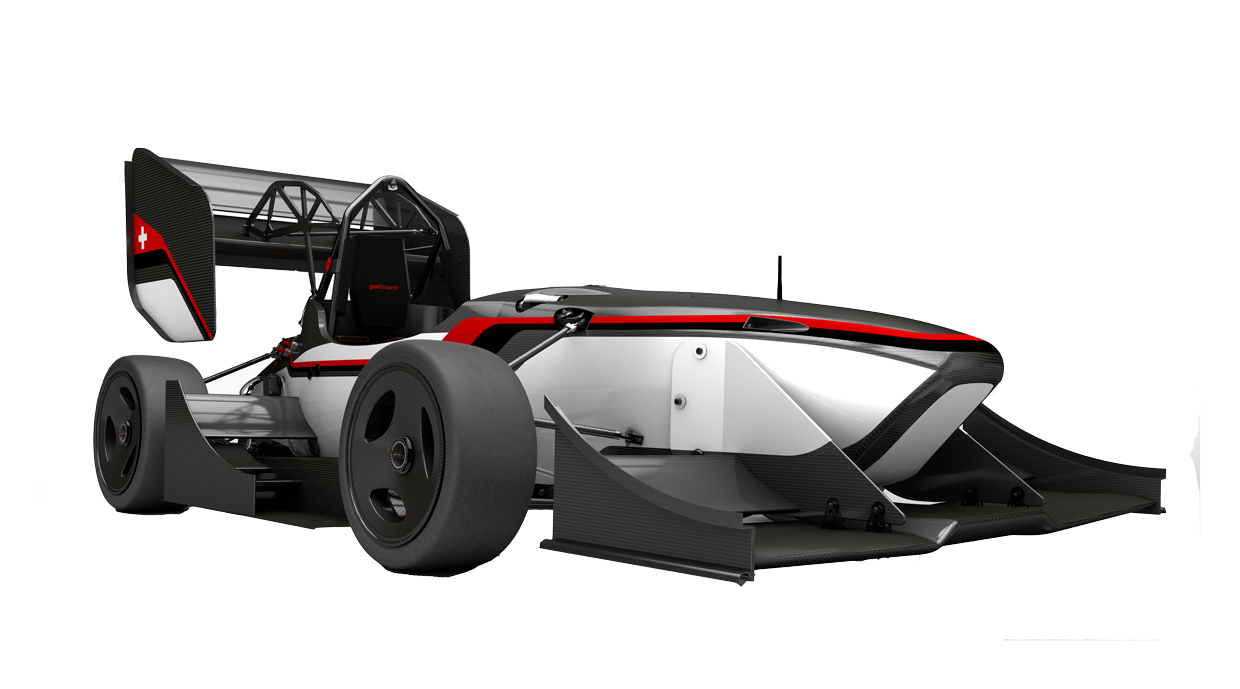

2016

Car #33

Info

67x

The AMZ Racing team was founded in 2006 by students of ETH Zurich. After three combustion cars, the AMZ switched to electric racing cars in 2010 and started an ongoing collaboration with the University of Lucerne. The active team counts approximately 35 people, backed by the crucial support of their alumni. In 2015 AMZ was able to defend its position at the top of FSE rankings but also grew up to the new challenge as "official" raclette (swiss molten cheese) provider of FSG, FSA and FSS.

Engineering Design Priorities:

power lightweight efficiency tire performance

Car Specifications

General

Frame Construction	CFRP one-piece monocoque
Material	Intermediate and high modular CFRP-prepreg (twill and UD) with aluminium honeycomb core
Overall L	2943 mm
Overall W	1425 mm
Overall H	1149 mm
Wheelbase	1530 mm
Track (Fr)	1220 mm
Track (Rr)	1220 mm
Weight with 68kg driver (Fr)	120 kg
Weight with 68kg driver (Rr)	123 kg
Suspension	Double A-Arm Pushrod actuated by spring with self developed air chamber and adaptive damper.
Tyres (Fr / Rr)	205/470 R13 - custom Continental tire
Wheels (Fr / Rr)	205/470 R13 - custom Continental tire
Drive Type	planetary gear with staged planets
Differential	none
Cooling	Single serial cooling circuit with two radiators actively cooled by two fans, mounted on the back
Brake System	Self developed rotors, callipers & pads, 190mm diameter floating rotors, adjustable brake balance
Electronics	in-house optical BMS, live telemetry system, CAN communication via self developed mini can modules

Powertrain

Number of Motors	4
Motor Location	wheelhub mounted
Max Motor Power (per motor)	4x39.4kW kW
Motor Type	AMZ M6, self-developed brush-less inrunner
Max Motor RPM (highest)	19.200 rpm
Motor Controller	Lenze Schmidhauser Dual DCU
Max System Voltage	475V V
Electrode Materials	LiPo
Combined Accumulator Capacity	6.35kWh kWh
Transmission Ratio (Primary)	1:14.37 : 1
Transmission Ratio (Secondary)	-

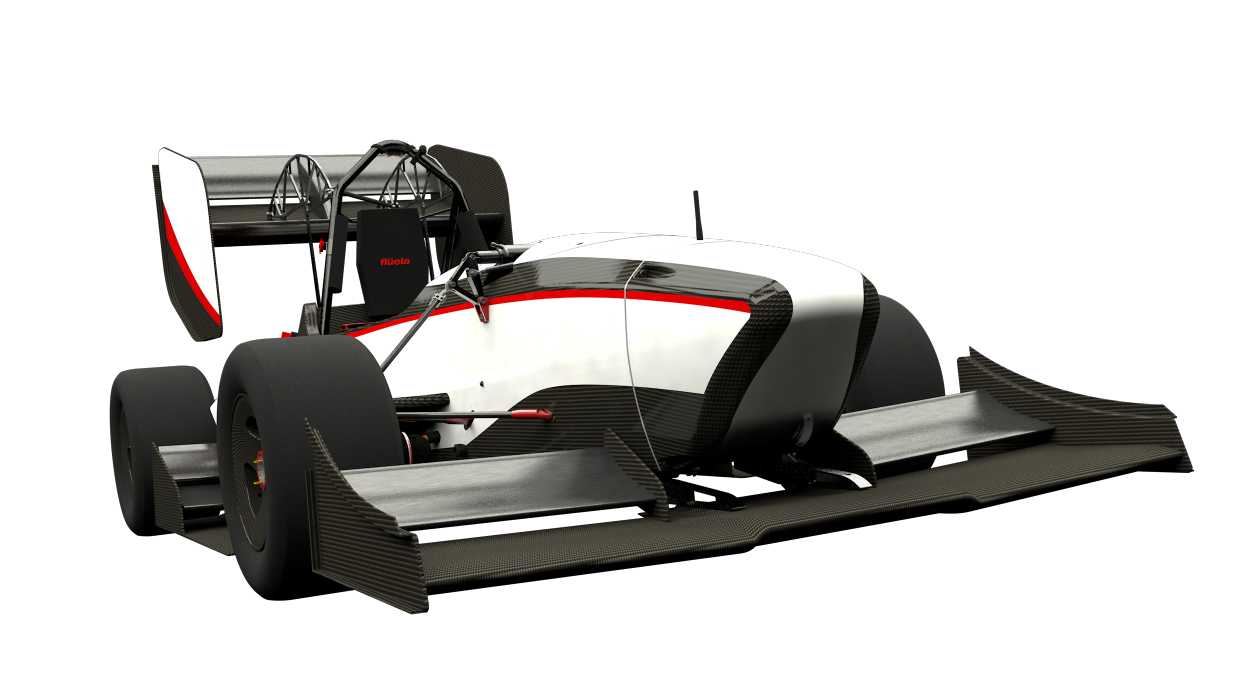

2015

Car #33

Info

34x

The AMZ Racing team was founded in 2006 by students of ETH Zurich. After three combustion cars, the AMZ switched to electric racing cars in 2010 and started an ongoing collaboration with the University of Lucerne. The active team counts approximately 35 people, backed by the crucial support of their alumni. In 2014 the AMZ was not only able to achieve its most successful season so far but also grew up to the new challenge as "official" raclette (swiss molten cheese) provider of FSG, FSA and FSS.

Engineering Design Priorities:

powerful lightweight efficient 1.785s FasterThanFormulaE farewelldownforce

Car Specifications

General

Frame Construction	CFRP single piece monocoque with integrated suspension brackets
Material	Intermediate and high modular CFRP-prepreg (twill and UD) with aluminium honeycomb core
Overall L	2870 mm
Overall W	1438 mm
Overall H	1139 mm
Wheelbase	1530 mm
Track (Fr)	1200 mm
Track (Rr)	1188 mm
Weight with 68kg driver (Fr)	111 kg
Weight with 68kg driver (Rr)	125 kg
Suspension	Double A-Arm Pushrod actuated by spring with self developed air chamber and adaptive damper.
Tyres (Fr / Rr)	465 x 191-254 Hoosier R25B (both)
Wheels (Fr / Rr)	10'' self developed single piece carbon rim, centerlocked (both)
Drive Type	planetary gear with staged planets
Differential	None
Cooling	Single serial cooling circuit with two radiators mounted in the sidepods.
Brake System	Self developed floating rotors, 190mm diameter, adjustable brake balance
Electronics	self programmed VCU and telemetry system, CAN communication via self developed mini can modules

Powertrain

Number of Motors	4
Motor Location	wheelhub mounted
Max Motor Power (per motor)	4x 37kW kW
Motor Type	AMZ M5, self-developed brush-less inrunner
Max Motor RPM (highest)	20.000 rpm
Motor Controller	Lenze Schmidhauser Dual DCU
Max System Voltage	470 V
Electrode Materials	LiPo
Combined Accumulator Capacity	6.46kWh kWh
Transmission Ratio (Primary)	14.5:1 : 1
Transmission Ratio (Secondary)	-

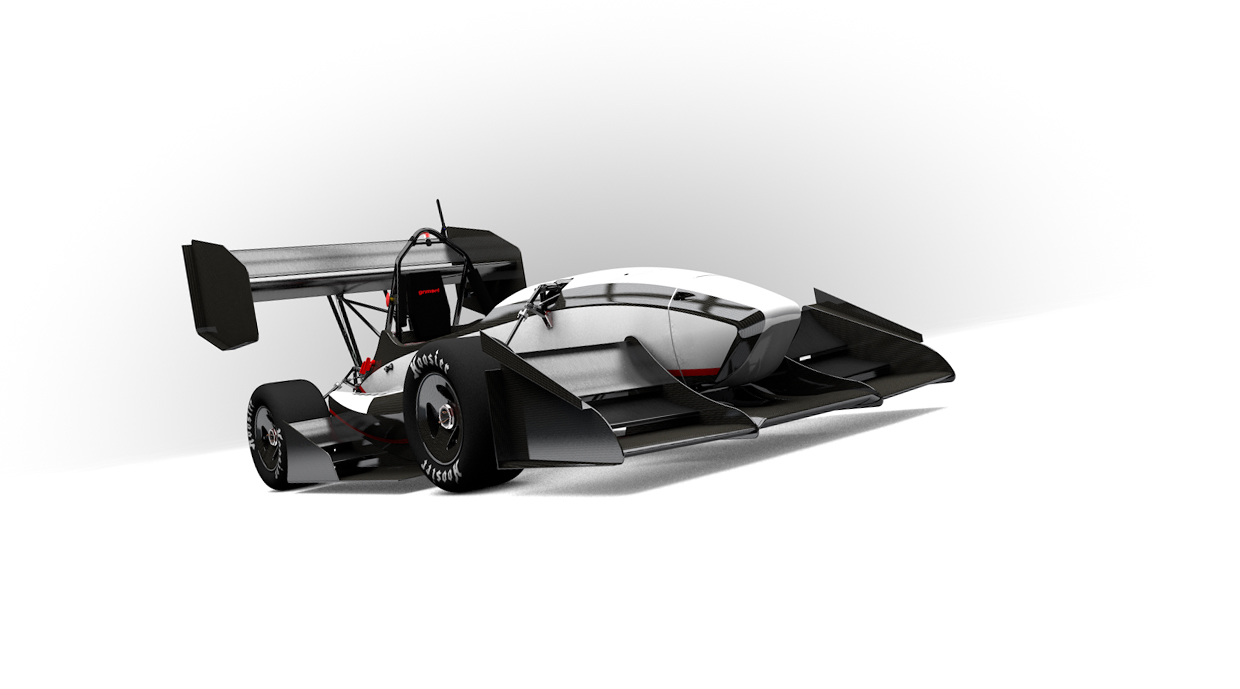

2014

Car #33

Info

78x

The AMZ Racing team was founded in 2006 by students from the ETH Zurich and Hochschule Luzern. Nowadays, students of several universities come together to represent Switzerland, forming the "Swiss National Team".After three years with combustion cars, the team switched to electric driven cars in 2010. "grimsel" is the fifth electric car, powered by four AMZ M4 motors, a single piece CFRP Monocoque, DRS and an adaptive damping system.P.S. We will trade in swiss chocolate for beer.

Car Specifications

General

Frame Construction	Single- Piece CFRP Monocoque
Material	Prepreg Carbon (twill and unidirectional) and aluminium honeycomb with various thicknesses
Overall L	2904 mm
Overall W	1411 mm
Overall H	1161 mm
Wheelbase	1535 mm
Track (Fr)	1190 mm
Track (Rr)	1150 mm
Weight with 68kg driver (Fr)	114 kg
Weight with 68kg driver (Rr)	124 kg
Suspension	Double unequal Length Double A-Arm. Push rod actuated progressive spring and adaptive damper.
Tyres (Fr / Rr)	18.0x7.5-10 Hoosier R25B
Wheels (Fr / Rr)	7.5 inches single-piece CFRP Rim
Drive Type	1.5-stage planetary gear
Differential	None
Cooling	Single cooling circuit, two sidepod mounted radiators, one pump.
Brake System	Steel, floating, hub mounted, 190mm dia, drilled, adjustable brake balance
Electronics	Self programmed VCU and telemetry system, parameter

Powertrain

Number of Motors	4
Motor Location	One at every wheel
Max Motor Power (per motor)	4*37 kW
Motor Type	AMZ M4
Max Motor RPM (highest)	19200 rpm
Motor Controller	Lenze Schmidhauser Dual DCU
Max System Voltage	470 V
Electrode Materials	LiPo
Combined Accumulator Capacity	6.46kWh kWh
Transmission Ratio (Primary)	1:13.57 : 1

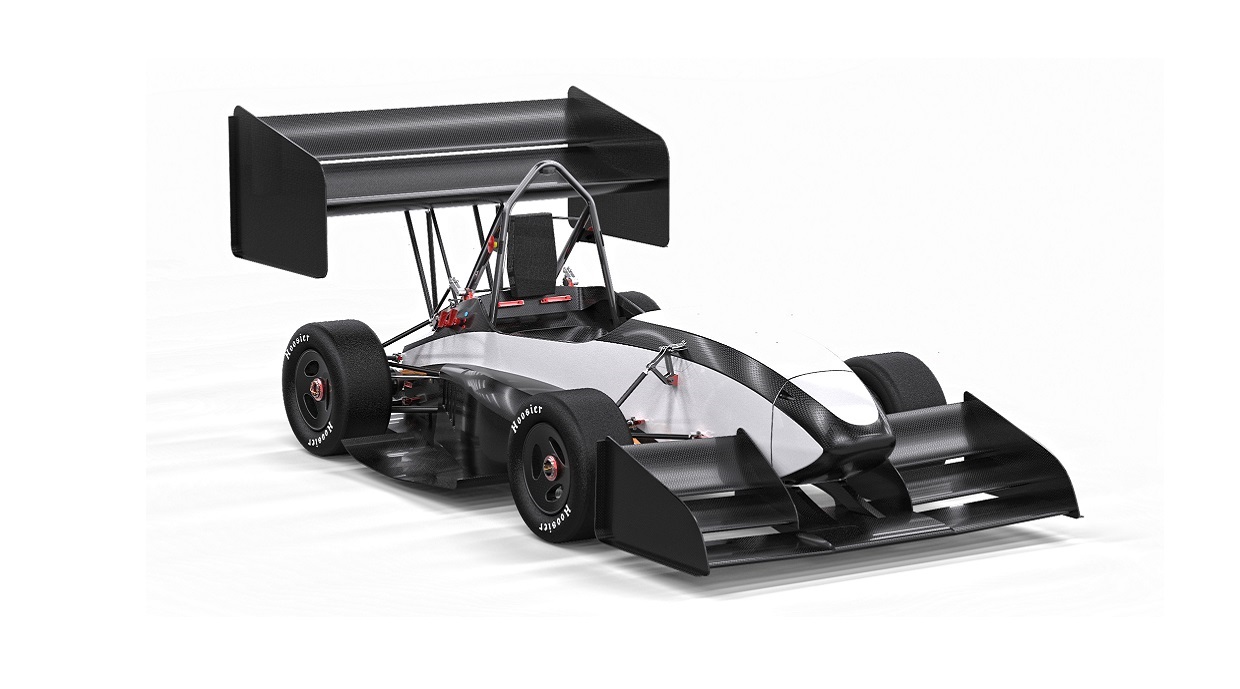

2013

Car #33

Info

90x

Founded in 2007, the AMZ is still the "Swiss National Team" of Formula Student. Students of several universities come together to represent Switzerland. After two successful seasons in 2011 and 2012, the team improved the whole car, screw by screw. Keypoints of "julier" are a very lightweight single-piece CFRP monocoque (13kg) and four self-developed motors(AMZ M3) which are placed in each wheel. The suspension layout consists of 10inch carbon rims, a self-designed steering system and tailor made air springs. After the successful introduction of the aerodynamics in 2012, the new car features a completely new package to further improve the performance. We are looking forward to compete in FSE 2013!

Car Specifications

General

Frame Construction	Single Piece CFRP Monocoque
Material	Prepreg carbon (twill and unidirectional) with various thickness aluminum honeycomb
Overall L	2942 mm
Overall W	1408 mm
Overall H	1169 mm
Wheelbase	1550 mm
Track (Fr)	1200 mm
Track (Rr)	1160 mm
Weight with 68kg driver (Fr)	113 kg
Weight with 68kg driver (Rr)	134 kg
Suspension	Double unequal length A-Arm. Push rod actuated spring / damper. Adj. Rollbar
Tyres (Fr / Rr)	Hoosier 18.0 x 6.0-10
Wheels (Fr / Rr)	6.5 inch wide, 10inch Single Piece CFRP
Drive Type	1.5-stage planetary gear
Differential	none
Cooling	Two Sidepod mounted radiators, independent cooling cycles, one pump each
Brake System	Front: AP-Racing CP 4227 (4pod), Rear: AP-Racing CP 4226 (2pod), Steel discs (190mm), hubmounted
Electronics	Self-programed VCU and Telemetry, adjustments and readouts on steering wheel and dashboard

Powertrain

Number of Motors	4
Motor Location	One at every wheel
Max Motor Power (per motor)	4*37kW kW
Motor Type	AMZ M3
Max Motor RPM (highest)	17000rpm rpm
Motor Controller	Lenze Schmidhauser Dual DCU
Max System Voltage	470V V
Electrode Materials	LiPo
Combined Accumulator Capacity	6.22kWh kWh
Transmission Ratio (Primary)	1:11.68 : 1
Transmission Ratio (Secondary)	-

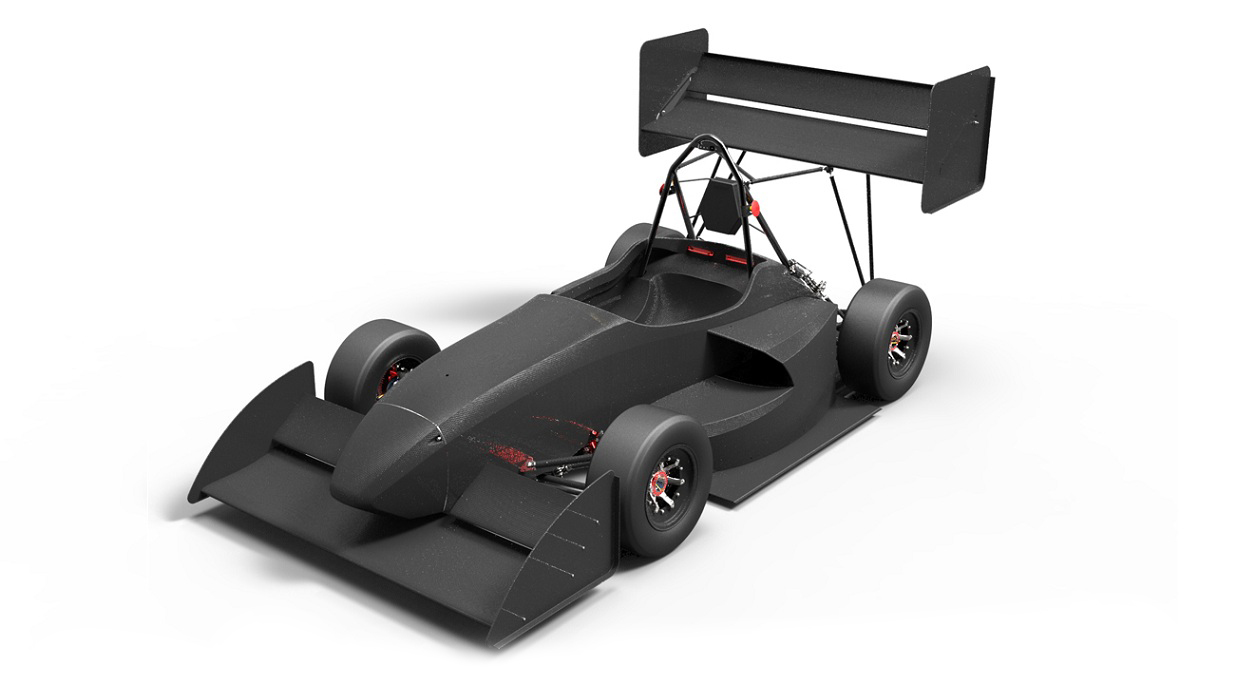

2012

Car #33

Info

6x

As founding member of the Formula Student Electric class, the AMZ has always been aiming to compete with the front-running combustion cars. After a successful season in 2011, the only Swiss team is trying to improve the whole car, screw by screw. The key features of umbrail, the 2012 car, are a very lightweight single-piece CFRP monocoque (14kg with the aluminum front roll hoop) and the self-developed engines (AMZ M2). The whole car shrunk about five centimetres in comparison to last year's car. The new suspension layout consists of 10inch hybrid rims (carbon shells, aluminum centers), a self-designed steering system and tailor made air springs and dampers. Additionally the car is fitted with a complete aerodynamic package to improve longitudinal and lateral acceleration. Nevertheless, the car weighs about 10kg less than its predecessor. A total of 175kg. We are looking forward to competing in FSE 2012 and want to improve last year's performance!

Car Specifications

General

Frame Construction	Single piece CFRP monocoque (prepreg)
Material	200 gsm prepreg carbon (twill and unidirectional) with various thickness aluminum honeycomb
Overall L	2890 mm
Overall W	1408 mm
Overall H	1236 mm
Wheelbase	1550 mm
Track (Fr)	1200 mm
Track (Rr)	1160 mm
Weight with 68kg driver (Fr)	111 kg
Weight with 68kg driver (Rr)	127 kg
Suspension	Double unequal length A-Arm. Pull rod/ Push rod actuated spring / damper. Adj. Roll bar.
Tyres (Fr / Rr)	Hoosier 18.0 x 6.0-10
Wheels (Fr / Rr)	6.5 inch wide, carbon shell, alu. center
Drive Type	Two stage gear box
Differential	no mechanical differential
Cooling	sidepod mounted, water fed radiator with air duct
Brake System	Floating, Steel, hub mounted, 190mm, 4 piston front / 180mm, 2 piston rear, Tilton 77 cylinder,
Electronics	Self-programed VCU and Telemetry, adjustments and readouts on steering wheel and dashboard

Powertrain

Number of Motors	2
Motor Location	Rear Right, Rear Left
Max Motor Power (per motor)	40kW, 40kW kW
Motor Type	AMZ M2
Max Motor RPM (highest)	6800 rpm
Motor Controller	Semikron SKAI 50 A2 MM20-W
Max System Voltage	160V V
Electrode Materials	LiPo
Combined Accumulator Capacity	5,33kWh kWh
Transmission Ratio (Primary)	1:2,143 : 1
Transmission Ratio (Secondary)	1:2,266 : 1

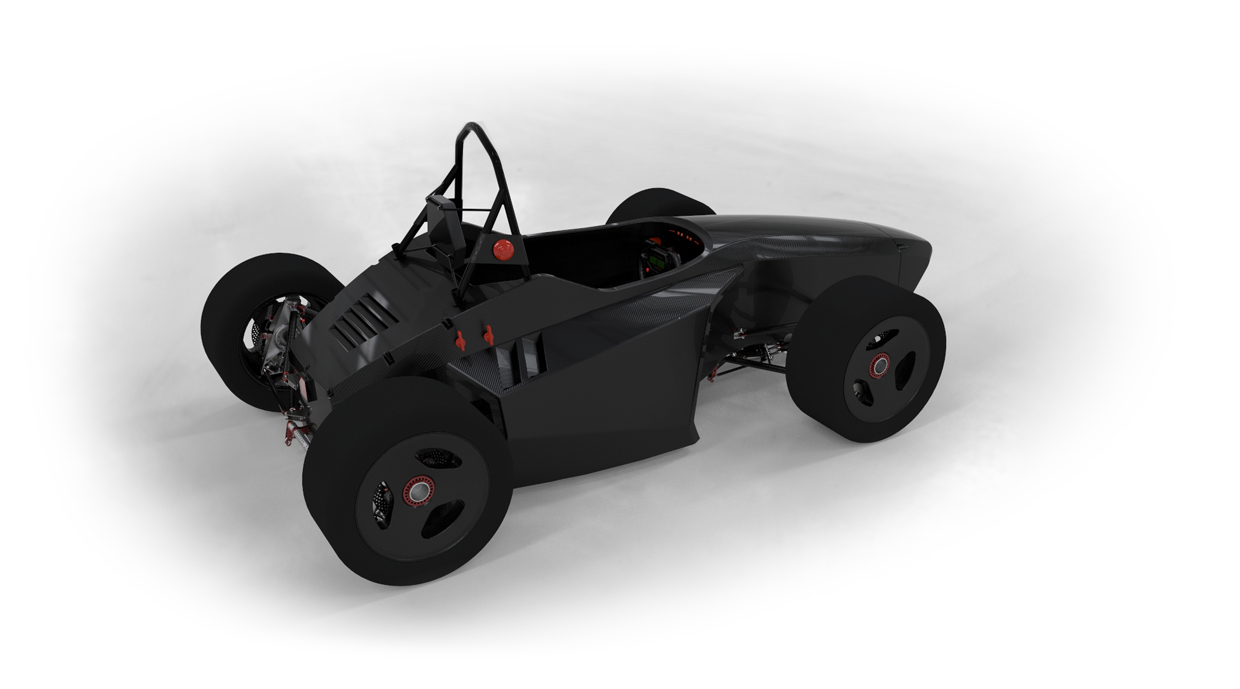

2011

Car #33

Info

1x

Anno domini 2007, AMZ Racing Team started in Formula Student as a newcomer with the 255 kg, 10", four-cylinder racer "albula". Subsequently, our team chose a carbon monocoque as chassis concept and 13" wheels for "maloja" (petrol), "simplon" (E85) and "furka" (our first electric car).2010 was the most successful year in our team history with an overall win in Class 1A, Formula Student Silverstone (957/1000 pts), a first place in Engineering Design at Hockenheim and a 5th place overall and 3rd in Design in Melk, Austria (against 24 IC and 4 electric cars).AMZ's latest creation "novena" is a car that uses all the experience from last year and improves the weakest points of "furka". A strong focus on lightweight construction yielded a 190 kg, 70 kW electric car with 13" carbon rims, a single-piece monocoque and two self-developed electric machines (permanent magnet synchron outrunner). Our goal for 2011 is to be as fast as the best IC cars on the track and win an event.

Car Specifications

General

Frame Construction	Single-piece CFRP prepreg monocoque
Material	200 gsm prepreg carbon (twill and unidirectional) with various thickness aluminum honeycomb
Overall L	2610 mm
Overall W	1430 mm
Overall H	1030 mm
Wheelbase	1550 mm
Track (Fr)	1200 mm
Track (Rr)	1160 mm
Weight with 68kg driver (Fr)	119 kg
Weight with 68kg driver (Rr)	139 kg
Suspension	Double wishbone unequal length carbon A-arms. Pull rod actuated coilover spring and damper.
Tyres (Fr / Rr)	Hoosier R25B 20.5x7.0-13
Wheels (Fr / Rr)	7.5x13 CFRP prepreg 22 mm offset
Drive Type	Dual two-stage gear transmission
Differential	Individual rear wheel drive, aluminium tripod housings, carbon driveshafts with integrated tripods
Cooling	Side-mounted aluminum radiator, serial cooling circuit for controller and motors
Brake System	4-Disk system
Electronics	multi-input / multi-output steering wheel, self developped VCU software

Powertrain

Number of Motors	2
Motor Location	Rear Right, Rear Left
Max Motor Power (per motor)	36 kW, 36 kW kW
Motor Type	RL, RR: AMZ M1
Max Motor RPM (highest)	RL, RR: 6.500 rpm
Motor Controller	Semikron SKAI 35 A2 MM20-W
Max System Voltage	152 V
Electrode Materials	Li - graphite
Combined Accumulator Capacity	7 kWh kWh
Transmission Ratio (Primary)	1:5.12 : 1
Transmission Ratio (Secondary)	n/a : 1

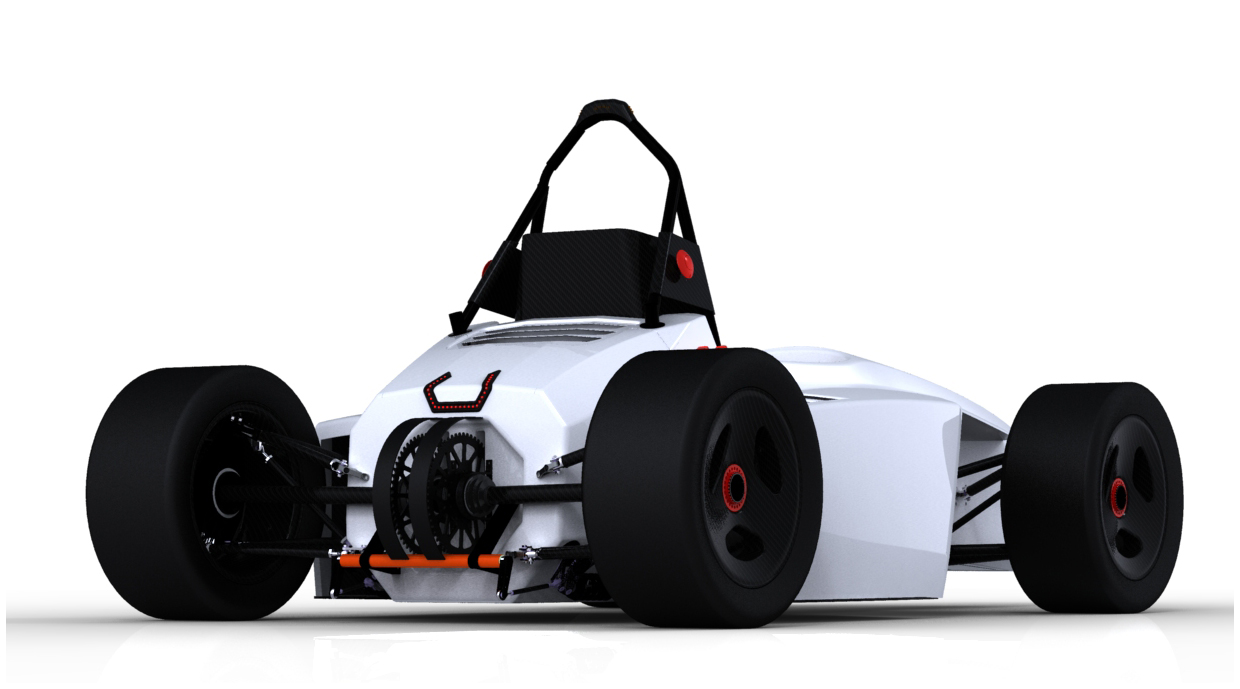

2010

Car #33

Info

17x

After three successful Formula Student cars with combustion engines, the AMZ Racing Team decided in summer 2009 to concentrate on developing an electric car. By designing not only a new drivetrain, but also new chassis and suspension, our goal is to outperform the ICE cars in every dynamic discipline. furka's monocoque is an evolution of our 2009 chassis simplon, with a completely redesigned rear section. The suspension geometry was further optimized with extensive simulation of tire data, while the components' weight was reduced. The LiPo batteries are contained in composite boxes, mounted to the sides of the chassis. Safety is maintained by our selfmade battery management system and the central vehicle control unit. To achieve a high power to weight ratio, two DC motors are used. Each of them is linked to one rear wheel, which allows active torque vectoring and recuperation.

Car Specifications

General

Frame Construction	Full carbon fiber monocoque in prepreg technique, front and rear part with steel roll bars
Material	Sandwich with 4 to 7 layers 200gsm carbon fiber prepreg face sheets and up to 15mm nomex core
Overall L	2720 mm
Overall W	1420 mm
Overall H	1050 mm
Wheelbase	1625 mm
Track (Fr)	1200 mm
Track (Rr)	1150 mm
Weight with 68kg driver (Fr)	134 kg
Weight with 68kg driver (Rr)	146 kg
Suspension	CFRP double unequal length A-Arm, pullrod actuated, four-way adjustable Öhlins spring/damper unit
Tyres (Fr / Rr)	Front: 20,5 x 7,0 R13, Hoosier 25B. Rear: 20,0 x 7,5 R13, Hoosier 25B.
Wheels (Fr / Rr)	7,5 x 13 CFRP 3-spoke Rim, -1'' offset
Drive Type	2x 415 chain, split aluminum sprocket
Differential	No mechanical differential, electronically controlled torque vectoring
Cooling	Air-cooled motors, water-cooled controllers with radiator in right side pod
Brake System	4-Disk system, full floating, cast iron, hub-mounted, vented rotors
Electronics	Self-programmed VCU, self-developed mini CAN modules, BMS and multifunctional steering wheel.

Powertrain

Number of Motors	2
Motor Location	Inside rear monocoque
Max Motor Power (per motor)	2x 30 kW kW
Motor Type	Agni 95R
Max Motor RPM (highest)	6.000 rpm
Motor Controller	2x Kelly KDH12101E
Max System Voltage	126V V
Electrode Materials	LiPo
Combined Accumulator Capacity	8,7 kWh
Transmission Ratio (Primary)	1:1 : 1
Transmission Ratio (Secondary)	1:5,3 : 1
