Team Details

DHBW Engineering Stuttgart

University Duale Hochschule Baden-Württemberg Stuttgart
DE Stuttgart DHBW short 138
LocationStuttgart, Germany
Homepagehttps://dhbw-engineering.de
Social Media
DV Team DHBW Engineering Stuttgart e.V.
EV Team DHBW Engineering Stuttgart e.V.
Short Linktid.fsg.one/141

Past Events

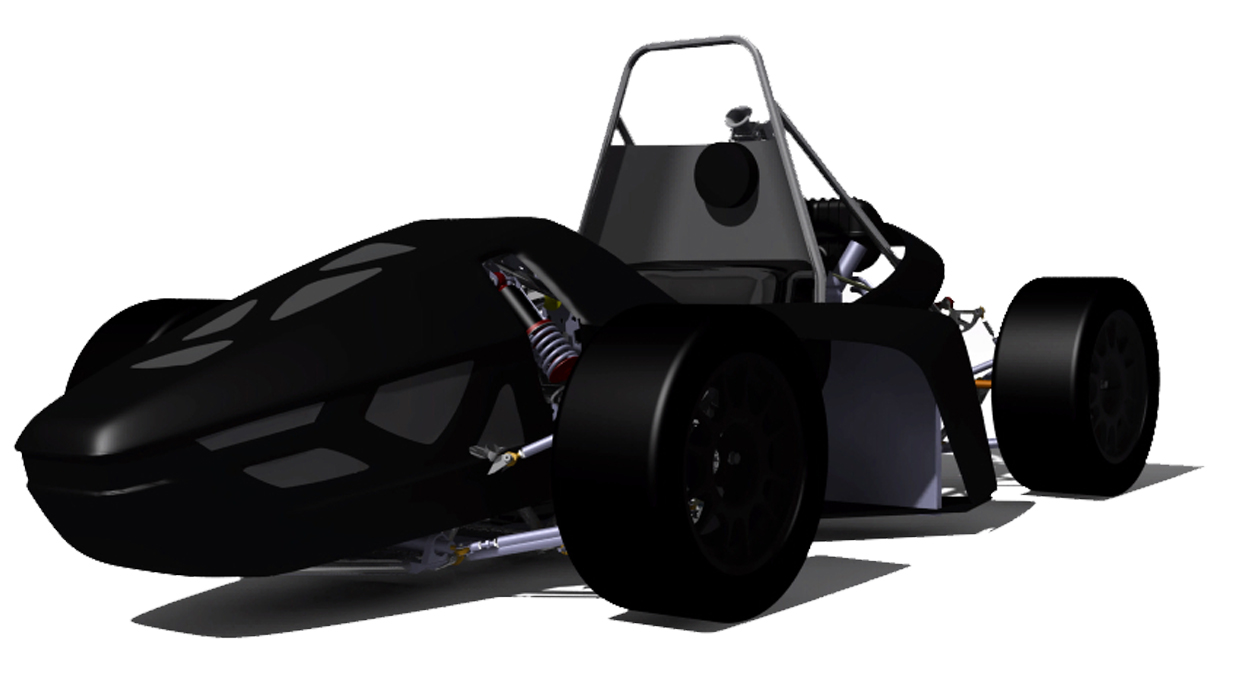

Car 55 – 2011
2011
Car #55
Info
7x
Our team consists of students from the Cooperative State University Stuttgart and was founded in 2008. The first challenge on a racetrack was here in Hockenheim in 2009 where we gathered a lot of experience. One year later, we came back to Hockenheim with our second car called "Sleek10" – approximately 60 kg lighter than its older brother "Sleek09". Unfortunately, heavy rain during the endurance-event made it impossible to show the potential of "Sleek10" on a longrun. This year we built a completely new car, saved another 30 kg and now we are looking forward to showing the speed of our new "Sleek11" not only in the statics, but especially on the track to make our motto "Sleek11 – the achievements of the previous years united in one car" come true. "Sleek11" is powered by a Honda CBR600RR 4R-engine with 85 hp at 12,000 rpm and a torque of about 65 Nm at 8,000 rpm. The weight-to-power ratio is now at a great level of 2.7 kg/hp. More details on http://www.dhbw-engineering.de
Car Specifications
General
Frame Construction One piece tubular steel space frame (TIG welded)
Material Frame: 25CrMo4, round tubing (22 to 25 mm in diameter); Bodywork: Carbon Fibre and Fabric
Overall L 2640 mm
Overall W 1460 mm
Overall H 1060 mm
Wheelbase 1600 mm
Track (Fr) 1250 mm
Track (Rr) 1200 mm
Weight with 68kg driver (Fr) 149 kg
Weight with 68kg driver (Rr) 149 kg
Suspension Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper (coil-over).
Tyres (Fr / Rr) 178 x 50 R13, Hoosier R25B
Wheels (Fr / Rr) 7 x 13, 22mm offset, 1pc Al Rim
Drive Type gearbox with chain drive
Differential Drexler limited slip differential with internal preload adjustment
Cooling Single side pod mounted radiator with thermostatic controlled electric 254mm fan and water pump
Brake System 4-Disk system with 240mm (Fr) / 220mm (Rr) diameter and floating mounting, adjustable brake balance
Electronics Selfdesigned power and control electronics, Electropneumatic Shifting System
Powertrain
Engine Modified Honda CBR600RR (PC37)
Bore 67.0 mm
Stroke 42.5 mm
Cylinders 4
Displacement 599 ccm
Compression Ratio 12,0:1 : 1
Fuel System Electric fuel pump with single injector for each cylinder and common rail injection fuel
Fuel 98 octan unleaded gasoline
Max Power Design 12000 rpm
Max Torque Design 8000 rpm

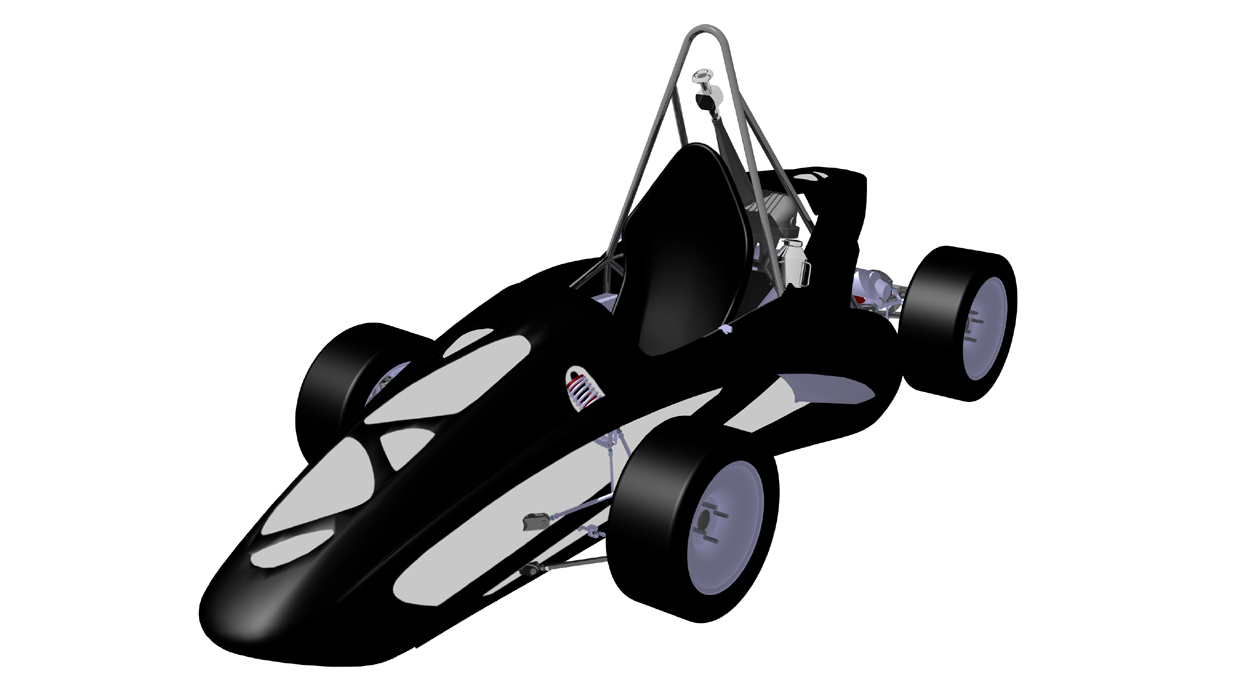

Car 77 – 2010
2010
Car #77
Info
DHBW Engineering is the Formula Student team of the DHBW Stuttgart, last year named BA Engineering. In line with the concept of cooperative education all our members are pursuing theoretical studies and at the same time working for a company of the region. In our rare spare time we constructed and built SLEEK10, our second racing car.Having chosen the goal "With lightweight construction to the TOP 20 at the Formula Student Germany 2010" for the 2010 Formula Student Season, the aim was to minimize as much weight as possible. Therefore we want to achieve a reduction of 20% of the weight from last year’s car with 314 kg. Furthermore the car should be reliable and easy to handle. These criteria were the specifications for designing and developing assemblies and parts during the last months.Our Sleek10 is based on a space frame made of steel and at the heart of our car a Honda CBR600RR engine is beating. Furthermore we have some new inventions like a body shell with a bionic structure.
Car Specifications
General
Frame Construction Tubular space frame
Material E355
Overall L 2868 mm
Overall W 1407 mm
Overall H 1320 mm
Wheelbase 1550 mm
Track (Fr) 1185 mm
Track (Rr) 1185 mm
Weight with 68kg driver (Fr) 153 kg
Weight with 68kg driver (Rr) 165 kg
Suspension Double unequal length A-Arm. Push rod actuated vertically oriented spring and damper
Tyres (Fr / Rr) 205x70 R13, Hoosier R25A
Wheels (Fr / Rr) 7x13, 18mm offset, 3 pc Al Rim
Drive Type 1120mm x 30mm Polychain Carbon Belt
Differential clutch pack limited slip, adjustable between 0 and 80%
Cooling Single side pod mounted radiator with thermostatic controlled electric fan and water pump
Brake System 4-Disk system, rotors with 220mm diameter, adjustable brake balance,RIT designed mono-block calipers
Electronics Multifunctional Steering Wheel, Electromagnetic Shifting System
Powertrain
Engine 2004 Honda CBR 600 RR
Bore 67.0 mm
Stroke 42.5 mm
Cylinders 4
Displacement 599 ccm
Compression Ratio 12:1 : 1
Fuel System Student des/built ,Denso fuel injectors
Fuel ROZ 98
Max Power Design 11000 rpm
Max Torque Design 9000 rpm

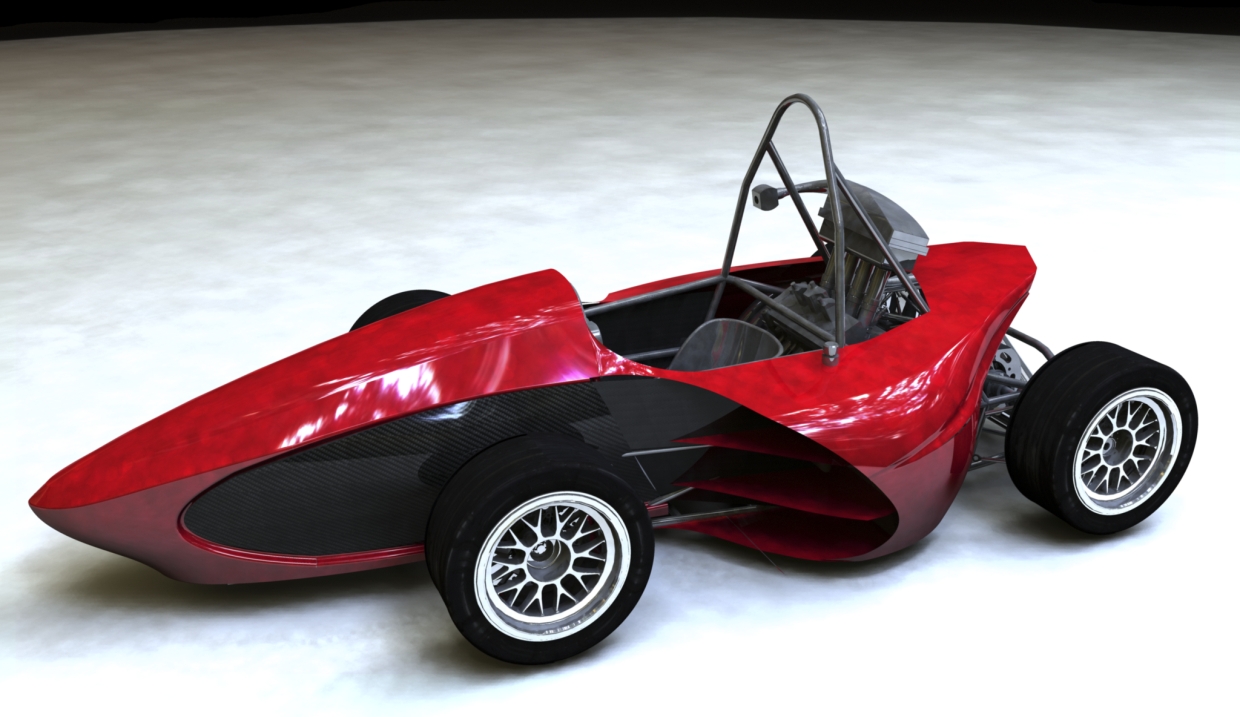

Car 99 – 2009
2009
Car #99
Info
BA Engineering is the newly established Formula Student team of the University of Cooperative Education Stuttgart. In line with the concept of cooperative education all our members are pursuing theoretical studies and at the same time working for a company of the region. In numerous hours we constructed and built SLEEK, our first contender for Formula Student series. SLEEK is the manifestation of our enthusiasm for racing and the result of the remarkable support from our partners.Although being a first year car, SLEEK features sophisticated solutions like a basalt fiber body shell or a knock control, both being shown for the first time at FSG. At the heart of our car a heavily modified Honda CBR600RR engine is beating, embedded into a tubular space frame. We extensively tested SLEEK and optimized the suspension set-up.Now, we are ready to take on our goal: To finish all dynamic events in Hockenheim successfully.
Car Specifications
General
Frame Construction Tubular space frame
Material Steel 25CrMo4 round tubing 25mm diameter
Overall L 2820 mm
Overall W 1378 mm
Overall H 1151 mm
Wheelbase 1551 mm
Track (Fr) 1200 mm
Track (Rr) 1200 mm
Weight with 68kg driver (Fr) 163 kg
Weight with 68kg driver (Rr) 181 kg
Suspension Double wishbone
Tyres (Fr / Rr) 205x75 - 13 Hoosier R25B
Wheels (Fr / Rr) Braid Formrace 7.0x13
Drive Type Chain and sprocket wheel drive
Differential Clutch pack limited slip
Cooling Single side pod mounted radiator with thermostatic controlled electric fan and water pump
Brake System 4-Disk system, rotors with 245mm diameter, adjustable brake balance
Electronics Wiring harness (IP65), multifunctional steering wheel, electropneumatic shifting system with transmission control, GSM telemetry
Powertrain
Engine Modified Honda CBR600RR (PC37)
Bore 67.0 mm
Stroke 43.0 mm
Cylinders 4
Displacement 599 ccm
Compression Ratio 13.5:1 : 1
Fuel System Student built
Fuel 100 octane unleaded gasoline
Max Power Design 10500 rpm
Max Torque Design 7500 rpm

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2011.08
74
18.
39.
43.
51.
33.
-
35.
-
15.
16.
13.
0.00
526.50
2010.08
75
45.
31.
32.
41.
55.
-
49.
-
36.
28.
-
0.00
319.26
2009.08
77
50.
1.
30.
60.
48.
-
57.
-
37.
-
-
0.00
291.57
