The DHBW Engineering builds electric vehicles since 2009. After a two-year development period, we introduce our first driverless vehicle. We modified our electric vehicle form 2019 with all necessary DV components including two cameras and a LiDAR sensor and integrated our autonomous system into the vehicle. Nine bachelor students of the fields Computer Science and Mechatronics worked on the development of our autonomous software, another six members on the electrical and mechanical DV hardware.
Engineering Design Priorities:
Robust Autonomous System
Hardware Development
Functional Safety

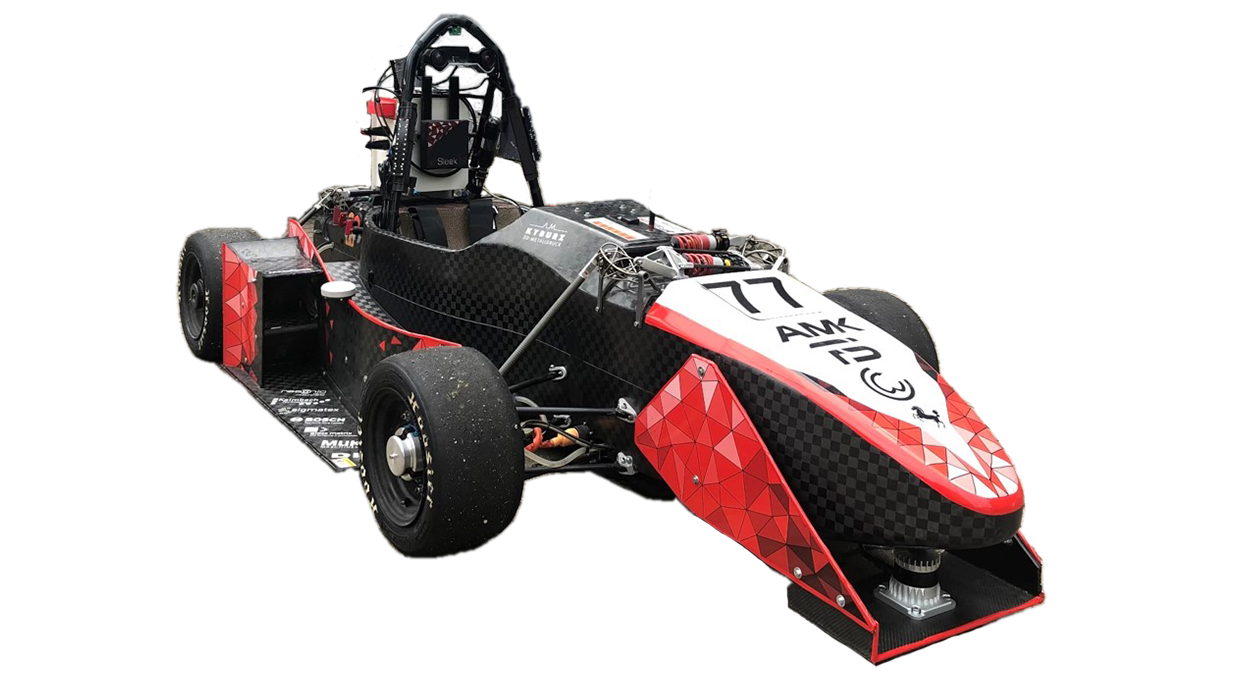

Car Specifications
General
| Frame Construction | Carbon fibre monocoque with integrated front hoop. |
|---|---|
| Material | HM, HT and IM carbon fibers, aluminium honeycomb. |
| Overall Length (mm) | 2874 |
| Overall Width (mm) | 1527 |
| Overall Height (mm) | 1145 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1220 |
| Track Rear (mm) | 1220 |
| Weight Front (kg) | 83 |
| Weight Rear (kg) | 115 |
| Suspension | Double unequal length A-Arm. Push rod actuated heave and roll decoupled spring and damper. |
| Tyres | Hoosier 16.0x7,5-10 LC0 |
| Wheels | 7.2x10, 2 pc CFRP Rim |
| Drive Type | Wheel hub motor with planetary gears. |
| Differential | Torque vectoring. |
| Cooling | Single circuit for power electronics and motors; radiators placed on side. |
| Brake System | Floating, Steel X46Cr13, hub mounted, 184 mm outer diam., 160 mm inner diam. |
| Electronics | Multifunctional Steering Wheel, |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | FR, FL, RR, RL |
| Max Motor Power | 38 |
| Motor Type | AMK DT5 |
| Max Motor RPM | 20000 |
| Motor Controller | AMK KW26 |
| Max System Voltage (V) | 604. |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 6.98 |
| Transmission Ratio Primary | 1:11,69 |
Driverless System
| Processing Units | ES910, Intel i7-9700K, RTX2080 |
|---|---|
| Processing Units FLOPS | 11024.00 |
| Processing Units Power (W) | 853.80 |
| Cameras | 2, 20m, 110°, Matrix Vision Blue Cougar X |
| LiDAR Sensors | 1, 40m, 80°, Ouster OS1 Gen2 64 Gradient Configuration |
| Other Sensors | Novatel PwrPak7D |
| DV System Highlights | Robust software pipeline starting with cognitive system, localization, planning up to controlling. Steering motor integrated in steering linkage and weight optimized EBS. |
