Team Details
TUW Racing
| University | Technische Universität Wien
AT Wien TU short 122 |
![]() |
|---|---|---|
| Location | Wien, Austria | |
| Homepage | https://www.tuwienracing.at/ | |
| DV Team | TUW Racing | |
| EV Team | TU Wien Racing | |
| Short Link | tid.fsg.one/125 | |
Past Events
2013
Info
35x

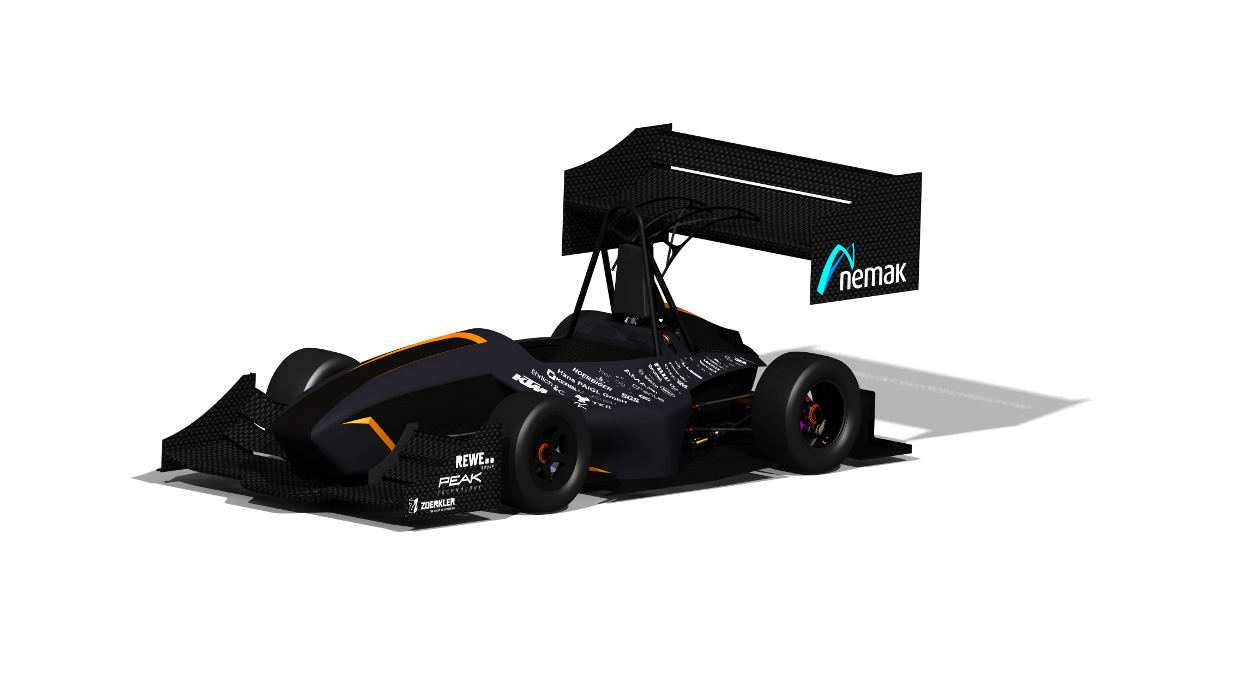

Back in black! The fifth car - edge5 - from TUW Racing marks a new beginning in car philosophy. Single piece monocoque, 10" wheels, natural aspirated single cylinder KTM LC4 and a decent aerodynamic bodywork mark the cornerstones of this year's car from Vienna. Even though many things have changed, you can immediately hear and see that it is a full member of the edge family.
Car Specifications
General
| Frame Construction | CFRP monocoque with integrated engine bay |
|---|---|
| Material | T300 prepreg |
| Overall L | 3014 mm |
| Overall W | 1420 mm |
| Overall H | 1116 mm |
| Wheelbase | 1575 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1160 mm |
| Weight with 68kg driver (Fr) | 105 kg |
| Weight with 68kg driver (Rr) | 123 kg |
| Suspension | Double unequal length A-Arms. Pull-rod actuated horizontal orientated coilspring and damper |
| Tyres (Fr / Rr) | 18.0x7.5-10 Hoosier R25B |
| Wheels (Fr / Rr) | 7.0x10 CFRP one-piece |
| Drive Type | 5 gear sequential |
| Differential | Drexler Formulas Student 2010 limited slip with modified housing |
| Cooling | Left side mounted radiator equiped with one fan |
| Brake System | AP-Racing 4227 & 4226 calipers with student designed rotors |
| Electronics | Bosch C60 data-logger and MoTeC PDM15 power distribution module |
Powertrain
| Engine | KTM 690 LC4 with modified crank drive |
|---|---|
| Bore | 102 mm |
| Stroke | 74,6 mm |
| Cylinders | 1 |
| Displacement | 609 ccm |
| Compression Ratio | 11,5:1 : 1 |
| Fuel System | Bosch MS4 Sport with intake manifold injection |
| Fuel | RON95 |
| Max Power Design | 9500 rpm |
| Max Torque Design | 8000 rpm |
2012
Info
2x

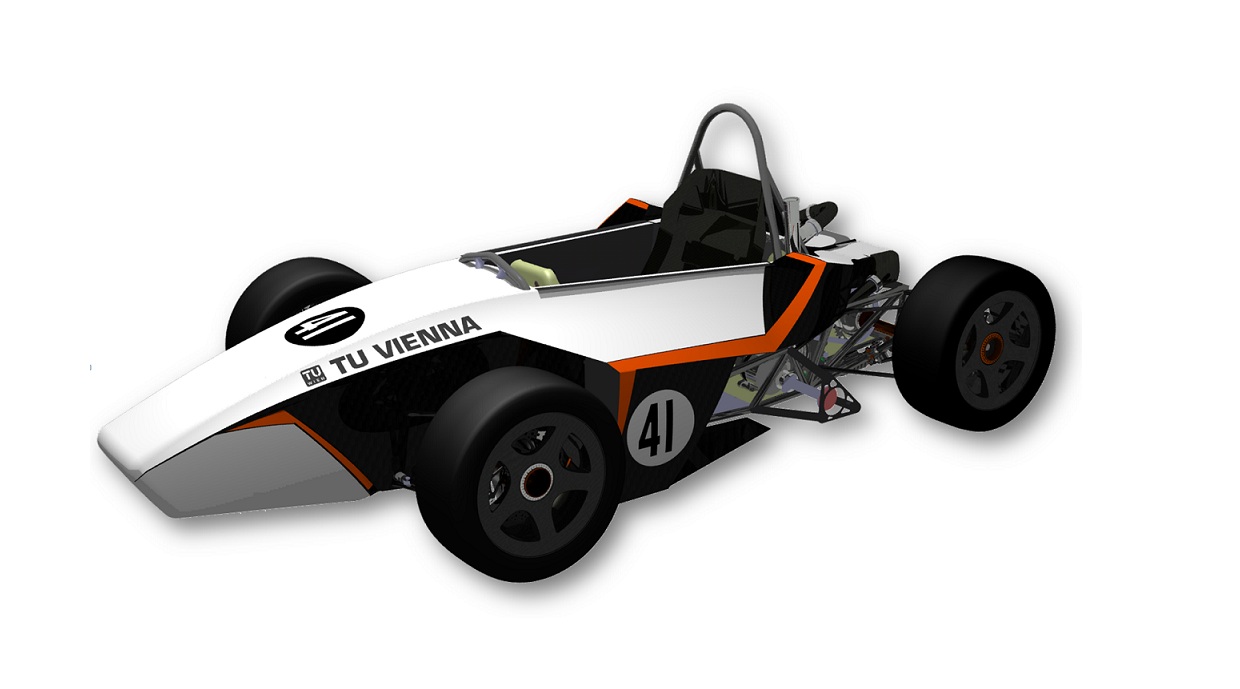

New car, new design, more horse power, less CFRP (thank you for rule 4.2). We are sticking to our supercharged single cylinder engine, modification of our air intake has made our air flow smoother. We’ve put our core strengths in making this car strong and built to last. We’ve taken the good technology from the last cars and made it even better. See you on the track and greetings from Vienna.
Car Specifications
General
| Frame Construction | Tubular Steel Frame with Carbon Fibre Shear Panels |
|---|---|
| Material | Mild Steel |
| Overall L | 2680 mm |
| Overall W | 1360 mm |
| Overall H | 940 mm |
| Wheelbase | 1600 mm |
| Track (Fr) | 1210 mm |
| Track (Rr) | 1170 mm |
| Weight with 68kg driver (Fr) | 115 kg |
| Weight with 68kg driver (Rr) | 140 kg |
| Suspension | Double unequal length A-Arm. Pull rod actuated horizontally mounted dampers. |
| Tyres (Fr / Rr) | Continental 205x13" & 225x13" |
| Wheels (Fr / Rr) | 7x13 CFRP |
| Drive Type | Chain Drive |
| Differential | Drexler Formula Student LSD with modified housing |
| Cooling | Radiator mounted in sidepod |
| Brake System | 4-Disk system, self developed rotors, adjustable brake balance, AP-Racing calipers |
| Electronics | Multifunctional steering wheel, Electropneumatic Shifting System, CAN-based data logging |
Powertrain
| Engine | Modified KTM LC4 with Supercharger and Intercooler |
|---|---|
| Bore | 102 mm |
| Stroke | 74.6 mm |
| Cylinders | 1 |
| Displacement | 609 ccm |
| Compression Ratio | 11,1 : 1 |
| Fuel System | Bosch MS4 Turbo |
| Fuel | E85 |
| Max Power Design | 8000 rpm |
| Max Torque Design | 8000 rpm |
2009
Info

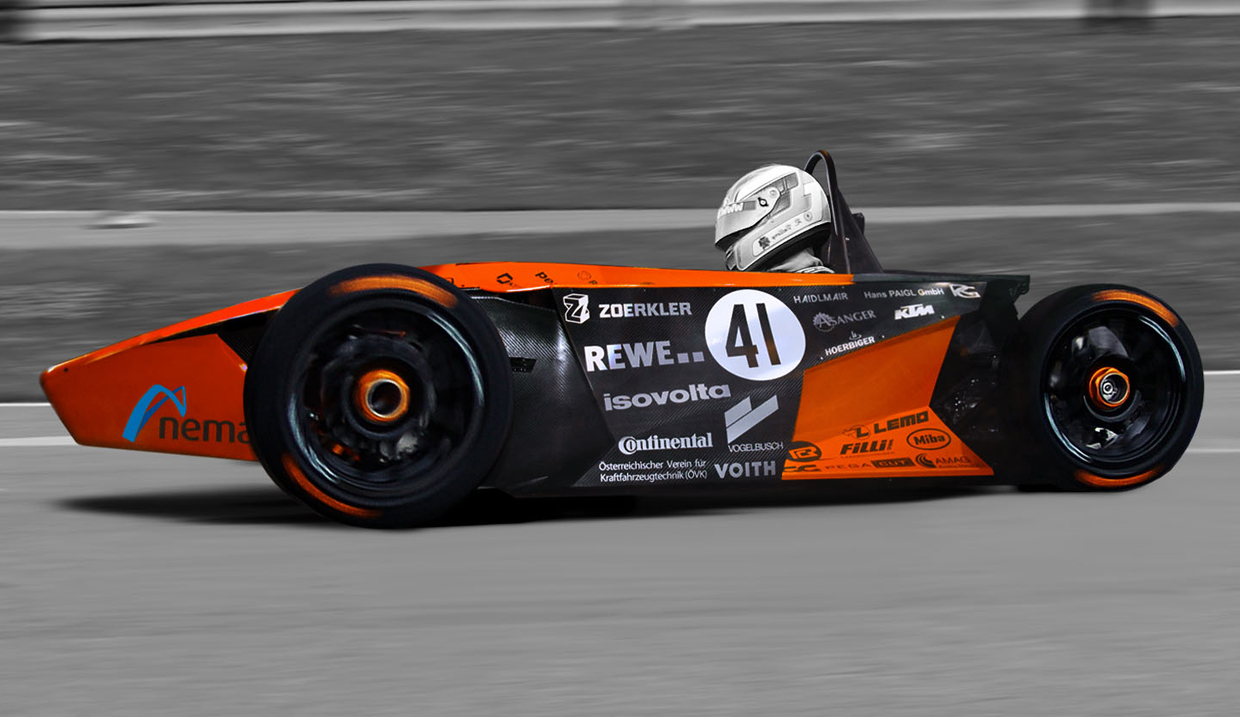

Here we are again, from the city of waltz and borque architecture. We have awaken this old city with the characteristic uproar of our first car the "edge". Now the beating 1-cylinder sound of "edge Mk2" echos through the streets of Vienna, as the 2nd car of TUW-Racing is coming up on the test tracks.From one of the best newcomer teams last year comes a stunning new car with amazing design and outstanding technical solutions: Exotic chassis design featuring a carbon fibre tubular space frame with integrated steering gear and rear torsional springs matches with a sophisticated suspension system, a fully modified single cylinder engine and an own-designed differential housing.The last year held it's ups and downs for us with two DNF's and a 4th overall in Hockenheim. No one (including us) has thought that a newcomer like TUW Racing can establish amongst the top teams of europe. But as the car is more sophisticated our goals are also higher.Beware of "edge Mk2"!
Car Specifications
General
| Frame Construction | Carbon Fibre Tubular Space Frame |
|---|---|
| Material | CFRP and steel hoops |
| Overall L | 2800 mm |
| Overall W | 1430 mm |
| Overall H | 1000 mm |
| Wheelbase | 1650 mm |
| Track (Fr) | 1240 mm |
| Track (Rr) | 1160 mm |
| Weight with 68kg driver (Fr) | 115 kg |
| Weight with 68kg driver (Rr) | 141 kg |
| Suspension | Double unequal A-Arms with carbon fibre flex blades, pullrod actuated with CaneCreek spring-damper units |
| Tyres (Fr / Rr) | Continental 205/510-13 |
| Wheels (Fr / Rr) | CFRP Rims 8J13 |
| Drive Type | Chain drive |
| Differential | Disk-plate LSD |
| Cooling | Two water-air coolers mounted in side pods, charged air intercooler |
| Brake System | Four disks (240mm frong, 200mm rear), adjustable by balance bar |
| Electronics | OLED-Display on wheel, CAN Interface and Data Logging |
Powertrain
| Engine | KTM LC4 Evo2 |
|---|---|
| Bore | 70 mm |
| Stroke | 105 mm |
| Cylinders | 1 |
| Displacement | 609 ccm |
| Compression Ratio | 12,5:1 : 1 |
| Fuel System | Double injection at two points in intake system |
| Fuel | E85 |
| Max Power Design | 8800 rpm |
| Max Torque Design | 6000 rpm |
2008
Info
37x

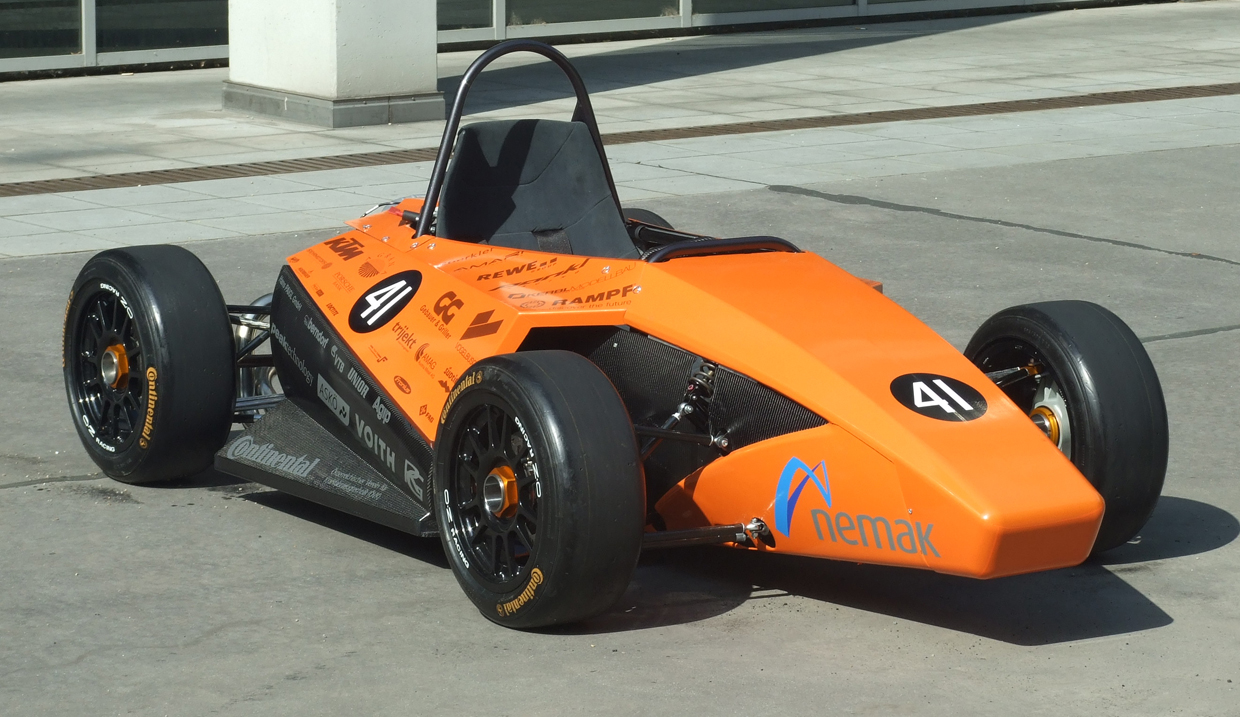

Vienna, city of waltz and baroque architecture, most of the time sleeping and silently dreaming of long-gone times as residence of kings and queens. Someone had to wake up the capitol of Austria, and it was TUW-Racing’s all new first-season-car, the edge, that rudely yelled its loud message into the blue skies of a stunned town: Born in the out-back of the laboratories, designed by a young generation of engineers to present a strong message of progressiveness and a statement of innovativeness.But in all of his newness lies also a bit of the heritage that surrounds every spot of the city. The spirit of greatness in terms of the usage of new materials and the sense for perfection, that centuries ago led architects to their best performances nowadays inherits the makers of edge and let them restlessly bring in their best ideas to succeed in completing the most comprehensive task they’ve ever started with: To present a fast and full of character car to the eyes of Vienna and the world.
Car Specifications
General
| Frame Construction | Tubular space frame |
|---|---|
| Material | Mild steel and CFRP tubes |
| Overall L | 2600 mm |
| Overall W | 1390 mm |
| Overall H | 940 mm |
| Wheelbase | 1600 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1180 mm |
| Weight with 68kg driver (Fr) | 124 kg |
| Weight with 68kg driver (Rr) | 144 kg |
| Suspension | Double unequal length A-Arm. Double unequal length A-Arm. Push rod actuated, in line oriented spring and damper. |
| Tyres (Fr / Rr) | 195/500 R13 Continental |
| Wheels (Fr / Rr) | 195/500 R13 Continental |
| Drive Type | Engine integrated 3 gear drive |
| Differential | Automatic torque beasing helical LSD differential (preloaded) |
| Cooling | Dual side mounted radiator and electric fan |
| Brake System | 4-Disk system, self developed rotors with 210/190mm, Magura radial calipers |
| Electronics | Wiring harness sealed to IP67, multifunctional steering wheel with electronic shift system |
Powertrain
| Engine | KTM LC4 690 Evo |
|---|---|
| Bore | 105 mm |
| Stroke | 70.4 mm |
| Cylinders | 1 |
| Displacement | 610 ccm |
| Compression Ratio | 10,6:1 : 1 |
| Fuel System | Two injector operated sectional, mounted in intake manifold. |
| Fuel | E85 |
| Max Power Design | 8500 rpm |
| Max Torque Design | 6500 rpm |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2013.08 | 39 |
22. |
8. |
18. |
14. |
18. |
- |
22. |
- |
29. |
19. |
- |
-5.00 |
340.24 |
|
| 2013.08 | 37 |
17. |
13. |
22. |
6. |
14. |
- |
21. |
- |
12. |
- |
- |
0.00 |
460.00 |
|
| 2013.08 | 74 |
33. |
48. |
59. |
36. |
54. |
- |
38. |
- |
43. |
28. |
9. |
0.00 |
422.70 |
|
| 2012.08 | 39 |
16. |
14. |
1. |
5. |
21. |
- |
26. |
- |
8. |
- |
- |
0.00 |
493.43 |
|
| 2012.08 | 76 |
53. |
43. |
50. |
63. |
33. |
- |
34. |
- |
45. |
- |
- |
0.00 |
264.68 |
|
| 2012.07 | 37 |
16. |
24. |
33. |
16. |
24. |
- |
11. |
- |
23. |
15. |
9. |
0.00 |
481.50 |
|
| 2011.09 | 49 |
29. |
3. |
25. |
5. |
- |
- |
27. |
- |
35. |
36. |
- |
0.00 |
341.00 |
|
| 2011.08 | 28 |
10. |
11. |
12. |
1. |
21. |
- |
18. |
- |
17. |
12. |
4. |
0.00 |
596.77 |
|
| 2011.08 | 74 |
43. |
18. |
51. |
51. |
6. |
- |
40. |
- |
43. |
- |
- |
-5.00 |
279.24 |
|
| 2009.09 | 36 |
7. |
2. |
10. |
3. |
10. |
- |
4. |
- |
18. |
10. |
- |
0.00 |
721.93 |
|
| 2009.08 | 77 |
36. |
11. |
23. |
34. |
23. |
- |
38. |
- |
6. |
- |
- |
0.00 |
404.63 |
|
| 2009.07 | 78 |
8. |
16. |
26. |
4. |
30. |
- |
23. |
- |
27. |
6. |
- |
-7.00 |
694.40 |
|
| 2008.09 | 31 |
11. |
4. |
10. |
5. |
8. |
- |
6. |
- |
5. |
- |
- |
0.00 |
469.10 |
|
| 2008.08 | 77 |
4. |
6. |
7. |
17. |
7. |
- |
12. |
- |
6. |
7. |
16. |
0.00 |
838.52 |
|
| 2008.07 | 72 |
30. |
9. |
53. |
51. |
24. |
- |
22. |
- |
16. |
- |
- |
0.00 |
299.07 |
|
| x 15 | |||||||||||||||
