Team Details
HUATE Racing Team
| University | Hubei University of Automotive Technology
CN Shiyan HUAT short 812 |
 |
|---|---|---|
| Location | Shiyan, China | |
| Social Media |
|
|
| CV Team | HUAT Racing Team | |
| Short Link | tid.fsg.one/899 | |
Event Profile
Past Events
2018
Info
DONGFENG HUAT ELECTRIC RACING TEAM was established in 2014.In the past years, we have developed professional technology to improve the skills of both design and manufacturing,and also committing ourselves to build a world-class team.With the support of our university and DONGFENG TRUCKS,and also owing to the help from previous technical knowledge and experience of our petrol racing team,DONGFENG HUATE RACING TEAM won the national championship in the 2017 FORMULA STUDENT ELECTRIC CHINA.

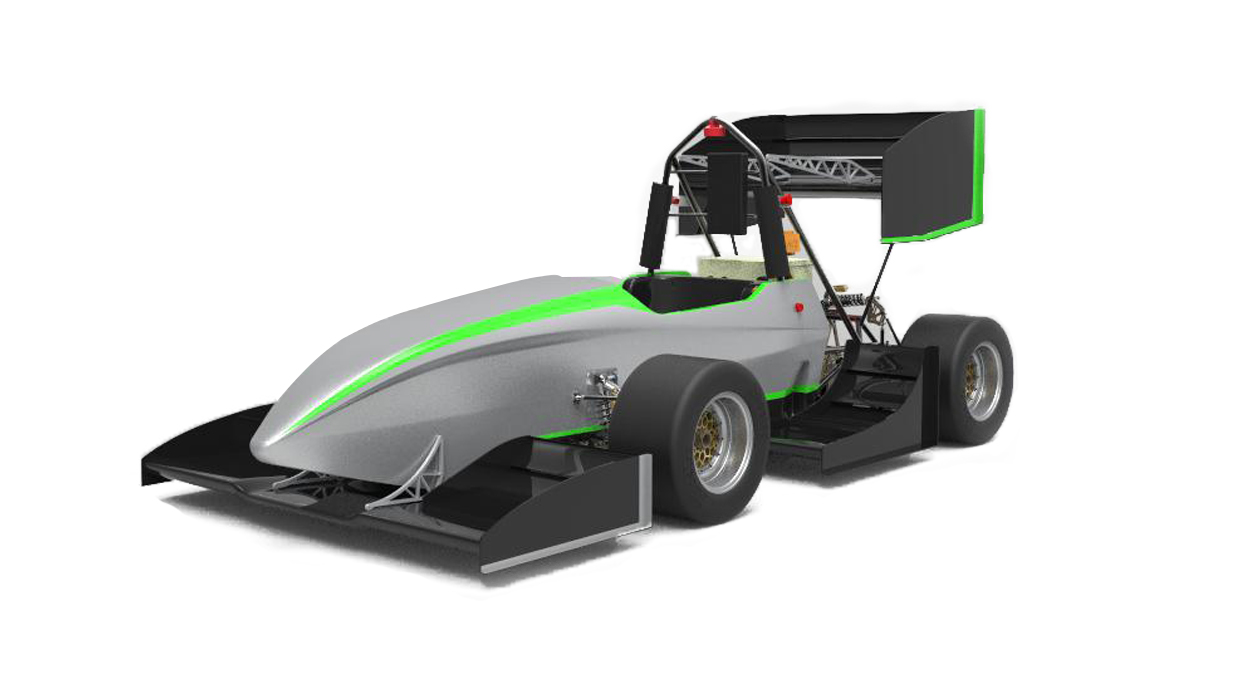

Car Specifications
General
| Frame Construction | steel tube frame |
|---|---|
| Material | 4130 steel |
| Overall Length (mm) | 2960 |
| Overall Width (mm) | 1420 |
| Overall Height (mm) | 1175 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1180 |
| Track Rear (mm) | 1130 |
| Weight Front (kg) | 147 |
| Weight Rear (kg) | 166 |
| Suspension | Double unequal length A-Arm.Front:Pull rod actuated,Rear:Push rod actuated |
| Tyres | Hoosier 18.0×7.5-10 R25B/Hoosier 18.0×7.5-10 R25B |
| Wheels | 8.0×10，2.5mm offset，3 pc AL Rim/8.0×10，2.5mm offset，3 pc AL Rim |
| Drive Type | One stage chain transmission |
| Differential | Drexler limit slip differential |
| Cooling | Rear two 270cc mini radiators and 120mm two fans |
| Brake System | 4-Disk system, adjustable brake balance |
| Electronics | Selfdesigned Live-Telemetry System, |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear Right |
| Max Motor Power | 64KW |
| Motor Type | EMRAX 228 Medium Voltage |
| Max Motor RPM | 3800RPM |
| Motor Controller | BAMOCAR PG-D3 |
| Max System Voltage (V) | 399V |
| Electrode Materials | Lithium cobaltate--graphite |
| Accumulator Capacity | 7,03Kwh |
| Transmission Ratio Primary | 11：39 |
