Team Details

ARUS

University	University of Seville ES Sevilla U short 845
Location	Sevilla, Spain
Homepage	https://www.arusteam.com/
Social Media
CV Team	ARUSc
DV Team	ARUSd
Short Link	tid.fsg.one/875

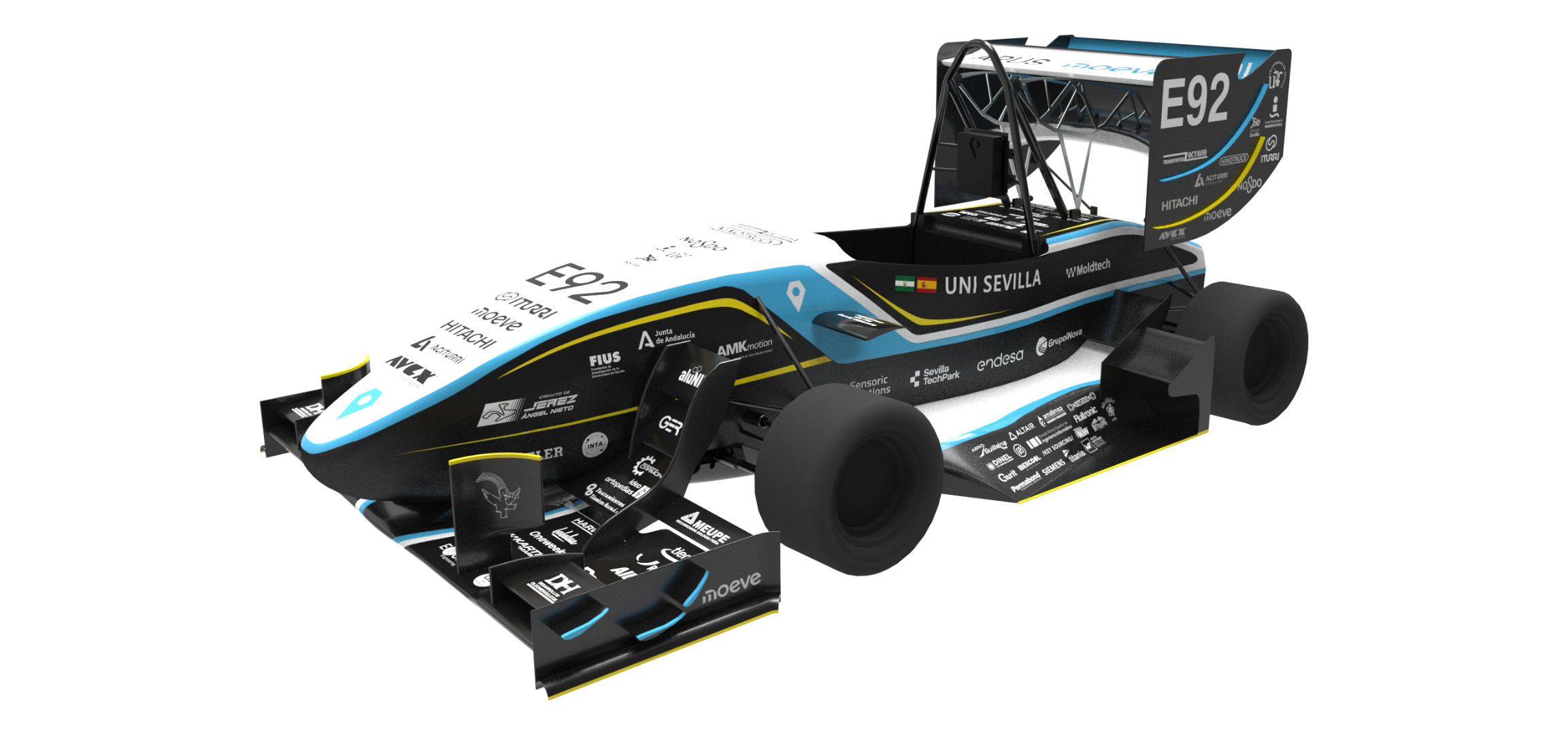

Event Details	car 218 - active

Team Description

We are ARUS Andalucia Racing Team, from the University of Seville. Started back in 2012 as the first team on the south of Spain, we have been participating since 2014. eight combustion and six electric cars manufactured.

This our third year as DV and have just made a great leap in technology, changing to monocoque and 4WD in a single season.

Never give up and always cheer our car in the best and the worst moments are the values that describe this team as one of the best family in Formula Student. And if you don't believe it just listen to us in when the ART goes to the track!!

Event Profile

Past Events

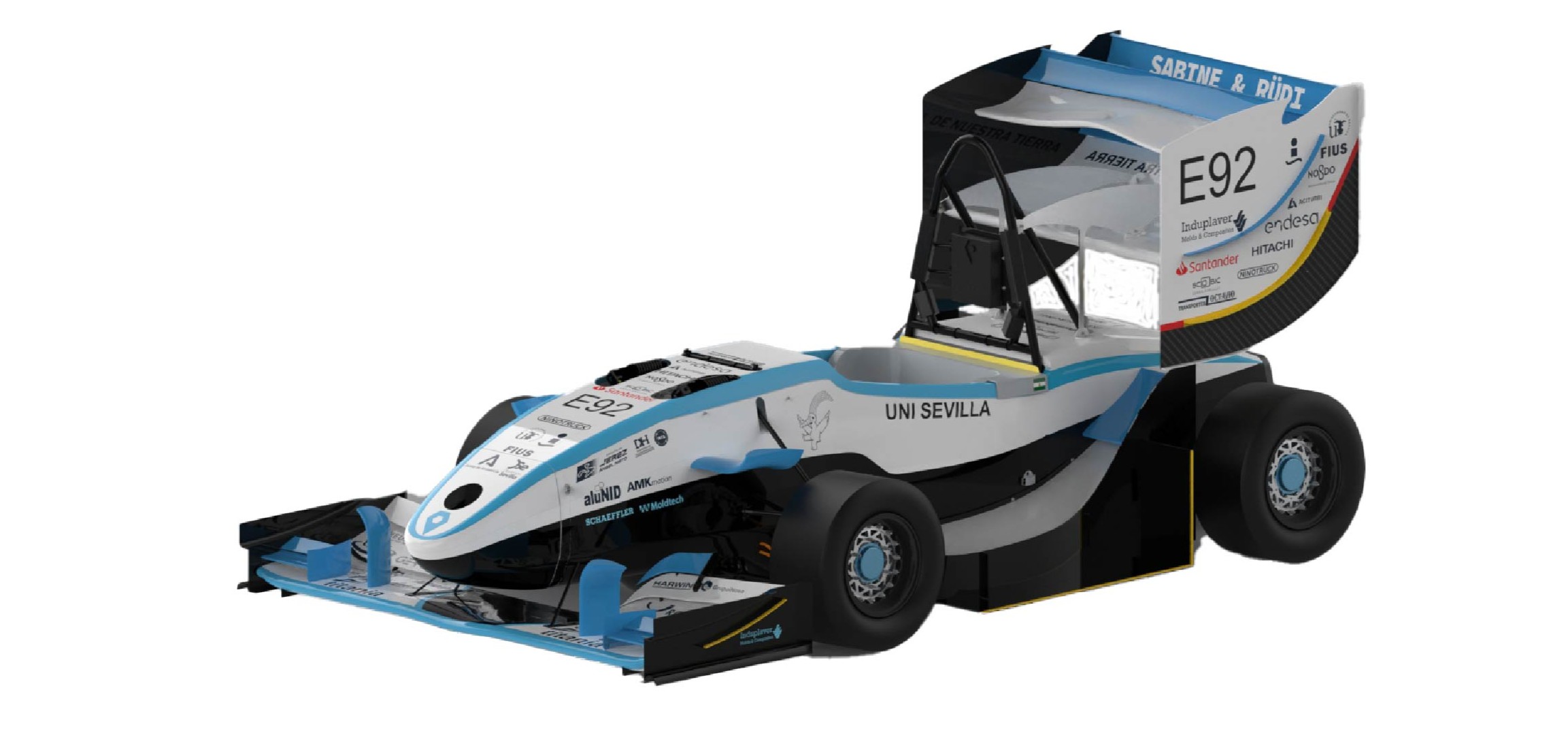

2025

Car #92

Info

ARUS, the first Formula Student team from Andalucía, southern Spain, was founded in 2012, manufacturing 8 combustion and 7 electric cars. The team has the long-term vision of obtaining overall wins in both the EV and DV categories. After last year's debut in the DV category, we have built our first CFRP monocoque and 4WD car. With the DV experience which has already allowed us to improve by 3 our lap times and these new technologies, the team aims at competing at the highest level.

Engineering Design Priorities:

Reliability Leap to monocoque and 4WD DV performance advance Simplicity Robustness Cost-effective

Car Specifications

General

Frame Construction	CFRP single part monocoque
Material	Prepreg CFRP ud(100g/m2) and twill(200g/m2), Kevlar reinforcements, Al HC core
Overall Length (mm)	3027
Overall Width (mm)	1596
Overall Height (mm)	1141
Wheelbase (mm)	1535
Track Front (mm)	1220
Track Rear (mm)	1220
Weight Front (kg)	162
Weight Rear (kg)	176
Suspension	Double unequal length A-Arm. Push rod actuated spring and damper. Adjustable anti-Roll Bar
Tyres	Hoosier R20 18x6.0 R10
Wheels	7x10 3pc Al and CF Rim, custom Al center
Drive Type	2 stage planetary gearbox
Differential	N/A
Cooling	Twin behind the rear wheels mounted radiators with electric fans
Brake System	4-Disk system, Toolox 33 discs, AP RACING calipers
Electronics	Own AMS with passive balancing, analog CAN transceivers, control adjustment from wheel

Powertrain

Number of Motors	4
Motor Location	Inhub in each wheel
Max Motor Power	35 kW each
Motor Type	AMK motion, DD5-14-10-POW-18600-B5
Max Motor RPM	20000
Motor Controller	AMK KW25-S5-FSE-4Q
Max System Voltage (V)	600V
Electrode Materials	LiCoO2 pouch cells
Accumulator Capacity	7 kWh
Transmission Ratio Primary	1:12,48
Transmission Ratio Secondary	1:12,48

Driverless System

Processing Units	Intel Core i7-8565U, multiple STM32F4
Processing Units FLOPS	115.20
Processing Units Power (W)	16
Cameras	N/A
Radar Sensors	N/A
LiDAR Sensors	RS Helios 1610 LiDAR for its 32-beam resolution, 26º vertical FOV running at 10 Hz
Other Sensors	Ground speed sensor from OMS, IMU from SBG, encoders from AMK motors, linear extensometers for suspension and steering travel, brake pedal load cell
DV System Highlights	Being our second year the main focus has been testing with last year's car, developing the full pipeline from scratch to adapt to ROS2 and Ubuntu server using C++. A graph SLAM is used which, together with a decoupled control, using linear MPC for steering and a feedforward PID for velocity. This has allowed us to reduce by 3 our lap times.

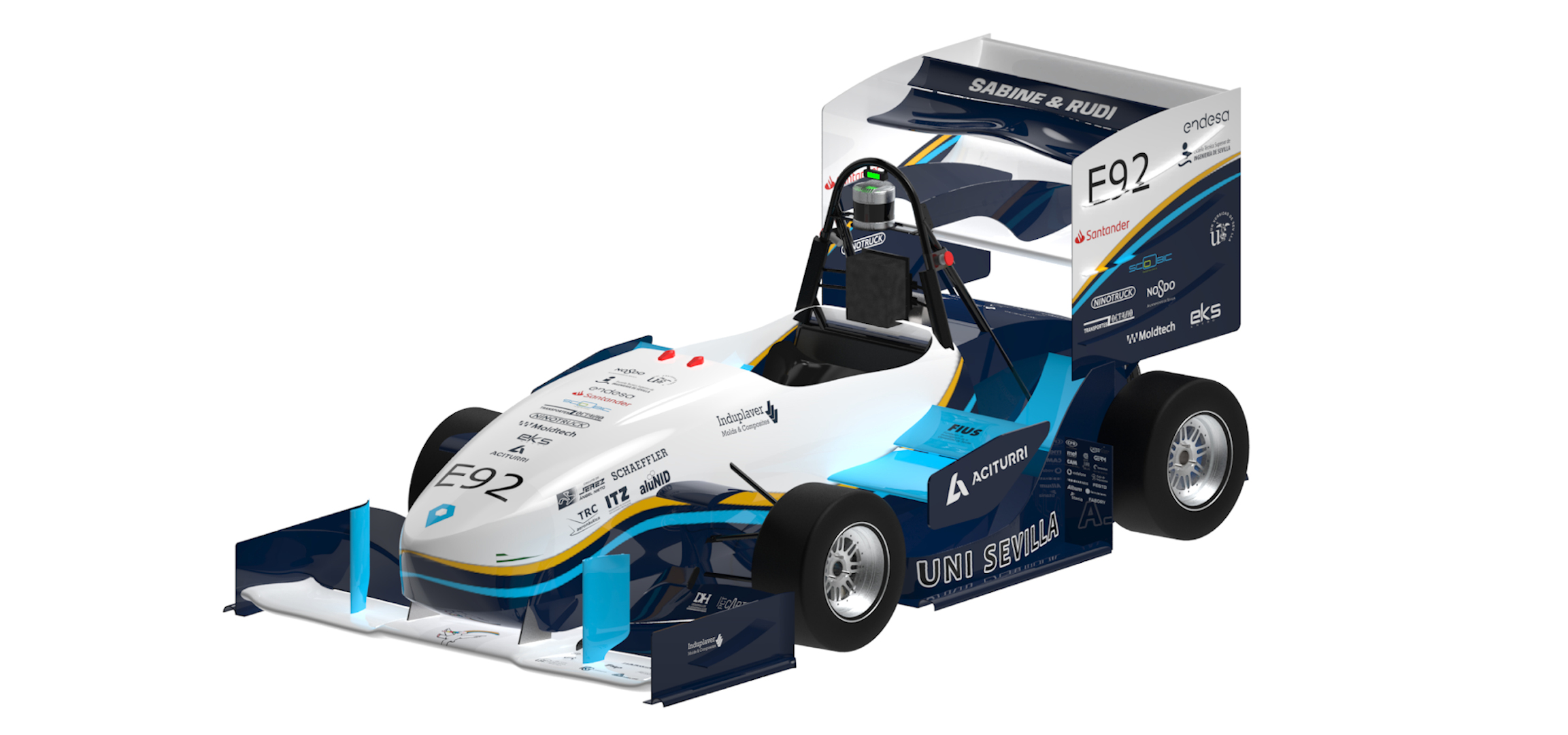

2024

Car #92

Info

ARUS, the first Formula Student team from Andalucía, southern Spain, was founded in 2012. Since then, we have manufactured 8 combustion and 6 electric cars. We are in the second year of a three year plan. This year, the team has focused on ensuring reliability and developing our first ever DV car, having our first participation on the DC cup, with our goal being to finish all DC events. We also are preparing the ground for our move next year into a monocoque and 4WD able to win FSG.

Engineering Design Priorities:

Reliability DV systems integration Cost-effective Performance Understanding Fun

Car Specifications

General

Frame Construction	Steel spaceframe
Material	Steel S355
Overall Length (mm)	3072
Overall Width (mm)	1610
Overall Height (mm)	1183
Wheelbase (mm)	1535
Track Front (mm)	1240
Track Rear (mm)	1172
Weight Front (kg)	137
Weight Rear (kg)	168
Suspension	Double unequal length A-Arm. Push rod actuated spring and damper. Anti-Roll Bar.
Tyres	Hoosier R20 18.0x6.0
Wheels	7x10, 3pc Al Rim, custom Al center.
Drive Type	Chain drive, 520 pitch. No gearbox.
Differential	Drexler limited slip differential. Friction disk blocked by ramp configurations
Cooling	Rear Mounted radiador with electric fan
Brake System	Toolox33 Steel rotors, hub mounted, 200mm front 162mm rear OD.
Electronics	Self-designed telemetry, Torque control, power consumption control.

Powertrain

Number of Motors	1
Motor Location	Rear center
Max Motor Power	109
Motor Type	PM synchronous, watercooled
Max Motor RPM	6500
Motor Controller	Bamocar PG d3 700/400
Max System Voltage (V)	588
Electrode Materials	Li-ion
Accumulator Capacity	7.4 kWh
Transmission Ratio Primary	1:4.01
Transmission Ratio Secondary	N/A

Driverless System

Processing Units	Intel Core i7-8565U
Processing Units FLOPS	115.20
Processing Units Power (W)	16
Cameras	N/A
Radar Sensors	N/A
LiDAR Sensors	1 RoboSense Helios 1610, 150m, +10º to -16º FOV, 32 channel LiDAR non-uniform channel density.
Other Sensors	1 SBG Ellipse N IMU
DV System Highlights	In our first year as a DV team, our goal is to be as reliable as possible. To do so in the most challenging event, the Trackdrive, we developed a MPC controller based on real data from tests to better predict the car behavior and have a more robust control for the event after the first lap has been completed.

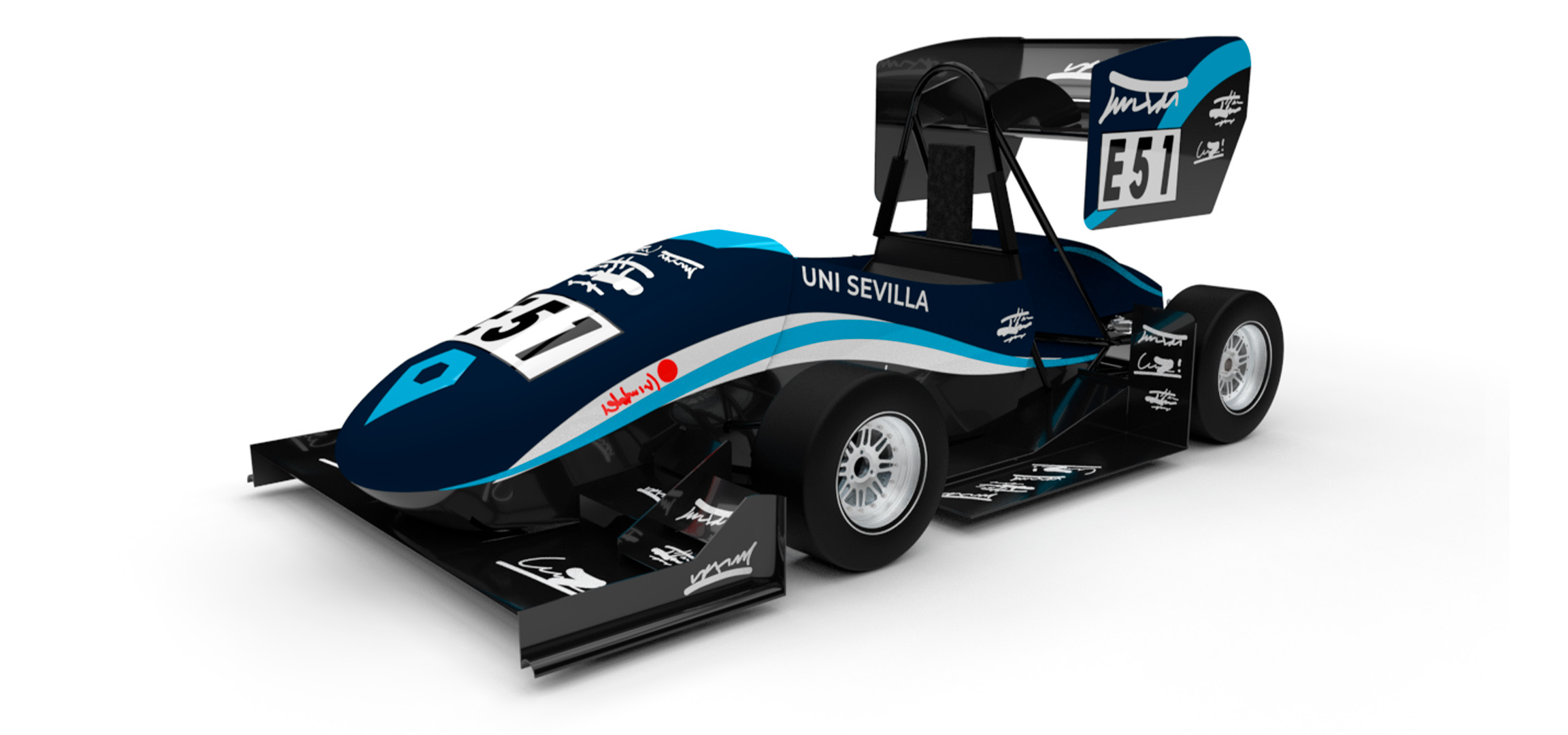

2023

Car #51

Info

ARUS, the first Formula Student team from Andalucía, southern Spain, was founded in 2012. Since then, they have designed and manufactured 8 combustion and 5 electric cars. In 2021, their electric car successfully passed scrutineering and completed the endurance race for the first time. And last year, they got their first overall podium in FS ATA. This year, the team has focused on optimizing performance, incorporating a new HV battery, while maintaining reliability through testing.

Engineering Design Priorities:

Performance Reliability Understanding Optimization Cost-effective Fun

Car Specifications

General

Frame Construction	Steel spaceframe
Material	Steel S355
Overall Length (mm)	2868
Overall Width (mm)	1508
Overall Height (mm)	1190
Wheelbase (mm)	1535
Track Front (mm)	1240
Track Rear (mm)	1172
Weight Front (kg)	150
Weight Rear (kg)	150
Suspension	Double unequal length A-Arm. Pull rod actuated spring and damper. Anti-Roll Bar.
Tyres	Hoosier R20 18.0x6.0
Wheels	7x10, 3pc Al Rim, custom Al center.
Drive Type	Chain drive, 520 pitch. No gearbox.
Differential	Drexler limited slip differential. Friction disk blocked by ramp configurations
Cooling	Rear Mounted radiador with electric fan
Brake System	Toolox33 Steel rotors, hub mounted, 200mm front 162mm rear OD.
Electronics	Self-designed telemetry, Torque control, power consumption control.

Powertrain

Number of Motors	1
Motor Location	Rear center
Max Motor Power	109
Motor Type	PM synchronous, watercooled.
Max Motor RPM	6500
Motor Controller	Bamocar PG d3 700/400
Max System Voltage (V)	588
Electrode Materials	Li-ion
Accumulator Capacity	7.4 kWh
Transmission Ratio Primary	1:4.01
Transmission Ratio Secondary	N/A

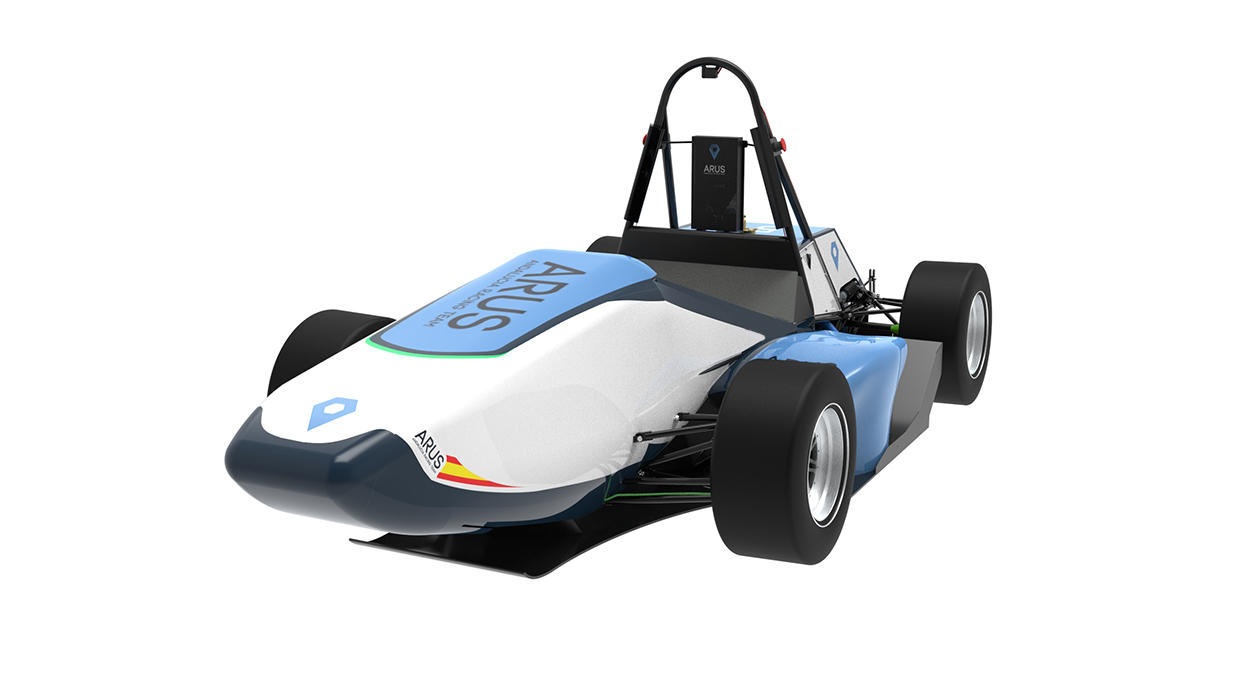

2022

Car #51

Info

Since its founding in 2012, being the first team from Andalusia, in southern Spain, ARUS has manufactured 8 combustion and 4 electric cars. After huge efforts and sacrifice, our ART-E achieved passing scrutineering and finishing endurance for the first time last summer. This year we have focused on the extraction of performance always bearing in mind reliability, and always keeping that spirit and that joy that makes us be remembered by everyone who happens to share a moment with us. FORZA ARUS!

Engineering Design Priorities:

reliability understanding performance validation doublepower simplicity

Car Specifications

General

Frame Construction	Spaceframe
Material	Steel E355
Overall Length (mm)	3059
Overall Width (mm)	1506
Overall Height (mm)	1115
Wheelbase (mm)	1535
Track Front (mm)	1240
Track Rear (mm)	1172
Weight Front (kg)	152
Weight Rear (kg)	152
Suspension	Double unequal length A-Arm. Pull rod actuated spring and damper, anti-roll bar
Tyres	18x6,0-10. R20. Hoosier/18x6,0-10. R20. Hoosier
Wheels	3pc Al Rim, custom Al center/3pc Al Rim, custom Al center
Drive Type	Drivechain
Differential	Limited slip differential
Brake System	4-Disk system, self-developed rotors with 200mm diam, calipers AP Racing CP4227-2S0
Electronics	wiring harness sealed to IP67, Multifunctional Steering Wheel

Powertrain

Number of Motors	1
Motor Location	Rear center
Max Motor Power	109
Motor Type	EMRAX 228 Medium Voltage
Max Motor RPM	5500
Motor Controller	Bamocar-PG-D3
Max System Voltage (V)	450
Electrode Materials	Polymer Li-Ion battery
Accumulator Capacity	6.4
Transmission Ratio Primary	1:3.82
Transmission Ratio Secondary	1:3.82

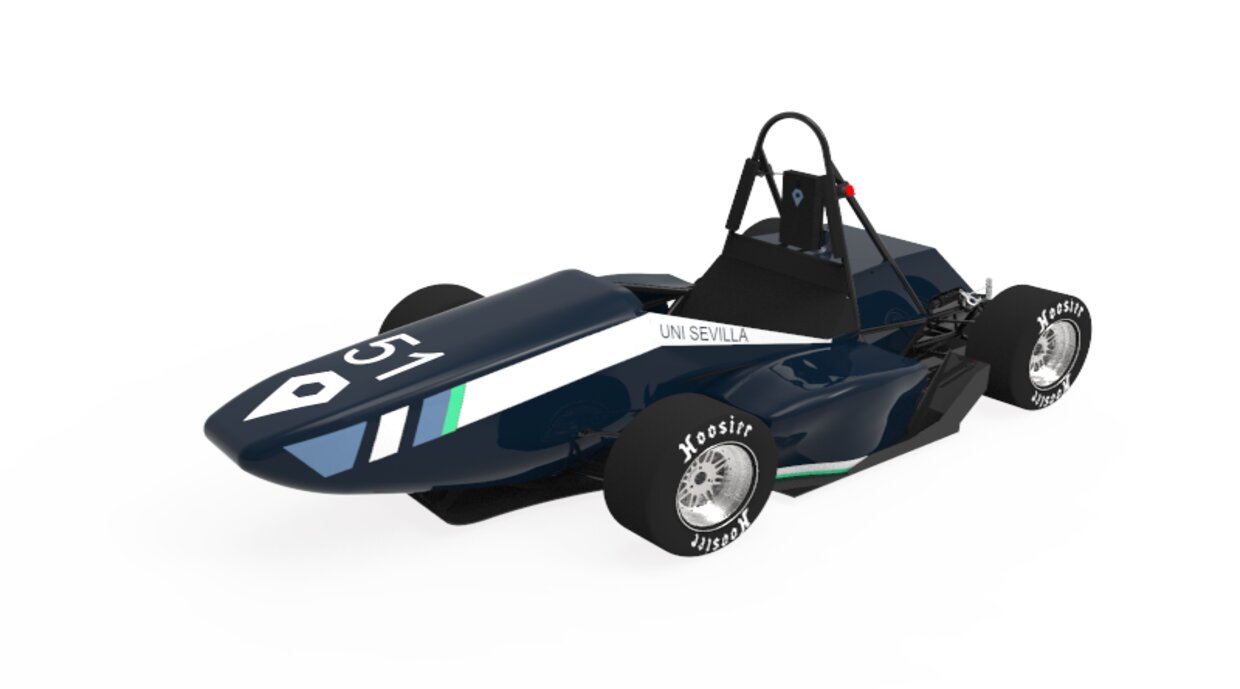

2021

Car #51

Info

ARUS in 2018, decided to face the great challenge of also designing an electric vehicle. Every minor step was a huge success and required tremendous sacrifice but, despite all that progress, scrutineering proved to be too much for our car the first two seasons. The pandemic has given us extra time to keep working and now truly aim to compete in dynamic events, while also fighting for static event trophies.

Engineering Design Priorities:

Reliability Effectiveness Simplicity

Car Specifications

General

Frame Construction	Steel space frame
Material	STEEL S355
Overall Length (mm)	2385
Overall Width (mm)	680
Overall Height (mm)	1045
Wheelbase (mm)	1535
Track Front (mm)	1250
Track Rear (mm)	1175
Weight Front (kg)	145
Weight Rear (kg)	145
Suspension	Double unequal length A-Arm. Pull/Push rod actuated spring and damper, anti-roll bar.
Tyres	18x7,5-10. R25B. Hoosier/18x7,5-10. R25B. Hoosier
Wheels	3pc Al Rim, custom Al center
Drive Type	Chain drive, 520 pitch.No gearbox.
Differential	Drexler limited slip differential
Cooling	Tow independent circuits. A 387 cm2 AL radiator and a 567 cm2 AL radiator
Brake System	Self-designed floating disks with AP Racing CP4227-2S0 and Tilton 78-Series
Electronics	wiring harness sealed to IP67, Multifunctional Steering Wheel

Powertrain

Number of Motors	1
Motor Location	Rear
Max Motor Power	62kW
Motor Type	EMRAX 228
Max Motor RPM	5500
Motor Controller	Bamocar-PG-D3
Max System Voltage (V)	450V
Electrode Materials	Polymer Li-ion battery
Accumulator Capacity	6.4kWh
Transmission Ratio Primary	1:3
Transmission Ratio Secondary	1:3

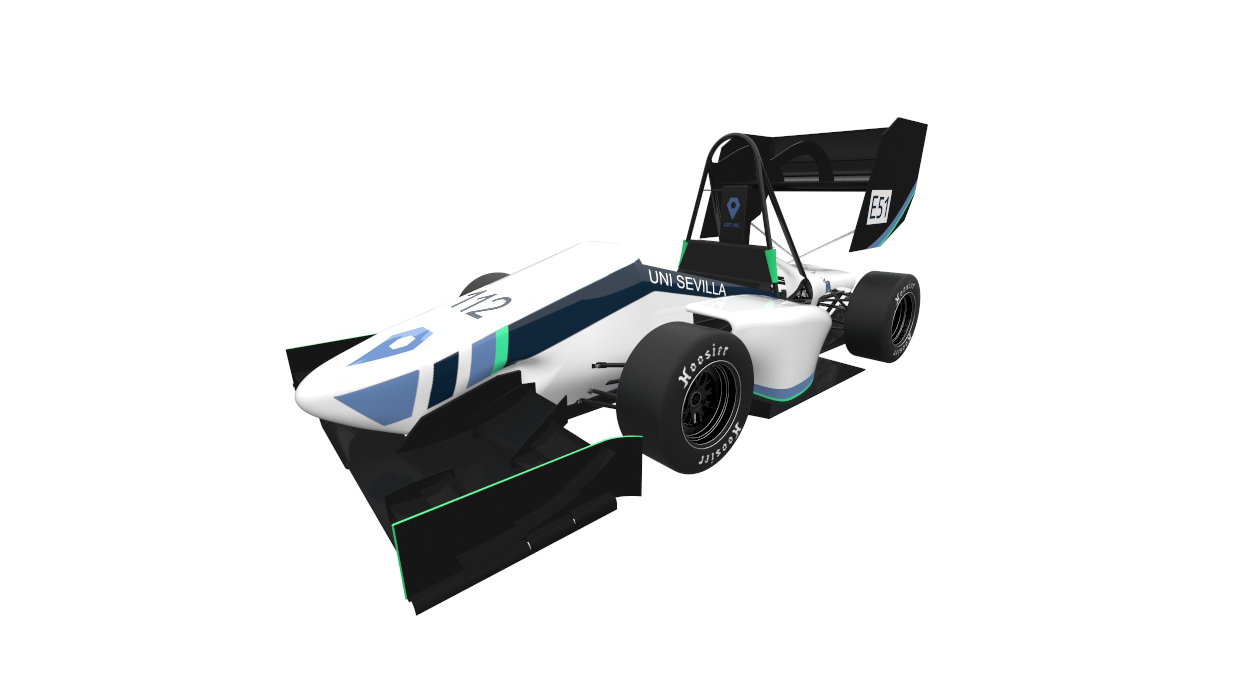

2019

Car #51

Info

ARUS-e joins the Formula Student Germany for the first time. As a counterpart to ARUS Andalucía Racing, the ART19-e is our second electric car, following the basis of the first prototype, made in 2018. Regarding all the mechanical knowledge and experience earned thanks to his combustion brother, this single seated car is ready to make a memorable first appearance in Formula Student Germany. We are not here only for taking part, we are here to break our limits.

Engineering Design Priorities:

RaceYourDreams YoullNeverRaceAlone ARUSNisi BornToRace RaceToTheFuture

Car Specifications

General

Frame Construction	Steel Spaceframe
Material	E355 equivalence to St 52
Overall Length (mm)	2993
Overall Width (mm)	1506
Overall Height (mm)	1185
Wheelbase (mm)	1535
Track Front (mm)	1250
Track Rear (mm)	1175
Weight Front (kg)	149
Weight Rear (kg)	139
Suspension	Double unequal leght A-Arm. Front pull rod and rear push rod actuated spring.
Tyres	18x7.5 R10, Hoosier R25B
Wheels	7.5, 3pc aluminium Rim, custom aluminium center
Drive Type	Chain drive, 520 pitch, no gearbox
Differential	Drexler limited slip differential
Cooling	Two radiators situated on the sides, 595cc with 228.6 mm electric fan and 325 cc with 152.4 mm fan
Brake System	4 Disk system, self designed rotors with 200 mm(F)/162 mm(R). Driver adjustable balance.
Electronics	IP67, multifuncional dashboard, selfdesigned BMS, selfdesigned Telemetry

Powertrain

Number of Motors	1
Motor Location	Rear
Max Motor Power	100kW
Motor Type	EMRAX 228 MV LC
Max Motor RPM	6500
Motor Controller	Bamocar-PG-D3
Max System Voltage (V)	450V
Electrode Materials	LiCoO2
Accumulator Capacity	6.750kWh
Transmission Ratio Primary	1:3
Transmission Ratio Secondary	N/A
