Team Details
RUB Motorsport
| University | Ruhr-Universität Bochum
DE Bochum U short 91 |
![]() |
|---|---|---|
| Location | Bochum, Germany | |
| Homepage | https://www.rubmotorsport.de/ | |
| Social Media |
|
|
| CV Team | RUB Motorsport | |
| DV Team | RUB Motorsport | |
| Short Link | tid.fsg.one/787 | |

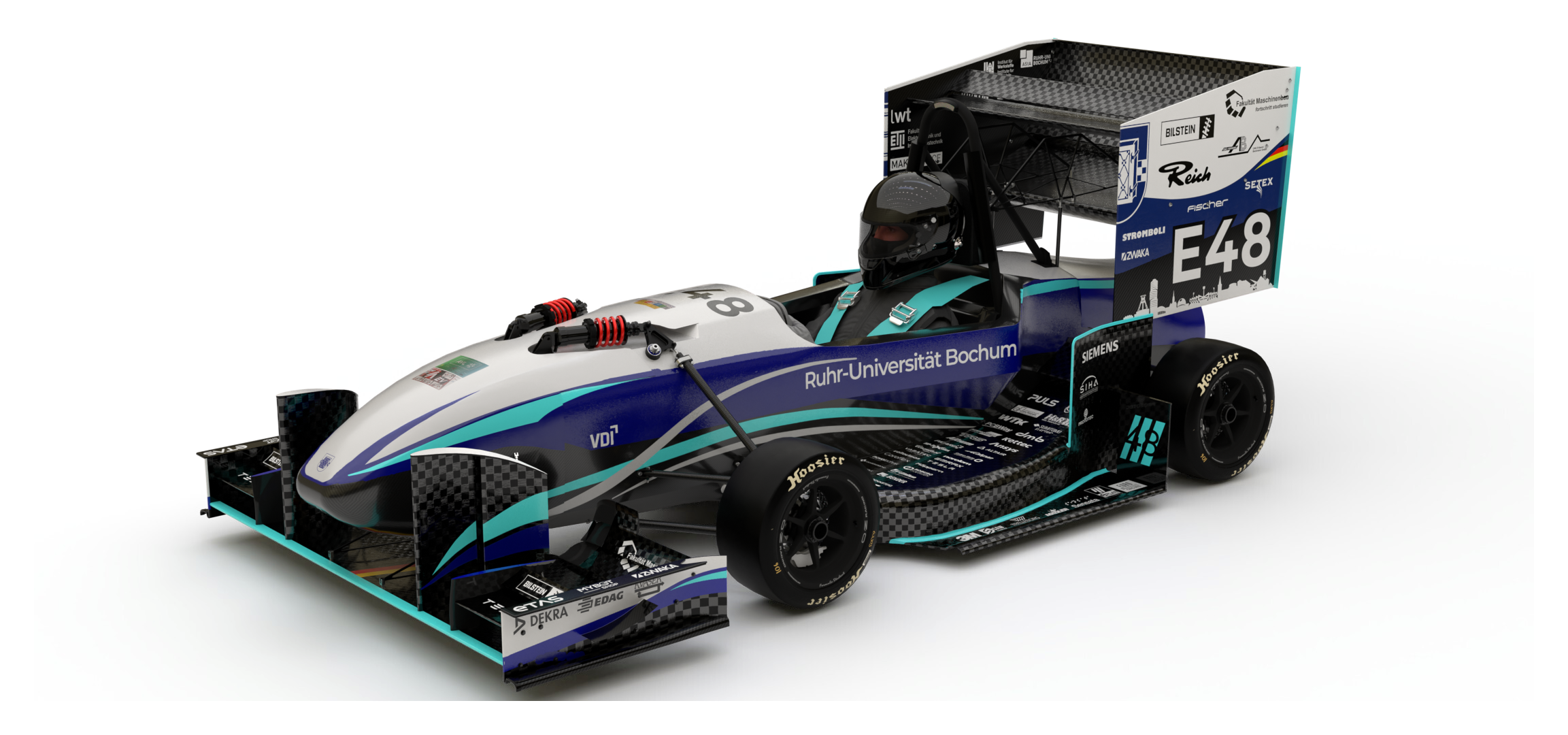

| Event Details | car 248 - active | |
Team Description
Founded: 2007
Combustion: 2007 – 2021
Electric: since 2022
Event Profile
Past Events

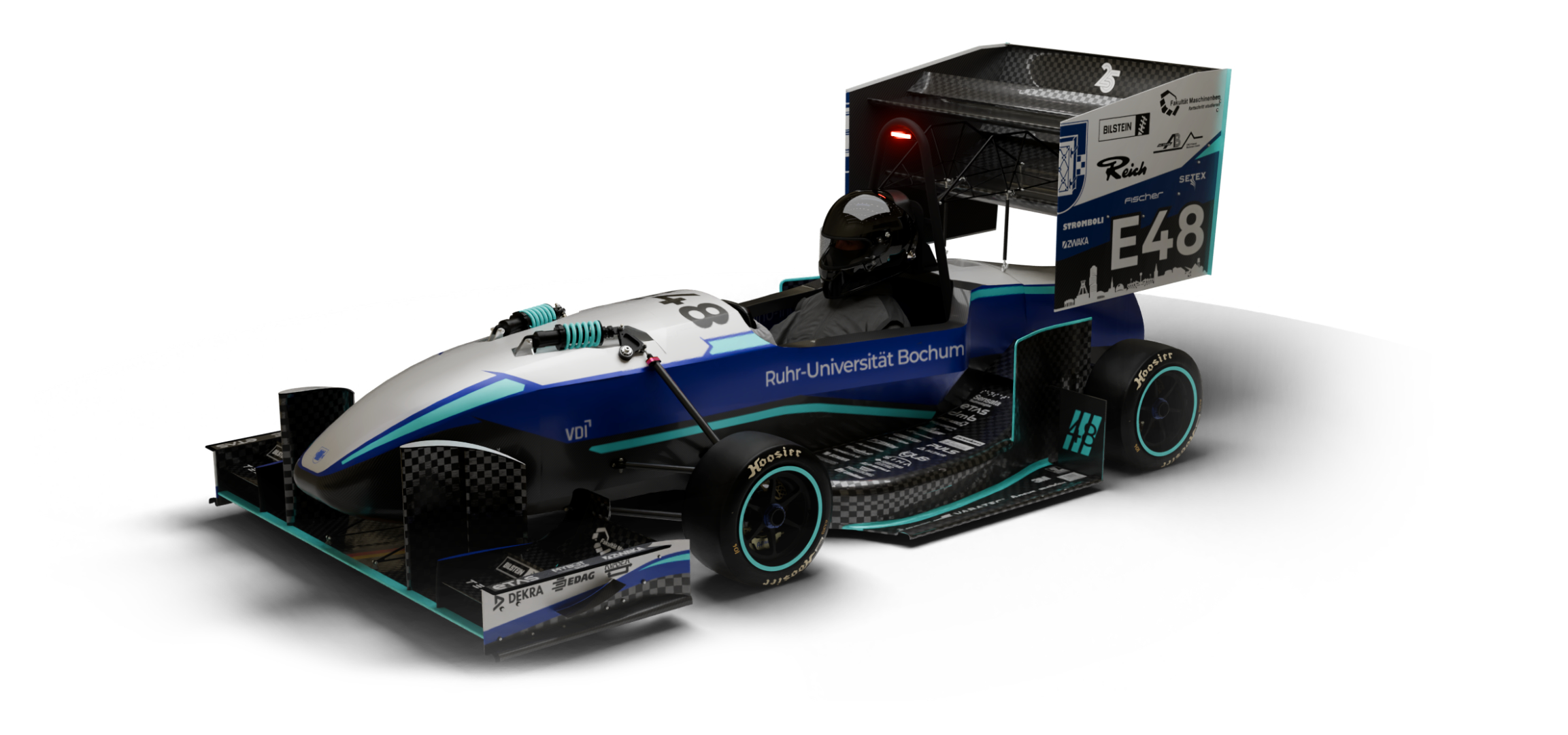

2025
Info
With a new evolution of a race car from RUB Motorsport, we are back – stronger than ever. Every failure became a lesson. Every setback a new motivation. No matter how often we stumbled, we always got back up. We solved problems, improved systems that we swore were already perfect, refined our workflow, and grew together as a team. We stand here today with a car we’re proud of – not because everything went smoothly, but because it didn’t, and we made it work anyway.
Engineering Design Priorities:
Segment
Aero
Powertrain
Rear Suspension
EE-Compartment
Car Specifications
General
| Frame Construction | full CFRP monocoque |
|---|---|
| Material | Carbon fibre-epoxy composite with aluminium honeycomb |
| Overall Length (mm) | 2953 |
| Overall Width (mm) | 1514 |
| Overall Height (mm) | 1178 |
| Wheelbase (mm) | 1540 |
| Track Front (mm) | 1240 |
| Track Rear (mm) | 1220 |
| Weight Front (kg) | 125 |
| Weight Rear (kg) | 153 |
| Suspension | Front: Pushrod Double Wishbone, U ARB; Rear: Pullrod Double Wishbone, U ARB |
| Tyres | 16,0 x 7,5-10 Hoosier / 16,0 x 7,5-10 Hoosier |
| Wheels | 10 |
| Drive Type | Chaindrive |
| Differential | Drexler limited slip differential, Preload 0-70Nm |
| Cooling | Water Cooled motor and inverter, 2 Radiators mounted to rear of Chassis |
| Brake System | 4 Disk System, Ø191mm front, Ø193mm rear |
| Electronics | Custom display along with unidirectional proprietary transmission telemtry system |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear Middle |
| Max Motor Power | 54 Continuous, 124 Peak |
| Motor Type | PMSM Axial Flux motor |
| Max Motor RPM | 5500 Continuous, 6500 Peak |
| Motor Controller | UniTek Bamocar-PG-D3-700-400 |
| Max System Voltage (V) | 554V |
| Electrode Materials | NMC |
| Accumulator Capacity | 9.9 |
| Transmission Ratio Primary | 1:3.92 |
| Transmission Ratio Secondary | 3,92 |

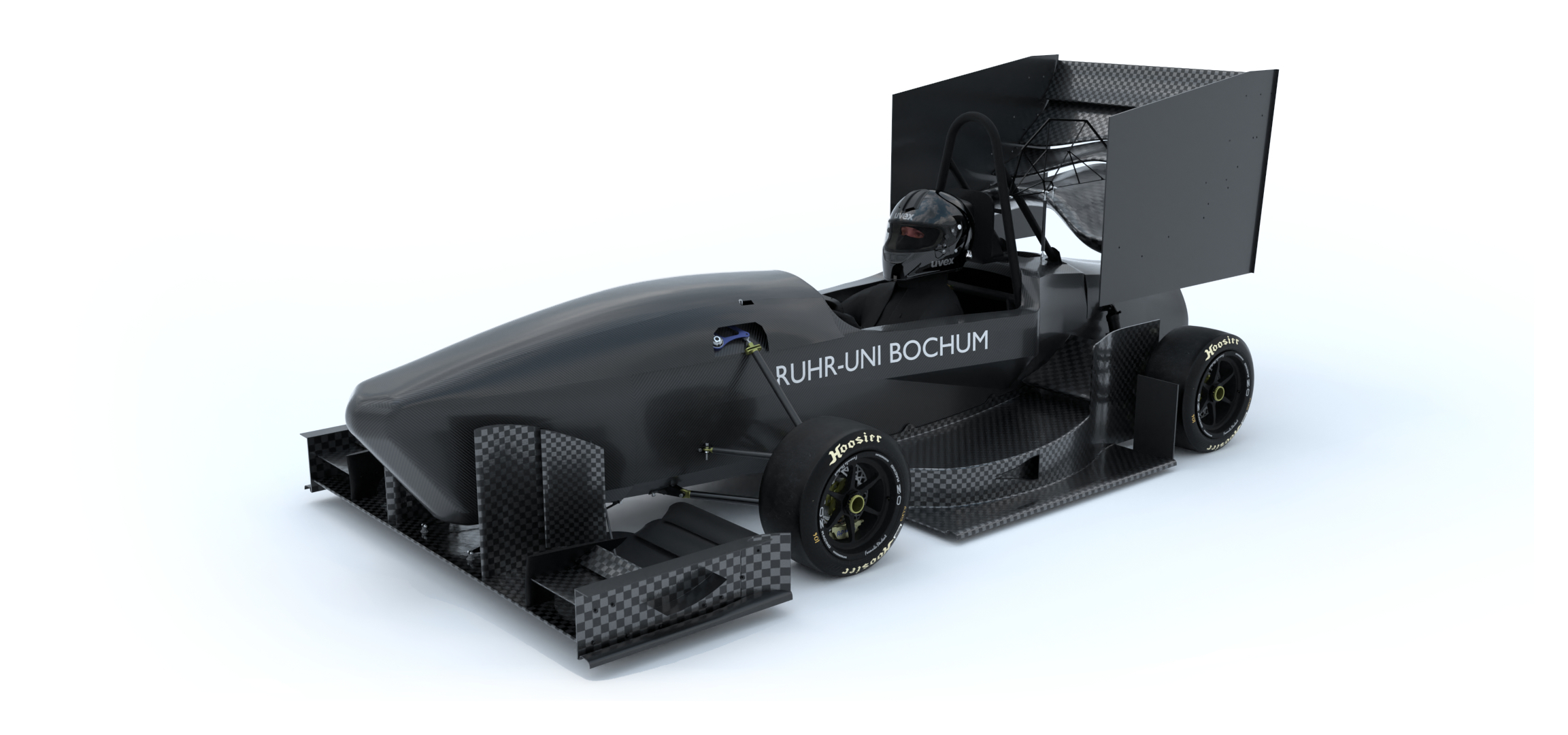

2024
Info
Following our motto “Evolution instead of Revolution,” we decided at the beginning of this season to focus on the reliability of our car.In every part of lasts seasons car where we encountered issues, we worked to solve them and improved our systems on our RUB24.Nevertheless, we have made significant improvements.As a team, we will always strive to enhance our skills so that each year we can build a better car than ever before.
Engineering Design Priorities:
Composite TSAC
New Kinematic
DV System
New Front wing Mount
Optimised LV System
Car Specifications
General
| Frame Construction | Full Composite Monocoque |
|---|---|
| Material | Carbonfibre, aluminium Honeycomb sandwitch structure |
| Overall Length (mm) | 3075 |
| Overall Width (mm) | 1516 |
| Overall Height (mm) | 1181 |
| Wheelbase (mm) | 1556 |
| Track Front (mm) | 1236 |
| Track Rear (mm) | 1227 |
| Weight Front (kg) | 123 |
| Weight Rear (kg) | 163 |
| Suspension | Front: Pushrod Double Wishbone, U ARB, Rear:Pullrod Double Wishbone, U ARB |
| Tyres | 16,0x7,5-10 R20 Hoosier / 16,0x7,5-10 R20 Hoosier |
| Wheels | 10 |
| Drive Type | Chain Drive |
| Differential | Drexler limited Slip differential, Preload 0-70Nm |
| Cooling | Rear mounted radiator and fan |
| Brake System | self developed rotors, adjustable Brake Balance |
| Electronics | monitoring system for SDC and Power consumption, Display with logger function |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear Center |
| Max Motor Power | 124kW |
| Motor Type | PMSM Axial Flux motor |
| Max Motor RPM | 5500 Continuous, 6500 Peak |
| Motor Controller | UniTek Bamocar PG-D3 700-400 |
| Max System Voltage (V) | 554V |
| Electrode Materials | LiPo |
| Accumulator Capacity | 7,326kWh |
| Transmission Ratio Primary | 3,92 |
| Transmission Ratio Secondary | n/a |
Driverless System
| Processing Units | Raspberry Pi 5, NVIDIA Jetson Orin AGX, STM32L496RETx |
|---|---|
| Processing Units FLOPS | 5353.177 |
| Processing Units Power (W) | 85.10 |
| Cameras | 2, 50m, 80 deg, IMX547 |
| Radar Sensors | n/a |
| LiDAR Sensors | n/a |
| Other Sensors | e-compass, gyroscope, accelerometer |
| DV System Highlights | Our first system - The combination between simplicity and future-proofing & The underlying infrastructure |

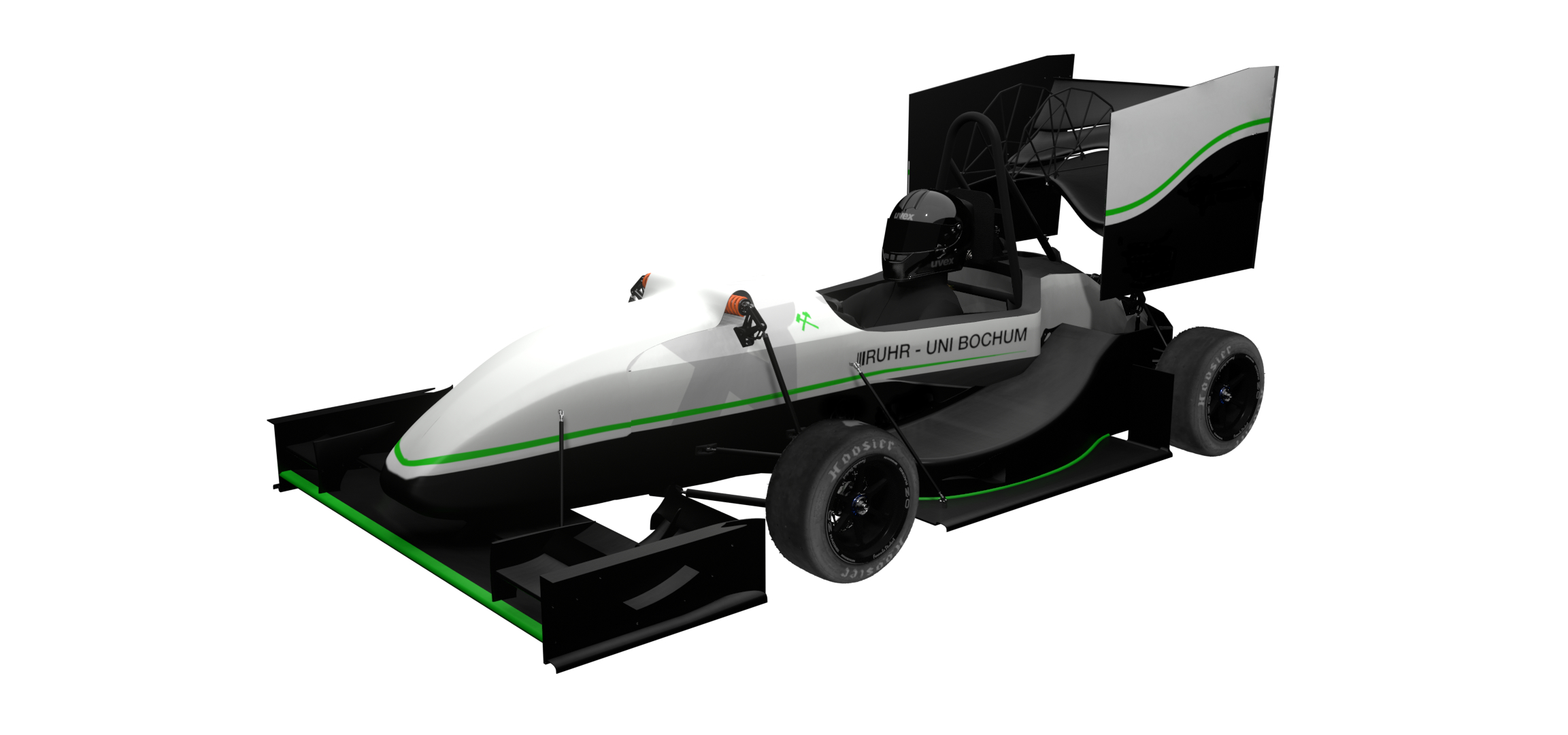

2023
Info
New chapter page 2. 2023 sees us venture out on track with an electric car for the second time. The RUB23e is an evolution of its predecessor rethought from ground up. A reduction in weight along with improved manufacturing quality stand as important achievements this year. Founded on groundwork that is a tight-knight team we believe to have a competitive package. All-white and with a selection of iconic symbols from our home region the 23e resembles a visual homage to our geographical heritage.
Engineering Design Priorities:
undertray with NACA duct
optimized mounts
newly developed AMS
SHMB to composite panel
Car Specifications
General
| Frame Construction | composite aluminium honeycomb sandwich structure with roll bars from (steel/alu) |
|---|---|
| Material | CFK Laminate with 5052 Aluminium core |
| Overall Length (mm) | 2925 |
| Overall Width (mm) | 1508 |
| Overall Height (mm) | 1155 |
| Wheelbase (mm) | 1555 |
| Track Front (mm) | 1400 |
| Track Rear (mm) | 1370 |
| Weight Front (kg) | 104 |
| Weight Rear (kg) | 156 |
| Suspension | Double A-Arm Push rod actuated, u type ARB |
| Tyres | Hoosier 16.0x6,0-10, Hoosier 16.0x7.5-10 |
| Wheels | 10"Dia, 7" wide, Mg OZ Centerlock, 1 pc |
| Drive Type | fixed ratio chaindrive system |
| Differential | Drexler limited slip differential, preload 0-70Nm, adjustable locking mechanism |
| Cooling | 127mm electric fans, sintered swirlpot for self venting cooling system |
| Brake System | 4 disk system, self developed rotors, adjustable brake balance |
| Electronics | Two 1Mbit CAN-Bus for seperation of SCS and Telemetry Data, new self developed AMS |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | rear middle |
| Max Motor Power | 109 kW |
| Motor Type | Emrax 228 Medium Voltage (LC) |
| Max Motor RPM | 5500 |
| Motor Controller | UniTek Bamocar PG-D3 700-400 |
| Max System Voltage (V) | 554 |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 7,326kWh |
| Transmission Ratio Primary | 3.92 |
| Transmission Ratio Secondary | n/a |

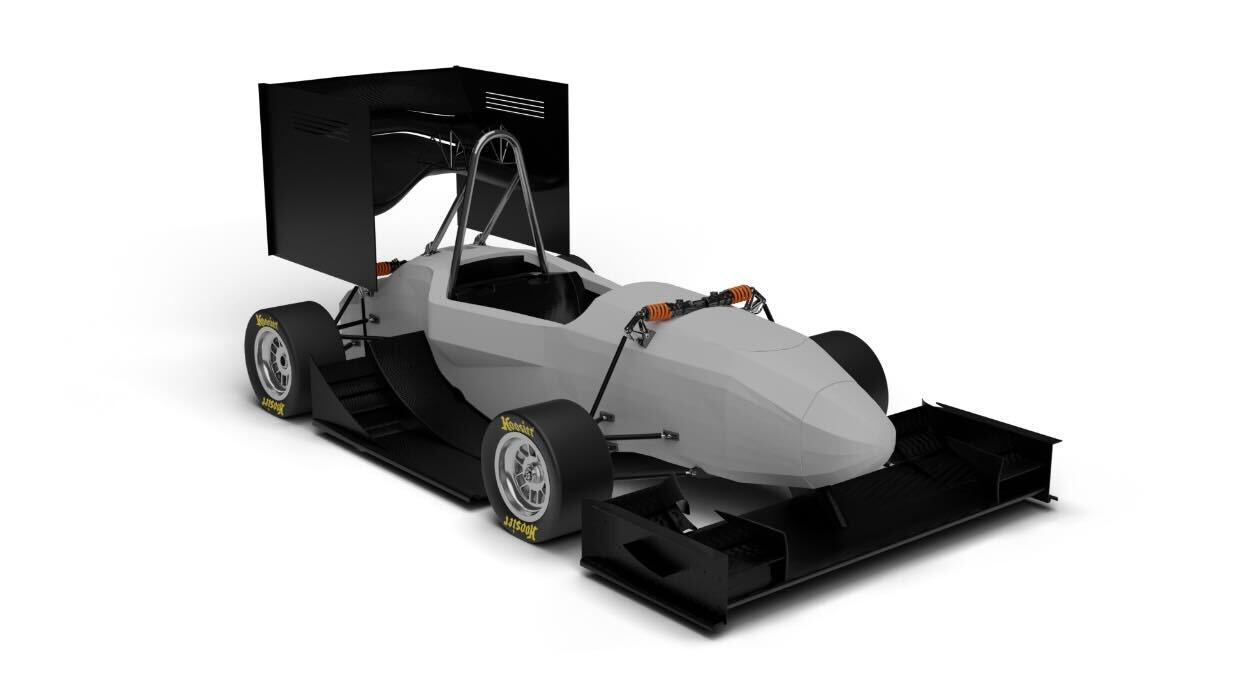

2022
Info
The beginning of a new dawn! With the 2022 season we venture into a new chapter for RUB Motorsport as we build our first electrically powered car. Since the RUB22e is designed from the ground up it no longer represents an evolution of its predecessor but a completely new car. While low weight has been in our car’s DNA for the past years, focus has shifted primarily to reliability for 2022. We aim to have our all-new charger running and want to thank our sponsors and partners for their support.
Engineering Design Priorities:
keepingitsimple
pass accu-scrutineering
pass E-scrutineering
Car Specifications
General
| Frame Construction | Aluminium honeycomb sandwich panel manufactured by vaccum infusion and pressing |
|---|---|
| Material | EuroComposites Aluminium honeycomb 20, 15 and 10mm thickness |
| Overall Length (mm) | 2909 |
| Overall Width (mm) | 1511 |
| Overall Height (mm) | 1173 |
| Wheelbase (mm) | 1650 |
| Track Front (mm) | 1235 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 125 |
| Weight Rear (kg) | 153 |
| Suspension | double wishbone suspension, push rod actuated horizontally oriented spring and damper |
| Tyres | 4x 16x6-10 Hoosier R20 |
| Wheels | OZ 10 Inch Centerlock |
| Drive Type | Chain drive |
| Differential | Drexler LSD |
| Cooling | 2x rear side mounted AKG-Coolers |
| Brake System | 4 disk system, self developed rotors, adjustable brake balance |
| Electronics | self developed BMS |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | rear center |
| Max Motor Power | 109 kW |
| Motor Type | Emrax 228 MV LC PMSM |
| Max Motor RPM | 6500 |
| Motor Controller | Bamocar PG-D3 700-400 |
| Max System Voltage (V) | 554V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 7.39 |
| Transmission Ratio Primary | 1:3,92 |
| Transmission Ratio Secondary | n/a |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.08 | 84 |
55. |
75. |
72. |
76. |
- |
- |
- |
- |
38. |
26. |
22. |
0.00 |
191.12 |
|
| 2025.08 | 27 |
13. |
12. |
10. |
13. |
13. |
- |
12. |
- |
11. |
- |
- |
0.00 |
239.20 |
|
| 2025.07 | 40 |
35. |
34. |
32. |
30. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
182.30 |
|
| 2024.08 | 29 |
22. |
12. |
26. |
17. |
19. |
- |
16. |
- |
13. |
- |
- |
0.00 |
242.80 |
|
| 2024.08 | 79 |
62. |
47. |
63. |
56. |
39. |
- |
48. |
- |
39. |
- |
- |
0.00 |
169.34 |
|
| 2024.07 | 38 |
29. |
21. |
27. |
32. |
16. |
- |
21. |
- |
20. |
- |
- |
0.00 |
183.10 |
|
| 2023.08 | 70 |
45. |
21. |
21. |
54. |
33. |
- |
- |
- |
- |
- |
- |
0.00 |
205.94 |
|
| 2023.08 | 31 |
27. |
20. |
24. |
25. |
- |
- |
- |
- |
- |
- |
- |
-40.00 |
146.44 |
|
| 2023.07 | 33 |
23. |
29. |
21. |
20. |
- |
- |
- |
- |
- |
- |
- |
-20.00 |
155.71 |
|
| 2022.08 | 63 |
54. |
47. |
19. |
49. |
- |
- |
- |
- |
- |
- |
- |
-20.00 |
168.83 |
|
| 2022.07 | 30 |
26. |
21. |
14. |
26. |
- |
- |
- |
- |
- |
- |
- |
-10.00 |
161.60 |
|
| x 11 | |||||||||||||||
