Team Details
RUB Motorsport
| University | Ruhr-Universität Bochum
DE Bochum U short 91 |
 |
|---|---|---|
| Location | Bochum, Germany | |
| Homepage | https://www.rubmotorsport.de/ | |
| Social Media | ||
| DV Team | RUB Motorsport | |
| EV Team | RUB Motorsport | |
| Short Link | tid.fsg.one/94 | |
Past Events

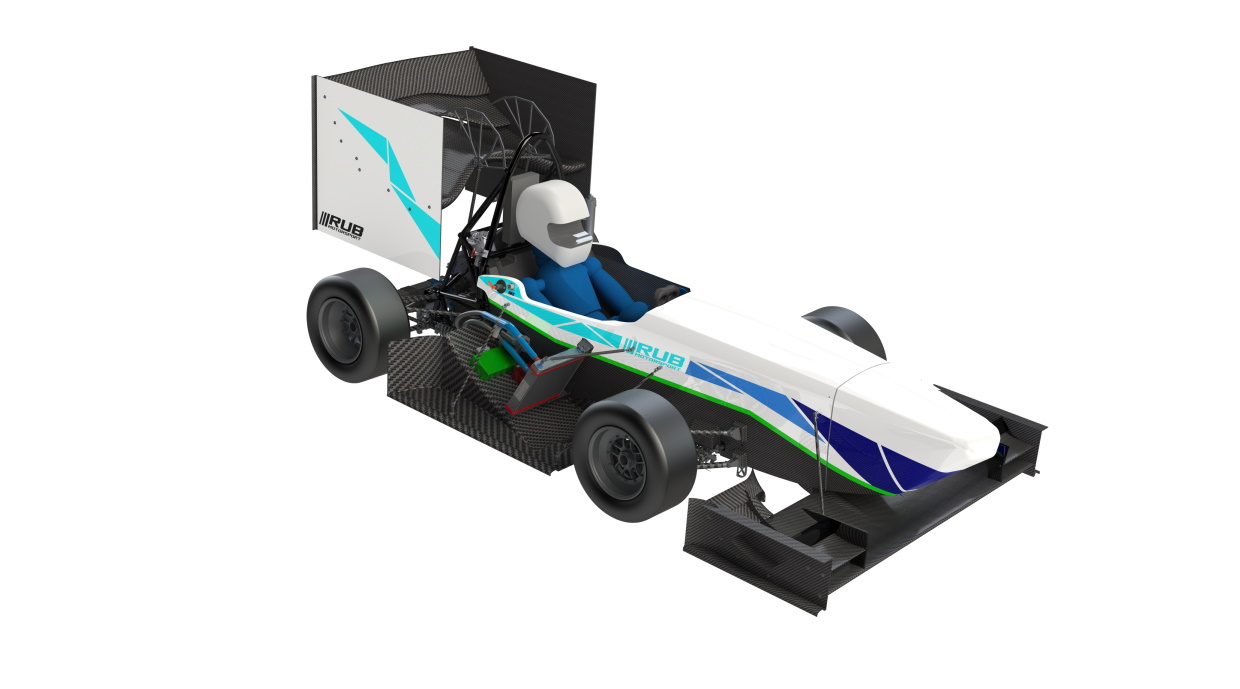

2021
Info
64x
One Team – One Mission – One Car: The RUB20– RUB Motorsports newest single-seater FS racing car. We want our car to be as light, fast and reliable as possible. With this vision, we developed our incredible new race car. A completely new chassis, a whole new aerodynamic package, and the change to a new engine packaging are the results of the past 24 months of dedicated work. Special thanks to our sponsors and our university for their commitment and great support!
Engineering Design Priorities:
Improved packaging
New Hybrid-Monocoque
Pneumatik Shifting
New Aerodynamics
Optimized Cooling
New Front Sensorunit
Car Specifications
General
| Frame Construction | Hybrid-Monocoque with tubular steel rear-spaceframe |
|---|---|
| Material | Carbonfiber +Rohacell core material and Steel tubing |
| Overall L | 3088 mm |
| Overall W | 1508 mm |
| Overall H | 1160 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1235 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 111 kg |
| Weight with 68kg driver (Rr) | 134 kg |
| Suspension | Double unequal lenght wishbone, pullrod actuated horizontally orientated spring and damper |
| Tyres (Fr / Rr) | Hoosier 18.0 x 6.0 - 10 R25B |
| Wheels (Fr / Rr) | Alumnium 3-piece Keizer Rim (center-lock, 10 |
| Drive Type | 4-Speed conventional dog-clutch gearbox |
| Differential | Drexler limited-slip differential, Preload 0-70Nm |
| Cooling | Side mounted water and oil-radiator, single fan |
| Brake System | 4/2-Piston ISR calipers, 196mm/182mm self developed rotors, adjustable brake-balance |
| Electronics | Fully sealed self developed harness, electronic throttle body, electro-pneumatic shifting |
Powertrain
| Engine | KTM SX-F 450 2019 |
|---|---|
| Bore | 95.0 mm |
| Stroke | 63.4 mm |
| Cylinders | 1 |
| Displacement | 449 ccm |
| Compression Ratio | 12,6:1 : 1 |
| Fuel System | Bosch MS3 Sport, Sequential Injection and single coil ignition system |
| Fuel | 98 octane unleaded gasoline |
| Max Power Design | 9000 rpm |
| Max Torque Design | 7500 rpm |

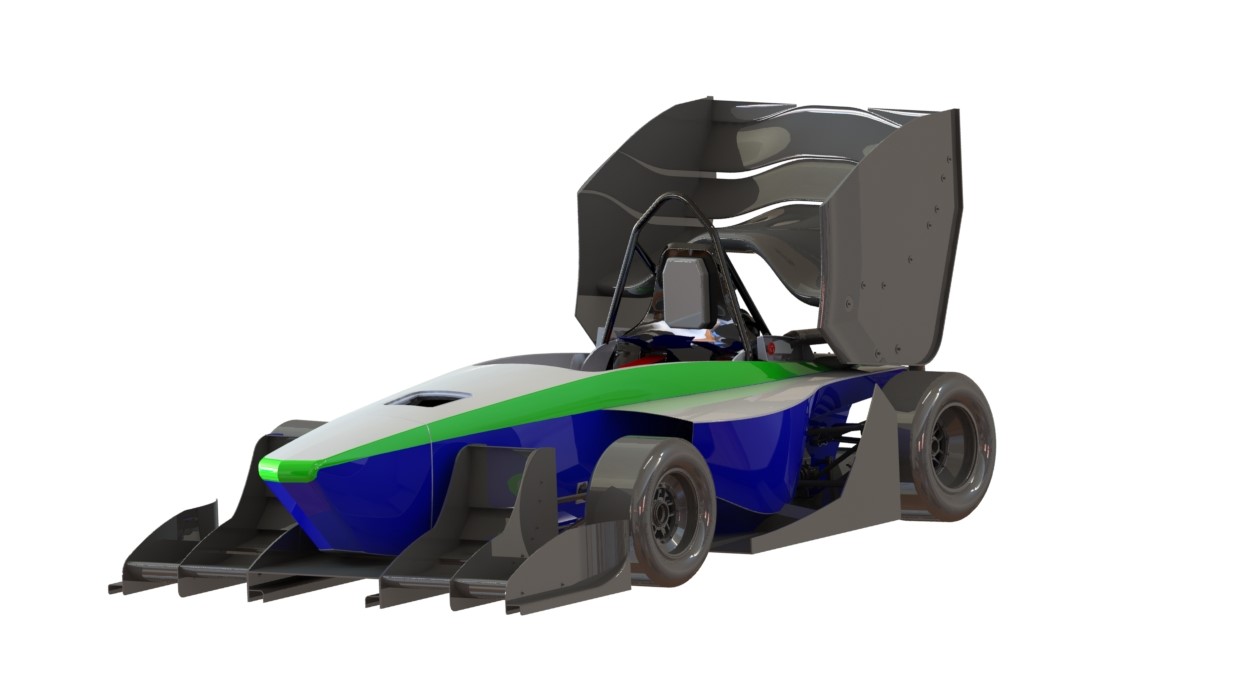

2019
Info
13x
One Team – One Mission – One Car: The RUB 19– RUB Motorsports newest single seater FS racing car. We want our car to be as light, fast and reliable as possible. With this vision we developed our incredible new race car. A completely new chassis, a whole new aerodynamic package and the change to a new engine are the results of past 12 months of dedicated work. Special thanks to our sponsors and our university for their commitment and great support!
Engineering Design Priorities:
Monocoque
Rearwing
Engine
Undertray
Car Specifications
General
| Frame Construction | single piece full monocoque |
|---|---|
| Material | CFRP, Rohacell foam core |
| Overall L | 3080 mm |
| Overall W | 1508 mm |
| Overall H | 1190 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1235 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 116 kg |
| Weight with 68kg driver (Rr) | 148 kg |
| Suspension | double unequal length wishbone, pullrod actuated horizontally oriented spring and damper |
| Tyres (Fr / Rr) | Hoosier 18.0 x 6.0 - 10 R25B |
| Wheels (Fr / Rr) | Aluminium 3-piece Keizer Rim (center lock), 10 inch |
| Drive Type | 4-speed conventional dog-clutch gearbox |
| Differential | Drexler limited slip differential, Preload 0-70 Nm |
| Cooling | side mounted water and oil radiator, single fan |
| Brake System | 4/2 piston ISR calipers, 196mm/182 mm self developed rotors, adjustable brake balance |
| Electronics | fully sealed Harness, Electric Shifting, Clutching, Throttle and Brake Balance adjustment |
Powertrain
| Engine | KTM 450 SX-F 2019 |
|---|---|
| Bore | 95.0 mm |
| Stroke | 63.4 mm |
| Cylinders | 1 |
| Displacement | 449 ccm |
| Compression Ratio | 12.6:1 : 1 |
| Fuel System | Bosch MS3 Sport sequential injection and single coil ignition system |
| Fuel | 98 octane unleaded gasoline |
| Max Power Design | 9000 rpm |
| Max Torque Design | 7500 rpm |

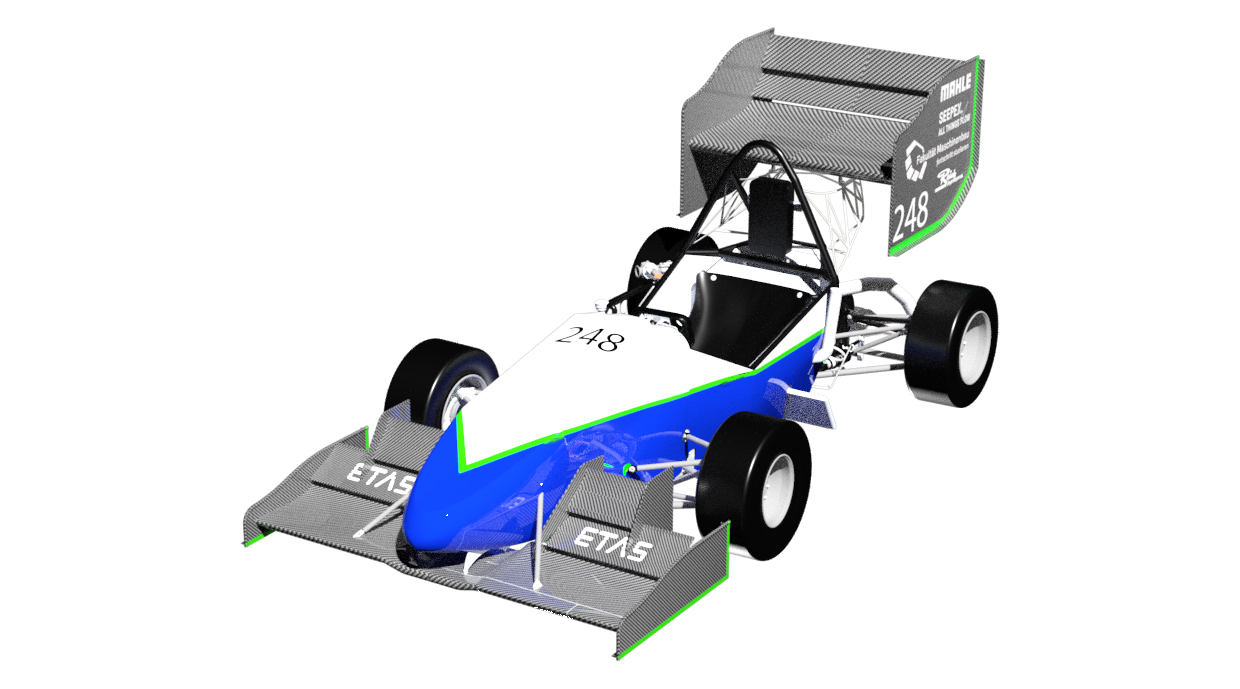

2018
Info
32x
This new race car is the third iteration of the RUB Motorsport lightweight design, which was first introduced in 2016. This season, improvements have been made to reliability and build quality while reducing weight and refining driving characteristics. The RUB Motorsport team, consisting of motivated students from various academic disciplines, proudly presents its new race car: The RUB18, a nimble, competitive challenger in Formula Student 2018.
Engineering Design Priorities:
Refined composite parts
Low COG suspension
Optimized powertrain
Durable aerodynamic parts
Stiffer, lighter chassis
Enhanced wiring loom
Car Specifications
General
| Frame Construction | Steel Space Frame |
|---|---|
| Material | 25CrMo4 |
| Overall L | 2970 mm |
| Overall W | 1485 mm |
| Overall H | 1199 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1235 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 118 kg |
| Weight with 68kg driver (Rr) | 125 kg |
| Suspension | Double unequal length wishbone, pull rod actuated horizontally oriented spring and damper |
| Tyres (Fr / Rr) | 18.0x6 R10, Hoosier R25B |
| Wheels (Fr / Rr) | 7.0x10, 0mm offset (Fr) -75mm offset (Rr), 3 pc Al Rim |
| Drive Type | 4-speed conventional dog-clutch |
| Differential | Drexler limited slip differential (V.2), Preload 0-70Nm, adjustable locking mechanism |
| Cooling | One-core water radiator and one-core oil radiator (both side mounted) |
| Brake System | 4-Disk system, self developed rotors, electrically adjustable brake balance |
| Electronics | Self-designed PCB designs, Multifunctional Steering Wheel, el. operated clutch and shifter |
Powertrain
| Engine | 2016 KTM 450 SX-F |
|---|---|
| Bore | 95 mm |
| Stroke | 63.4 mm |
| Cylinders | 1 |
| Displacement | 449 ccm |
| Compression Ratio | 12.6:1 : 1 |
| Fuel System | single point - sequential fuel injection system |
| Fuel | 98 octane unleaded gasoline |
| Max Power Design | 9001 rpm |
| Max Torque Design | 7500 rpm |

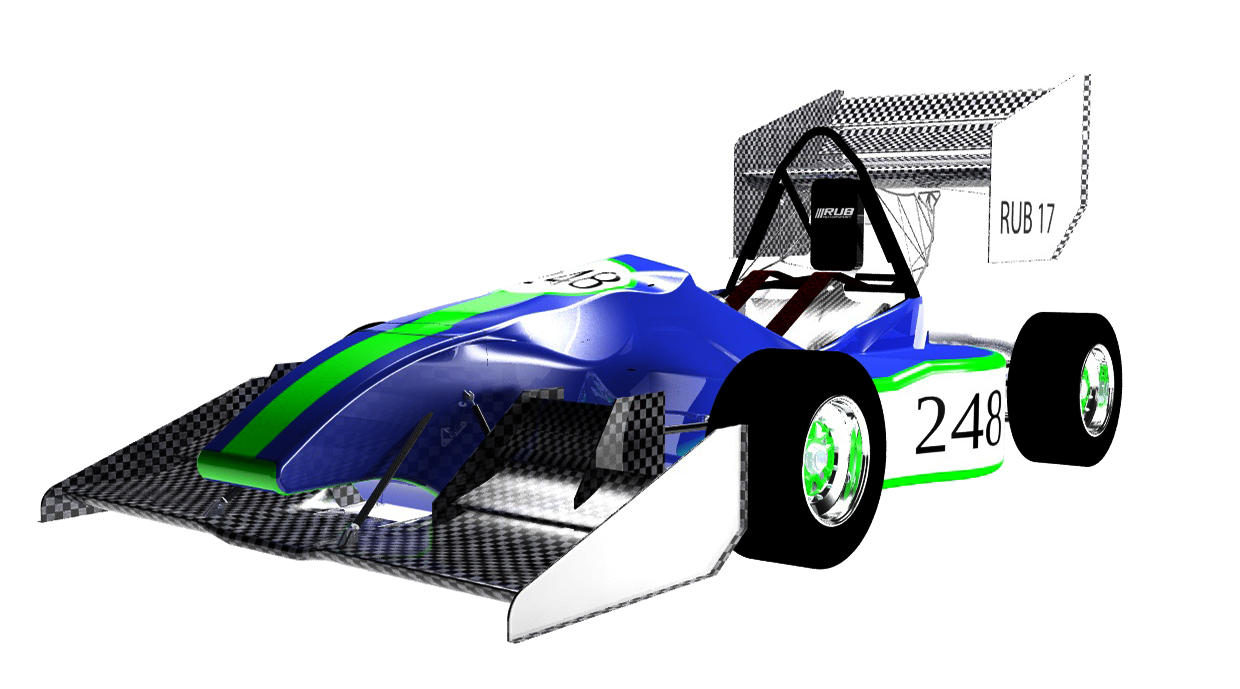

2017
Info
13x
The all new RUB 17 is our attend to create a successful season for RUB Motorsport. We focused on the most important aspects of racing: lightweight design, low CoG, high reliability. Furthermore the RUB 17 has a lot of technical highlights such as the aerodynamic package which harmonizes perfectly with the cars suspension to ensure high traction. After all the hard work we want to thank our sponsors and our university for their dedication and great support
Engineering Design Priorities:
lightweight
reliability
mechanicalgrip
power
downforce
becauseracecar
Car Specifications
General
| Frame Construction | Tubular Steel Spaceframe |
|---|---|
| Material | 25CrMo4 |
| Overall L | 2970 mm |
| Overall W | 1485 mm |
| Overall H | 1210 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1227 mm |
| Track (Rr) | 1192 mm |
| Weight with 68kg driver (Fr) | 120 kg |
| Weight with 68kg driver (Rr) | 128 kg |
| Suspension | Double unequal length A-Arm. Pull rod actuated horizontally oriented spring and damper |
| Tyres (Fr / Rr) | Hoosier 18.0 x 6.0 - 10 R25B |
| Wheels (Fr / Rr) | 10 |
| Drive Type | #428 Chaindrive 4spd sequential gearbox |
| Differential | Drexler limited slip differential (FS2010 V.2), Preload 30 Nm, 50% Locked |
| Cooling | Side mounted water and oil radiator, single fan |
| Brake System | 4/2 piston ISR calipers, 196mm/182mm self developed rotors, adjustable brake balance |
| Electronics | Fully sealed Harness. Electric Shifting, Clutching, Throttle and Brake Balance adjustment |
Powertrain
| Engine | KTM 450 SXF |
|---|---|
| Bore | 95mm mm |
| Stroke | 63.4 mm |
| Cylinders | 1 |
| Displacement | 449 ccm |
| Compression Ratio | 12.6:1 : 1 |
| Fuel System | BOSCH MS3 Sport sequential injection and single coil ignition system |
| Fuel | 98 octane unleaded gasoline |
| Max Power Design | 9000 rpm |
| Max Torque Design | 7500 rpm |

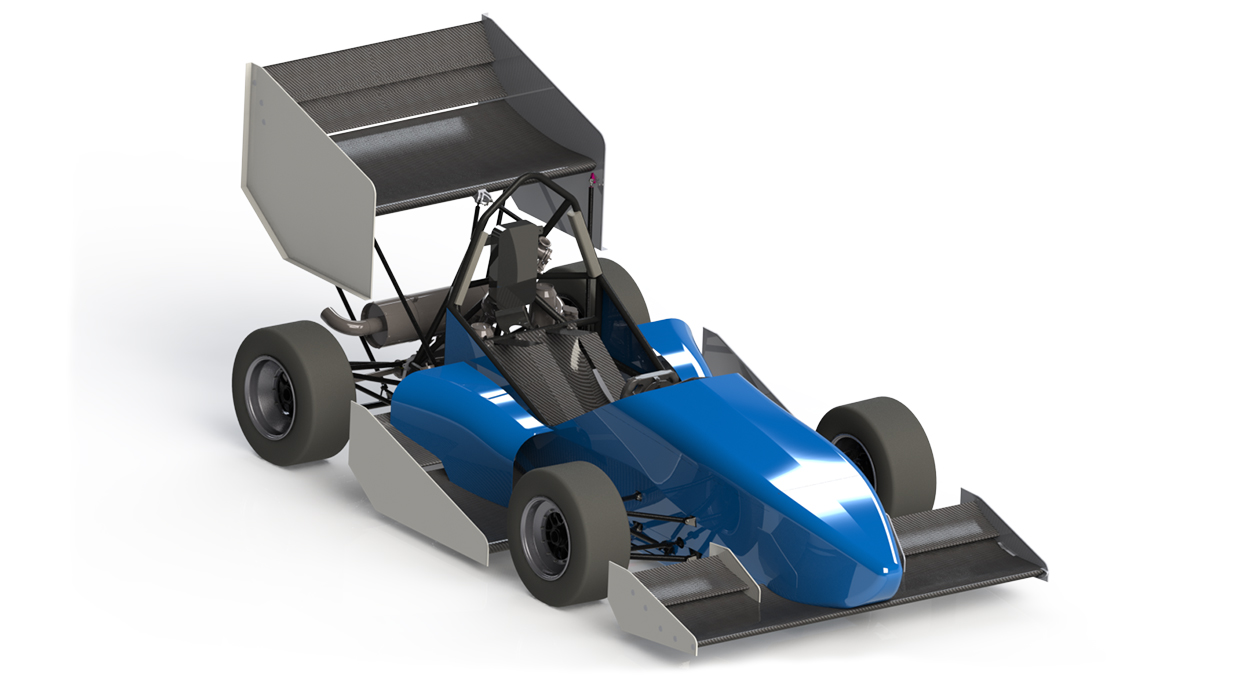

2016
Info
12x
We are RUB Motorsport, the Formula Student Team from Ruhr University in Bochum, Germany. For the season 2016 we decided to build a racecar with an all-encompassing aerodynamic package, which harmonizes with the cars suspension to ensure an overall great driving behavior. Together with the new engine concept we make sure to have an competetive package this season. We would like to thank all of our sponsors as well as university for their support, because this wouldn’t be possible without them.
Engineering Design Priorities:
downsizing
reliability
sizematters
moreWings
noMono
imperialstrikesback
Car Specifications
General
| Frame Construction | Tubular Steel Spaceframe |
|---|---|
| Material | 25CrMo4 |
| Overall L | 3020 mm |
| Overall W | 1485 mm |
| Overall H | 1190 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1235 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 121 kg |
| Weight with 68kg driver (Rr) | 122 kg |
| Suspension | Double unequal length A-Arm. Pull rod actuated horizontally oriented spring and damper (coil-over). |
| Tyres (Fr / Rr) | Hoosier 18.0 x 6.0 - 10 R25B |
| Wheels (Fr / Rr) | 10" 3-piece Keizer Rim, 7" wide |
| Drive Type | #428 Chaindrive, 4spd sequential gearbox |
| Differential | Drexler limited slip differential (FS2010 V.2), Preload 30Nm, 50% Locked |
| Cooling | two side mounted radiators, single fan |
| Brake System | 4/2 piston ISR calipers, 196mm/182mm self developed rotors, cockpit-adjustable brake balance bar |
| Electronics | Custom built wiring harness with automotive sealed connectors and electric shift and clutch system |
Powertrain
| Engine | KTM 450 SXF |
|---|---|
| Bore | 95 mm |
| Stroke | 63.4 mm |
| Cylinders | 1 |
| Displacement | 449 ccm |
| Compression Ratio | 12.6:1 : 1 |
| Fuel System | BOSCH MS3 Sport sequential injection and single coil ignition system |
| Fuel | 98 octane unleaded gasoline |
| Max Power Design | 9000 rpm |
| Max Torque Design | 7500 rpm |

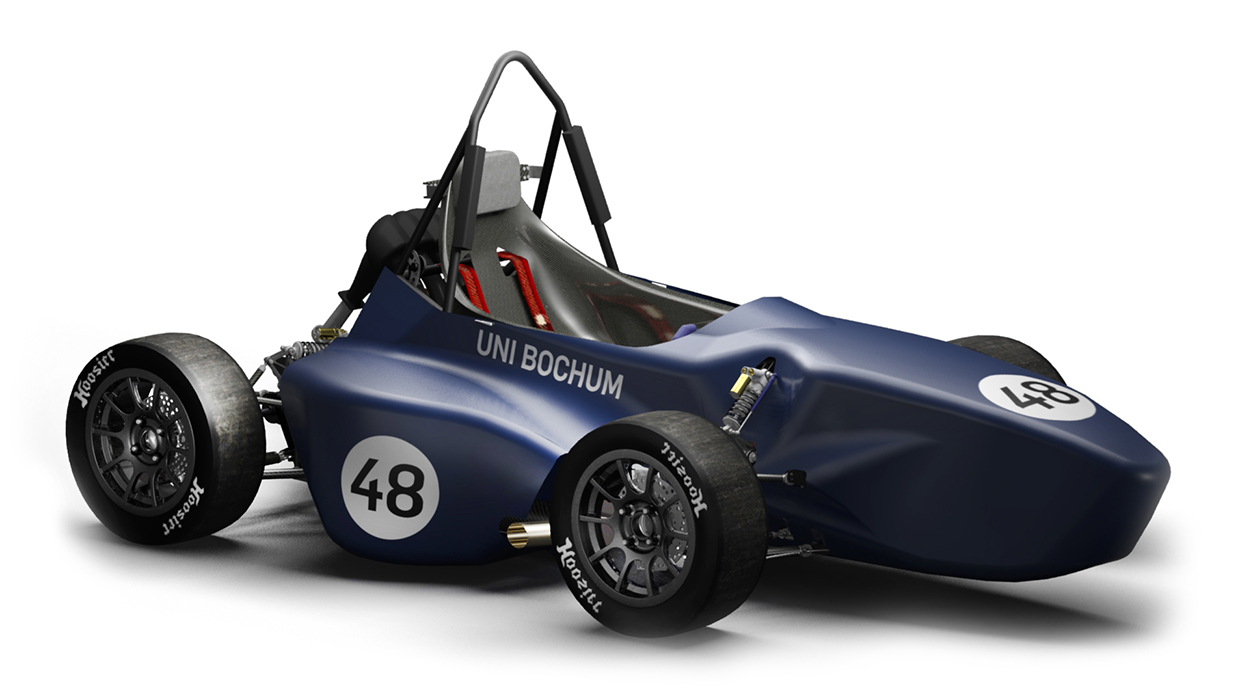

2014
Info
25x
We are RUB Motorsport, the Formula Student Team from the Ruhr University in Bochum, Germany. Last year we laid the foundations by designing a solid base to build upon this season. Our new mass reduced frame and the use of carbon fiber wishbones is the next step to optimize the car, as well as data acquisition. We would like to thank all of our sponsors as well as university for their financial and technical support that makes it possible for us to compete in FSG and FSAEI this year.
Engineering Design Priorities:
reliability
weight reduction
stiffness
driveability
acceleration
data acquisition
Car Specifications
General
| Frame Construction | Steel Spaceframe |
|---|---|
| Material | 25CrMo4 |
| Overall L | 2780 mm |
| Overall W | 1400 mm |
| Overall H | 1201 mm |
| Wheelbase | 1550 mm |
| Track (Fr) | 1235 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 144 kg |
| Weight with 68kg driver (Rr) | 144 kg |
| Suspension | Double Wishbone, Push Rod |
| Tyres (Fr / Rr) | 20.5x7.0, R25B, Hoosier / 20.5x7.0, R25B, Hoosier |
| Wheels (Fr / Rr) | 7 |
| Drive Type | gear-reduced motorcycle gearbox, chain |
| Differential | Drexler limited slip differential (FS2010 V.2), Preload 30Nm,60% Locked |
| Cooling | Side mounted single core custom aluminium radiator, 802 cfm fan mounted to a shroud |
| Brake System | 4 Disk System, self developed rotors, 220mm front, 210mm rear, adj. brake balance |
| Electronics | Custom built wiring harness with automotive sealed connectors and electric shifting system |
Powertrain
| Engine | Suzuki GSX-R 600 K4 |
|---|---|
| Bore | 67 mm |
| Stroke | 42,5 mm |
| Cylinders | 4 |
| Displacement | 599 ccm |
| Compression Ratio | 12,5:1 : 1 |
| Fuel System | BOSCH MS3 Sport sequential injection and single coil ignition system |
| Fuel | Gasoline 98 octane |
| Max Power Design | 13500 rpm |
| Max Torque Design | 9500 rpm |

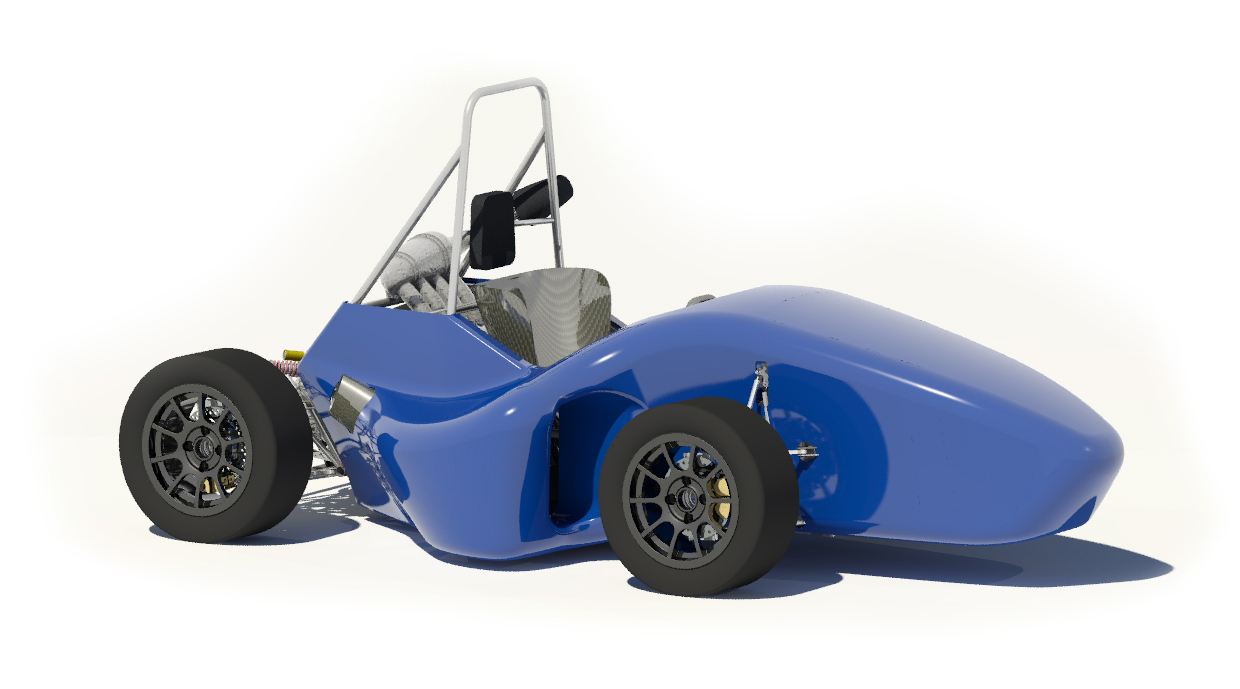

2013
Info
42x
We are RUB Motorsport, the Formula Student Team from the Ruhr University in Bochum, Germany. With our new hand-optimized frame and well thought-through suspension, we emphasize on reliability and endurance in this year's competition. Furthermore a new airbox has been designed to push the car's parameters closer to the theoretical limit. We set a high value on careful computer aided design of the car, which enabled us to work with new renowned partners from industry. With their support we are confident to reach the goals, that have been set by the team, like for example building a solid base for the next season to build upon. We would like to use this opportunity to thank all of our sponsors as well as the university for their financial and technical support, that opened the doors to Formula Student for RUB Motorsport.
Car Specifications
General
| Frame Construction | Tubular space frame |
|---|---|
| Material | 25CrMo4 |
| Overall L | 2760 mm |
| Overall W | 1374 mm |
| Overall H | 1233 mm |
| Wheelbase | 1550 mm |
| Track (Fr) | 1187 mm |
| Track (Rr) | 1161 mm |
| Weight with 68kg driver (Fr) | 150 kg |
| Weight with 68kg driver (Rr) | 191 kg |
| Suspension | Unequal length double wishbone with pushrods |
| Tyres (Fr / Rr) | Hoosier R25B 20.5x7.0-13 |
| Wheels (Fr / Rr) | Team Dynamics 7.0x13.0CH |
| Drive Type | Chain 520mm |
| Differential | Drexler Formula Student Differential |
| Cooling | single Sidepod mounted Radiator with electric fan |
| Brake System | 4 Disk System self developed rotors, 220mm diameter, adjustable brake balance |
| Electronics | Custom built wiring harness with automotive sealed connectors and electronic steering wheel |
Powertrain
| Engine | GSXR 600 K4 |
|---|---|
| Bore | 67.0 mm |
| Stroke | 42.5 mm |
| Cylinders | 4 |
| Displacement | 599 ccm |
| Compression Ratio | 12.5/1 : 1 |
| Fuel System | Fuel Injection |
| Fuel | 98 octane unleaded gasoline |
| Max Power Design | 11000 rpm |
| Max Torque Design | 9000 rpm |

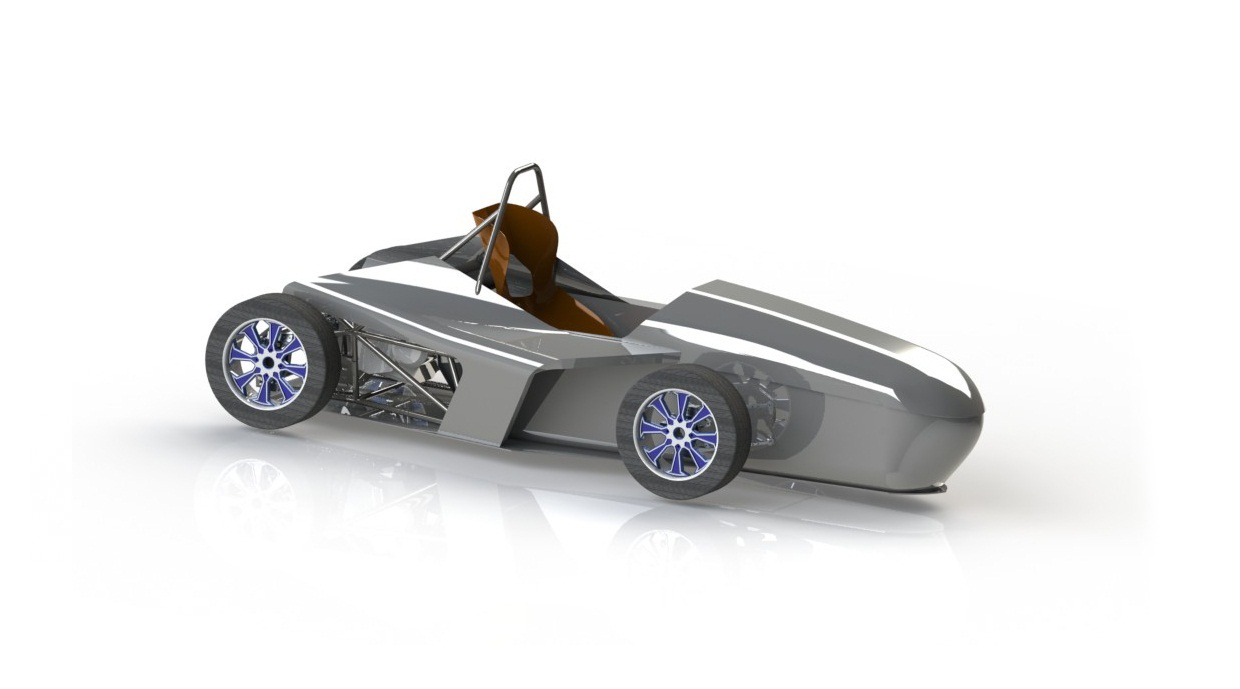

2012
Info
Since last season the team of RUB Motorsport has tripled in size, so that the number of club members is increased up to 25 students. As there has been substantial progress in several areas such as improved cooperation in manufacturing, we worked out to unify high quality materials and smart constructions. Our team members are highly motivated to put the finishing touches to our next generation car. We look forward to present the RUBin 2012 this summer at FSA and FSG. Moreover the cooperation with the Ruhr-University Bochum is growing more and more. In the summer term 2012 the mechanical engineering department offers a seminar held by RUB Motorsport. This seminar deals with the CAD tool “Solid Works”. Further possibilities for students to incorporate there interest for motorsport in there curriculum are for example thesis. In this case experienced staff members provide support and assist students on there way. Hopefully, our hard work will result in successful races this season.
Car Specifications
General
| Frame Construction | Front and rear Tubular space frame |
|---|---|
| Material | 25CrMo4 25mm OD |
| Overall L | 2850 mm |
| Overall W | 1450 mm |
| Overall H | 1080 mm |
| Wheelbase | 1700 mm |
| Track (Fr) | 1220 mm |
| Track (Rr) | 1180 mm |
| Weight with 68kg driver (Fr) | 142 kg |
| Weight with 68kg driver (Rr) | 181 kg |
| Suspension | Double unequal length A-Arm. Pull rod actuated horizo |
| Tyres (Fr / Rr) | 205x55 R13 Hoosier R25B |
| Wheels (Fr / Rr) | 8x13, 20mm offset, Al Rim |
| Drive Type | Original Suzuki G-Gear modiefied to MTA |
| Differential | Drexler Formula Student 2010 limited slip differential |
| Cooling | rightside mounted radiator with electronic controlled electric fan |
| Brake System | 4-Disk system, self developed rotors with 230mm diameter, adjustable brake balance. Brembo calipers |
| Electronics | Multifunctional Steering Wheel, Electric Shifting System, Live-Telemetry System |
Powertrain
| Engine | 2005 Suzuki GSX-R K5 |
|---|---|
| Bore | 67 mm |
| Stroke | 42.5 mm |
| Cylinders | 4 |
| Displacement | 599 ccm |
| Compression Ratio | 12.5:1 : 1 |
| Fuel System | Modified Suzuki GSX-R Injection system |
| Fuel | 98 octane unleaded gasoline |
| Max Power Design | 1300 rpm |
| Max Torque Design | 8500 rpm |
2010
Info
Our Team from the RUB consists of a little more than 10 members, which constructed a car with following features: steel tubular frame; Suzuki GSX R600 engine (K4) with Bosch MS4 ECU, paralyzation of half of the valves; BMW E30 limited slip differntial, no chain in powertrain! Aluminium foam Impact Attenuator; Fox Dampers. Our aim was to build a car that pioneers the next cars from the RUB.Very important: We thank our sponsors and supporting companies!
Car Specifications
General
| Frame Construction | Cubic steel construction |
|---|---|
| Overall L | 2735 mm |
| Overall W | 1415 mm |
| Overall H | 135 mm |
| Wheelbase | 1850 mm |
| Track (Fr) | 1150 mm |
| Track (Rr) | 1280 mm |
| Suspension | Double unequal suspension arms |
| Tyres (Fr / Rr) | Conti Slicks |
| Wheels (Fr / Rr) | ATS Classic, 7 x 13 ET20 |
| Differential | BMW |
| Cooling | beside mounted Honda radiator, Spal fan, 280mm |
| Brake System | Honda, 4 disc system. |
Powertrain
| Engine | Suzuki GSX R600 |
|---|---|
| Cylinders | 4 |
| Displacement | 599 ccm |
| Compression Ratio | 13,16 : 1 |
| Fuel | 98 |
| Max Power Design | 8500 rpm |
| Max Torque Design | 7200 rpm |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2021.08 | 21 |
15. |
4. |
9. |
13. |
10. |
- |
14. |
- |
13. |
- |
- |
0.00 |
310.18 |
|
| 2021.07 | 27 |
22. |
23. |
4. |
13. |
14. |
- |
16. |
- |
19. |
- |
- |
0.00 |
198.80 |
|
| 2021.07 | 26 |
16. |
15. |
13. |
9. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
227.98 |
|
| 2019.08 | 60 |
55. |
52. |
33. |
40. |
- |
- |
- |
- |
- |
- |
- |
-25.00 |
147.16 |
|
| 2019.08 | 34 |
34. |
33. |
30. |
30. |
- |
- |
- |
- |
- |
- |
- |
-71.00 |
53.70 |
|
| 2019.07 | 40 |
27. |
7. |
10. |
19. |
- |
- |
- |
- |
- |
- |
- |
-40.00 |
207.33 |
|
| 2019.07 | 28 |
20. |
13. |
- |
18. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
137.10 |
|
| 2018.08 | 57 |
41. |
46. |
21. |
35. |
- |
- |
47. |
- |
42. |
24. |
22. |
0.00 |
262.45 |
|
| 2017.08 | 64 |
53. |
49. |
51. |
22. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
192.45 |
|
| 2016.08 | 73 |
48. |
62. |
48. |
33. |
37. |
- |
55. |
- |
39. |
- |
- |
0.00 |
249.94 |
|
| 2015.09 | 22 |
10. |
6. |
21. |
8. |
15. |
- |
15. |
- |
9. |
6. |
11. |
0.00 |
613.98 |
|
| 2014.09 | 44 |
16. |
38. |
36. |
10. |
15. |
- |
17. |
- |
14. |
14. |
18. |
0.00 |
499.38 |
|
| 2014.08 | 74 |
35. |
56. |
20. |
20. |
44. |
- |
43. |
- |
40. |
23. |
31. |
0.00 |
361.29 |
|
| 2013.08 | 74 |
62. |
72. |
71. |
36. |
54. |
- |
58. |
- |
52. |
36. |
- |
0.00 |
200.10 |
|
| 2012.08 | 76 |
74. |
71. |
- |
63. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
80.85 |
|
| 2012.07 | 37 |
37. |
17. |
- |
- |
- |
- |
- |
- |
- |
- |
- |
0.00 |
49.20 |
|
| 2011.08 | 74 |
72. |
61. |
65. |
71. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
104.01 |
|
| 2010.08 | 75 |
75. |
71. |
- |
- |
- |
- |
- |
- |
- |
- |
- |
0.00 |
36.99 |
|
| x 18 | |||||||||||||||
