Team Details
Raftar Formula Racing Electric
| University | Indian Institute of Technology Madras
IN Chennai IITM short 752 |
 |
|---|---|---|
| Location | Chennai, India | |
| Homepage | https://raftariitm.com | |
| Social Media |

|
|
| CV Team | Raftar Formula Racing | |
| DV Team | Vegam Racing | |
| Short Link | tid.fsg.one/753 | |

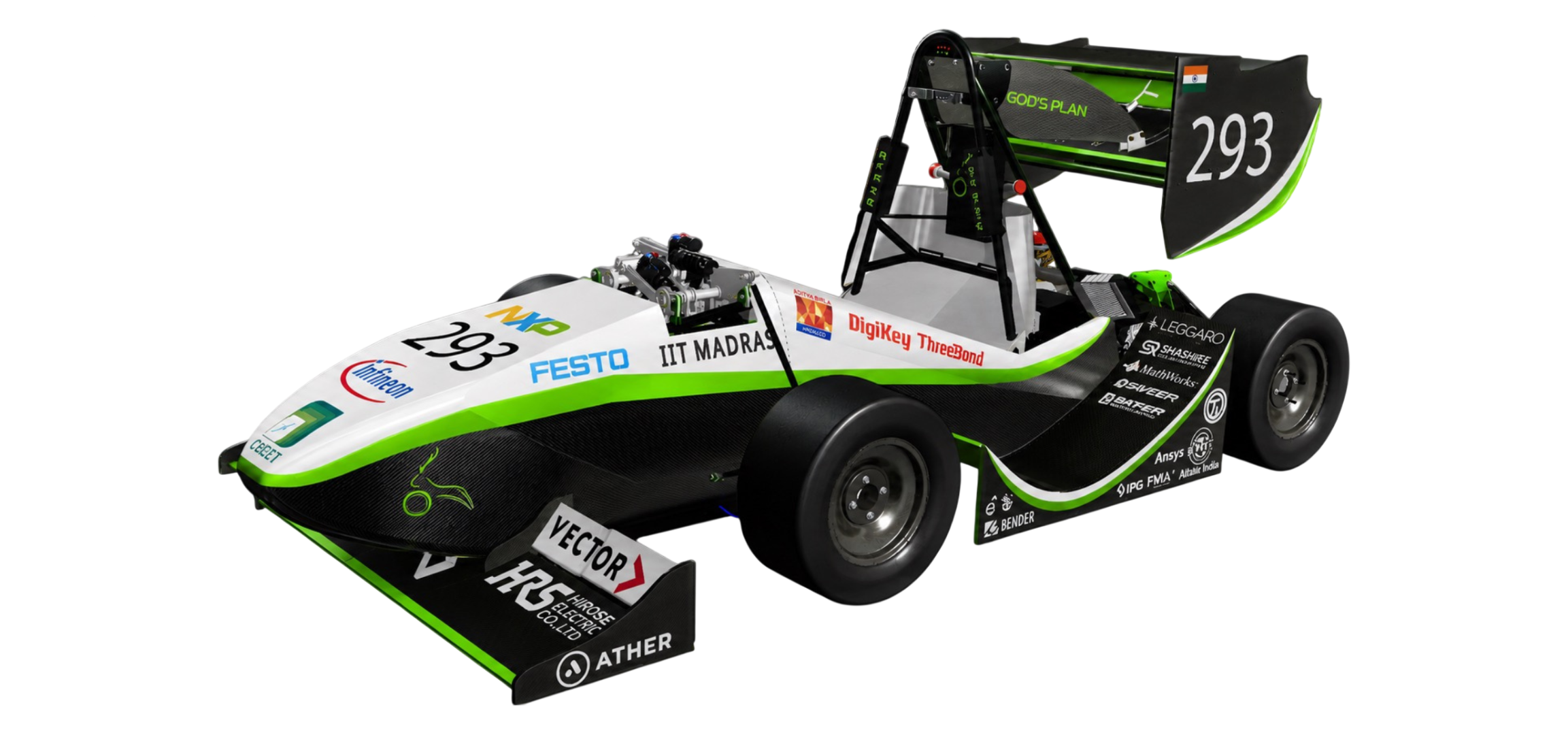

| Event Details | car 293 - active | |
Team Description
IIT Madras' FSE team
Event Profile
Past Events
2024
Info

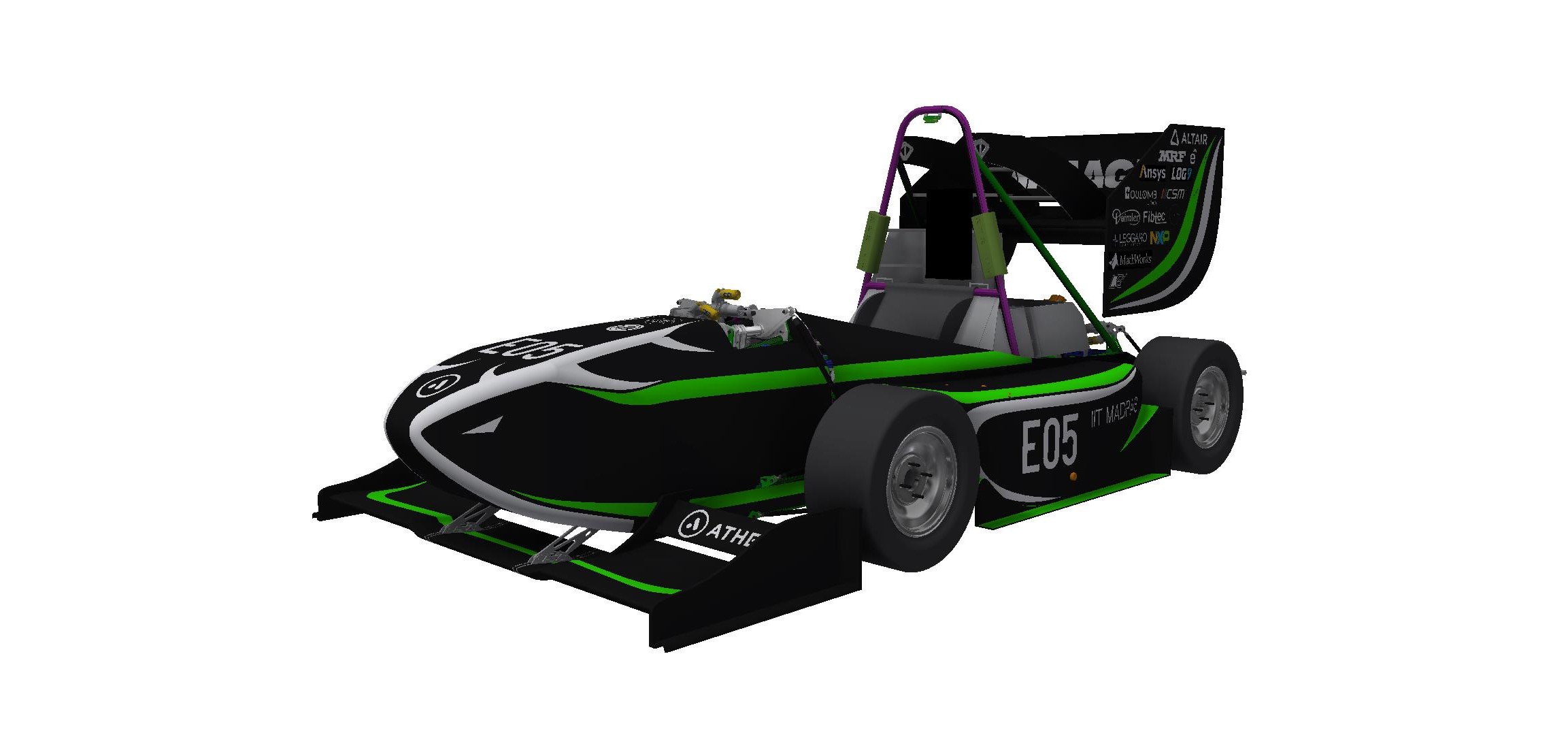

Raftar Formula Racing presents the RFR24, our latest electric car, embodying lessons from the RFR23. This data-driven machine sets new benchmarks for reliability and mechanical prowess. As a second-year FSAE Electric team, we focused on reliability, optimization, and design validation. We rigorously tested the car for 250 km, reduced its weight by 20 kg, and fine-tuned every subsystem targeting redundancies and enhancing performance. This effort lays a strong foundation for future cars.
Engineering Design Priorities:
Decoupled Suspension
Custom BMS
Drag Reduction System
Car Specifications
General
| Frame Construction | Tubular Space Frame Structure |
|---|---|
| Material | ST 52 |
| Overall Length (mm) | 3050 |
| Overall Width (mm) | 1550 |
| Overall Height (mm) | 1220 |
| Wheelbase (mm) | 1590 |
| Track Front (mm) | 1185 |
| Track Rear (mm) | 1155 |
| Weight Front (kg) | 162 |
| Weight Rear (kg) | 174 |
| Suspension | Heave Roll Decoupled Suspension in front & Independent Suspension the rear. |
| Tyres | 457.2 x 152.4 mm R18, MRF ZTD 1E / 457.2 x 152.4 mm R18, MRF ZTD 1E |
| Wheels | 6 x 10 , 35 mm offset , 3 pc Al Rim / 6 x 10 , 35 mm offset , 3 pc Al Rim |
| Drive Type | Chain Drive - 520 Chain |
| Differential | Salisbury Type Limited Slip Differential |
| Cooling | Side Mounted Radiator 1000cc radiator and 300mm electric fan |
| Brake System | 4 - Disk System, Self Developed Rotors with 185 mm diameter, adjustable brake balance |
| Electronics | Integrated TS Enclosure, NXP Custom BMS, Live - Telemetry, Waterproof wiring harness |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear Centre |
| Max Motor Power | 76 |
| Motor Type | Axial Flux Permanent Magnet Synchronous Mot |
| Max Motor RPM | 6500 |
| Motor Controller | Cascadia Motion Rinehart PM100DZ |
| Max System Voltage (V) | 249 |
| Electrode Materials | NMC - Graphite |
| Accumulator Capacity | 7.9 |
| Transmission Ratio Primary | 3.769 |
| Transmission Ratio Secondary | 1 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.01 | 30 |
2. |
12. |
1. |
1. |
- |
- |
- |
- |
- |
- |
- |
-7.00 |
303.44 |
|
| 2024.08 | 79 |
58. |
49. |
16. |
41. |
- |
- |
- |
- |
- |
- |
- |
-20.00 |
186.94 |
|
| 2024.01 | 18 |
2. |
16. |
5. |
1. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
287.92 |
|
| 2023.01 | 21 |
3. |
1. |
4. |
2. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
297.00 |
|
| x 4 | |||||||||||||||
