Team Details
Raftar Formula Racing
| University | Indian Institute of Technology Madras
IN Chennai IITM short 752 |
![]() |
|---|---|---|
| Location | Chennai, India | |
| Social Media | ||
| DV Team | Vegam Racing | |
| EV Team | Raftar Formula Racing Electric | |
| Short Link | tid.fsg.one/460 | |
Team Description
Raftar Formula Racing is the official Formula Student team of IIT Madras, India. It has taken on the journey to be a globally competitive team and inspire more Indian teams to absorb the Formula Student culture
Past Events

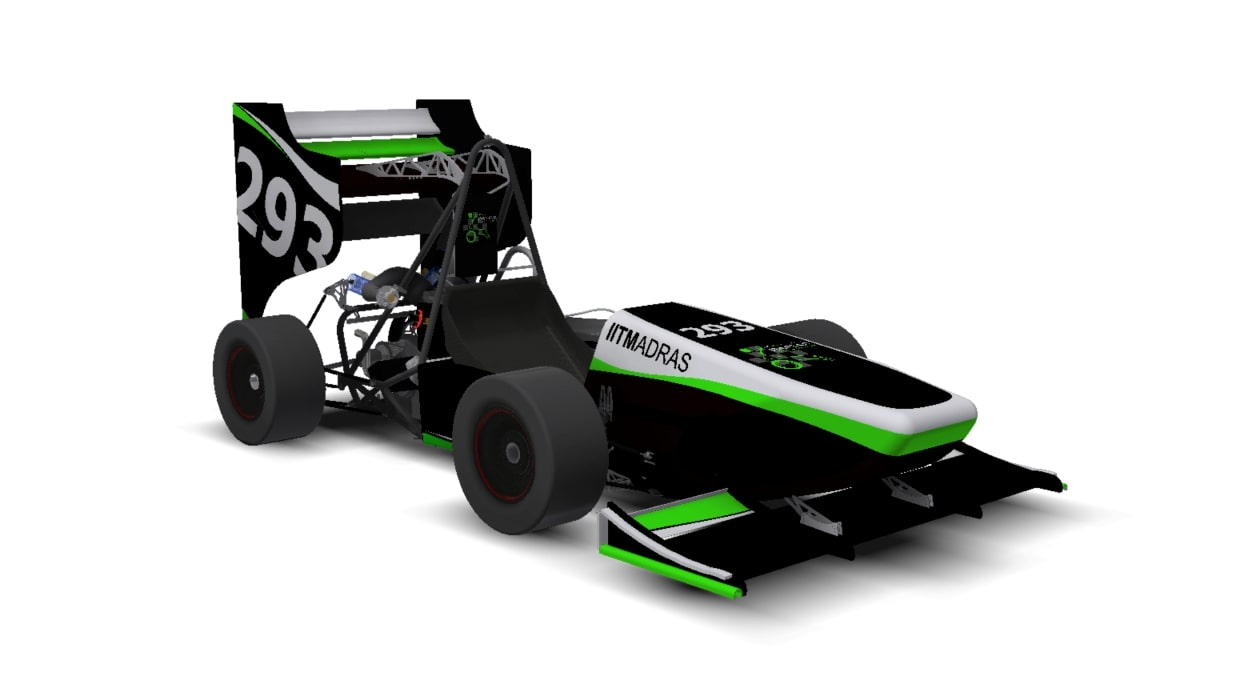

2019
Info
38x
We - Raftar Formula Racing, the 35 memeber team from IIT Madras, are into our 8th year in the Formula Student arena. Having learnt from the past victories and experiences we have come to FSG 19 with our most reliable and fastest car yet. We have mainly focused on our goal of data driven design along with huge improvements in the composites and powertrain division to reduce the weight of the car. We are ready to #BLOOD.SWEAT.GASOLINE it out to show some great performance this year. #PEACE.POTIYA
Engineering Design Priorities:
Power to Weight ratio
Data Driven design
Tunability
Integrated Design
Design to Manufacture
Fuel efficient
Car Specifications
General
| Frame Construction | Tubular Space Frame |
|---|---|
| Material | ST 52 |
| Overall L | 2995 mm |
| Overall W | 1424 mm |
| Overall H | 1190 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1176 mm |
| Track (Rr) | 1100 mm |
| Weight with 68kg driver (Fr) | 128 kg |
| Weight with 68kg driver (Rr) | 128 kg |
| Suspension | Double unequal length A-arms, pull rod actuated (front), push-rod actuated (rear) |
| Tyres (Fr / Rr) | 152x67B10 MRF ZTD1_C / 152x67B10 MRF ZTD1_C |
| Wheels (Fr / Rr) | 7x10, 50mm offset, 1 pc Carbon Fibre/ 7x10, 50mm offset, 1 pc Carbon Fibre |
| Drive Type | Sequential Gearbox |
| Differential | Salisbury type limited slip differential |
| Cooling | Side mounted single core radiator with 330 cfm electric fan |
| Brake System | 4-Disk system, custom rotors, adjustable brake bias, Wilwood GP200 calipers |
| Electronics | Custom wiring harness & DAQ sensors layout, Electropneumatic Shifting system |
Powertrain
| Engine | KTM Duke 390 2015 |
|---|---|
| Bore | 89 mm |
| Stroke | 60 mm |
| Cylinders | 1 |
| Displacement | 373 ccm |
| Compression Ratio | 12.88:1 : 1 |
| Fuel System | Bosch PFI injection |
| Fuel | 98 Octane unleaded gasoline |
| Max Power Design | 9000 rpm |
| Max Torque Design | 7500 rpm |

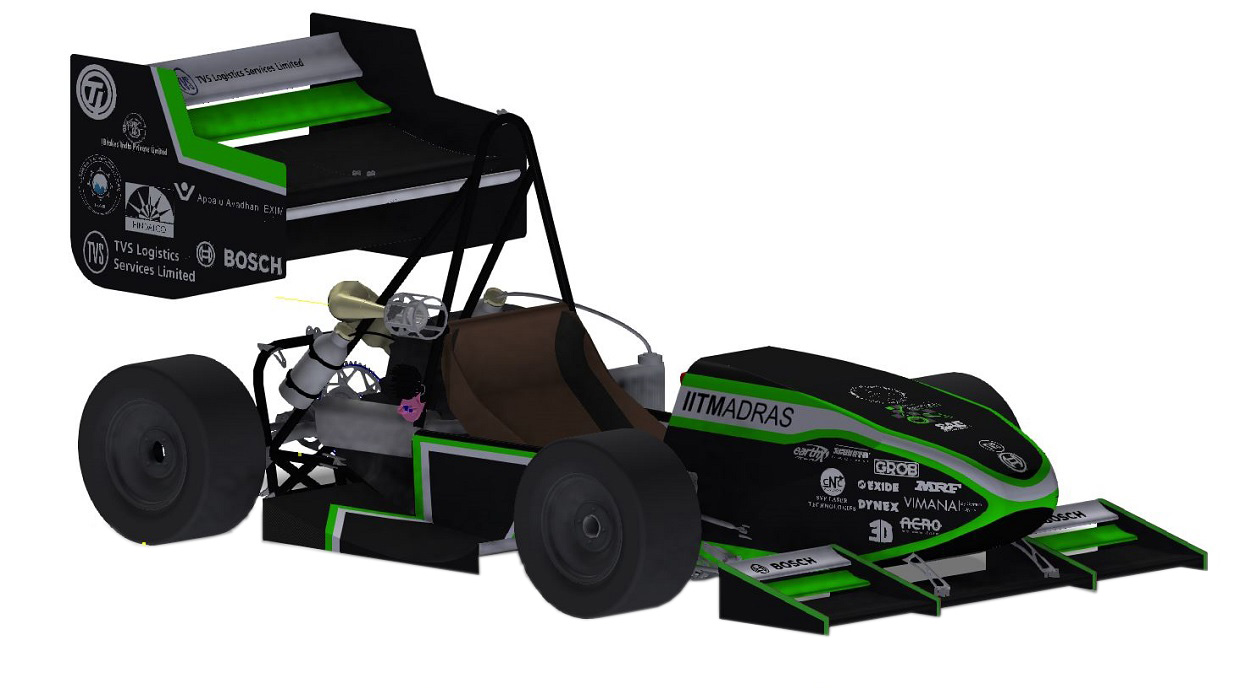

2018
Info
21x
Raftar Formula Racing, the official Formula Student team of IIT Madras, India, is leaping into its sixth year of excellence with the momentum gained from its commendable performances last year. The 30 member strong team survives on unmatched team spirit and eternal hunger to be the best at what it does and RFR18 is the challenger built out of that energy. Raftar Formula Racing is determined to #BloodSweatGasoline it out to remain competitive to teams from around the globe in FSG2018.
Engineering Design Priorities:
Power to Weight ratio
Tunability
Fuel Efficiency
Manufacturability
Data Driven
Car Specifications
General
| Frame Construction | 3D space frame |
|---|---|
| Material | A ST 52 |
| Overall L | 2945 mm |
| Overall W | 1424 mm |
| Overall H | 1190 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1176 mm |
| Track (Rr) | 1150 mm |
| Weight with 68kg driver (Fr) | 135 kg |
| Weight with 68kg driver (Rr) | 111 kg |
| Suspension | Double unequal length A-arms,pull rod actuated in front, push rod actuated in rear |
| Tyres (Fr / Rr) | 18 x 6-10, Hoosier R25B /18 x 6-10, Hoosier R25B |
| Wheels (Fr / Rr) | 7.0x10 35 mm offset, 1pc CF Rim / 7.0x10 35 mm offset, 1pc CF Rim |
| Drive Type | Chain Drive |
| Differential | Salisbury Type Limited Slip Differential |
| Cooling | Single core radiator mounted on the roll hoop bracing and electric fan |
| Brake System | 4-Disk system, floating cast iron rotors with 186 mm diameter, adjustable brake balance |
| Electronics | Dashboard,Multifunctional Steering Wheel, Electropneumatic Shifting System |
Powertrain
| Engine | KTM 390 Duke |
|---|---|
| Bore | 89.0 mm |
| Stroke | 60.0 mm |
| Cylinders | 1 |
| Displacement | 373 ccm |
| Compression Ratio | 12.88:1 : 1 |
| Fuel System | Bosch , Port fuel injection |
| Fuel | Gasoline |
| Max Power Design | 9900 rpm |
| Max Torque Design | 7400 rpm |

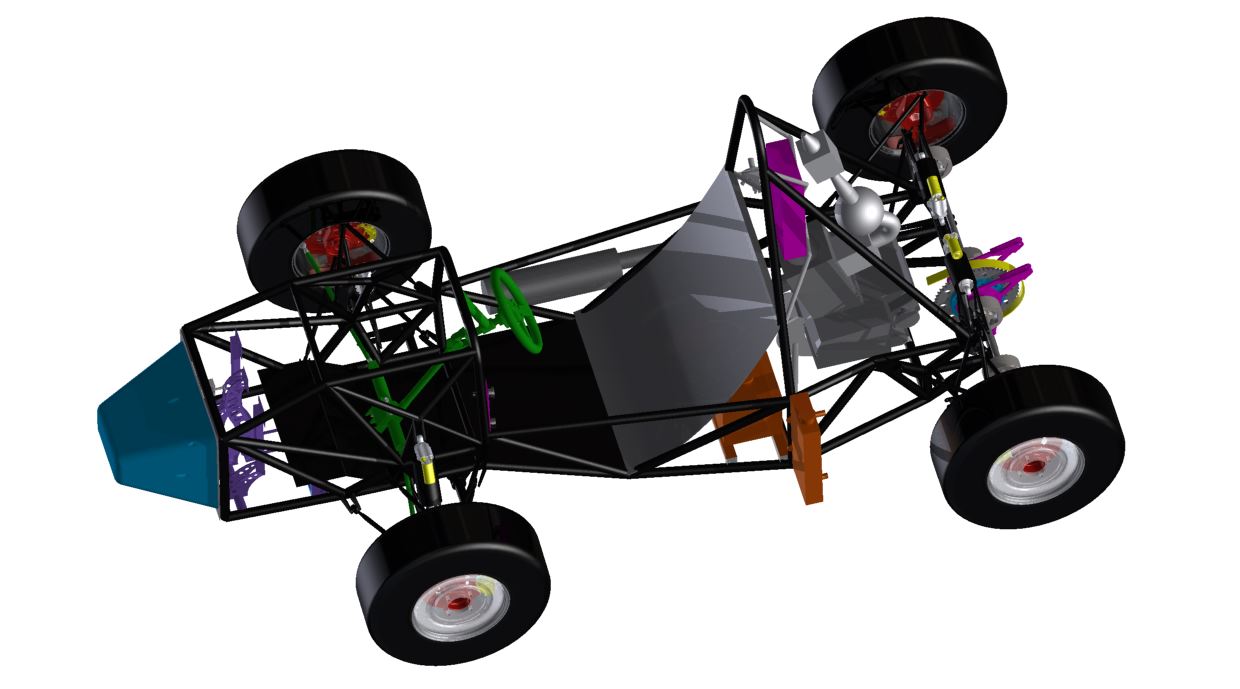

2014
Info
Having participated in FSUK 2012 and FSG 2013, Raftar Formula Racing embarked on its third season. Fitted with a single-cylinder Honda CBR250R engine, we targeted excellent drivability and a competitive fuel economy. We worked to further enhance vehicle dynamics through a smaller wheelbase and a shift to 10” rims. Composite technology allowed us to use carbon fibre for an extremely ergonomic cockpit and a lighter streamlined bodyworks. A team of 30 highly motivated students bring you RFR-14.
Engineering Design Priorities:
Reduced cost
Drivability
Light weight
Reliability
Serviceability
Modularity
Car Specifications
General
| Frame Construction | Steel Space Frame |
|---|---|
| Material | ASTM A500 steel |
| Overall L | 2400 mm |
| Overall W | 1500 mm |
| Overall H | 1300 mm |
| Wheelbase | 1550 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1100 mm |
| Weight with 68kg driver (Fr) | 116 kg |
| Weight with 68kg driver (Rr) | 142 kg |
| Suspension | Double unequal length A-arm. Pull rod actuated spring/damper front,Push rod actuated rear |
| Tyres (Fr / Rr) | 19.5 x 6.5-R10 R25B Hoosier/ 19.5 x 6.5-R10 WET Hoosier |
| Wheels (Fr / Rr) | 6.0x10, 50mm offset, 2 pc Al-Mg Rim / 6.0x10, 50mm offset, 2 pc Al-Mg Rim |
| Drive Type | 2- wheel |
| Differential | Torque sensing limited slip differential with custom housing. |
| Cooling | Side mounted two core water-to-air radiator |
| Brake System | 4-Disk system, retrofit OEM disk to 186 dia, adjustable brake balance. Wilwood fixed type calipers. |
| Electronics | Wiring harness with standard Honda ECU. |
Powertrain
| Engine | Modified Honda CBR250R |
|---|---|
| Bore | 76mm mm |
| Stroke | 55mm mm |
| Cylinders | 1 |
| Displacement | 249 ccm |
| Compression Ratio | 10,7:1 : 1 |
| Fuel System | Keihin, Port Fuel Injection |
| Fuel | Gasoline RON 98 |
| Max Power Design | 9900 rpm |
| Max Torque Design | 7400 rpm |

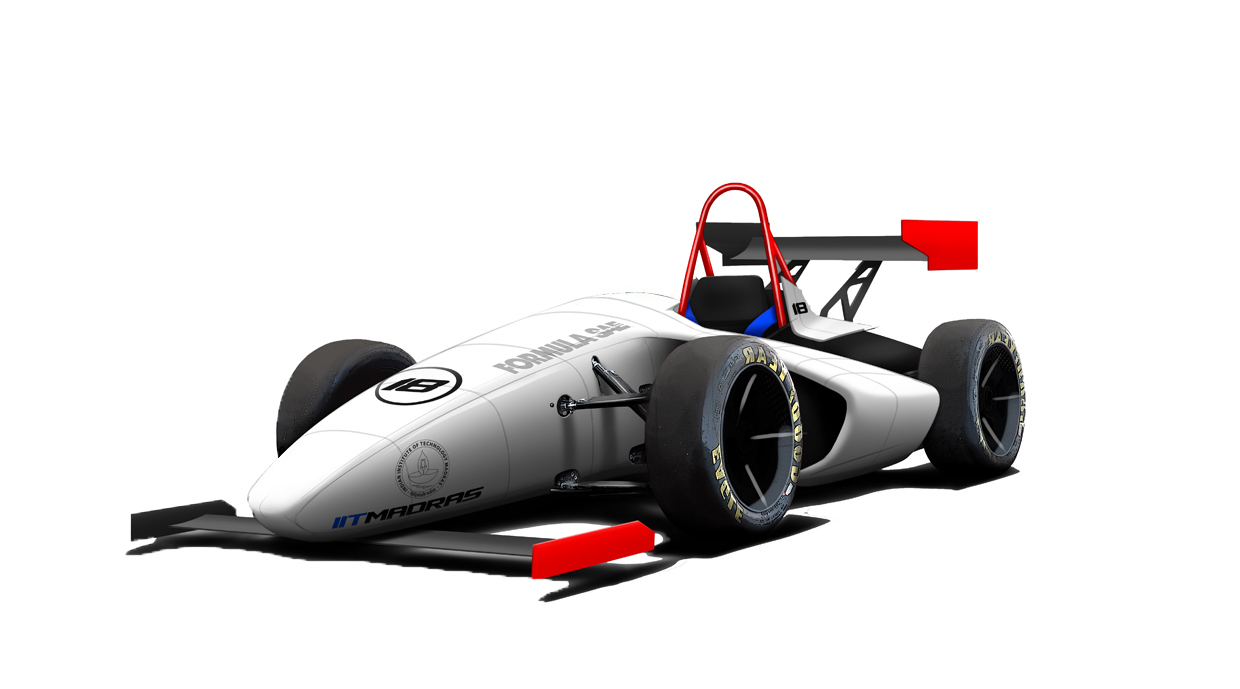

2013
Info
15x
FSG13 brought with it a new challenge to Team Raftar, as we redefined our goals & objectives, while retaining our passion and commitment. We began our Formula Student journey last year at the Silverstone and this year continue it at the Hockenheimring with a team of 30 enthusiastic and hardworking young minds. Our aims include large scale weight reduction, greater serviceability, and a balance between performance efficiency and driver convenience. We spent a large part of the year in detailed design and analysis leading to major changes in almost every subsystem. These included a changeover to the Honda CBR250R Engine, a new aerodynamics package comprising of wings designed to ensure better cornering, an optimized space frame chassis, an extremely lightweight and trustworthy suspension setup, streamlined FRP bodyworks and a careful study of ergonomics and driver comfort. We hope to outdo our expectations and lay a solid foundation for the evolution of the team over the year's to come.
Car Specifications
General
| Frame Construction | Tubular Spaceframe |
|---|---|
| Material | Steel |
| Overall L | 2600 mm |
| Overall W | 1500 mm |
| Overall H | 1300 mm |
| Wheelbase | 1600 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1100 mm |
| Weight with 68kg driver (Fr) | 180 kg |
| Weight with 68kg driver (Rr) | 180 kg |
| Suspension | Double unequal length A-arm. Pull rod actuated spring/damper front,Push rod actuated rear |
| Tyres (Fr / Rr) | Hoosier R25B 20.5 x 6.0-13 |
| Wheels (Fr / Rr) | Hoosier R25B 20.5 x 6.0-13 |
| Drive Type | Rear wheel driven |
| Differential | Torque sensing limited slip differential with custom housing. |
| Cooling | Radiator,mounted in the right sidepod.Water cooled |
| Brake System | 4-Disk system, adjustable brake balance. Wilwood fixed type calipers. |
| Electronics | Electropneumatic Shifting System |
Powertrain
| Engine | Honda / CBR250R |
|---|---|
| Bore | 76mm mm |
| Stroke | 55mm mm |
| Cylinders | 1 |
| Displacement | 250 ccm |
| Compression Ratio | 11.1:1 : 1 |
| Fuel System | Keihin, Port Fuel Injection |
| Fuel | Unleaded gasoline |
| Max Power Design | 11000 rpm |
| Max Torque Design | 8000 rpm |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2020.01 | 41 |
1. |
1. |
5. |
1. |
3. |
- |
5. |
- |
3. |
3. |
1. |
0.00 |
863.49 |
|
| 2019.08 | 60 |
39. |
11. |
3. |
46. |
31. |
- |
45. |
- |
45. |
- |
- |
0.00 |
247.94 |
|
| 2019.01 | 54 |
10. |
3. |
2. |
1. |
- |
- |
10. |
- |
- |
- |
- |
0.00 |
314.50 |
|
| 2018.08 | 57 |
49. |
52. |
25. |
21. |
40. |
- |
- |
- |
- |
- |
- |
0.00 |
216.05 |
|
| 2018.01 | 54 |
3. |
31. |
7. |
6. |
- |
- |
- |
- |
4. |
2. |
1. |
0.00 |
711.05 |
|
| 2017.07 | 43 |
15. |
16. |
34. |
21. |
- |
- |
21. |
- |
26. |
13. |
1. |
0.00 |
468.06 |
|
| 2014.08 | 74 |
62. |
52. |
28. |
58. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
165.48 |
|
| 2013.08 | 74 |
70. |
68. |
60. |
69. |
- |
- |
- |
- |
52. |
- |
- |
0.00 |
112.80 |
|
| 2012.07 | 97 |
82. |
79. |
85. |
67. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
114.20 |
|
| x 9 | |||||||||||||||
