Team Details
Chalmers Formula Student
| University | Chalmers University of Technology
SE Göteborg TU Chalmers short 120 |
 |
|---|---|---|
| Location | Göteborg, Sweden | |
| Homepage | https://www.chalmersformulastudent.se/ | |
| Social Media |

|
|
| CV Team | Chalmers Formula Student | |
| DV Team | Chalmers Formula Student Driverless | |
| Short Link | tid.fsg.one/647 | |

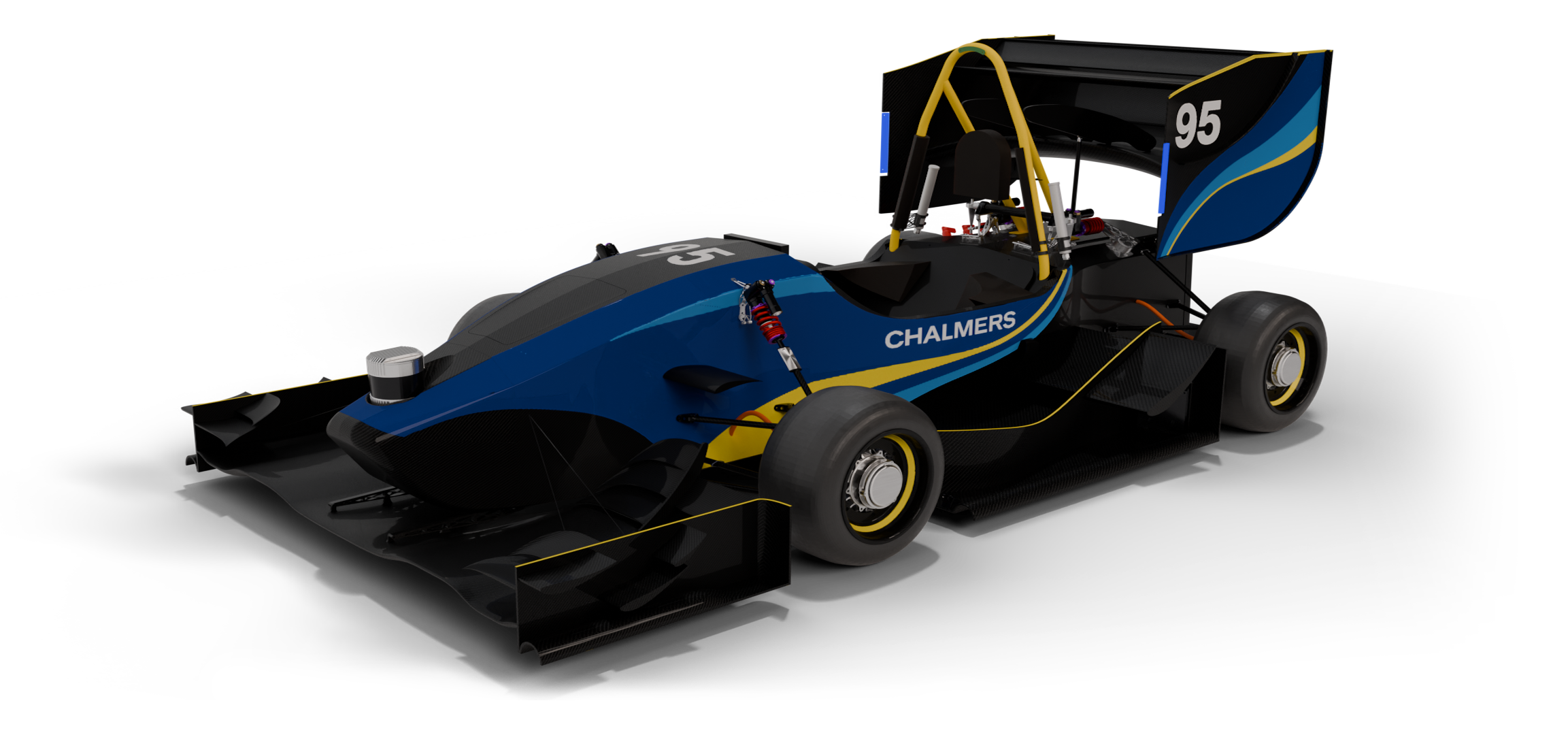

| Event Details | car 95 - active | |
Event Profile
Past Events

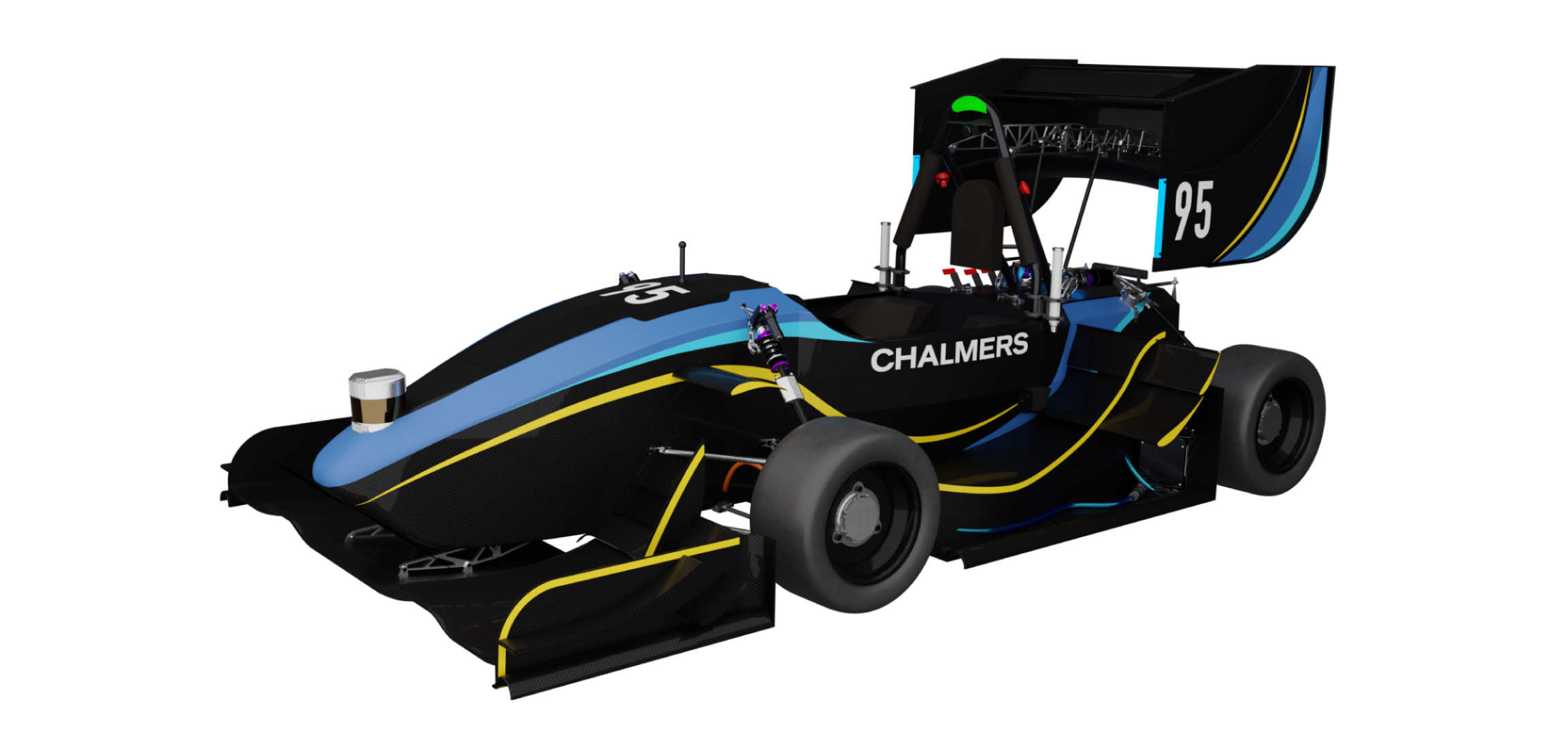

2025
Info
Founded in 2001 at Chalmers University of Technology in Gothenburg, Sweden, by a team of dedicated students, Chalmers Formula Student has since upheld a legacy of innovation and excellence. We have now continued on that legacy, driving innovation through the introduction of our Electric system in 2015, and our Autonomous System in 2022 together with our loyal partners. Now, fueled by our past successes, we're more determined than ever to demonstrate our performance on the track.
Engineering Design Priorities:
NumbersDon'tLie
Inhouse manufacturing
IAmSpeed
Car Specifications
General
| Frame Construction | Composites sandwich panel with carbon fiber skins and aluminium honeycomb core. |
|---|---|
| Material | Euro-composites aluminium honeycomb core (12.5, 25.4mm), Toray carbon fiber skins. |
| Overall Length (mm) | 2860 |
| Overall Width (mm) | 1490 |
| Overall Height (mm) | 1170 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1250 |
| Weight Front (kg) | 134 |
| Weight Rear (kg) | 136 |
| Suspension | Double Wishbone. Direct actuation front, pushrod actuated rear with carbon fiber ARB |
| Tyres | 16x7.5-R10, 16x7.5-R10, |
| Wheels | 7.0x10, 24.5mm offset, 1pc Carbon composite / 7.0x10, 24.5mm offset, 1pc Carbon composite |
| Drive Type | Electric Hubmotors |
| Differential | No |
| Cooling | Double radiator, closed system |
| Brake System | Self developed rotors, master cylinders and topology optimized calipers. |
| Electronics | Inhouse developed PCBs and harness |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | FR, FL, RR, RL |
| Max Motor Power | 32kW |
| Motor Type | PMS Hub Motors |
| Max Motor RPM | 20000 |
| Motor Controller | No |
| Max System Voltage (V) | 590 |
| Electrode Materials | NCM523 + Gr |
| Accumulator Capacity | 7,7kWh |
| Transmission Ratio Primary | 1:13 |
| Transmission Ratio Secondary | 1:1 |
Driverless System
| Processing Units | Teensy 4.1, Nvidia Jetson AGX |
|---|---|
| Processing Units FLOPS | 5325 |
| Processing Units Power (W) | 60 |
| LiDAR Sensors | Hesai Pandar 64 |
| Other Sensors | IMU: NovAtel CPT7 |
| DV System Highlights | ROS2 nodes running inside Docker containers LTV-MPC for lateral control Curvature-based adaptive speed planner EKF for speed estimation Multi-threaded graph-based SLAM with sliding window Path planning through delaunay triangulation with minimum curvature optimization on every lap. |

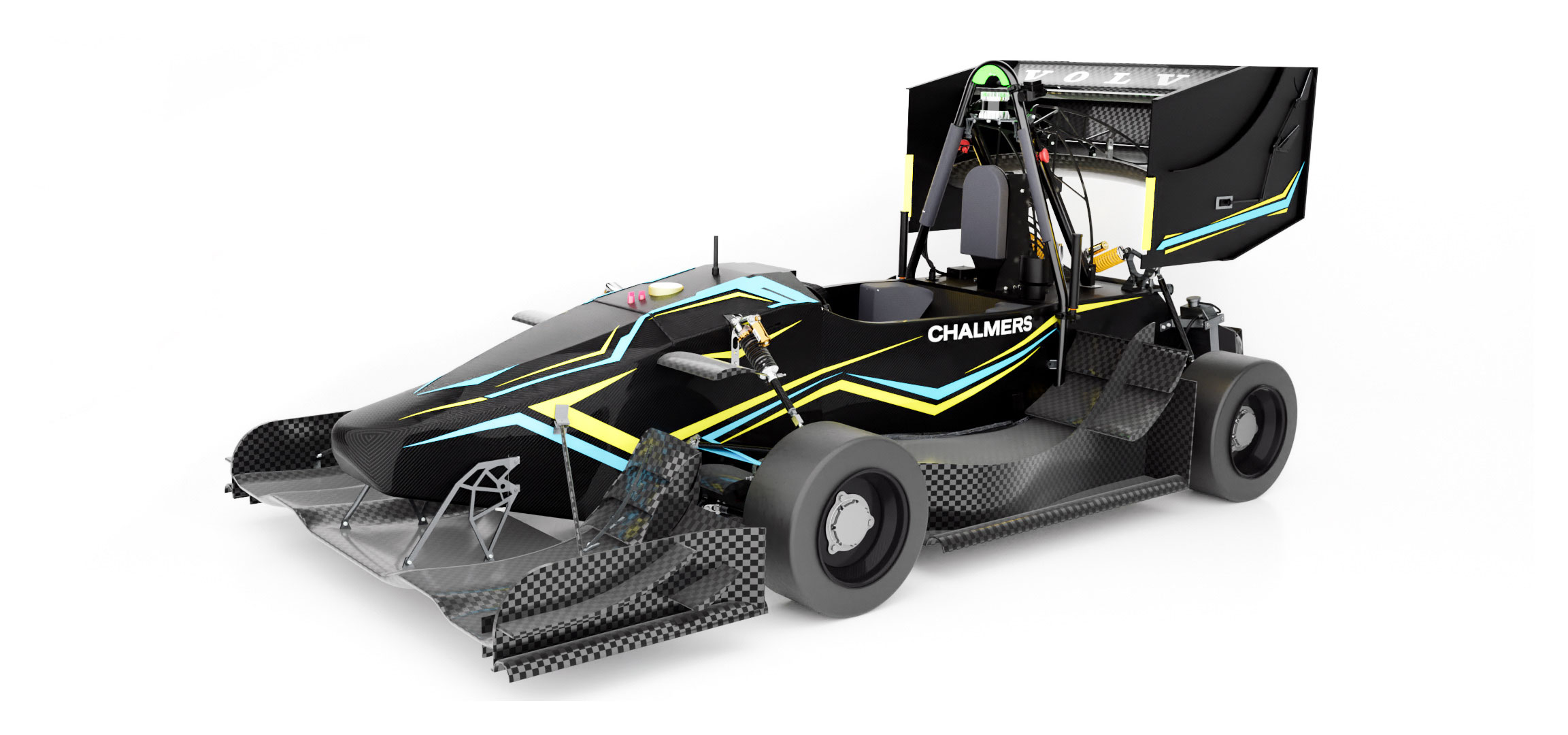

2024
Info
Founded in 2001 at Chalmers University of Technology in Gothenburg, Sweden, by a team of dedicated students, Chalmers Formula Student has since upheld a legacy of innovation and excellence. We have now continued on that legacy, driving innovation through the introduction of our Electric system in 2015, and our Autonomous System in 2022 together with our loyal partners. Now, fueled by our past successes, we're more determined than ever to demonstrate our performance on the track.
Engineering Design Priorities:
Redesigned Segments
Parts Manufacturability
Autonomous System
Topology Optimized Parts
Downforce & Aerodynamics
Low Voltage Harness
Car Specifications
General
| Frame Construction | Composites sandwich panel with carbon fiber skins and aluminium honeycomb core. |
|---|---|
| Material | Corex Aluminium honeycomb core (12.5, 25.4mm), Toray carbon fiber skins. |
| Overall Length (mm) | 2876 |
| Overall Width (mm) | 1491 |
| Overall Height (mm) | 1083 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 146 |
| Weight Rear (kg) | 160 |
| Suspension | Double unequal length A-Arms. Direct actuation front, push rod actuated rear. Straight ARB |
| Tyres | 16.0x6.0-R10 Hoosier LC0 / 16.0x6.0-R10 Hoosier LC0 |
| Wheels | 7.0x10, 24.5mm offset, 1pc Carbon composite / 7.0x10, 24.5mm offset, 1pc Carbon composite |
| Drive Type | Compound planetary gearbox |
| Cooling | Dual rear mounted 400cc motorcross bike radiators with 120mm fans. |
| Brake System | 4-Disk system, 200mm self developed rotors, adjustable brake balance. |
| Electronics | Multifunctional Steering Wheel and Dashboard, Torque Vectoring, Dynamic Power Limiter |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | FR, FL, RR, RL |
| Max Motor Power | 32kW per motor |
| Motor Type | PMS Hub Motors |
| Max Motor RPM | 20000 per motor |
| Max System Voltage (V) | 591V |
| Electrode Materials | NCM523 + Gr |
| Accumulator Capacity | 7,7kWh |
| Transmission Ratio Primary | 1:13 |
Driverless System
| Processing Units | Intel Core i7-12800 |
|---|---|
| Processing Units FLOPS | 2156 |
| Processing Units Power (W) | 115 |
| LiDAR Sensors | 1 Ouster OS1-64 Below Horizon, 120m range, 22.5 degree vertical opening angle |
| Other Sensors | NovaTel CPT7 IMU + GNSS with PPP corrections |
| DV System Highlights | ROS2 nodes running inside Docker containers, Point cloud aggregation using LiDAR SLAM, LTV-MPC for lateral control Curvature-based adaptive speed planner EKF for speed estimation, Multi-threaded graph-based SLAM with sliding window, Path planning through delaunay triangulation with minimum curvature optimization |

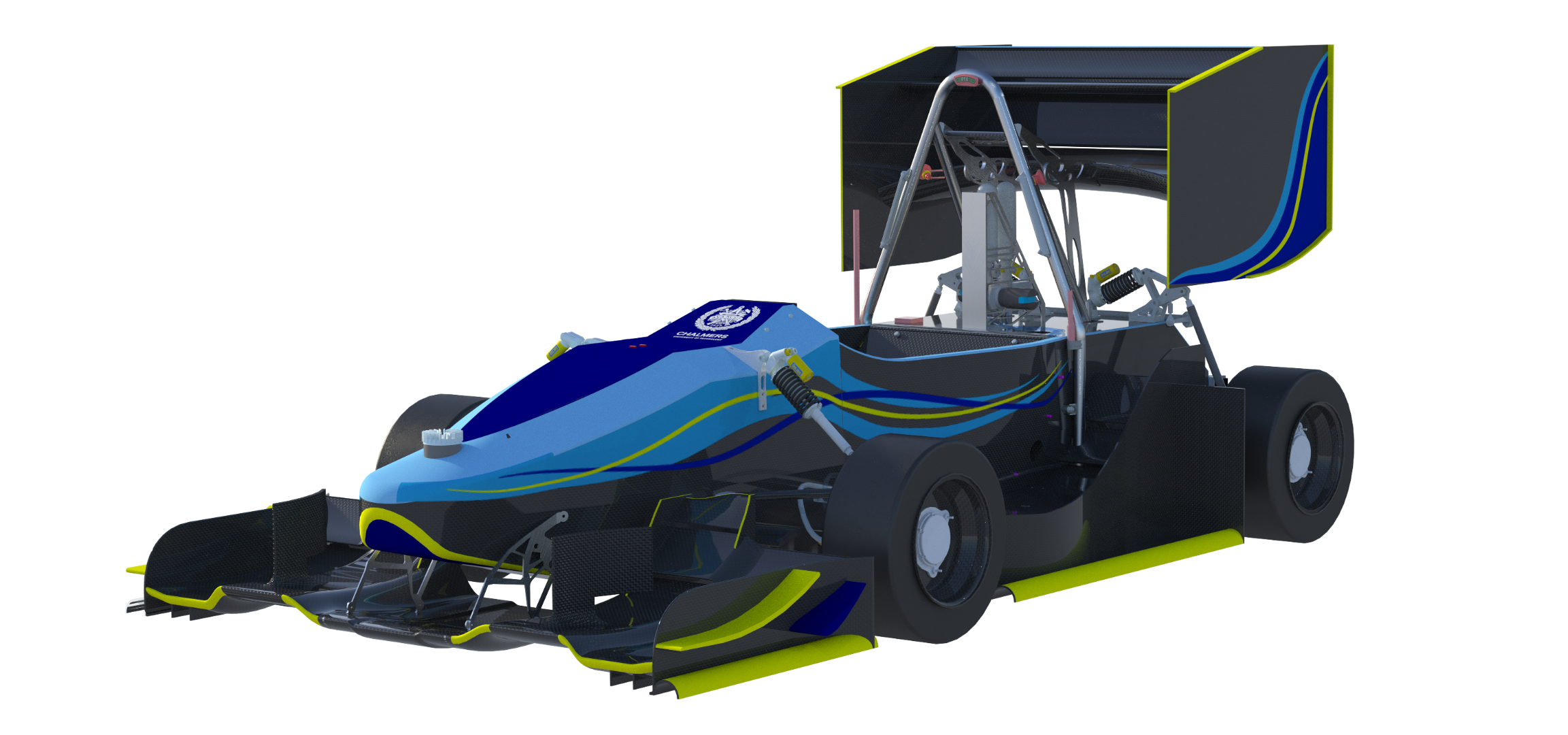

2023
Info
Chalmers Formula Student is the official racing team of Chalmers University of Technology started in 2001. This year, the team of Chalmers Formula Student is excited to present the designed and manufactured both driverless and driver-suited Formula Student racecar called Margareta. It is equipped with four self-made electrical hub motors, forming excellent traction and preparing the car for the sharp corners of Hockenheimring. The team of CFS is thrilled to be participating in FSG again.
Engineering Design Priorities:
Redesigned TSAC
Lighter Monocoque
Direct Actuation System
Topology Optimized Parts
Downforce & Aerodynamics
Autonomous System
Car Specifications
General
| Frame Construction | Composite Monocoque |
|---|---|
| Material | Sandwich panels of CFRP prepreg and aluminium honeycomb |
| Overall Length (mm) | 2884 |
| Overall Width (mm) | 1529 |
| Overall Height (mm) | 1136 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 138 |
| Weight Rear (kg) | 155 |
| Suspension | Direct actuation, unequal A arm / Pushrod, unequal A arm, ARB |
| Tyres | Hoosier 16.0 x 6 - 10 LC0 / Hoosier 16.0 x 6 - 10 LC0 |
| Wheels | 7.5in rim width, 23mm offset, custom CFRP with aluminium wheel center |
| Drive Type | Multi planetary automatic gearbox |
| Cooling | Two rear mounted radiators with thermostatic controlled electric fans |
| Brake System | 4-Disks system, adjustable brake balance, regenerative braking |
| Electronics | Multifunctional Steering Wheel and Dashboard, Torque Vectoring, Dynamic Power Limiter |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Hub Motor FR, FL, RR, RL |
| Max Motor Power | 32kW per Motor |
| Motor Type | PMS Hub Motors |
| Max Motor RPM | 20000 |
| Max System Voltage (V) | 590 |
| Electrode Materials | NCM523 + Gr |
| Accumulator Capacity | 6.69kWh |
Driverless System
| Processing Units | Intel Core i7-12800 |
|---|---|
| Processing Units FLOPS | 2156 |
| Processing Units Power (W) | 115 |
| LiDAR Sensors | 1 Ouster OS1-64, 120 m range, 22.5 degree vertical opening angle |
| Other Sensors | NovaTel CPT7 IMU + GNSS with PPP corrections |
| DV System Highlights | Multi-threaded GraphSLAM implementation, Curvature-based longitudinal controller, LTV-MPC for lateral control. |

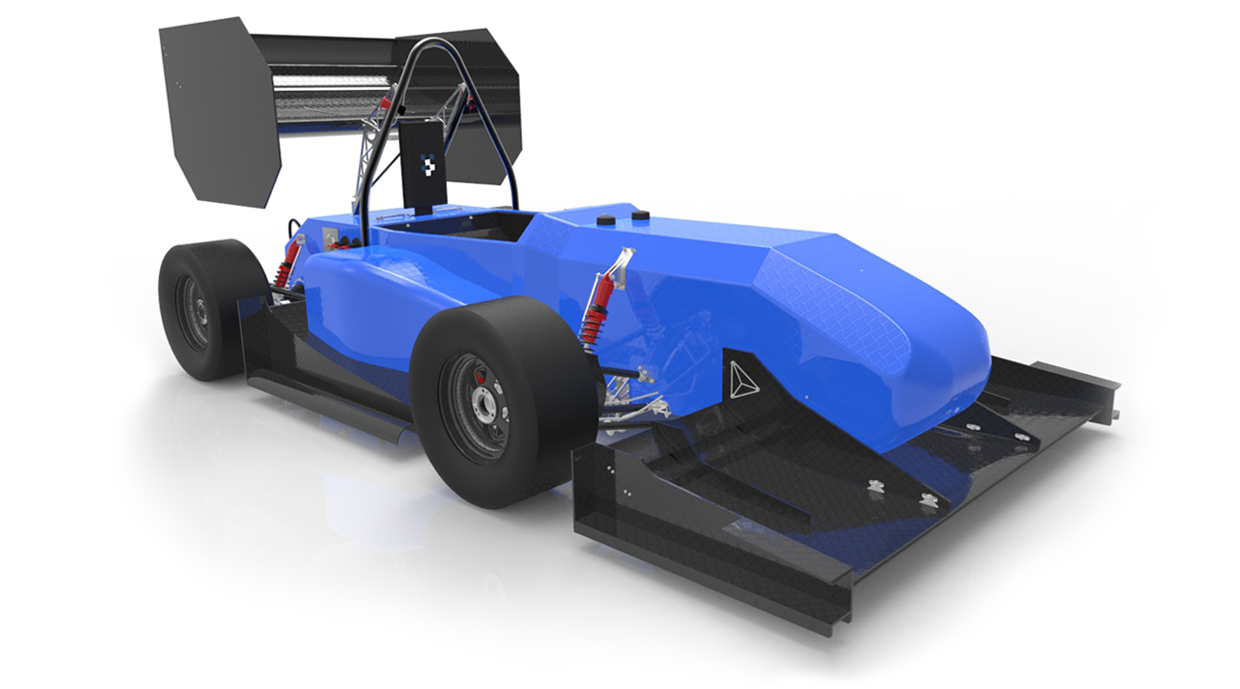

2017
Info
It's the 15th year of Chalmers Formula Student and we present our 3rd rear wheel driven electric car. With a new team formed every year, the team members depend on the knowledge from previous years and experience a steep learning curve during the project life cycle. This year’s car, aimed at being reliable & low weight, will feature custom made high power density motors coupled to compact planetary gearboxes. DRS, CFRP rims, Datalogger, Nodes & BMS are the other highlights; all self-developed.
Engineering Design Priorities:
High Power Density Motors
Planetary Gearbox
Carbon Fiber Rims
Self-made Dataloggers
Drag Reduction System
Live Telemetry System/App
Car Specifications
General
| Frame Construction | CFRP single piece monocoque with Al honeycomb core and integrated front hoop |
|---|---|
| Material | CFRP pre-pregs and Al honeycomb (1/2 and 1 inch) sandwich panels |
| Overall Length (mm) | 2891 |
| Overall Width (mm) | 1465 |
| Overall Height (mm) | 1183 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1250 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 115 |
| Weight Rear (kg) | 141 |
| Suspension | Double unequal length A-Arm. Pull rod actuated spring and damper. |
| Tyres | Hoosier R25B 18x10x6 |
| Wheels | 10x6 CFRP Custom made rims, +4.7mm offset / 10x6 CFRP Custom made rims, +4.7mm offset |
| Drive Type | Compound Planetary Gearbox |
| Differential | n/a |
| Cooling | Water cooled with 2 side-mounted radiators in sidepods with 150mm electric fans |
| Brake System | Toolex 33 steel, Floating 195x4(fr) 186x4(rr) rotors, 4(fr) & 2(rr) piston calipers |
| Electronics | Live-Telemetry, Datalogger, Nodes, BMS and Torque Vectoring; all self-developed |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power | 40kW, 40kW |
| Motor Type | Custom made PMSM from AROS Electronics AB |
| Max Motor RPM | RR,RL: 20000 |
| Motor Controller | IGBT based 3 phase inverter |
| Max System Voltage (V) | 580V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 7,66kWh |
| Transmission Ratio Primary | 16:1 |
| Transmission Ratio Secondary | n/a |

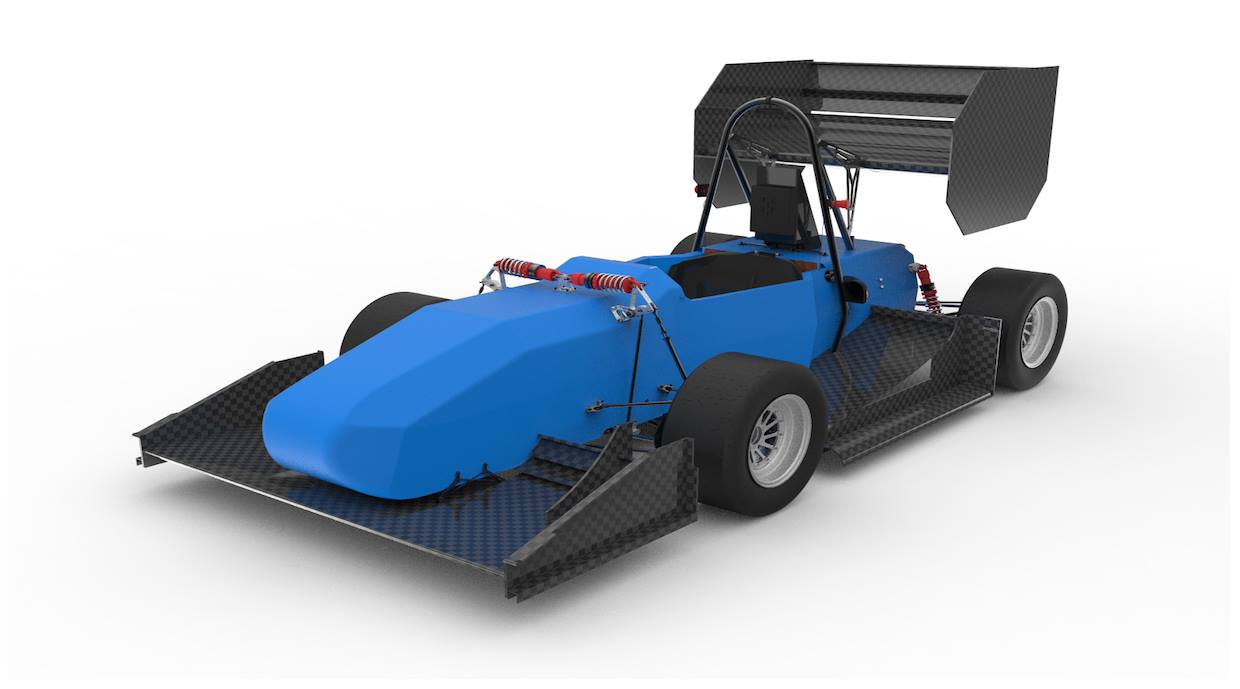

2016
Info
At Chalmers we build a new car every year as well as a completely new team. This year we designed an easy-to-manufacture car for more extensive testing and has focused on validation of analysis by physical tests. Safety, adjustability and sophisticated software highlights the CFS16 car. We have self developed the BMS and processing nodes to better suit our car and keep the reliability high and weight low.
Engineering Design Priorities:
Safety
Reliability
HighPerformance
RearwingMountingSolution
SophisticatedSoftware
WirelessData
Car Specifications
General
| Frame Construction | One-piece monocoque with Al honeycomb core and integrated front hoop |
|---|---|
| Material | Prepreg CF and Al honeycomb structure, 4130 steel main hoop, 2014 Al front hoop |
| Overall Length (mm) | 2917 |
| Overall Width (mm) | 1375 |
| Overall Height (mm) | 1196 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 124 |
| Weight Rear (kg) | 139 |
| Suspension | Double unequal wishbones both rear and front |
| Tyres | 18x6 -10 Hoosier / 18x6 -10 Hoosier |
| Wheels | 7x10, 11mm offset, 3pc Al Rim / 7x10, 11mm offset, 3pc Al Rim |
| Drive Type | 2 stage spur gears individual per motor |
| Differential | n/a |
| Cooling | Rear mounted radiator with a San Ace 120 fan |
| Brake System | Floating 195x4 (front) 186x4.5 (rear), toolox 33 steel, ventilated |
| Electronics | Torque Vectoring, slip control, launch control, wireless real/time data transfer |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Left, Rear Right |
| Max Motor Power | 45kW , 45kW |
| Motor Type | IRO-CTHFS15, Water cooled PMSM |
| Max Motor RPM | Rear : 12000 |
| Motor Controller | Aros Electronics AB |
| Max System Voltage (V) | 399V |
| Electrode Materials | LiFePo4 |
| Accumulator Capacity | 7.03kWh |
| Transmission Ratio Primary | 1:8.02 |
| Transmission Ratio Secondary | n/a |

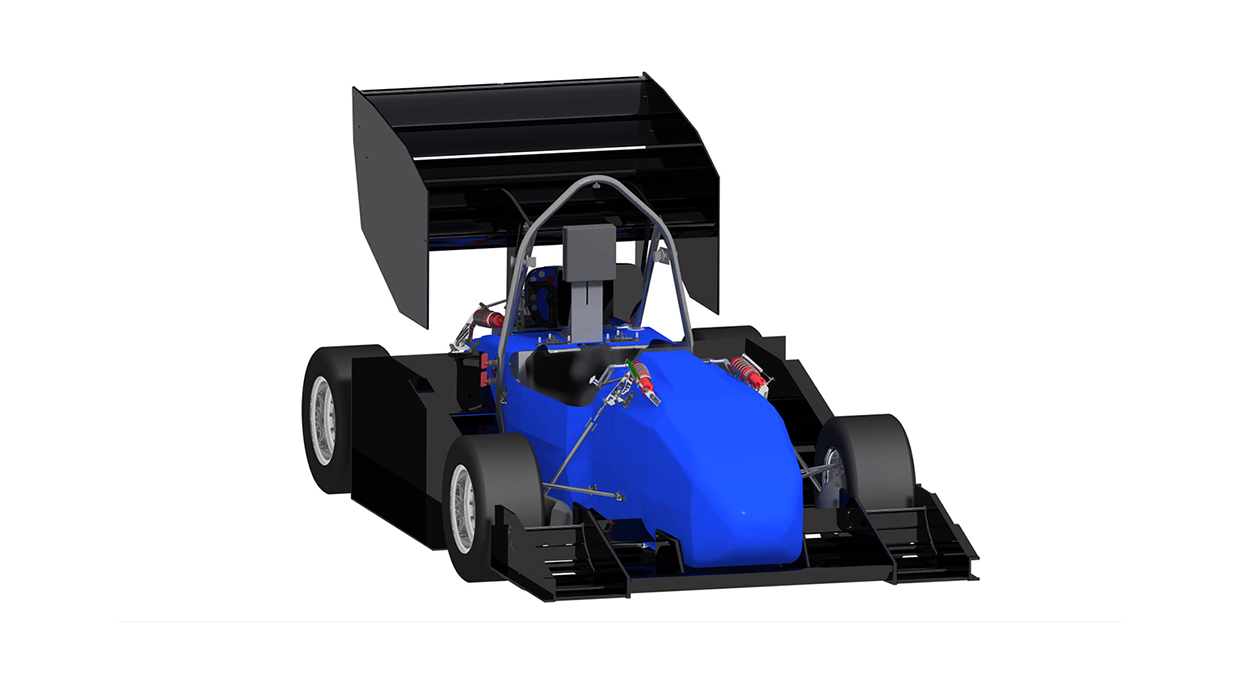

2015
Info
Chalmers Formula Student bridges the gap between Engineering Education and Industry by training students in a real-life project where they independently Design, Analyze and develop Technology solutions by making Data-Driven Decisions throughout the Design, Manufacturing and Testing of a full-fledged Formula Racing automobile, and finally put their skills to the test in competitions with various other teams from the rest of the world.
Engineering Design Priorities:
#Safety
#Reliability
#HighPerformance
#EasyAdjustability
#Ergonomics
#Sustainability
Car Specifications
General
| Frame Construction | Carbon fiber monocoque made aluminum honeycomb sandwich structure |
|---|---|
| Material | Hexcel M49 Carbon fiber and Hexcore Aluminum honeycomb core (25.4mm) |
| Overall Length (mm) | 2928 |
| Overall Width (mm) | 1415 |
| Overall Height (mm) | 1180 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 124 |
| Weight Rear (kg) | 139 |
| Suspension | Double unequal length and non-parallel wishbones. Push rod actuated longitudinally mounted dampers |
| Tyres | Hoosier 6.0/18.0-10 LC0 |
| Wheels | Keizer 10” 7” wide two piece rim-shells. CNC milled centrepieces in 7075T6 Aluminium |
| Drive Type | Two stage single gear transmission |
| Differential | Software implemented torque distribution to separate motors |
| Cooling | 300ml rear mounted radiator with electric fan |
| Brake System | Cross Drilled Rotors (Toolox Steel) F: 195 OD, R: 190 OD, Ventilated Disc (Inconel) |
| Electronics | Self designed sensor control units, torque vectoring and traction control,data logging over CAN bus |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Left, Rear Right |
| Max Motor Power | 45 kW, 45 kW |
| Motor Type | RL, RR: IRO AB - CTHFS15 |
| Max Motor RPM | 12000 |
| Motor Controller | Aros Electronics AB - AROS HPC_HT |
| Max System Voltage (V) | 400V |
| Electrode Materials | LiCoO2 - graphite |
| Accumulator Capacity | 7kWh |
| Transmission Ratio Primary | 1:8.04 |
| Transmission Ratio Secondary | 1:1 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.08 | 84 |
8. |
66. |
28. |
9. |
17. |
3. |
17. |
4. |
6. |
15. |
6. |
0.00 |
698.66 |
|
| 2025.08 | 53 |
9. |
4. |
20. |
21. |
13. |
- |
13. |
- |
10. |
10. |
4. |
0.00 |
629.60 |
|
| 2024.08 | 79 |
18. |
38. |
58. |
23. |
12. |
6. |
10. |
4. |
7. |
- |
- |
0.00 |
468.36 |
|
| 2024.08 | 32 |
16. |
21. |
24. |
10. |
14. |
- |
10. |
- |
11. |
- |
- |
0.00 |
289.69 |
|
| 2023.08 | 70 |
16. |
39. |
25. |
13. |
12. |
2. |
- |
- |
11. |
- |
- |
0.00 |
376.43 |
|
| 2022.07 | 30 |
10. |
28. |
18. |
12. |
5. |
- |
7. |
- |
9. |
- |
- |
0.00 |
312.50 |
|
| 2021.08 | 16 |
10. |
7. |
4. |
4. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
276.60 |
|
| 2019.08 | 24 |
14. |
21. |
13. |
9. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
220.70 |
|
| 2019.07 | 21 |
15. |
21. |
10. |
8. |
- |
- |
12. |
- |
- |
- |
- |
0.00 |
222.96 |
|
| 2018.08 | 38 |
11. |
30. |
23. |
18. |
9. |
- |
21. |
- |
17. |
8. |
15. |
0.00 |
581.70 |
|
| 2018.08 | 19 |
3. |
8. |
4. |
10. |
9. |
- |
4. |
- |
5. |
3. |
5. |
0.00 |
811.30 |
|
| 2017.08 | 34 |
8. |
10. |
10. |
10. |
9. |
- |
9. |
- |
7. |
11. |
10. |
0.00 |
555.83 |
|
| 2016.08 | 37 |
9. |
15. |
16. |
15. |
12. |
- |
15. |
- |
7. |
- |
10. |
-15.00 |
441.54 |
|
| 2016.07 | 106 |
6. |
27. |
19. |
23. |
- |
- |
26. |
- |
9. |
7. |
5. |
0.00 |
678.20 |
|
| 2015.08 | 39 |
15. |
28. |
13. |
23. |
- |
- |
12. |
- |
11. |
- |
14. |
0.00 |
350.97 |
|
| 2015.07 | 92 |
42. |
36. |
20. |
12. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
237.90 |
|
| x 16 | |||||||||||||||
