Team Details

HSNR Racing

University	Hochschule Niederrhein DE Krefeld HSNR short 747
Location	Krefeld, Germany
Homepage	https://www.hsnrracing.de/
Social Media
CV Team	HSNR Racing
DV Team	HSNR Racing
Short Link	tid.fsg.one/618
Event Details	car 49 - withdrawn

Team Description

We are HSNR Racing, a team of around 40 students from Hochschule Niederrhein. Since 2011, we have been working together to develop race cars for Formula Student. Our team brings together members from all fields of study – everyone contributes their strengths so that we can grow together. After 2023, we switched from combustion to electric cars, taking on new challenges. What unites us is our passion for technology, teamwork, and motorsport – together, we strive to improve and push our limits. #fortynine

Event Profile

Past Events

2025

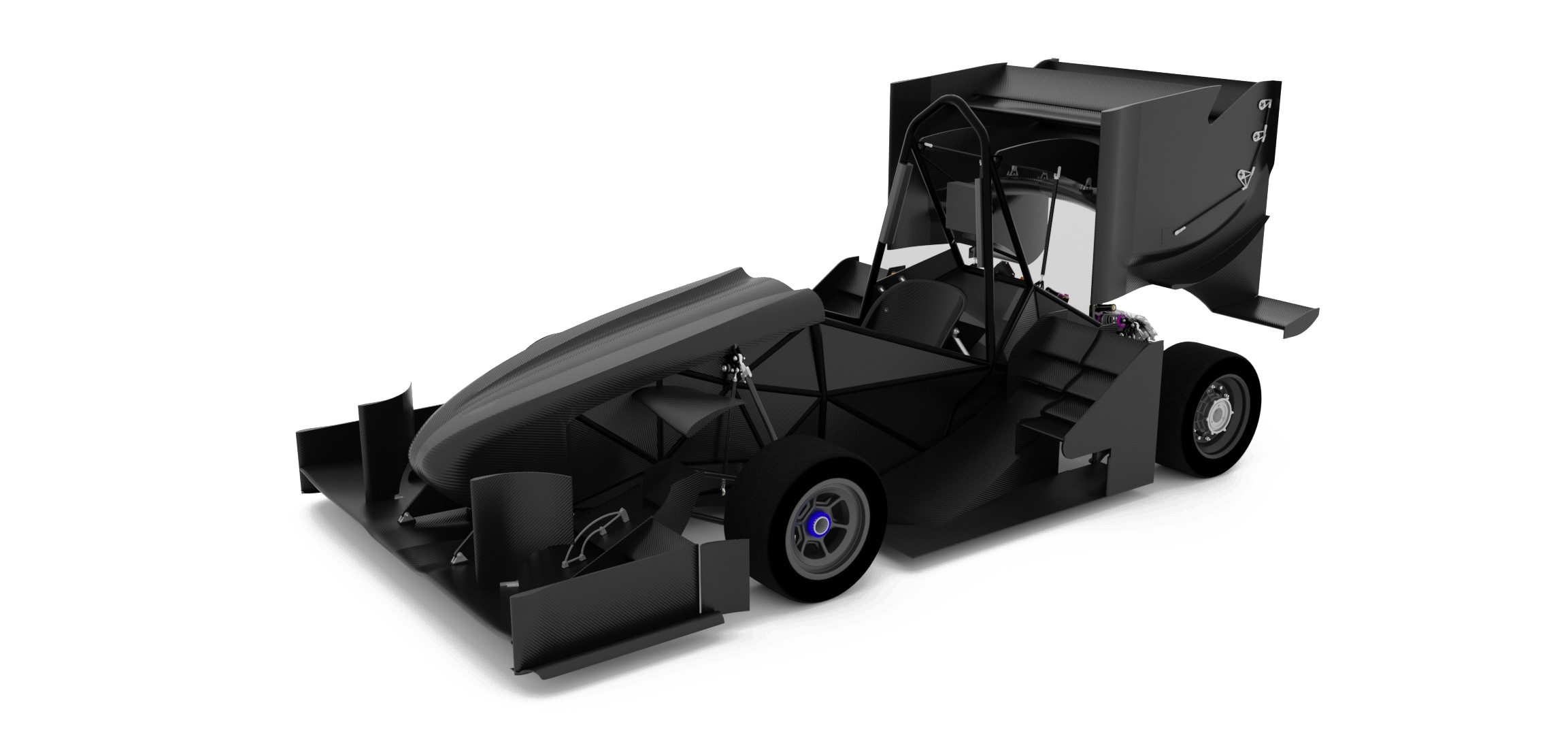

Car #49

Info

HSNR Racing represents the UAS Niederrhein from Krefeld, Germany. This year we improved our EV racecar, the RS-25e. It’s based on our car from last year, our first HV-EV racecar. During development we focused on revising the accumulator and the aerodynamic package. The accumulator packaging was overhauled as well as the TSAC, which is now made from aramid. The concept of the car stuck with a spaceframe and hub motors. We have developed our skills and are hopeful to reflect that in our results.

Engineering Design Priorities:

Weight TightPackaging Serviceability VehicleDynamics InnovativeDesign Safety

Car Specifications

General

Frame Construction	Tubular Steel Space Frame
Material	Steel E355
Overall Length (mm)	2864
Overall Width (mm)	1450
Overall Height (mm)	1180
Wheelbase (mm)	1535
Track Front (mm)	1250
Track Rear (mm)	1250
Weight Front (kg)	83
Weight Rear (kg)	83
Suspension	Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper
Tyres	160x75 R10, Hoosier LC0 / 160x75 R10, Hoosier LC0
Wheels	7x10, -28mm offset, 1 pc Mg Rim / 6.25x10, -48mm offset, 3 pc Carbon Rim
Drive Type	Planetary Gearbox
Differential	Electronic Diffrential
Cooling	two rear mounted radiators and 120mm electric fan
Brake System	4-Disk system, self developed rotors, AP Racing designed mono-block calipers
Electronics	Multifunctional Steering Wheel, Dashmounted Display, Self Developed Vehicle Control Unit

Powertrain

Number of Motors	2
Motor Location	Rear Left, Rear Right
Max Motor Power	63kW per Motor
Motor Type	AMK Motion FSE Racing Kit
Max Motor RPM	20000
Motor Controller	AMK Motion KW-R25
Max System Voltage (V)	600V
Electrode Materials	LiNiMnCoO2- graphite
Accumulator Capacity	8,16kWh
Transmission Ratio Primary	1:14,3

2024

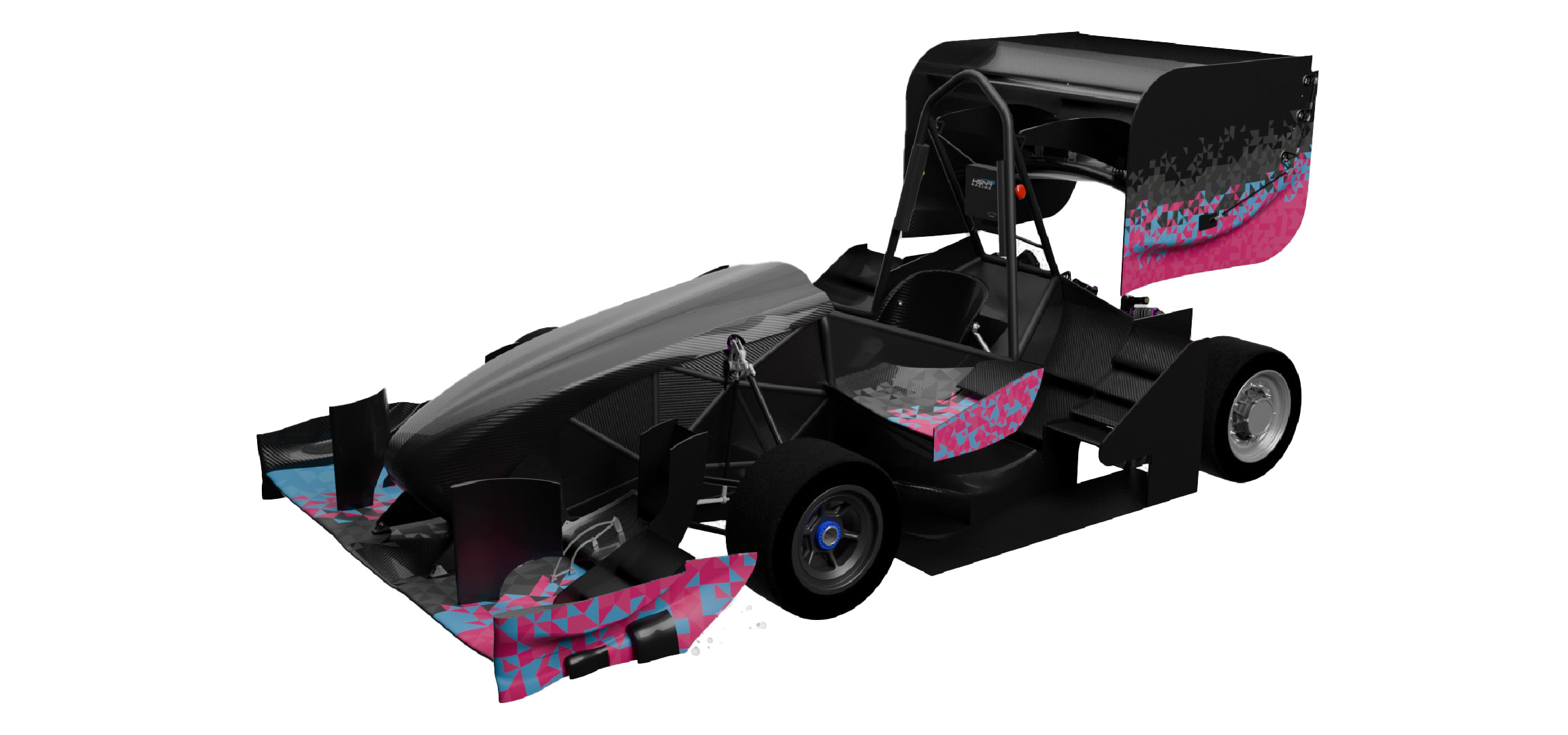

Car #249

Info

HSNR Racing represents the UAS Niederrhein from Krefeld, Germany. This year we are proud to present our first EV racecar, the RS-24e. The focus of the development was on the accumulator as well as the planetary gearbox, to achieve a competitive car in our first electric season. Though, the car is re-designed, we retained our lightweight aerodynamics and frame concept. We have grown as a team, in numbers as well as knowledge, and are confident to match or exceed last year's results at FSG.

Engineering Design Priorities:

Planetary Gearbox First Accumulator Re-deigned Suspension DRS-System 3D-bent Main-hoop

Car Specifications

General

Frame Construction	Front and rear Tubular space frame
Material	E355 and 25CrMo4 round tubing
Overall Length (mm)	2835
Overall Width (mm)	1480
Overall Height (mm)	1180
Wheelbase (mm)	1535
Track Front (mm)	1250
Track Rear (mm)	1250
Weight Front (kg)	96
Weight Rear (kg)	144
Suspension	Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper
Tyres	160x75 R10 Hoosier
Wheels	7x10, -28mm offset, 1 pc Mg Rim / 6.25x10, -48mm offset, 3 pc Al Rim
Drive Type	Planetary gearbox
Differential	n/a
Cooling	two rear mounted radiators and 120mm electric fan
Brake System	4-Disk system, self developed rotors, AP Racing designed mono-block calipers
Electronics	Multifunctional Steering Wheel, selfdesigned Teleme

Powertrain

Number of Motors	2
Motor Location	Rear Right, Rear Left
Max Motor Power	72 kW per Motor
Motor Type	RR, RL AMK Racing Kit
Max Motor RPM	RR,RL: 20.000
Motor Controller	AMK Inverters KW-R25
Max System Voltage (V)	600V
Electrode Materials	LiNiMnCoO2- graphite
Accumulator Capacity	8.16kWh
Transmission Ratio Primary	1:14,3
Transmission Ratio Secondary	n/a
