Team Details
EFORCE Prague Formula
| University | Czech Technical University in Prague
CZ Prague CTU short 537 |
 |
|---|---|---|
| Location | Prague, Czech Republic | |
| Homepage | https://eforce.cvut.cz/ | |
| Social Media | ||
| CV Team | CTU CarTech | |
| DV Team | eForce Driverless | |
| Short Link | tid.fsg.one/394 | |
| TIS Status |
       |
|

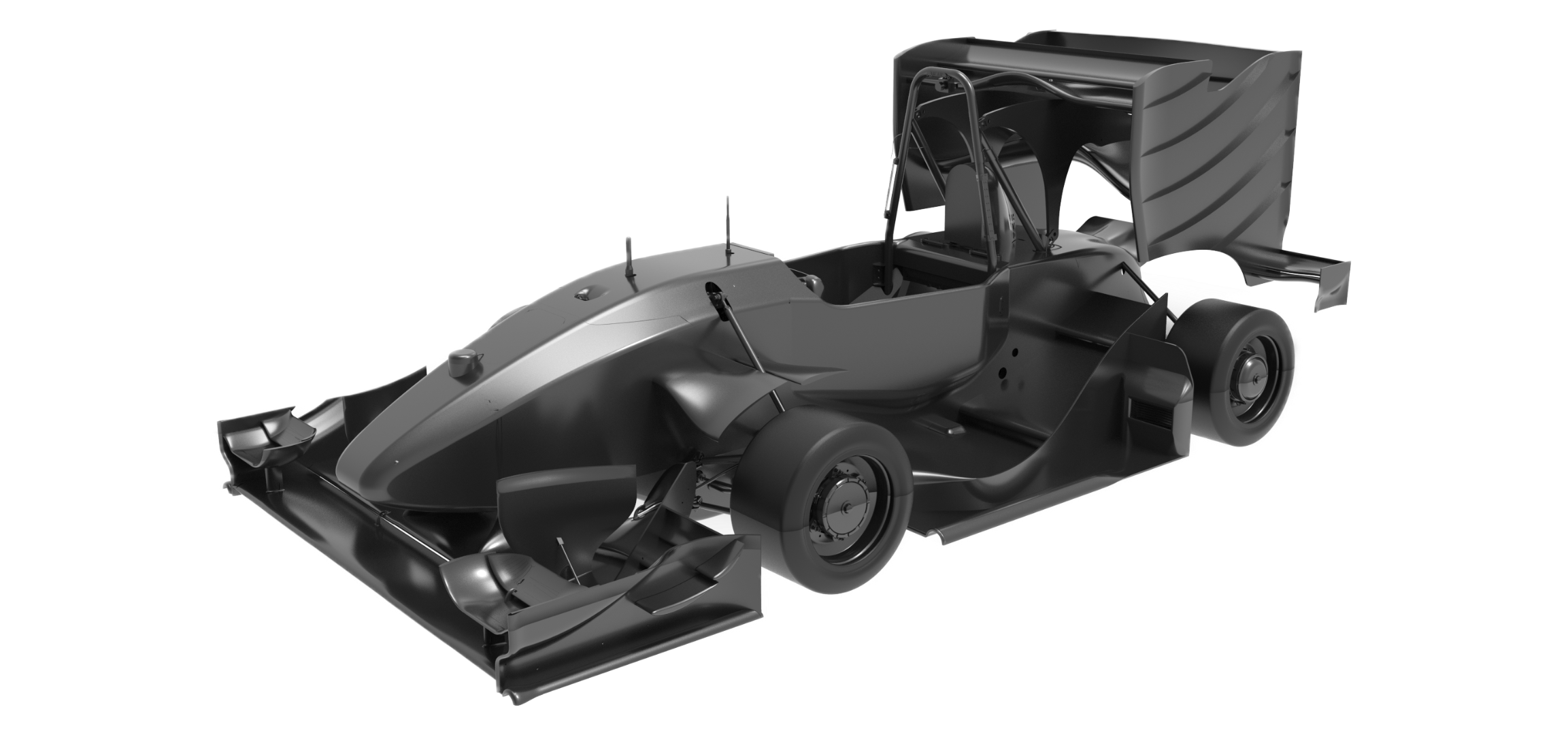

| Event Details | car 42 - active | |
Team Description
First electric team from the Czech Republic, four-wheel drive, torque vectoring,
traction control, carbon-composite monocoque, driverless and much more under the hood.
Past Events

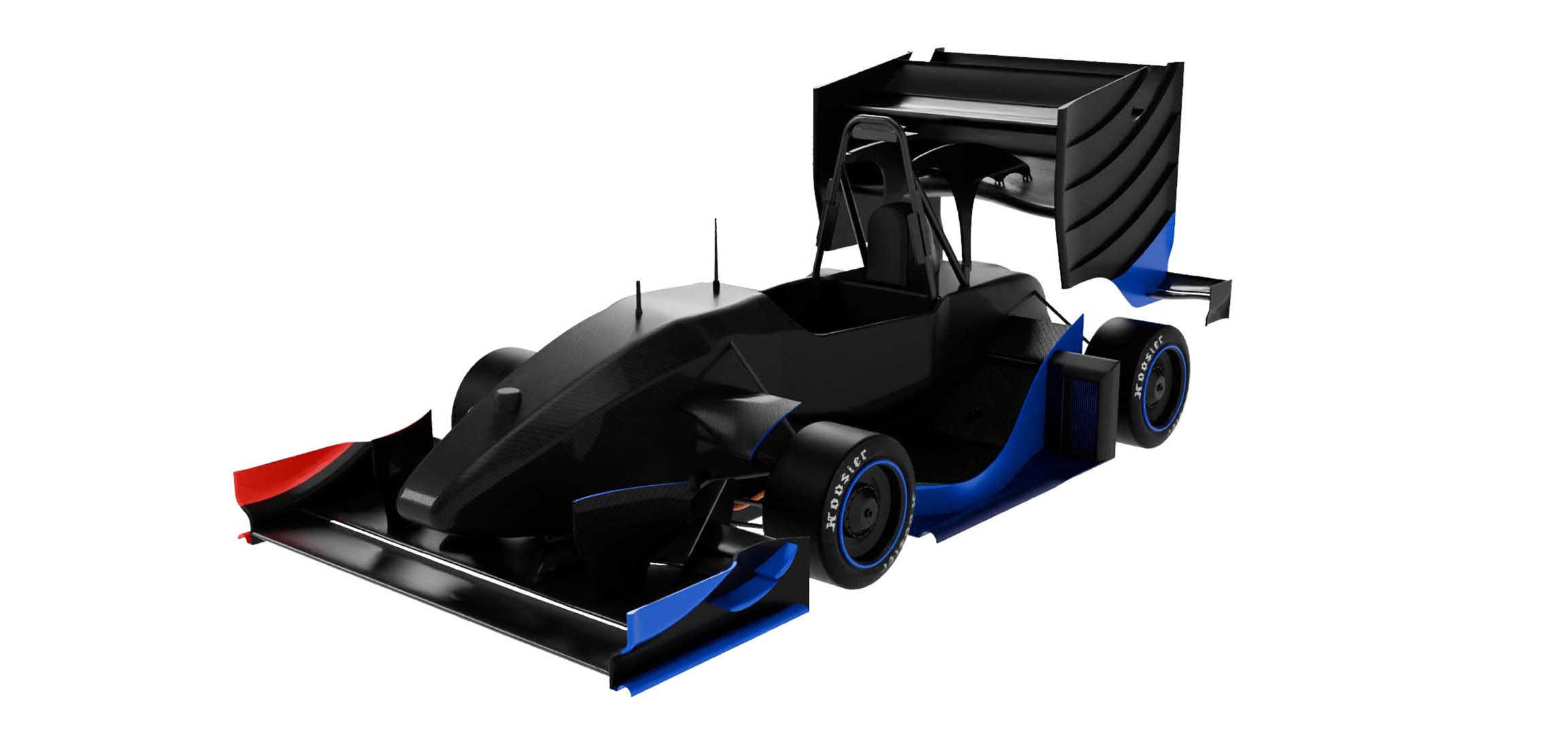

2025
Info
124x
The eForce Prague Formula is currently in its second year as a unified team at CTU in Prague building on the foundation established in its first season. The team is focused on the optimization of all internal processes and vehicle development. Alongside these efforts, a multi-year strategy was defined with the goal of becoming a top-tier competitor. The current season is dedicated to refining the car concept and strengthening the team structure to provide a robust platform for future innovation.
Engineering Design Priorities:
AutonomousSystemCapable
SolidFoundation
Serviceability
Reliability
Driveability
Ergonomics
Car Specifications
General
| Frame Construction | CFRP sandwich structure |
|---|---|
| Material | Aluminium honeycomb |
| Overall L | 2867 mm |
| Overall W | 1476 mm |
| Overall H | 1180 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 130 kg |
| Weight with 68kg driver (Rr) | 128 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated. Decoupled roll and heave system |
| Tyres (Fr / Rr) | Hoosier 16x7.5-10 R20 |
| Wheels (Fr / Rr) | 8x10, 50.1 mm offset, 2 pc CFRP rim |
| Drive Type | Direct drive, Compound planetary gearbox |
| Differential | Electronic |
| Cooling | U-flow radiators in sidepods with passive airflow, active/pump driven water flow |
| Brake System | 4-Disk system, self developed rotors with 200mm diameter, custem rear brake calipers |
| Electronics | Custom quad-channel motor controller and datalogger, telemetry, wireless measuring units |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | In each wheel |
| Max Motor Power (per motor) | 36kW kW |
| Motor Type | Fischer |
| Max Motor RPM (highest) | 20 000 rpm |
| Motor Controller | Dual channel SiC MC custom design |
| Max System Voltage | 600 V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 7,16kWh kWh |
| Transmission Ratio (Primary) | 11,47 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |
Driverless System
| Processing unit(s) | 19 |
|---|---|
| Floating Point Operations Per Second of all processing units that are working for the DV system | 25*1e12 GigaFLOPS |
| Power consumption of all processing units that are working for the DV system | 70 W |
| Camera(s) | Camera ZED2i, 105° FOV, 20m range |
| Radar sensor(s) | n/a |
| Lidar sensor(s) | n/a |
| Other sensors | Ground speed sensor |
| Highlights of the DV system | Implementation of Ground speed sensor, optimisation-based allocation of torques on each motor |

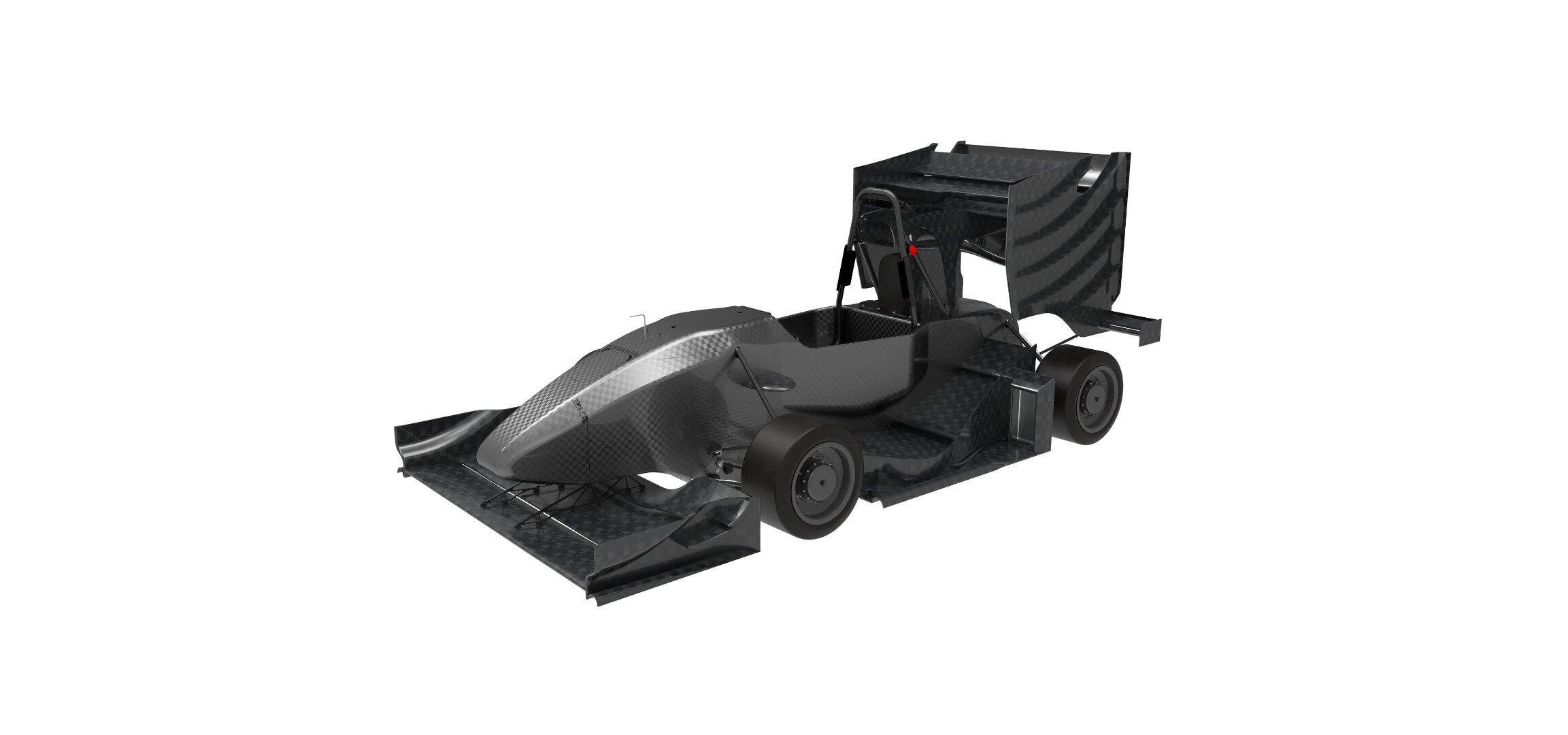

2024
Info
206x
Formula Student has been part of the Czech Technical University since 2007, with CTU CarTech being the first ever Formula Student team in the Czech Republic. In 2010, the team split into two: CTU CarTech (constructing combustion race cars) and eForce FEE Prague Formula (focusing on EV‘s). Both teams have excelled in their fields, winning many awards over the year.This year the two teams have come together with one goal: to become one of the greates Formula Student teams in the world.
Engineering Design Priorities:
Custom motor controller
Active ground effect
Driverless integration
Electronic antiroll blade
Electronic brake balance
Model based design
Car Specifications
General
| Frame Construction | CFRP sandwich structure |
|---|---|
| Material | Aluminium honeycomb |
| Overall L | 2867 mm |
| Overall W | 1456 mm |
| Overall H | 1180 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 129 kg |
| Weight with 68kg driver (Rr) | 154 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated. Decoupled roll and heave system. |
| Tyres (Fr / Rr) | Hoosier 16x7.5-10 R20 |
| Wheels (Fr / Rr) | 8x10, 50.1mm offset, 2pc CFRP |
| Drive Type | Direct drive, Compound planetary gearbox |
| Differential | Electronic |
| Cooling | Side mounted pasive radiators |
| Brake System | 4-Disk system, self developed rotors 200mm diam., OEM brake calipers |
| Electronics | Custom quad-channel motor controller, telemetry and driver interface with display and enc |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | in each wheel |
| Max Motor Power (per motor) | 36 kW kW |
| Motor Type | Fischer |
| Max Motor RPM (highest) | 20000 rpm |
| Motor Controller | Dual channel SiC MC custom design |
| Max System Voltage | 600 V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 7.48 kWh kWh |
| Transmission Ratio (Primary) | 11.47 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |
Driverless System
| Processing unit(s) | ZBOX MAGNUS EN374070C |
|---|---|
| Floating Point Operations Per Second of all processing units that are working for the DV system | 15620 GigaFLOPS |
| Power consumption of all processing units that are working for the DV system | 330 W |
| Camera(s) | Camera ZED2i, 105° FOV, 20m range |
| Radar sensor(s) | n/a |
| Lidar sensor(s) | n/a |
| Other sensors | n/a |
| Highlights of the DV system | In-house developed software architecture not using any traditional robotics frameworks, and an internally created simulator with digital twin, emulating track conditions, car physics, and in-car CAN bus communications. Custom implementation of SLAM algorithm based on ICP-SLAM. Racing line optimization based on the full SLAM map. |

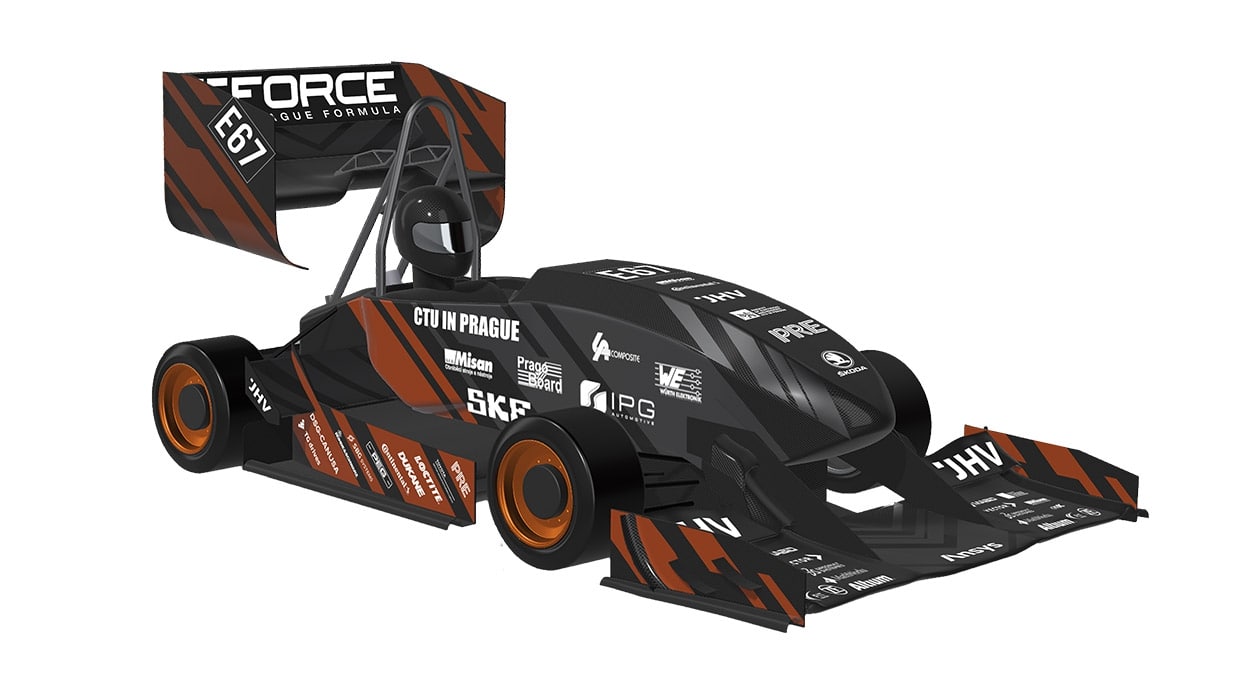

2022
Info
63x
We are the first electric formula team in the Czech Republic. The 11th generation of the eForce Fee Prague Formula is FSE.11. With its powerful drivetrain and lightweight chassis, it can compete against any other FS electric team. Brand new powertrain combined with four in-wheel motors and a two-stage planetary gearbox, each motor controlled independently, produces the best on-track performance and is already prepared for DV class modifications.
Engineering Design Priorities:
Efficient design
Light car
Knowledge transfer
Custom design
Car Specifications
General
| Frame Construction | Composite monocoque |
|---|---|
| Material | Steel mainhoop 30x2, steel MH support 28x1,5, aluminium welded front hoop, CFRP monocoque |
| Overall L | 2849 mm |
| Overall W | 1516 mm |
| Overall H | 1185 mm |
| Wheelbase | 1525 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 122 kg |
| Weight with 68kg driver (Rr) | 122 kg |
| Suspension | Double wishbone, direct acting |
| Tyres (Fr / Rr) | 16x7,5-10, LC0, Hoosier / 16x7,5-10, LC0, Hoosier |
| Wheels (Fr / Rr) | 8 inch, Keizer Al Rims/ 8 inch, Keizer Al Rims |
| Drive Type | Gearbox |
| Differential | Electronical |
| Cooling | Water cooling system with radiators |
| Brake System | 4-Disk system, self develpoped |
| Electronics | Strain gauge sensor,vehicle dynamics control unit and customisable steering wheel display |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Wheel assembly |
| Max Motor Power (per motor) | 4x35,37 kW |
| Motor Type | Fischer TI085-052-070-04B7S-07S04BE2 |
| Max Motor RPM (highest) | 20000 rpm |
| Motor Controller | Lenze Schmidhauser DCU 60/60 |
| Max System Voltage | 605V V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 7,45 kWh kWh |
| Transmission Ratio (Primary) | 1:13,3 : 1 |
| Transmission Ratio (Secondary) | N/A : 1 |

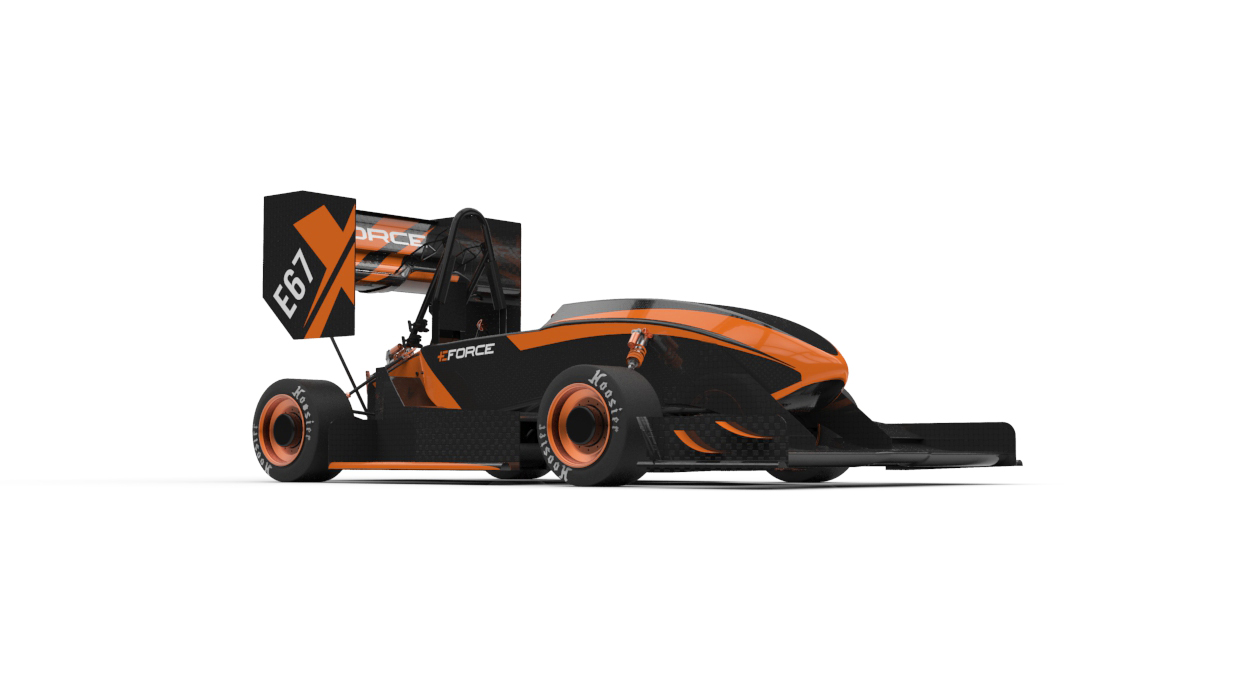

2021
Info
73x
We are the first and only electric formula team in Czech Republic. This is the 10th genereation of the eForce Fee Prague Formula named FSE.X. With its powerfull drivetrain and light weight, it can compete against any other FS electric team. Brand new powertrain combined with four in-wheel motors and two stage planetary gearbox, with each motor controlled independetly produces best on-trac performance and is alredy prepared for DV class modifications.
Engineering Design Priorities:
Performance
Speed
Weight
Car Specifications
General
| Frame Construction | Composite monocoque |
|---|---|
| Material | CFRP, Steel hoop and support |
| Overall L | 2795 mm |
| Overall W | 1516 mm |
| Overall H | 1185 mm |
| Wheelbase | 1525 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 123 kg |
| Weight with 68kg driver (Rr) | 125 kg |
| Suspension | Double wishbone, direct acting |
| Tyres (Fr / Rr) | Hoosier 16x7,5-10 |
| Wheels (Fr / Rr) | 8 inch, Keizer |
| Drive Type | Gearbox |
| Differential | electronical |
| Cooling | Water cooling system with radiators |
| Brake System | 4-Disk system, self develpoped |
| Electronics | Strain gauge sensor,vehicle dynamics control unit and customisable steering wheel display |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | in each wheel hub |
| Max Motor Power (per motor) | 4x35.37 kW |
| Motor Type | PMSM |
| Max Motor RPM (highest) | 20000 rpm |
| Motor Controller | Lenze Schmidhauser DCU 60/60 |
| Max System Voltage | 604V V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 7.4kWh kWh |
| Transmission Ratio (Primary) | 13.3:1 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |

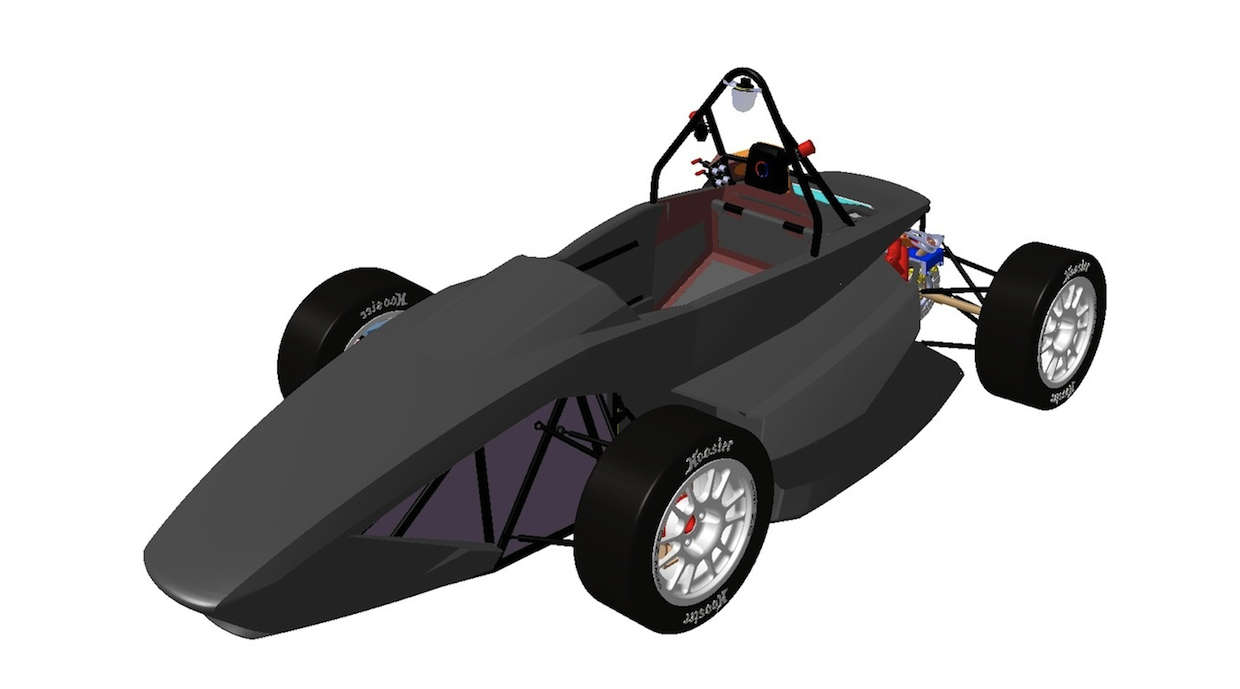

2011
Info
Two Teams, Two Cars, One Challenge! We have made 3 cars with internal combustion motor and we made our first electric formula. History of CTU CarTech team has begun in 2009. After 2 years we managed to take part in Formula Student Electric. Our team has been personally splitted into two parts.Our Formula has hybrid tubular frame with aluminium sandwich panels. For traction we use custom developed three phase BLDC motor with it's own motor inverter. The power to is transfered by palanetary gearbox and chain gear. Motor and gearbox are placed in aluminium frame. Powerful LiPo batteries give us 400 A and 230 V. Baterries are placed in lightweight baterry pack. Self developed Control System based on Mbed microcontroller gives us very easy way how to create our wishes.Taking part in competition like this is big satisfaction for our work. Let's meet at Hockenheim!
Car Specifications
General
| Frame Construction | Hybrid tubular space frame with Aluminium sandwich panels; Aluminium welded rear section |
|---|---|
| Material | Steel tubes S235; Sandwich skin EN AW 2024, core aluminium honeycomb; rear section EN AW 6082 |
| Overall L | 2937 mm |
| Overall W | 1365 mm |
| Overall H | 1105 mm |
| Wheelbase | 1700 mm |
| Track (Fr) | 1250 mm |
| Track (Rr) | 1264 mm |
| Weight with 68kg driver (Fr) | 178 kg |
| Weight with 68kg driver (Rr) | 201 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper |
| Tyres (Fr / Rr) | Hoosier R25A - 20.5x7.0 - 13 / Hoosier R25A - 20.5x7.0 - 13 |
| Wheels (Fr / Rr) | 7"x13" O.Z / 7"x13" O.Z |
| Drive Type | Planetary gearbox + chain 520 |
| Differential | Torsen-University Special 012000 limited slip differential |
| Cooling | Single side pod mounted radiator, Air cooled battery pack |
| Brake System | 4-Disk system;Fr 250mm hub mounted, Rr 220mm differential mounted; adjustable brake balance |
| Electronics | Active cooled battery pack, self designed control system |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | in front rear axle |
| Max Motor Power (per motor) | 72 kW kW |
| Motor Type | Freeair Teratex 80kW |
| Max Motor RPM (highest) | 12000 rpm |
| Motor Controller | MGM Compro custom build |
| Max System Voltage | 232V V |
| Electrode Materials | LiPo |
| Combined Accumulator Capacity | 8,29 kWh |
| Transmission Ratio (Primary) | 1:3 : 1 |
| Transmission Ratio (Secondary) | 1:2,63 : 1 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.08 | 84 |
10. |
53. |
65. |
9. |
32. |
11. |
20. |
5. |
13. |
8. |
15. |
-25.00 |
653.40 |
|
| 2025.08 | 53 |
5. |
20. |
12. |
7. |
6. |
- |
21. |
- |
4. |
5. |
10. |
0.00 |
751.42 |
|
| 2025.07 | 44 |
11. |
12. |
18. |
3. |
10. |
- |
7. |
- |
3. |
- |
- |
0.00 |
447.13 |
|
| 2024.09 | 34 |
5. |
21. |
6. |
3. |
6. |
- |
8. |
- |
9. |
5. |
2. |
0.00 |
710.16 |
|
| 2024.08 | 79 |
3. |
29. |
8. |
3. |
23. |
4. |
14. |
5. |
17. |
9. |
3. |
0.00 |
771.29 |
|
| 2024.08 | 47 |
14. |
3. |
4. |
4. |
9. |
- |
21. |
- |
6. |
- |
- |
0.00 |
342.16 |
|
| 2024.07 | 38 |
5. |
16. |
18. |
11. |
9. |
- |
9. |
- |
13. |
6. |
3. |
0.00 |
609.60 |
|
| 2023.08 | 29 |
18. |
4. |
12. |
9. |
4. |
- |
7. |
- |
- |
- |
- |
-25.00 |
322.80 |
|
| 2023.08 | 35 |
21. |
23. |
10. |
15. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
235.00 |
|
| 2022.08 | 25 |
2. |
12. |
5. |
6. |
10. |
- |
2. |
- |
4. |
1. |
5. |
-11.00 |
874.80 |
|
| 2022.08 | 63 |
24. |
29. |
35. |
49. |
12. |
- |
11. |
- |
15. |
- |
- |
0.00 |
290.43 |
|
| 2022.08 | 33 |
9. |
2. |
27. |
10. |
13. |
- |
4. |
- |
11. |
- |
- |
-20.00 |
323.56 |
|
| 2022.07 | 19 |
2. |
1. |
3. |
4. |
3. |
- |
3. |
- |
6. |
2. |
1. |
0.00 |
858.51 |
|
| 2021.08 | 38 |
20. |
29. |
20. |
22. |
9. |
- |
11. |
- |
11. |
- |
- |
-5.00 |
355.16 |
|
| 2021.08 | 16 |
2. |
6. |
7. |
9. |
- |
- |
- |
- |
1. |
1. |
6. |
0.00 |
727.10 |
|
| 2021.08 | 14 |
8. |
5. |
5. |
6. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
243.00 |
|
| 2019.08 | 39 |
23. |
6. |
- |
14. |
- |
- |
6. |
- |
12. |
- |
- |
0.00 |
258.60 |
|
| 2019.08 | 15 |
2. |
3. |
5. |
7. |
2. |
- |
1. |
- |
2. |
2. |
5. |
0.00 |
789.24 |
|
| 2019.07 | 25 |
24. |
23. |
21. |
4. |
- |
- |
- |
- |
- |
- |
- |
-60.00 |
148.39 |
|
| 2018.07 | 16 |
7. |
1. |
6. |
7. |
5. |
- |
4. |
- |
5. |
- |
- |
0.00 |
395.11 |
|
| 2017.08 | 14 |
3. |
1. |
6. |
6. |
5. |
- |
5. |
- |
4. |
2. |
7. |
0.00 |
828.73 |
|
| 2017.07 | 38 |
12. |
11. |
22. |
25. |
9. |
- |
- |
- |
7. |
13. |
5. |
0.00 |
527.80 |
|
| 2016.08 | 10 |
8. |
3. |
4. |
3. |
4. |
- |
2. |
- |
- |
- |
- |
0.00 |
366.00 |
|
| 2015.09 | 20 |
11. |
9. |
8. |
5. |
4. |
- |
5. |
- |
8. |
13. |
- |
-75.00 |
343.84 |
|
| 2015.09 | 13 |
2. |
13. |
4. |
3. |
1. |
- |
4. |
- |
1. |
2. |
9. |
0.00 |
839.11 |
|
| 2015.08 | 37 |
28. |
27. |
25. |
28. |
13. |
- |
14. |
- |
10. |
- |
- |
-15.00 |
352.50 |
|
| 2014.09 | 20 |
2. |
6. |
10. |
5. |
3. |
- |
9. |
- |
4. |
2. |
8. |
-90.00 |
728.43 |
|
| 2014.08 | 38 |
33. |
24. |
33. |
23. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
180.13 |
|
| 2013.09 | 24 |
11. |
19. |
11. |
7. |
14. |
- |
12. |
- |
12. |
9. |
- |
0.00 |
495.20 |
|
| 2013.08 | 39 |
33. |
38. |
37. |
16. |
- |
- |
30. |
- |
35. |
19. |
- |
-10.00 |
204.87 |
|
| 2013.08 | 37 |
26. |
34. |
27. |
19. |
16. |
- |
28. |
- |
27. |
- |
- |
0.00 |
309.20 |
|
| 2012.09 | 17 |
8. |
16. |
13. |
11. |
9. |
- |
10. |
- |
9. |
8. |
8. |
0.00 |
555.29 |
|
| 2012.08 | 39 |
19. |
38. |
37. |
24. |
18. |
- |
31. |
- |
25. |
14. |
6. |
0.00 |
472.28 |
|
| x 33 | |||||||||||||||
