Team Details
UPM Racing
| University | Universidad Politécnica de Madrid (UPM)
ES Madrid TU short 32 |
 |
|---|---|---|
| Location | Madrid, Spain | |
| Homepage | https://upm-racing.es/ | |
| Social Media | ||
| CV Team | UPM Racing | |
| Short Link | tid.fsg.one/376 | |
| Event Details | car 15 - withdrawn | |
Past Events

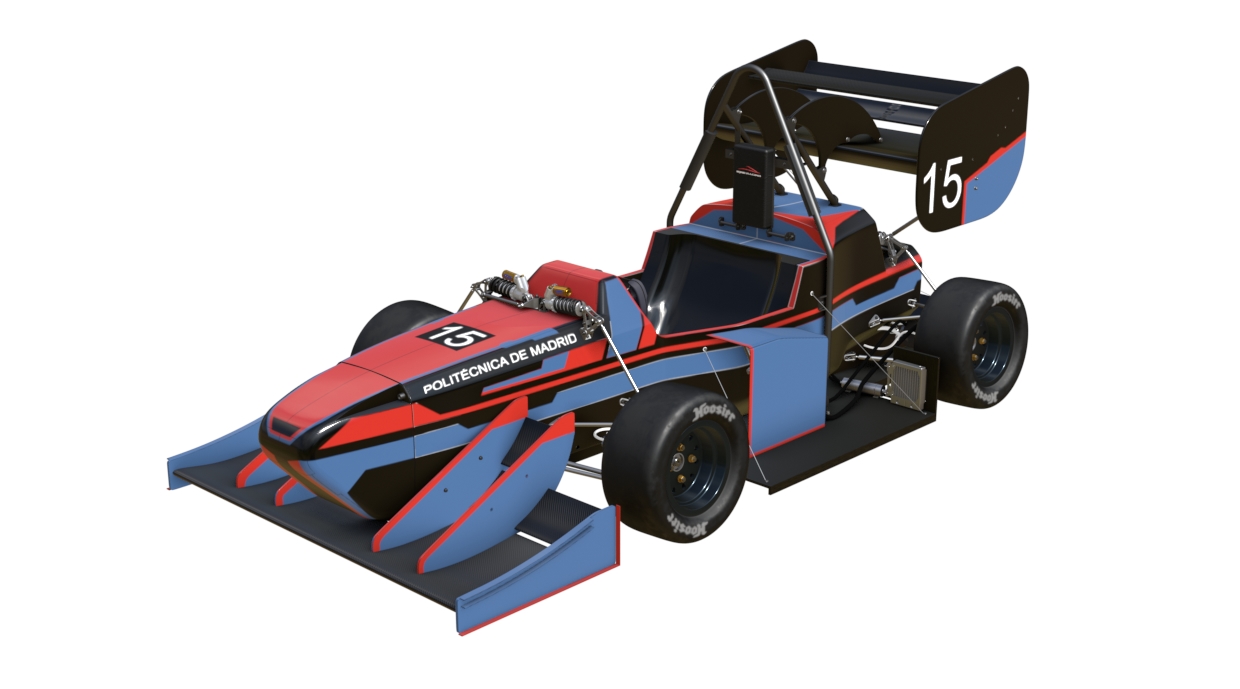

2022
Info
14x
Founded in 2003, UPM Racing is the first Spanish FS team, made up of 60 engineering students of the Universidad Politécnica de Madrid. In 2018, we moved on from combustion and changed our philosophy, switching to our first carbon fibre monocoque, 4 in-wheel-drive electric system to create the most revolutionary car of our history. This season we have optimized that concept to extract its maximum potential, now embodied in the UPM04e, which will fly with us to FSG boosting us to do our best!
Engineering Design Priorities:
Reliability
Improve integration
Weight reduction
Driver ergonomics
Ease of set-up
Aerodynamic efficiency
Car Specifications
General
| Frame Construction | Composite sandwich monocoque chassis / Attached MH and encapsulated FH |
|---|---|
| Material | CFRP and aramid epoxy prepreg + hexagonal aluminium and aramid honeycomb |
| Overall L | 3001 mm |
| Overall W | 1430 mm |
| Overall H | 1212 mm |
| Wheelbase | 1550 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 143 kg |
| Weight with 68kg driver (Rr) | 175 kg |
| Suspension | Double unequal wishbone, actuated by push rod on the upper a-arm, with bellcrank |
| Tyres (Fr / Rr) | Hoosier 18.0x6.0-10 R25B / Hoosier 18.0x6.0-10 R25B |
| Wheels (Fr / Rr) | 6.0x10, -5 mm offset, Aluminium alloy / 6.0x10, -5 mm offset, Aluminium alloy |
| Drive Type | Compound planetary gear with locked ring |
| Differential | n/a |
| Cooling | 3 independent water-cooling systems for inverters and motors. Air forced convection battery cooling |
| Brake System | 4-disk, adjustable brake balance system with self-developed 188mm rotors |
| Electronics | Self-Designed BMS, Telemetry & Data Acquisition System and Power Distribution with LV BMS |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Front&Rear, Right&Left |
| Max Motor Power (per motor) | 14.4kW per motor kW |
| Motor Type | AMK DD5-14-10-POW-18600-B5 |
| Max Motor RPM (highest) | 14.400 rpm |
| Motor Controller | AMK KW26-S5-FSE-4Q |
| Max System Voltage | 580V V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 8.11kWh kWh |
| Transmission Ratio (Primary) | 13.176 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |

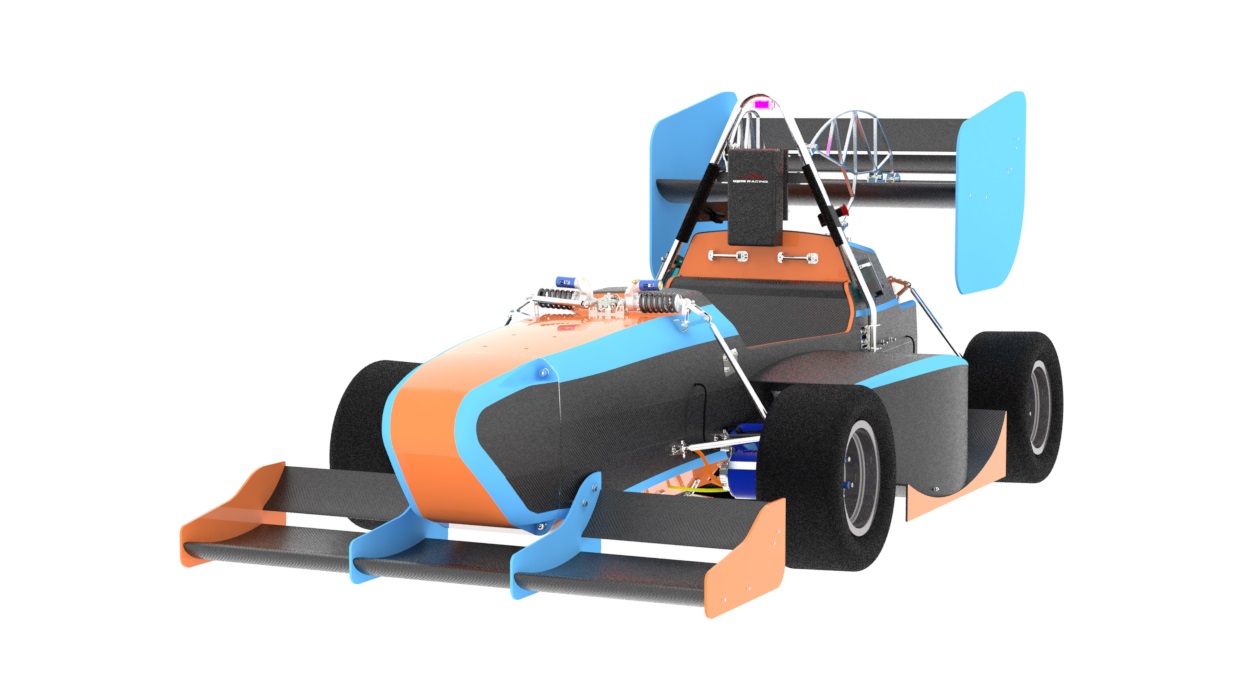

2019
Info
17x
UPM Racing is the FS team of Universidad Politécnica de Madrid. Founded in 2003, it is the first Spanish team that participated in the competition. The team is formed by 50 students from different disciplines. After many years competing with combustion cars, we changed our philosophy and moved into our first monocoque chassis, that combined with a new 4 in-wheel-drive system, makes UPM03e the most revolutionary car of our history. We are back at FSG to do our best and enjoy the competition!
Engineering Design Priorities:
electric
4inwheeldrive
monocoque
planetarygear
10inchwheels
aeropack
Car Specifications
General
| Frame Construction | Composite sandwich monocoque chassis with roll hoops attached |
|---|---|
| Material | CFRP and aramid epoxy prepeg + aluminium hexagonal and aramid flexcore honeycomb |
| Overall L | 2954 mm |
| Overall W | 1430 mm |
| Overall H | 1185 mm |
| Wheelbase | 1550 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 132 kg |
| Weight with 68kg driver (Rr) | 176 kg |
| Suspension | Double unequal lenght A-Arm. Push rod actuated with bellcrank. Springs and Öhlins TTX25. |
| Tyres (Fr / Rr) | Hoosier 6.0/18.0-10 LCO / Hoosier 6.0/18.0-10 LCO |
| Wheels (Fr / Rr) | 6.0x10, -5 mm offset, Aluminium alloy / 6.0x10, -5 mm offset, Aluminium alloy |
| Drive Type | Compound planetary gear with locked rim |
| Differential | n/a |
| Cooling | Two independent cooling systems. Heat exchangers on each sidepod. |
| Brake System | 4-disc system, self developed 188mm rotors. Proportional valve and bias bar. ISR calipers. |
| Electronics | Self-developed PCBs: CAN transducer, cooling control system. |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | In wheels' hub |
| Max Motor Power (per motor) | 27.3 kW x4 kW |
| Motor Type | Permanent magnets synchron machine |
| Max Motor RPM (highest) | 20000 rpm |
| Motor Controller | Speed / Torque |
| Max System Voltage | 580V V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 7.15kWh kWh |
| Transmission Ratio (Primary) | 13.176 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |

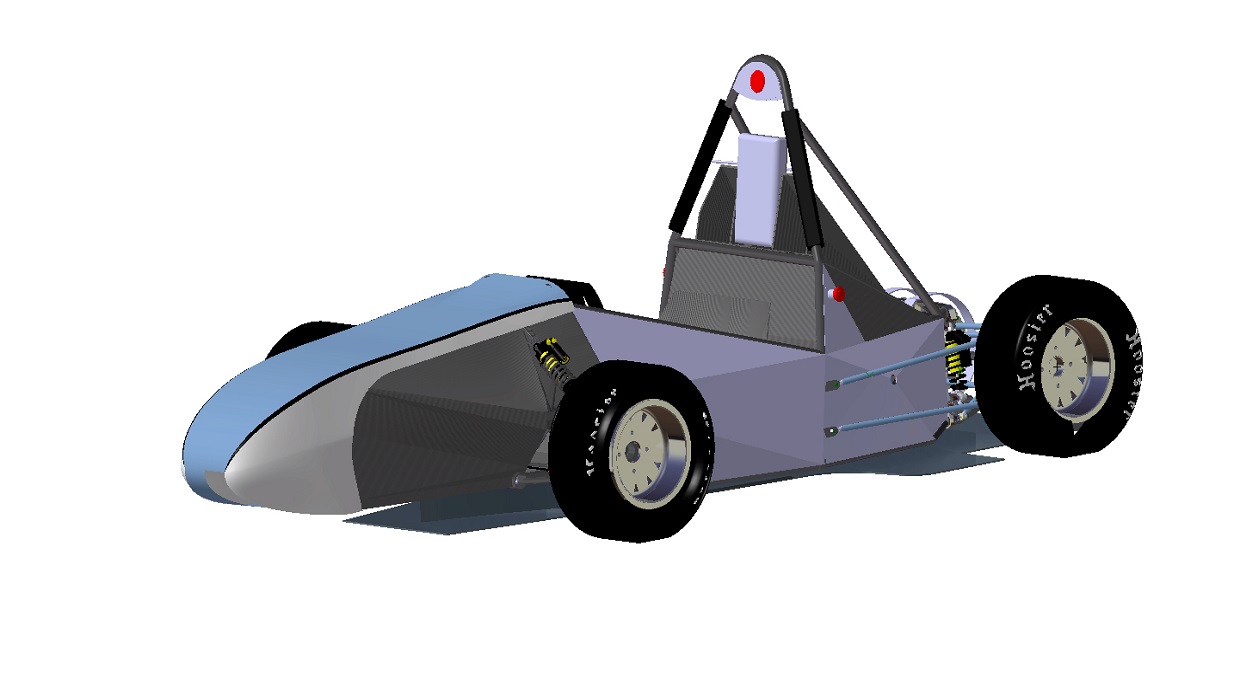

2013
Info
UPM Racing celebrates in 2013 its 10th anniversary by participating in FSAE Germany with two cars: one with a combustion engine and the other with an electric drivetrain. Each of our teams is composed of 20 automotive-passionated students who work part-time in the project, combining it with their degrees. The team members belong to the Technical University of Madrid, so the project lays on varied skills and knowledge. With a fairly tight budget, UPM Racing tries each year to introduce improvements in their new cars. In our electric prototype, the evolution comes through a save-weight program in order to reduce 30% of it (compared with UPM001-E), thanks to an extensive use of carbon fiber in car parts and new batteries. We remain at your disposition during the competition for any additional information. Finally, we are grateful for all our sponsors, without them this project won’t be possible. We hope to see you all in Hockenheim!
Car Specifications
General
| Frame Construction | Tubular frame |
|---|---|
| Material | 4130 steel round tubing |
| Overall L | 2814 mm |
| Overall W | 1343 mm |
| Overall H | 1200 mm |
| Wheelbase | 1535 mm |
| Track (Fr) | 1193 mm |
| Track (Rr) | 1143 mm |
| Weight with 68kg driver (Fr) | 126 kg |
| Weight with 68kg driver (Rr) | 154 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated vertically oriented spring and damper |
| Tyres (Fr / Rr) | 450x152 R10, Hoosier LC0 |
| Wheels (Fr / Rr) | 6x10, 70mm offset, 1 pc Al Rim |
| Drive Type | Chain |
| Differential | Electronic Torque Sensing Custom Build |
| Cooling | Air Cooled |
| Brake System | 4-Disk system, self developed rotors with 190mm diameter, adjustable brake balance |
| Electronics | Traction Control, Launch Control, Electronic Differential |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Left and right independen |
| Max Motor Power (per motor) | 32KW per motor kW |
| Motor Type | DC Motors |
| Max Motor RPM (highest) | 2600 rpm |
| Motor Controller | Kelly Controllers |
| Max System Voltage | 108V V |
| Electrode Materials | LiFePo4 |
| Combined Accumulator Capacity | 6.4 kWh |
| Transmission Ratio (Primary) | 1 : 1 |
| Transmission Ratio (Secondary) | 4.5 : 1 |

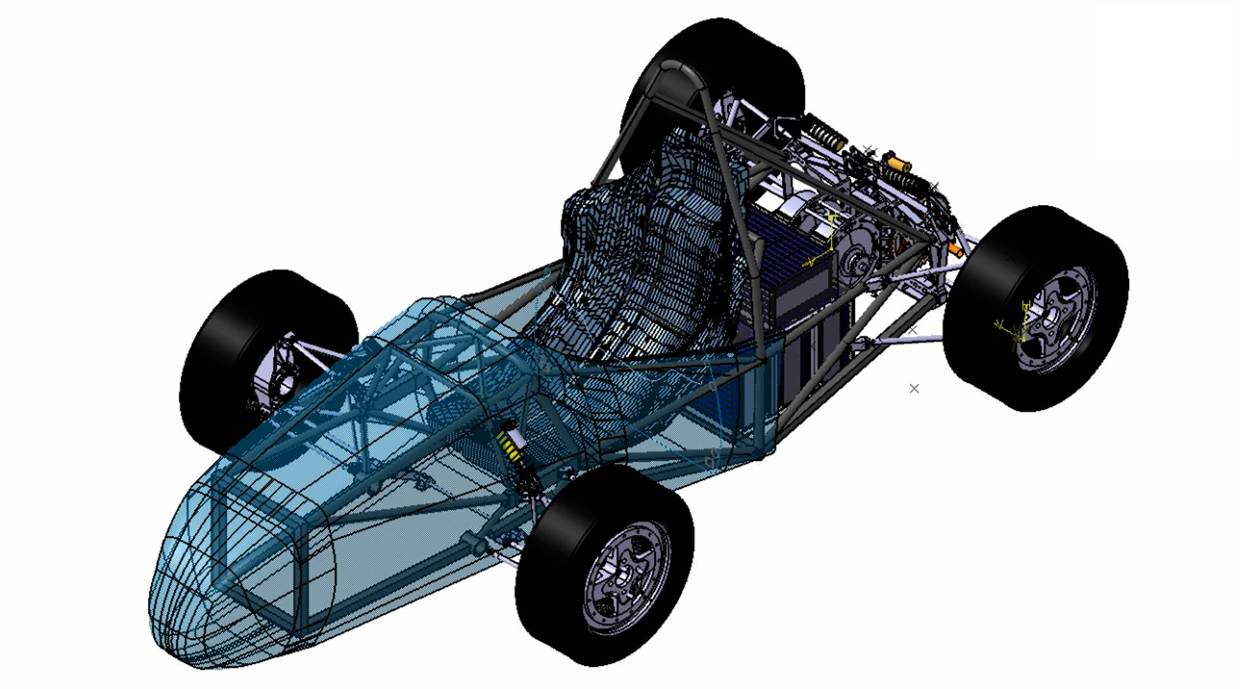

2011
Info
The UPM Racing electric team was founded in 2010 with all the eight years of experience of our brother UPM Racing combustion. Thus, a group of students in engineering in multiple fields decided to step in and accept the challenge of building an electric racing car, combining simplicity with performance. As a result, we have now a very practical car propelled by two rear electric motors which meets the most important pillars: reliability, performance and efficiency.Our car is the next step in evolution of racing cars, gathering all the qualities the racing world needs. Furthermore, it is not just a car it is our philosophy, "Evolution and Adaptation", those are the ideas people are excited about.That is why with pride, the UPM Racing electric team along with the Polytechnic University of Madrid present the UPM08e.
Car Specifications
General
| Frame Construction | Steel tube space frame with glued carbon fibre floor panels |
|---|---|
| Material | 4130 Alloy Steel |
| Overall L | 2890 mm |
| Overall W | 1430 mm |
| Overall H | 1058 mm |
| Wheelbase | 1600 mm |
| Track (Fr) | 1230 mm |
| Track (Rr) | 1160 mm |
| Weight with 68kg driver (Fr) | 174 kg |
| Weight with 68kg driver (Rr) | 212 kg |
| Suspension | Unequal length A-Arms. Push rod actuated Cane Creek ST44 spring/damper F-SAE specific units. |
| Tyres (Fr / Rr) | 20.5x7.0-13 Hoosier R25B / 20.5x7.0-13 Hoosier R25B |
| Wheels (Fr / Rr) | 13 x 7 / 13 x 7 |
| Drive Type | #530 chain |
| Differential | FSAE Drexler Limited Slip Differential with friction plates, adjustable |
| Cooling | Air cooling with electric fan |
| Brake System | 4-Disk system, self developed rotors with 220mm diameter, adjustable brake balance |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear |
| Max Motor Power (per motor) | 34 kW each kW |
| Motor Type | DC-Motors air cooled: Lynch Motor Company |
| Max Motor RPM (highest) | 4400 rpm |
| Motor Controller | Kelly KDH12121E |
| Max System Voltage | 96V V |
| Combined Accumulator Capacity | 9.6 kWh kWh |
| Transmission Ratio (Primary) | 1:3.8 : 1 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2024.08 | 25 |
15. |
17. |
12. |
13. |
- |
- |
12. |
- |
9. |
- |
- |
0.00 |
229.80 |
|
| 2023.08 | 35 |
24. |
25. |
15. |
23. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
200.00 |
|
| 2022.08 | 63 |
53. |
6. |
60. |
40. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
173.06 |
|
| 2022.08 | 33 |
23. |
14. |
17. |
26. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
214.43 |
|
| 2019.08 | 39 |
27. |
13. |
16. |
26. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
208.50 |
|
| 2019.08 | 38 |
23. |
18. |
19. |
21. |
- |
- |
- |
- |
- |
- |
- |
-15.00 |
197.50 |
|
| 2013.08 | 40 |
31. |
31. |
20. |
28. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
183.50 |
|
| 2012.07 | 97 |
76. |
78. |
48. |
80. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
129.00 |
|
| 2011.08 | 28 |
27. |
18. |
- |
- |
- |
- |
- |
- |
- |
- |
- |
0.00 |
53.79 |
|
| x 9 | |||||||||||||||
