Team Details
Lions Racing Team e.V.
| University | TU Braunschweig
Technische Universität Braunschweig local DE Braunschweig TU short 11 |
 |
|---|---|---|
| Location | Braunschweig, Germany | |
| Homepage | https://lionsracing.de/ | |
| Social Media | ||
| CV Team | Lions Racing Team | |
| DV Team | Lions Racing Team e.V. | |
| Short Link | tid.fsg.one/353 | |
| TIS Status |
      |
|

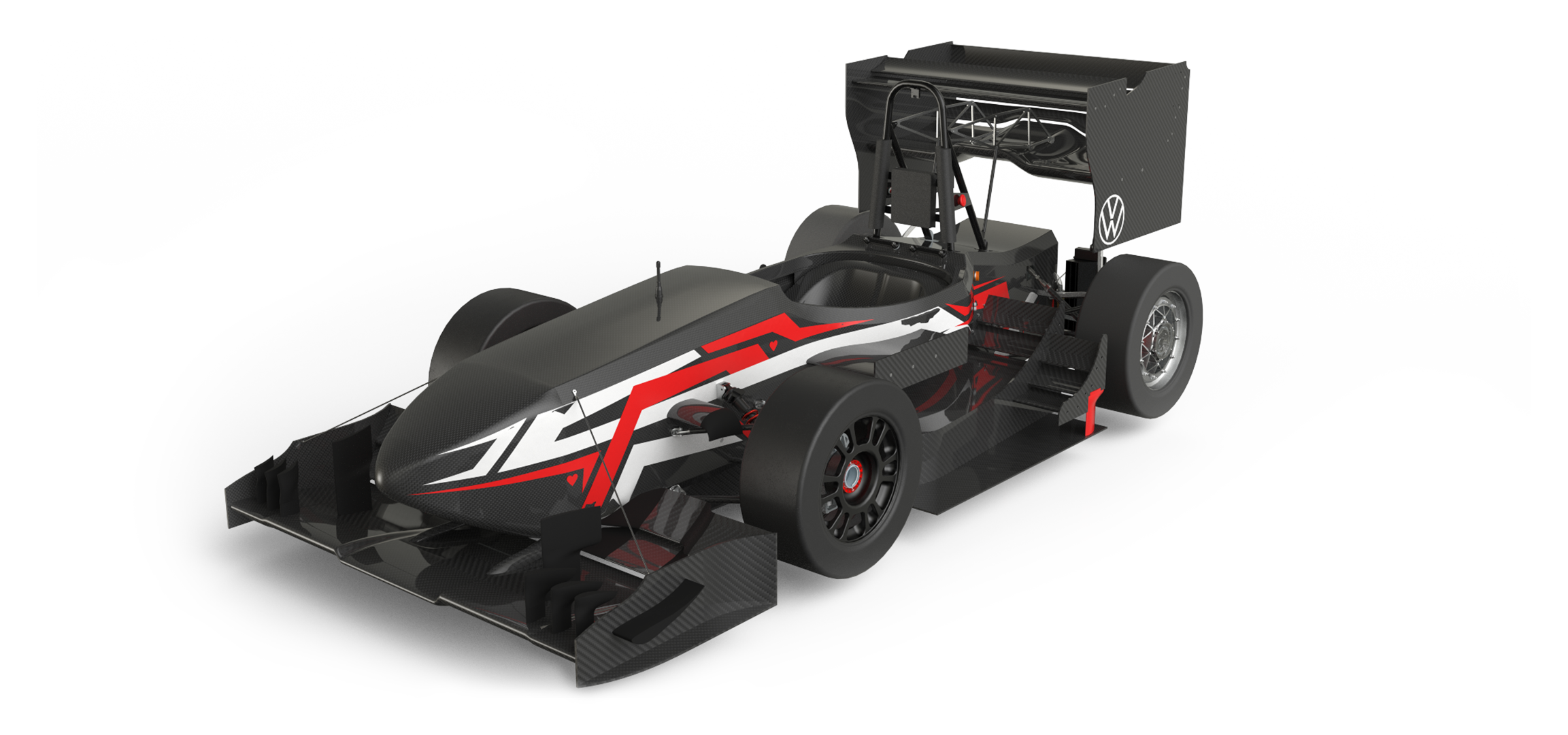

| Event Details | car 119 - active | |
Team Description
Lions Racing is the Formula Student team of the technical university in Braunschweig, Germany. Founded in 2000 the team is now working on its 25th vehicle.
From the beginning onwards lightweighted construction was one of the main objectives and since 2016 this is achieved by designing and manufacturing our own cfrp monocoques in house.
To be able to work in leading fields of innovation the team created its first electric race car in 2012 and remained in that class ever since. Going forward from 2019 driverless systems became part of our vehicles as well.
Past Events

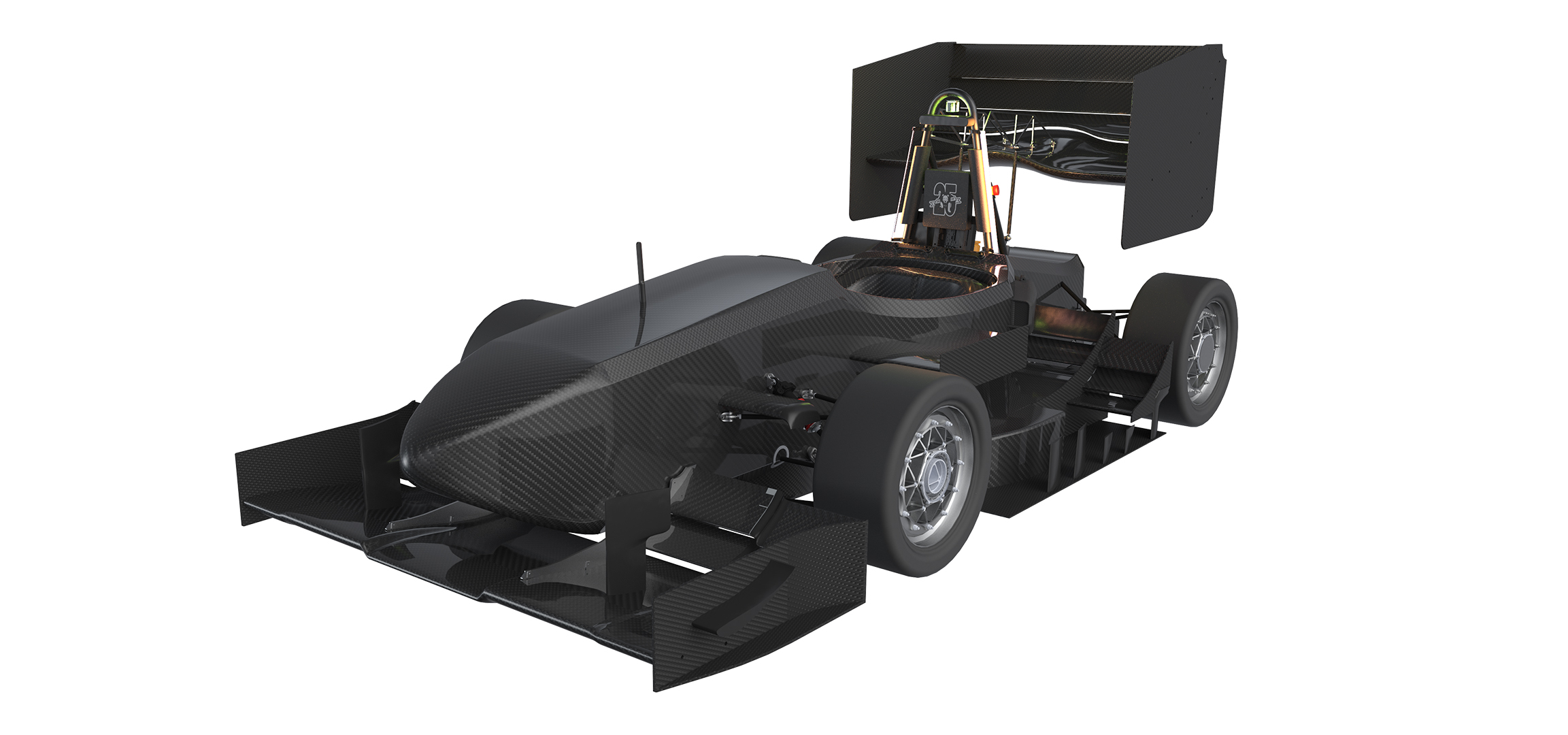

2025
Info
87x
Since 2000, we have been building racing cars as part of Formula Student. We have always strived for engineering excellence while prioritizing enjoyment. Our car features rear-wheel-drive hub motors. At the heart of our LR25 are its 600V battery, boasting a 6.9 kWh capacity, and our self-developed inverter. The monocoque, a carbon-aluminum sandwich construction, weighs only 24.5 kg. Our aerodynamic package, also constructed from carbon, generates 850 Newtons of downforce at 60 km/h.
Engineering Design Priorities:
simplicity
serviceability
reliability
cost reduction
reusability
Car Specifications
General
| Frame Construction | Single piece composite monocoque |
|---|---|
| Material | 10/15/25mm Al honeycomb core, UD/Weave Prepeg, 5 to 11 Layers |
| Overall L | 3030 mm |
| Overall W | 1426 mm |
| Overall H | 1158 mm |
| Wheelbase | 1605 mm |
| Track (Fr) | 1231 mm |
| Track (Rr) | 1230 mm |
| Weight with 68kg driver (Fr) | 127 kg |
| Weight with 68kg driver (Rr) | 156 kg |
| Suspension | double unequal length A-Arm, Damper actuation on lower wishbone |
| Tyres (Fr / Rr) | 470x205 R13 Continental, 470x205 R13 Continental |
| Wheels (Fr / Rr) | 6,5x13 48,5mm offset, 3 pc Al Rim, 6,5x13 48,5mm offset, 3 pc Al Rim |
| Drive Type | Electric, one ratio planetary Gearbox |
| Differential | independent left and right motor |
| Cooling | Electric waterpump 70 W, 4 fans for active aerodynamics, 6 cooling fans total 87 W |
| Brake System | 4 floating 228mm self designed disks, 4-p mono-block caliper fr, 2-p mono-block caliper re |
| Electronics | Centralised LVS in rack: easy to wire service and diagnose, in house Live-Telemetry System |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | left right back, indepen. |
| Max Motor Power (per motor) | 40kW per Motor kW |
| Motor Type | PMSM, watercooled |
| Max Motor RPM (highest) | 21000 rpm |
| Motor Controller | Self-Developed |
| Max System Voltage | 600V V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 6,9kWh kWh |
| Transmission Ratio (Primary) | 1:14.5 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |
Driverless System
| Processing unit(s) | 8-Core Arm Cortex-A78AE v8.2, STM32G474RET6 |
|---|---|
| Floating Point Operations Per Second of all processing units that are working for the DV system | 20,385 GigaFLOPS |
| Power consumption of all processing units that are working for the DV system | 40W W |
| Camera(s) | 1: ZED 2i, Range: ~20m, Opening Angle: 120° |
| Radar sensor(s) | n/a |
| Lidar sensor(s) | n/a |
| Other sensors | IMU: Vectornav VN-100 |
| Highlights of the DV system | Single camera easy to use and maintain design. Focus on robustness and as base for future additions instead of speed. |

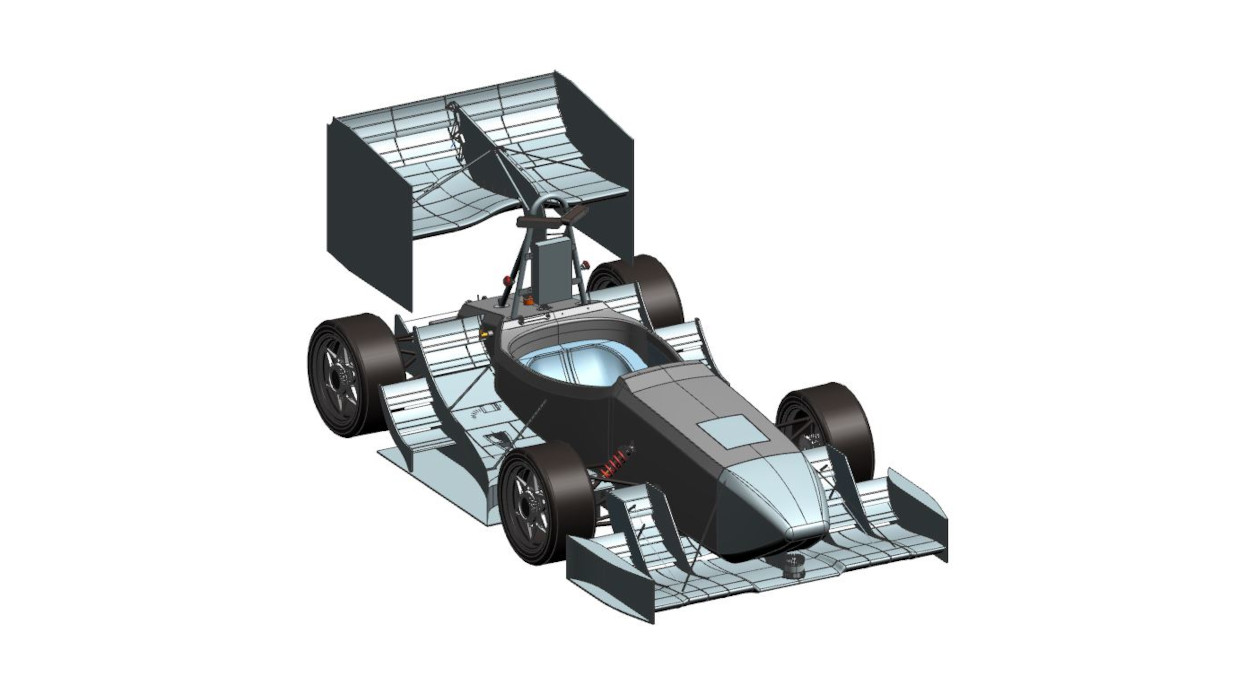

2022
Info
12x
Founded in 2000, the Lions Racing Team is one of Germany's oldest Formula Student teams. The LR22 is our 20th car and our first car designed for manual and autonomous driving. It marks a new page in our team history with monocoque, suspension and steering, aerodynamic devices, accumulator and the entire electrical system being designed from scratch with a focus on weight reduction, aerodynamic performance and full integration of autonomous systems. We are excited to meet you at the FSG!
Engineering Design Priorities:
from scratch
weight reduction
function integration
autonomous
wings up for downforce
active aero
Car Specifications
General
| Frame Construction | Carbon fibre composite single piece Monocoque |
|---|---|
| Material | Carbon fibre, Aluminium Honeycomb |
| Overall L | 2956 mm |
| Overall W | 1460 mm |
| Overall H | 1159 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1225 mm |
| Track (Rr) | 1225 mm |
| Weight with 68kg driver (Fr) | 127 kg |
| Weight with 68kg driver (Rr) | 127 kg |
| Suspension | Double unequal length Wishbone. Push Rod actuated, Roll-Heave at rear Axle |
| Tyres (Fr / Rr) | 205x55 R13 Continental |
| Wheels (Fr / Rr) | CFRP Rim Dish R13, Rim Star EN AW 7075 |
| Drive Type | Electric, one ratio planetary Gearbox |
| Differential | - |
| Cooling | 2 centrally mounted radiators, 6 5in brushless fans, SLM printed Motor housing and Inverter coolers |
| Brake System | Calipers ISR, 4 Disc System, self developed rotors (201mm dia), self turned Titan bushings |
| Electronics | 2.4kW DC/DC supply, 4.3in multi-mode dashboard display, self-designed ECUs |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | FR, FL, RR, RL |
| Max Motor Power (per motor) | FR, FL, RR, RL: 40kW kW |
| Motor Type | permanent excited synchronous machine |
| Max Motor RPM (highest) | FR, FL, RR, RL: 21.000 rpm |
| Motor Controller | Bucher Hydraulics Mobile DCU60/60 |
| Max System Voltage | 600V V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 7.03kWh kWh |
| Transmission Ratio (Primary) | 1:13 : 1 |
| Transmission Ratio (Secondary) | - |
Driverless System
| Processing unit(s) | STM32G474 family, Nvidia Jetson AGX Xavier |
|---|---|
| Floating Point Operations Per Second of all processing units that are working for the DV system | 1410 GigaFLOPS |
| Power consumption of all processing units that are working for the DV system | 60 W |
| Camera(s) | 2, 20m, 120°, Stereolabs ZED 2i stereocamera |
| Radar sensor(s) | - |
| Lidar sensor(s) | 1, 120m, 360°, Ouster OS1 mid-range surround lidar |
| Other sensors | - |
| Highlights of the DV system | - VectorNav VN300 INS, multi GNSS antenna setup for centimeter precision - 5 class neural net for different cone sizes - mission selection via voice controll |

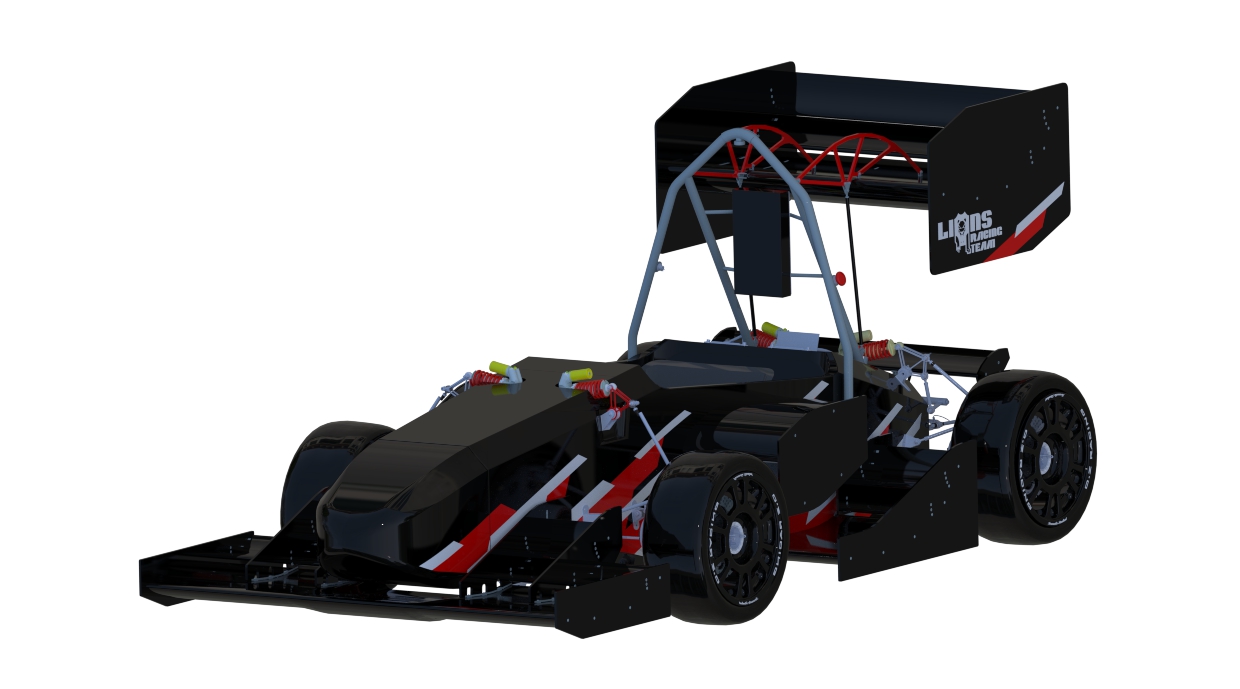

2019
Info
20x
Founded in 2000, the Lions Racing Team from the TU Braunschweig is the 2nd oldest Formula Student Team in Germany. In 2012 we changed from combustion to electric driven vehicles – and we are proud to present the LR19 as our latest. Our team worked passionately throughout the season to set up a reliable and structurally optimized vehicle and now we are looking forward to meet you at FSG 2019!
Car Specifications
General
| Frame Construction | CFRP singlepiece sandwich monocoque |
|---|---|
| Material | Prepreg impregnated CFRP, aluminium honeycomb core |
| Overall L | 2935 mm |
| Overall W | 1363 mm |
| Overall H | 1180 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1164 mm |
| Track (Rr) | 1138 mm |
| Weight with 68kg driver (Fr) | 135 kg |
| Weight with 68kg driver (Rr) | 135 kg |
| Suspension | Double unequal length A-Arm, pushrod actuated spring/damper |
| Tyres (Fr / Rr) | Continental 205 / 470 R13 |
| Wheels (Fr / Rr) | 7x13, 22 mm Offset, 1 Pc Al Rim |
| Drive Type | Planetary gear drive and step planets |
| Differential | n/a |
| Cooling | Watercooled motors & inverters; Aircooled Accumulator |
| Brake System | 4-Disk system, steel rotors |
| Electronics | Self-designed ECU, DC-DC converter instead of LV-battery |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Wheel Hubs Rear |
| Max Motor Power (per motor) | 35 kW kW |
| Motor Type | AMK - DD5-14-10-POW |
| Max Motor RPM (highest) | 20000 rpm |
| Motor Controller | AMK - KW26-S5-FSE-4Q |
| Max System Voltage | 600V V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 7 kWh kWh |
| Transmission Ratio (Primary) | 15.88 : 1 |

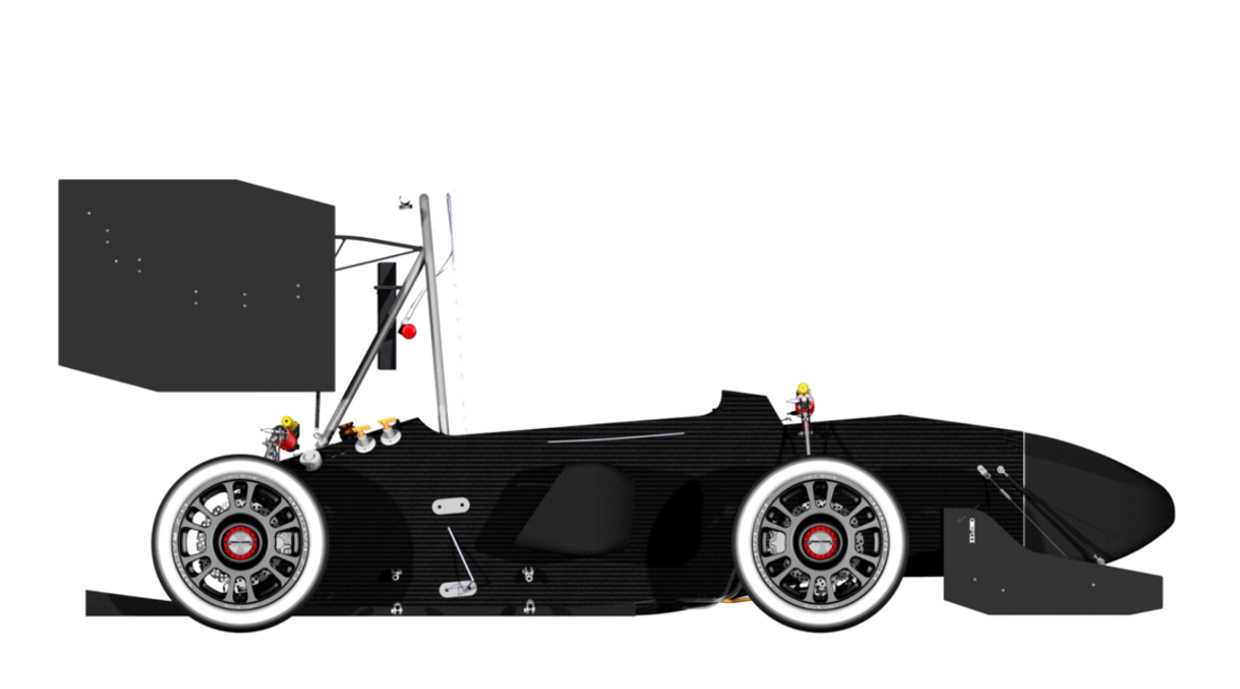

2018
Info
14x
The Lions Racing Team is celebrating its 18th birthday at Hockenheim this year and with the LR18 it will be a wild party. Everyone has worked hard to make this special year count. We achieved a vehicle with a sleek appearance and highly developed accumulator. Let's rock the Endurance and make the FSG 2018 unforgettable!
Engineering Design Priorities:
finally of legal age
driving permit
old lion with new tricks
einschalten und magic
Car Specifications
General
| Frame Construction | Monocoque |
|---|---|
| Material | CFRP laminate with aluminum-honeycomb core |
| Overall L | 2913 mm |
| Overall W | 1327 mm |
| Overall H | 1157 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1164 mm |
| Track (Rr) | 1138 mm |
| Weight with 68kg driver (Fr) | 146 kg |
| Weight with 68kg driver (Rr) | 154 kg |
| Suspension | Double unequal length A-Arm. Pushrod actuated spring/damper |
| Tyres (Fr / Rr) | 205 / 470 R13, Continental |
| Wheels (Fr / Rr) | 7x13, 22 mm offset, 1 Pc Al Rim |
| Drive Type | Planetary gear drive and step planets |
| Differential | Motor at each wheel |
| Cooling | Accumulator passive and active air; Motors passive and active liquid; Inverter active liquid cooling |
| Brake System | Steel and aluminium rotors. Generator at each wheel and high peak charge power accumulator |
| Electronics | No LV-Battery; Selfdesigned battery management system, motor control unit and dashboard. |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | one close to each wheel |
| Max Motor Power (per motor) | 35kW at each wheel kW |
| Motor Type | AMK - DD5-14-10-POW |
| Max Motor RPM (highest) | 20.000 rpm |
| Motor Controller | AMK - KW26-S5-FSE-4Q |
| Max System Voltage | 600V V |
| Electrode Materials | Lithium Cobalt Oxide (LiCoO2) |
| Combined Accumulator Capacity | 7 kWh |
| Transmission Ratio (Primary) | 1:15,88 : 1 |

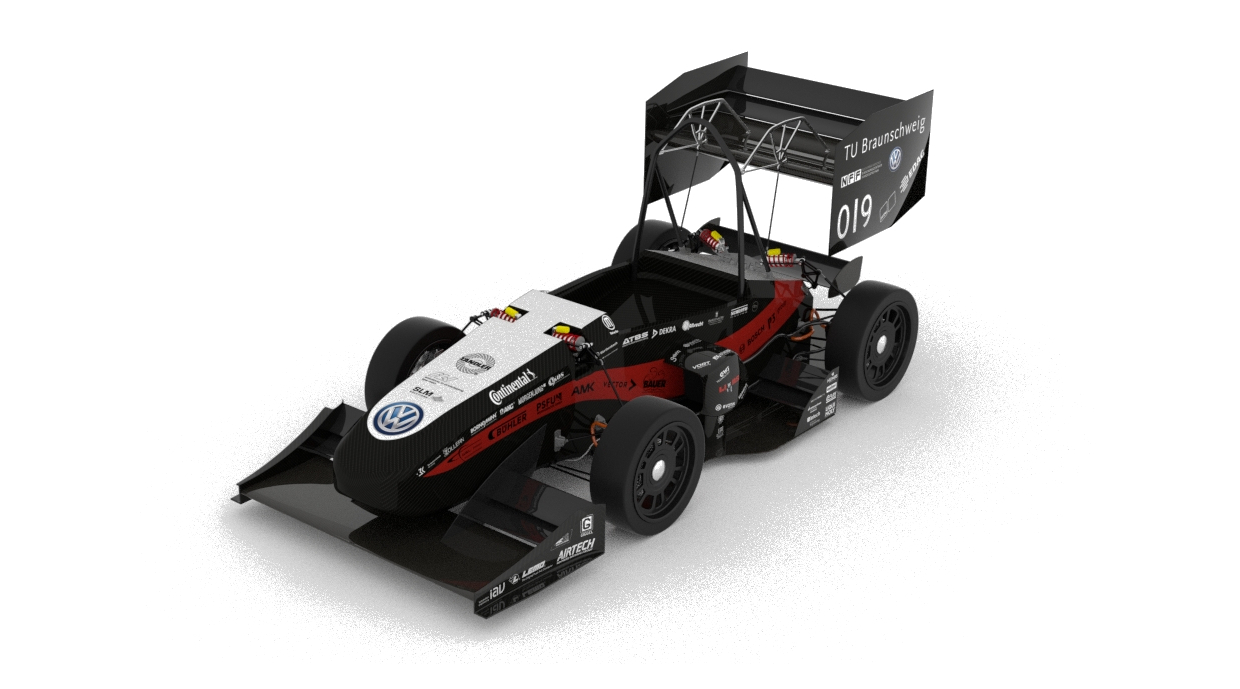

2017
Info
23x
Founded in 2000, the Lions Racing Team from the TU Braunschweig is the 2nd oldest Formula Student team in Germany. In 2012, we switched from combustion to electric driven vehicles, since 2016 our car is four-wheel driven and the steel frame was replaced by a monocoque. About 50 team members have been working passionately the last year to reach our goals of becoming more reliable, building a well maintainable car and getting faster and lighter.
Engineering Design Priorities:
Reliability
Maintainability
Systemtest
SwitchAndSmell
Car Specifications
General
| Frame Construction | Full monocoque |
|---|---|
| Material | CFRP with aluminium honeycomb |
| Overall L | 2946 mm |
| Overall W | 1388 mm |
| Overall H | 1195 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1164 mm |
| Track (Rr) | 1138 mm |
| Weight with 68kg driver (Fr) | 145 kg |
| Weight with 68kg driver (Rr) | 145 kg |
| Suspension | Double unequal length A-Arm, pushrod actuated spring/damper |
| Tyres (Fr / Rr) | Continental 205 / 470 R13 (front&rear) |
| Wheels (Fr / Rr) | 7x13, 22 mm Offset, 1 Pc Al Rim (front&rear) |
| Drive Type | Planetary gear drive and stepplanets |
| Differential | Electronic differential |
| Cooling | Twin side pod mounted radiators |
| Brake System | 4-Disk System, self-developed rotors |
| Electronics | Self-developed control units, live telemetry, multiple motion sensors, gps sensor |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | FR, FL, RR, RL |
| Max Motor Power (per motor) | 4x 35kW kW |
| Motor Type | Permanent magnet synchronous motor |
| Max Motor RPM (highest) | 20000 rpm |
| Motor Controller | AMK KW26-S5-FSE-4Q 2 |
| Max System Voltage | 598V V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 7.03kWh kWh |
| Transmission Ratio (Primary) | 15.88 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |

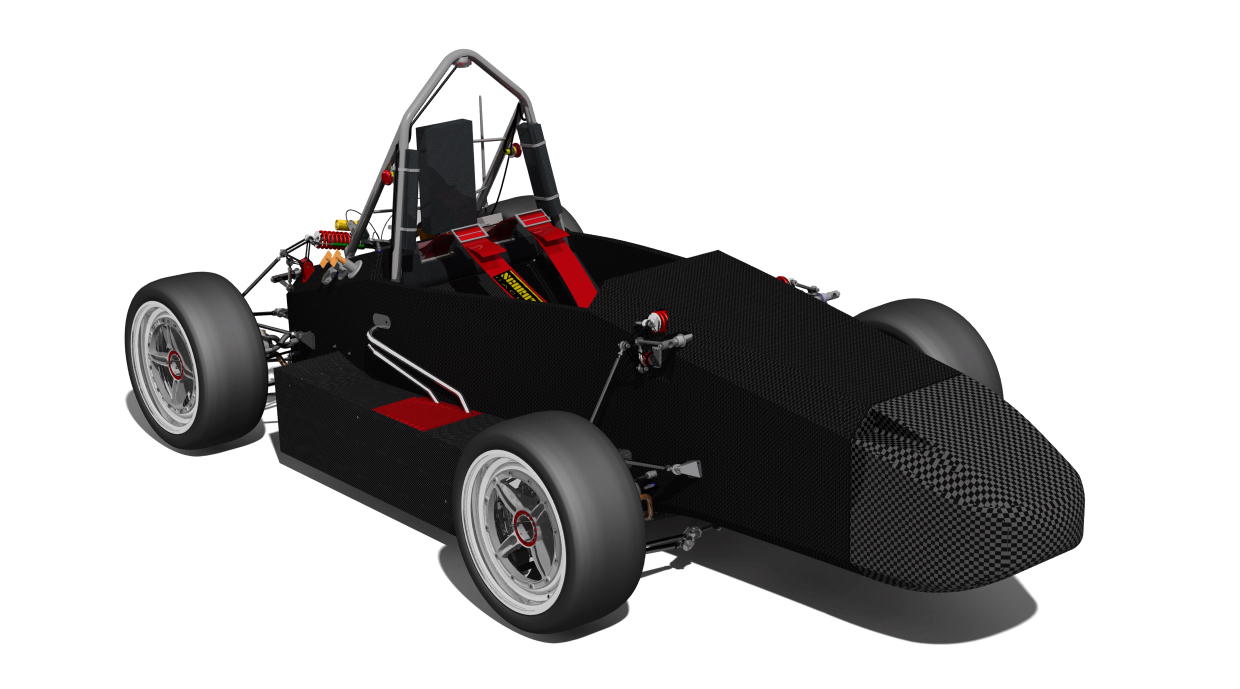

2016
Info
7x
Some people say the Lions Racing Team is building the same car every year. Not this year, the LR16 is a new concept. We accepted to go the big challenge "first monocoque" together with an entirely new powertrain based on the AMK formula student package. We have been working closer with VW than ever. Our goal is to come back to Hockenheim with a competitive concept to attack Top 10 and a good base to develop on.
Engineering Design Priorities:
Revolution
Reliability
Focus
Safety
Car Specifications
General
| Frame Construction | Monocoque |
|---|---|
| Material | carbon reinforced plastic with aluminium honeycomb |
| Overall L | 2700 mm |
| Overall W | 1360 mm |
| Overall H | 1059 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1168 mm |
| Track (Rr) | 1150 mm |
| Weight with 68kg driver (Fr) | 144 kg |
| Weight with 68kg driver (Rr) | 157 kg |
| Suspension | Double antiparallel unequal length A-Arm . Push rod actuated, adjustable in compression and rebound. |
| Tyres (Fr / Rr) | C16 205/470 R13, Continental, Fr and Rr |
| Wheels (Fr / Rr) | 7x13, 26mm offset, 3pc AlMgSi1 Rim, Fr and Rr |
| Drive Type | planetary gearbox |
| Differential | torque vectoring though control unit, no differential as there are 4 motors |
| Cooling | Left and right side sidepot integrated coolers without fan. 2 split system. |
| Brake System | 4-Disk system, self developed rotors with 220mm diameter, AP Racing CP4227-2S0 calipers |
| Electronics | self developed, decentral control unit system and telemetry system, multifunctional dashboard |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Front Right, Front Left, |
| Max Motor Power (per motor) | 35kW, 35kW, 35kW, 35kW kW |
| Motor Type | AMK/ DD5-14-10-POW/Permanent excited synchron |
| Max Motor RPM (highest) | 20.000 rpm |
| Motor Controller | AMK / KW26-S5-FSE-4Q 2 |
| Max System Voltage | 588 V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 7,25kWh kWh |
| Transmission Ratio (Primary) | 15,87 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |

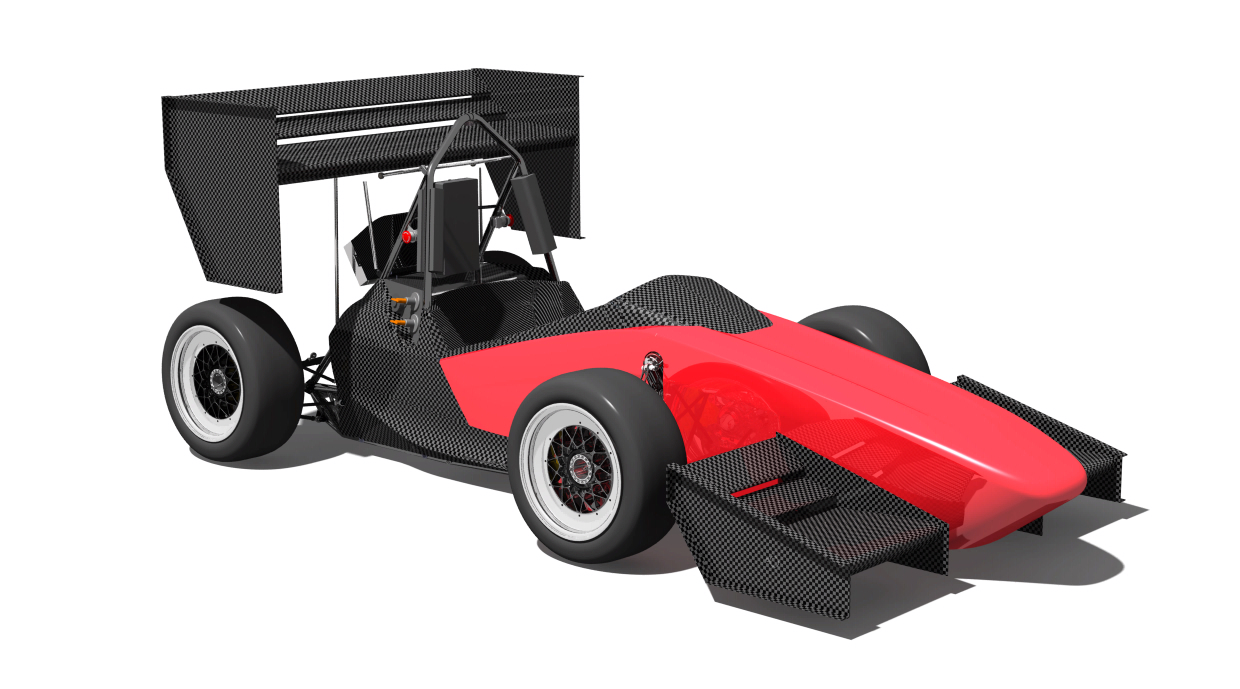

2014
Info
3x
Established in 2000, the Lions Racing Team from the Technical University of Brunswick is the 2nd oldest FS team in Germany. Consisting of roughly 50 Students from different departments, we are proud to welcome our 3rd electric racecar to our family, the LR14.To reach our goals of becoming faster, lighter, easier to maintain and to reach a place among the Top 10 teams overall, we built in a 80% lighter new motor, compromised the battery package and developdeveloped an all new aerodynamic package.
Engineering Design Priorities:
lightweight
maintenance
reliability
safety
Car Specifications
General
| Frame Construction | Tubular space frame |
|---|---|
| Material | 4130 steel round material; 10mm to 25mm diameter |
| Overall L | 2896 mm |
| Overall W | 1325 mm |
| Overall H | 1127 mm |
| Wheelbase | 1545 mm |
| Track (Fr) | 1140 mm |
| Track (Rr) | 1140 mm |
| Weight with 68kg driver (Fr) | 137 kg |
| Weight with 68kg driver (Rr) | 186 kg |
| Suspension | Double antiparallel unequal length A-Arm. Push rod actuated spring Öhlins / damper, anti-roll bar |
| Tyres (Fr / Rr) | 205/510 R13 34M, Continental |
| Wheels (Fr / Rr) | 7,5x13, 10mm offset, 3pc AlMgSi1 Rim |
| Differential | Drexler FSAE, clutch pack limited slip |
| Cooling | Single radiator rear mounted with electric fans |
| Brake System | 4-Disk System, self developed |
| Electronics | wiring harness sealed to IP55, Multifunction Dashboard, Live Telemetrie & Data Logging System |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | rear |
| Max Motor Power (per motor) | 100kW kW |
| Motor Type | Enstroj Emrax 228 HV LC |
| Max Motor RPM (highest) | 4000 rpm |
| Motor Controller | UniTek BAMOCAR-D3-700-400-RS |
| Max System Voltage | 470V V |
| Electrode Materials | LiPo |
| Combined Accumulator Capacity | 7,056kWh kWh |
| Transmission Ratio (Primary) | 1:3,5 : 1 |
2013
Info
13x

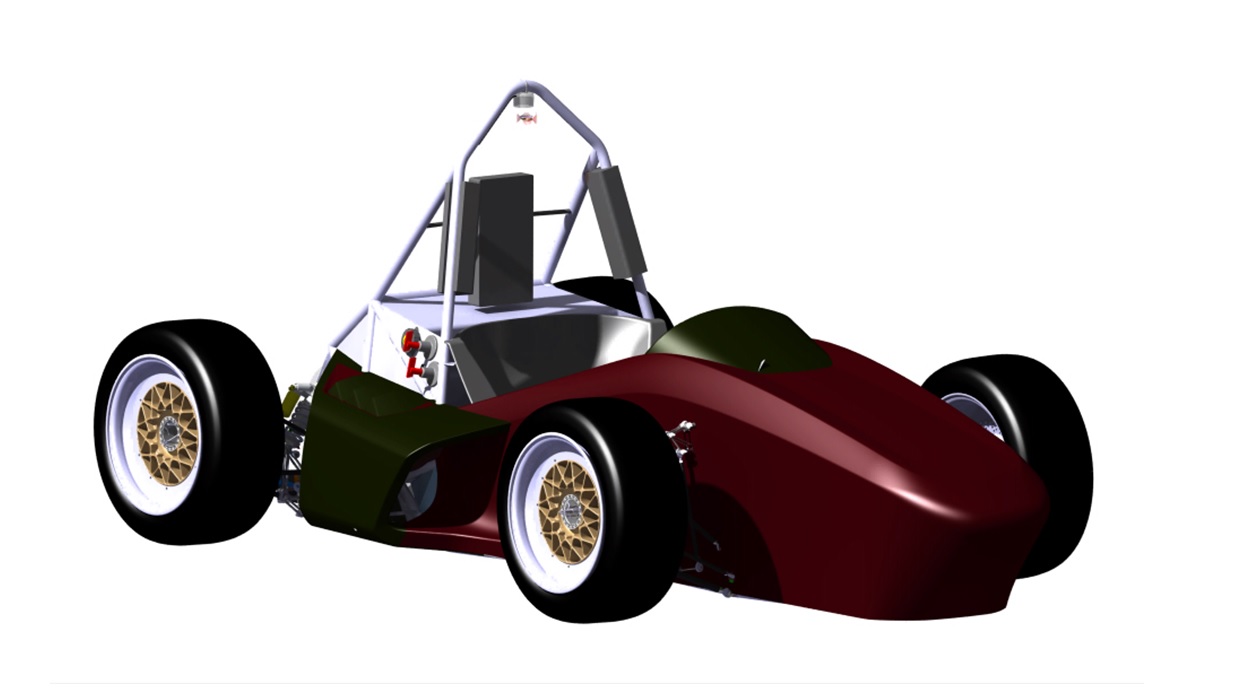

The Lions Racing Team was founded in 2000. Since 2002 the team participated in many events. This season 40 team members worked hard to build the LR13, which is the 11th car of the team and the second one with an electric drive train. As a consequence of the new design and its dense package, the tubular space frame is 4kg lighter. The electric motor with a maximum torque of 220Nm is powered by a 5.5kWh accumulator, which is controlled by a self-developed battery management system. For an ideal dynamic performance, the suspension geometry was determined by tire testing and extensive simulations. Furthermore, we want to thank our sponsors who supported us over the last years!
Car Specifications
General
| Frame Construction | tubular space frame |
|---|---|
| Material | 25CrMo4 |
| Overall L | 2637 mm |
| Overall W | 1346 mm |
| Overall H | 1072 mm |
| Wheelbase | 1545 mm |
| Track (Fr) | 1140 mm |
| Track (Rr) | 1140 mm |
| Weight with 68kg driver (Fr) | 143 kg |
| Weight with 68kg driver (Rr) | 175 kg |
| Suspension | Double antiparallel unequal length A-Arm. Push rod actuated spring Öhlins / damper, anti-roll bar |
| Tyres (Fr / Rr) | 205/510 R 13, Continental / 205/510 R 13, Continental |
| Wheels (Fr / Rr) | 7 inch, 3 pc Al Rim, 0mm offset / 7 inch, 3 pc Al Rim, 0mm offset |
| Drive Type | gear drive |
| Differential | Torque sensitive torsen differential, 3:1 bias ratio (25%) |
| Cooling | Side pod mounted radiator and electric fan |
| Brake System | Brembo P32, two opposing pistons, 32mm dia |
| Electronics | multifunctional steering wheel, chassis sensors for setup, intelligent fuse control unit |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Center Rear |
| Max Motor Power (per motor) | 96kW kW |
| Motor Type | Brusa HSM1-6.17.12 |
| Max Motor RPM (highest) | 13000 rpm |
| Motor Controller | Brusa DMC 524 |
| Max System Voltage | 420V V |
| Electrode Materials | LiFePo4 |
| Combined Accumulator Capacity | 5.5kWh kWh |
| Transmission Ratio (Primary) | 1:4.5 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.08 | 84 |
54. |
31. |
47. |
57. |
51. |
- |
51. |
- |
38. |
28. |
- |
0.00 |
194.00 |
|
| 2025.07 | 40 |
39. |
- |
37. |
39. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
70.40 |
|
| 2022.08 | 63 |
56. |
60. |
51. |
45. |
- |
- |
- |
- |
- |
- |
- |
-10.00 |
150.71 |
|
| 2022.08 | 33 |
32. |
24. |
32. |
31. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
138.14 |
|
| 2022.07 | 19 |
18. |
- |
18. |
9. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
112.00 |
|
| 2019.08 | 38 |
33. |
36. |
24. |
27. |
- |
- |
- |
- |
17. |
- |
- |
-15.00 |
163.21 |
|
| 2019.07 | 21 |
18. |
7. |
20. |
17. |
7. |
- |
12. |
- |
- |
- |
- |
0.00 |
179.67 |
|
| 2018.08 | 39 |
34. |
36. |
16. |
37. |
- |
- |
- |
- |
- |
- |
- |
-33.00 |
112.11 |
|
| 2017.08 | 34 |
22. |
32. |
32. |
26. |
- |
- |
16. |
- |
10. |
- |
- |
-5.00 |
199.88 |
|
| 2016.08 | 37 |
34. |
31. |
30. |
37. |
- |
- |
- |
- |
- |
- |
- |
-10.00 |
129.71 |
|
| 2016.07 | 106 |
77. |
91. |
69. |
50. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
149.30 |
|
| 2015.09 | 13 |
12. |
10. |
7. |
10. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
198.18 |
|
| 2015.08 | 30 |
24. |
29. |
22. |
11. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
176.28 |
|
| 2014.08 | 18 |
12. |
14. |
12. |
18. |
12. |
- |
12. |
- |
13. |
7. |
- |
0.00 |
308.30 |
|
| 2014.08 | 39 |
32. |
27. |
33. |
16. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
186.51 |
|
| 2013.08 | 39 |
19. |
18. |
29. |
18. |
18. |
- |
8. |
- |
15. |
17. |
1. |
0.00 |
439.58 |
|
| 2013.08 | 40 |
19. |
30. |
14. |
18. |
14. |
- |
6. |
- |
14. |
- |
- |
0.00 |
338.90 |
|
| 2012.09 | 17 |
13. |
14. |
8. |
4. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
242.25 |
|
| x 18 | |||||||||||||||
Sign in with a team account to see your team schedule.
