Team Details
Elefant Racing e.V.
| University | Universität Bayreuth
DE Bayreuth U short 28 |
 |
|---|---|---|
| Location | Bayreuth, Germany | |
| Homepage | https://elefantracing.de/ | |
| Social Media | ||
| CV Team | Elefant Racing | |
| DV Team | Elefant Racing e.V. | |
| Short Link | tid.fsg.one/250 | |
| TIS Status |
      |
|
| Car Weight | 193.00 kg | |

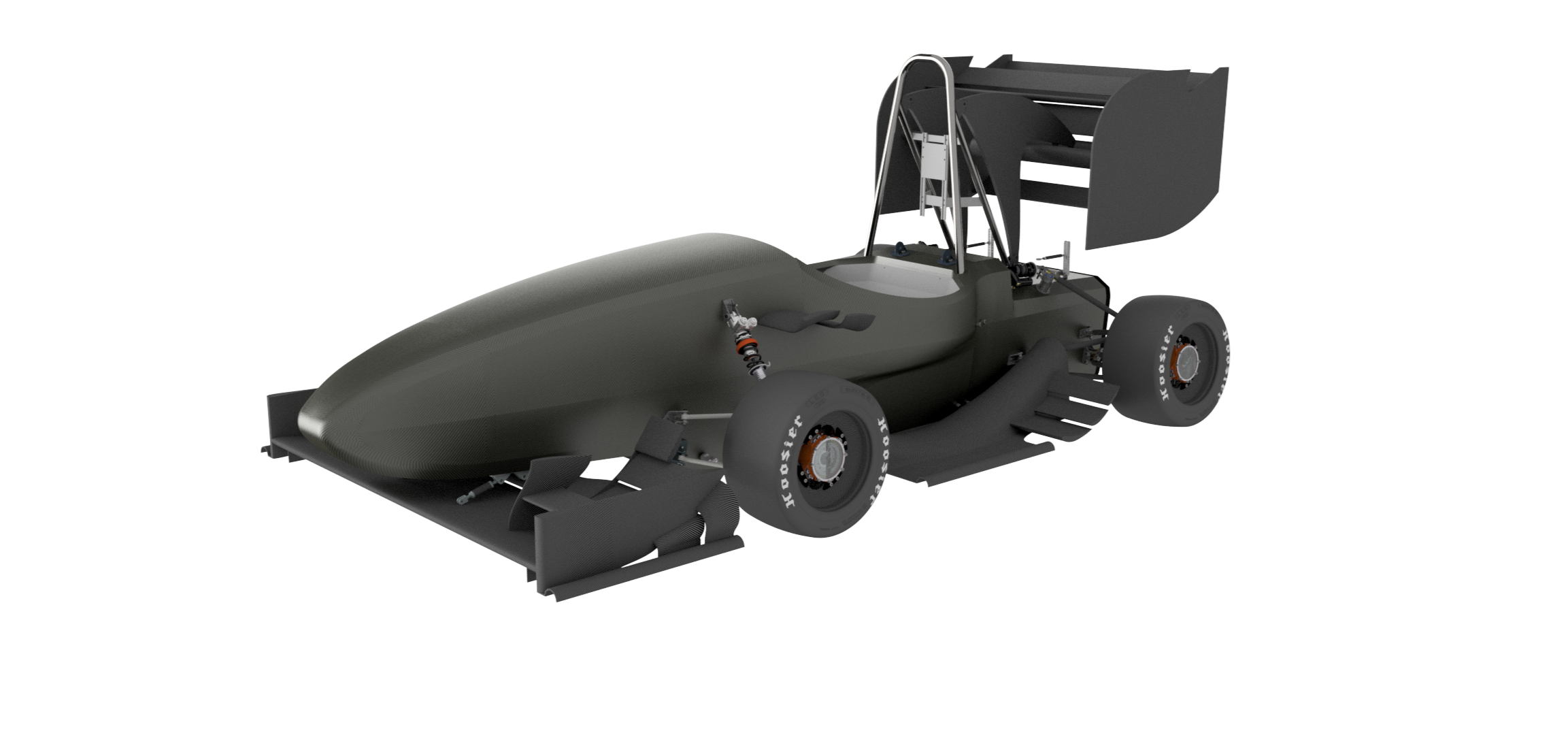

| Event Details | car 29 - active | |
Team Description
In spring 2004 a small group of engineering students at University of Bayreuth's then youngest faculty founded Elefant Racing. The name is derived from the Faculty of Applied Sciences' abreviation FAN which shares its letter string with the clever and powerful animal. The team took part in European competitions since 2006. In September 2010 we decided to run the season with a full electric vehicle within the rules of the FSE.
Past Events

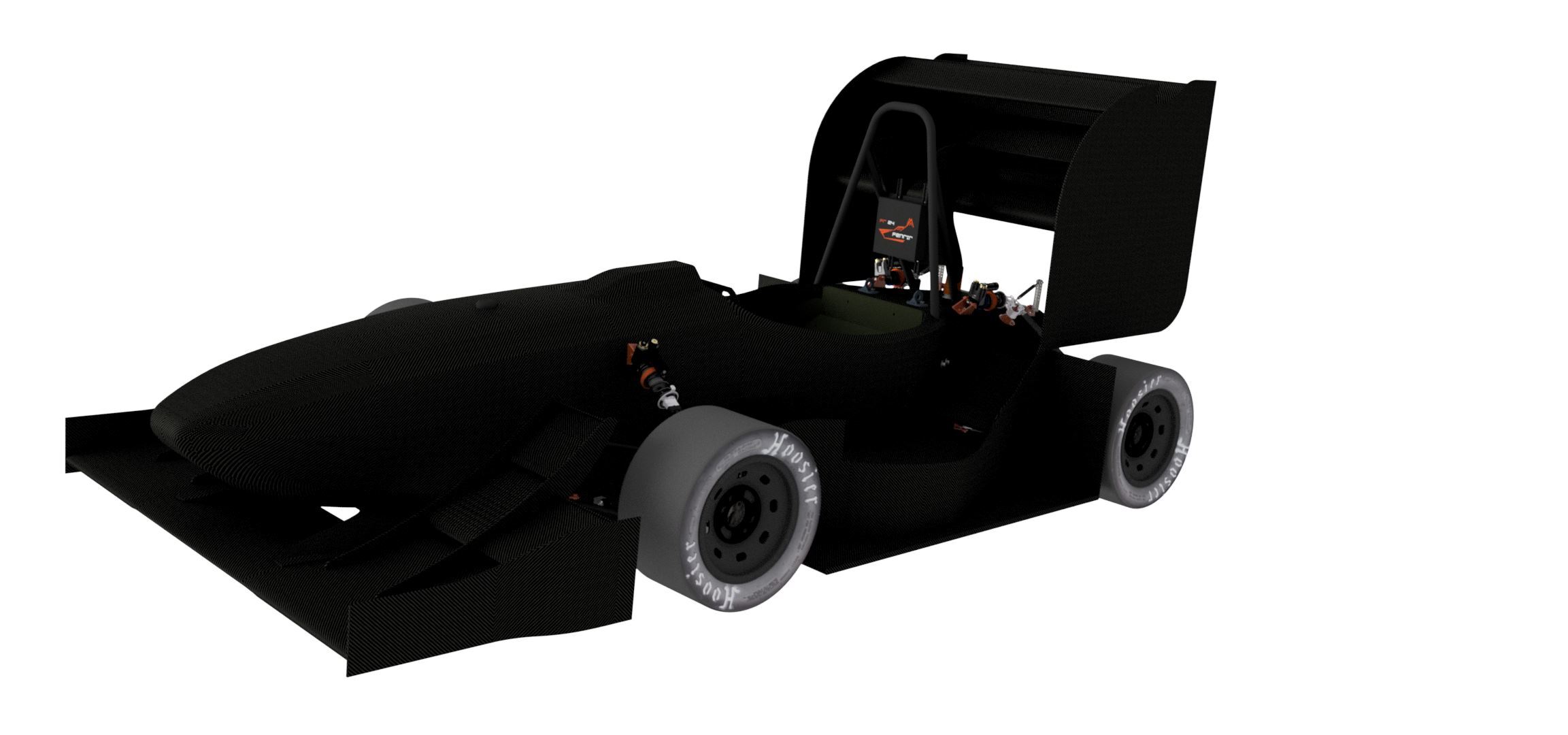

2024
Info
76x
Established 2004, Elefant Racing e.V. ventured to electric racing in 2011. We marked 2019 with two substantial achievements - pioneering autonomous driving capabilities and rolling out the first generation of our self-developed electric motors. By 2024, we install our fourth-generation electric motors, which were improved for weight reduction. The main aim of our club is to offer engineers a practical outlet for the theoretical aspects of their studies, thereby enhancing their learning journey.
Engineering Design Priorities:
education
ease of maintenance
reliability
drivability/agility
Car Specifications
General
| Frame Construction | Composite monocoque |
|---|---|
| Material | Carbon composite with alumnium honey comb core |
| Overall L | 2925 mm |
| Overall W | 1412 mm |
| Overall H | 1153 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 127 kg |
| Weight with 68kg driver (Rr) | 145 kg |
| Suspension | Double unequal length A-Arm. Direct acting spring and damper. |
| Tyres (Fr / Rr) | 16.0x7.5 R10 Hoosier |
| Wheels (Fr / Rr) | 7x10, 35mm offset, 1 pc Carbon Rim |
| Drive Type | Planetary gear with stepped planets |
| Differential | Software |
| Cooling | Twin side pod mounted radiators with thermostatic controlled electric fans |
| Brake System | 4-Disk system, self developed 42CrMo4 rotors, adjustable brake balance |
| Electronics | Self developed, reduandant VCU, Live-Telemetry via LTE, self developed BMS |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Front Right, Front Left, |
| Max Motor Power (per motor) | 26kW kW |
| Motor Type | Elefant Racing / MaToMo-V4 |
| Max Motor RPM (highest) | 19200 rpm |
| Motor Controller | Bucher Hydraulics DCU 60/60 |
| Max System Voltage | 588V V |
| Electrode Materials | Lithium Polymer / LCO |
| Combined Accumulator Capacity | 6,8kWh kWh |
| Transmission Ratio (Primary) | 1:11.49 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |

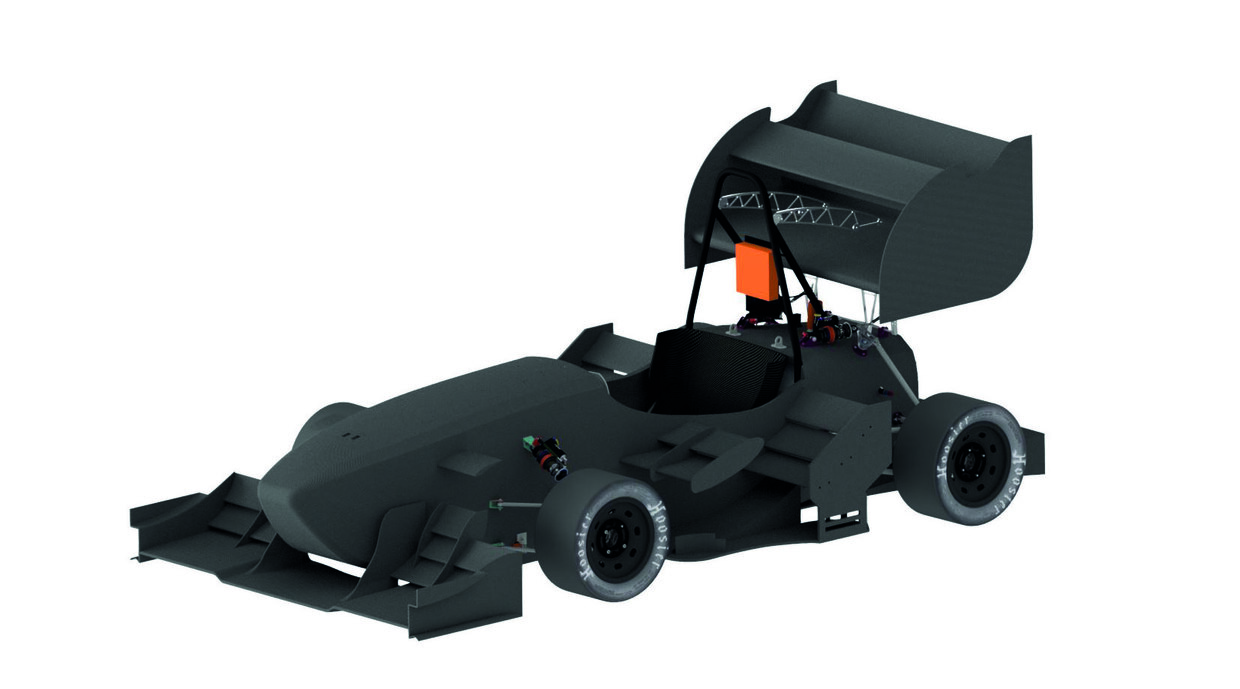

2022
Info
27x
Founded in 2004, our team Elefant Racing from the University of Bayreuth is one of the oldest Formula Student Teams in Germany. In 2011 we changed from CV to EV; since 2019 we are using 4WD and since 2020 our team also competes in driverless competitions. We are proud to present our brand new car - theFR22 Thor. The FR22 features a fully integrated DV system, a highly improved torque vectoring and traction control systems. We are looking forward to exciting days at FSG 2022.
Engineering Design Priorities:
reliability
drivability
performance
driverlessintegration
Car Specifications
General
| Frame Construction | CFRP Sandwich monocoque (aluminium honeycomb) |
|---|---|
| Material | Carbon Fibre Prepreg (Woven, Biax & UD), Al-honeycomb, balsa and abachi wood hardpoints |
| Overall L | 2848 mm |
| Overall W | 1400 mm |
| Overall H | 1168 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 131 kg |
| Weight with 68kg driver (Rr) | 147 kg |
| Suspension | Double unequal length A-Arm. Direct acting spring/damper front, pushrod actuated rear |
| Tyres (Fr / Rr) | 16.0x7.5 R10, Hoosier LC0 / 16.0x7.5 R10, Hoosier LC0 |
| Wheels (Fr / Rr) | 7x10, 35mm offset, 1 pc Carbon Rim/ 7x10, 35mm offset, 1 pc Carbon Rim |
| Drive Type | Planetary gear with stepped planets |
| Differential | Software |
| Cooling | Twin side pod mounted radiators with thermostatic controlled electric fans |
| Brake System | 4-Disk system, self developed 42CrMo4 rotors, adjustable brake balance |
| Electronics | Self developed, reduandant VCU, Live-Telemetry via LTE, self developed BMS |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | 4 x wheelhub |
| Max Motor Power (per motor) | 35kW per Motor kW |
| Motor Type | Elefant Racing / MaToMo-V1.1 |
| Max Motor RPM (highest) | 18.000 rpm |
| Motor Controller | Lenze DCU 60/60 |
| Max System Voltage | 588 V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 6.84 kWh |
| Transmission Ratio (Primary) | 1:11.49 : 1 |
| Transmission Ratio (Secondary) | - |
Driverless System
| Processing unit(s) | AMD Ryzen 3700x, RTX 2070 SUPER |
|---|---|
| Floating Point Operations Per Second of all processing units that are working for the DV system | 9500 GigaFLOPS |
| Power consumption of all processing units that are working for the DV system | 450 W |
| Camera(s) | 2 x mono nearfield camera, 60° HFOV, 9m range; 1 x stereo camera, 40° HFOV, 18m range |
| Radar sensor(s) | - |
| Lidar sensor(s) | 1 x Lidar, 100° HFOV, 10m range |
| Other sensors | Kistler speed sensor |
| Highlights of the DV system | Simple but reliable system (KISS=keep it simple, stupid). The different software components, i.e. perception, state estimation, localization and track-planning & control are decoupled. The parts provide either a basic or more sophistaced solution for the problem they face, allowing for a faster development and more robust vehicle behavior. |

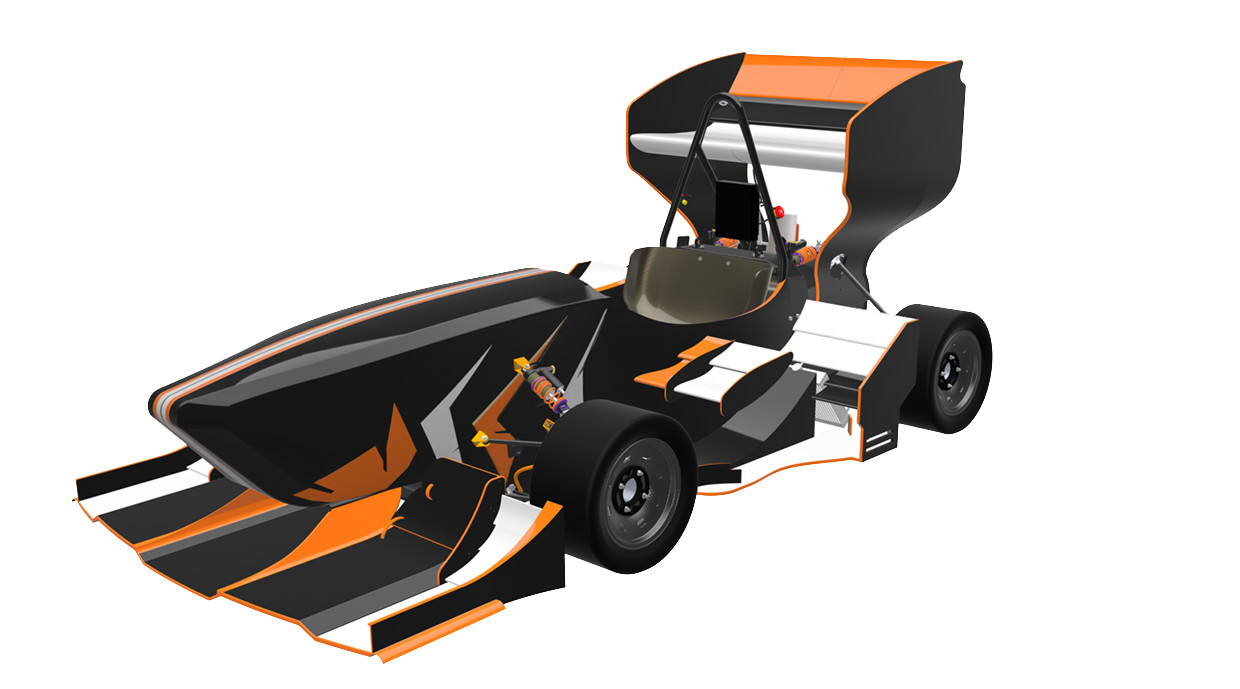

2021
Info
76x
Founded in 2004, the Elefant Racing Team from the university of Bayreuth is one of the oldest Formula Student Teams in Germany. In 2011 we changed from combustion to electric driven vehicles and 2019 to all-wheel-driven ones. We are proud to present our brand new car - the FR20 Ragnarök. The FR20 features a fully redesigned aerodynamics package, a highly improved torque vectoring and traction control systems. We are looking forward to exciting days at FSG 2021.
Engineering Design Priorities:
reliability
drivability
performance
easeofdvintegration
Car Specifications
General
| Frame Construction | Full CFRP monocoque with aluminum Front and Steel Main Hoop |
|---|---|
| Material | CFRP prepreg, Al-honeycomb, balsa and abachi wood , EP adhesive film prepreg |
| Overall L | 2875 mm |
| Overall W | 1400 mm |
| Overall H | 1168 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 130 kg |
| Weight with 68kg driver (Rr) | 148 kg |
| Suspension | Double unequal length A-Arm. Direct acting spring/damper front, pushrod actuated rear. |
| Tyres (Fr / Rr) | 16.0x7.5 R10, Hoosier LC0/ 16.0x7.5 R10, Hoosier LC0 |
| Wheels (Fr / Rr) | 7x10, 35mm offset, 1 pc Carbon Rim/ 7x10, 35mm offset, 1 pc Carbon Rim |
| Drive Type | Planetary Gear with stepped planets |
| Differential | software |
| Cooling | Twin side pod mounted radiators with thermostatic controlled electric fans |
| Brake System | 4-Disk system, self developed 42CrMo4 rotors, adjustable brake balance |
| Electronics | Self developed, reduandant VCU, Live-Telemetry via LTE, self developed BMS |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | each wheel one |
| Max Motor Power (per motor) | 35kW per Motor kW |
| Motor Type | Elefant Racing/ MaToMo-v1.1 |
| Max Motor RPM (highest) | 18,000 per Motor rpm |
| Motor Controller | Lenze DCU 60/60 |
| Max System Voltage | 588V V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 6.84 kWh kWh |
| Transmission Ratio (Primary) | 1:11,49 : 1 |
| Transmission Ratio (Secondary) | -- : 1 |

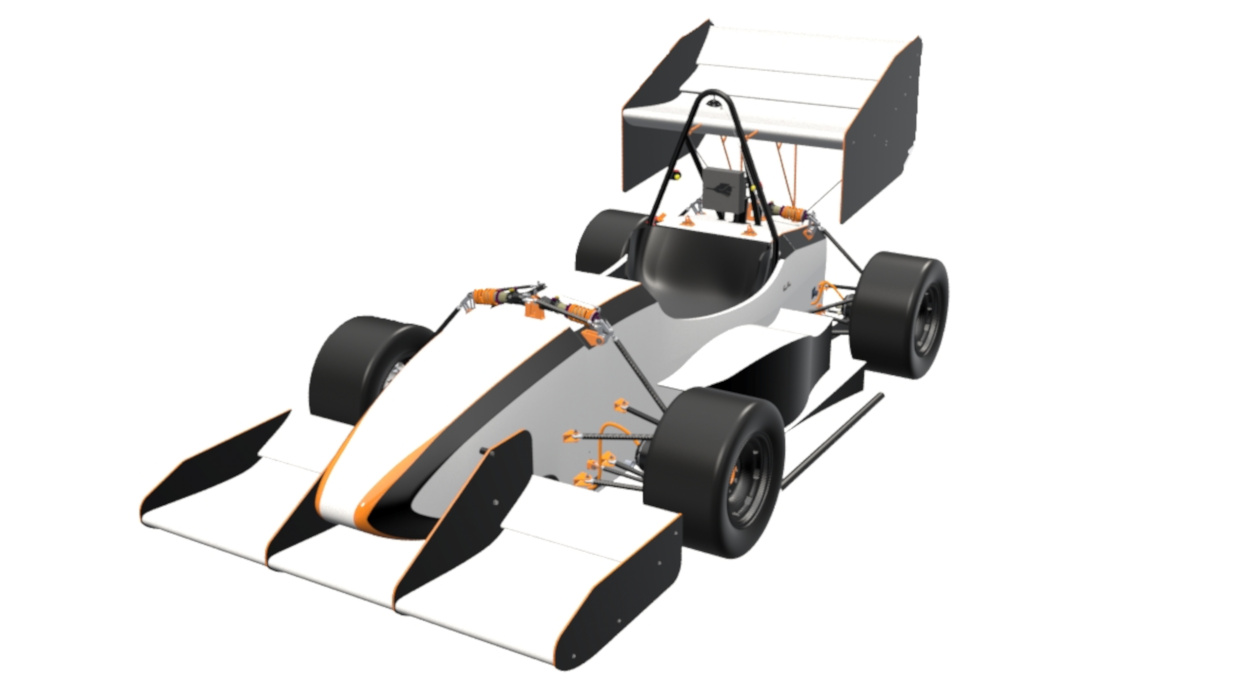

2019
Info
35x
This year might just seem like one more of a decade of participating at the FSG. But right after our change to electric, it is one of the most exciting ones. This year we’re going big – we’re happy to present the FR19 Loki, our first four-wheel-driven racecar. Therefore, many concepts had to be improved and we found new ways to take it to a whole new level. With the great support of our sponsors and the University of Bayreuth, we’re glad to exceed all hopes and coming back stronger…
Engineering Design Priorities:
Four-wheel-drive
Drivability
Reliability
Car Specifications
General
| Frame Construction | Full CFRP monocoque with aluminum Front and Steel Main Hoop |
|---|---|
| Material | CFRP prepreg, Al-honeycomb, balsa and abachi wood , EP adhesive film prepreg |
| Overall L | 2921 mm |
| Overall W | 1440 mm |
| Overall H | 1199 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 137 kg |
| Weight with 68kg driver (Rr) | 148 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper |
| Tyres (Fr / Rr) | 18.0x7.5 R10, Hoosier R25B |
| Wheels (Fr / Rr) | 7x10, 35mm offset, 1 pc Carbon Rim |
| Drive Type | Planetary Gear with stepped planets |
| Differential | software |
| Cooling | Twin side pod mounted radiators with thermostatic controlled electric fans |
| Brake System | 4-Disk system, self developed 42CrMo4 rotors, adjustable brake balance |
| Electronics | Self developed, reduandant VCU, Live-Telemetry via LTE, self developed BMS |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | each wheel one |
| Max Motor Power (per motor) | 35kW per Motor kW |
| Motor Type | self developed: MaToMo |
| Max Motor RPM (highest) | 16.000 rpm |
| Motor Controller | Lenze S. - MOBILE DCU 60/60 2 |
| Max System Voltage | 588 V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 6,84 kWh kWh |
| Transmission Ratio (Primary) | 1:11,49 : 1 |

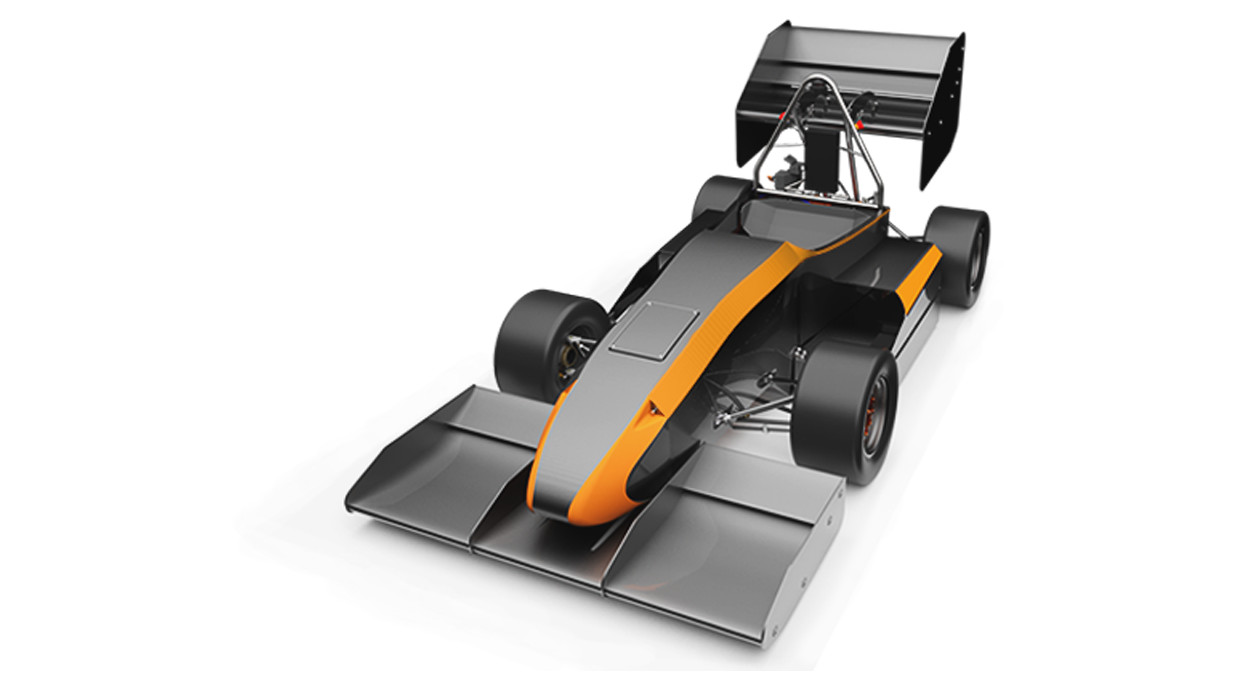

2017
Info
4x
Elefant Racing e.V. was founded in spring 2004 at the University of Bayreuth. Since 2010/11 we develop electrically powered vehicles. For our latest race car, the “FR17 Wotan”, we focused on weight reduction of the chassis. Furthermore, our car features a self-developed and programmed battery management system. For further information, or to just to have a good time with us, you are very welcome to visit our pit.
Engineering Design Priorities:
Reliability
Drivability
Efficiency
Car Specifications
General
| Frame Construction | Full CFRP monocoque with aluminum Front and steel Main Hoop |
|---|---|
| Material | CFRP & C/AFRP hyprid prepreg,Al-honeycomb, Rohacell structural foam, Epoxy adhesive and surface film |
| Overall L | 2920 mm |
| Overall W | 1388 mm |
| Overall H | 1195 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1180 mm |
| Track (Rr) | 1180 mm |
| Weight with 68kg driver (Fr) | 126 kg |
| Weight with 68kg driver (Rr) | 137 kg |
| Suspension | Double unequal length A-Arm.Front Pull rod/ rear Push rod actuated spring and damper. |
| Tyres (Fr / Rr) | 18.0 x 7.5 -R10 Hoosier R25B (both) |
| Wheels (Fr / Rr) | 8.0 x 10, 35.0 mm offset, 2 pc CFRP rim with aluminium wheel center. (both) |
| Drive Type | Polychain belt drive |
| Differential | Drexler formula student clutch pack limited slip, 60%/42% acceleration/deceleration |
| Cooling | Two side pod mounted radiators |
| Brake System | 4-Disk system, self developed 42CrMo4 rotors, adjustable brake balance |
| Electronics | Driver Interface with E-Ink Display, selfdesigned distributed Sensorsystem, Live-Telemetry |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear |
| Max Motor Power (per motor) | 80kW kW |
| Motor Type | permanent excitated watercooled synchronous |
| Max Motor RPM (highest) | 6500 rpm |
| Motor Controller | Unitek Bamocar D3 |
| Max System Voltage | 588 V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 6,50kwh kWh |
| Transmission Ratio (Primary) | 1:3,5 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |

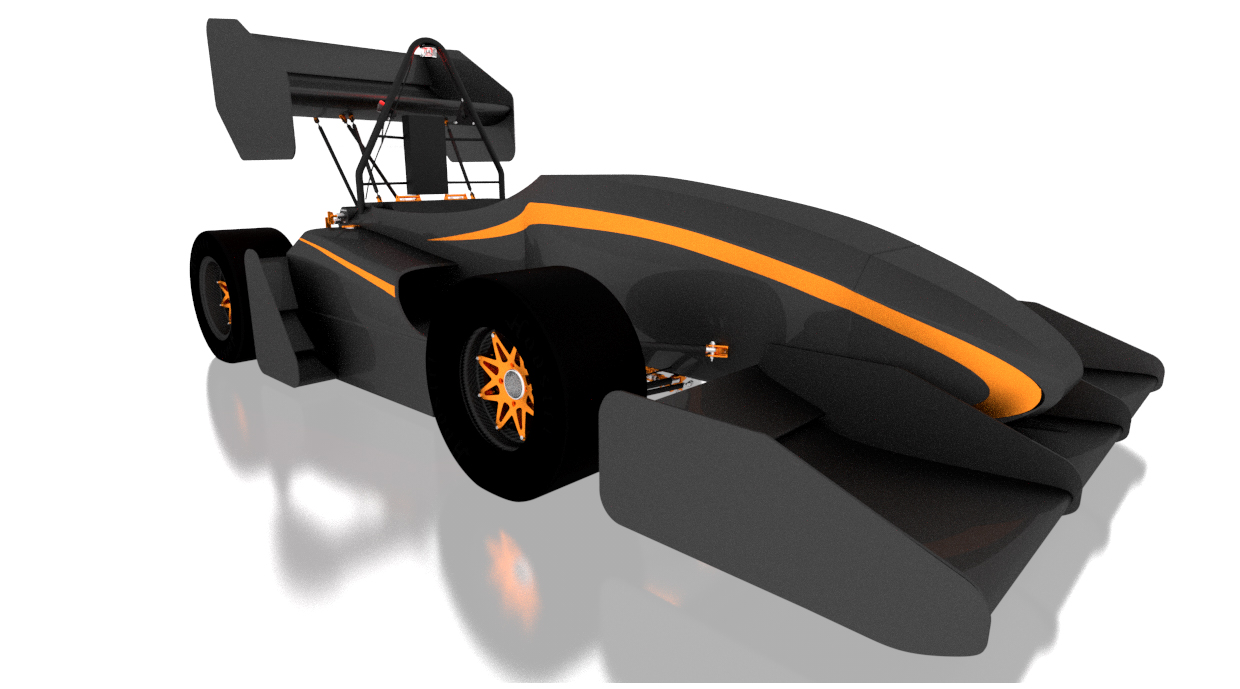

2016
Info
11x
Elefant Racing e.V. was founded in spring 2004 at the University of Bayreuth. Since 2010/11 we develop electrically powered vehicles. For our latest race car, the “FR16 Parsifal”, we focused on weight reduction of the chassis. Furthermore, our car features a self-developed and programmed battery management system. For further information, or to just to have a good time with us, you are very welcome to visit our pit.
Engineering Design Priorities:
Reliability
Driveability
Maintainability
Car Specifications
General
| Frame Construction | Full CFRP monocoque with aluminum Front and steel Main Hoop |
|---|---|
| Material | CFRP & C/AFRP hyprid prepreg,Al-honeycomb, Rohacell structural foam, Epoxy adhesive and surface film |
| Overall L | 2929 mm |
| Overall W | 1422 mm |
| Overall H | 1204 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1180 mm |
| Track (Rr) | 1180 mm |
| Weight with 68kg driver (Fr) | 94 kg |
| Weight with 68kg driver (Rr) | 110 kg |
| Suspension | Double unequal length A-Arm, Pull rod |
| Tyres (Fr / Rr) | 18x7.5 - 10, R25B, Hoosier |
| Wheels (Fr / Rr) | 8.0 x 10, CFRP rim with aluminium wheel center, 25 mm offset |
| Drive Type | Polychain belt drive |
| Differential | Drexler formula student clutch pack limited slip, 50% / 30% lock |
| Cooling | 2 side mounted radiators attached to a parallel water cooling system |
| Brake System | 4-Disk system, self developed steel alloy rotors with 172mm diameter, adjustable brake balance |
| Electronics | self developed ECU, sensor nodes, display driver interface, selfdesigned telemtetry system |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear |
| Max Motor Power (per motor) | 80kW kW |
| Motor Type | permanent excitated watercooled synchronous |
| Max Motor RPM (highest) | 4800 rpm |
| Motor Controller | Unitek Bamocar D3 |
| Max System Voltage | 588V V |
| Electrode Materials | LiPo with AL and CuNi Tabs |
| Combined Accumulator Capacity | 7,25kWh kWh |
| Transmission Ratio (Primary) | 1:3,5 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |

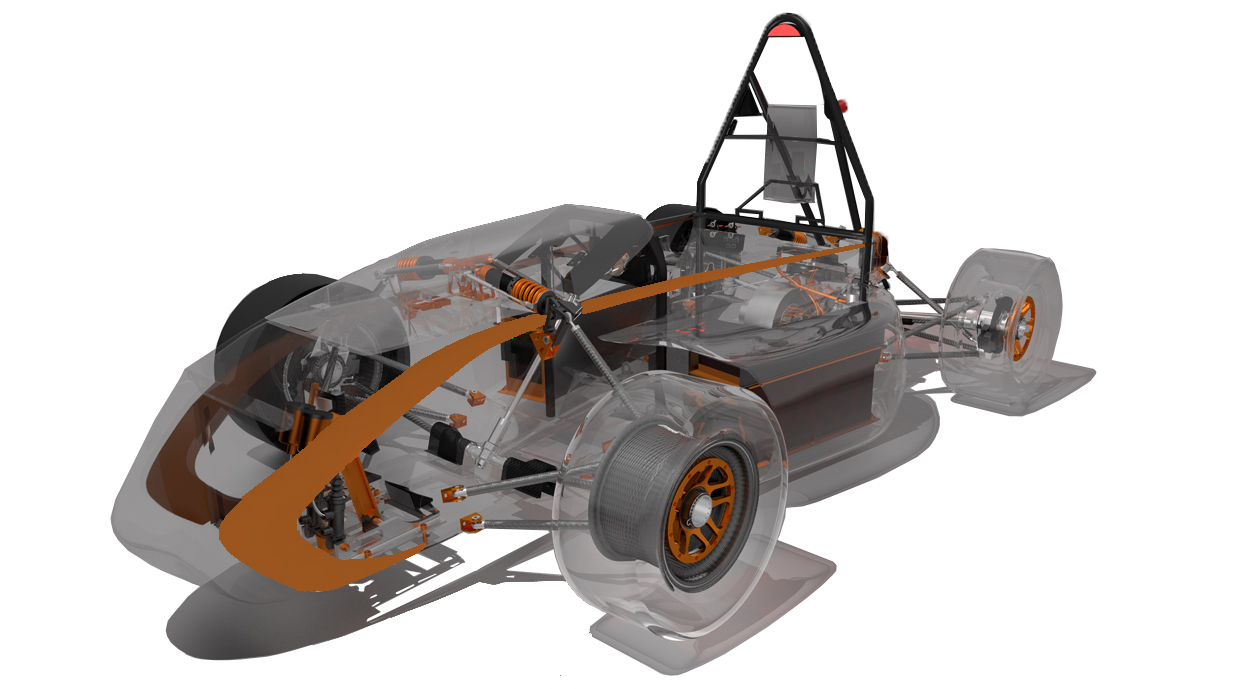

2015
Info
28x
Elefant Racing e.V. was founded in spring 2004 at the University of Bayreuth. Since 2010/11 we develop electrically powered vehicles. For our latest race car, the “FR15 Valkyrie”, we focused on weight reduction of the chasis. Therefore we switched from a steel tube space frame to a full CFRP monocoque. Furthermore, our car features a self-developed and programmed battery management system. For further information, or to just to have a good time with us, you are very welcome to visit our pit.
Engineering Design Priorities:
Reliability
Driveability
Lightweight
Car Specifications
General
| Frame Construction | Full CFRP monocoque with tubular steel roll bars |
|---|---|
| Material | CFRP prepreg (twill 2/2 and UD) with aluminum honeycomb sandwich structure |
| Overall L | 2482 mm |
| Overall W | 1406 mm |
| Overall H | 1107 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 126 kg |
| Weight with 68kg driver (Rr) | 130 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper. |
| Tyres (Fr / Rr) | Hoosier 18x6.0-10, R25B |
| Wheels (Fr / Rr) | 6.0x10, 25mm offset, CFRP-Al Hybrid Rim |
| Drive Type | Polychain belt drive |
| Differential | Drexler FSAE Differential |
| Cooling | Rear mounted radiator with two 120mm fans attached to a parallel water cooling system |
| Brake System | 4-Disk system, self developed steel alloy rotors with 172mm diameter, adjustable brake balance |
| Electronics | Sensor node system connected via ethernet, self developed ECU and live telemetry |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear Mid |
| Max Motor Power (per motor) | 80 kW kW |
| Motor Type | Enstroj Emrax 228 MidVoltage LC |
| Max Motor RPM (highest) | 4800 rpm |
| Motor Controller | Custom modified Unitek Bamocar D3 |
| Max System Voltage | 529V V |
| Electrode Materials | LiPo with AL and CuNi Tabs |
| Combined Accumulator Capacity | 5.83 kWh |
| Transmission Ratio (Primary) | 1:3,0 : 1 |

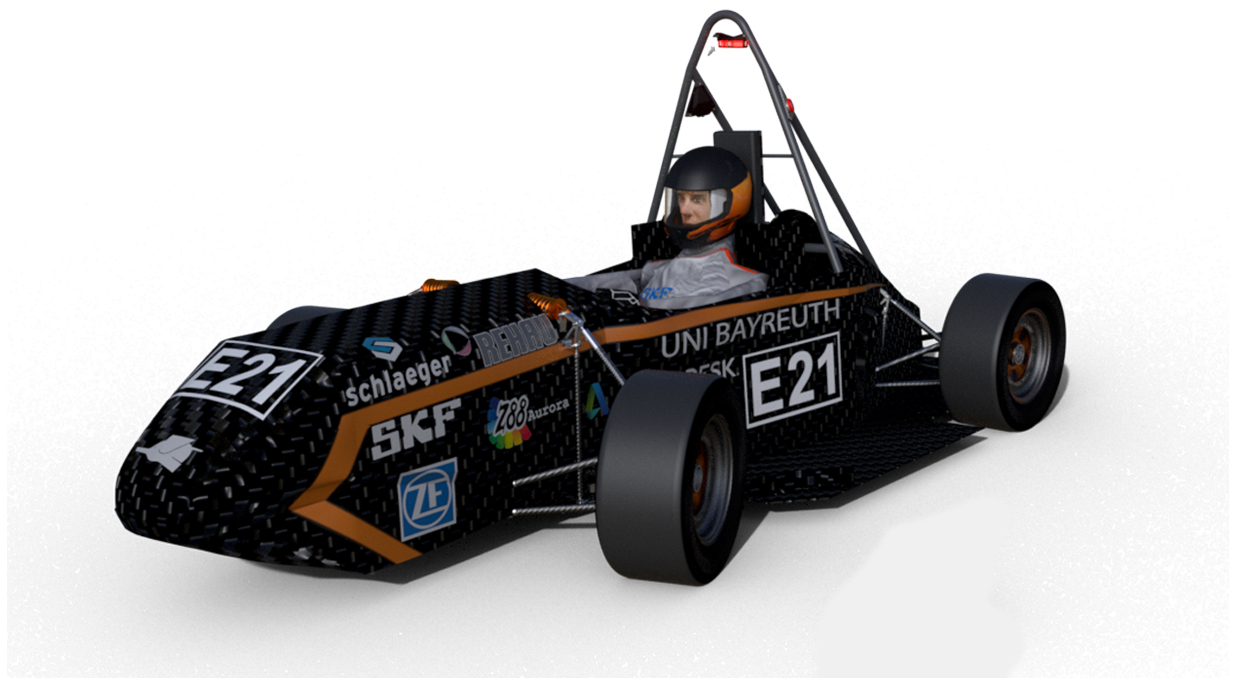

2014
Info
7x
Elefant Racing e.V. was founded in spring 2004 at the University of Bayreuth. Since season 2010/11 we develop electrically powered vehicles. For our latest race car, the “FR14 Norsu”, we focused on weight reduction of the vehicle dynamic units. Therefore we switched from 13’’ to 10” wheels and developed a 10’’ hybrid CFRP-Aluminum wheel. Furthermore, our car features a self-developed and programmed electronic control unit. For further information, you are welcome to visit our pit.
Engineering Design Priorities:
top 10 ranking
high driving performance
low weight
energy efficiency
Car Specifications
General
| Frame Construction | One piece tubular steel spaceframe with weightoptimized triangulation |
|---|---|
| Material | seamless, cold drawn precision steel tubes |
| Overall L | 2815 mm |
| Overall W | 1406 mm |
| Overall H | 1228 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 120 kg |
| Weight with 68kg driver (Rr) | 130 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper. |
| Tyres (Fr / Rr) | Hoosier 18x6.0-10, R25B |
| Wheels (Fr / Rr) | 6.0x10, 19mm offset, CFRP Rim, 7075-Al Wheelcenter |
| Drive Type | Belt drive |
| Differential | Drexler Differential |
| Cooling | Rear mounted radiator and fan attached to a parallel cooling system |
| Brake System | 4-Disk system, self developed C/C-SiC rotors with 172mm diameter, adjustable brake balance |
| Electronics | Sensor node system connected via ethernet, steering wheel with smartphone, |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear Mid |
| Max Motor Power (per motor) | 100kW kW |
| Motor Type | Enstroj Emrax 228 MidVoltage LC |
| Max Motor RPM (highest) | 4800 rpm |
| Motor Controller | custom modified Unitek Bamocar D3 |
| Max System Voltage | 504 V |
| Electrode Materials | LiPo with AL and CuNi Tabs |
| Combined Accumulator Capacity | 5,55 kWh kWh |
| Transmission Ratio (Primary) | 1:3.0 : 1 |

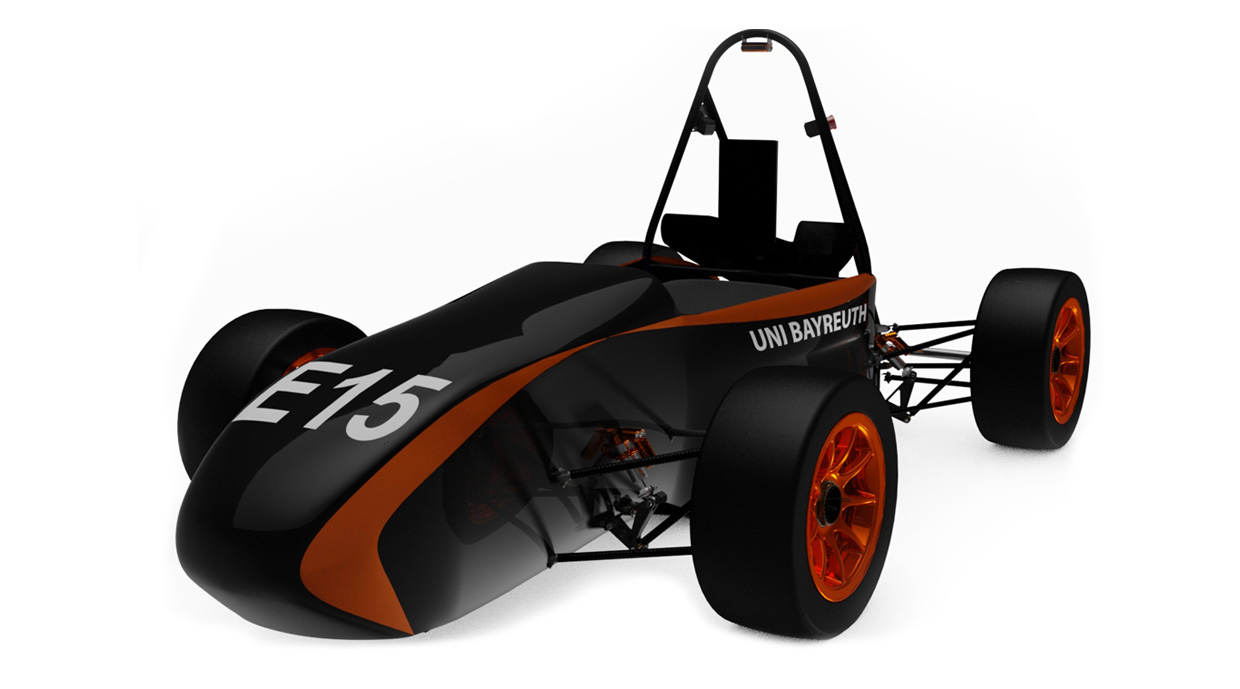

2013
Info
31x
In spring 2004 a small group of students, at the University of Bayreuth, founded “Elefant Racing e.V.”. The name is derived from the Faculty of Applied Sciences, abbreviation FAN, which shares its letter string with the clever and powerful animal. Starting into season 2010/11 we decided to break with our tradition of building combustion cars and developed our first electrically powered vehicle. With the “FR13 Cyrano”, our third high performance electric race car, the main attention was directed at weight reduction of the electrical power train. Furthermore, our car features an innovative driver interface based on a smart phone. It supplies the driver with real-time information about the car via display and computer-generated audio feedback. Additionally we designed a cable-based steering system, to achieve a more direct feedback, by eliminating the steeringplay. For further information or just to have a good time, you are very welcome to visit our pit.
Car Specifications
General
| Frame Construction | Tubular steel space frame |
|---|---|
| Material | E355 |
| Overall L | 2221 mm |
| Overall W | 666 mm |
| Overall H | 1150 mm |
| Wheelbase | 1550 mm |
| Track (Fr) | 1300 mm |
| Track (Rr) | 1300 mm |
| Weight with 68kg driver (Fr) | 101 kg |
| Weight with 68kg driver (Rr) | 114 kg |
| Suspension | Double unequal length A-Arm. Pull rod actuated in plane oriented spring and damper |
| Tyres (Fr / Rr) | 205x70 R13, Hoosier R25B |
| Wheels (Fr / Rr) | 205x70 R13, Hoosier R25B |
| Drive Type | Electric |
| Differential | Torque sensitive limited slip bevel gear differential with internal preload adjustment |
| Cooling | Rear mounted, 225mm electric fan |
| Brake System | 4 |
| Electronics | selfdesigned Live-Telemetry Software, intuitive driver interface, all-in-one wiring harness |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear |
| Max Motor Power (per motor) | 85 kW kW |
| Motor Type | Enstroj Emrax |
| Max Motor RPM (highest) | 4800 rpm |
| Motor Controller | Unitek BAMOCAR D3 |
| Max System Voltage | 554 V |
| Electrode Materials | LiPo |
| Combined Accumulator Capacity | 5,9kWh kWh |
| Transmission Ratio (Primary) | 1:3,5 : 1 |

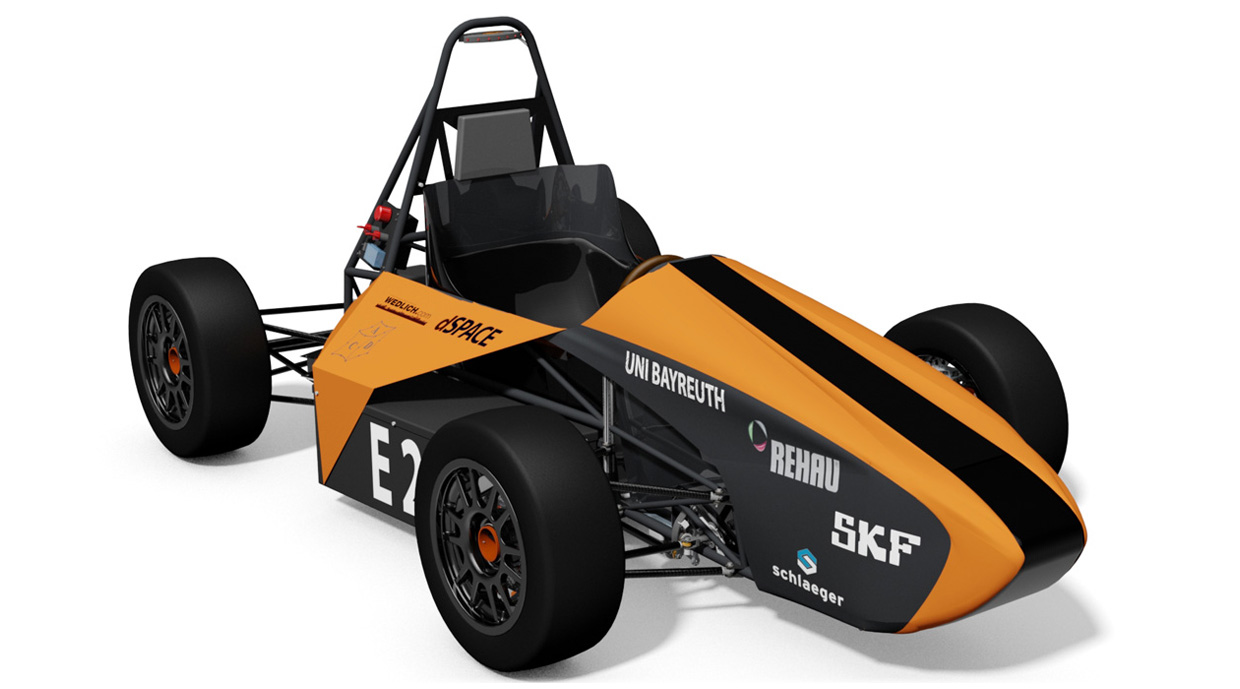

2012
Info
In spring 2004 a small group of engineering students at University of Bayreuth's then youngest faculty founded Elefant Racing. The name is derived from the Faculty of Applied Sciences' abreviation FAN which shares its letter string with the clever and powerful animal. Starting into season 2010/11 we decided to brake with our tradition of building monocoque combustion cars. With the FR12 Vilja the follower of the FR11, we hold on to this strategy and developed our second high performance racing car completely electric powered. Based on the special characteristics of electric engines – especially a thrilling high torque through the whole rpm range - the FR12 offers an absolute new racing experience compared to conventional combustion engines. Up to 30 minutes enthralling racing experience are provided by 950 LiFePO4 accumulator cells with a capacity of 7.6 kWh.
Car Specifications
General
| Frame Construction | Tubular steel space frame, monocoque type side impact structure |
|---|---|
| Material | E235 |
| Overall L | 2619 mm |
| Overall W | 1506 mm |
| Overall H | 1169 mm |
| Wheelbase | 1550 mm |
| Track (Fr) | 1300 mm |
| Track (Rr) | 1300 mm |
| Weight with 68kg driver (Fr) | 197 kg |
| Weight with 68kg driver (Rr) | 197 kg |
| Suspension | Double unequal length A-Arm. Pull rod actuated in plane oriented spring and damper |
| Tyres (Fr / Rr) | 205x70 R13, Hoosier R25B / 205x70 R13, Hoosier R25B |
| Wheels (Fr / Rr) | 7x13, 22mm offset, 1 pc Al Rim / 7x13, 22mm offset, 1 pc Al Rim |
| Drive Type | Electric |
| Differential | Electrical Differential |
| Cooling | Water cooling |
| Brake System | 4-Disk system, self developed rotors with 219mm diam., adjust. brake balance, dual piston calipers |
| Electronics | selfdesigned Live-Telemetry and Data Analyser |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power (per motor) | 60 kW kW |
| Motor Type | Perm Motor PMS156 W |
| Max Motor RPM (highest) | 6500 rpm |
| Motor Controller | Infineon Hybrid Kit II |
| Max System Voltage | 432 V |
| Electrode Materials | LiFePO4 |
| Combined Accumulator Capacity | 7.6 kWh kWh |
| Transmission Ratio (Primary) | 1:4.3 : 1 |
| Transmission Ratio (Secondary) | 1:4,3 : 1 |

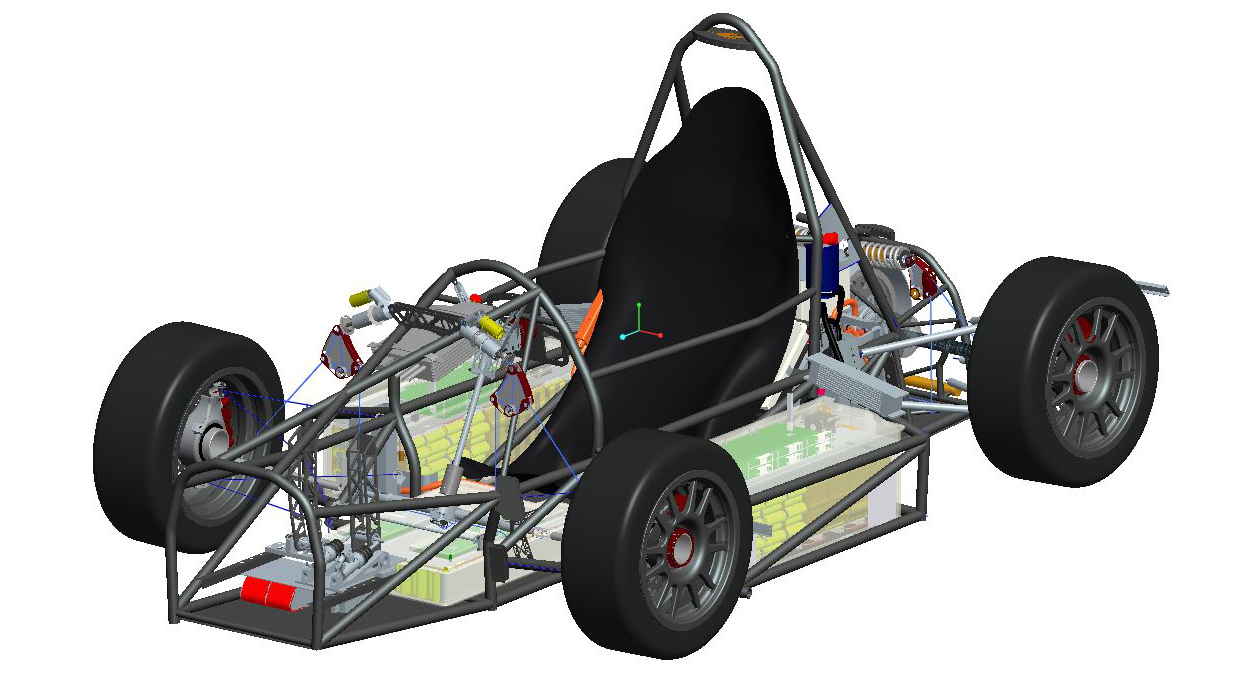

2011
Info
In spring 2004 a small group of engineering students at University of Bayreuth's then youngest faculty founded Elefant Racing. The name is derived from the Faculty of Applied Sciences' abreviation FAN which shares its letter string with the clever and powerful animal.Starting into season 2010/11 we decided to brake with our tradition of building monocoque combustion cars. With the FR11 Cocoon we developed a high performance lightweight racing car completely electric powered. Based on the special characteristics of electric engines – especially a thrilling high torque through the whole rpm range - the FR11 offers an absolute new racing experience compared to conventional combustion engines.Up to 30 minutes enthralling racing experience are provided by 950 LiFePO4 accumulator cells with a capacity of 7.2 kWh.
Car Specifications
General
| Frame Construction | tubular steel frame |
|---|---|
| Material | E 355 +N, E 235 + C |
| Overall L | 2360 mm |
| Overall W | 1212 mm |
| Overall H | 1006 mm |
| Wheelbase | 1550 mm |
| Track (Fr) | 1300 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 160 kg |
| Weight with 68kg driver (Rr) | 209 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated in plane oriented spring and damper , front and rear |
| Tyres (Fr / Rr) | Hoosier, 205x70 R13 R25B/Hoosier, 205x70 R13 R25B |
| Wheels (Fr / Rr) | 7x13, 22mm offset,1 pc Al Rim/7x13, 22mm offset,1 pc Al Rim |
| Drive Type | two chain drives |
| Differential | electronical differential |
| Cooling | Twin side pod mounted radiators (water with electric pump) |
| Brake System | 4-Disk System,CroMoV4,200mm;Calipers: 35mm dia., Dual piston, fixed mtg ; adjustable brake balance, |
| Electronics | traction control, datalogging, dSpace micro auto box, |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power (per motor) | 30kW kW |
| Motor Type | Perm Motor PMS 156W |
| Max Motor RPM (highest) | RR,RL: 6500 rpm |
| Motor Controller | Infineon Hybrid Kit II |
| Max System Voltage | 460V V |
| Electrode Materials | LiFePo4 |
| Combined Accumulator Capacity | 7,7kW kWh |
| Transmission Ratio (Primary) | 1:3.83 : 1 |
| Transmission Ratio (Secondary) | 1:4,54 : 1 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2026.07 | 52 |
52. |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
0.00 |
0.00 |
|
| 2024.08 | 79 |
49. |
32. |
21. |
63. |
43. |
- |
25. |
- |
39. |
- |
- |
0.00 |
218.81 |
|
| 2024.08 | 47 |
11. |
44. |
30. |
27. |
18. |
- |
7. |
- |
12. |
10. |
2. |
0.00 |
471.74 |
|
| 2024.07 | 38 |
31. |
19. |
35. |
33. |
16. |
- |
15. |
- |
- |
- |
- |
0.00 |
169.80 |
|
| 2023.08 | 35 |
10. |
5. |
4. |
12. |
8. |
- |
3. |
- |
10. |
- |
- |
0.00 |
398.80 |
|
| 2023.07 | 34 |
26. |
28. |
5. |
27. |
18. |
- |
21. |
- |
17. |
- |
- |
0.00 |
211.40 |
|
| 2023.07 | 33 |
17. |
10. |
4. |
30. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
191.07 |
|
| 2022.08 | 63 |
27. |
5. |
8. |
18. |
29. |
- |
18. |
- |
29. |
- |
- |
0.00 |
274.16 |
|
| 2022.07 | 21 |
7. |
11. |
2. |
14. |
4. |
- |
5. |
- |
6. |
- |
- |
0.00 |
308.11 |
|
| 2021.08 | 38 |
22. |
9. |
6. |
15. |
10. |
- |
12. |
- |
23. |
- |
- |
0.00 |
338.98 |
|
| 2019.08 | 15 |
4. |
8. |
3. |
5. |
6. |
- |
7. |
- |
6. |
4. |
4. |
0.00 |
687.78 |
|
| 2019.08 | 38 |
16. |
23. |
5. |
24. |
21. |
- |
16. |
- |
13. |
- |
- |
0.00 |
292.32 |
|
| 2019.07 | 21 |
11. |
17. |
16. |
14. |
- |
- |
7. |
- |
7. |
5. |
- |
0.00 |
246.86 |
|
| 2017.08 | 34 |
23. |
11. |
17. |
22. |
- |
- |
- |
- |
- |
- |
- |
-24.00 |
194.42 |
|
| 2016.08 | 37 |
27. |
29. |
18. |
32. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
170.25 |
|
| 2016.08 | 18 |
18. |
17. |
15. |
17. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
149.60 |
|
| 2015.09 | 13 |
1. |
2. |
2. |
4. |
3. |
- |
2. |
- |
2. |
1. |
7. |
0.00 |
859.46 |
|
| 2015.08 | 18 |
7. |
3. |
12. |
13. |
17. |
- |
9. |
- |
8. |
6. |
4. |
0.00 |
633.00 |
|
| 2015.08 | 39 |
7. |
12. |
14. |
23. |
14. |
- |
19. |
- |
10. |
7. |
1. |
0.00 |
582.59 |
|
| 2014.08 | 18 |
10. |
13. |
4. |
15. |
11. |
- |
8. |
- |
16. |
15. |
- |
0.00 |
334.70 |
|
| 2014.08 | 39 |
25. |
15. |
23. |
26. |
- |
- |
- |
- |
12. |
- |
- |
0.00 |
230.01 |
|
| 2013.08 | 39 |
13. |
15. |
25. |
19. |
17. |
- |
11. |
- |
22. |
14. |
3. |
0.00 |
570.66 |
|
| 2013.08 | 40 |
12. |
4. |
34. |
8. |
15. |
- |
7. |
- |
16. |
- |
12. |
0.00 |
442.40 |
|
| 2012.08 | 32 |
13. |
22. |
11. |
24. |
9. |
- |
21. |
- |
13. |
10. |
11. |
0.00 |
406.36 |
|
| 2011.08 | 28 |
16. |
14. |
14. |
11. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
210.16 |
|
| x 25 | |||||||||||||||
Sign in with a team account to see your team schedule.
