Team Details
CAT-Racing
| University | Fachhochschule Coburg
DE Coburg UAS short 126 |
 |
|---|---|---|
| Location | Coburg, Germany | |
| Homepage | https://cat-racing.de/ | |
| Social Media | ||
| CV Team | CAT-Racing | |
| Short Link | tid.fsg.one/1410 | |
| TIS Status |
     |
|
| Event Details | car 70 - active | |
Team Description
The thought to found a "Formula Student"-Team in Coburg originated among a group of students in autumn 2006.
This project plan hit immediately on big interest with students of the most different subjects and the college of Coburg.
Some basic conditions of the realisation of the project had to be created and already it went off. The official starting signal was given at the foundation meeting on the 03.03.2007 at which already more than 30 students were put down as members.
Today the team passes Automotive Technology and Management, Business Administration, Electrical and Mechanical Engineering of more than 50 members from the courses of studies.
The organizational structure of the team is split in two areas: Technology and Economy.
Every single professional team is subordinated to one of these areas and stands in each case under the guidance of a team leader.
Only by the engaged and interested appearance of the members who meet weekly in their professional teams and management teams this project has become possible.

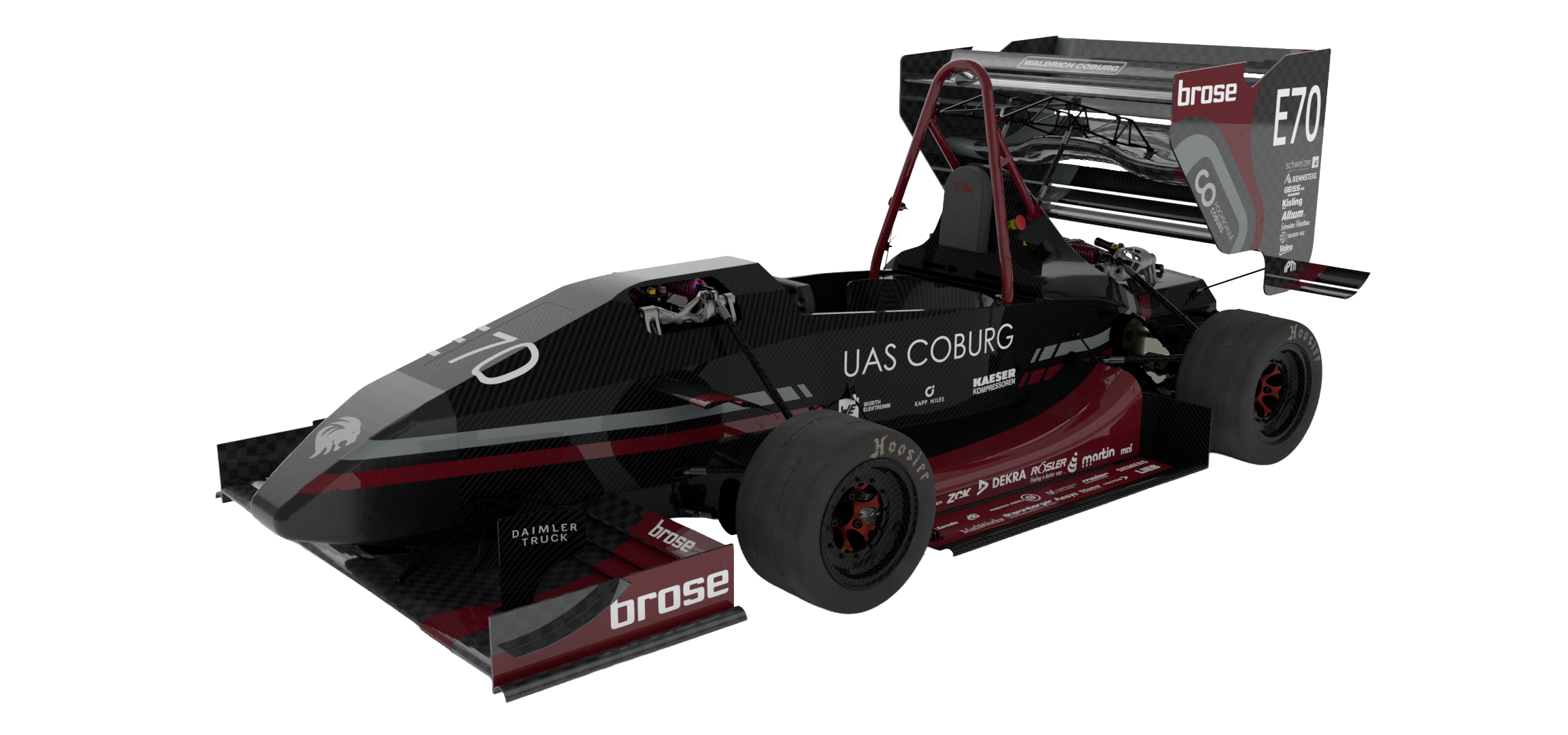

This Year's Car
Info
Car Specifications
General
| Frame Construction | CFRP monocoque with steel main hoop and aluminium front hoop |
|---|---|
| Material | CFRP skin with aluminium honeycomb core |
| Overall L | 3048 mm |
| Overall W | 1444 mm |
| Overall H | 1100 mm |
| Wheelbase | 1535 mm |
| Track (Fr) | 1230 mm |
| Track (Rr) | 1220 mm |
| Weight with 68kg driver (Fr) | 122 kg |
| Weight with 68kg driver (Rr) | 148 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented decoupled Heave/Roll |
| Tyres (Fr / Rr) | 16x7.5-10 Hoosier R20 / 16x7.5-10 Hoosier R20 |
| Wheels (Fr / Rr) | Custom milled aluminum center with CFRP barrel 10x7 |
| Drive Type | chain drive, planetary gearbox |
| Differential | electrical differential |
| Cooling | push/pull TSAC air cooling with electric fans, watercooling for motor and inverter with electric fan |
| Brake System | 4-disk system, self developed floating rotors FA: ∅ 184 mm, RA: ∅ 178 mm, fixed calliper |
| Electronics | wiring harness sealed to IP67, VCU: TTC580, self developed AMS, 24 V LV system |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power (per motor) | 60 kW |
| Motor Type | RR, RL: EMRAX 188 HV LC |
| Max Motor RPM (highest) | 8000 rpm |
| Motor Controller | UniTek BAMOCAR-PG-D3-700-160 |
| Max System Voltage | 605 V |
| Electrode Materials | NMC |
| Combined Accumulator Capacity | 8.17 kWh |
| Transmission Ratio (Primary) | 1 : 1 |
| Transmission Ratio (Secondary) | 4.5 : 1 |
No past event registrations found.
