Team Details

As of 2022, this class has been integrated into the other two classes.

FST Lisboa Driverless

University Universidade de Lisboa - Instituto Superior Técnico
PT Lisboa IST short 16
team logo
LocationLisboa, Portugal
Homepagehttps://fstlisboa.com/
Social Media YouTube facebook X
CV Team Projecto FST
EV Team FST Lisboa
Short Linktid.fsg.one/1098

Team Description

FST Lisboa is the most active Formula Student Team in Portugal - been around since 2001.
For 2020 we will be developing our 10th car, the 7th electric one - FST 10e, while adapting our last year’s car (FST 09e) to be driverless - FST 10d.


Event Profile

Past Events

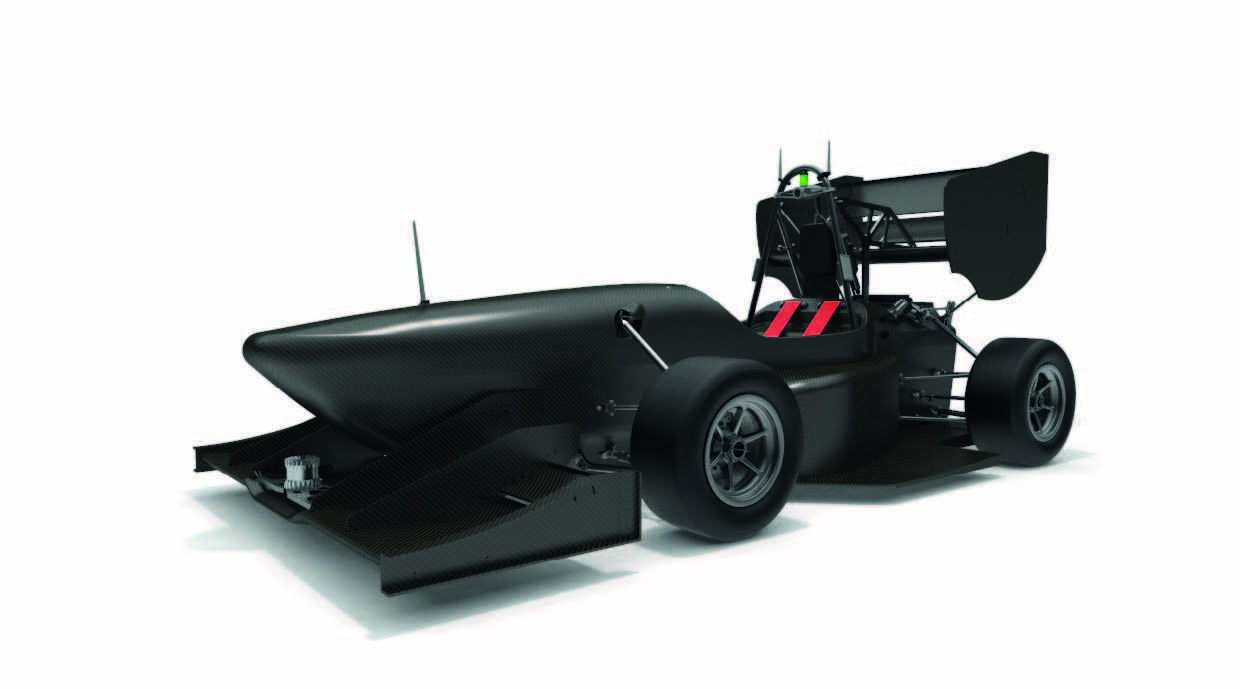

Car 450 – 2021
2021
Car #450
Info
FST Lisboa is the oldest and most active Formula Student Team in Portugal. It has been around since 2001. Since the beginning of the 2020 season, the team has embarked on the journey of creating the first autonomous racecar in the team's history, and in Portugal. The FST10d, a revolution of the FST09e, is eager to hit the racetrack and compete among the best of the best.
Engineering Design Priorities:
Simplicity LowBudget GrowingComplexity Reusability Ingenuity
Car Specifications
General
Frame Construction Composite single-piece mono- coque built with 2 negative carbon fiber moulds
Material Carbon fiber sandwich structure with Honey- comb, Rohacell and 3D core as the core
Overall Length (mm) 2987
Overall Width (mm) 1442
Overall Height (mm) 1185
Wheelbase (mm) 1540
Track Front (mm) 1200
Track Rear (mm) 1200
Weight Front (kg) 125
Weight Rear (kg) 126
Suspension Double unequal A-Arm. Push rod actuated spring/damper and torsional ARB
Tyres 18x7.5-10 Hoosier R25B dry / 18x6-10 Hoosier 7CY9 wet
Wheels OZ 7x10 CL Magnesium wheel
Differential Electronic Differential
Cooling One side pod mounted radiator for motor and inverter water cooling. Air cooled accumulator
Brake System 4 - floating disk system, self developed rotors with 178mm OD, ajustable brake balance
Electronics Self-developed PCBs, pilot interface in dash, 2xCAN comm, WiFi telemetry
Powertrain
Number of Motors 2
Motor Location Outboard wheel motors
Max Motor Power 35kW, 35kW
Motor Type AMK / DD5-14-10-POW
Max Motor RPM 20.000
Motor Controller AMK - KW26-S5-FSE-4Q
Max System Voltage (V) 600
Electrode Materials LiCoO2
Accumulator Capacity 7.98kWh
Transmission Ratio Primary 16.25:1
Transmission Ratio Secondary N/A
Driverless System
Processing Units Intel Core i7-8700T, Nvidia GTX 1060 6GB
Processing Units FLOPS 230G, 4.4T
Processing Units Power (W) 150
Cameras LUCID Triton 3.2 MP Sony IMX265 CMOS, 2048 x 1536, 35.4 FPS
LiDAR Sensors Ouster OS1-16 Gen1, 16 channels, 0.51º vertical resolution, -16º to 16º
Other Sensors Xsens GNSS/INS MTi-670
DV System Highlights LiDAR focused perception with Camera assisted color classification, through the means of Convolutional Neural Networks. Graph based SLAM, with a powerfull state estimator. SVM based path planner.

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED DV SP DV AC AX EN EF Pe Total Engine
2025.08
FS DE DV
42
9.
-
-
9.
7.
6.
12.
12.
-
-10.00
254.61
2025.08
FS ES DV
12
2.
1.
2.
1.
-
2.
1.
-
-
0.00
560.10
2025.08
FS PT DV
4
1.
-
-
1.
1.
1.
-
1.
-
0.00
500.00
2024.08
FS DE DV
27
8.
-
-
4.
7.
-
7.
-
-
0.00
203.96
2024.08
FS ES DV
5
2.
2.
3.
1.
1.
1.
2.
-
-
0.00
614.70
2023.08
FS DE DV
30
3.
-
-
9.
7.
4.
2.
4.
-
0.00
279.44
2023.08
FS ES DV
9
1.
1.
1.
1.
2.
1.
1.
1.
-
0.00
894.70
2023.08
FS PT DV
3
1.
-
-
1.
1.
1.
1.
1.
-
0.00
440.00
2022.09
FS ES DV
10
1.
4.
8.
1.
1.
1.
2.
1.
2.
0.00
915.10
2022.08
FS DE DV
19
3.
-
-
7.
9.
6.
2.
3.
-
0.00
273.57
2021.08
FS DE DV
17
10.
13.
9.
7.
-
-
-
6.
-
0.00
271.32
2021.08
FS ES DV
7
3.
3.
4.
5.
-
2.
-
2.
-
0.00
428.80
