Team Details

Scuderia Mensa HS RheinMain Racing

University Hochschule RheinMain
DE Wiesbaden UAS short 71
team logo
LocationWiesbaden, Germany
Homepagehttps://www.scuderia-mensa.de/
Social Media YouTube facebook
EV Team Scuderia Mensa HS RheinMain Racing
Short Linktid.fsg.one/74

Team Description

The Scuderia Mensa HS RheinMain e.V. is the Formula Student Racing Team of the University of Applied Sciences RheinMain. Most of the engineers study in the faculties of Ruesselsheim. Since 2006 the team participates at FS-Events in Europe. The first Car - SPR08 - has been a combustion car which succeeded in Hockenheim in 2008. Until 2010 the combustion cars of the team were improved continuously and the era of combustion engines was closed with the 12th place overall at FSG in 2010. From that day on Scuderia Mensa only developed electric powered cars. The SPR11E was the first car which successfully participated at FSG 2011. The revolution on the technical side also brought a rise of membership in the team. After several years at FSE, we decided to build combustion car again.


Event Profile

Past Events

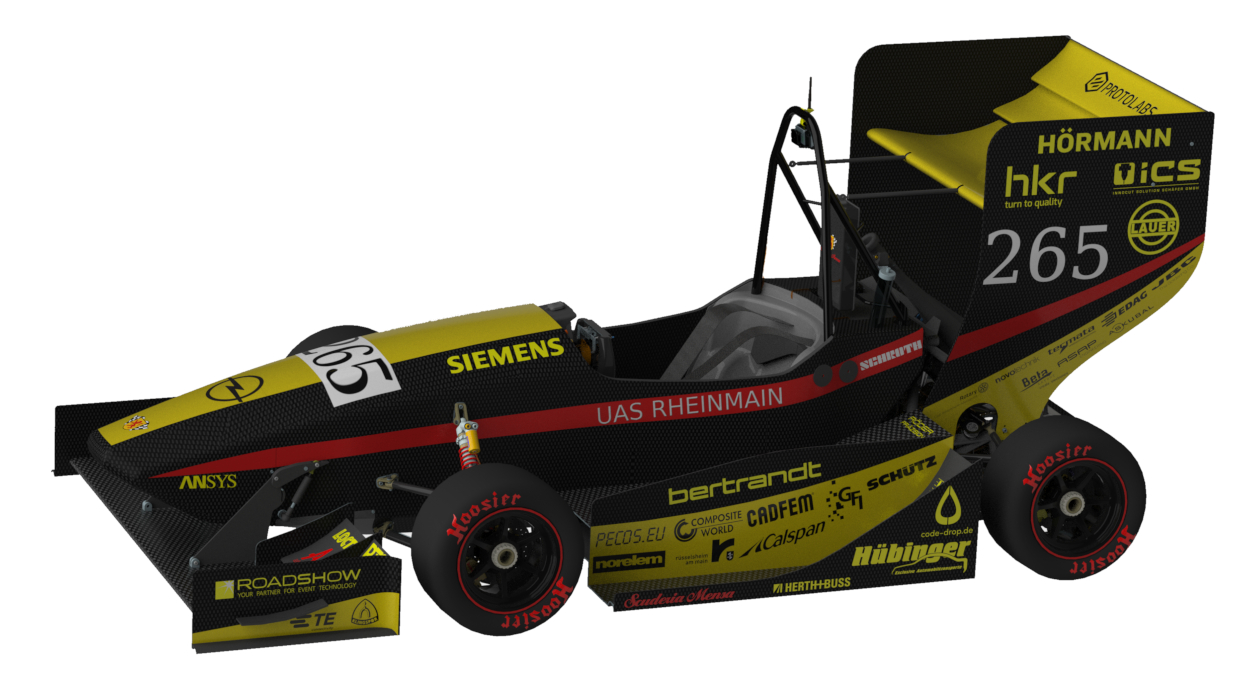

Car 265 – 2019
2019
Car #265
Info
The Scuderia Mensa Racing Team is proud to present their twelfth Formula Student car, SPR19, also running under the name Holly. The Team counts 45 students from various courses of studies. The SPR19 is an improvement of the SPR18. Our main goal is a low and central point of gravity. To reach this goal we improved the position of several components and also saved some weight if possible. We also paid a lot of attention to our manufacturing quality and improved our Aerodynamics.
Engineering Design Priorities:
Suspension Aerodynamics ETC
Car Specifications
General
Frame Construction Singlepiece Monocoque with tubular rear space frame
Material CFRP Monocoque with Aluminum Honeycomb, steel rear frame
Overall Length (mm) 2898
Overall Width (mm) 1220
Overall Height (mm) 1152
Wheelbase (mm) 1575
Track Front (mm) 1220
Track Rear (mm) 1180
Weight Front (kg) 100
Weight Rear (kg) 148
Suspension FA: Double A-Arm with direct pushrod sytem; RA: Double A-Arm with indirect pushrod sytem
Tyres Hoosier 16x6x10 R25B / LCO / Hoosier 16x6x10 R25B / LCO
Wheels OZ 10
Drive Type Chain drive (D.I.D. 520 ert2)
Differential Drexler Formula Student Differential limited slip
Cooling Electrical and mechanical pump, radiator placed in side pod with electrical fan
Brake System 4-Disk system, floating rotors, 185mm/125mm dia., adjustable brake balance
Electronics Anti stall assistance, traction control, data logging, live telemetry system
Powertrain
Engine KTM LC4 690
Bore (mm) 102
Stroke (mm) 84.5
Cylinders 1
Displacement (ccm) 690
Compression Ratio 12.4:1
Fuel System Fuel injection and transparent 3D-printed fuel tank
Fuel 98 octane unleaded gasoline
Max Power (kW) 8200
Max Torque (Nm) 6800

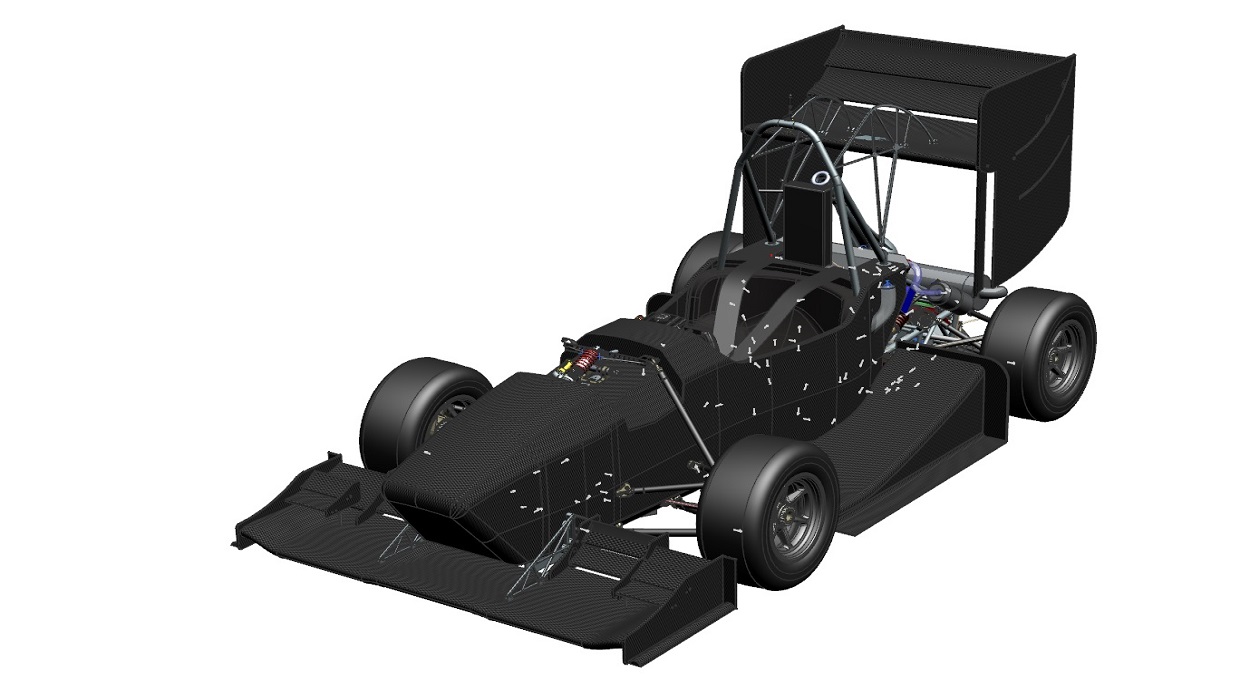

Car 365 – 2018
2018
Car #365
Info
The Scuderia Mensa Racing Team is proud to present their eleventh Formula Student car, SPR18. The team counts 40 students from various courses of studies. The SPR18 is an improvement of the SPR17. We made small changes in our powertrain and bodywork to save weight.
Engineering Design Priorities:
Lightweight Reliable Testing Project 17X
Car Specifications
General
Frame Construction Singlepiece Monocoque with tubular rear space frame
Material CFRP Monocoque, steel rear frame
Overall Length (mm) 2901
Overall Width (mm) 1411
Overall Height (mm) 1197
Wheelbase (mm) 1575
Track Front (mm) 1221
Track Rear (mm) 1180
Weight Front (kg) 111
Weight Rear (kg) 136
Suspension Double unequal length A-Arm Pushrod actuated, horizontally oriented spring and damper
Tyres Hoosier 6.00x18 R10 R25B
Wheels OZ 7x10
Drive Type chain drive (D.I.D. 520 ert2)
Differential Drexler LSD
Cooling Diffusor mounted radiator
Brake System 4-Disk system
Electronics Self developed PCB for data logging and live telemetry, modular wiring harness
Powertrain
Engine KTM LC4 690
Bore (mm) 102
Stroke (mm) 84,5
Cylinders 1
Displacement (ccm) 658
Compression Ratio 12,4:1
Fuel System Fuel injection
Fuel 98 octane
Max Power (kW) 8200
Max Torque (Nm) 6800

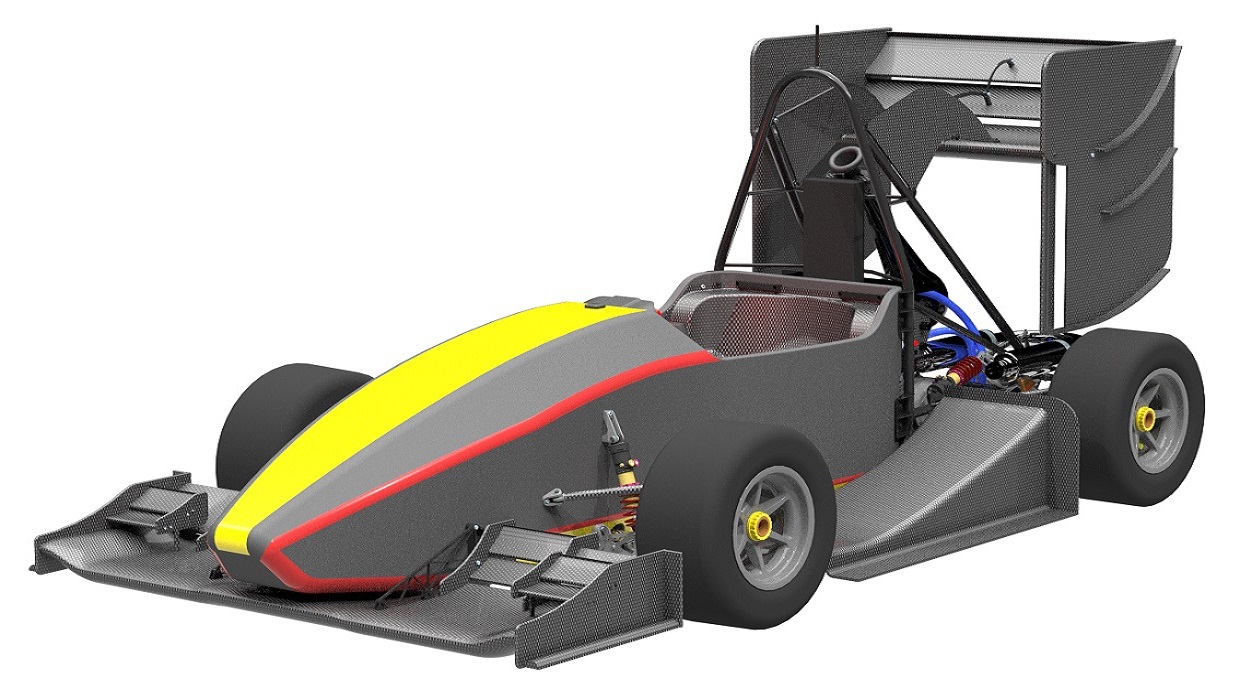

Car 265 – 2017
2017
Car #265
Info
The Scuderia Mensa Racing Team is proud to present their tenth Formula Student car, SPR17. The team counts 40 students from various courses of studies. The SPR17 is the answer to the quote "revolution instead of evolution". We made many changes in our powertrain system and focused on weight reduction. On top of that, we built our first hybrid monocoque and 10" wheel sized racecar which surely will suprise you!
Engineering Design Priorities:
Lightweight Reliable Testing
Car Specifications
General
Frame Construction Singlepiece Monocoque with tubular rear space frame
Material CFRP Monocoque, steel rear frame
Overall Length (mm) 2901
Overall Width (mm) 1411
Overall Height (mm) 1197
Wheelbase (mm) 1575
Track Front (mm) 1220
Track Rear (mm) 1180
Weight Front (kg) 158
Weight Rear (kg) 158
Suspension Double unequal length A-Arm. Pull/Push rod actuated horizontally/longitudinally oriented
Tyres Hoosier 6.00x18 R10 R25B
Wheels OZ 7x10
Drive Type chain drive (D.I.D. 520 ert2)
Differential Drexler LSD
Cooling Diffusor mounted radiator
Brake System 4-Disk system
Electronics Self-developed data logging and telemetry, Multifunctional steering wheel
Powertrain
Engine KTM LC4 690
Bore (mm) 102
Stroke (mm) 84,5
Cylinders 1
Displacement (ccm) 658
Compression Ratio 12.4:1
Fuel System Fuel injection
Fuel 98 octane
Max Power (kW) 8000
Max Torque (Nm) 5500

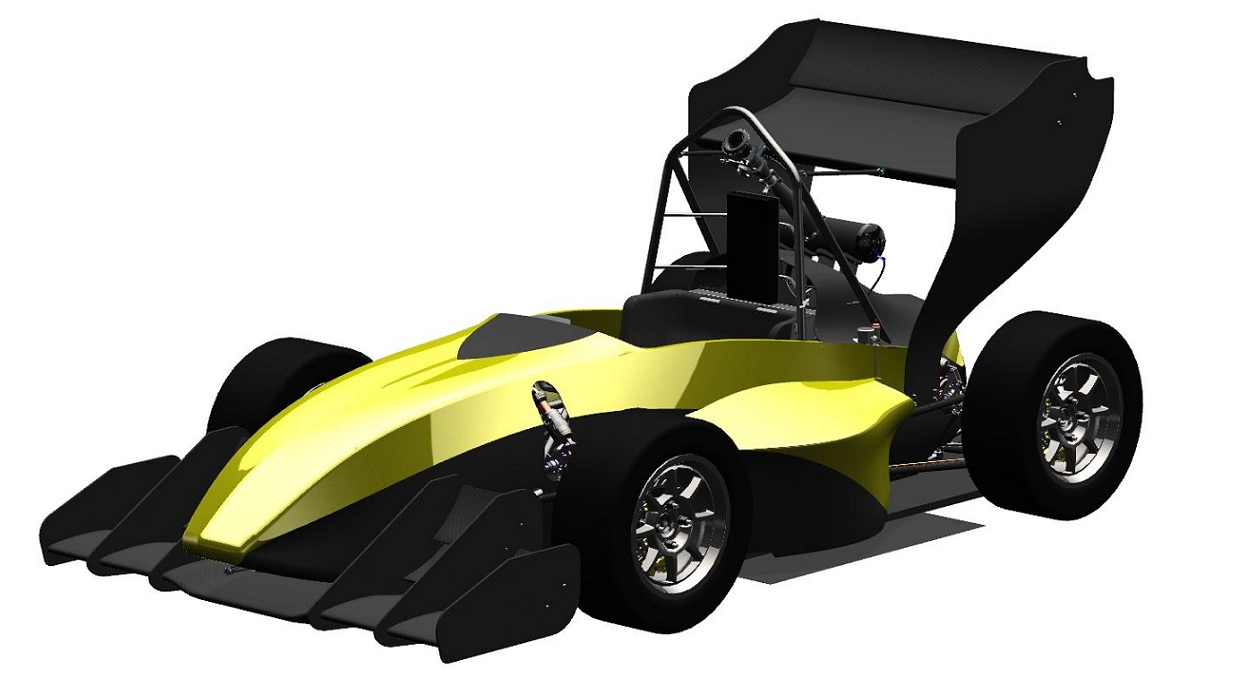

Car 265 – 2016
2016
Car #265
Info
The Scuderia Mensa Racing Team is proud to present their ninth Formula Student car, SPR16. Our team consists of 40 students from various courses of studies. Last year we took part at the Formula Student Events in Hockenheim, Barcelona and Most. This year we will start at the same events. SPR16 is a crucial change in our powertrain system. After several years at FSE we are back at FSC!
Engineering Design Priorities:
Testing Reliable
Car Specifications
General
Frame Construction Steel Spaceframe
Material S235JR G2 and E355 steel round tubing
Overall Length (mm) 2910
Overall Width (mm) 1425
Overall Height (mm) 1175
Wheelbase (mm) 1575
Track Front (mm) 1220
Track Rear (mm) 1180
Weight Front (kg) 118
Weight Rear (kg) 176
Suspension Double unequal length A-Arm. Push rod actuated vertically oriented spring and damper
Tyres 20.5x7.0-13 R25B C2500 Hoosier
Wheels 20.5x7.0-13 R25B C2500 Hoosier
Drive Type Chain drive (D.I.D. 520 ert2)
Differential Drexler Formula Student Differential
Cooling Single radiator, controlled by engine ecu
Brake System 4-Disk system, self-developed rotors with 220mm diameter, adjustable brake balance, BREMBO calipers
Electronics Self-developed data logging and Telemetry, electronic shifting control, self-developed HMI
Powertrain
Engine Suzuki GSX-R 600 K3
Bore (mm) 67
Stroke (mm) 42.5
Cylinders 4
Displacement (ccm) 599
Compression Ratio 12.9:1
Fuel System Intake-manifold fuel injection, full sequential
Fuel 100 octane unleaded gasoline
Max Power (kW) 12500
Max Torque (Nm) 7500

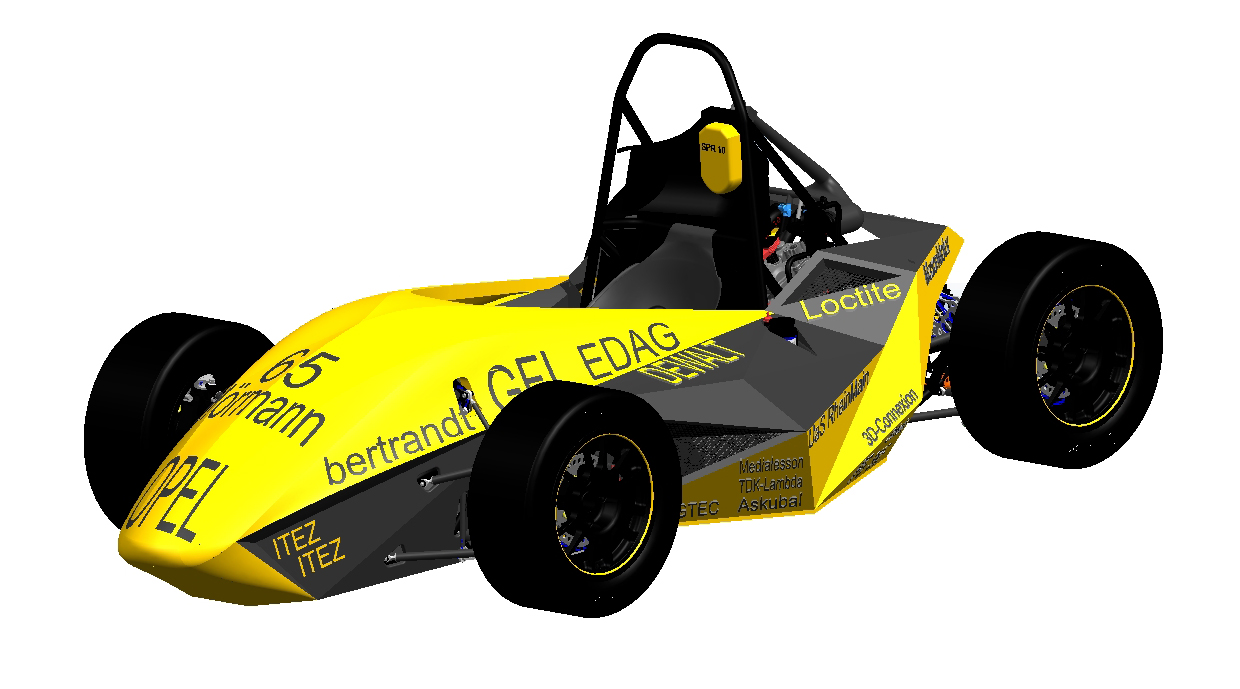

Car 65 – 2010
2010
Car #65
Info
The Scuderia Mensa Racing Team is proud to present their third Formula Student car, SPR10. Our team consists of 32 students from various courses of studies.Last year we took part in the Formula Student Events in Silverstone and Hockenheim.This year we will start at Events in Germany, Austria and Italy.Our new car SPR10 is based on the experience we gained in the last 3 years. The change between SPR08 and SPR09 seemed to be a revolution and SPR10 is a evolution.Our goals this year were reducing weight, improving the drivers comfort and safety and the most important thing: getting a more reliable car.Therefore we optimized e.g. our frame, the fuel feed system, electric system and the shaft drives.Also the engine management system was changed to MoTeC M400.We would like to thank our supporters and sponsors whose efforts are greatly appreciated and are looking forward to a good competition in Hockenheim and the other events.
Car Specifications
General
Frame Construction One piece tubular spaceframe
Material E355 steel round tubing
Overall Length (mm) 2695
Overall Width (mm) 1433
Overall Height (mm) 1091
Wheelbase (mm) 1650
Track Front (mm) 1230
Track Rear (mm) 1180
Weight Front (kg) 133
Weight Rear (kg) 157
Suspension Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper
Tyres 20.5x7.0-13 R25B C2500 Hoosier
Wheels 7 inch wide, 1 pc Al Rim, 28mm neg. offset
Drive Type Chain drive (D.I.D. 520 ert2)
Differential : Drexler (formula student 2010)
Cooling Single radiator, controlled by engine ecu
Brake System 4-Disk system, floating steel Water-Cut hub mounted rotors with 220/220 mm diameter, opposing piston
Powertrain
Engine Suzuki GSX-R 600 K3
Bore (mm) 67
Stroke (mm) 42.5
Cylinders 4
Displacement (ccm) 599
Compression Ratio 12.9:1
Fuel System Intake-manifold fuel injection, full sequential
Fuel 100 octane unleaded gasoline
Max Power (kW) 12500
Max Torque (Nm) 7500

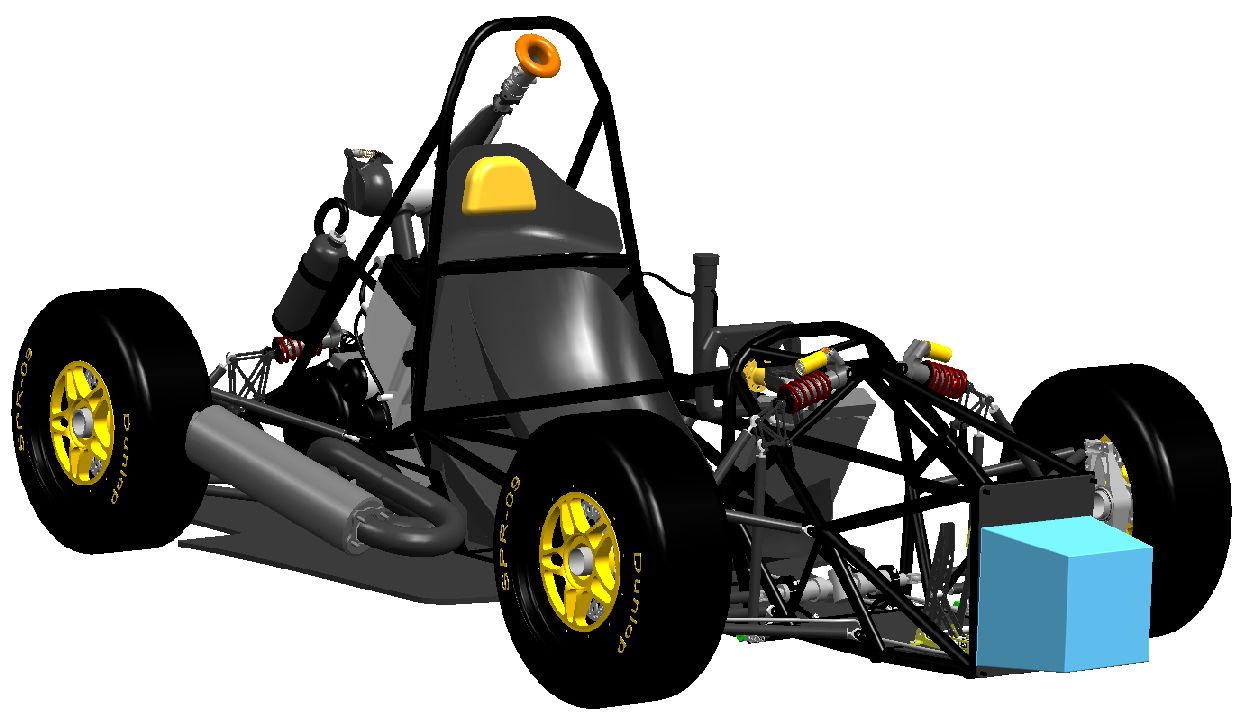

Car 65 – 2009
2009
Car #65
Info
This is our second season participating in FS. With most of our team being new "recruits", we still managed to use last year´s experiences to develop and fabricate a more sophisticated car. Emphasize was on weight reduction, driveability and a clean technical design. And with our new Corporate Identity, we plan to present ourselves in a more professional way.
Car Specifications
General
Frame Construction One piece tubular spaceframe
Material 15CDV6
Overall Length (mm) 2759
Overall Width (mm) 1434
Overall Height (mm) 1080
Wheelbase (mm) 1650
Track Front (mm) 1230
Track Rear (mm) 1180
Weight Front (kg) 138
Weight Rear (kg) 158
Suspension Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper
Tyres 175/505 R13 Dunlop
Wheels 8
Drive Type Single 520 chain
Differential Drexler Motorsport limited slip differential
Cooling Left side mounted aluminium radiator with 230mm electric fan
Brake System stainless steel, hub mounted, 220mm dia., drilled, flaoting disc, AP-Racing Caliper
Powertrain
Engine Suzuki GSXR 600 2001
Bore (mm) 67
Stroke (mm) 42,5
Cylinders 4
Displacement (ccm) 599
Compression Ratio 13,5:1
Fuel System Suzuki multi point fuel injection
Fuel 100 RON unleaded
Max Power (kW) 10000
Max Torque (Nm) 8250

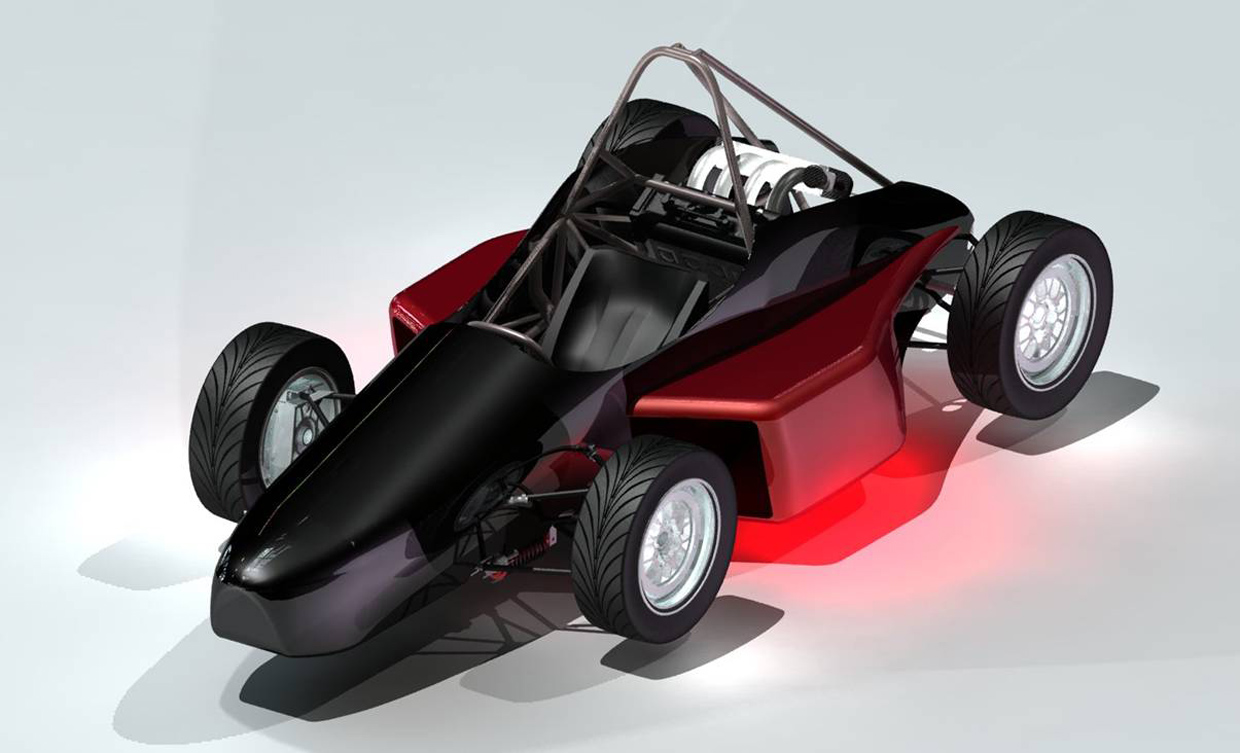

Car 65 – 2008
2008
Car #65
Info
The Racing Team by FH Wiesbaden proudly presents its first Formula Student Racing-Car at the 2008-event in Hockenheim. From the idea of participation to the finished car it has taken almost two hard years. Our goals for the first year were to build a car which will pass all requirements and endure the event until the last day. Basis of our racer is a rigid, FEA-optimized steel tube frame which we have manufactured ourselves. The power serves a 4 cylinder 600ccm GSX-R engine. All inner moveable parts have been coated to increase the degree of efficiency. Together with our own developed GRP-airbox and an injection concept with 8 fuel injectors the engine has almost 100HP. Compared to other teams our car has big differences in the chassis concept. The shock absorbers are mounted at the frame underside and are pull rod actuated. All important parameters like camber angle, toe in or caster are completely adjustable.To all competitors and visitors we wish a successful and funny event!
Car Specifications
General
Frame Construction FE analysed and MIG-welded, rigid steel tube frame. Approx. 40kg
Material E235 and S350, Aluminium Fire Wall
Overall Length (mm) 2975
Overall Width (mm) 1385
Overall Height (mm) 1125
Wheelbase (mm) 1700
Track Front (mm) 1200
Track Rear (mm) 1200
Weight Front (kg) 158
Weight Rear (kg) 192
Suspension Double unequal length Control-Arm. Pull rod actuated, horizontal oriented spring and damper mounted underside the frame. Fully adjustable caster, toe-in & camber angle
Wheels BBS 7x13, 23,3 mm offset, 3 pc Al Rim
Differential Wet multi-plate type, by Drexler
Cooling Side mounted, self-designed aluminium radiator
Brake System 4-Disk, fixed, hub mounted, outer dia. 220, inner dia 165
Electronics Electrical shifting system -pro shift- actuated by on steering wheel mounted levers
Powertrain
Engine Suzuki GSXR 600,fully teflon coated
Bore (mm) 67
Stroke (mm) 43
Cylinders 4
Displacement (ccm) 599
Compression Ratio 12,2:1
Fuel System Injection System with 8 Fuel Inlectors(near & far), sequencial injection,
Fuel 95 octane gasoline
Max Torque (Nm) 8000

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2019.08
28
17.
17.
19.
16.
15.
-
12.
-
17.
-
-
0.00
240.50
2019.08
60
35.
30.
12.
37.
-
-
27.
-
28.
-
-
0.00
295.61
2019.07
25
19.
24.
16.
19.
-
-
8.
-
18.
-
-
0.00
263.27
2018.08
37
23.
27.
21.
22.
24.
-
18.
-
-
-
-
0.00
208.20
2018.08
57
48.
32.
9.
45.
-
-
-
-
41.
-
-
0.00
216.50
2017.08
31
19.
6.
15.
13.
8.
-
24.
-
19.
-
-
0.00
275.60
2017.08
64
46.
48.
26.
49.
47.
-
43.
-
25.
-
-
0.00
273.69
2016.08
36
12.
13.
18.
15.
16.
-
22.
-
16.
11.
10.
0.00
464.90
2016.08
73
52.
50.
56.
60.
-
-
23.
-
29.
-
-
0.00
232.82
2016.08
25
6.
25.
6.
17.
8.
-
12.
-
8.
6.
3.
0.00
681.55
2010.09
41
21.
10.
34.
24.
16.
-
5.
-
8.
-
-
0.00
423.67
2010.08
27
12.
26.
22.
11.
13.
-
5.
-
19.
12.
-
0.00
592.20
2010.08
75
12.
70.
53.
8.
18.
-
16.
-
20.
13.
27.
0.00
607.46
2009.08
77
49.
60.
52.
16.
39.
-
37.
-
58.
-
-
0.00
297.77
2009.07
78
53.
-
67.
51.
20.
-
9.
-
35.
-
-
-2.00
251.50
2008.08
77
55.
45.
53.
30.
-
-
-
-
45.
-
-
0.00
230.80
