Team Details
UWashington Formula Motorsports
| University | University of Washington
US Seattle U Washington short 446 |
|---|---|
| Location | Seattle, United States |
| Social Media | |
| EV Team | UW Formula Motorsports |
| Short Link | tid.fsg.one/415 |
Past Events
2017
Info
46x

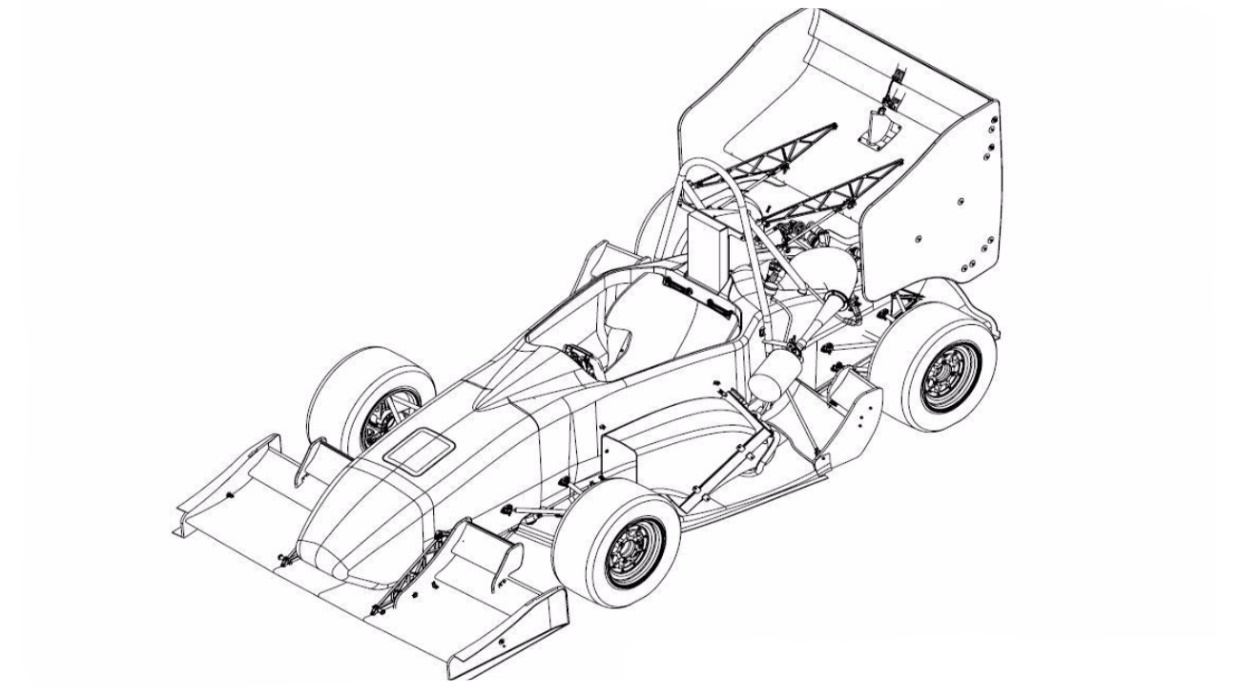

The UWashington Formula Motorsports team has prepared our most advanced and high quality car yet for FSG 2017. The car features new sidewings and a larger undertray for more downforce with no added weight, a stiffer and lighter suspension system, and utilized new technologies like soluble carbon molds and topology optimization programs. We would like to thank our families, sponsors, and Harambe for enabling us to continue competing internationally!
Engineering Design Priorities:
#OneLastRide
#CantStopWontStop
#NoFilter
#WestcoastBestCoast
#YeezyTaughtMeTwice
#PNWonderland
Car Specifications
General
| Frame Construction | Full carbon fiber/aluminum honeycomb monocoque |
|---|---|
| Material | Toray T700s/T700g PW/UD fiber (2510 Resin), Cytek FM300-2 Adhesive, Al honeycomb |
| Overall L | 2883 mm |
| Overall W | 1410 mm |
| Overall H | 1158 mm |
| Wheelbase | 1562 mm |
| Track (Fr) | 1219 mm |
| Track (Rr) | 1143 mm |
| Weight with 68kg driver (Fr) | 111 kg |
| Weight with 68kg driver (Rr) | 113 kg |
| Suspension | Double unequal length A-Arms, pull rod actuated front, push rod actuated rear |
| Tyres (Fr / Rr) | Hoosier LC0 6.0/18.0-10 |
| Wheels (Fr / Rr) | 10"x7" carbon fiber shells with aluminum wheel centers |
| Drive Type | 520 chain drive, stock 5 speed gearbox |
| Differential | Drexler Salisbury LSD, hydraulic active differential, variable bias ratio |
| Cooling | Side mounted CBR radiator, 553 cfm fan mounted rear of radiator ducting |
| Brake System | Ductile Iron floating rotors, Tilton 78 series master cylinders, Brembo and AP calipers |
| Electronics | Custom 22AWG weatherproof harness, Deutsch and LEMO connectors, custom battery and dash |
Powertrain
| Engine | 2014 Yamaha YFZ-450R, bored to 478cc |
|---|---|
| Bore | 98 mm |
| Stroke | 68.5 mm |
| Cylinders | 1 |
| Displacement | 478 ccm |
| Compression Ratio | 13.6 : 1 |
| Fuel System | Student developed algorithm, Siemens Deka VII Injector (2-4 cone elliptical) |
| Fuel | 92 (R + M)/2 Gasoline |
| Max Power Design | 10000 rpm |
| Max Torque Design | 8500 rpm |
2016
Info
74x

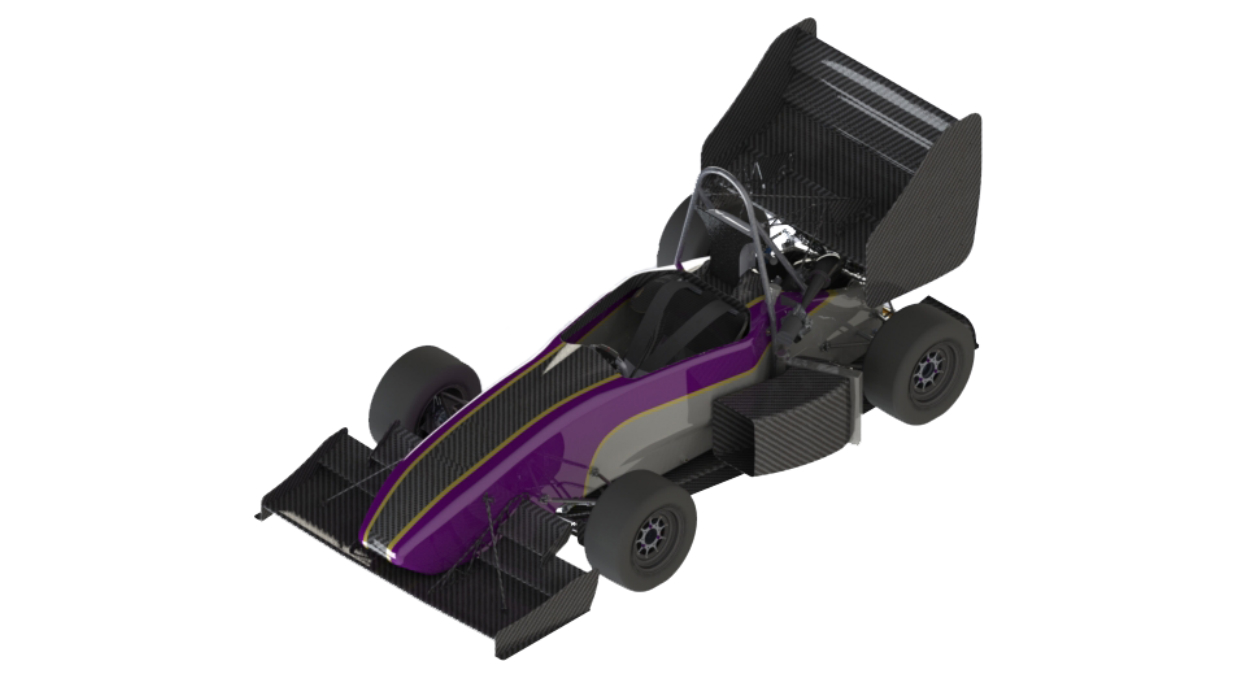

For the 2016 competition season the UWashington Formula Motorsports team has created one of the lightest, fastest, and most capable cars in our 27 year history. Featuring an all new chassis and aero package, we hope to regain our place near the top of the world rankings this year. We are proud to represent the United States at both FSC and FSE for the first time. We would like to thank our university, friends, family, sponsors, and most of all, our country, for making this year a possibility.
Engineering Design Priorities:
#MakeAmericaGreatAgain
#P51Mustang
#PrettyDoableThisYear
#ForeverSingle
#V=I/R
#YeezyTaughtMe
Car Specifications
General
| Frame Construction | Full carbon fiber/aluminum honeycomb monocoque |
|---|---|
| Material | Toray T700S/T700G PW/UD (2510 resin), CYTEC FM73 adhesive, PLASCORE al. honeycomb |
| Overall L | 2870 mm |
| Overall W | 1422 mm |
| Overall H | 1118 mm |
| Wheelbase | 1562 mm |
| Track (Fr) | 1219 mm |
| Track (Rr) | 1143 mm |
| Weight with 68kg driver (Fr) | 91 kg |
| Weight with 68kg driver (Rr) | 104 kg |
| Suspension | Double unequal length A-Arm, pull/push rod actuated |
| Tyres (Fr / Rr) | 6.0/18.0-10 Hoosier LC0 |
| Wheels (Fr / Rr) | 7.4x10 CFRP wheel shell, 6061 al center |
| Drive Type | 520 chain drive, stock 5 speed gearbox |
| Differential | Drexler Salisbury LSD, active differential modification, variable bias ratio |
| Cooling | Side Mounted CBR Radiator |
| Brake System | Student developed 191mm/178mm rotors, Brembo P2.34 front/AP CP4226 Rear Calipers |
| Electronics | Wiring harness sealed to IP69, wireless telemetry, AEM Infinity 10 ECU w/ Enginelab firmware |
Powertrain
| Engine | 2014 Yamaha YFZ-450R, bored to 527.3cc |
|---|---|
| Bore | 99mm mm |
| Stroke | 68.5 mm |
| Cylinders | 1 |
| Displacement | 527 ccm |
| Compression Ratio | 13.5:1 : 1 |
| Fuel System | Student developed algorithm, Siemens Deka VII Injector (2-4 cone elliptical) |
| Fuel | 98 octane unleaded gasoline |
| Max Power Design | 8200 rpm |
| Max Torque Design | 6000 rpm |
2015
Info
31x

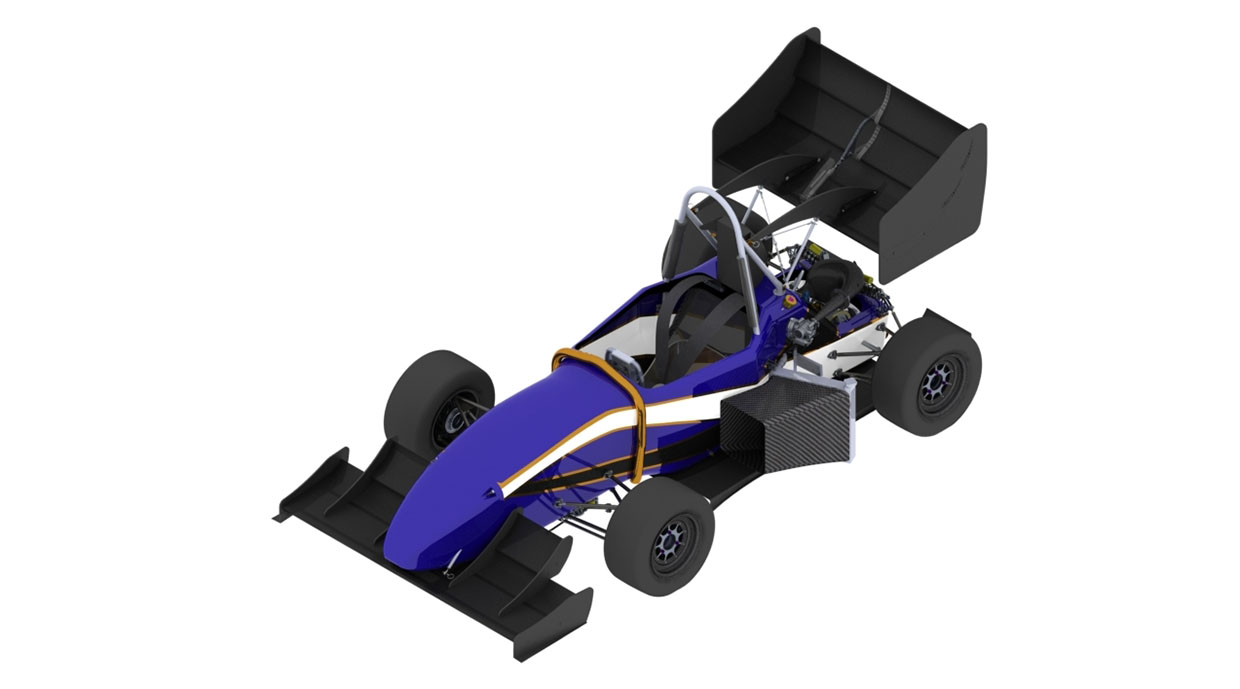

The UWashington Formula Motorsports team is proud to present a new and improved car for the 2015 season. The car features a modified 2014 Yamaha YFZ-450R engine, has a unidirectional carbon fiber monocoque chassis, integrated CV/hubs, a full aerodynamics package with a dynamic drag reduction system, a two-way telemetry system for real-time data acquisition, a tightly packaged drivetrain system that focuses on ease of manufacture and assembly, and new carbon fiber wheel shells are displayed.
Engineering Design Priorities:
Maximize Points
Justify Design Decisions
Effective Documentation
Train Student Engineers
Car Specifications
General
| Frame Construction | Full carbon fiber monocoque chassis with aluminum honeycomb |
|---|---|
| Material | Toray T700/2510 CFRP Prepreg, Hexcel CR-III 5056 Al Honeycomb |
| Overall L | 2890 mm |
| Overall W | 1469 mm |
| Overall H | 1187 mm |
| Wheelbase | 1537 mm |
| Track (Fr) | 1270 mm |
| Track (Rr) | 1194 mm |
| Weight with 68kg driver (Fr) | 102 kg |
| Weight with 68kg driver (Rr) | 110 kg |
| Suspension | Double unequal length a-arm, pull rod actuated in front, push rod actuated in rear. |
| Tyres (Fr / Rr) | Hoosier 6.0/18.0-10 LC0 (front & rear) |
| Wheels (Fr / Rr) | Single piece graphite epoxy wheel shells with aluminum centers |
| Drive Type | 520 Chain Drive |
| Differential | Salisbury Type Differential With Replacable Ramps for Different Angles |
| Cooling | Side mounted radiator |
| Brake System | Floating Cast Iron, Hub Mounted. 4 Piston in Front, Dual Piston in Rear |
| Electronics | Student designed dash, ECU controlled shifts, ECU controlled DRS system. Enginelab Infinity 10 |
Powertrain
| Engine | Modified 2014 Yamaha YFZ-450R |
|---|---|
| Bore | 99.0 mm |
| Stroke | 68.5 mm |
| Cylinders | 1 |
| Displacement | 527 ccm |
| Compression Ratio | 13.5:1 : 1 |
| Fuel System | Student Developed Algorithm, Siemens Deka VII Injector (2-4 Cone Elliptical) |
| Fuel | 98 octance unleaded gasoline |
| Max Power Design | 8200 rpm |
| Max Torque Design | 6000 rpm |
2014
Info
28x

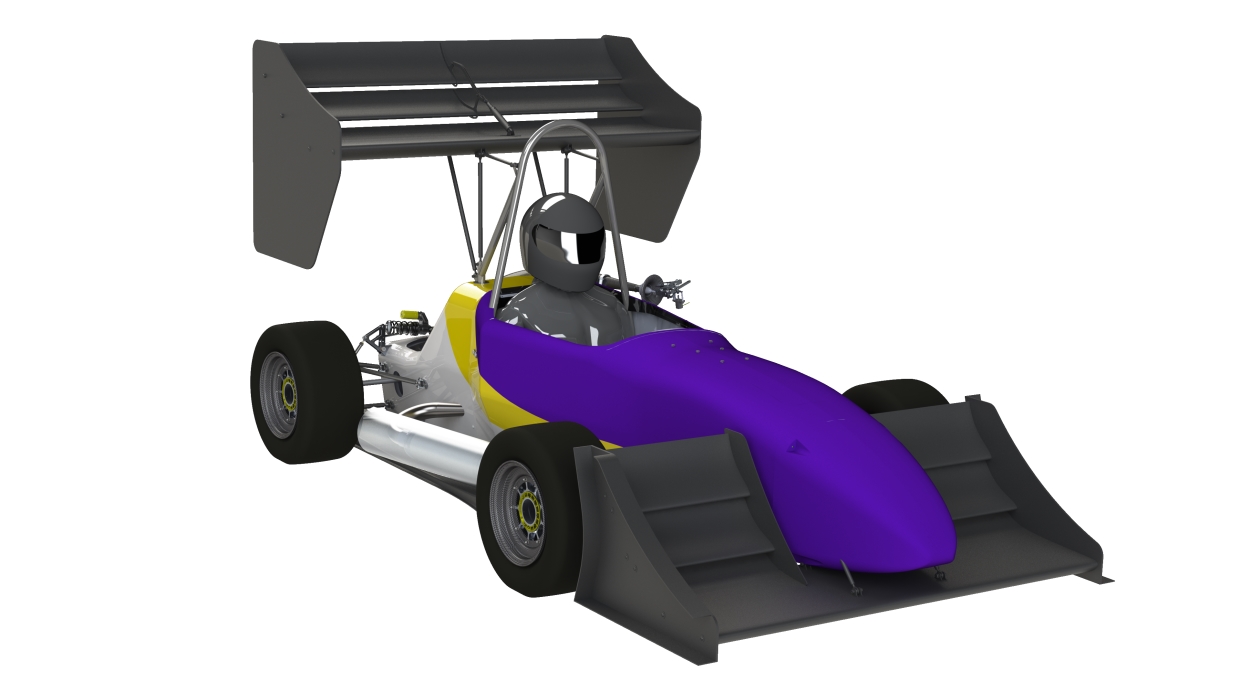

The UWashington Formula Motorsports team is proud to present a brand new car for the 2014 competition season. The car runs a new single cylinder motor for improved performance, has a unidirectional carbon fiber monocoque chassis, integrated CV/hubs, a full aerodynamics package with a dynamic drag reduction system, a two-way telemetry system for real-time data acquisition, a tightly packaged drivetrain system that focuses on ease of manufacture and assembly, and new carbon fiber wheel shells.
Engineering Design Priorities:
Maximize points
Justify design decisions
Effective documentation
Train student engineers
Car Specifications
General
| Frame Construction | Carbon Fiber Monocoque |
|---|---|
| Material | Torray T700 Unidirectional Fiber, Hexcel Aluminum Honeycomb |
| Overall L | 2920 mm |
| Overall W | 1410 mm |
| Overall H | 1345 mm |
| Wheelbase | 1537 mm |
| Track (Fr) | 1194 mm |
| Track (Rr) | 1143 mm |
| Weight with 68kg driver (Fr) | 99 kg |
| Weight with 68kg driver (Rr) | 118 kg |
| Suspension | Double Unequal Length A-Arm. Pull Rod Actuated, Horizontally Oriented Spring and Damper |
| Tyres (Fr / Rr) | 18.0 x 6.0-10 |
| Wheels (Fr / Rr) | 7.0 x 10.0 Carbon Fiber Shell, Al Center |
| Drive Type | 520 Chain Drive |
| Differential | Salisbury Type Differential with Replaceable Ramps |
| Cooling | Single, Center/left Mounted Al Core, 600 cfm Fan Rear Mounted |
| Brake System | Floating, Cast Iron, Hub Mounted, Student Machined Front Calipers, Adjustable Brake Bias |
| Electronics | Student Developed Fuel Strategy, Solid State Power Distribution Module |
Powertrain
| Engine | 2010 Yamaha YFZ-450R |
|---|---|
| Bore | 97 mm |
| Stroke | 68.4 mm |
| Cylinders | 1 |
| Displacement | 505 ccm |
| Compression Ratio | 13.5:1 : 1 |
| Fuel System | Student Developed Algorithm, Fuel Injection, Dual-Cone Spray Injector, EngineLab ECU |
| Fuel | 98 RON |
| Max Power Design | 8200 rpm |
| Max Torque Design | 6000 rpm |
2013
Info
37x

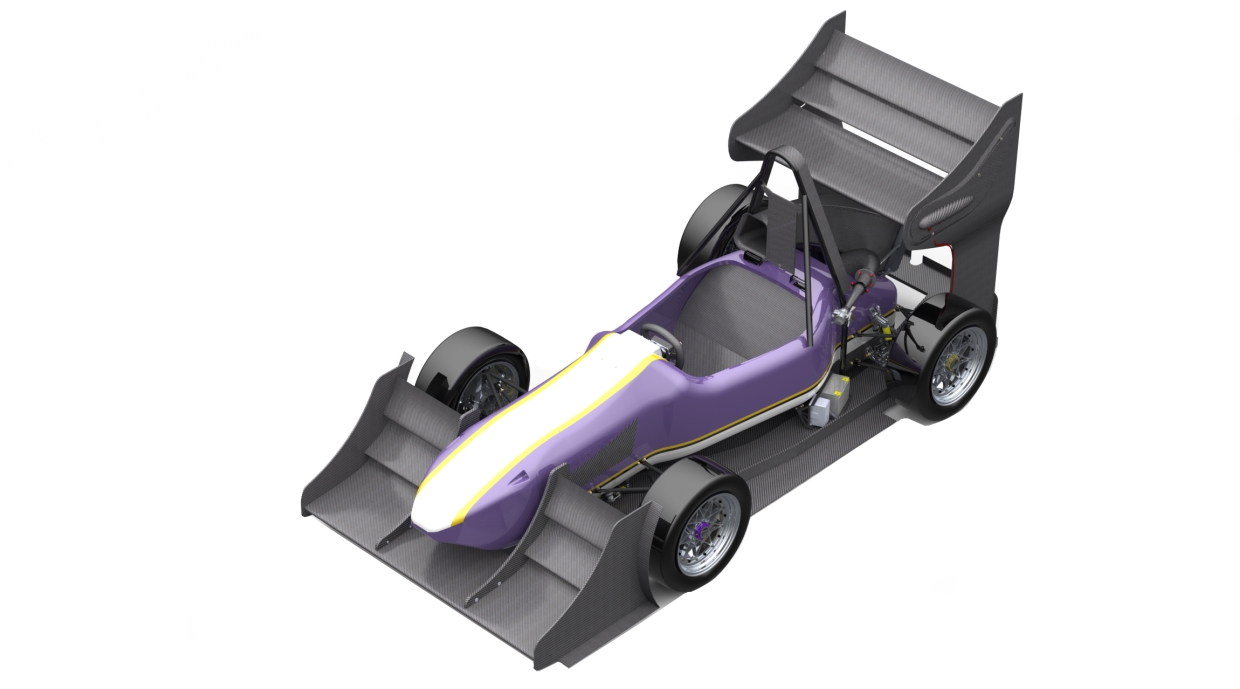

With an iterative car for 2013, the UWashington Formula Motorsports team is excited to show off our best car yet. Building off of 24 years of innovation, our car runs a single-cylinder motor, and has a carbon fiber chassis, integrated CV/hubs, a full aero package, pneumatic paddle shifting, and a tightly-packaged drivetrain. Relying heavily on physical testing to validate analysis, a great deal of care and attention to detail went into every part on the car. With one of the earliest assembly completions in recent team history, ample time has been spent testing and tuning the car for ultimate speed, reliability, and overall success. This is the team's second time attending Formula Student Germany.
Car Specifications
General
| Frame Construction | Carbon Fiber Monocoque |
|---|---|
| Material | Torray T700 Unidirectional Fiber, Hexcel Aluminum Honeycomb |
| Overall L | 2970 mm |
| Overall W | 1415 mm |
| Overall H | 1241 mm |
| Wheelbase | 1537 mm |
| Track (Fr) | 1219 mm |
| Track (Rr) | 1168 mm |
| Weight with 68kg driver (Fr) | 110 kg |
| Weight with 68kg driver (Rr) | 128 kg |
| Suspension | Double Unequal A-Arm, Pull Rod Actuated Horizontally Oriented Spring And Damper |
| Tyres (Fr / Rr) | 20.5x7-13 R25B Hoosier |
| Wheels (Fr / Rr) | 20.5x7-13 R25B Hoosier |
| Drive Type | Chain Drive |
| Differential | Salisbury Type Drexler Differential with Replaceable Ramps |
| Cooling | Singe Rear Mounted, PWM Fan, .17 m^3/sec |
| Brake System | 4-Disk Floating Cast Iron, Hub Mounted |
| Electronics | EngineLab EL140 ECU, Student Designed Dash, Steering Wheel, PWM Drivers, and Telemetry System |
Powertrain
| Engine | Modified Yamaha WR45F |
|---|---|
| Bore | 98 mm |
| Stroke | 63,4 mm |
| Cylinders | 1 |
| Displacement | 449 ccm |
| Compression Ratio | 13,5:1 : 1 |
| Fuel System | EngineLab Vehicle Control System, Integrated Fuel, Spark, Shift, DRS, Data Logging, and Aux Control |
| Fuel | 95 Octane Unleaded Gasoline |
| Max Power Design | 8300 rpm |
| Max Torque Design | 7500 rpm |
2012
Info
3x

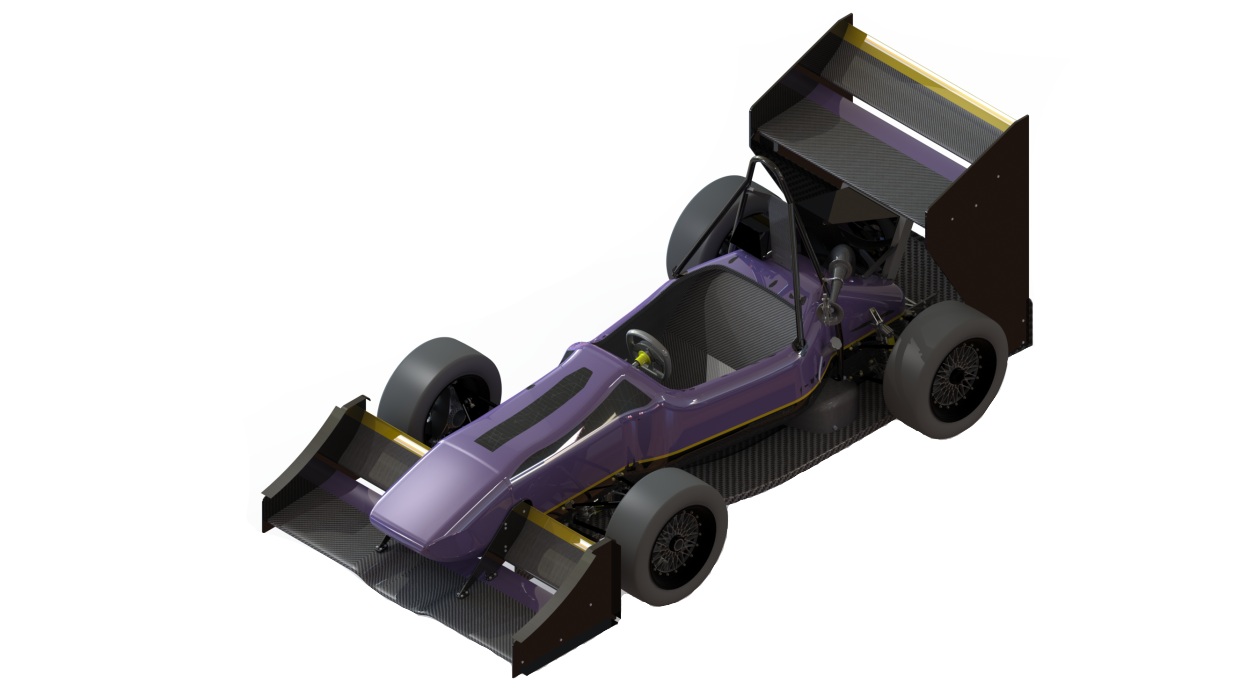

With a very new car for 2012, the UWashington Formula Motorsport team is excited to show off our best car yet. Building off of 23 years of innovation, our car runs a new single cylinder motor, has a full unidirectional carbon fiber chassis, integrated CV/hubs, a full aero package, pneumatic paddle shifter, and tightly packaged drivetrain. Relying heavily on physical test validated analysis, a great deal of care and attention to detail went into every part on the car. With one of the earliest assembly completions in recent team history, ample time has been spent testing and tuning the car for ultimate speed, reliability, and overall success. After Formula SAE Lincoln, the team will compete outside the US for the first time every at Formula Student Germany.
Car Specifications
General
| Frame Construction | Full Composite Monocoque |
|---|---|
| Material | Toray T700 Unidirectional Fiber |
| Overall L | 3010 mm |
| Overall W | 1415 mm |
| Overall H | 1144 mm |
| Wheelbase | 1537 mm |
| Track (Fr) | 1219 mm |
| Track (Rr) | 1168 mm |
| Weight with 68kg driver (Fr) | 108 kg |
| Weight with 68kg driver (Rr) | 133 kg |
| Suspension | Double Unequal Length A-Arm. Pull Rod Actuated Horizontally Oriented Spring and Damper |
| Tyres (Fr / Rr) | Hoosier R25B |
| Wheels (Fr / Rr) | 7.0x13 3 pc Al Rim |
| Drive Type | 520 Chain Drive |
| Differential | Drexler Limited Slip |
| Cooling | Single Center Mounted Radiator, Thermatic Speed Controlled Fan |
| Brake System | Student Designed 4 Disk, Driver Adjustable Brake Bias |
| Electronics | Motec ADL and EngineLab ECU, Student Designed Pneumatic Shift Syste, Dash, and Integrated Wheel |
Powertrain
| Engine | Yamaha WR450F |
|---|---|
| Bore | 95 mm |
| Stroke | 63.4 mm |
| Cylinders | 1 |
| Displacement | 449 ccm |
| Compression Ratio | 12.3 : 1 |
| Fuel System | EngineLab ECU, Student Designed Fuel Injection |
| Fuel | 95 Octane Unleaded |
| Max Power Design | 8500 rpm |
| Max Torque Design | 7500 rpm |
