Team Details
ISC FS Racing Team
| University | Comillas Pontifical University
Universidad Pontificia Comillas local ES Madrid UPC short 1169 |
 |
|---|---|---|
| Location | Madrid, Spain | |
| Homepage | https://iscracingteam.com | |
| Social Media | ||
| Short Link | tid.fsg.one/983 | |
| Event Details | car 133 - withdrawn | |
Past Events
2024
Info
24x
ISC FS Racing Team is the Formula Student team of the Comillas Pontifical University. Based in Madrid, our team was born in 2017, with its first prototype being already an electric one. This summer we will participate for the first time in FSG with our IFS-O6, having the sole purpose of continue exponentially growing and improving, just as we have done over the last 6 years.Talent. Passion. Racing. We believe that only by taking thorough care of detail we can become one of Spain's top teams.
Engineering Design Priorities:
Comillas
Madrid
Electric
Spain
Growth

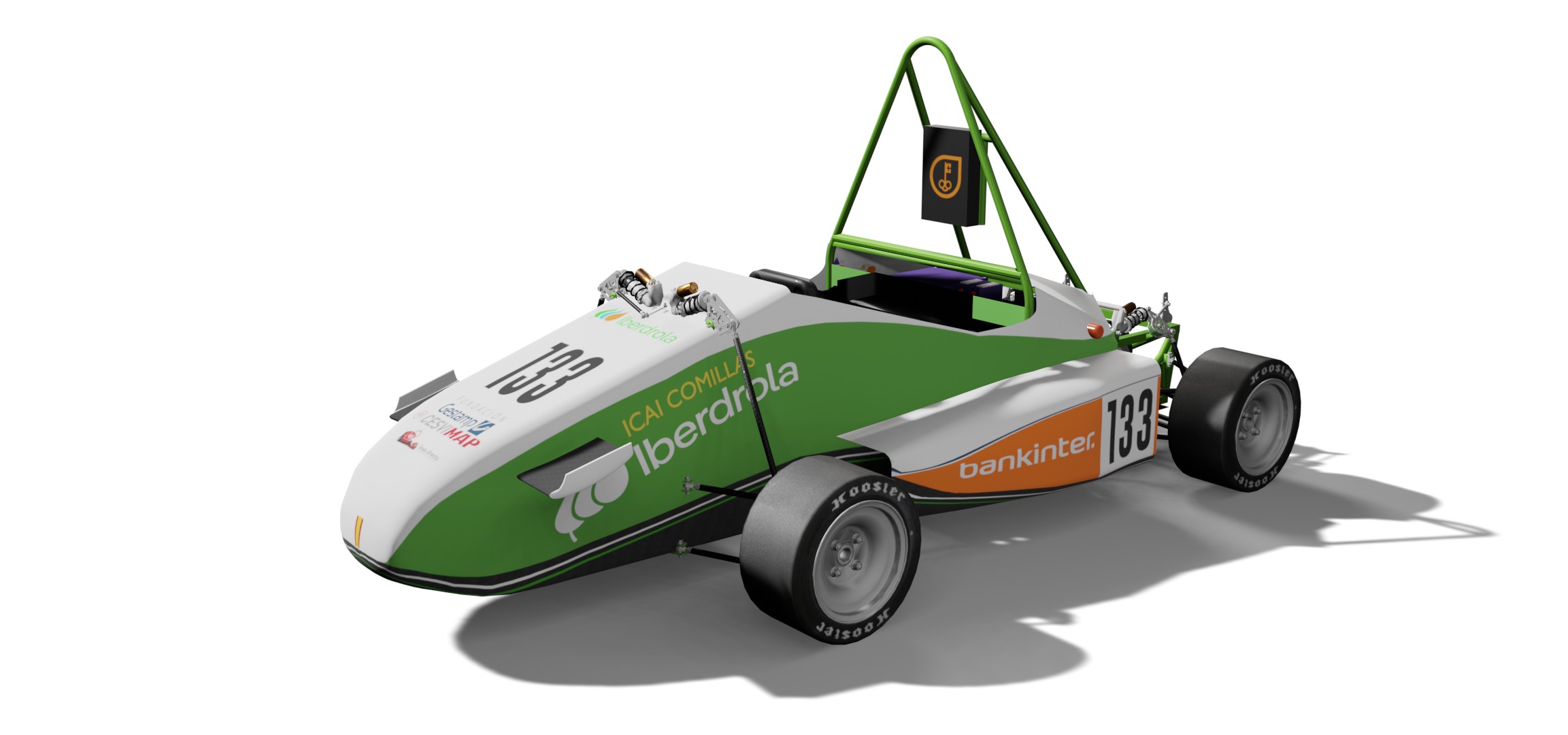

IFS-06
Car Specifications
General
| Frame Construction | Steel Spaceframe |
|---|---|
| Material | E355 steel round tube |
| Overall L | 2883 mm |
| Overall W | 1395 mm |
| Overall H | 1300 mm |
| Wheelbase | 1570 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 132 kg |
| Weight with 68kg driver (Rr) | 108 kg |
| Suspension | Double Wisbone -Rocker Arm Suspension |
| Tyres (Fr / Rr) | HOOSIER 16.0X7.5-10 R20 |
| Wheels (Fr / Rr) | HOOSIER 16.0X7.5-10 R20 |
| Drive Type | RWD Chain DID Kette 520 VX2 |
| Differential | LSD Salisbury (Drexler) |
| Cooling | Twin side pod radiators with electric fans |
| Brake System | 4-disk system, 4 piston APracing caliper front, 2 piston APracing caliper back |
| Electronics | self designed wiring harness, BMS, live-telemetry |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear middle |
| Max Motor Power (per motor) | 100 kW |
| Motor Type | EMRAX 228 MV LC |
| Max Motor RPM (highest) | 5500 rpm |
| Motor Controller | Resolver Tamagawa TS2620N21E11 |
| Max System Voltage | 399 V |
| Electrode Materials | Lithium ion |
| Combined Accumulator Capacity | 7.182 kWh |
| Transmission Ratio (Primary) | 1:3,45 : 1 |
| Transmission Ratio (Secondary) | N/A : 1 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.08 | 37 |
19. |
12. |
11. |
24. |
- |
- |
- |
- |
- |
- |
- |
-10.00 |
205.40 |
|
| 2024.09 | 34 |
26. |
1. |
5. |
28. |
- |
- |
22. |
- |
18. |
- |
- |
-70.00 |
187.91 |
|
| 2024.08 | 79 |
52. |
40. |
16. |
34. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
215.39 |
|
| 2024.08 | 25 |
14. |
1. |
10. |
15. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
255.30 |
|
| 2023.08 | 19 |
7. |
6. |
6. |
9. |
- |
- |
6. |
- |
9. |
- |
- |
0.00 |
306.00 |
|
| 2023.07 | 29 |
15. |
2. |
11. |
19. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
217.81 |
|
| 2022.09 | 38 |
30. |
9. |
27. |
28. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
206.50 |
|
| 2022.07 | 26 |
18. |
13. |
23. |
11. |
- |
- |
- |
- |
5. |
11. |
- |
0.00 |
209.41 |
|
| 2021.08 | 16 |
15. |
2. |
16. |
14. |
- |
- |
- |
- |
- |
- |
- |
-100.00 |
66.70 |
|
| 2019.08 | 39 |
37. |
35. |
35. |
36. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
103.50 |
|
| 2018.08 | 38 |
36. |
35. |
31. |
36. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
89.00 |
|
| x 11 | |||||||||||||||
