Mainfranken Racing

University	UAS Würzburg-Schweinfurt DE Schweinfurt UAS short 79
Location	Schweinfurt, Germany
Homepage	https://mainfranken-racing.de/
Social Media
CV Team	Mainfranken Racing
Short Link	tid.fsg.one/979
Event Details	car 197 - withdrawn

Team Description

Mainfranken Racing at Technical University of Applied Science Würzburg-Schweinfurt is a non-profit association‚ that was founded in September 2006.
Born out of the idea of some motor sports enthusiastic students.

After participating at Formula Student Germany in 2007 we finished with 14th place overall and 2nd runner up in the newcomer competition in Hockenheim.
These results pushed our ambition to build an even better car over the past fourteen years.
With the knowledge of fourteen seasons in Formula Student we look forward to present our MF15 at the Formula Student Events in 2023.
After the switch to EV 2018/2019 we are now presenting our first EV car with integrated Driverless components.

The Team started with 20 active members into the new Season 2022/2023. Together we want to grow not even our experience & knowledge but our team.
Furthermore we want to provide a basis for future seasons at our university.

Event Profile

Past Events

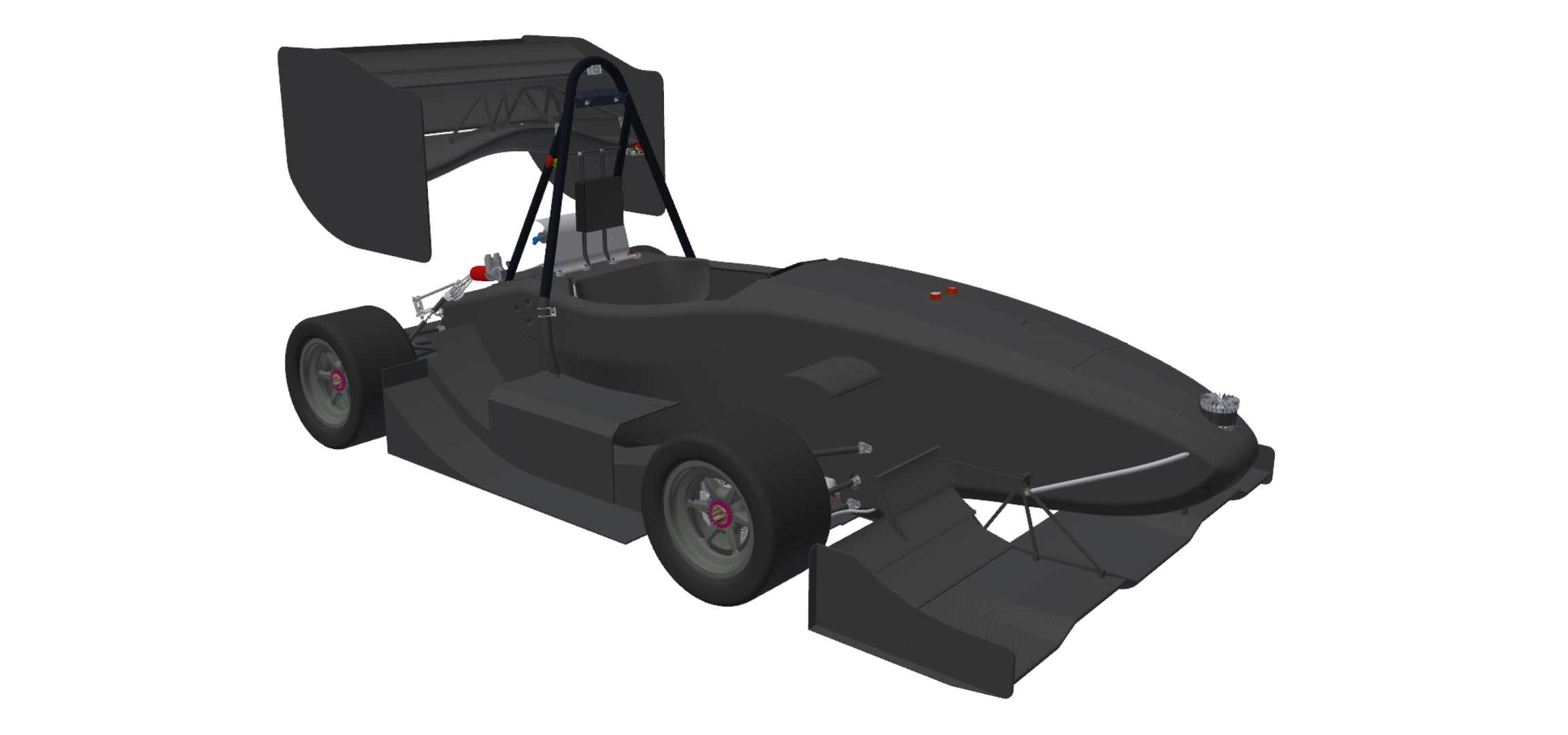

2025

Car #197

Info

Mainfranken Racing e.V. was founded in 2006 by motorsport enthusiasts from the UAS Schweinfurt. The team consists of around 20 motivated students building the team's 17th race car. The drive concept includes a rear-wheel drive. Additionally, the focus is on applying the knowledge gained from last year's CRFP monocoque production and development. Furthermore, an important focus for this year's MF17 is to improve our driverless System.

Engineering Design Priorities:

driverless improvement testing reducing weight reliability laminating procedure Aero rear-wheel drive

Car Specifications

General

Frame Construction	CFRP/AFRP Monocoque, Aluminium Honeycomb core, Aluminium Front- & Steel Mainhoop
Material	Woven & UD CFRP/AFRP Prepreg, Aluminium honeycomb core
Overall Length (mm)	2945
Overall Width (mm)	1482
Overall Height (mm)	1170
Wheelbase (mm)	1560
Track Front (mm)	1230
Track Rear (mm)	1200
Weight Front (kg)	133
Weight Rear (kg)	133
Suspension	Double unequal length A-Arm, pull (front) / push (rear) rod actuated spring and damper
Tyres	16.0 x 7.5-10 R20 Hoosier
Wheels	7.0x10 22mm offset, OZ Magnesium Rim
Drive Type	Chain-drive
Differential	Drexler limited slip differential 50Nm
Cooling	Radiator in both side pods with fiber reinforced exhaust duct
Brake System	4-Disk system, floating self developed brake rotors; front: 4 pistons, rear: 2 pistons
Electronics	Multifunctional steering wheel with dashboard for debugging, datalogger, self designed AMS

Powertrain

Number of Motors	1
Motor Location	Rear middle
Max Motor Power	124 kW
Motor Type	EMRAX 228 HV LC
Max Motor RPM	6500
Motor Controller	Unitek - BAMOCAR-PG-D3-700/400
Max System Voltage (V)	630
Electrode Materials	NCA - LiNiCoAlO2
Accumulator Capacity	7.05 kWh
Transmission Ratio Primary	1:3,63
Transmission Ratio Secondary	n/a

Driverless System

Processing Units	i9 10885H GTX1650 Ti
Processing Units FLOPS	517,44 GFL
Processing Units Power (W)	370 W
Cameras	ZED 2i
Radar Sensors	n/a
LiDAR Sensors	Ouster OS1-64
Other Sensors	GPSSBG EKINOX Micro
DV System Highlights	Robust perception system with Sensorfusion, YOLOv5 camera cone detection and Fast Euclidean clustering for LiDAR. New self-developed velocity estimation, that works with an EKF. FastSLAM 2.0 for localization and mapping. New Path Planning with Delauny Triangulation. Pure Pursuit Controller for control. Forward-Backward Solver for velocity plannin

2024

Car #297

Info

Mainfranken Racing e.V. was founded in 2006 by motorsport enthusiasts from the UAS Schweinfurt. The team consists of around 20 motivated students building the team's 16th race car. The drive concept includes a rear-wheel drive. Additionally, the focus is on applying the knowledge gained from last year's CRFP monocoque production and development. Furthermore, an important focus for this year's MF16 is the production of a new lithium-ion accumulator with an aramid accumulator container.

Engineering Design Priorities:

driverless integration testing reducing weight reliability first place rear-wheel drive

Car Specifications

General

Frame Construction	CFRP/AFRP Monocoque, Aluminium Honeycomb core, Aluminium Front- & Steel Mainhoop
Material	Woven & UD CFRP/AFRP Prepreg, Aluminium honeycomb core
Overall Length (mm)	2945
Overall Width (mm)	1482
Overall Height (mm)	1170
Wheelbase (mm)	1560
Track Front (mm)	1230
Track Rear (mm)	1200
Weight Front (kg)	133
Weight Rear (kg)	133
Suspension	Double unequal length A-Arm, pull (front) / push (rear) rod actuated spring and damper
Tyres	16.0 x 7.5-10 R20 Hoosier
Wheels	7.0x10 22mm offset, OZ Magnesium Rim
Drive Type	Chain-drive
Differential	Drexler limited slip differential 50Nm
Cooling	Radiator in both side pods with fiber reinforced exhaust duct
Brake System	4-Disk system, floating self developed brake rotors; front: 4 pistons, rear: 2 pistons
Electronics	Multifunctional steering wheel with dashboard for debugging, datalogger, self designed AMS

Powertrain

Number of Motors	1
Motor Location	Rear middle
Max Motor Power	124 kW
Motor Type	EMRAX 228 HV LC
Max Motor RPM	6500
Motor Controller	Unitek - BAMOCAR-PG-D3-700/400
Max System Voltage (V)	630V
Electrode Materials	NCA - LiNiCoAlO2
Accumulator Capacity	7.05 kWh
Transmission Ratio Primary	1:3,63
Transmission Ratio Secondary	n/a

Driverless System

Processing Units	i9 10885H GTX1650 Ti
Processing Units FLOPS	517,44 GFL
Processing Units Power (W)	370 W
Cameras	ZED 2i
Radar Sensors	n/a
LiDAR Sensors	Ouster OS1-64
Other Sensors	GPSSBG EKINOX Micro
DV System Highlights	Robust perception system with Sensorfusion, YOLOv5 camera cone detection and Fast Euclidean clustering for LiDAR. New self-developed velocity estimation, that works with an EKF. FastSLAM 2.0 for localization and mapping. New Path Planning with Delauny Triangulation. Pure Pursuit Controller for control. Forward-Backward Solver for velocity plannin

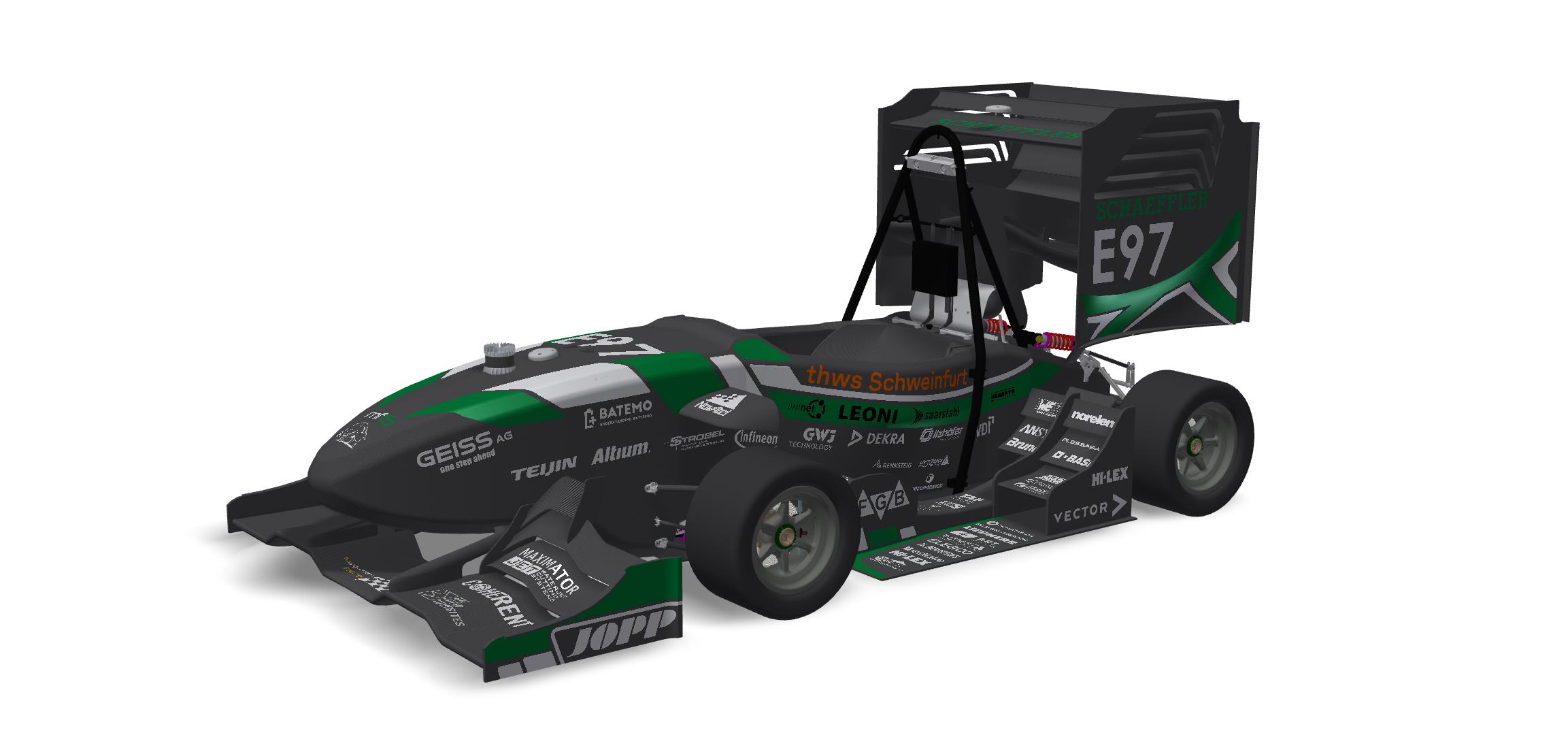

2023

Car #97

Info

Mainfranken Racing e.V. was founded in 2006 out of the idea of some motorsport enthusiastic students from the University of Applied Sciences Schweinfurt. The MF15 is the team's 4th electrical car the team is building. This year's goal is to integrate autonomous driving into our vehicle for the first time. In addition, the focus is on the production of a new lithium-ion accumulator with a self-developed aramid accumulator container.

Engineering Design Priorities:

Reliability Implementation of DV Detailed documentary Identification Potentials Implementation Potentials

Car Specifications

General

Frame Construction	CFRP Monocoque with an aluminium FH & steel MH
Material	CFRP prepreg, aluminium honeycomb
Overall Length (mm)	2970
Overall Width (mm)	1490
Overall Height (mm)	1230
Wheelbase (mm)	1540
Track Front (mm)	1230
Track Rear (mm)	1200
Weight Front (kg)	137
Weight Rear (kg)	137
Suspension	Double unequal length A-Arm, pull (front) / push (rear) rod actuated
Tyres	16.0 x 7.5-10 R20 Hoosier
Wheels	OZ Magnesium Rim
Drive Type	Chain-drive
Differential	Drexler limited slip differential 50Nm
Cooling	Side mounted AKG cooler with self developed electric fans and CFD optimized fan channels
Brake System	4-Disk system, floating self developed brake rotors; front: 4pistons, rear: 2pistons
Electronics	Multifunctional steering wheel with dashboard for debugging, datalogger, self designed AMS

Powertrain

Number of Motors	1
Motor Location	Rear middle
Max Motor Power	107 kW
Motor Type	EMRAX 228 MV LC
Max Motor RPM	5500
Motor Controller	Bamocar D3
Max System Voltage (V)	630
Electrode Materials	NCA - LiNiCoAIO2
Accumulator Capacity	7,5
Transmission Ratio Primary	3,45
Transmission Ratio Secondary	n/a

Driverless System

Processing Units	i9 10885H GTX1650 Ti
Processing Units FLOPS	517,44 GFL
Processing Units Power (W)	350W
Cameras	ZED 2i
Radar Sensors	n/a
LiDAR Sensors	Ouster OS1-64
Other Sensors	GPS Novatel PwrPak 7D
DV System Highlights	1st year DV. Robust Perception System that contains LiDAR & Stereocamera Sensorfusion. Implementation of FastSLAM2.0 /w the use of tree structure, which is designed to be parallelisable on multiple cores. A particle filter based map matching for acceleration & skidpad. The usage of a hybrid controller, that is a mix of pursuite & stanley controller

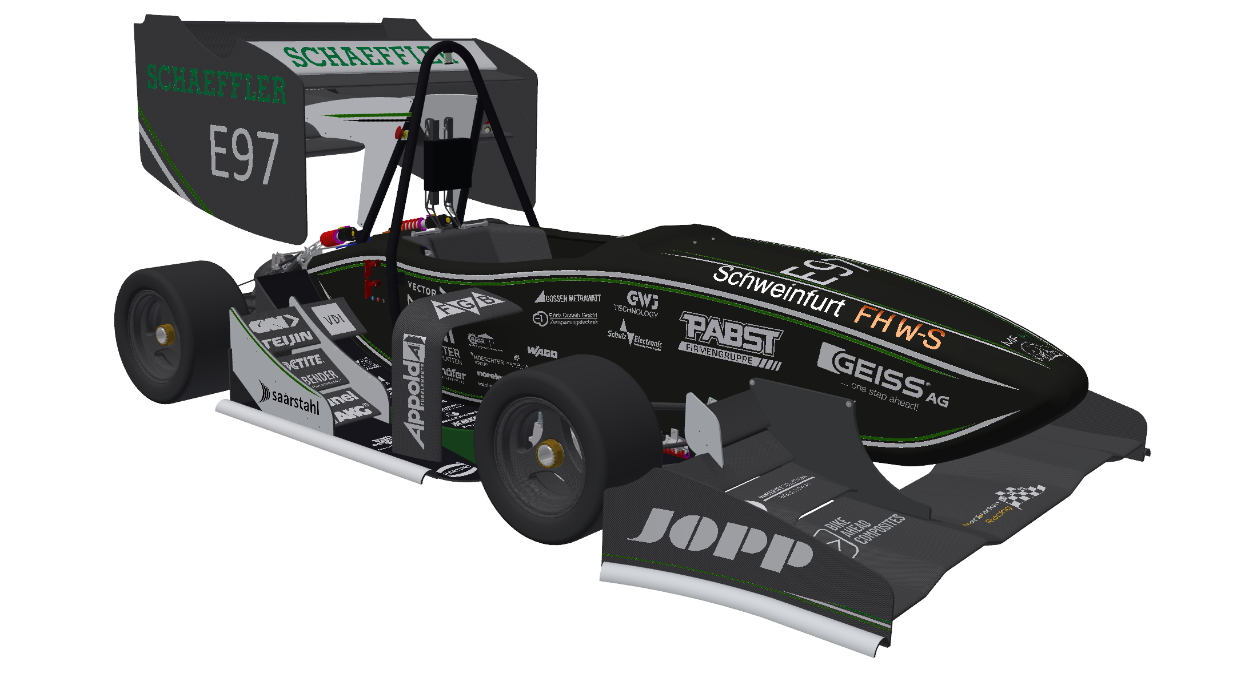

2022

Car #97

Info

Mainfranken Racing e.V. was founded in 2006 out of the idea of some motor sport enthusiastic students from the University of Applied Sciences Schweinfurt. The team consist of 30 motivated students building the team´s 14th racecar. After having our most successful season in the history of the club last year, we are determined to continue with the improvement of last year's component, the first development of a CRFP monocoque and the development of our own motor controller.

Engineering Design Priorities:

reliability lightweight validation documentation

Car Specifications

General

Frame Construction	CFRP Monocoque with a aluminium FH & steel MH
Material	CFRP prepreg, aluminium honeycomb
Overall Length (mm)	2945
Overall Width (mm)	1749
Overall Height (mm)	1133
Wheelbase (mm)	1540
Track Front (mm)	1250
Track Rear (mm)	1250
Weight Front (kg)	134
Weight Rear (kg)	134
Suspension	Double unequal length A-Arm, pull (front) / push (rear) rod actuated
Tyres	16.0 x 7.5-10 R20 Hoosier
Wheels	7.0x10 22mm offset, 1pc CFRP Rim
Drive Type	Belt-drive
Differential	Drexler limited slip differential 50Nm
Cooling	Rear mounted AKG cooler with self developed electric fans and CFD optimized fan channels
Brake System	4-Disk system, floating self developed brake rotors; front: 4pistons, rear: 2pistons
Electronics	Multifunctional steering wheel with dashboard for debugging, datalogger, self designed AMS

Powertrain

Number of Motors	1
Motor Location	Rear middle
Max Motor Power	107kW
Motor Type	EMRAX 228 MV LC
Max Motor RPM	5500
Motor Controller	self-developed Motor Controller
Max System Voltage (V)	587V
Electrode Materials	Li-lon (LiNiMnCoO2)
Accumulator Capacity	7.75
Transmission Ratio Primary	3.48
Transmission Ratio Secondary	1

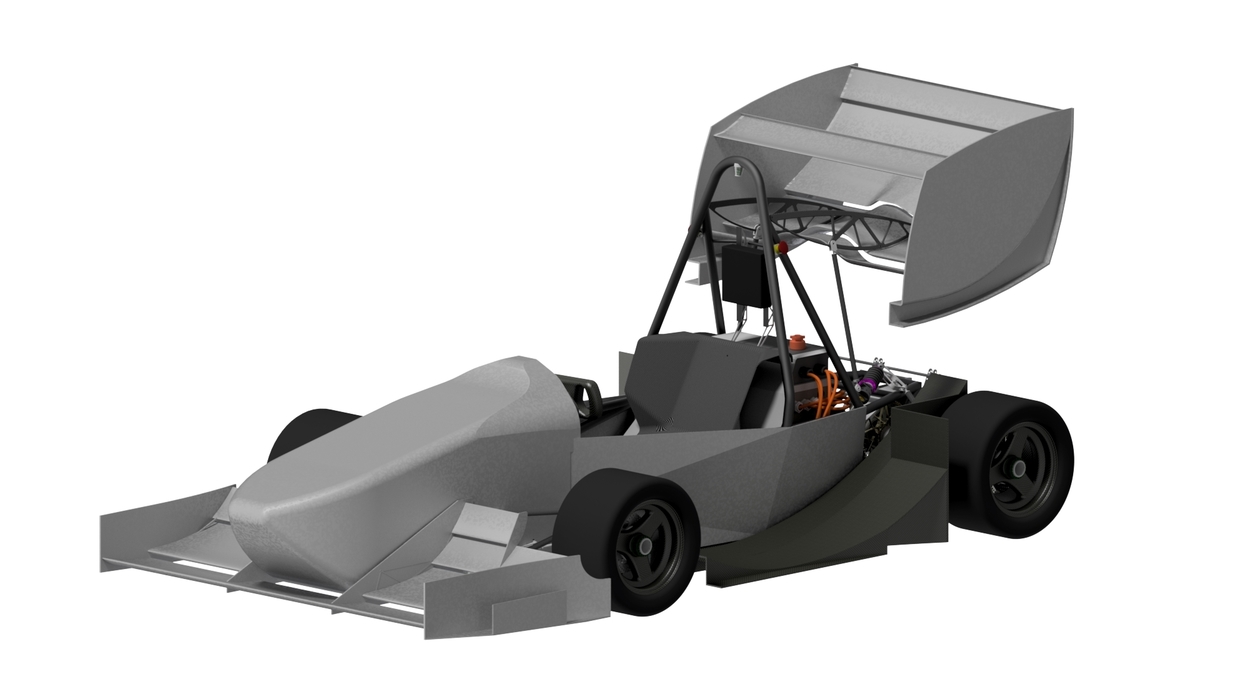

2021

Car #97

Info

Mainfranken Racing e.V. was founded in 2006 out of the idea of some motor sport enthusiastic students from the University of Applied Sciences Schweinfurt. The team consist of 30 motivated students building the 13th racecar. Our goal for our second electric vehicle is to finish every endurance we attend. The car was built over a decade of two years and received ongoing improvements in the second year. This season we are happy to participate at FSCz,FSS and FSG.

Engineering Design Priorities:

Lightweight Packaging CFK everywhere

Car Specifications

General

Frame Construction	Tubular space frame
Material	E235+C
Overall Length (mm)	2940
Overall Width (mm)	1475
Overall Height (mm)	1180
Wheelbase (mm)	1530
Track Front (mm)	1200
Track Rear (mm)	1175
Weight Front (kg)	136
Weight Rear (kg)	136
Suspension	Double unequal lenght A-Arm, pull (front) / push (rear) rod actuated
Tyres	16.0 x 7.5-10 R25B Hoosier / 16.0 x 7.5-10 R25B Hoosier
Wheels	7.0x10 22mm offset, 1 pc Carbon Rim
Drive Type	Belt-drive
Differential	Drexler limited slip differential 50Nm
Cooling	Twin rear mounted radiators with self developed electric fans and optimized cfk fan-channels
Brake System	4-Disk system, floating self developed brake rotors, front: 4pistons, rear: 2pistons
Electronics	Multifunctional steering wheel, datalogger, self designed accumulator management system

Powertrain

Number of Motors	1
Motor Location	Rear middle
Max Motor Power	109 kW
Motor Type	EMRAX 228 MV LC
Max Motor RPM	5500
Motor Controller	UNITEK BAMOCAR-D3
Max System Voltage (V)	587V
Electrode Materials	Li-Ion (LiNiMnCoO2)
Accumulator Capacity	7,75kWh
Transmission Ratio Primary	3,12
Transmission Ratio Secondary	1

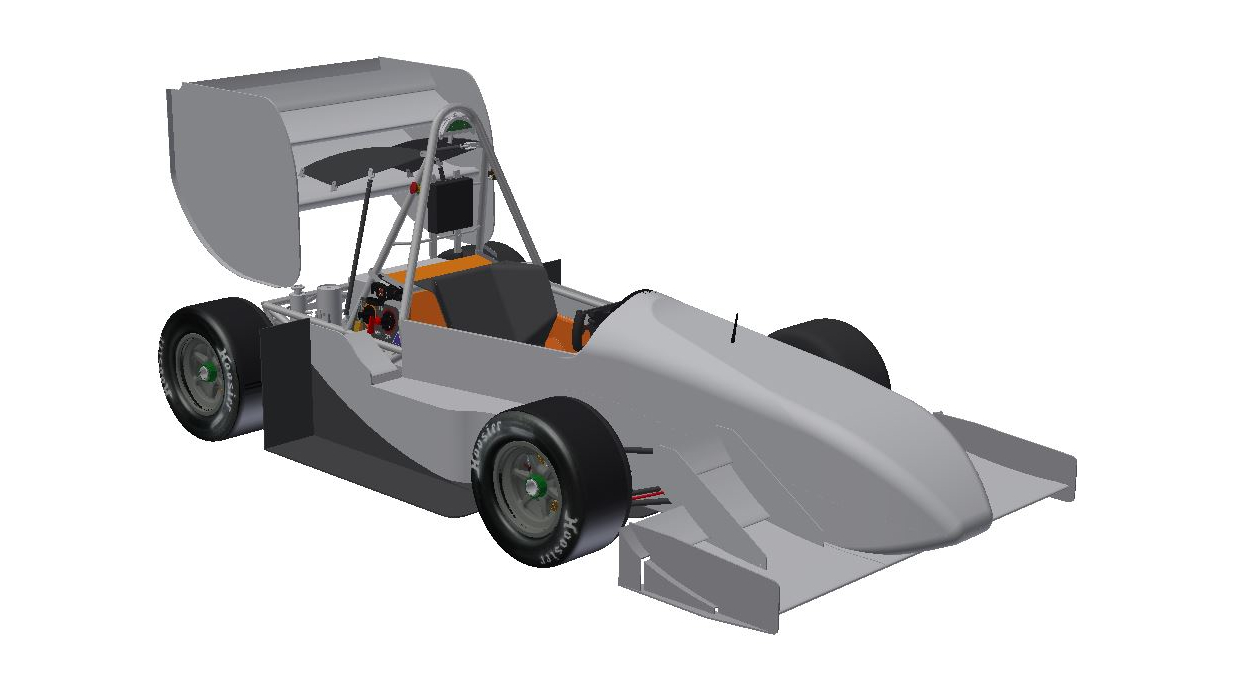

2019

Car #97

Info

Mainfranken Racing e.V. was founded in 2006 out of the idea of some motor sport enthusiastic students from the University of Applied Sciences Schweinfurt. The team consist of 45 motivated students building the 12th racecar. Our goal for our first electric vehicle is to finish every endurance we attend. This season we are happy to participate at FSCz and FSG.

Engineering Design Priorities:

keepitsimple durability maintenance

Car Specifications

General

Frame Construction	Tubular space frame
Material	E235+C
Overall Length (mm)	3069
Overall Width (mm)	1462
Overall Height (mm)	1135
Wheelbase (mm)	1575
Track Front (mm)	1200
Track Rear (mm)	1175
Weight Front (kg)	154
Weight Rear (kg)	166
Suspension	Double Wishbone
Tyres	18.0x7.5-10, Hoosier R25B
Wheels	7.0x10, 22mm offset, 1 pc Mg Rim
Drive Type	Optibelt DELTA CHAIN Carbon 896 8MDC
Differential	limited slip differential (Drexler) 50Nm
Cooling	Twin side pod mounted radiators with controlled electric fans
Brake System	4-Disk system, floating self developed brake rotors, front: 4pistons, rear: 2pistons
Electronics	multifunctional steering wheel, datalogger, self design life telemetry

Powertrain

Number of Motors	1
Motor Location	Rear
Max Motor Power	100 kW
Motor Type	Enstroj - EMRAX 228 HV LC
Max Motor RPM	5000
Motor Controller	TTZ-EMO FENG
Max System Voltage (V)	587
Electrode Materials	Li-Ion (LiNiMnCoO2)
Accumulator Capacity	7,75
Transmission Ratio Primary	3,5
Transmission Ratio Secondary	1
