Team Details
Bern Racing Team
| University | Bern University of Applied Sciences
CH Bern UAS short 927 |
 |
|---|---|---|
| Location | Bern, Switzerland | |
| Homepage | https://www.bernracingteam.ch/ | |
| Social Media |

|
|
| Short Link | tid.fsg.one/664 | |

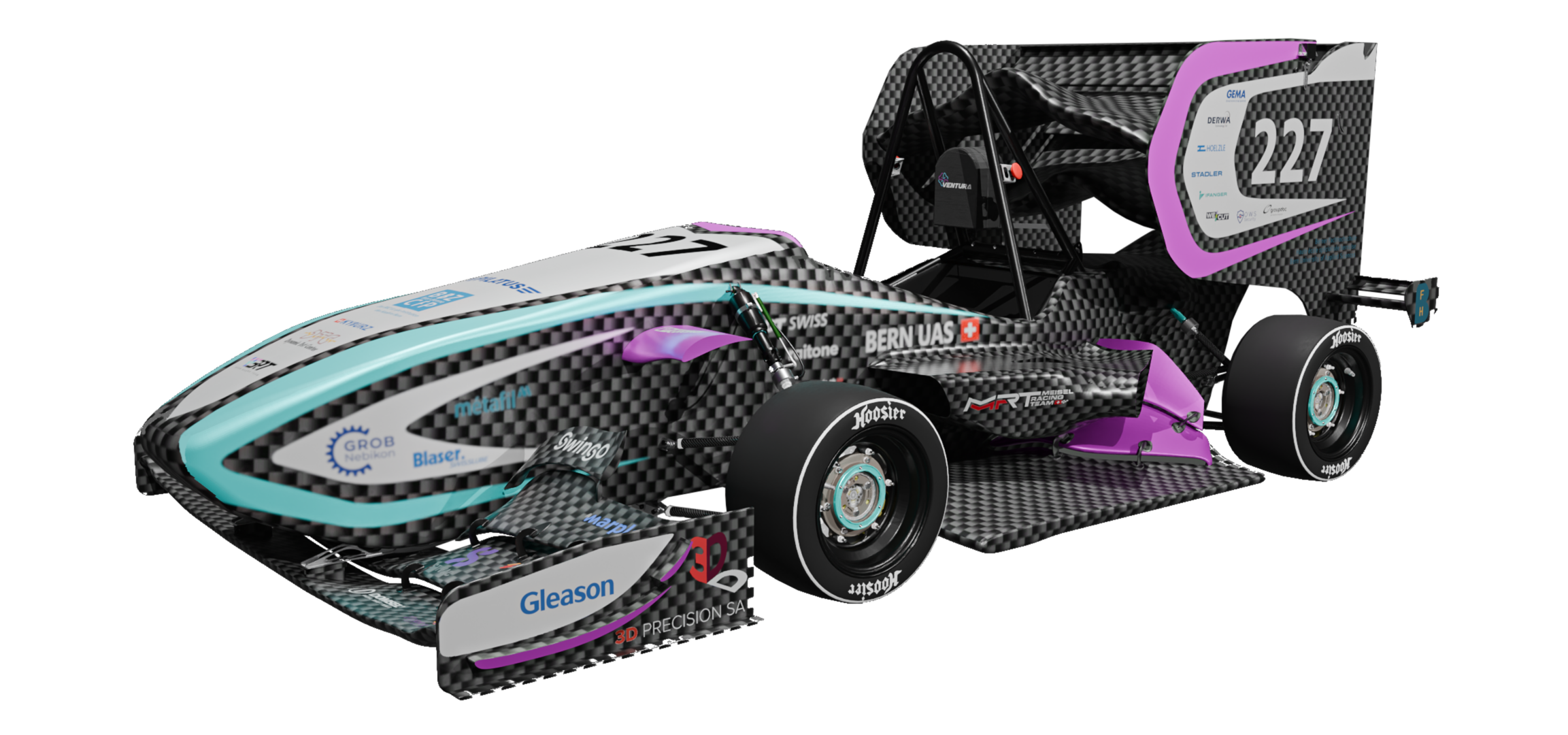

| Event Details | car 227 - active | |
Team Description
Bern Racing Team is the Formula Student team of Bern University of Applied Sciences in Biel, Switzerland.
We are working on our 5th electrically powered race car.
Our team exists since 2014 under the name BFS and is the second oldest Formula Student team in Switzerland
Event Profile
Past Events

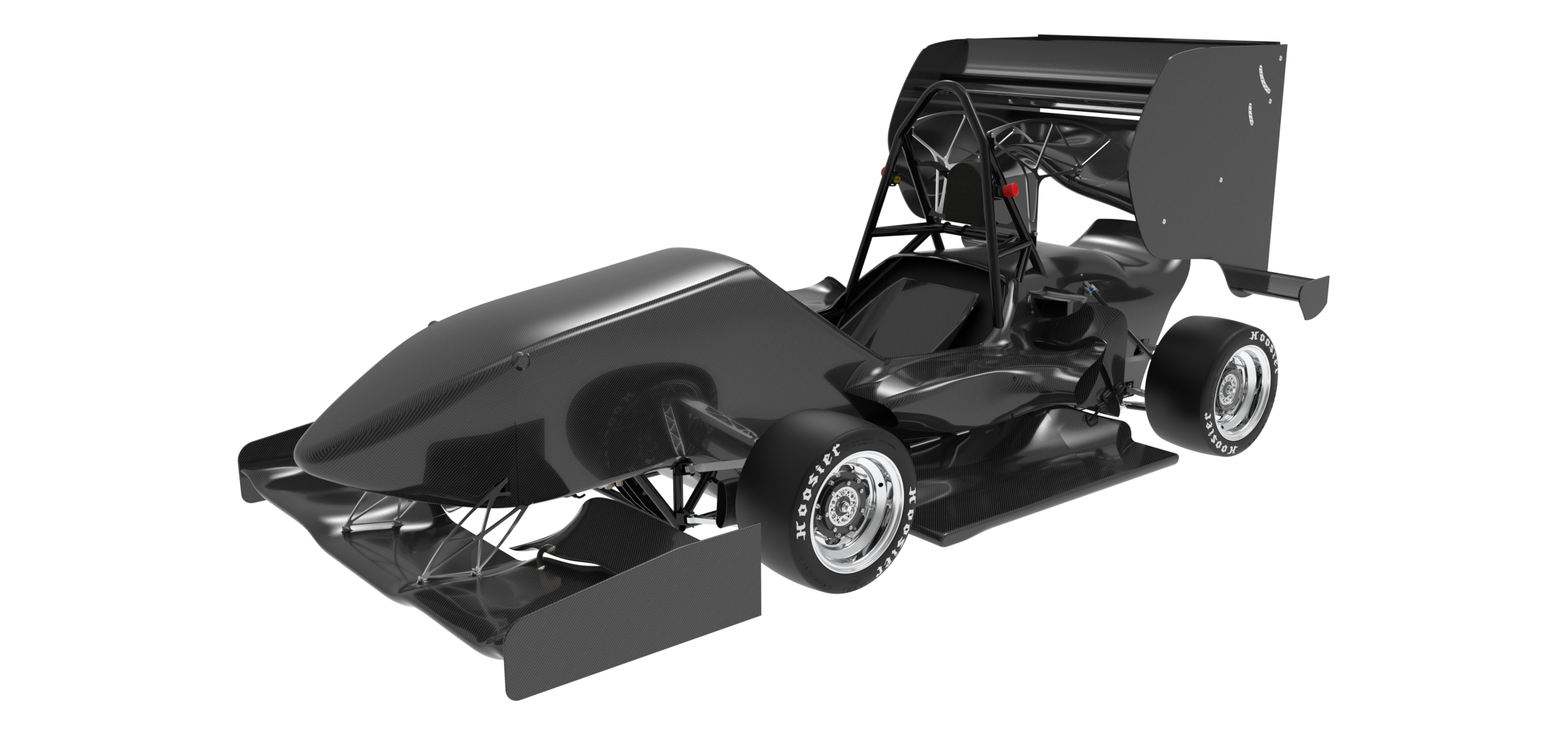

2025
Info
This season, we’ve rethought our entire concept while keeping our core architecture: a four-wheel-drive system with a steel tubular frame. Instead of evolving last year’s car, we designed every assembly to fit a unified vision from the start. From packaging to suspension, each choice serves the overall concept. The result is not just progress, it’s a breakthrough. We’re proud to present our boldest car yet: Tremola.
Engineering Design Priorities:
Aerodynamics
Vehicle dynamics
Ergonomics
Data gathering
Manufacturing quality
Cooling overhaul
Car Specifications
General
| Frame Construction | Hybrid tubular steel space frame with bolted carbon backplate |
|---|---|
| Material | EN 10305-5 steel round tubing |
| Overall Length (mm) | 2970 |
| Overall Width (mm) | 1422 |
| Overall Height (mm) | 1191 |
| Wheelbase (mm) | 1528 |
| Track Front (mm) | 1208 |
| Track Rear (mm) | 1208 |
| Weight Front (kg) | 145 |
| Weight Rear (kg) | 155 |
| Suspension | Double unequal length A-arm. Front pull rod / Rear push rod mode decoupled |
| Tyres | 16.0x7.5-10, Hoosier R20 |
| Wheels | 7.5x10, 36.2mm offset, 1pc Al rim |
| Drive Type | n/a |
| Differential | Electronic |
| Cooling | Single coolant system with upper sidepod mounted radiators and electric fans |
| Brake System | 4-Disk system, self developed rotors with 195mm diameter, adjustable brake balance |
| Electronics | Traction control, self-developed telemetry with UPD streaming via LTE, DC/DC converter |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | In-hub |
| Max Motor Power | 35.366kW per motor |
| Motor Type | IPM |
| Max Motor RPM | 20.000 |
| Motor Controller | Bucher EMDAG2603603U00010 |
| Max System Voltage (V) | 599 |
| Electrode Materials | NMC532+Gr |
| Accumulator Capacity | 6.789kWh |
| Transmission Ratio Primary | 11:84 |
| Transmission Ratio Secondary | n/a |

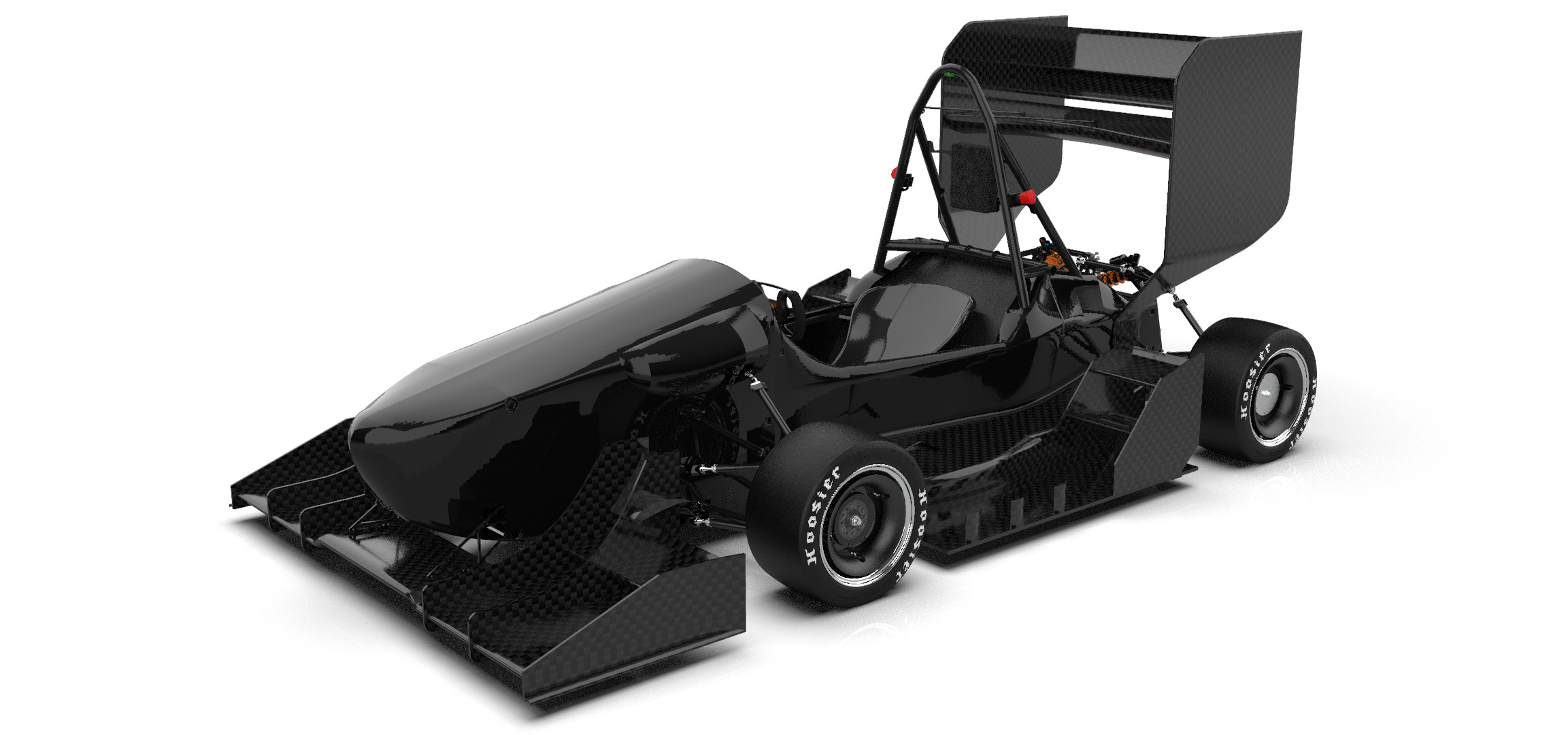

2024
Info
This season we have the opportunity to build on last year's reliable and fast car. Our core concept remains the same: a four-wheel-drive wheel-hub powertrain with a steel-frame tubular chassis. With a strong base, we can now focus on improving performance. Our efforts include reducing weight, optimising vehicle dynamics, improving ergonomics and rigorous testing. We've also introduced a traction control system to further enhance the car's capabilities. We proudly present Sajetta, our 2024 car.
Engineering Design Priorities:
Performance
Weight saving
Reliability
Testing
Traction Control
Functionality
Car Specifications
General
| Frame Construction | Hybrid tubular steel space frame with bolted carbon backplate |
|---|---|
| Material | E235+C |
| Overall Length (mm) | 2871 |
| Overall Width (mm) | 1465 |
| Overall Height (mm) | 1184 |
| Wheelbase (mm) | 1566 |
| Track Front (mm) | 1240 |
| Track Rear (mm) | 1233 |
| Weight Front (kg) | 162 |
| Weight Rear (kg) | 146 |
| Suspension | 2 unequal length A-arm. Push rod actuated Fr: longit Rr: horiz oriented spring and damper. |
| Tyres | 16x7.5-10 Hoosier R20 |
| Wheels | 7.5x10, 36.2mm offset, 1pc Al Rim front and rear |
| Drive Type | self-developed planetary gearbox |
| Differential | Electronic |
| Cooling | Single coolant system with sidepod mounted radiators and aluminium cooling tubes |
| Brake System | 4-Disk system, 193mm outer diam. Rotors, adjustable brake balance |
| Electronics | Traction Control, 5'' Touchscreen Dashboard, dSpace ECU, 3D printed cases instead of steel |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | All Wheel Drive |
| Max Motor Power | 35,366 per motor |
| Motor Type | Fischer Elektromotoren GmbH, TI085 |
| Max Motor RPM | 20000 |
| Motor Controller | Bucher EMDAG2603603U00010 |
| Max System Voltage (V) | 599V |
| Electrode Materials | NMC532+Gr |
| Accumulator Capacity | 6,789kWh |
| Transmission Ratio Primary | 1:11.84 |
| Transmission Ratio Secondary | n/a |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.08 | 84 |
25. |
16. |
37. |
46. |
29. |
- |
31. |
- |
18. |
18. |
20. |
0.00 |
432.01 |
|
| 2025.08 | 53 |
22. |
13. |
39. |
23. |
20. |
- |
20. |
- |
13. |
- |
- |
0.00 |
341.56 |
|
| 2025.07 | 15 |
6. |
1. |
10. |
8. |
5. |
- |
5. |
- |
6. |
- |
- |
0.00 |
304.67 |
|
| 2024.09 | 34 |
11. |
5. |
23. |
13. |
13. |
- |
9. |
- |
18. |
10. |
10. |
0.00 |
429.95 |
|
| 2024.08 | 79 |
20. |
4. |
46. |
34. |
17. |
- |
23. |
- |
39. |
14. |
14. |
0.00 |
425.99 |
|
| 2024.08 | 32 |
15. |
18. |
17. |
13. |
8. |
- |
16. |
- |
12. |
- |
- |
0.00 |
294.49 |
|
| 2024.07 | 15 |
5. |
4. |
10. |
6. |
2. |
- |
3. |
- |
- |
- |
- |
0.00 |
330.24 |
|
| 2023.08 | 29 |
9. |
22. |
21. |
25. |
14. |
- |
12. |
- |
9. |
9. |
6. |
-15.00 |
573.30 |
|
| 2023.08 | 35 |
5. |
33. |
28. |
12. |
10. |
- |
5. |
- |
6. |
5. |
3. |
0.00 |
521.44 |
|
| 2023.07 | 29 |
11. |
10. |
22. |
10. |
5. |
- |
7. |
- |
9. |
- |
- |
0.00 |
287.04 |
|
| 2022.09 | 38 |
28. |
27. |
34. |
32. |
- |
- |
7. |
- |
10. |
- |
- |
0.00 |
210.60 |
|
| 2022.08 | 25 |
16. |
21. |
15. |
22. |
15. |
- |
15. |
- |
14. |
9. |
- |
0.00 |
243.10 |
|
| 2021.08 | 14 |
11. |
6. |
13. |
10. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
191.00 |
|
| 2021.07 | 32 |
32. |
31. |
- |
- |
- |
- |
- |
- |
- |
- |
- |
0.00 |
11.80 |
|
| 2019.08 | 39 |
35. |
21. |
33. |
31. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
147.00 |
|
| 2017.08 | 30 |
25. |
27. |
13. |
23. |
23. |
- |
- |
- |
21. |
- |
- |
0.00 |
209.00 |
|
| 2017.08 | 19 |
16. |
19. |
15. |
18. |
- |
- |
- |
- |
- |
- |
- |
-5.00 |
154.90 |
|
| 2015.09 | 20 |
20. |
19. |
19. |
18. |
- |
- |
- |
- |
- |
- |
- |
-50.00 |
66.10 |
|
| x 18 | |||||||||||||||
