Team Details

eMOTION RACING HRW

University Hochschule Ruhr West - UAS
DE Mülheim a.d.R. HRW short 883
team logo
LocationMülheim a.d.R., Germany
Homepagehttps://emotion-racing.de/
Social Media LinkedIn Instagram facebook
Short Linktid.fsg.one/628

Event Profile

Past Events

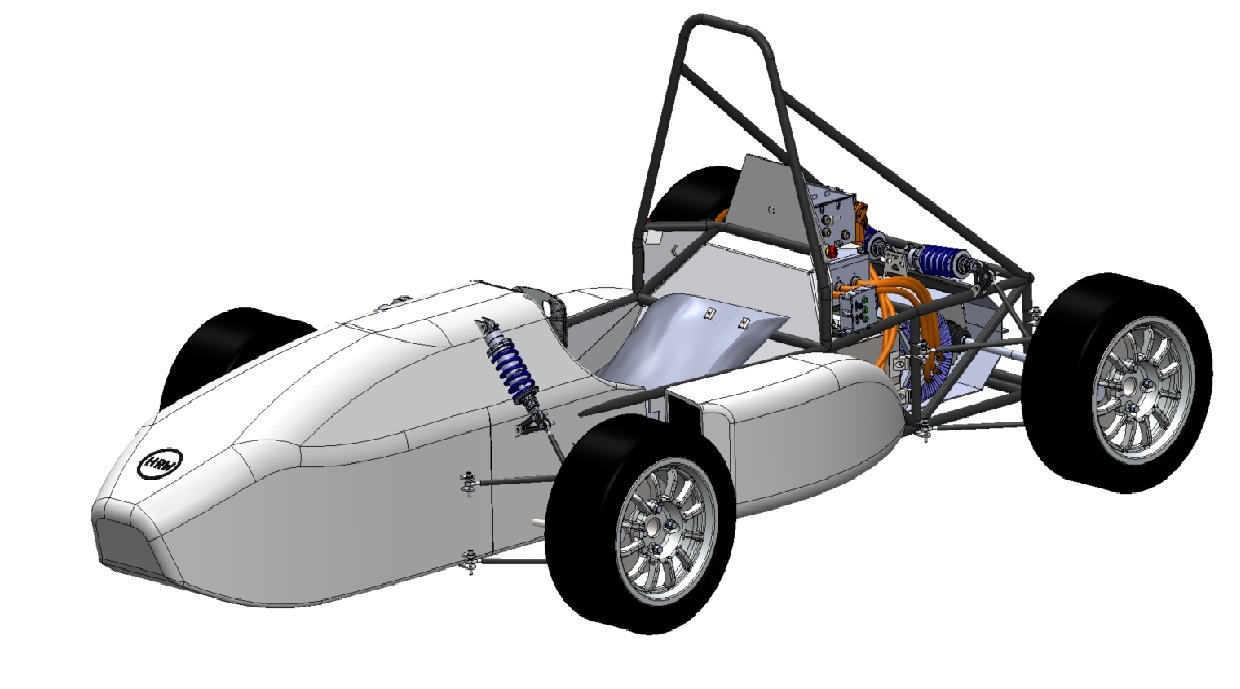

Car 119 – 2018
2018
Car #119
Info
The e-Motion Racing Team HRW consists of 30 team members who built the third electric car from the team. The new seasons car which is named “EM03” is designed and constructed by our young professional team members. The focus was on a low weight and a solid general concept to take the maximum out of the car. Locking forward to a great competition in Hockenheim.
Car Specifications
General
Frame Construction Tubular Steel Frame
Material S355J2H
Overall Length (mm) 2920
Overall Width (mm) 1579
Overall Height (mm) 1146
Wheelbase (mm) 1650
Track Front (mm) 1409
Track Rear (mm) 1423
Weight Front (kg) 193
Weight Rear (kg) 145
Suspension Double equal length A-Arm, Pushrod, one bellcrank, steel spring
Tyres 20.5x7.0 R13, Hoosier R25B / 20.5x7.0 R13, Hoosier R25B
Wheels MONO 7x13 ET11 Al Rim / MONO 7x13 ET11 Al Rim
Drive Type chain drive
Differential Clutch pack limited slip, 1200 Nm maximum torque
Cooling Left side mounted radiator
Brake System 4-Disk system, each with 2 pistion calippers, adjustable brake balance
Electronics Third generation self-developed AMS, cell phone based telemetry system
Powertrain
Number of Motors 1
Motor Location Rear middle
Max Motor Power 80
Motor Type EMRAX 228
Max Motor RPM 5170
Motor Controller Unitek Bamocar D3
Max System Voltage (V) 400
Electrode Materials LiCoO2
Accumulator Capacity 6.00
Transmission Ratio Primary 1:2
Transmission Ratio Secondary n/a

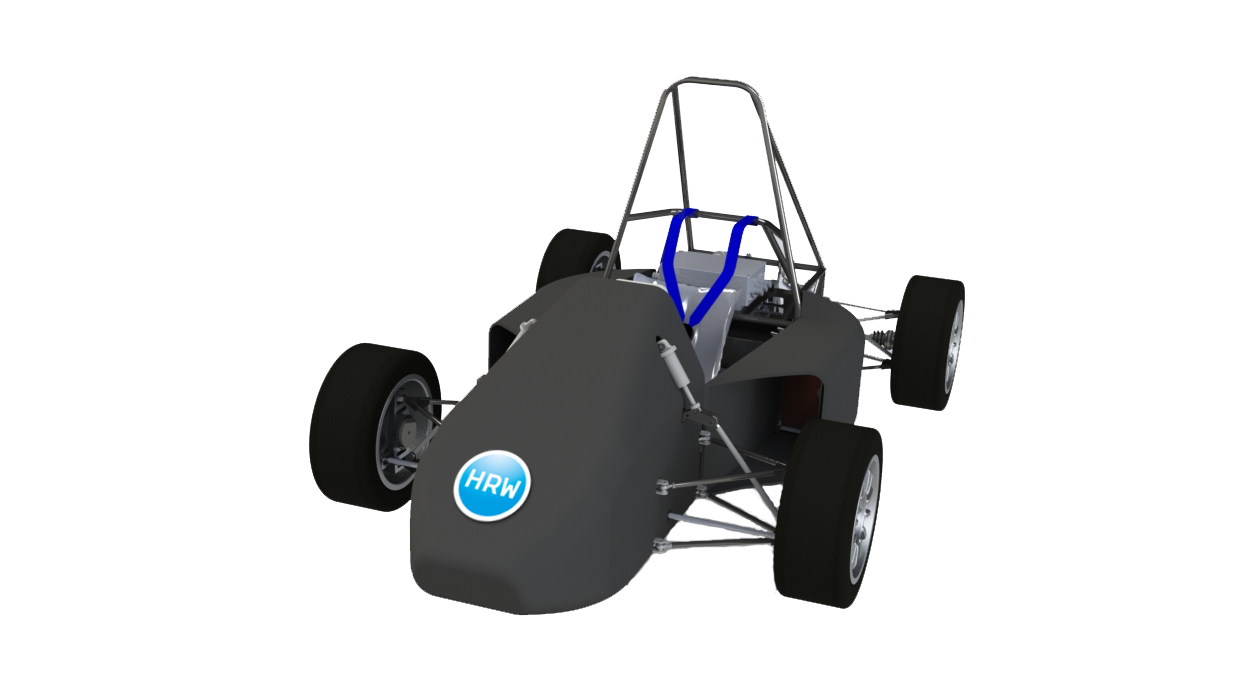

Car 119 – 2017
2017
Car #119
Info
The eMotion Racing HRW team consists of thirty students of different MINT-disciplines. In teamwork the electrical racing vehicle ”EM02” was designed and constructed by our young, passionate engineers. The main focus was on low weight, innovative designed electronics and a solid general concept to provide the outstanding driving experience.
Engineering Design Priorities:
Rule compliance Robust Simple Dynamics Weight
Car Specifications
General
Frame Construction Tubular Steel Frame
Material S355J2H
Overall Length (mm) 2602
Overall Width (mm) 1619
Overall Height (mm) 1183
Wheelbase (mm) 1655
Track Front (mm) 1409
Track Rear (mm) 1423
Weight Front (kg) 154
Weight Rear (kg) 174
Suspension Double unequal length A-Arm. Push rod actuated vertical oriented spring and damper.
Tyres 20.5x7.0 R13, Hoosier R25B / 20.5x7.0 R13, Hoosier R25B
Wheels MONO 7x13 ET11 AL Rim / MONO 7x13 ET11 AL Rim
Drive Type 10B1 5/8 x 3/8
Differential Clutch pack limited slip, 1200 Nm maximum torque
Cooling Side mounted raditors for direct water cooling of the battery pack, inverter and electric drive.
Brake System 4-Disk system each with 2 pistion calipers, adjustable brake balance
Electronics Selfdesigned Accumulator Management System, CANopen compliant CAN-BUS integration
Powertrain
Number of Motors 1
Motor Location Rear Left
Max Motor Power 55kW
Motor Type Enstroj EMRAX 228 MV LC
Max Motor RPM 5.500
Motor Controller Unitek Bamocar D3 400/400
Max System Voltage (V) 400V
Electrode Materials Li-Ion NCA
Accumulator Capacity 4,32kWh
Transmission Ratio Primary 1:2
Transmission Ratio Secondary n/a

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2025.08
FS ES
37
29.
15.
29.
31.
-
-
-
-
-
-
-
-11.00
153.80
2023.08
FS ES
19
16.
16.
16.
16.
-
-
-
-
-
-
-
0.00
137.10
2023.07
FSAE IT
29
27.
27.
-
-
-
-
-
-
-
-
-
0.00
15.31
2018.12
FSAE AU
14
10.
10.
14.
10.
6.
-
7.
-
10.
8.
-
0.00
235.10
2018.08
FS DE
39
35.
32.
39.
36.
21.
-
21.
-
22.
10.
-
-45.00
99.73
2018.07
FSAE IT
18
18.
16.
17.
15.
8.
-
7.
-
8.
8.
-
-100.00
76.30
2017.07
FSAE IT
18
15.
18.
11.
17.
8.
-
8.
-
8.
9.
-
0.00
141.80
2016.07
FSAE IT
20
19.
17.
17.
19.
-
-
-
-
-
-
-
0.00
105.17
