Team Details
Squadra Corse PoliTo
| University | Politecnico di Torino
IT Turin PT short 111 |
![]() |
|---|---|---|
| Location | Turin, Italy | |
| Homepage | https://www.squadracorsepolito.com/ | |
| Social Media |
|
|
| CV Team | Squadra Corse Politecnico di Torino | |
| DV Team | Squadra Corse Driverless PoliTO | |
| Short Link | tid.fsg.one/444 | |

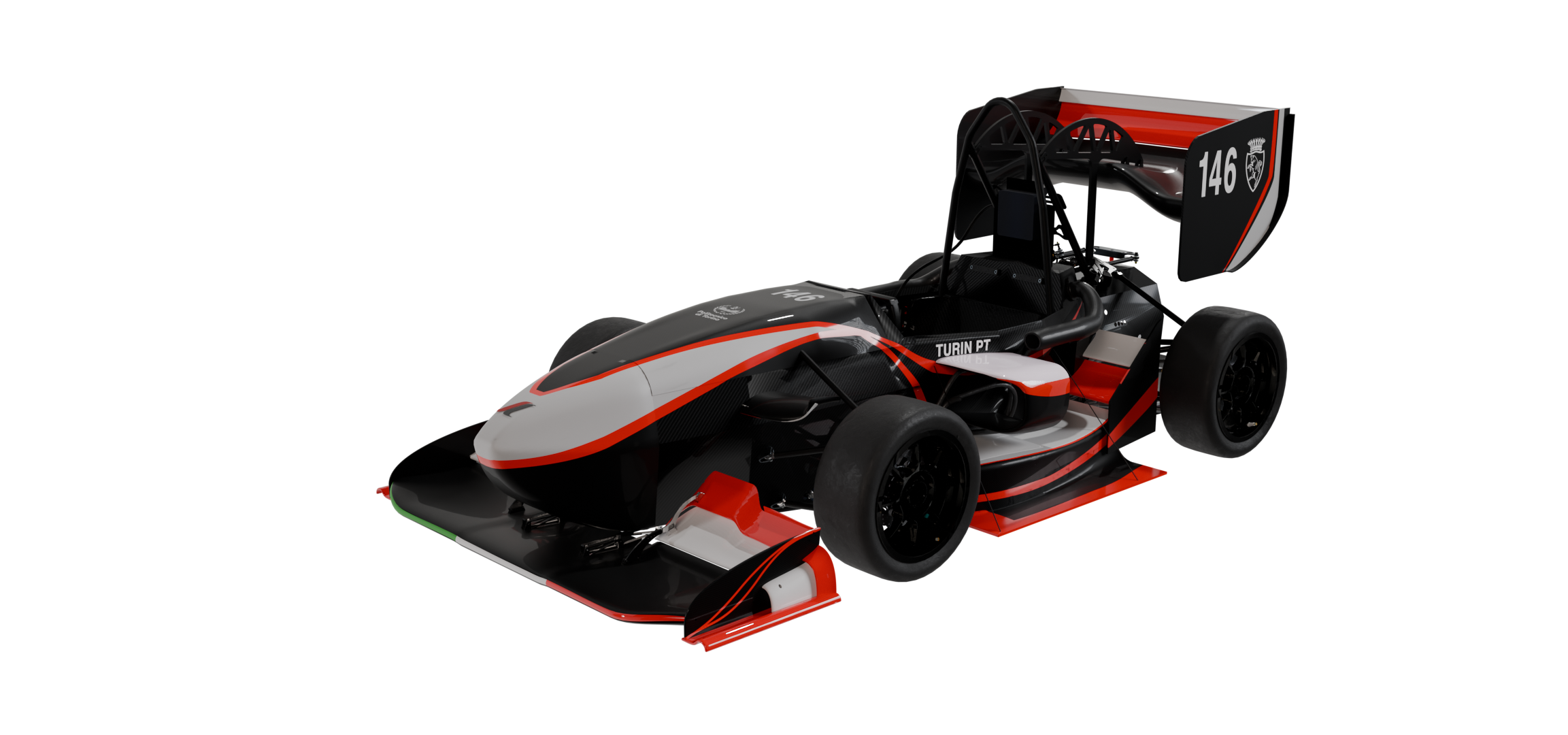

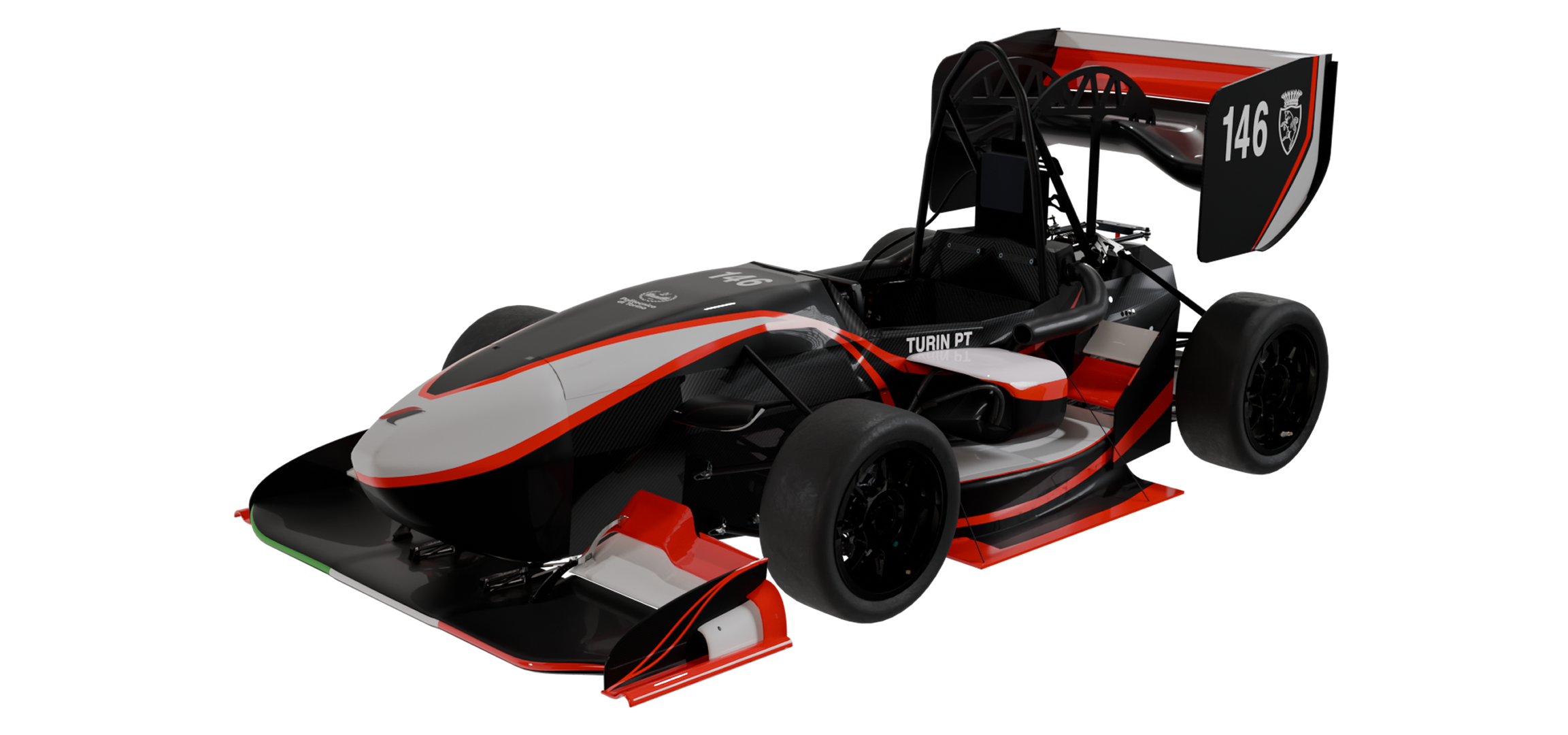

| Event Details | car 146 - active | |
Team Description
SquadraCorse is a team founded in winter 2004 by 10 Turin Polytechnic University students who were keen on engineering and motorsport and who decided to pool their knowledge to begin working on this project. Our objective is to produce, each year, a single-seat competition car in order to take part in the Formula SAE competition. Currently, our team is made up of students from 10 different engineering courses and from 12 different nationalities. Since our birth in 2005, we have steadily but dramatically gained experience, achieving great success both in Europe and overseas, until, in 2012, we have switched from an internal combustion engine to a full electric powertrain, the first team to do so in Italy.
Event Profile
Past Events
2024
Info

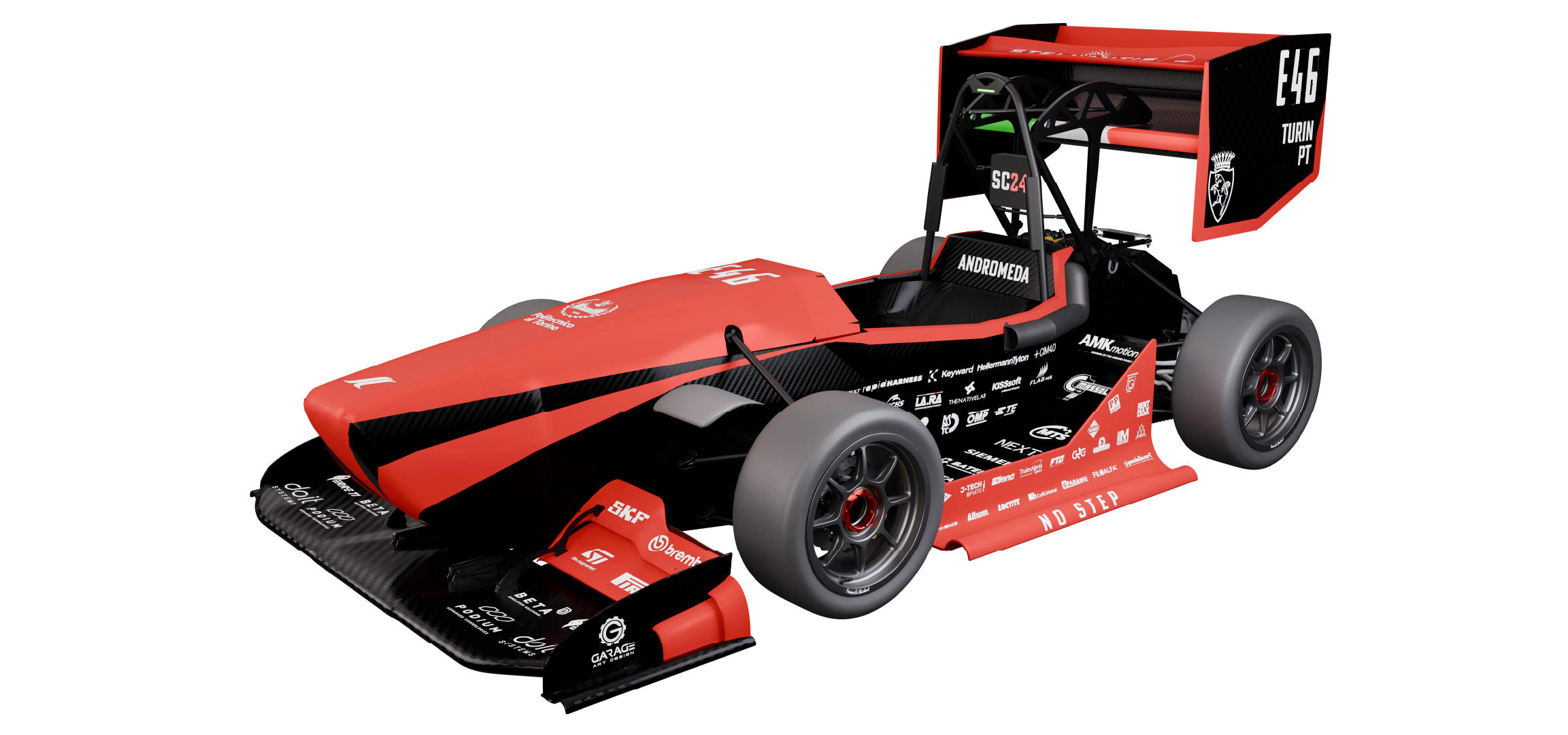

Squadra Corse PoliTO was founded in 2004, being one of the oldest Italian FS Team and celebrating its 20th anniversary this year.Since 2012, Squadra Corse has been competing in the EV class. The SC24 model features a new aerodynamic package and a significantly more advanced control system. We increased the focus on reliability and driver feeling, thanks to a long testing season.Last year we couldn't attend competitions, but now we are back on track and more ready then ever to race!
Engineering Design Priorities:
Software Development
Aerodynamics
Vehicle Dynamics - Tires
Chassis
Suspensions
Driver Interfaces
Car Specifications
General
| Frame Construction | CFRP monocoque |
|---|---|
| Material | High strength / high modulus CFRP with aluminum and Nomex honeycomb core |
| Overall Length (mm) | 2913 |
| Overall Width (mm) | 1492 |
| Overall Height (mm) | 1180 |
| Wheelbase (mm) | 1525 |
| Track Front (mm) | 1202 |
| Track Rear (mm) | 1200 |
| Weight Front (kg) | 133 |
| Weight Rear (kg) | 145 |
| Suspension | Double unequal length A-Arm. Push rod actuated longitudinally oriented spring and damper |
| Tyres | Pirelli 185/40 R13 |
| Wheels | OZ 7x13 Magnesium rim |
| Drive Type | Two stage planetary gearbox |
| Differential | n/a |
| Cooling | Radiator mounted on diffuser with electric fans, thermostatically controlled |
| Brake System | 4-disk system, self developed rotors, Brembo calipers, adjustable brake balance |
| Electronics | Multifunctional steering wheel, live telemetry, LCD dashboard |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Mounted on each upright |
| Max Motor Power | 35 kW each |
| Motor Type | AMK DD5-14-10-POW |
| Max Motor RPM | 20000 |
| Motor Controller | AMK KW26-S5-FSE-4Q 2 |
| Max System Voltage (V) | 574V |
| Electrode Materials | LiPo |
| Accumulator Capacity | 7,72 kWh |
| Transmission Ratio Primary | 1:4.83 |
| Transmission Ratio Secondary | 1:2.83 |
2022
Info

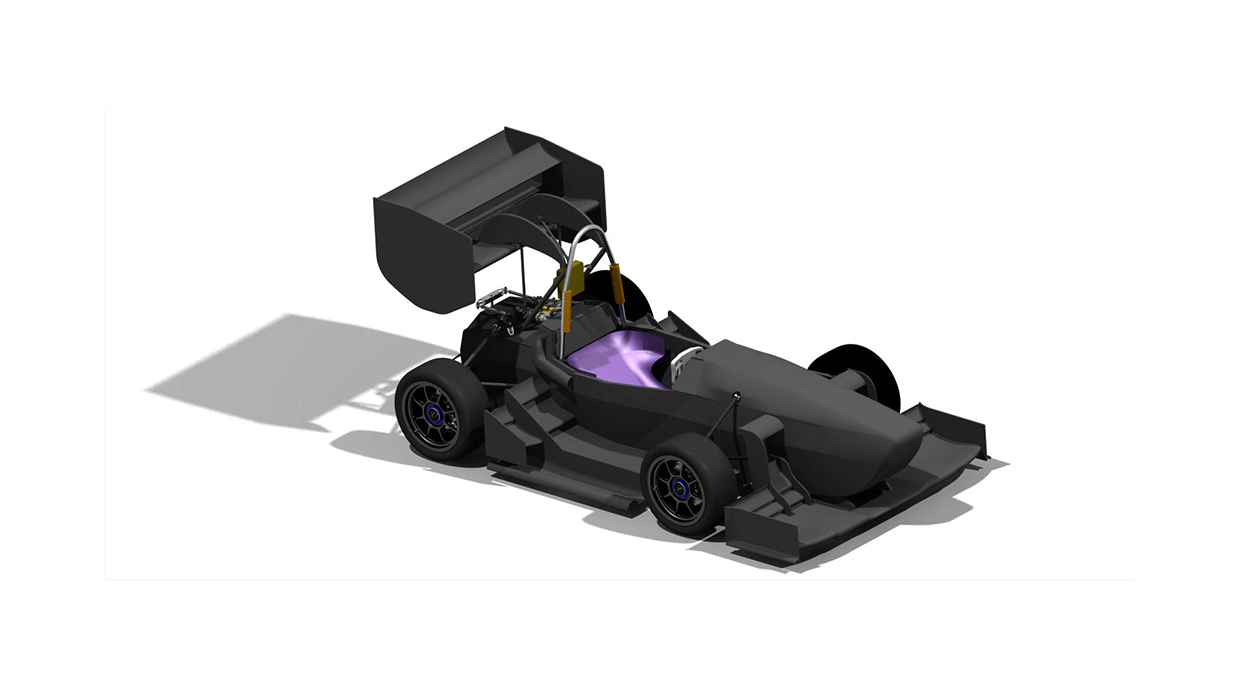

Squadra Corse PoliTO was founded in 2004, being one of the oldest Italian Formula Student Team. In 2012 switched to fully electric powertrain, making this the 10th year in the EV class. Compared to previous cars, SC22 features a way better performing aerodynamic package and a significantly more advanced control system. This year we focused a lot on reliability and driver feeling, to get the most out of our testing phase. It is also the first time at FSG in 9 years, so we are thrilled to be here!
Engineering Design Priorities:
Control system
Fuzzy Logic controller
CFD validation
Suspension adjustment
Car Specifications
General
| Frame Construction | CFRP monococque |
|---|---|
| Material | High strength / high modulus CFRP with aluminum and Nomex honeycomb core |
| Overall Length (mm) | 2913 |
| Overall Width (mm) | 1451 |
| Overall Height (mm) | 1180 |
| Wheelbase (mm) | 1525 |
| Track Front (mm) | 1202 |
| Track Rear (mm) | 1202 |
| Weight Front (kg) | 126 |
| Weight Rear (kg) | 146 |
| Suspension | Double A-Arm. Push rod actuated horizontally oriented spring and damper |
| Tyres | 185/40 R13 S, Pirelli / 185/40 R13 S, Pirelli |
| Wheels | OZ 7x13 Magnesium / OZ 7x13 Magnesium |
| Drive Type | Two stage planetary gearbox |
| Differential | n/a |
| Cooling | Radiator mounted on diffuser with electric fans, thermostatically controlled |
| Brake System | 4-disk system, self developed rotors, Brembo calipers, adjustable brake balance |
| Electronics | Multifunctional steering wheel, live telemetry |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Mounted on each upright |
| Max Motor Power | 35 kw each |
| Motor Type | AMK DD5-14-10-POW |
| Max Motor RPM | 20000 |
| Motor Controller | AMK KW26-S5-FSE-4Q 2 |
| Max System Voltage (V) | 574 |
| Electrode Materials | LiPo |
| Accumulator Capacity | 7.72 |
| Transmission Ratio Primary | 1:4.83 |
| Transmission Ratio Secondary | 1:2.83 |
2013
Info

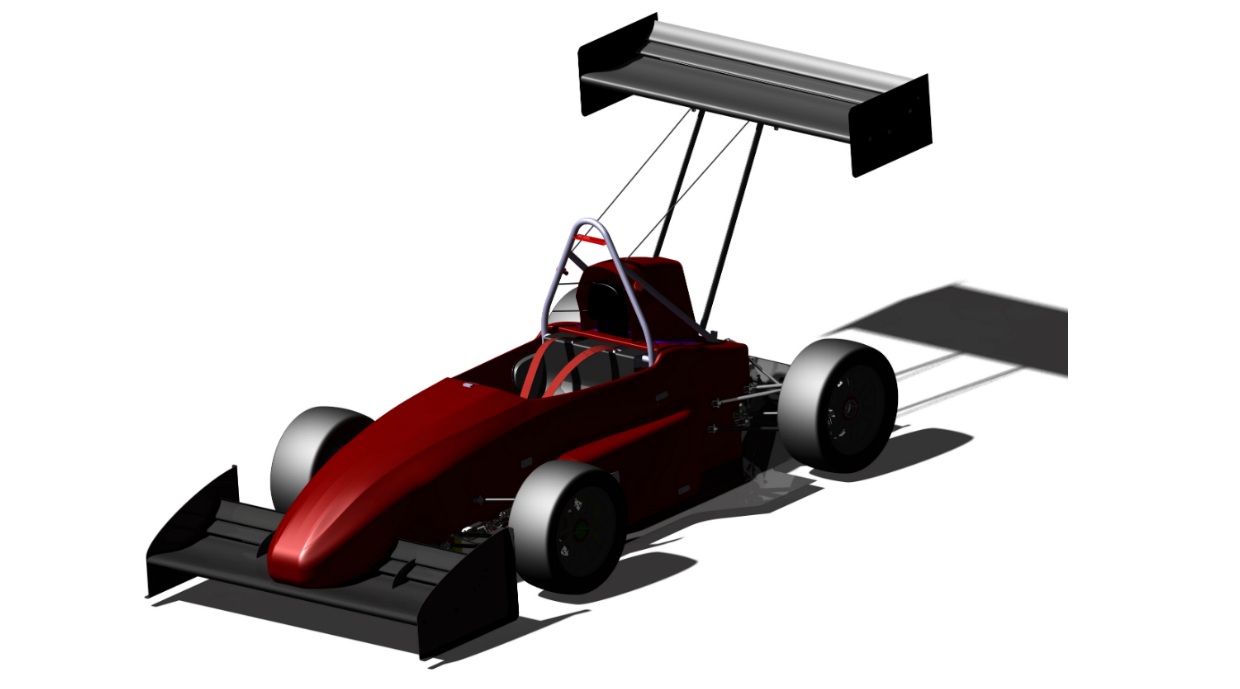

SquadraCorse of Politecnico di Torino was founded in 2004 and untill 2011 has manufactured internal combustion engines prototypes. After a short but successful experience in 2010 with a hybrid vehicle, finally in 2012 the team switched from the internal combustion engine to the full electric propulsion. When last year the SC12e came to life it was the first electric prototype ever produced by an Italian Formula SAE team and after the successful season the team carried on the electric project with the SCR. The 2013 team is interdisciplinary and international as always but the organization after the passage to an electric vehicle, has been revised giving more importance to the electrical and electronic division. Several improvements have been adopted for the new vehicle to increase the perfomance and the efficiency; the most important one is the transition from a steel tubular chassis to a carbon fiber monocoque. The SCR has two independent motors with a new double stage transmission.
Car Specifications
General
| Frame Construction | One piece Composite monocoque with anti rollbar structures |
|---|---|
| Material | Carbon fiber with Aluminium Honeycomb core / Steel Tubular anti rollbars |
| Overall Length (mm) | 3194 |
| Overall Width (mm) | 1433 |
| Overall Height (mm) | 1472 |
| Wheelbase (mm) | 1620 |
| Track Front (mm) | 1210 |
| Track Rear (mm) | 1210 |
| Weight Front (kg) | 133 |
| Weight Rear (kg) | 157 |
| Suspension | Double unequal length A-Arms. Spring-damper: front pull rods, rear push rods |
| Tyres | 530/180- R13 |
| Wheels | 7.0x13, OZ magnesium wheel, 43mm offset |
| Drive Type | Bevel and spur gears system |
| Differential | n/a |
| Cooling | back mounted radiator |
| Brake System | 4 titanium rotors, adjustable brake balance |
| Electronics | Self developed control units |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | rear right, rear left |
| Max Motor Power | 2x60 kW |
| Motor Type | Magneti Marelli TMG low |
| Max Motor RPM | 16000 |
| Motor Controller | Magneti Marelli |
| Max System Voltage (V) | 400V |
| Electrode Materials | LiPo |
| Accumulator Capacity | 6.9kWh |
| Transmission Ratio Primary | 1:9 |
| Transmission Ratio Secondary | n/a |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.09 | 32 |
25. |
1. |
30. |
5. |
- |
- |
- |
- |
12. |
- |
- |
-80.00 |
161.92 |
|
| 2025.08 | 37 |
16. |
3. |
16. |
11. |
- |
- |
- |
- |
- |
- |
- |
-23.00 |
214.30 |
|
| 2024.09 | 34 |
13. |
13. |
15. |
12. |
11. |
- |
10. |
- |
15. |
12. |
- |
0.00 |
398.85 |
|
| 2024.08 | 79 |
48. |
63. |
68. |
34. |
21. |
- |
18. |
- |
39. |
- |
- |
0.00 |
222.53 |
|
| 2024.07 | 38 |
28. |
29. |
28. |
18. |
- |
- |
- |
- |
- |
- |
- |
-10.00 |
187.10 |
|
| 2022.08 | 25 |
15. |
8. |
3. |
8. |
16. |
- |
4. |
- |
- |
- |
- |
-70.00 |
265.50 |
|
| 2022.08 | 63 |
50. |
52. |
49. |
30. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
182.61 |
|
| 2022.07 | 26 |
5. |
6. |
10. |
2. |
2. |
- |
7. |
- |
2. |
9. |
- |
0.00 |
420.77 |
|
| 2021.10 | 18 |
13. |
9. |
13. |
4. |
- |
- |
- |
- |
- |
- |
- |
-20.00 |
208.64 |
|
| 2021.08 | 16 |
12. |
13. |
13. |
2. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
250.10 |
|
| 2019.08 | 39 |
14. |
12. |
4. |
16. |
14. |
- |
7. |
- |
7. |
- |
- |
0.00 |
399.40 |
|
| 2019.08 | 15 |
6. |
6. |
2. |
2. |
5. |
- |
4. |
- |
3. |
- |
- |
0.00 |
488.39 |
|
| 2019.07 | 25 |
1. |
16. |
2. |
2. |
2. |
- |
3. |
- |
- |
1. |
1. |
0.00 |
801.94 |
|
| 2018.08 | 38 |
13. |
7. |
25. |
17. |
10. |
- |
9. |
- |
12. |
13. |
11. |
0.00 |
509.60 |
|
| 2018.07 | 18 |
3. |
15. |
3. |
4. |
4. |
- |
4. |
- |
4. |
3. |
4. |
0.00 |
700.41 |
|
| 2017.08 | 30 |
23. |
21. |
25. |
23. |
- |
- |
- |
- |
13. |
- |
- |
0.00 |
239.90 |
|
| 2017.08 | 14 |
5. |
3. |
7. |
8. |
2. |
- |
3. |
- |
2. |
5. |
3. |
0.00 |
755.19 |
|
| 2017.07 | 18 |
3. |
8. |
6. |
5. |
1. |
- |
3. |
- |
2. |
3. |
5. |
-10.00 |
836.76 |
|
| 2016.07 | 20 |
9. |
9. |
4. |
10. |
5. |
- |
5. |
- |
- |
- |
- |
0.00 |
321.04 |
|
| 2015.09 | 20 |
5. |
16. |
18. |
4. |
6. |
- |
12. |
- |
11. |
4. |
6. |
0.00 |
580.92 |
|
| 2015.08 | 18 |
18. |
17. |
17. |
14. |
- |
- |
- |
- |
17. |
18. |
- |
0.00 |
230.00 |
|
| 2014.09 | 20 |
10. |
10. |
7. |
4. |
9. |
- |
12. |
- |
12. |
12. |
- |
0.00 |
320.64 |
|
| 2014.07 | 90 |
61. |
76. |
57. |
21. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
172.40 |
|
| 2013.08 | 40 |
36. |
27. |
21. |
34. |
- |
- |
- |
- |
- |
- |
- |
-15.00 |
164.60 |
|
| 2012.09 | 17 |
3. |
1. |
1. |
3. |
5. |
- |
3. |
- |
1. |
4. |
5. |
0.00 |
867.90 |
|
| 2012.08 | 39 |
5. |
17. |
7. |
11. |
1. |
- |
4. |
- |
12. |
9. |
3. |
0.00 |
791.56 |
|
| 2012.07 | 97 |
68. |
34. |
71. |
48. |
- |
- |
- |
- |
- |
- |
- |
-3.00 |
169.70 |
|
| x 27 | |||||||||||||||
