Team Details

Racetech Racing Team e.V.

University Technische Universität Bergakademie Freiberg
DE Freiberg TU short 69
team logo
LocationFreiberg, Germany
Homepagehttps://racetech-racingteam.de/
Social Media LinkedIn Instagram YouTube facebook X
CV Team Racetech Racing Team TU Bergakademie Freiberg e.V.
Short Linktid.fsg.one/426

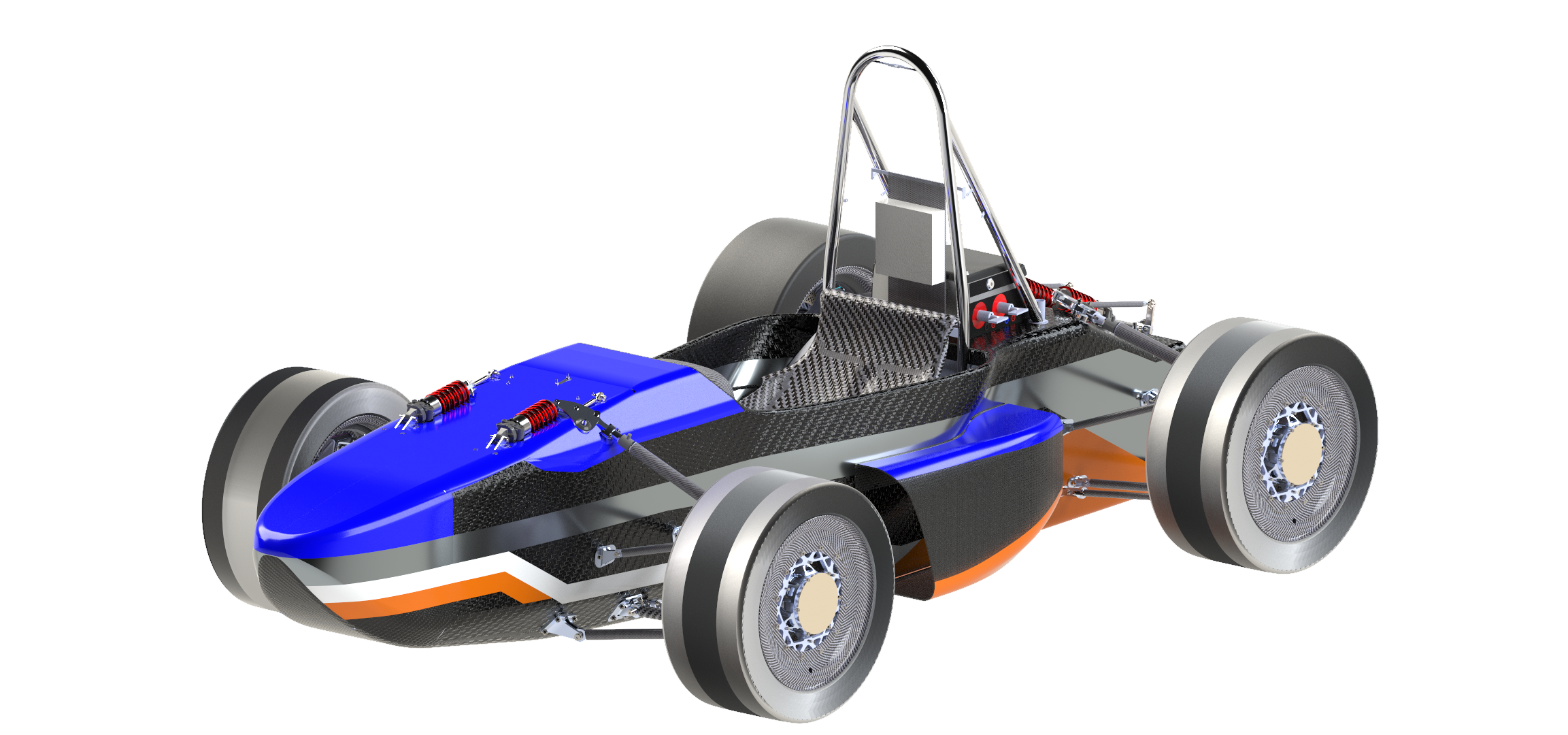

Event Details car 176 - active

Event Profile

Past Events

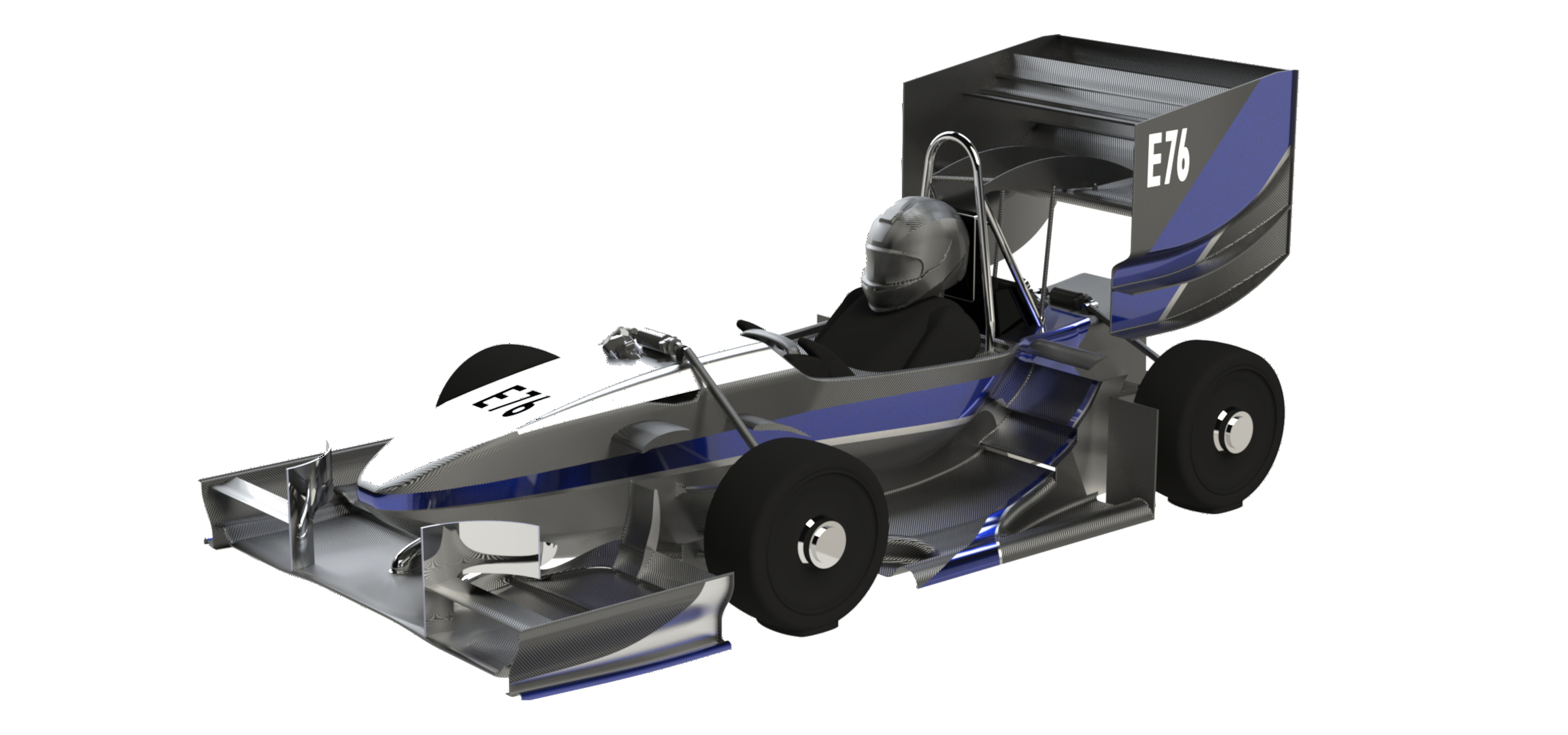

Car 76 – 2024
2024
Car #76
Info
Racetech Racing Team was founded in 2005. This year we are competing with our 15th car, which is our tenth electric vehicle. After building our first all-wheel drive car, with self-developed electric motors last season, the RT15’s big change is our first full carbon fiber monocoque. In line with our continuing focus to reduce our cars weight, we also worked intensely to improve our performance with a further development of our aerodynamic devices.
Engineering Design Priorities:
Schienenersatzverkehr TeamGUSS EDGAR Magnesium
Car Specifications
General
Frame Construction CFRP Monocoque
Material CFRP unidirectional 200gsm, CFRP twill 305gsm, Aluminium Honyecomb
Overall Length (mm) 2938
Overall Width (mm) 1490
Overall Height (mm) 1175
Wheelbase (mm) 1530
Track Front (mm) 1220
Track Rear (mm) 1220
Weight Front (kg) 128
Weight Rear (kg) 134
Suspension Double unequal length A-arms, Pushrod actuated Heave/Roll decoupled dampers
Tyres 205/470 R13, C20 Continental
Wheels 7x13, Hybrid rim:CFRP shell Al center
Drive Type 1,5 stage planetary
Differential wheels driven independently, torque vectoring
Cooling 2 independent circuits for motors and inverters, Sidewing mounted radiators
Brake System 4-Disc system, self developed DMLS Aluminium calipers, adj. brake balance
Electronics self developped Main Control Unit running own driving dynamics control system
Powertrain
Number of Motors 4
Motor Location FR, FL, RR, RL
Max Motor Power 37,1 kW
Motor Type self-developed Racetech M1-VZG
Max Motor RPM 19200
Motor Controller Lenze-Schmidhauser Mobile DCU
Max System Voltage (V) 596V
Electrode Materials LiCoO2, pouch cells
Accumulator Capacity 6,935kWh
Transmission Ratio Primary 1:13,14
Transmission Ratio Secondary -

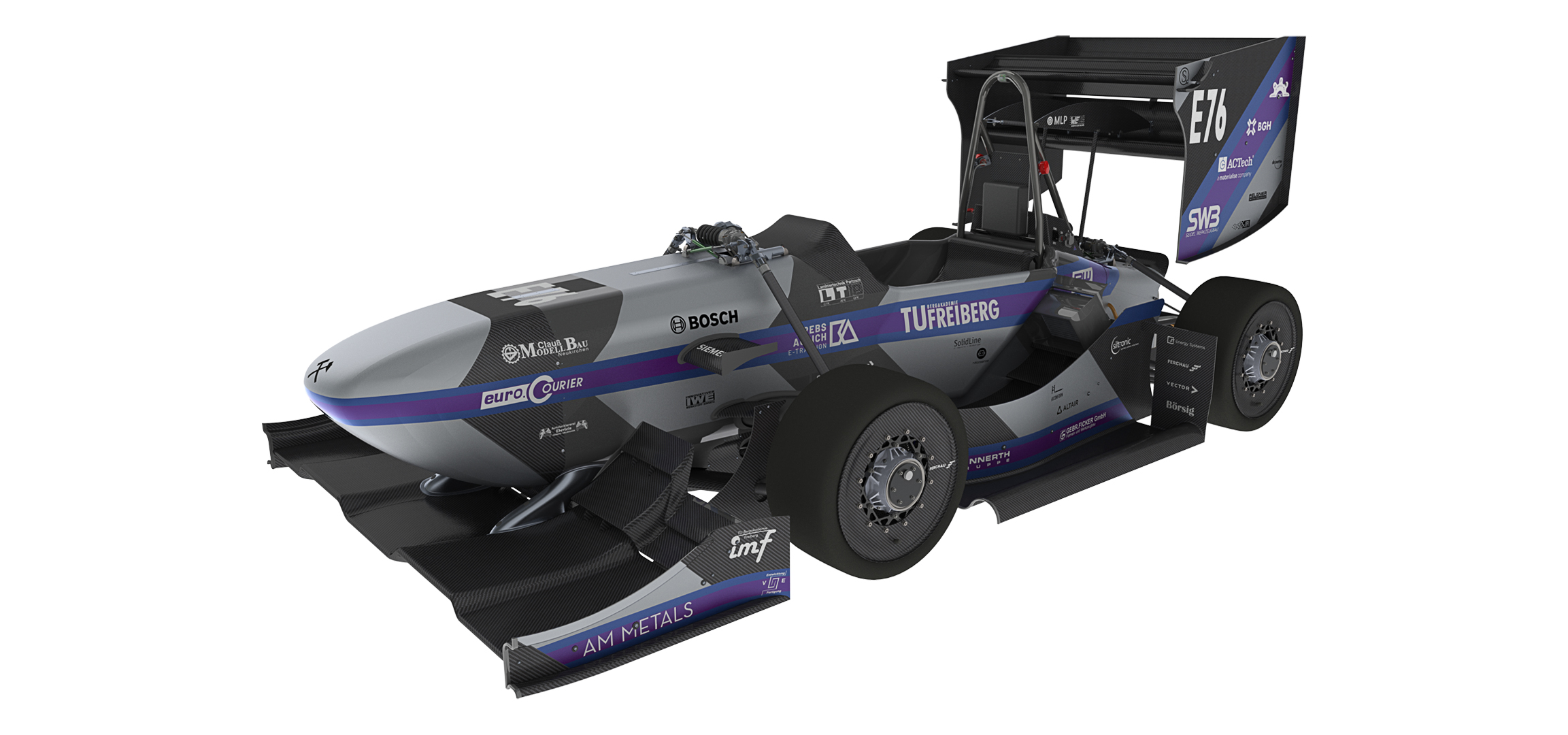

Car 76 – 2023
2023
Car #76
Info
Racetech Racing Team was founded in 2005. After a small hiatus, we will compete with our 14th car this year. After an era of rear-wheel drive cars, the RT14's key design changes are the switch to all-wheel drive and an increased focus on aerodynamics. This resulted in big changes throughout the car's layout and components, which we are proud to show off at this year's events. The RT14 will take on the competition in the Netherlands and Germany. We are looking forward to meeting you in the pits!
Engineering Design Priorities:
Schienenersatzverkehr RTvierZehen AeroistkeineAblage
Car Specifications
General
Frame Construction Hybrid: F/R:aluminium monocoque, M: CFRP monocoque
Material F/R 2017/6082 Al-sheets+ Al-Honeycomb, M: CFRP, Al-Honeycomb/airex rigid foam; Mg/Al Inlays
Overall Length (mm) 3000
Overall Width (mm) 1472
Overall Height (mm) 1170
Wheelbase (mm) 1530
Track Front (mm) 1220
Track Rear (mm) 1220
Weight Front (kg) 135
Weight Rear (kg) 140
Suspension Double unequal length A-arms, Pushrod actuated Heave/Roll decoupled dampers
Tyres 205/470 R13, C20 Continental
Wheels 7x13, Hybrid rim:CFRP shell Al center
Drive Type 1,5 stage planetary
Differential wheels driven independently, torque vectoring
Cooling 2 independent circuits for motors and inverters, Sidewing mounted radiators
Brake System 4-Disc system, self developed DSLM Aluminium calipers, adj. brake balance
Electronics self developed vehicle dynamics control module, Live Telemetry system
Powertrain
Number of Motors 4
Motor Location FR, FL, RR, RL
Max Motor Power 37,1 kW
Motor Type self-developed Racetech M1-VZG
Max Motor RPM 19200
Motor Controller Lenze-Schmidhauser Mobile DCU
Max System Voltage (V) 596V
Electrode Materials LiCoO2, pouch cells
Accumulator Capacity 6,935kWh
Transmission Ratio Primary 1:14,24
Transmission Ratio Secondary -

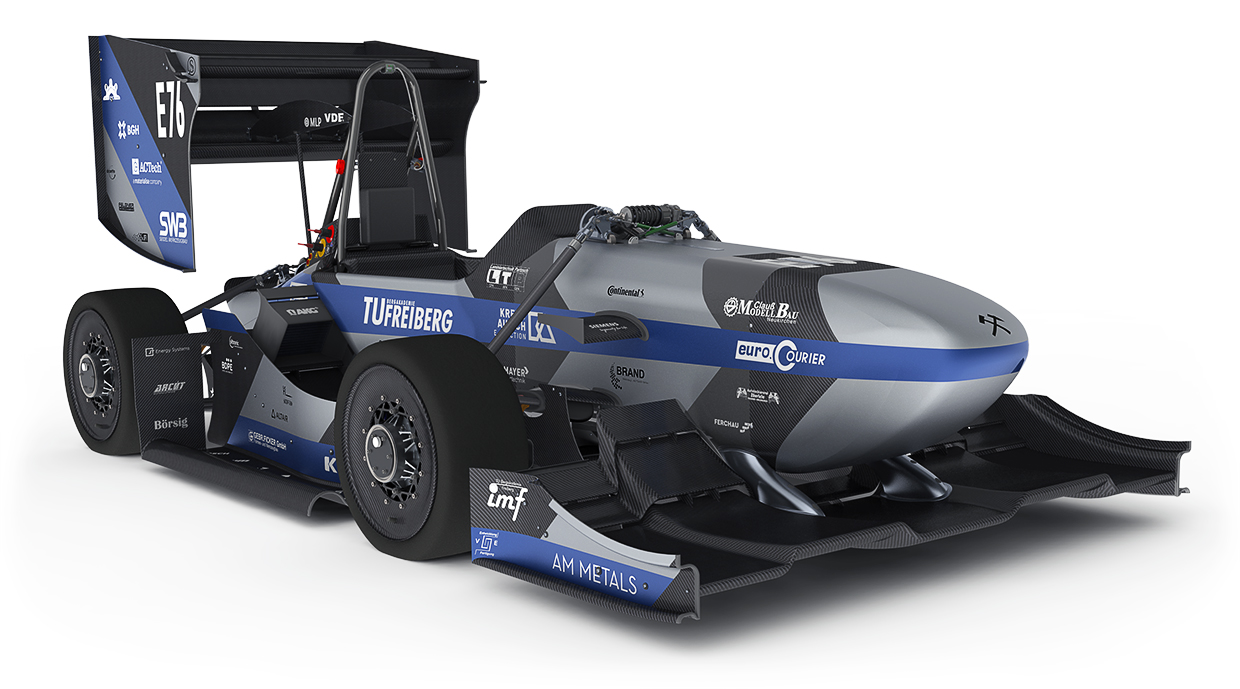

Car 76 – 2022
2022
Car #76
Info
Racetech Racing Team was founded in 2005. After a small hiatus, we will compete with our 14th car this year. After an era of rear-wheel drive cars, the RT14's key design changes are the switch to all-wheel drive and an increased focus on aerodynamics. This resulted in big changes throughout the car's layout and components, which we are proud to show off at this year's events. The RT14 will take on the competition in the Netherlands and Germany. We are looking forward to meeting you in the pits!
Engineering Design Priorities:
Schienenersatzverkehr RTvierZehen AeroistkeineAblage
Car Specifications
General
Frame Construction Hybrid: F/R: aluminium monocoque, M: CFRP monocoque
Material F/R: 2017/6082 Al-sheets+ Al-Honeycomb, M: CFRP, Al-Honeycomb/Airex rigid foam; Mg/Al Inlays
Overall Length (mm) 3000
Overall Width (mm) 1472
Overall Height (mm) 1170
Wheelbase (mm) 1530
Track Front (mm) 1220
Track Rear (mm) 1220
Weight Front (kg) 135
Weight Rear (kg) 140
Suspension Double unequal length A-arms, Pushrod actuated Heave/Roll decoupled dampers
Tyres 205/470 R13, C20 Continental
Wheels 7x13, Hybrid rim: CFRP shell, Al center
Drive Type 1,5 stage planetary gear
Differential wheels driven independently, torque vectoring
Cooling 2 independent circuits for motors and inverters, Sidewing mounted radiators
Brake System 4-Disc system, self developed DSLM Aluminium calipers, adj. brake balance
Electronics self developed vehicle dynamics control module, Live Telemetry system
Powertrain
Number of Motors 4
Motor Location FR, FL, RR, RL
Max Motor Power 37,1 kW
Motor Type self-developed Racetech M1-VZG
Max Motor RPM 19200
Motor Controller Lenze-Schmidhauser Mobile DCU
Max System Voltage (V) 596V
Electrode Materials LiCoO2, pouch cells
Accumulator Capacity 6,935kWh
Transmission Ratio Primary 1:14,24
Transmission Ratio Secondary -
Driverless System
Processing Units Nvidia AGX Xavier
Processing Units FLOPS 21000
Processing Units Power (W) 30
Cameras 1x Stereolabs ZED2 ~110° FoV
Radar Sensors N/A
LiDAR Sensors 1x Robosense RS-LiDAR-M1 120° FoV
Other Sensors 1x Vectornav VN300 Dual GNSS
DV System Highlights DV-packaging with minimal influence on conventional vehicle performance, LiDAR and camera placement with no aerodynamic influence, integrated pressure transducer for EBS, single control unit for entire AS

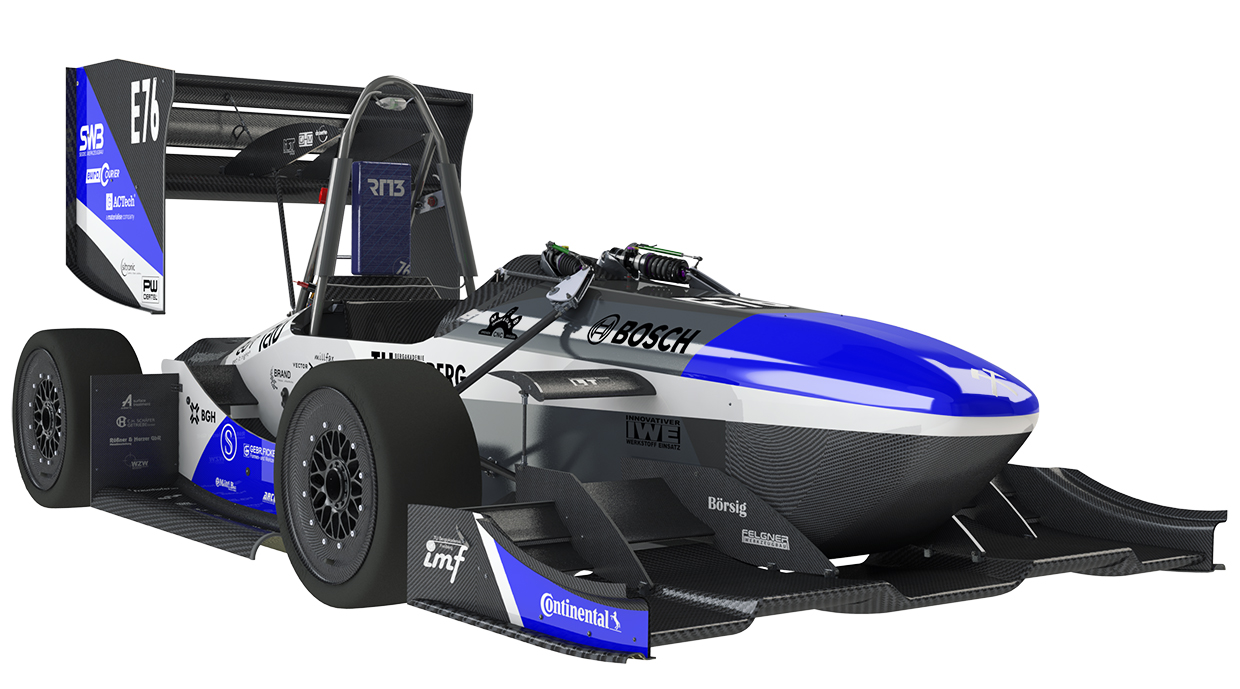

Car 85 – 2019
2019
Car #85
Info
Racetech Racing Team was founded in 2005. This year we built our 13th car and eighth electric vehicle. With the RT13 we refined our sheet metal monocoque and casted rear end and focused on a continuing weight reduction e.g with the help of a CFRP accumulator container. We also worked intensively to improve our performance with a further development of our aerodynamic devices. The RT13 we will take on the competition in Hungary, Austria and Germany. We are looking forward to meeting you!
Engineering Design Priorities:
Schienenersatzverkehr RWD lucky13 Aluminiumiskey
Car Specifications
General
Frame Construction Hybrid: Al Monocoque with casted rear frame
Material aluminium sheets, aluminium honeycomb core, magnesium inlays / Casted Al rear frame
Overall Length (mm) 2973
Overall Width (mm) 1437
Overall Height (mm) 1170
Wheelbase (mm) 1530
Track Front (mm) 1200
Track Rear (mm) 1200
Weight Front (kg) 130
Weight Rear (kg) 135
Suspension Double A-Arm, Pushrod actuated spring/damper, u-shaped anti-roll bar
Tyres Continental C19
Wheels 7 inch, 34mm offset, CFRP shell, Al center
Drive Type stage spur gearbox
Differential n/a
Cooling 2 independent,rear mounted radiators and electric fans
Brake System 4-Disk system, self developed calipers, adj. brake balance
Electronics self developed vehicle dynamics control module, Live Telemetry system
Powertrain
Number of Motors 2
Motor Location Rear Left, Rear Right
Max Motor Power 50.7kW ,50,7kW
Motor Type RL,RR: Bosch SMG138-FSE
Max Motor RPM RL,RR: 16000
Motor Controller Bosch INV2.2
Max System Voltage (V) 395V
Electrode Materials LiCoO2, pouch cells
Accumulator Capacity 6.88kWh
Transmission Ratio Primary 1:2.9
Transmission Ratio Secondary 1:3.0

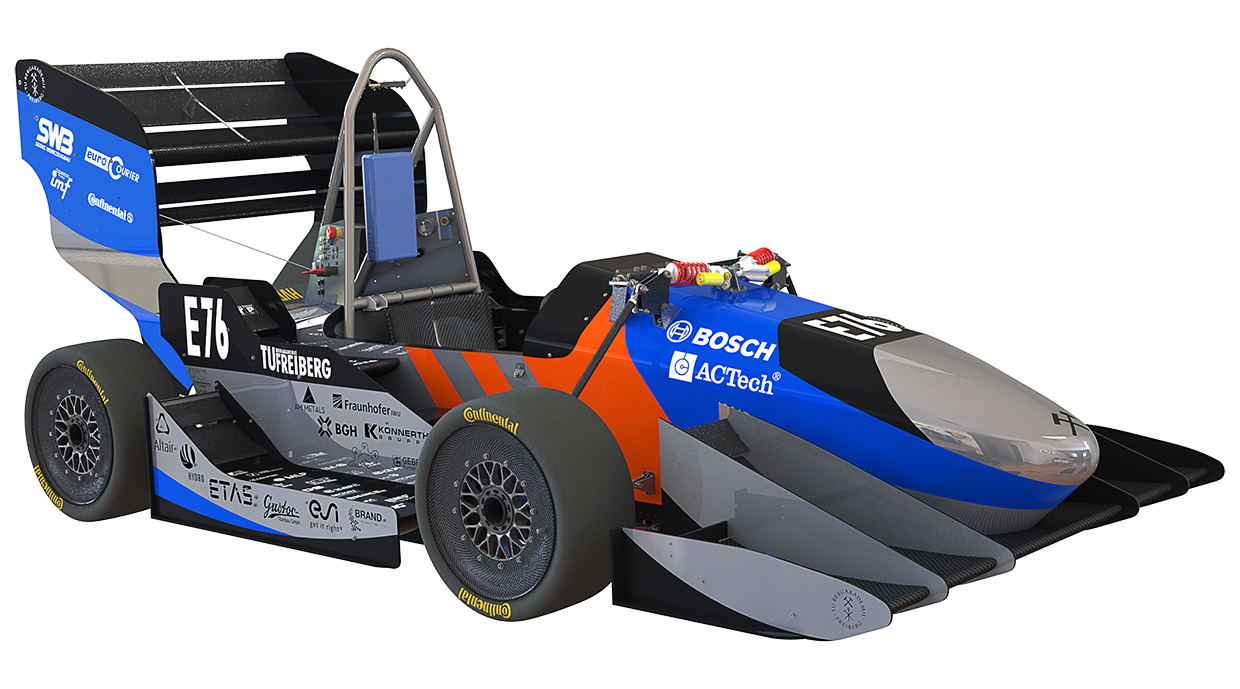

Car 76 – 2017
2017
Car #76
Info
Racetech Racingteam was founded in 2005 and has built eleven cars since. With our sixth electric car,the RT11, we focused on refining our overall concept and adding a few innovations. Our car once again features a sheet metal monocoque and a casted rear frame. Furthermore the car is equipped with a rear wheel steering system and a refined aero package. The RT11 will take on the competition in Netherlands, Germany, Hungary and Spain. We look forward to meeting you in our pit for some great chats!
Engineering Design Priorities:
GlückAuf! madeinsaxony RTelf schienenersatzverkehr
Car Specifications
General
Frame Construction Monocoque with casted rear frame
Material magnesium (AZ31) / aluminum (5754) sheets and aluminum honeycomb core
Overall Length (mm) 2978
Overall Width (mm) 1405
Overall Height (mm) 1194
Wheelbase (mm) 1530
Track Front (mm) 1200
Track Rear (mm) 1160
Weight Front (kg) 139
Weight Rear (kg) 144
Suspension Double unequal length A-Arm. Pushrod actuated oriented coilovers. U-shaped anti-roll-bars.
Tyres 205x34 R13, Continental C17
Wheels 7x13, 34mm offset, 2pc - CFRP shell, Mg-center
Drive Type two stage spur gearbox
Differential torque vectoring
Cooling twin sidepod mounted radiators, independent circuits for motors and inverters
Brake System 4-Disk System, self-developed Al-casted calipers, 4 pistons (front), 2 pistons (rear)
Electronics self-developed vehicle dynamics control unit (adjustable via dashboard), live telemetry
Powertrain
Number of Motors 2
Motor Location Rear Right, Rear Left
Max Motor Power 50kW, 50kW
Motor Type RL,RR: Bosch SMG138-FSE
Max Motor RPM 16000
Motor Controller Bosch INV2.2
Max System Voltage (V) 403V
Electrode Materials LiCoO2
Accumulator Capacity 7,05kWh
Transmission Ratio Primary 1:8,38
Transmission Ratio Secondary N/A

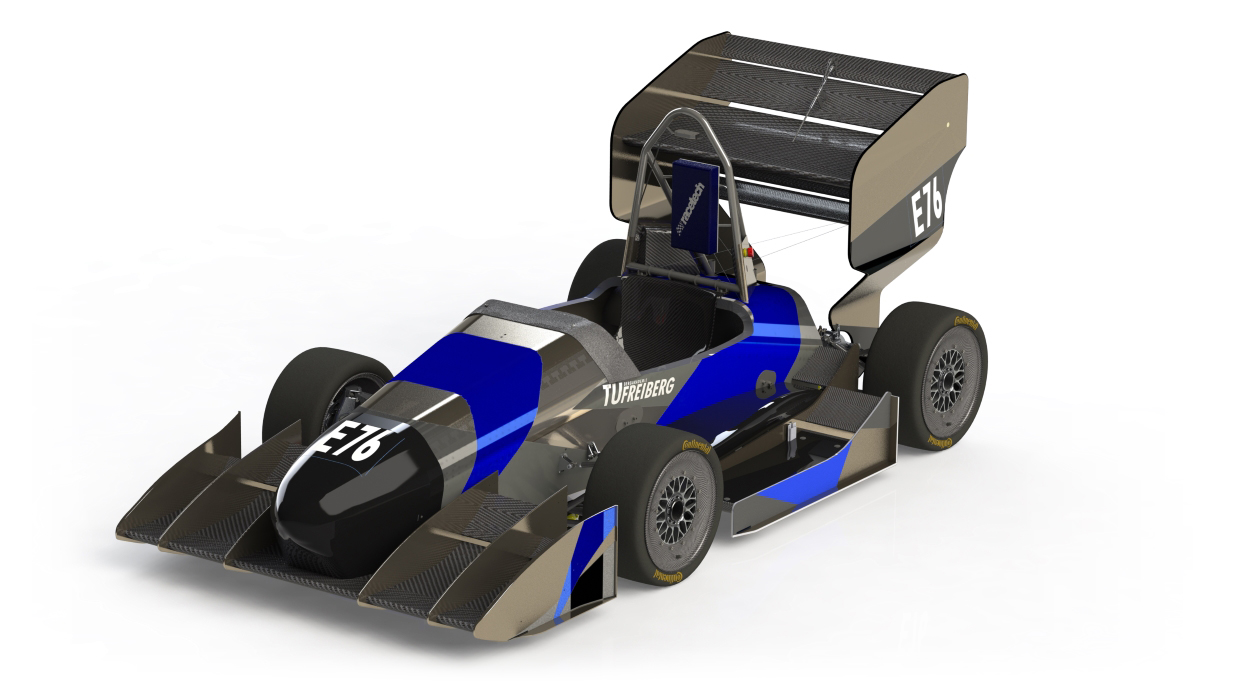

Car 76 – 2016
2016
Car #76
Info
Racetech Racingteam was founded in 2005 and enters FSG for the 10th time. With our fifth electric car, the RT10, we focused on the development of our first monocoque, while adjusting well proved systems like our 2WD power train and aerodynamics to the new chassis. We are looking forward to a great season with events in Austria, Germany and Spain and are glad to meet you all there!
Engineering Design Priorities:
schienenersatzverkehr madeinsaxony geilebude verschiedenedinge
Car Specifications
General
Frame Construction Monocoque and casted rear structure
Material magnesium sheets (AZ31) and aluminum honeycomb
Overall Length (mm) 2891
Overall Width (mm) 1402
Overall Height (mm) 1124
Wheelbase (mm) 1530
Track Front (mm) 1200
Track Rear (mm) 1160
Weight Front (kg) 134
Weight Rear (kg) 134
Suspension Double unequal length A-Arm, pull rod (front) and push rod (rear) actuated spring-damper system
Tyres 205x34 R13, Continental C16
Wheels 7x13, 34mm offset, 2pc CFRP shell, Mg-center
Drive Type two stage spur gearbox
Differential Torque Vectoring
Cooling twin sidepod mounted radiators, independent circuits for motors and inverters
Brake System self-developed Al-casted calipers, 4 pistons (front), 2 pistons (rear)
Electronics self-developed Vehicle Dynamics Control Unit, adjustable control parameters via dashboard
Powertrain
Number of Motors 2
Motor Location rear
Max Motor Power 40kW
Motor Type BOSCH SMG 138
Max Motor RPM 16000
Motor Controller BOSCH INV2.2
Max System Voltage (V) 403
Electrode Materials LiPo
Accumulator Capacity 7.10kWh
Transmission Ratio Primary 7,88+++

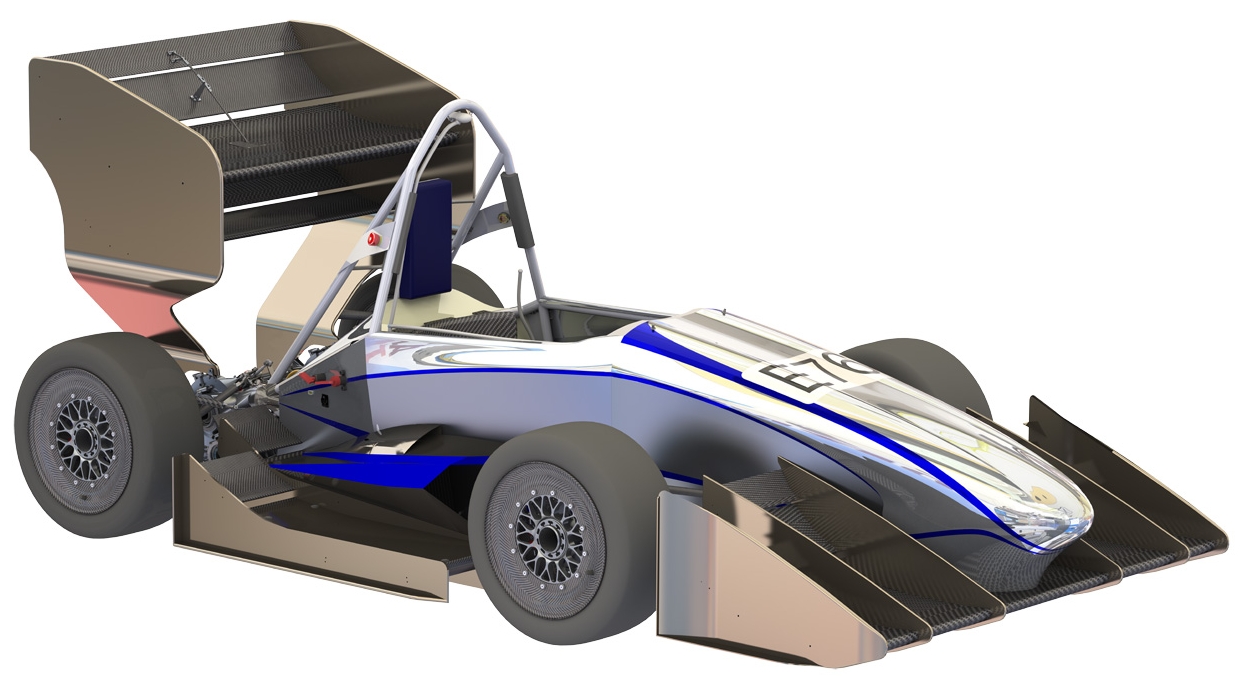

Car 76 – 2015
2015
Car #76
Info
With our 9th entry at the FSG we are once again looking forward to a great season. The RTo9 is the 4th electric race car, combining new ideas like aerodynamic parts manufactured of magnesium-sandwich with proven concepts like the casted rear frame. Our focus on remarkably improved vehicle dynamics and reliability as will hopefully give us the chance to achieve great results at the upcoming events.
Engineering Design Priorities:
magnesium-sandwich made in saxony improved vehicle dynamics variety of materials schienenersatzverkehr
Car Specifications
General
Frame Construction tubular steel space frame with CFRP reinforcements
Material 25CrMo4 and CFRP
Overall Length (mm) 2926
Overall Width (mm) 1400
Overall Height (mm) 1140
Wheelbase (mm) 1530
Track Front (mm) 1200
Track Rear (mm) 1160
Weight Front (kg) 139
Weight Rear (kg) 139
Suspension Double unequal length A-Arms, Pull rod actuated spring/damper, ARB with exchangeable blades
Tyres Continental C15 205/510 R 13
Wheels Continental C15 205/510 R 13
Drive Type self designed two-stage gearbox
Differential torque vectoring
Cooling motors and motor controllers are seperatly watercooled, Twin side pod mounted radiators
Brake System self designed casted calipers and rotors with 210mm diameter, adjustable brake balance
Electronics self developed VCU, VDCU, BMS, driver information system
Powertrain
Number of Motors 2
Motor Location Rear Right, Rear Left
Max Motor Power 40kW
Motor Type Bosch SMG 138/80
Max Motor RPM 15000
Motor Controller Bosch INV 2.2
Max System Voltage (V) 400V
Electrode Materials LiPo
Accumulator Capacity 6.7kWh
Transmission Ratio Primary 8.8:1

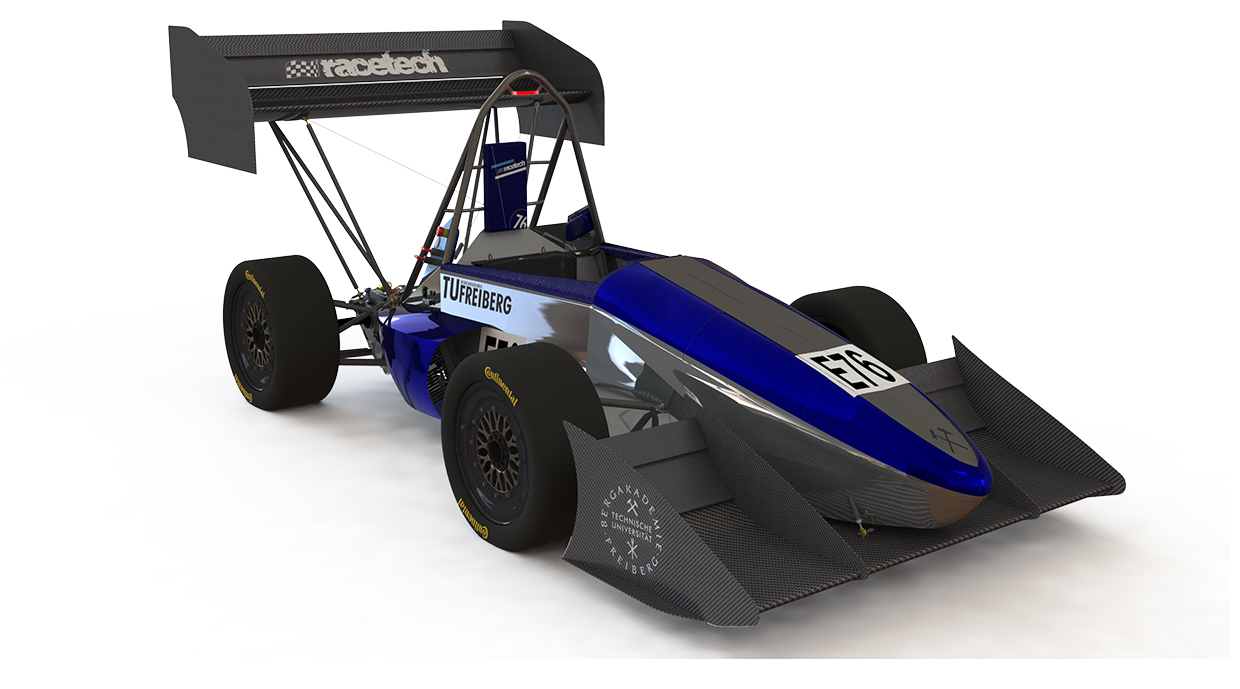

Car 76 – 2014
2014
Car #76
Info
With our 8th entry at the FSG we are once again looking forward to a great season. The RTo8 is the 3rd electric race car, combining new ideas like the casted inverter housing or the redeveloped casted rear frame with traditional concepts like the magnesium bodyshell. Our focus on an obvious lighter car than last season despite a new designed aeropackage will hopefully give us the chance to improve our last years results. We are eagerly awaiting the upcoming events!
Engineering Design Priorities:
weight reduction improved vehicle dynamics safety and reliability variety of materials variety of manufacturing
Car Specifications
General
Frame Construction tubular steel space frame with CFRP reinforcements
Material 25CrMo4 and CFRP
Overall Length (mm) 3170
Overall Width (mm) 1404
Overall Height (mm) 1240
Wheelbase (mm) 1530
Track Front (mm) 1200
Track Rear (mm) 1160
Weight Front (kg) 144
Weight Rear (kg) 144
Suspension Double unequal length A-Arms, Pull rod actuated spring/damper, ARB with adjustable blades
Tyres Continental C14 205/510 R 13
Wheels Continental C14 205/510 R 13
Drive Type self designed two-stage gearbox
Differential torque vectoring
Cooling motors and motor controllers are seperatly watercooled, Twin side pod mounted radiators
Brake System self designed casted calipers and rotors with 210mm diameter, adjustable brake balance
Electronics self developed VCU, VDCU, BMS, driver information system
Powertrain
Number of Motors 2
Motor Location Rear Right, Rear Left
Max Motor Power 40kW
Motor Type Bosch SMG 138/80
Max Motor RPM 15000
Motor Controller Bosch INV 2.2
Max System Voltage (V) 400V
Electrode Materials LiPo
Accumulator Capacity 6.5kWh
Transmission Ratio Primary 10.1

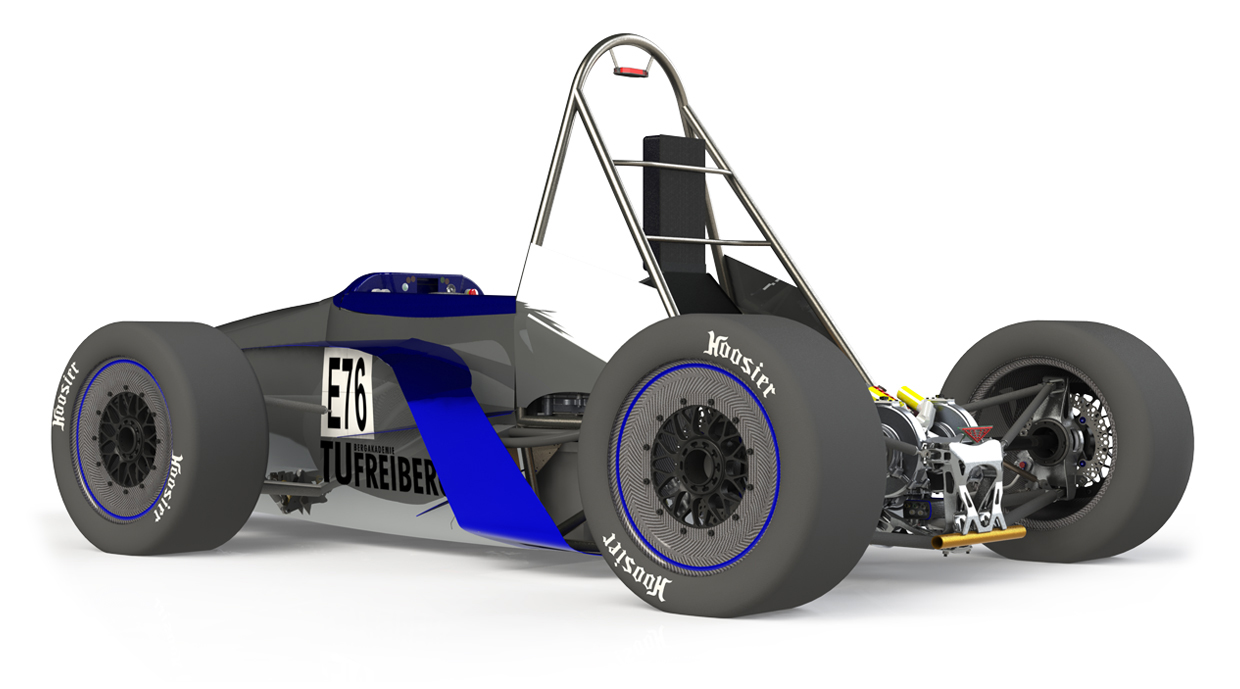

Car 76 – 2013
2013
Car #76
Info
After a very successful start into electrical racing our team from the TU Freiberg is proud to participate again in the FSE with our second electrical racecar. The RTo7 is a consequent development of our last year's car, combining the experience of 2012 with new ideas and our traditional focus on a wide range of materials and manufacturing methods as well as a high degree of self-developed parts. As a result of this guidelines we developed our own casted brake calipers and self routed, assembled and programmed VCU and BMS. The most obvious and unique technical highlight on our new car is the casted aluminum gear box housing which includes the motor mountings and all rear suspension parts. In addition the gear box housing contains a self-designed titanium-aluminum hybrid gear box. A great Thanks to our sponsors, families and alumni for making all of this possible. We are looking forward to an exciting event season 2013 and wish all teams unforgettable days.
Car Specifications
General
Frame Construction tubular steel space frame with CFRP reinforcements
Material 25CrMo4 and CFRP
Overall Length (mm) 2800
Overall Width (mm) 1404
Overall Height (mm) 1118
Wheelbase (mm) 1530
Track Front (mm) 1200
Track Rear (mm) 1150
Weight Front (kg) 163
Weight Rear (kg) 163
Suspension Double unequal length A-Arm. Pull/Push rod actuated spring and damper
Tyres 20.5x7.0 R13, Hoosier R25B
Wheels 7.0x13, 34mm offset, 2pc CFRP-Mg Rim
Drive Type self designed two-stage gearbox
Differential torque vectoring
Cooling water cooling; twin side pod mounted radiators
Brake System self designed casted calipers and rotors with 210mm diameter
Electronics self developped VCU, MCU, BMS, infotainment system
Powertrain
Number of Motors 2
Motor Location Rear Right, Rear Left
Max Motor Power 80kW
Motor Type Bosch SMG 180/120
Max Motor RPM 6000
Motor Controller Bosch INVCON 2.3
Max System Voltage (V) 330
Electrode Materials LiPo
Accumulator Capacity 5,7kWh
Transmission Ratio Primary 2,58:1

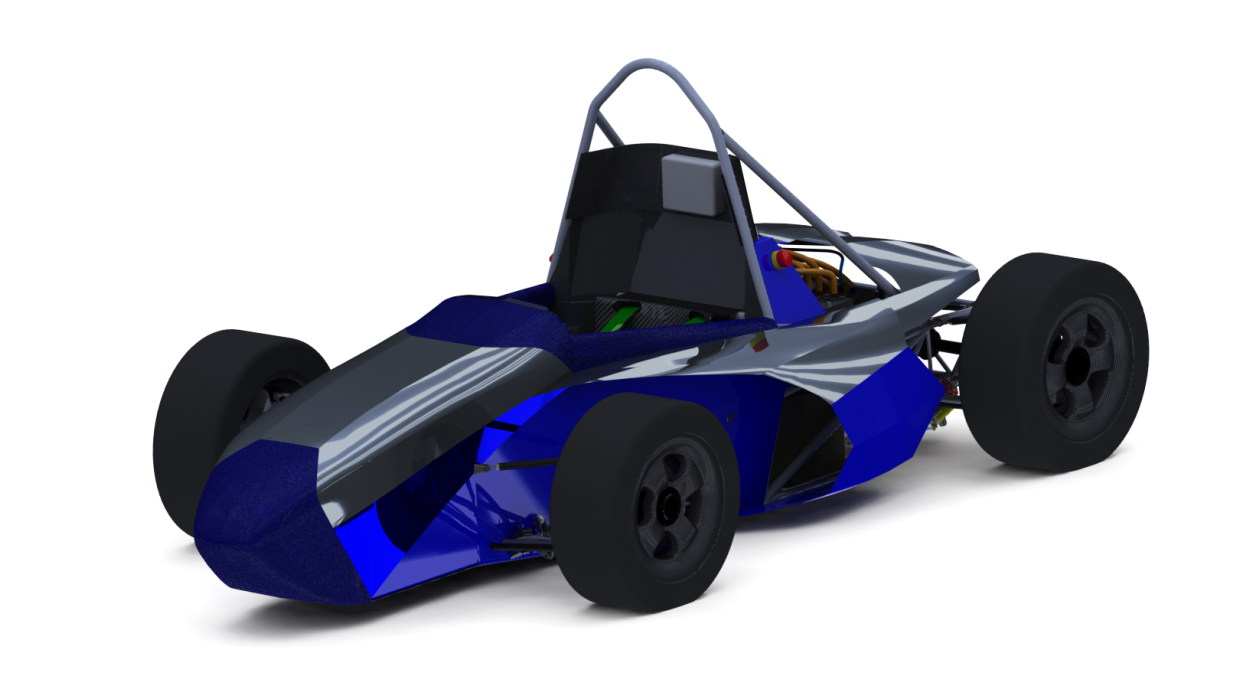

Car 76 – 2012
2012
Car #76
Info
After developing five combustion race cars, consequently following the motto “Where there’s a team there’s a way”, this year’s Racetech Racing Team took off in the new direction of electrical racing. Studying at a University of Mining and Technology, one focus set on material science, 51 students walked the extra mile to collect the additional knowledge to realise the project. As in previous seasons our team concentrated on the use of advanced materials and manufacturing methods. A prominent demonstration of this attitude is both, our hybrid body shell made of magnesium and NFK as well as our impressive casted components such as the gearbox housing and multifunctional motor mounting. We furthermore kept the ambition to fabricate as many parts as possible on our own. A great Thanks to our sponsors, families and alumni. We are proud to participate with our first electrical race car in this year’s competition and wish all teams a successful and unforgettable event season 2012.
Car Specifications
General
Frame Construction tubular space frame
Material 25CrMo4
Overall Length (mm) 2732
Overall Width (mm) 1404
Overall Height (mm) 1088
Wheelbase (mm) 1600
Track Front (mm) 1200
Track Rear (mm) 1160
Weight Front (kg) 181
Weight Rear (kg) 184
Suspension Double unequal length A-Arms. Pull rod actuated spring & damper
Tyres 205/ 510 R13 Continental
Wheels 205/ 510 R13 Continental
Drive Type Bevel gears; Spur gears
Differential yaw and slip control
Cooling side mounted 340cm² radiator, PWM controlled pump and fans
Brake System 4-Disk system, self developed rotors, adjustable brake balance, 4 piston ISR calipers
Electronics self made Tricore Board, BMS, IMU and Data Acquisition, 3 HS-CAN Systems, 3D harness, display, GPS
Powertrain
Number of Motors 2
Motor Location Rear Right, Rear Left
Max Motor Power 65kW, 65kW
Motor Type RR, RL: Bosch SMG 180/120
Max Motor RPM 5000
Motor Controller INVCON2.2
Max System Voltage (V) 403V
Electrode Materials Lithiumpolymer
Accumulator Capacity 7.1 kWh
Transmission Ratio Primary 1:1.35
Transmission Ratio Secondary 1:2.30

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2024.08
79
69.
75.
54.
68.
44.
-
-
-
39.
-
-
0.00
142.13
2024.08
32
28.
23.
8.
30.
-
-
-
-
-
-
-
-20.00
136.98
2024.07
31
25.
29.
15.
28.
-
-
-
-
-
-
-
0.00
145.19
2023.08
70
52.
70.
17.
46.
30.
-
40.
-
31.
-
-
-10.00
183.06
2023.07
34
32.
32.
18.
30.
-
-
-
-
-
-
-
0.00
162.50
2022.08
63
48.
30.
13.
52.
-
-
-
-
29.
-
-
-10.00
189.22
2022.07
21
15.
13.
14.
15.
-
-
-
-
-
-
-
0.00
185.58
2019.08
38
3.
21.
14.
11.
12.
-
11.
-
4.
2.
4.
0.00
711.70
2019.08
24
4.
16.
5.
7.
8.
-
5.
-
7.
4.
4.
0.00
706.50
2019.07
20
3.
11.
8.
11.
8.
-
8.
-
6.
4.
4.
0.00
715.71
2018.08
38
8.
27.
4.
16.
16.
-
20.
-
10.
6.
6.
0.00
673.40
2018.08
19
2.
6.
2.
13.
11.
-
5.
-
12.
1.
4.
-5.00
813.50
2018.07
16
3.
5.
2.
6.
4.
-
7.
-
4.
3.
4.
0.00
784.65
2017.08
30
13.
12.
6.
12.
14.
-
14.
-
4.
-
-
0.00
420.60
2017.08
34
20.
22.
13.
26.
-
-
11.
-
11.
-
-
-50.00
240.81
2016.08
29
15.
20.
19.
15.
9.
-
17.
-
7.
-
-
0.00
354.00
2016.08
37
25.
22.
1.
15.
-
-
-
-
-
-
-
-5.00
219.12
2016.08
18
16.
12.
5.
11.
-
-
-
-
-
-
-
0.00
224.30
2015.09
20
3.
6.
1.
7.
9.
-
9.
-
-
1.
4.
-20.00
724.12
2015.08
30
3.
12.
3.
9.
6.
-
17.
-
4.
3.
7.
0.00
766.16
2015.08
39
5.
9.
17.
6.
2.
-
18.
-
9.
5.
7.
-25.00
664.78
2014.08
23
4.
5.
7.
4.
3.
-
13.
-
7.
5.
6.
0.00
720.95
2014.08
18
4.
7.
1.
8.
8.
-
14.
-
7.
5.
1.
0.00
671.50
2014.08
39
22.
6.
5.
8.
-
-
-
-
-
-
-
0.00
265.19
2013.09
24
5.
5.
3.
6.
9.
-
8.
-
8.
6.
4.
0.00
687.90
2013.09
16
3.
2.
1.
4.
1.
-
9.
-
5.
5.
4.
0.00
732.00
2013.08
40
23.
5.
4.
5.
-
-
-
-
-
-
-
0.00
277.70
2012.09
17
4.
3.
3.
2.
6.
-
4.
-
7.
5.
6.
0.00
795.49
2012.08
39
10.
4.
12.
18.
8.
-
9.
-
22.
11.
1.
0.00
722.66
2012.08
32
5.
12.
8.
6.
6.
-
-
-
6.
7.
4.
0.00
598.67
x 30
