Team Details

Bremergy e.V.

University	Universität Bremen DE Bremen U short 740
Location	Bremen, Germany
Homepage	https://www.bremergy.de/
Social Media
DV Team	Bremergy Autonomous Racing
Short Link	tid.fsg.one/423
Event Details	car 72 - withdrawn

Team Description

Founded in 2012 Bremergy established itself as the biggest students' group on the university campus. Today we are a team of over 50 highly motivated students and cooperate with 13 research institutes with a mere focus on Fibre Reinforced Plastics, electrical driving systems and mechanical construction. The aims of our team are to design a lightweight, innovative and high performing race car. Therefore Carbon Fibre Reinforced Plastics (CFRP) are a key technology on our design.

Past Events

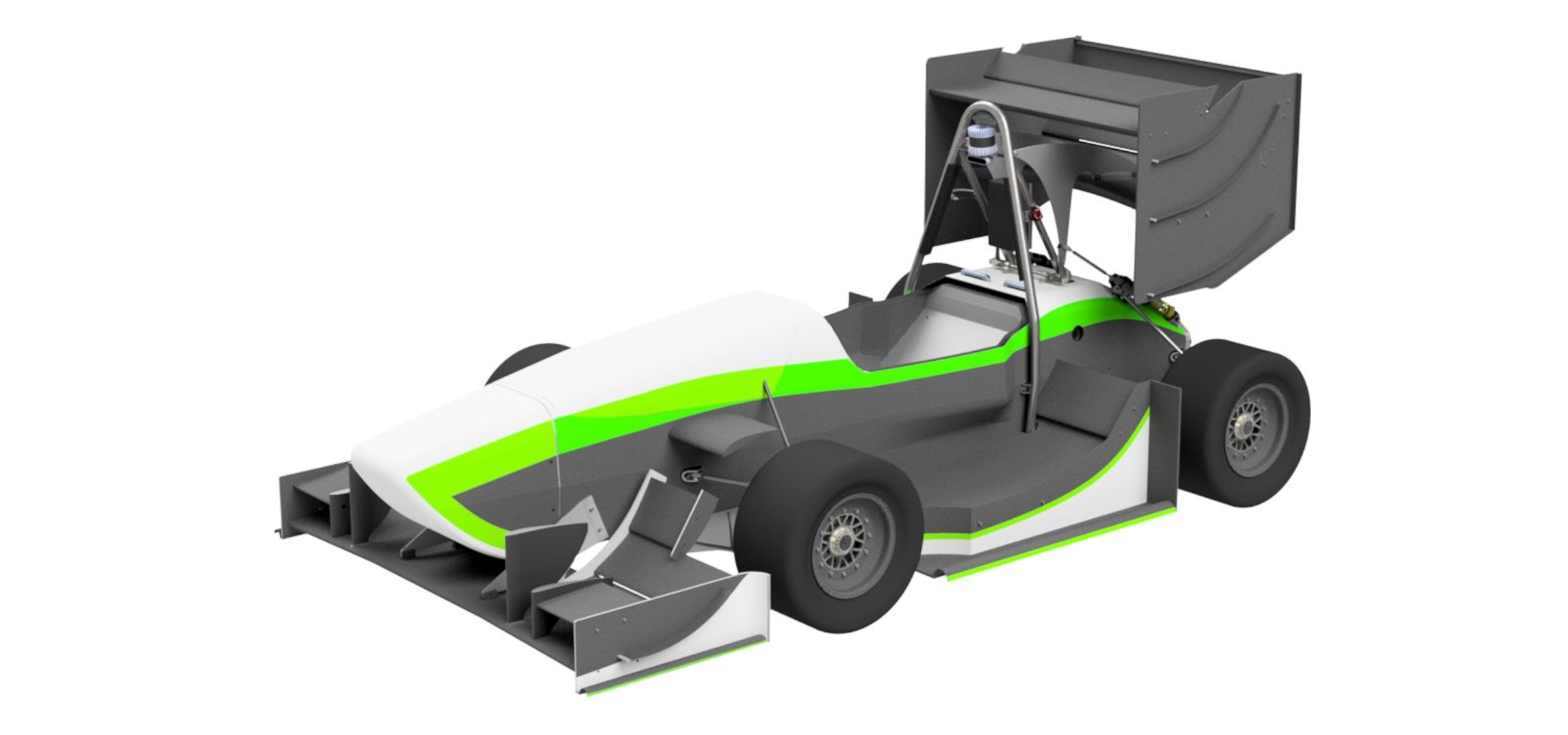

2025

Car #272

Info

41x

The BreMo25 is the second step in a three-year plan spanning the years 2024 to 2026. Following the introduction of new key technologies last year, the focus this year is on refining the vehicle concept. Significant changes have been made in the areas of driver ergonomics and suspension kinematics. In addition, the introduction of new manufacturing methods is helping to save weight, but above all to expand the team's knowledge and experience, which can be used in the coming years.

Engineering Design Priorities:

ergonomic redesign aerodynamic balance steerin precision system modularity thermal management new manufacturing methods

Car Specifications

General

Frame Construction	Monocoque
Material	Prepreg CFRP sandwich structure with aluminium honeycomb
Overall L	2933 mm
Overall W	1512 mm
Overall H	1277 mm
Wheelbase	1530 mm
Track (Fr)	1220 mm
Track (Rr)	1220 mm
Weight with 68kg driver (Fr)	136 kg
Weight with 68kg driver (Rr)	154 kg
Suspension	Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper
Tyres (Fr / Rr)	Hoosier 7.5x18.0-10 R25B
Wheels (Fr / Rr)	7.5x10 Blackwave Carbon Rim
Drive Type	wheel hub integrated planetary gearbox
Differential	n/a
Cooling	two water cooling circuits
Brake System	4-disk system, self developed rotors & calipers
Electronics	wire harness manufactured on nailboard, multifunctional steering wheel

Powertrain

Number of Motors	4
Motor Location	wheel hub mounted
Max Motor Power (per motor)	36 kW per motor kW
Motor Type	AMKmotion DD5-14-10-POW 18600-B5
Max Motor RPM (highest)	20000 rpm
Motor Controller	AMKmotion KW26-S5-FSE-2Q
Max System Voltage	588V V
Electrode Materials	NCA lithium-ion
Combined Accumulator Capacity	6.8 kWh kWh
Transmission Ratio (Primary)	14.28 : 1
Transmission Ratio (Secondary)	n/a : 1

Driverless System

Processing unit(s)	self-developed STM32 controller units
Floating Point Operations Per Second of all processing units that are working for the DV system	0 GigaFLOPS
Power consumption of all processing units that are working for the DV system	0 W
Camera(s)	1 Deepfield Camera
Radar sensor(s)	0
Lidar sensor(s)	1 Ouster Lidar
Other sensors	0
Highlights of the DV system	First Year Driverless System

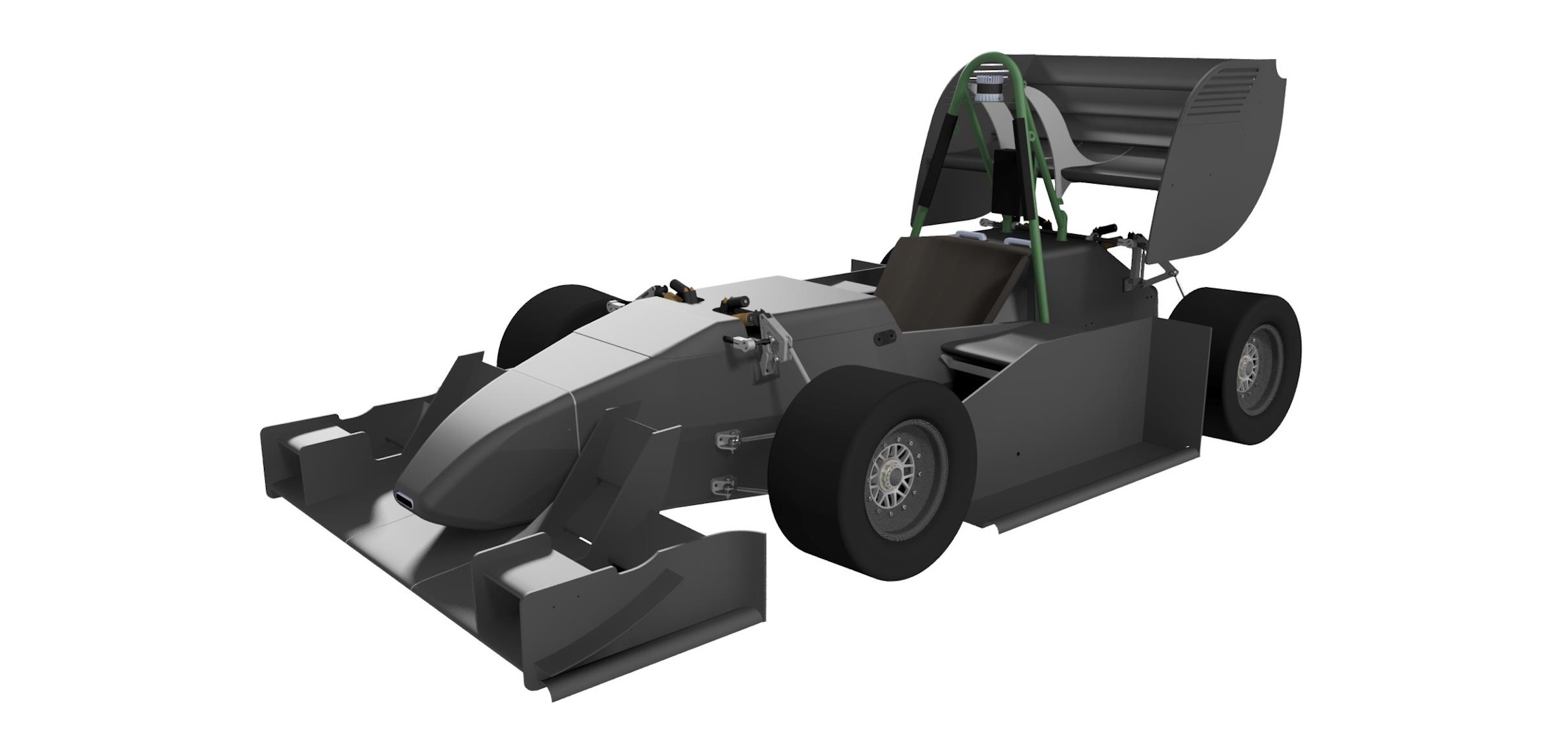

2024

Car #72

Info

29x

The BreMo24 is the first step into a multiyear plan to integrate more and more key technologies. This year will be the base to build on and to start developing a new era for Bremergy.The significant changes this year are the 4x4 motors, new accumulator, new monocoque and CFRP Rims, as well as being driverless capable.

Engineering Design Priorities:

Monocoque

Car Specifications

General

Frame Construction	Monocoque
Material	Prepreg Sandwich Material with Aluminium Honeycomp
Overall L	2902 mm
Overall W	1425 mm
Overall H	1150 mm
Wheelbase	1533 mm
Track (Fr)	1220 mm
Track (Rr)	1220 mm
Weight with 68kg driver (Fr)	120 kg
Weight with 68kg driver (Rr)	180 kg
Suspension	Double A-Arm, Pushrod, Horizontal Spring Damper
Tyres (Fr / Rr)	18x7,5 Hoosier R25
Wheels (Fr / Rr)	10
Drive Type	Electric
Differential	N/A
Cooling	Sidemounted Radiator
Brake System	4-Disk System, self developed rotors & calipers
Electronics	selfdesigned Live temeltry with a live website integration

Powertrain

Number of Motors	4
Motor Location	Inhub
Max Motor Power (per motor)	36 kW kW
Motor Type	DD5-14-10-POW 18600-B5
Max Motor RPM (highest)	12000 rpm
Motor Controller	Inverter AMK
Max System Voltage	588 V
Electrode Materials	Li-Ion
Combined Accumulator Capacity	6.8 kWh
Transmission Ratio (Primary)	14:1 : 1
Transmission Ratio (Secondary)	N/A : 1

Driverless System

Processing unit(s)	i5-1135G7
Floating Point Operations Per Second of all processing units that are working for the DV system	97.77 GigaFLOPS
Power consumption of all processing units that are working for the DV system	135 W
Camera(s)	Intel Realsense
Radar sensor(s)	N/A
Lidar sensor(s)	OS1-32-U,120m, 360
Highlights of the DV system	First year of a DV System integration, with a completely new overhaul of the car

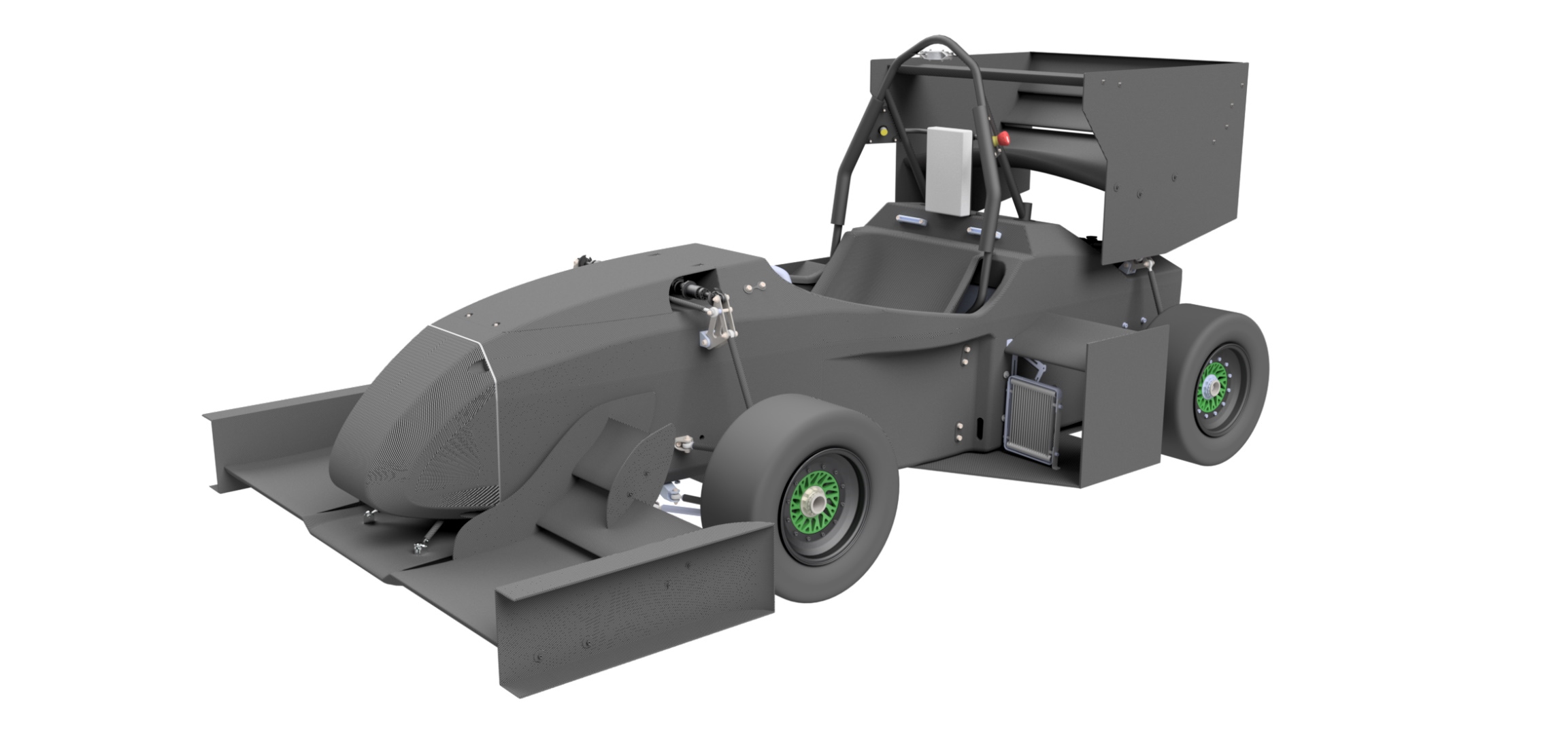

2023

Car #72

Info

17x

From the lecture to the race track. Bremergy is the Formual Student Team from Bremen, Germany. We have been competing in the FSE since 2013 and are thus celebrating our tenth anniversary this year. Our team consists of about 55 members who worked together to realize BreMo23. With the implementation of new manufacturing processes and a changed team structure, we were able to optimize various points in the construction of the BreMo23.

Engineering Design Priorities:

Prepreg CFD CFRP Suspension FEM Monocoque Gurney Flap

Car Specifications

General

Frame Construction	Monocouque with sandwich panels, 15mm Honecomb and 3mm foam core
Material	UD-Carbon Fabric, Coppermesh, Twill Weave, Rohacell 71 IG-F Foam, Plascore Honecomb
Overall L	2834 mm
Overall W	1610 mm
Overall H	1238 mm
Wheelbase	1560 mm
Track (Fr)	1220 mm
Track (Rr)	1200 mm
Weight with 68kg driver (Fr)	131 kg
Weight with 68kg driver (Rr)	184 kg
Suspension	Push-Rod-System, Horizontal oriented spring and damper
Tyres (Fr / Rr)	Hoosier 18,0x6,0-10 inches
Wheels (Fr / Rr)	10 inch, Keizer Aluminium Rims, Hoosier Tires
Drive Type	Rear axle drive type
Differential	n/a
Cooling	rear mounted Sigg Watter Bottle Can, 1L
Brake System	4 disc system, ISR 22-048 OB, rotors with 180mm diameter
Electronics	torque vectoring, sensornodes, pouch cell,

Powertrain

Number of Motors	2
Motor Location	inside the rear chassis
Max Motor Power (per motor)	86kW kW
Motor Type	Enstoj Emrax 208 HV LC
Max Motor RPM (highest)	7000 rpm
Motor Controller	BAMOCAR-PG-D3 200/400
Max System Voltage	504V V
Electrode Materials	LiCo2
Combined Accumulator Capacity	48,1kWh kWh
Transmission Ratio (Primary)	1:4,05 : 1
Transmission Ratio (Secondary)	n/a : 1

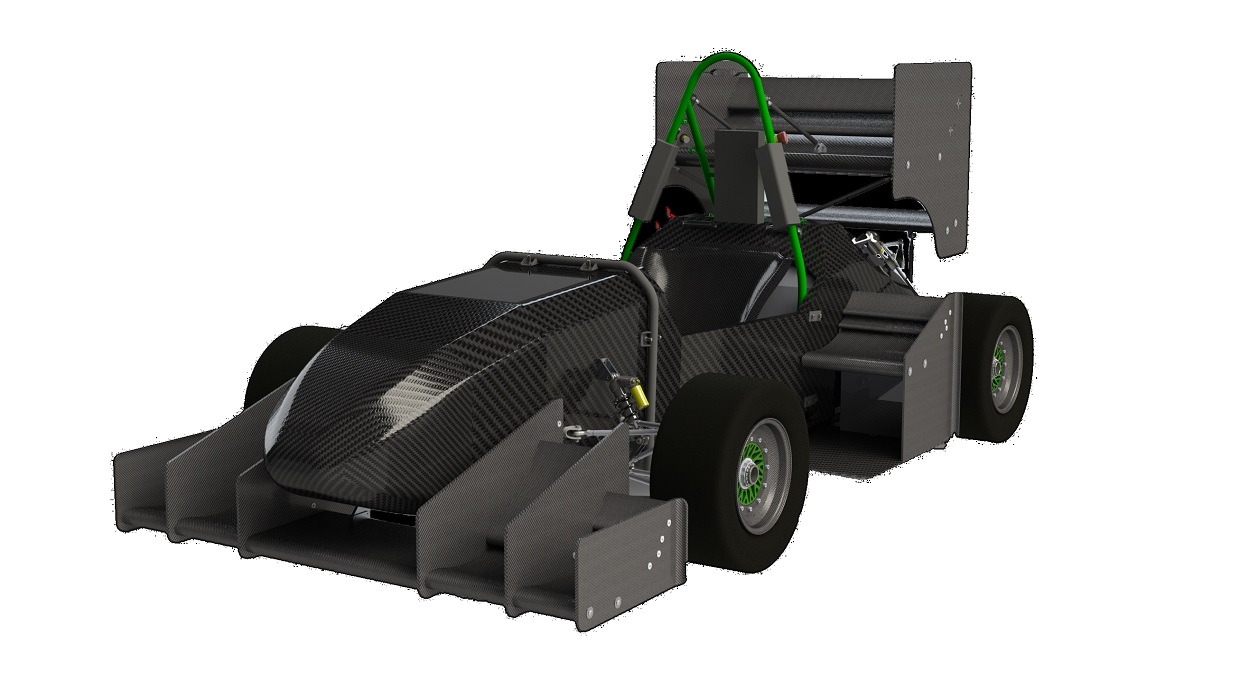

2018

Car #72

Info

28x

Bremergy is the Formula Student team of the university of Bremen, founded in 2012. With the BreMo 18 we wanted to start a new era of the team. Reviewing the past seasons, we started to create a wholly new car concept. Even the limited possibilities we had to face in several situations, couldn´t stop us from building an eye-catching and powerful electric racecar. No doubt, the BreMo 18 is the best car we have ever created. Don´t believe us? Then convince yourself!

Engineering Design Priorities:

Aerodynamics LV Electronics Driver Interface Ergonomics

Car Specifications

General

Frame Construction	Carbon fibre sandwich structure monocoque
Material	CFRP, Coppermesh; Twill Weave, Rohacell 71 IG-F Foam core (15mm & 25mm)
Overall L	2911 mm
Overall W	1499 mm
Overall H	1216 mm
Wheelbase	1625 mm
Track (Fr)	1300 mm
Track (Rr)	1280 mm
Weight with 68kg driver (Fr)	121 kg
Weight with 68kg driver (Rr)	197 kg
Suspension	Double unequal length A-Arm. Pull rod actuated vertically oriented spring and damper. Pus
Tyres (Fr / Rr)	18x6 Hoosier R25B
Wheels (Fr / Rr)	10x6.5 , 2pc Carbon Rim / 10x6.5 , 2pc Carbon Rim
Drive Type	Planetary Gearbox
Differential	n/a
Cooling	watercooled motors and motor controller, twin side pod mounted radiators
Brake System	4-Disk system, floating self developed rotors, adjustable brake balance
Electronics	Self-made ECU, selfdesigned Live-Telemetry System via WLAN,

Powertrain

Number of Motors	2
Motor Location	Rear Right & Rear Left
Max Motor Power (per motor)	80 kW kW
Motor Type	Enstroj Emrax 207 HV LC
Max Motor RPM (highest)	RR, RL: 6.000 rpm
Motor Controller	Own design
Max System Voltage	432V V
Electrode Materials	LiCoO2
Combined Accumulator Capacity	6,9 kWh kWh
Transmission Ratio (Primary)	1:4,05 : 1
Transmission Ratio (Secondary)	n/a : 1

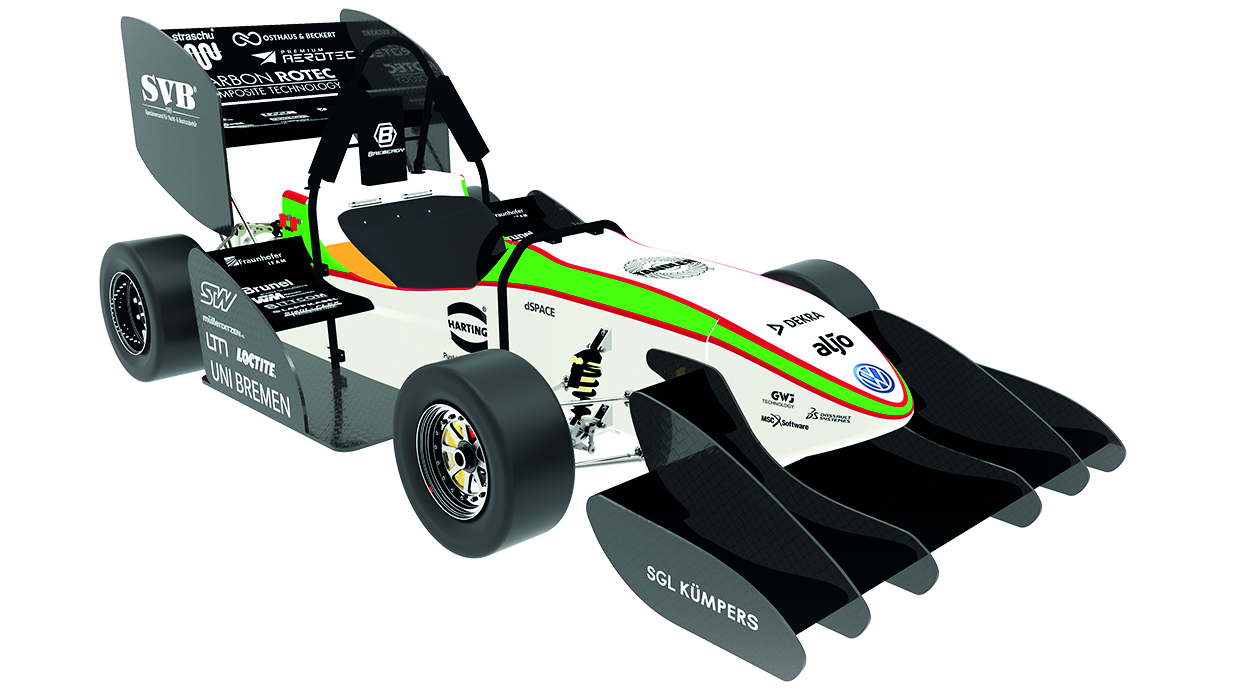

2017

Car #72

Info

4x

Bremergy was founded in 2012 and is meanwhile made up of around 70 students from several different studies at the University of Bremen. The BreMo17 is the 4th car we built for the Formula Student Electric. We redesigned and improved the electronical system, to make it safer and more reliable. Additionally minor mechanical parts were exchanged and enhanced. We learned a lot from the last year and with this knowledge the team is looking forward to a great FSG event 2017.

Engineering Design Priorities:

#Bremergy #WorkSmartRaceHard #makebremergyraceagain

Car Specifications

General

Frame Construction	Full CFRP-monocoque with foam sandwich structure
Material	UD, Biax, twill, coppermesh, rohacell foam
Overall L	3172 mm
Overall W	1320 mm
Overall H	1190 mm
Wheelbase	1730 mm
Track (Fr)	1140 mm
Track (Rr)	1130 mm
Weight with 68kg driver (Fr)	143 kg
Weight with 68kg driver (Rr)	175 kg
Suspension	Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper
Tyres (Fr / Rr)	18.0x6.0-10 / 18.0x7.5-10 Hossier R25B
Wheels (Fr / Rr)	5.75x10 / 7.75x10, 30mm offset. self-designed inner AI rim
Drive Type	one step planetary gear drive
Differential	torque vectoring
Cooling	watercooled motors and motor controller, twin side pod mounted radiators
Brake System	4-Disk system, floating self developed rotors, adjustable brake balance
Electronics	CAN-Bus, live telemetry

Powertrain

Number of Motors	2
Motor Location	rear right, rear left
Max Motor Power (per motor)	80 kW kW
Motor Type	Enstroj Emrax 207 HV LC
Max Motor RPM (highest)	6000 rpm
Motor Controller	self-designed motor controller
Max System Voltage	432V V
Electrode Materials	LiCoO2
Combined Accumulator Capacity	6,9 kWh kWh
Transmission Ratio (Primary)	1:4,05 : 1
Transmission Ratio (Secondary)	n/a : 1

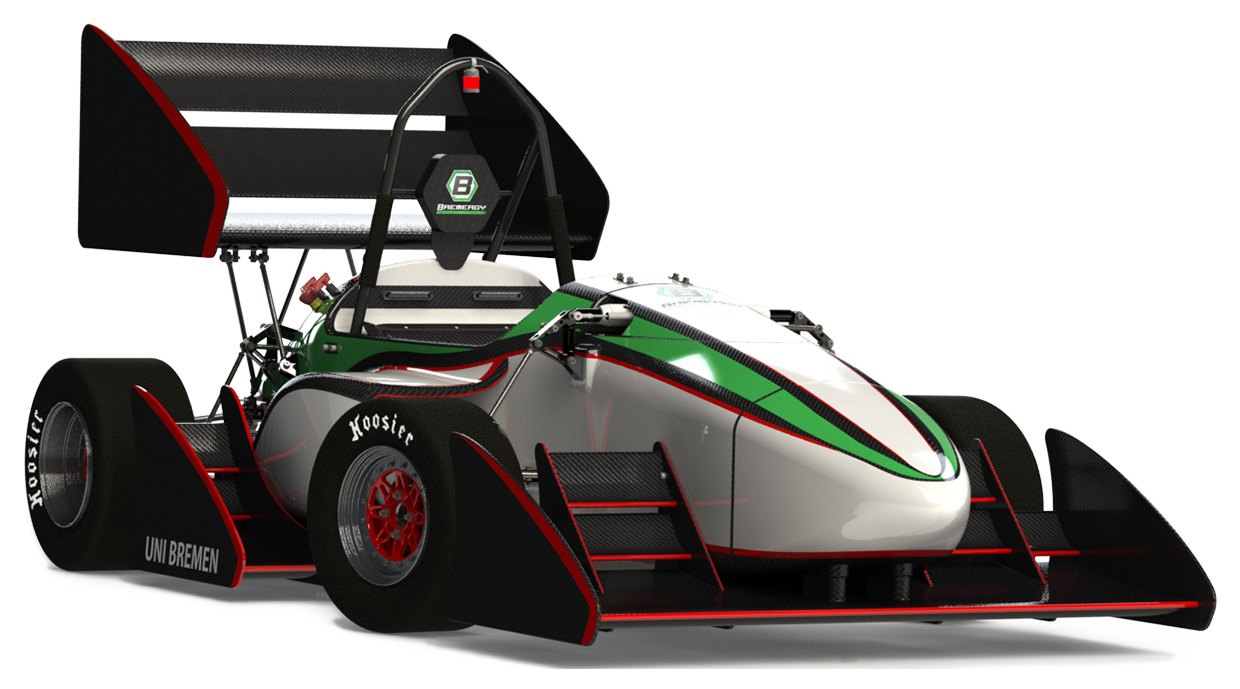

2015

Car #72

Info

4x

It´s not what you do. It´s how you do it. And why.#WorkSmartRaceHardIntrinsic Motivation is why we never rest on achieved goals.#WorkSmarterRaceHarder

Engineering Design Priorities:

#BREMERGY #WorkSmartRaceHard #BreMo15 #DoItYourself #BremenWho? #TwoNighter

Car Specifications

General

Frame Construction	Full CFRP-monocoque with foam sandwich structure
Material	UD, Biax, twill, Coppermesh, Rohacell foam
Overall L	3050 mm
Overall W	1380 mm
Overall H	1170 mm
Wheelbase	1540 mm
Track (Fr)	1180 mm
Track (Rr)	1150 mm
Weight with 68kg driver (Fr)	145 kg
Weight with 68kg driver (Rr)	151 kg
Suspension	Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper.
Tyres (Fr / Rr)	18.0x6.0-10 / 18.0x7.5-10 Hoosier R25B
Wheels (Fr / Rr)	5.75x10 / 7.75x10, 30mm offset. self-designed inner Al rim
Drive Type	one step planetary gear drive
Differential	torque vectoring
Cooling	watercooled motors and motor controller, twin side pod mounted radiators
Brake System	4-Disk system, floating self developed rotors, adjustable brake balance
Electronics	CAN-Bus, live telemetry, self-designed AMS

Powertrain

Number of Motors	2
Motor Location	Rear Right, Rear Left
Max Motor Power (per motor)	80kW kW
Motor Type	Enstroj Emrax 207 HV LC
Max Motor RPM (highest)	6000 rpm
Motor Controller	self-designed motor controller
Max System Voltage	453V V
Electrode Materials	LiCoO2
Combined Accumulator Capacity	7.26kWh kWh
Transmission Ratio (Primary)	1:3.29 : 1
Transmission Ratio (Secondary)	n/a : 1

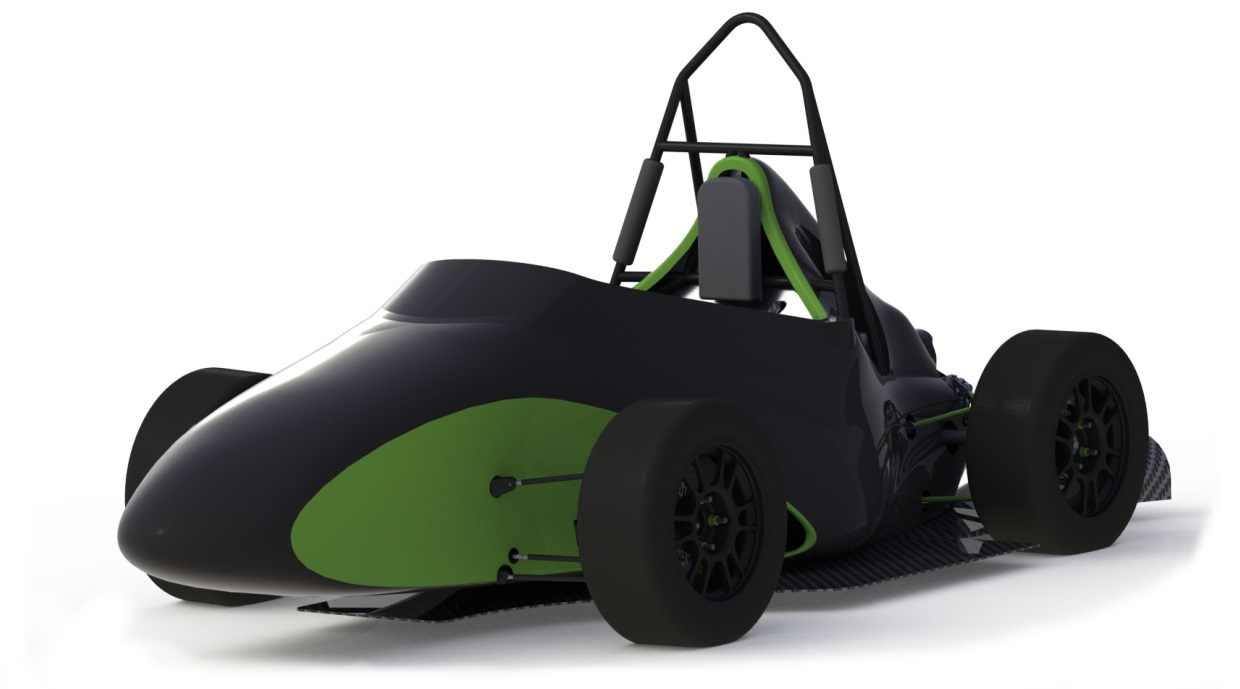

2014

Car #72

Info

10x

Founded in August 2011 by a small group of motivated students, Bremergy Racing established itself as the biggest students' group on the University of Bremen. Today we cooperate with 13 research institutes with a mere focus on Fibre Reinforced Plastics, electrical driving systems and mechanical construction. The aims of our team are to design a sustainable, simple and high performing race car. Therefore Nature Fibre Reinforced Plastics (NFRP) are a key technology on our design.

Engineering Design Priorities:

simplicity cost efficiency sustainability

Car Specifications

General

Frame Construction	steeltube spaceframe
Material	E355 steel tubes with different wall thickness
Overall L	3095 mm
Overall W	1440 mm
Overall H	1266 mm
Wheelbase	1550 mm
Track (Fr)	1200 mm
Track (Rr)	1150 mm
Weight with 68kg driver (Fr)	167 kg
Weight with 68kg driver (Rr)	195 kg
Suspension	Double A-arm suspension. Pull rod in front, Push rod rear.
Tyres (Fr / Rr)	20.5 x 7.0-13, R25B, Hoosier
Wheels (Fr / Rr)	7.0x13, 22 mm offset, OZ Racing Al-Rim
Drive Type	Planetary gear implemented in uprights
Differential	Independently driven motors with torque vectoring
Cooling	3D-printed cooling ducts with 2 xxx mm electric fans attached to the motors
Brake System	4-Disk system with adjustable brake balance,
Electronics	Mulit-level based controller, developed using RCP, configurable steering wheel, Live-Telemetry

Powertrain

Number of Motors	2
Motor Location	Rear Left/Right, inside
Max Motor Power (per motor)	72 kW kW
Motor Type	LMC D135 RAGs
Max Motor RPM (highest)	4820 rpm
Motor Controller	Kelly Type KDH12401E with regen
Max System Voltage	110V V
Electrode Materials	LiFePO4
Combined Accumulator Capacity	6,6kWh kWh
Transmission Ratio (Primary)	1:5 : 1
Transmission Ratio (Secondary)	1:1 : 1
