Team Details

Formula Student Bizkaia

University University of the Basque Country (UPV/EHU)
ES Bilbao EHU short 497
team logo
LocationBilbao, Spain
Homepagehttps://www.fsbizkaia.com/
Social Media
CV Team Formula Student Bizkaia
Short Linktid.fsg.one/412

Past Events

Car 48 – 2026
2026

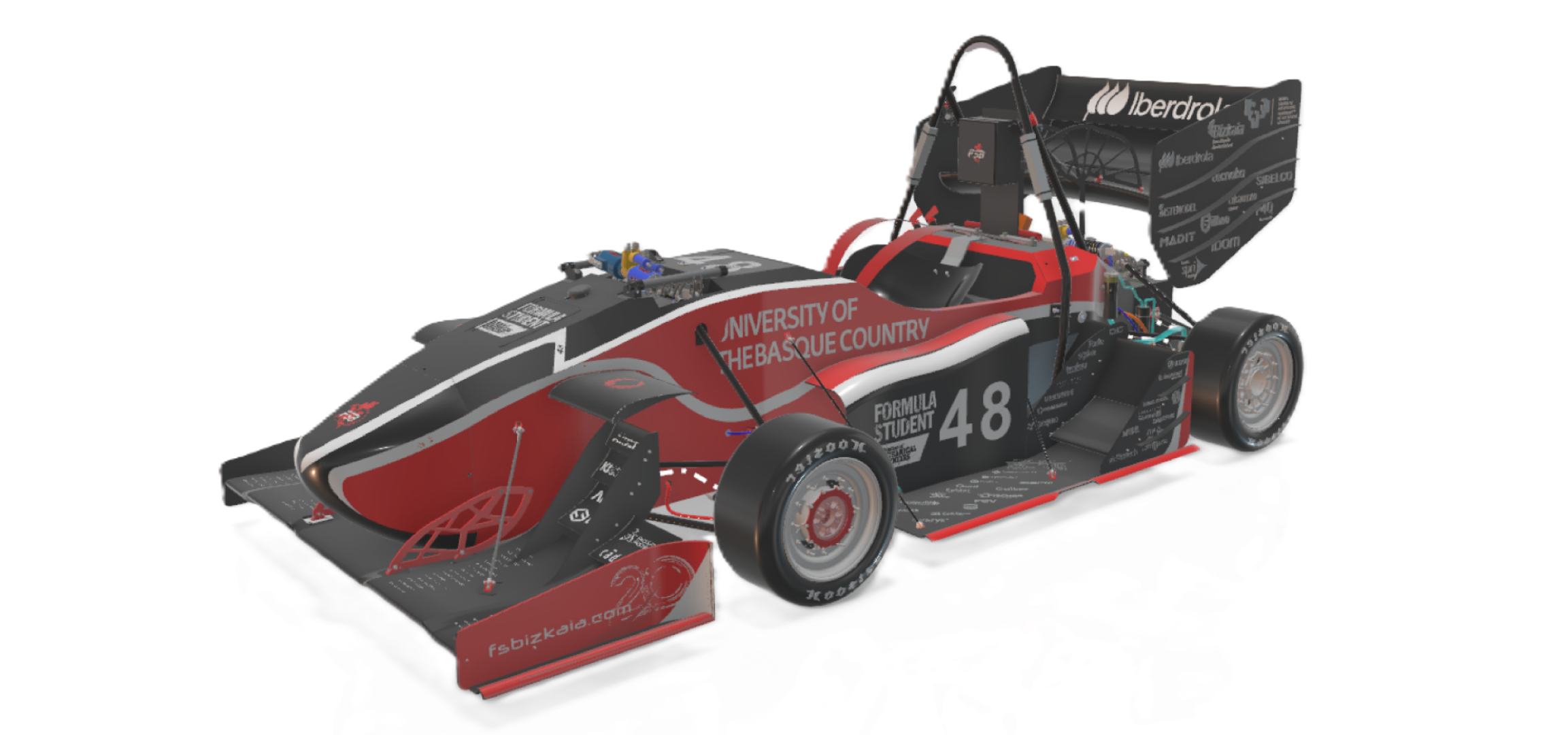

Car #48 FSB2026
Info
47x
Founded in 2006 at the Bilbao School of Engineering, Formula Student Bizkaia debuted its first single-seater in 2008. Today, our multidisciplinary team of engineering students embodies excellence, achieving consecutive historic seasons and winning FSUK 2025. Building on this momentum, the new FSB2026 introduces major technical upgrades. With this car, we expect to maximize our on-track performance, defend our title, and fight for victory at the highest level of competition.
Engineering Design Priorities:
FSBizkaia EHU EIB FSB2026 FSB Bilbao
Car Specifications
General
Frame Construction Carbon fiber sandwich monocoque structure with tubular steel roll bars
Material Carbon fibre skins with aluNID 3000 aluminum honeycomb core (10 and 20 mm)
Overall L 2895 mm
Overall W 1400 mm
Overall H 1140 mm
Wheelbase 1590 mm
Track (Fr) 1220 mm
Track (Rr) 1220 mm
Weight with 68kg driver (Fr) 146 kg
Weight with 68kg driver (Rr) 152 kg
Suspension Decoupled, Double Wishbone A-Arm, Pushrod
Tyres (Fr / Rr) Hoosier FSAE 16.0X6.0-10 LC0 / Hoosier FSAE 16.0X6.0-10 LC0
Wheels (Fr / Rr) 6.0x10, 42 mm offset, Forged Aluminum Rim / 6.0x10, 42 mm offset, Forged Aluminum Rim
Drive Type Planetary Gearbox
Differential Electronic Torque Vectoring
Cooling Two cooling jackets, a cooling plate, a radiator on the sidepod, two fans and a water pump per side
Brake System 4-Disk system, APracing CP4226-2S0 calipers, adjustable brake balance
Electronics Raspberry Pi 5 telemetry system with CAN/MQTT, 2 HATs, 2.4 GHz 200 mW, IP67 cables
Powertrain
Number of Motors 4
Motor Location In-wheel motors
Max Motor Power (per motor) 35 kW
Motor Type Fischer Ti085, PMSM
Max Motor RPM (highest) 20000 rpm
Motor Controller Lenze DCU 60/60
Max System Voltage 600 V
Electrode Materials LiCoO2
Combined Accumulator Capacity 7.25 kWh
Transmission Ratio (Primary) 12.25 : 1
Transmission Ratio (Secondary) 1 : 1

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2026.08
FS DE
80
37.
14.
12.
48.
32.
-
-
-
-
26.
22.
0.00
261.89
2026.07
FS UK
64
5.
7.
1.
8.
1.
-
3.
-
3.
13.
-
0.00
564.50
2025.08
FS ES
37
7.
17.
12.
9.
7.
-
9.
-
6.
5.
-
-5.00
357.40
2025.07
FS UK
59
1.
12.
3.
3.
1.
-
2.
-
6.
3.
3.
0.00
908.32
2024.08
FS ES
25
4.
4.
11.
8.
8.
-
5.
-
7.
6.
2.
-40.00
575.60
2024.07
FS UK
51
3.
15.
5.
5.
3.
-
1.
-
-
4.
1.
0.00
714.60
2023.08
FS ES
19
10.
12.
11.
6.
7.
-
8.
-
-
-
-
0.00
246.40
2023.07
FS UK
60
16.
7.
7.
7.
-
-
-
-
-
-
-
0.00
303.90
2022.09
FS ES
38
21.
25.
4.
9.
-
-
-
-
-
-
-
0.00
267.10
2022.07
FS UK
51
10.
3.
6.
4.
-
-
-
-
-
-
-
0.00
347.20
2021.08
FS ES
16
9.
10.
1.
6.
5.
-
6.
-
-
-
-
0.00
355.40
2019.08
FS ES
39
10.
19.
9.
10.
21.
-
21.
-
20.
9.
5.
0.00
502.10
2019.07
FS UK
64
10.
6.
2.
3.
8.
-
24.
-
9.
20.
2.
0.00
540.40
2018.08
FS ES
38
21.
12.
6.
10.
-
-
-
-
20.
16.
-
0.00
282.50
2018.07
FS UK
70
24.
1.
3.
11.
10.
-
8.
-
-
34.
-
0.00
374.60
2017.08
FS ES
30
19.
13.
12.
18.
20.
-
-
-
19.
11.
-
0.00
326.50
2017.07
FS UK
62
19.
1.
7.
5.
8.
-
2.
-
-
43.
-
0.00
386.50
2016.08
FS ES
29
19.
20.
6.
14.
16.
-
13.
-
18.
-
-
0.00
314.60
2016.07
FS UK
106
58.
7.
52.
36.
-
-
-
-
-
-
-
0.00
216.30
2015.08
FS ES
30
17.
15.
16.
23.
10.
-
16.
-
14.
-
-
0.00
241.83
2015.07
FS UK
92
40.
33.
37.
34.
24.
-
20.
-
39.
47.
-
0.00
258.50
2014.08
FS ES
23
13.
4.
14.
20.
14.
-
15.
-
13.
12.
1.
0.00
432.70
2014.07
FS UK
90
31.
24.
29.
28.
17.
-
33.
-
34.
49.
-
0.00
291.20
2013.09
FS ES
16
11.
7.
12.
13.
12.
-
13.
-
10.
-
9.
0.00
360.90
2013.07
FS UK
83
52.
1.
26.
60.
-
-
-
-
-
-
-
0.00
202.10
2012.09
FS ES
13
11.
12.
3.
11.
11.
-
11.
-
10.
7.
-
0.00
235.46
x 26
