Team Details
Strohm + Söhne e.V.
| University | Georg-Simon-Ohm-Hochschule Nürnberg
DE Nürnberg GSO UAS short 704 |
![]() |
|---|---|---|
| Location | Nürnberg, Germany | |
| Homepage | https://www.strohmundsoehne.de/ | |
| Social Media |
|
|
| Short Link | tid.fsg.one/378 | |
| Event Details | car 148 - waiting | |
Team Description
Strohm + Söhne e.V.
Noris Motorsport
Event Profile
Past Events

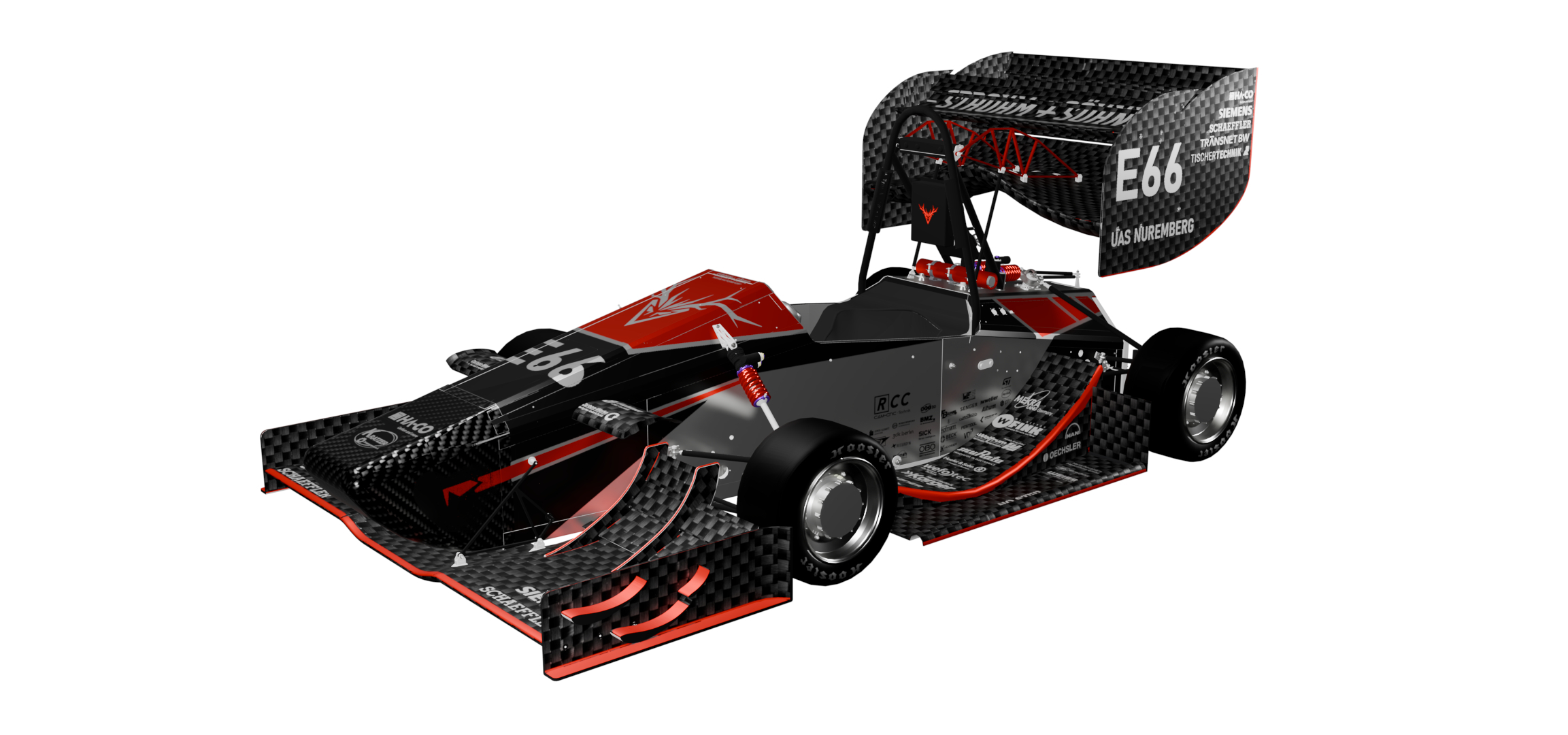

2025
Info

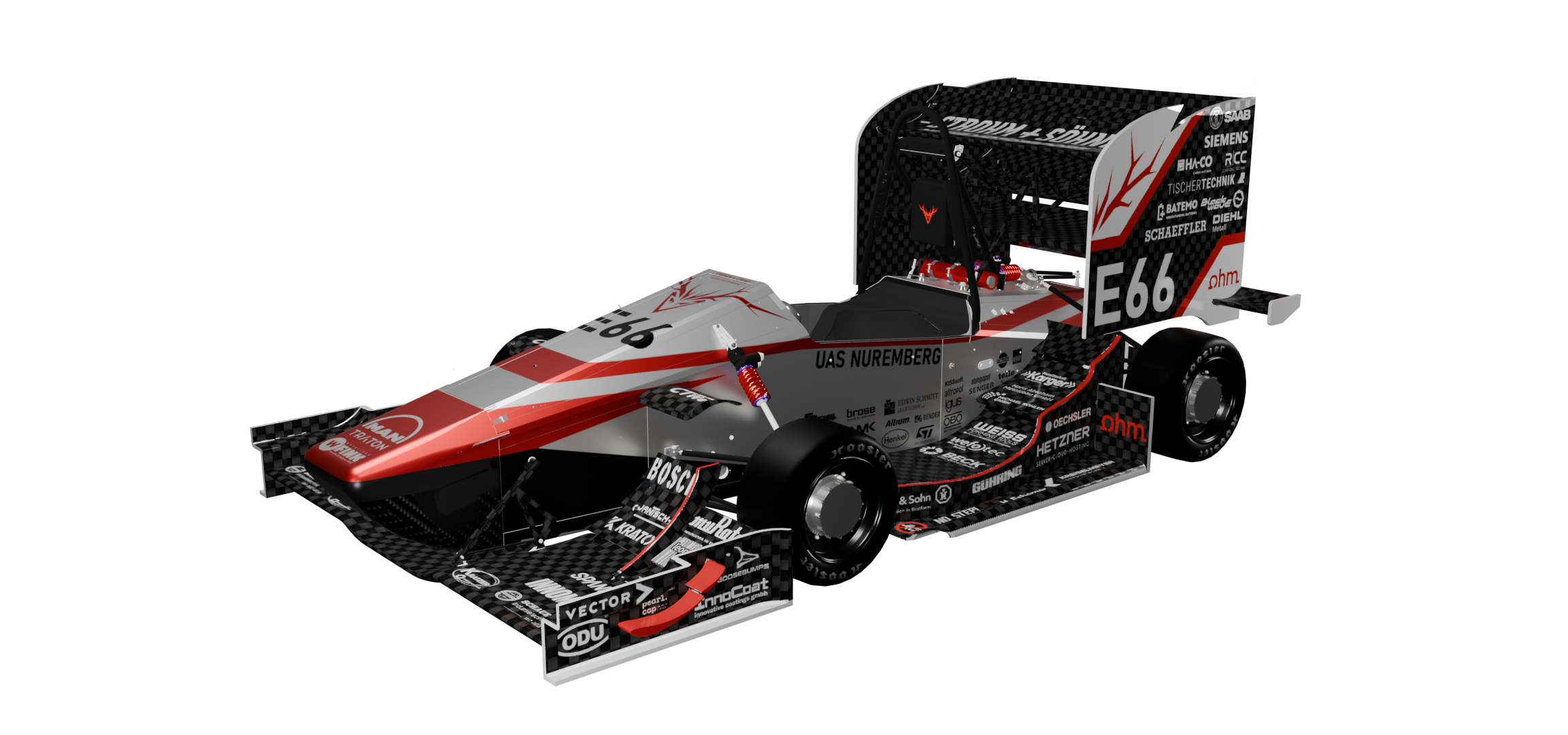

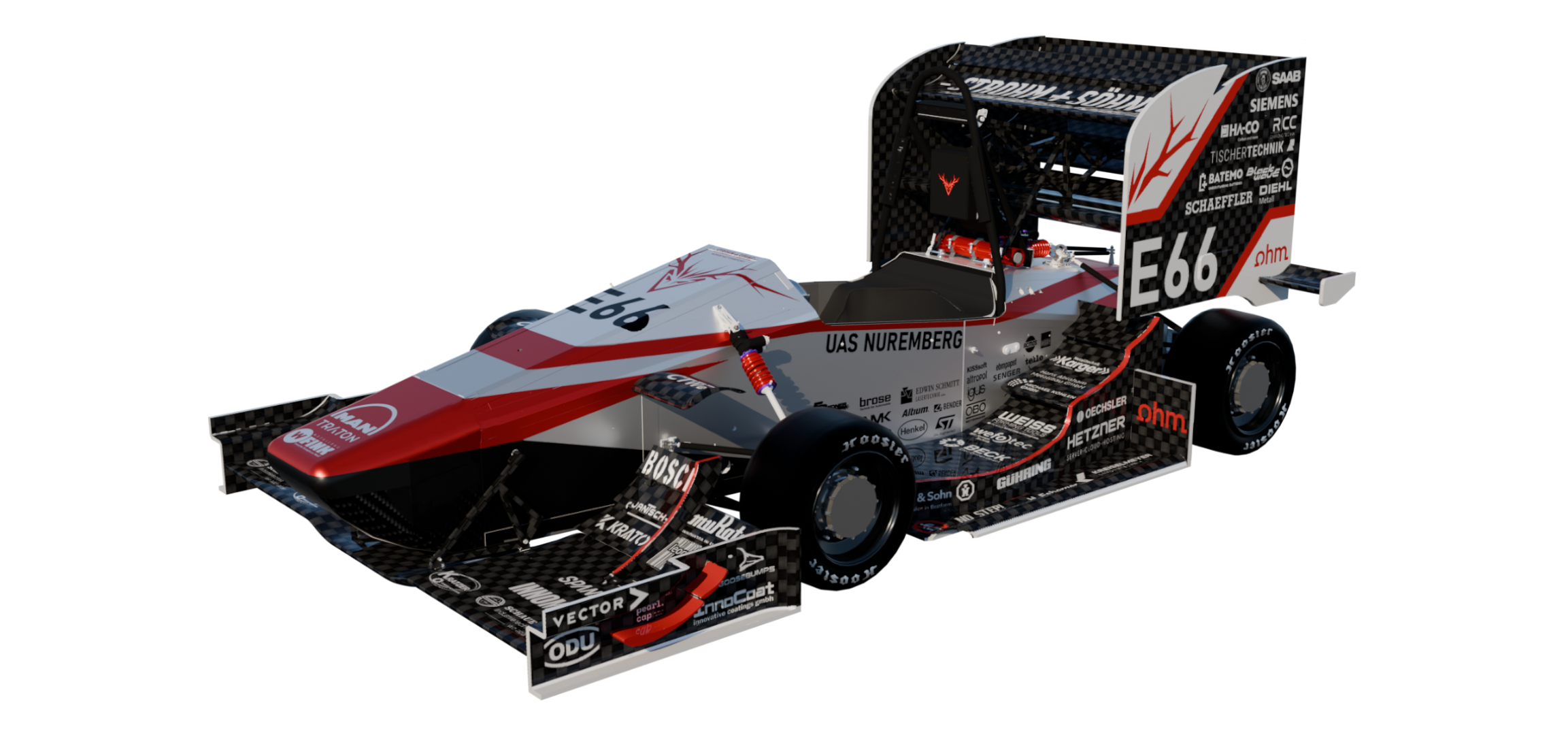

This year’s car “NoRa 11” is the 11th car our team has built. The overall concept revolved around using proven concepts from the previous season where applicable, while innovating in areas where we felt confident enough to push forward. We continue to rely on our beautiful aluminium sheet monocoque.
Engineering Design Priorities:
Reliability
DriverlessImplementation
Safety
Efficiency
SkidpadPerformance
Car Specifications
General
| Frame Construction | Aluminium sandwich structure, CRFP FBH, integrated Aluminum FH |
|---|---|
| Material | Aluminium honeycomb sandwich panels |
| Overall Length (mm) | 2998 |
| Overall Width (mm) | 1588 |
| Overall Height (mm) | 1194 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1220 |
| Track Rear (mm) | 1220 |
| Weight Front (kg) | 133 |
| Weight Rear (kg) | 133 |
| Suspension | Double A-Arm. Pushrod-actuated KW dampers. Adjustable damping, ride & roll rate |
| Tyres | Hoosier 16x7,0-10 R20 |
| Wheels | Keizer 10 |
| Drive Type | Planetary Gearbox |
| Differential | N/A; Controled via VCU |
| Cooling | 2 Rear mounted 800cc radiators each with a 150mm fan |
| Brake System | 4-Disk system, self developed rotors with 210mm diameter (front&rear) |
| Electronics | Self developed CAN sensor node system, dashboard screen with touchscreen and inegrated VC |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Fr, Fl, Rr, Rl; Wheel Hub |
| Max Motor Power | 35 |
| Motor Type | AMK DD5-14-10-P0W-18600-B5 |
| Max Motor RPM | each 20000rpm |
| Motor Controller | AMK - KW26-S5-FSE-4Q 2 |
| Max System Voltage (V) | 600 |
| Electrode Materials | Li-Ion |
| Accumulator Capacity | 6,998 |
| Transmission Ratio Primary | 12,75 |
| Transmission Ratio Secondary | n/a |

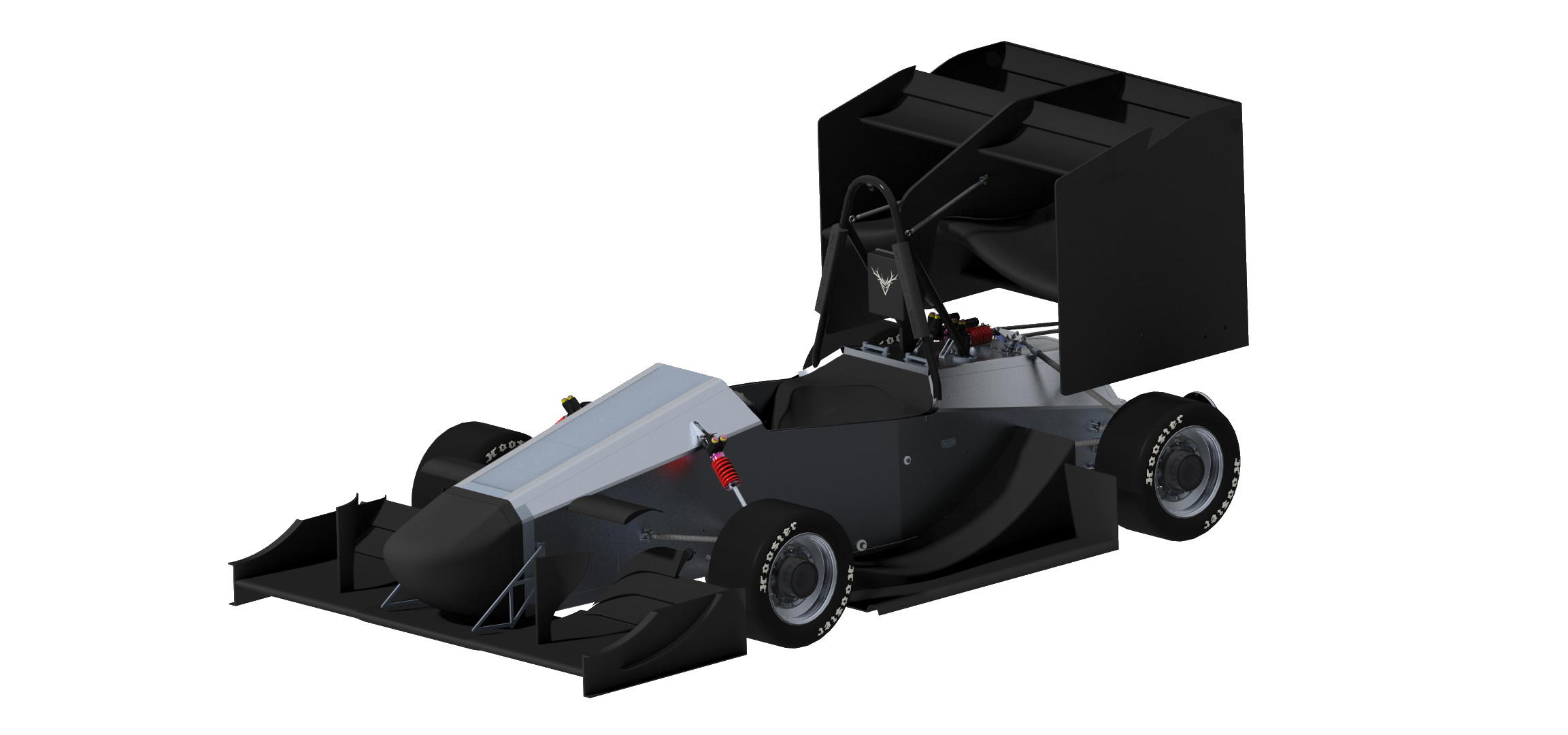

2024
Info
NoRa X marks the 10th anniversary of our success story. Evolving from last years first Aero, we set our minds to focus on further increasing the downforce of our car. To achieve this, we also made the switch to 10" wheels and a smaller, lighter planetary gearbox to go with it. Using our proven 4WD solution, we focused on further improving our vehicle control software and increasing sensor reliability. Last but not least, NoRa X marks the start of our Driverless journey.
Engineering Design Priorities:
Aerodynamic-driven design
Switch to 10
Improve existing concepts
First DV steps
Knowledge transfer
Serviceability
Car Specifications
General
| Frame Construction | Aluminium sandwich structure, CRFP FBH, integrated Aluminum FH |
|---|---|
| Material | Aluminium honeycomb sandwich panels |
| Overall Length (mm) | 2910 |
| Overall Width (mm) | 1516 |
| Overall Height (mm) | 1180 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1220 |
| Track Rear (mm) | 1215 |
| Weight Front (kg) | 130 |
| Weight Rear (kg) | 141 |
| Suspension | Double A-Arm. Pushrod-actuated KW dampers. Adjustable damping, ride & roll rate |
| Tyres | Hoosier 16x7,0-10 R20 |
| Wheels | Keizer 10 |
| Drive Type | Planetary Gearbox |
| Differential | N/A; Controled via VCU |
| Cooling | 2 Rear mounted 800cc radiators each with a 150mm fan |
| Brake System | 4-Disk system, self developed rotors with 210mm diameter (front&rear) |
| Electronics | Self developed CAN sensor node system, dashboard screen with touchscreen and inegrated VC |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Fr, Fl, Rr, Rl |
| Max Motor Power | 35kW |
| Motor Type | AMK DD5-14-10-P0W-18600-B5 |
| Max Motor RPM | FL,FR: 20.000; RR,RL: 20.000 |
| Motor Controller | AMK - KW26-S5-FSE-4Q 2 |
| Max System Voltage (V) | 600 |
| Electrode Materials | Li-Ion |
| Accumulator Capacity | 6,998 |
| Transmission Ratio Primary | 12,75 |
| Transmission Ratio Secondary | N/A |

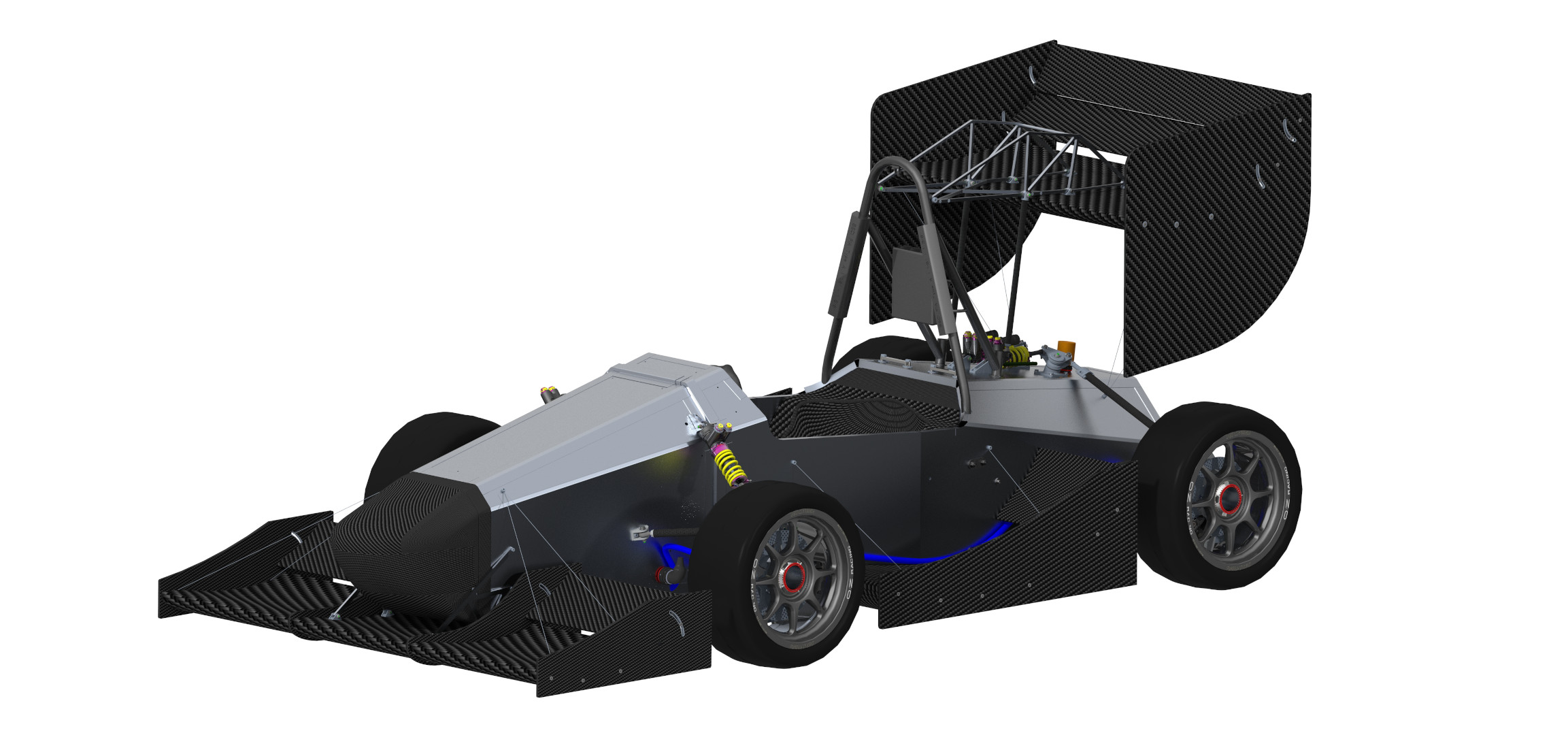

2023
Info
Strohm & Söhne has been dedicated to sustainable motorsports since 2011's Formula Student Electric inception. Our 8th full-electric racecar, merges successful elements from previous generations with new advanced features. For the first time in our team's history, we have successfully introduced a comprehensive aerodynamic setup, enhancing driving performance and looks. After a successful last season, our drive to build upon these achievements and further improve rankings is stronger than ever.
Engineering Design Priorities:
Reliable
Alu-Monocoque
Evolution
Aerodynamik
Compact Design
Serviceability
Car Specifications
General
| Frame Construction | Aluminium sandwich structure, CRFP FBH, integrated Aluminum FH |
|---|---|
| Material | Aluminium honeycomb sandwich panels |
| Overall Length (mm) | 2940 |
| Overall Width (mm) | 1388 |
| Overall Height (mm) | 1190 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1190 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 146 |
| Weight Rear (kg) | 142 |
| Suspension | Double A-Arm. Pushrod-actuated KW dampers. Adjustable damping, ride & roll rate |
| Tyres | Hoosier 205x47 R13 |
| Wheels | OZ 8 RAZZE MG FSAE 7X13” Centerlock |
| Drive Type | Planetary Gearbox |
| Differential | N/A; Controled via VCU |
| Cooling | 2 Rear mounted 800cc radiators each with a140mm fan |
| Brake System | 4-Disk system, self developed rotors with 202mm/176mm diameter (front/rear) |
| Electronics | Self developed CAN sensor node system, dashboard screen with touchscreen and inegrated VCU |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Fr, Fl, Rr, Rl |
| Max Motor Power | 35kW |
| Motor Type | AMK DD5-14-10-P0W-18600-B5 |
| Max Motor RPM | FL,FR: 20.000; RR,RL: 20.000 |
| Motor Controller | AMK - KW26-S5-FSE-4Q 2 |
| Max System Voltage (V) | 600 |
| Electrode Materials | Li-Ion |
| Accumulator Capacity | 6,22 |
| Transmission Ratio Primary | 13,63 |
| Transmission Ratio Secondary | N/A |

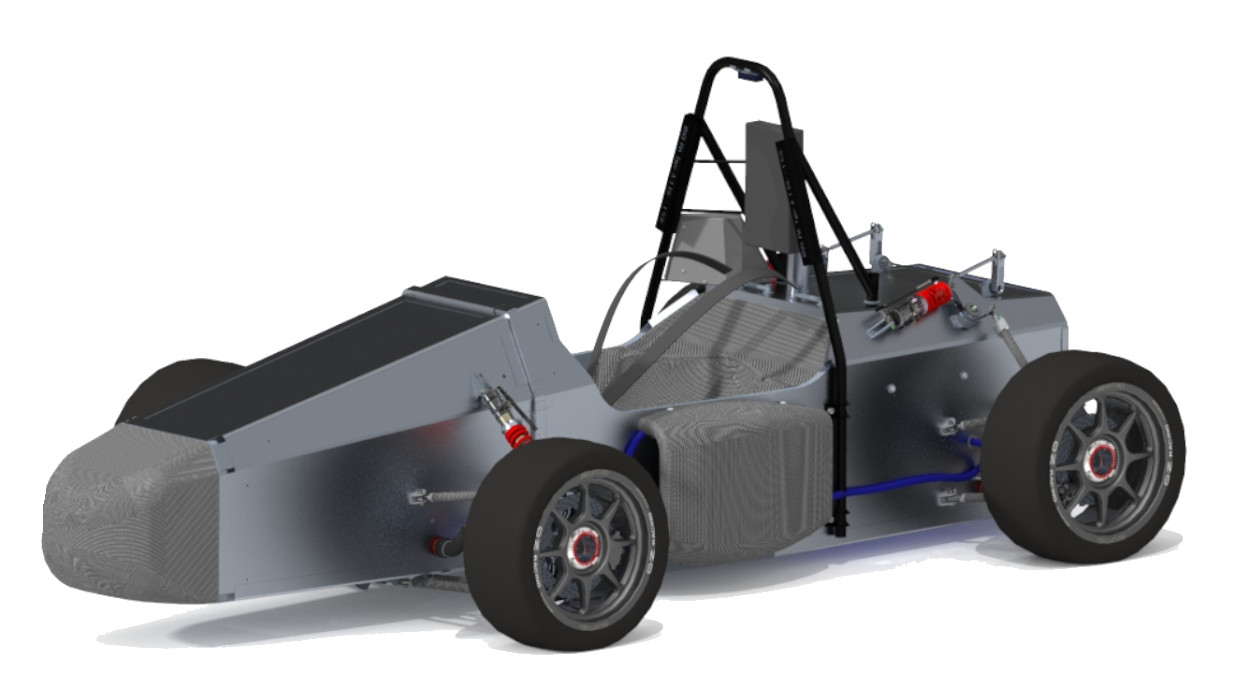

2022
Info
Strohm & Söhne is committed to sustainable motorsports since the beginning of Formula Student Electric in 2011. This year we fixed the minor mistakes noticed during the 2021 racing season to build an even more reliable and better performing car while focusing on areas of the car where we could see a lot of performance potential according to the principle: evolution instead of revolution. We are loocking forward to FSG22 to race our team to the top ranks!
Engineering Design Priorities:
Alu-Monocoque
Efficiency
Evolution
Relieable
Security
Car Specifications
General
| Frame Construction | Aluminium sandwich monocoque with integrated fronthoop and steel mainhoop |
|---|---|
| Material | Aluminium honeycomb sandwich panels |
| Overall Length (mm) | 2703 |
| Overall Width (mm) | 1400 |
| Overall Height (mm) | 1095 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1190 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 119 |
| Weight Rear (kg) | 152 |
| Suspension | Double A-Arm. Pushrod-actuated KW dampers. Adjustable damping, ride & roll rate |
| Tyres | 205x47 R13 34M Continental |
| Wheels | 7Jx13 in., 30mm offset, Magnesium center lock |
| Drive Type | Planetary Gearbox |
| Differential | N/A |
| Cooling | two 800cc radiators mounted on each side of the car, no fan used, carbon cooling duct |
| Brake System | 4-Disk system, self developed rotors with 202mm/176mm diameter (front/rear) |
| Electronics | Self developed CAN sensor node system, dashboard screen with touchscreen |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Fr, Fl, Rr, Rl |
| Max Motor Power | 35kW |
| Motor Type | AMK DD5-14-10-P0W-18600-B5 |
| Max Motor RPM | FL,FR: 20.000; RR,RL: 20.000 |
| Motor Controller | AMK - KW26-S5-FSE-4Q 2 |
| Max System Voltage (V) | 600V |
| Electrode Materials | Li-Ion |
| Accumulator Capacity | 6.22kWh |
| Transmission Ratio Primary | 1:13.83 |
| Transmission Ratio Secondary | N/A |

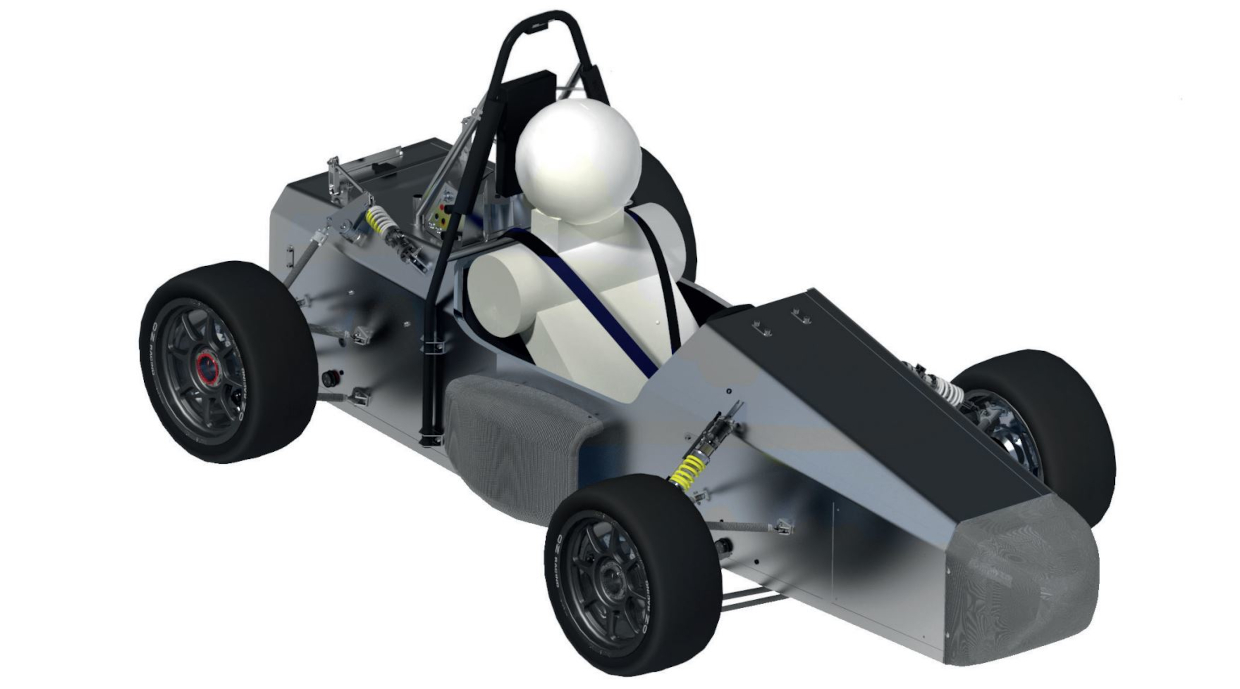

2021
Info
Never has anything different come into question: since the release of our first car NoRa1 in 2013, Strohm und Söhne e.V. is committed to sustainable motorsport in Formula Student. We proudly present NoRa7, the latest car in our era of electric vehicles and are excited to be part of Formula Student Germany 2021. After starting from scratch last season, we managed to build both – a new car and a new team – and are ready to race TH Nürnberg Georg Simon Ohm to the top ranks.
Engineering Design Priorities:
build a knowledge base
driving dynamics
reliability
low-maintenance
flexibility
cost awareness
Car Specifications
General
| Frame Construction | Aluminium sandwich monocoque with tubular steel roll bars |
|---|---|
| Material | Plascore honeycomb - AW6082 skins (18 mm core, sides 0.8) |
| Overall Length (mm) | 2674 |
| Overall Width (mm) | 1400 |
| Overall Height (mm) | 1078 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1190 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 126 |
| Weight Rear (kg) | 139 |
| Suspension | Double A-Arm. Push rod actuated, KW dampers. Adjustable damping, ride & roll rate |
| Tyres | 205x470 R13 34M Continental |
| Wheels | 7Jx13 in., 30 mm offset, Magnesium Center Lock |
| Drive Type | Planetary Gearbox |
| Differential | N/A |
| Cooling | two 800cc radiators mounted on each side of the car, no fan used, carbon cooling duct |
| Brake System | 4-Disk system, self developed rotors with 202mm/176mm diameter (front/rear) |
| Electronics | Self developed CAN sensor node system, dashboard screen with touchscreen |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Fr, Fl, Rr, Rl |
| Max Motor Power | 35kW |
| Motor Type | AMK DD5-14-10-P0W-18600-B5 |
| Max Motor RPM | FL,FR: 20.000; RR,RL: 20.000 |
| Motor Controller | AMK - KW26-S5-FSE-4Q 2 |
| Max System Voltage (V) | 600V |
| Electrode Materials | Li-Ion |
| Accumulator Capacity | 7,2576 |
| Transmission Ratio Primary | 1:13.83 |
| Transmission Ratio Secondary | N/A |

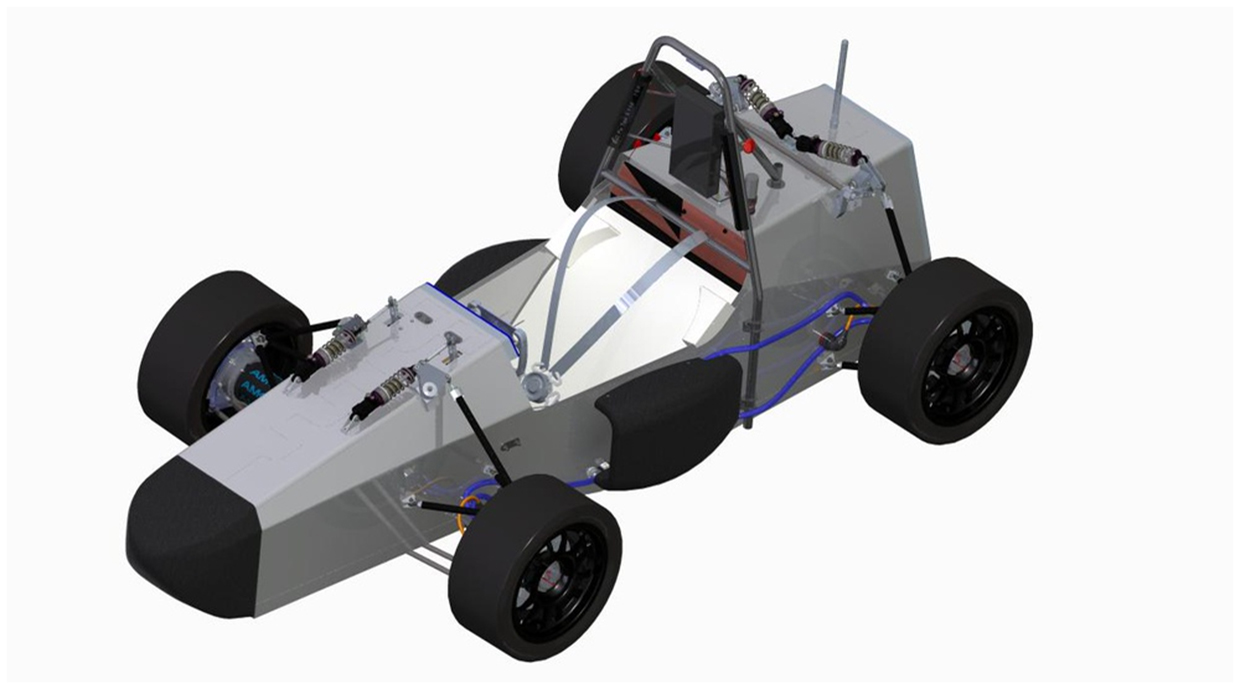

2018
Info
Strohm+Söhne is the FSE team of Nuernberg(DEU) and was founded in ´11. Our 5th racecare NoRa5 was designed to be a complete change in comparision to the premodel. An aluminium monocoque was constructed to safe weight. The switch of rear-wheel drive to 4 wheel drive allows us to transfer the torque more efficient into acceleration and gives us the possibility to support the driver with torque vectoring. We are also proud of our self-developed electrical devices like the AMS and Smart Sensors.
Engineering Design Priorities:
driving dynamics
reliability
low-maintenance
flexibility
cost awareness
environmentally friendly
Car Specifications
General
| Frame Construction | Aluminium sandwich monocoque with tubular steel roll bars |
|---|---|
| Material | Plascore honeycomb - AW6082 skins (18 mm core, sides 0.8 and 1 mm) |
| Overall Length (mm) | 2705 |
| Overall Width (mm) | 1420 |
| Overall Height (mm) | 1112 |
| Wheelbase (mm) | 1550 |
| Track Front (mm) | 1190 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 131 |
| Weight Rear (kg) | 155 |
| Suspension | Double A-Arm. Push rod actuated, KW dampers. Adjustable damping, ride & roll rate |
| Tyres | 205x470 R13 34M Continental / 205x470 R13 34M Continental |
| Wheels | 7Jx13 FH2 ET22 OZ Racing Al Rim/ 7Jx13 FH2 ET22 OZ Racing Al Rim |
| Drive Type | Planetary Gearbox |
| Differential | N / A |
| Cooling | two 800cc radiators mounted on each side of the car, no fan used, carbon cooling duct |
| Brake System | 4-Disk system, self developed rotors with 202mm/176mm diameter (front/rear) |
| Electronics | Self developed CAN sensor node system, dashboard screen with touch, torque vector |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Fr, Fl, Rr, Rl |
| Max Motor Power | 35kW |
| Motor Type | FL, FR, RL, RR: AMK-DD5-14-10-POW-18600-B5 |
| Max Motor RPM | FL, FR: 20.000 RR, RL: 20.000 |
| Motor Controller | AMK - KW26-S5-FSE-4Q 2 |
| Max System Voltage (V) | 600V |
| Electrode Materials | LiCoO2 - Lithium polymer |
| Accumulator Capacity | 6,4kWh |
| Transmission Ratio Primary | 1:13,83 |
| Transmission Ratio Secondary | N / A |

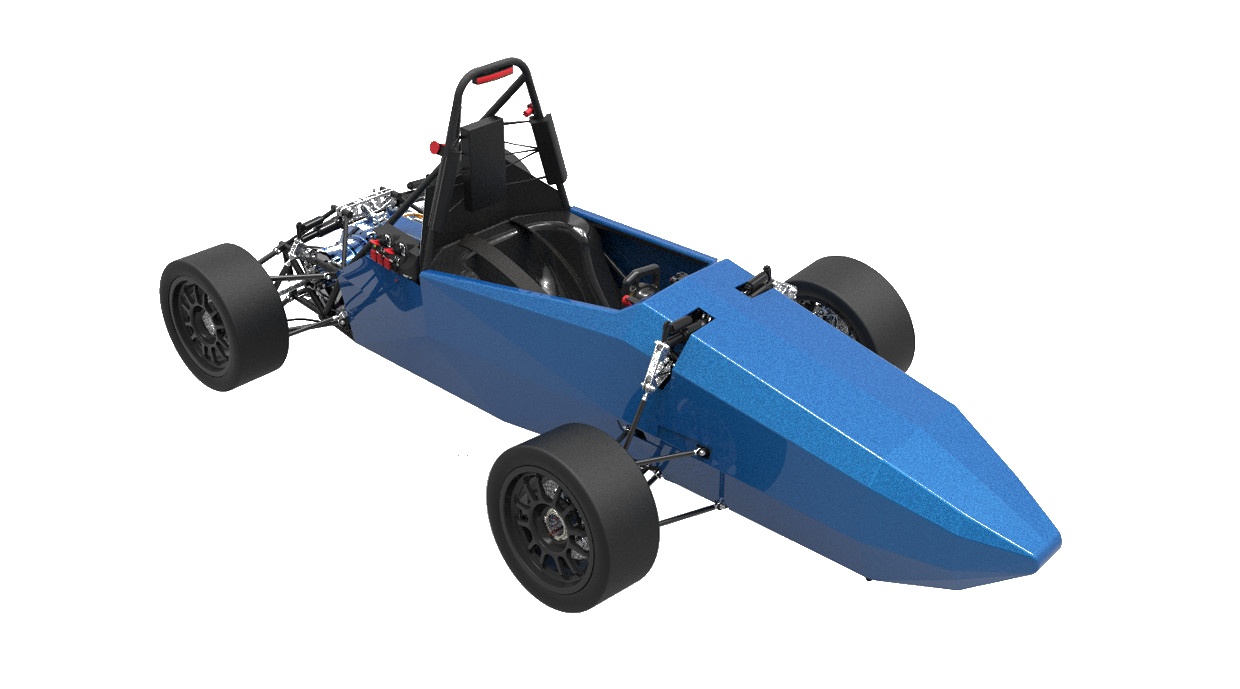

2016
Info
Strohm+Söhne–Noris Motorsport is t. FSE team of t. Nuernberg GSO UAS and was founded in 2011. We are competing this season w. our contender NoRa 4 - what is short f. Noris Racing. We are realising a RWD concept w. an engine from Schaeffler IDAM a. an inverter from Continental and CES. Introducing a carbon suspension and a T-Bar ARB on this car marks an important step f. us in developing t. suspension. We are also proud of our self-developed electrical devices like t. AMS and t. Smart Sensors.
Engineering Design Priorities:
driveability
maintainability
reliability
adjustability
cost awareness
Car Specifications
General
| Frame Construction | Steel tube space frame. Add. carbon braces for reducing weight and increasing stiffness. |
|---|---|
| Material | 25CrMo4 f. t. main structure. Add. carbon braces w. unidirectional carbon tubes a. titan glands. |
| Overall Length (mm) | 2960 |
| Overall Width (mm) | 1495 |
| Overall Height (mm) | 1140 |
| Wheelbase (mm) | 1670 |
| Track Front (mm) | 1280 |
| Track Rear (mm) | 1220 |
| Weight Front (kg) | 122 |
| Weight Rear (kg) | 217 |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented mountainbike air damper |
| Tyres | 205/470 R13, Continental C16 |
| Wheels | 7Jx13, 22.0 mm offset, 1 pc Al Rim / 7Jx13, 22.0 mm offset, 1 pc Al Rim |
| Drive Type | Single stage planetary gearbox |
| Differential | Spur gear differential, electromechanical locking mechanism (10-70%) |
| Cooling | single circuit system w. 4140cc volume f. t. engine + inverter. Left side mounted fanless radiator |
| Brake System | Light weighted 4-/2-piston ISR calipers, Brake force compensator for optimum brake performance |
| Electronics | Multifunctional steering wheel, Smart Sensor concept, selfdesigned AMS, Fuse PCB, HV DCDC-Converter |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear |
| Max Motor Power | 80kW |
| Motor Type | R: Schaeffler IDAM RDDS RHI4 145x100 |
| Max Motor RPM | R: 10000 |
| Motor Controller | Continental - EPF2-3 |
| Max System Voltage (V) | 454V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 6,4kWh |
| Transmission Ratio Primary | 1:5,91 |
| Transmission Ratio Secondary | N/A |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.09 | 32 |
9. |
28. |
25. |
8. |
8. |
- |
15. |
- |
9. |
7. |
4. |
0.00 |
343.10 |
|
| 2025.08 | 84 |
67. |
71. |
55. |
32. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
159.20 |
|
| 2025.08 | 53 |
38. |
30. |
28. |
33. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
196.30 |
|
| 2024.08 | 79 |
34. |
35. |
31. |
56. |
7. |
- |
27. |
- |
15. |
- |
- |
0.00 |
295.15 |
|
| 2024.08 | 47 |
16. |
17. |
34. |
9. |
2. |
- |
12. |
- |
- |
- |
- |
0.00 |
318.57 |
|
| 2024.07 | 15 |
10. |
7. |
8. |
9. |
- |
- |
4. |
- |
4. |
- |
- |
-40.00 |
229.70 |
|
| 2023.08 | 29 |
21. |
26. |
20. |
19. |
8. |
- |
11. |
- |
11. |
- |
- |
-10.00 |
304.80 |
|
| 2023.08 | 70 |
29. |
34. |
55. |
41. |
24. |
- |
17. |
- |
16. |
- |
- |
0.00 |
261.30 |
|
| 2023.08 | 35 |
15. |
32. |
17. |
12. |
6. |
- |
- |
- |
7. |
- |
- |
0.00 |
313.33 |
|
| 2022.09 | 38 |
5. |
10. |
30. |
32. |
15. |
- |
6. |
- |
9. |
4. |
2. |
0.00 |
415.50 |
|
| 2022.08 | 25 |
6. |
18. |
15. |
23. |
12. |
- |
5. |
- |
- |
5. |
3. |
0.00 |
584.90 |
|
| 2022.08 | 63 |
46. |
45. |
37. |
49. |
30. |
- |
29. |
- |
25. |
- |
- |
0.00 |
196.55 |
|
| 2021.08 | 38 |
32. |
35. |
35. |
38. |
- |
- |
14. |
- |
18. |
- |
- |
0.00 |
184.78 |
|
| 2021.08 | 26 |
17. |
16. |
26. |
26. |
23. |
- |
8. |
- |
15. |
13. |
5. |
0.00 |
331.48 |
|
| 2021.07 | 27 |
8. |
21. |
24. |
24. |
10. |
- |
7. |
- |
14. |
7. |
2. |
-10.00 |
371.00 |
|
| 2021.07 | 28 |
23. |
24. |
26. |
27. |
- |
- |
4. |
- |
- |
5. |
- |
-20.00 |
131.48 |
|
| 2018.08 | 39 |
8. |
24. |
29. |
26. |
17. |
- |
17. |
- |
17. |
6. |
6. |
-10.00 |
580.53 |
|
| 2018.08 | 19 |
19. |
12. |
19. |
18. |
14. |
- |
13. |
- |
- |
- |
- |
-75.00 |
174.00 |
|
| 2018.07 | 18 |
7. |
7. |
18. |
8. |
6. |
- |
7. |
- |
6. |
6. |
2. |
-100.00 |
286.79 |
|
| 2016.08 | 37 |
33. |
24. |
23. |
35. |
- |
- |
- |
- |
- |
- |
- |
-10.00 |
147.46 |
|
| 2016.08 | 18 |
14. |
13. |
17. |
18. |
- |
- |
- |
- |
14. |
11. |
8. |
0.00 |
297.70 |
|
| 2015.09 | 20 |
10. |
8. |
4. |
13. |
- |
- |
- |
- |
12. |
5. |
3. |
-100.00 |
360.34 |
|
| 2014.09 | 20 |
5. |
18. |
12. |
11. |
11. |
- |
5. |
- |
8. |
4. |
2. |
0.00 |
616.59 |
|
| 2013.09 | 24 |
19. |
24. |
21. |
13. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
155.20 |
|
| x 24 | |||||||||||||||
