Team Details
BCN eMotorsport
| University | Barcelona School of Industrial Engineering - ETSEIB - UPC
Escola Tècnica Superior d'Enginyeria Industrial de Barcelona local ES Barcelona ETSEIB short 155 |
![]() |
|---|---|---|
| Location | Barcelona, Spain | |
| Homepage | https://bcnemotorsport.upc.edu/ | |
| Social Media |
|
|
| CV Team | ETSEIB Motorsport | |
| DV Team | BCN eMotorsport DV | |
| Short Link | tid.fsg.one/365 | |

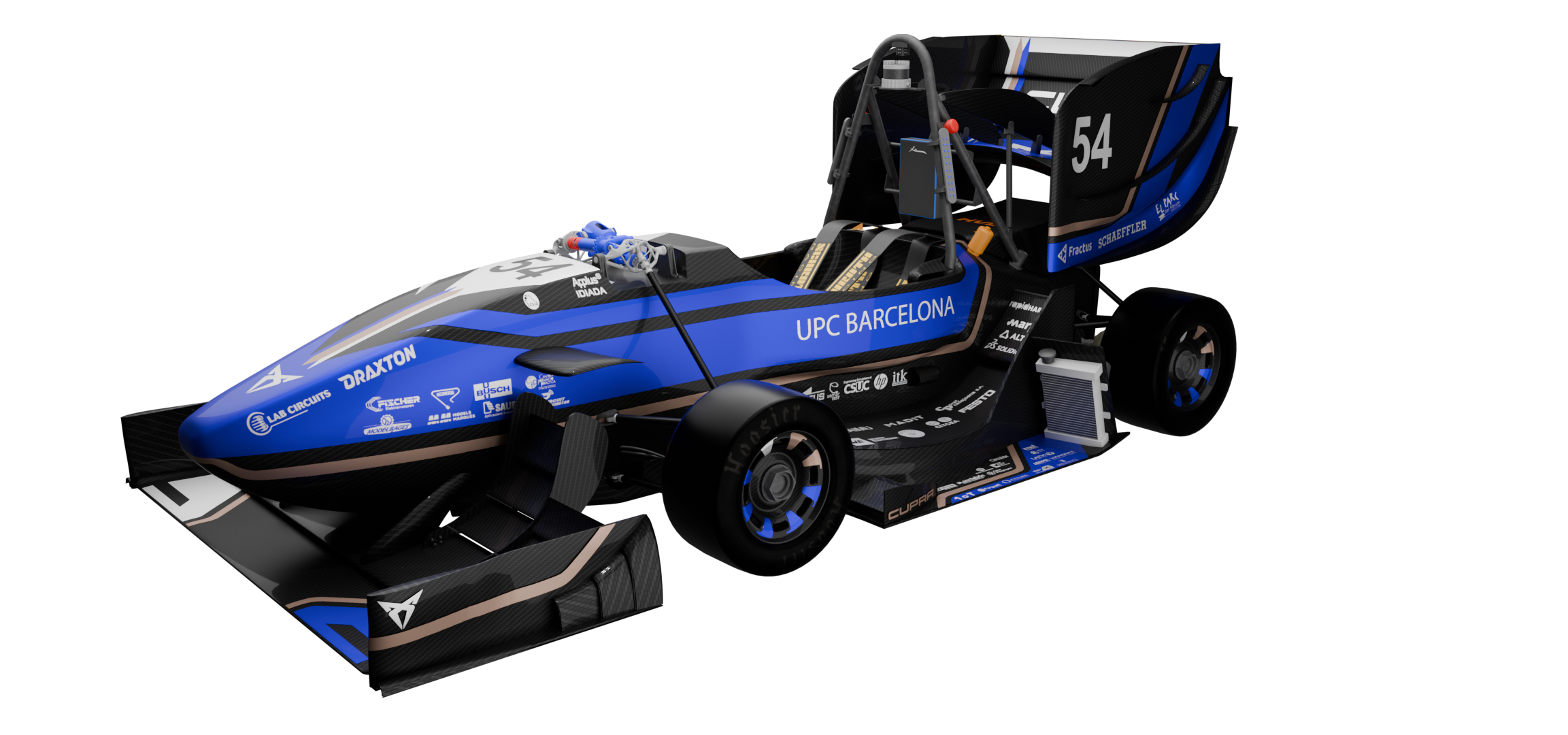

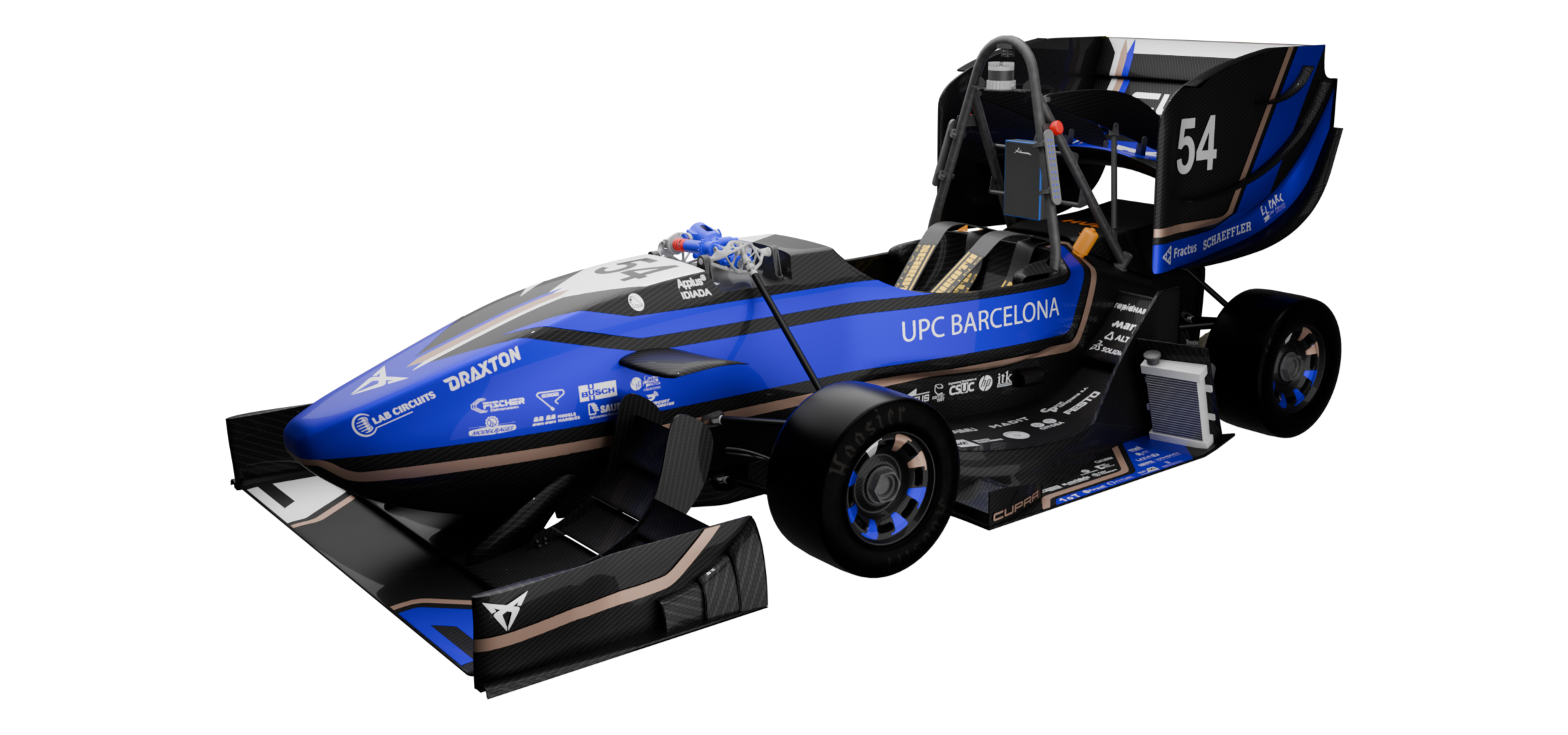

| Event Details | car 154 - waiting | |
Team Description
Since 2007, we’ve had the privilege of consistently participating in Formula Student competitions. We’re proud to represent Spain and strive to be one of the strongest teams in the country.
Event Profile
Past Events

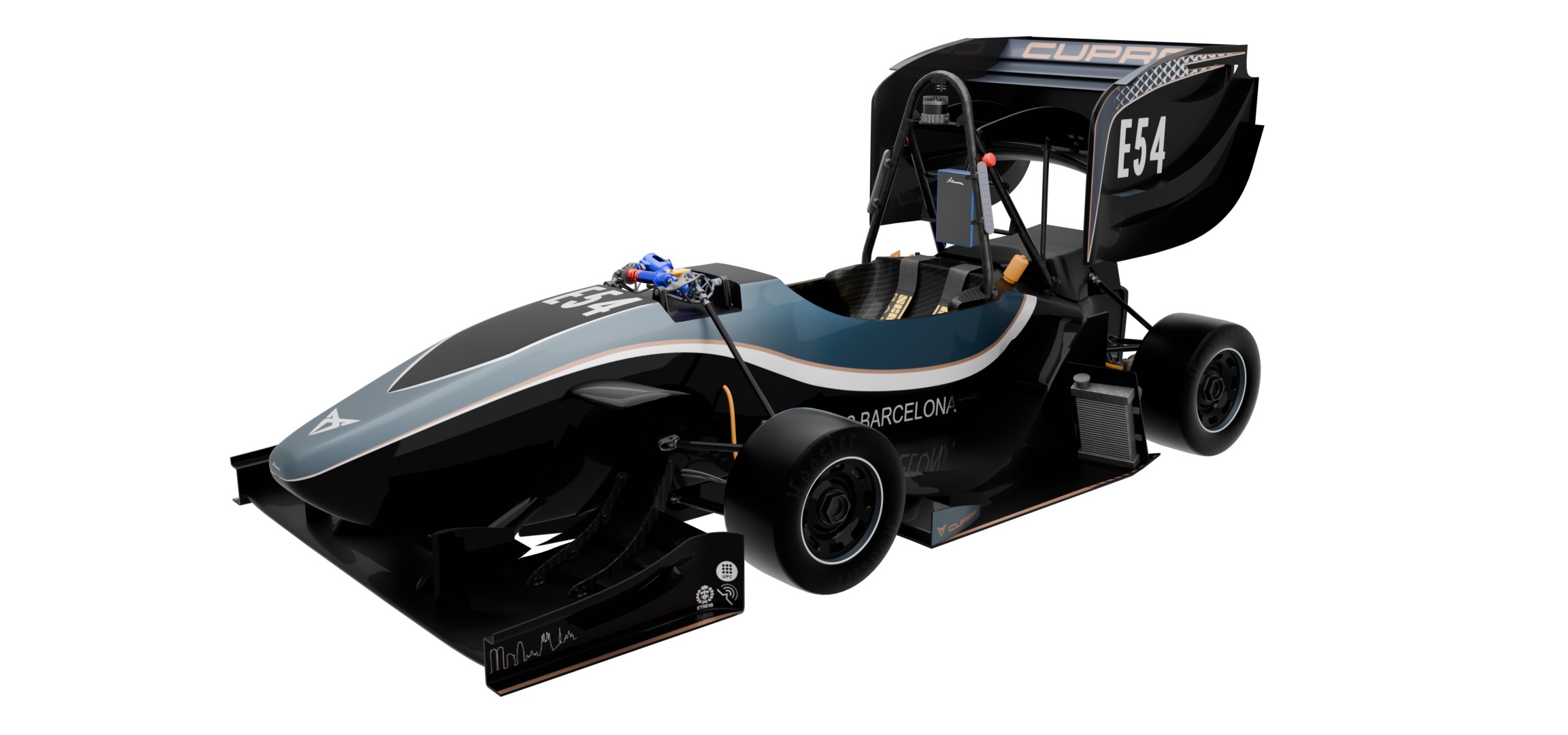

2025
Info
BCN eMotorsport, a 45-member team founded in 2007 in Barcelona, proudly presents the CAT17x, which enhances reliability and performance while maintaining its core philosophy. After a year of hard work, we are excited to showcase its potential in both manual and driverless mode.
Engineering Design Priorities:
OverallVehicleConcept
4WD
AutonomousDriving
AdditiveManufacturing
VehicleTesting
Composites
Car Specifications
General
| Frame Construction | Single-piece CFRTP Monocoque |
|---|---|
| Material | CFRP prepreg, aluminum honeycomb core |
| Overall Length (mm) | 3004 |
| Overall Width (mm) | 1446 |
| Overall Height (mm) | 1181 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1225 |
| Track Rear (mm) | 1175 |
| Weight Front (kg) | 144 |
| Weight Rear (kg) | 144 |
| Suspension | Double unequal A-Arm, push rod actuated spring/damper, Roll-Heave decoupled. |
| Tyres | 16.0x7.5 R10, Hoosier R20/ 16.0x7.5 R10, Hoosier R20 |
| Wheels | 7x10, 35 mm offset, CFRP Rim / 7x10, 35 mm offset, CFRP Rim |
| Drive Type | In-wheel planetary gearbox |
| Differential | Torque Vectoring |
| Cooling | Water cooled motors and inverters, self developed cooling jackets and radiators with fans |
| Brake System | 4-Disk, steel rotors 182.5 mm diam, adjustable brake balance, self developed rear calipers |
| Electronics | Self designed Processing Unit, HV BMS, DCDC for LV, telemetry system with custom interface |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | 4WD |
| Max Motor Power | 35kW |
| Motor Type | FL,FR,RR,RL: Fischer TI085 PMSM |
| Max Motor RPM | FL,FR: 20.000; RR,RL: 20.000 |
| Motor Controller | Lenze Mobile DCU 60/60 |
| Max System Voltage (V) | 592V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 8,08 kWh |
| Transmission Ratio Primary | 1:9,05 |
| Transmission Ratio Secondary | - |
Driverless System
| Processing Units | Intel Core i9-10900F |
|---|---|
| Processing Units FLOPS | 1,664.0 GF |
| Processing Units Power (W) | 37W |
| Cameras | N/A |
| Radar Sensors | N/A |
| LiDAR Sensors | Ouster OS1-64 Below HorizonRev 7 |
| Other Sensors | VectorNav VN-300 IMU |
| DV System Highlights | LiDAR Inertial Odometry. Cone detection on global Point Cloud map using FEC and ML based classification. Delaunay based boundary estimation Smoothing splines for online path planning. Linear Time-Varying MPC for lateral dynamics, and cruise control for longitudinal behavior with parametric online GGV-based adaptive velocity profiles. |

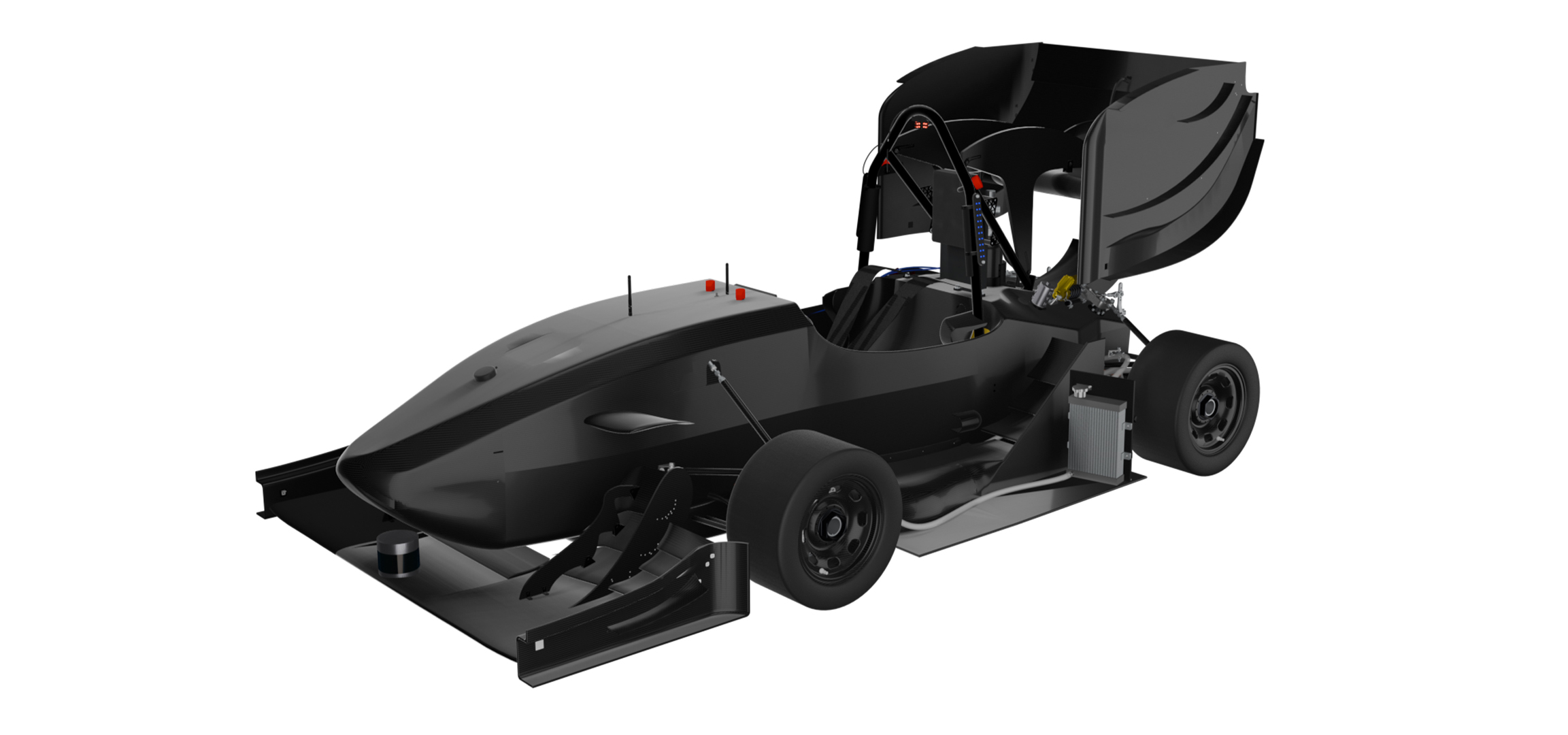

2024
Info
BCN eMotorsport, a 38-member team founded in 2007 in Barcelona, proudly presents the CAT16x. Building on last year's design, the CAT16x enhances reliability and performance while maintaining its core philosophy. After a year of hard work, we are excited to showcase its potential in both manual and driverless modes.
Engineering Design Priorities:
Atononomous Driving
Additive Manufacturing
Energy Storage
Vehicle Testing
Composites
System Development
Car Specifications
General
| Frame Construction | Single-piece CFRTP Monocoque |
|---|---|
| Material | CFRP prepreg, aluminum honeycomb core |
| Overall Length (mm) | 2947 |
| Overall Width (mm) | 1407 |
| Overall Height (mm) | 1189 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 159 |
| Weight Rear (kg) | 135 |
| Suspension | Double unequal length A-Arm. Push rod actuated spring/damper and anti-roll bar |
| Tyres | 16.0 x 7.5 - R10 |
| Wheels | 7x10, 35 mm offset, CFRP Rims |
| Drive Type | In-wheel planetary gearbox |
| Differential | - |
| Cooling | Water cooled motors and inverters, self-developed radiators with fans |
| Brake System | 4-Disk, steel rotors 182.5mm diam, adjustable brake balance, self developed rear calipers |
| Electronics | Self designed Processing unit, HV and LV BMS, telemetry system with custom visualization. |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | 4WD |
| Max Motor Power | 35kW |
| Motor Type | Fischer Elektromotoren TI085 - IPMSM |
| Max Motor RPM | FL,FR: 20.000; RR,RL: 20.000 |
| Motor Controller | Lenze Mobile DCU 60/60 |
| Max System Voltage (V) | 587V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 8,16kWh |
| Transmission Ratio Primary | 1:12 |
| Transmission Ratio Secondary | - |
Driverless System
| Processing Units | Intel Core i9-10900F |
|---|---|
| Processing Units FLOPS | 1,664.0 GF |
| Processing Units Power (W) | 37W |
| Cameras | N/A |
| Radar Sensors | N/A |
| LiDAR Sensors | Velodyne VLP-32C |
| Other Sensors | VectorNav VN-300 IMU |
| DV System Highlights | LiDAR Inertial Odometry. Cone detection on global Point Cloud map using FEC and ML based classification. Delaunay based track limits. Smoothing splines for online path planning, curvature-based Non Linear MPC for lateral dynamics and cruise control for longitudinal behaviour with online GGV-based adaptative velocity profiles. |

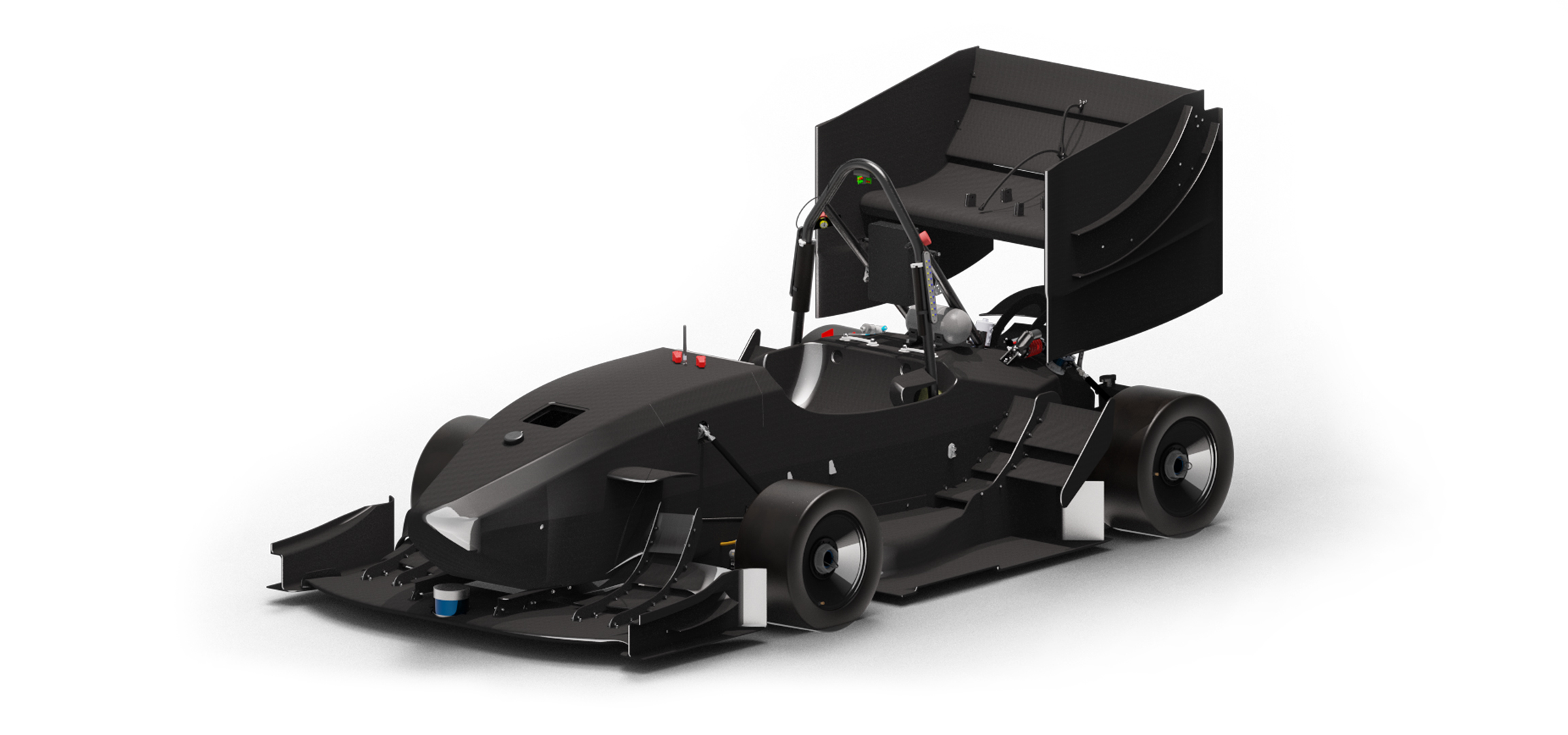

2023
Info
BCN eMotorsport is the new era of ETSEIB Motorsport, established in 2007 in Barcelona. This season, we are proud to introduce the CAT15x, the second fusion car of the team. With a great basis from last year's design, the new CAT keeps the same philosophy but improves lots of details to achieve better reliability and performance. After a year of hard work, we are excited to show the potential the CAT15x has in both manual and driverless mode.
Engineering Design Priorities:
Atononomous Driving
Additive Manufacturing
Energy Storage
Vehicle Testing
Composites
System Development
Car Specifications
General
| Frame Construction | Single-piece CFRP Monocoque |
|---|---|
| Material | CFRP prepreg, aluminium honeycomb core |
| Overall Length (mm) | 2937 |
| Overall Width (mm) | 1407 |
| Overall Height (mm) | 1187 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 159 |
| Weight Rear (kg) | 135 |
| Suspension | Double unequal lenght A-Arm. Push rod actuated spring/damper and ARB |
| Tyres | 16.0 x 7.5 - R10 |
| Wheels | 7x10, 35 mm offset, Laminated CF Rim |
| Drive Type | In-wheel planetary gearbox |
| Differential | -- |
| Cooling | Water cooled motors and inverters, rear mounted radiators with fans |
| Brake System | 4-Disk, steel rotors 182.5mm diam, adjustable brake balance, self developed rear calipers |
| Electronics | Self designed Processing unit, self designed HV and LV BMS, self designed telemetry syste |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | 4WD |
| Max Motor Power | 54.4kW |
| Motor Type | Fischer Elektromotoren TI085 - PMSM |
| Max Motor RPM | FL,FR: 20.000; RR,RL: 20.000 |
| Motor Controller | Lenze - MOBILE DCU 60/60 |
| Max System Voltage (V) | 600V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 8,16kWh |
| Transmission Ratio Primary | 1:9,05 |
| Transmission Ratio Secondary | -- |
Driverless System
| Processing Units | Intel Core i9-10900 2.8 GHz, Nvidia Jetson AGX XAVIER |
|---|---|
| Processing Units FLOPS | 3.074 |
| Processing Units Power (W) | 37W |
| Cameras | -- |
| Radar Sensors | n/a |
| LiDAR Sensors | Velodyne VLP-32C |
| Other Sensors | INSS + 2 GNSS (Vetornav VN-300 and SBG Ellipse) |
| DV System Highlights | LiDAR Inertial Odometry. Cone detection on global Point Cloud map using Fast Euclidean Clustering. Delaunay based track limits. Smoothing splines for online path planning, curvature-based Non Linear MPC for lateral dynamics and cruise control for longitudinal behaviour with online GGV-based velocity profiles. |

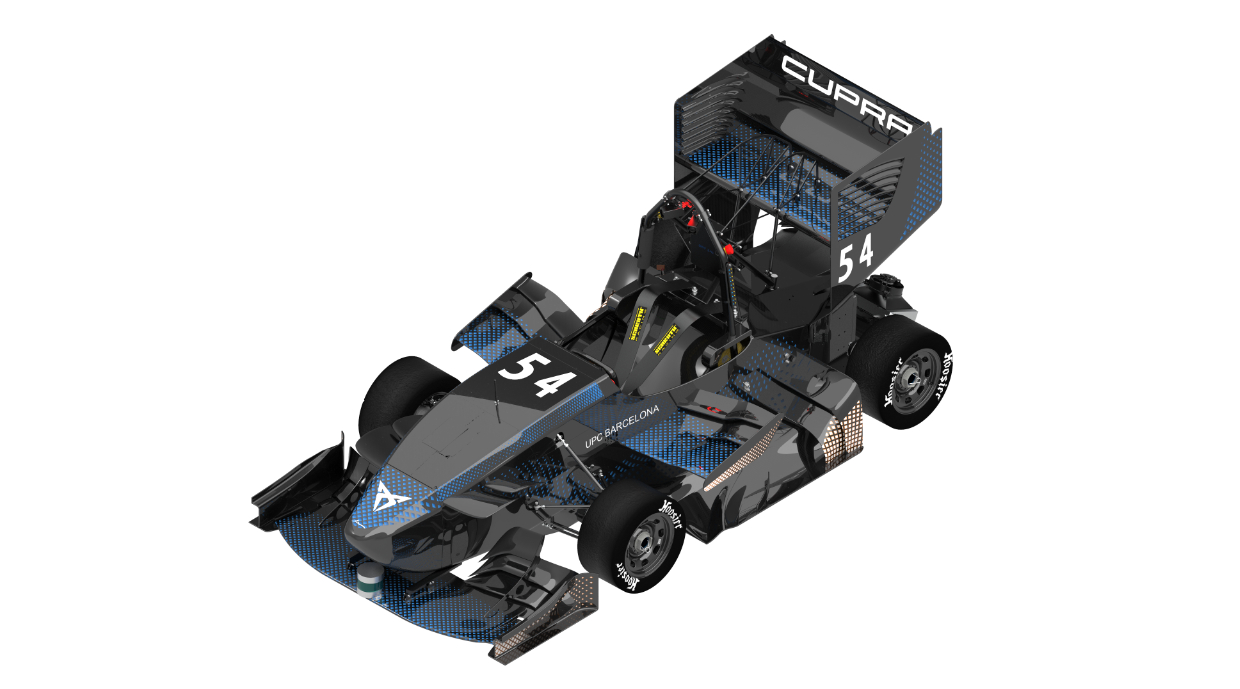

2022
Info
BCN eMotorsport is the new era of ETSEIB Motorsport, one of the oldest Formula Student Teams founded in 2007. After building four combustion cars, the team decided to change to the EV category, creating ten electric cars since 2011. In 2019, we joined the DV category, finishing all the dynamic events. This year, we bring our CAT14x up to the table, the fusion of both our 2021 cars, being the first car designed to race on both driverless and manual events. We are excited to come back to FSG!
Engineering Design Priorities:
Localization
Processing Unit
Additive Manufacturing
Trajectory Optimization
4WD
Telemetry system
Car Specifications
General
| Frame Construction | Single-piece CFRP Monocoque + Fully laminated Al FH + Inside-Cockpit MH |
|---|---|
| Material | Toray T800 & M40JB fibers, 5052 Aluminium Core, 6063 T6 FH, S355 Steel MH |
| Overall Length (mm) | 2965 |
| Overall Width (mm) | 1402 |
| Overall Height (mm) | 1174 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 147 |
| Weight Rear (kg) | 147 |
| Suspension | Double unequal A-Arm, direct acting from upper Arm |
| Tyres | Hoosier 16 x 7.5 - 10 R20 |
| Wheels | 7x10, 35mm offset, Laminated CF Rim |
| Drive Type | Self-custom in-wheel planetary gearbox |
| Differential | n/a |
| Cooling | Two radiators placed on a rear diffuser with thermostatic controlled fans |
| Brake System | 4-disk system, self-developed steel rotoswith 182.5mm diameter, adjustable brake balance |
| Electronics | Self designed Processing unit, self designed HV and LV BMS, self designed telemetry system |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | 4WD |
| Max Motor Power | 35.4kW |
| Motor Type | Fischer Elektromotoren TI085 |
| Max Motor RPM | 20000 |
| Motor Controller | Lenze DCU 60/60 |
| Max System Voltage (V) | 600V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 7.14kWh |
| Transmission Ratio Primary | 1:9,0 |
| Transmission Ratio Secondary | n/a |
Driverless System
| Processing Units | Intel Core i9-10900 2.8 GHz, Nvidia Jetson AGX XAVIER |
|---|---|
| Processing Units FLOPS | 3.074 |
| Processing Units Power (W) | 37.00 |
| Cameras | Two DFK33UX252. Global shutter, USB 3.0, 640x480 to 2048x1536 pixels |
| Radar Sensors | n/a |
| LiDAR Sensors | Velodyne VLP-32C |
| Other Sensors | INSS + 2 GNSS (Vectornav VN-300 and SBG Ellipse) |
| DV System Highlights | Localization using LiDAR Inertial Odometry. Improved cone detection range and stability via accumulated LiDAR frames. Polynomial interpolated track limits using sensor-fused cam-LiDAR data. Trackdrive map-based localization and offline full vehicle state optimization to obtain optimal trajectory. Curvature-based dynamic bicycle model MPC with TV. |

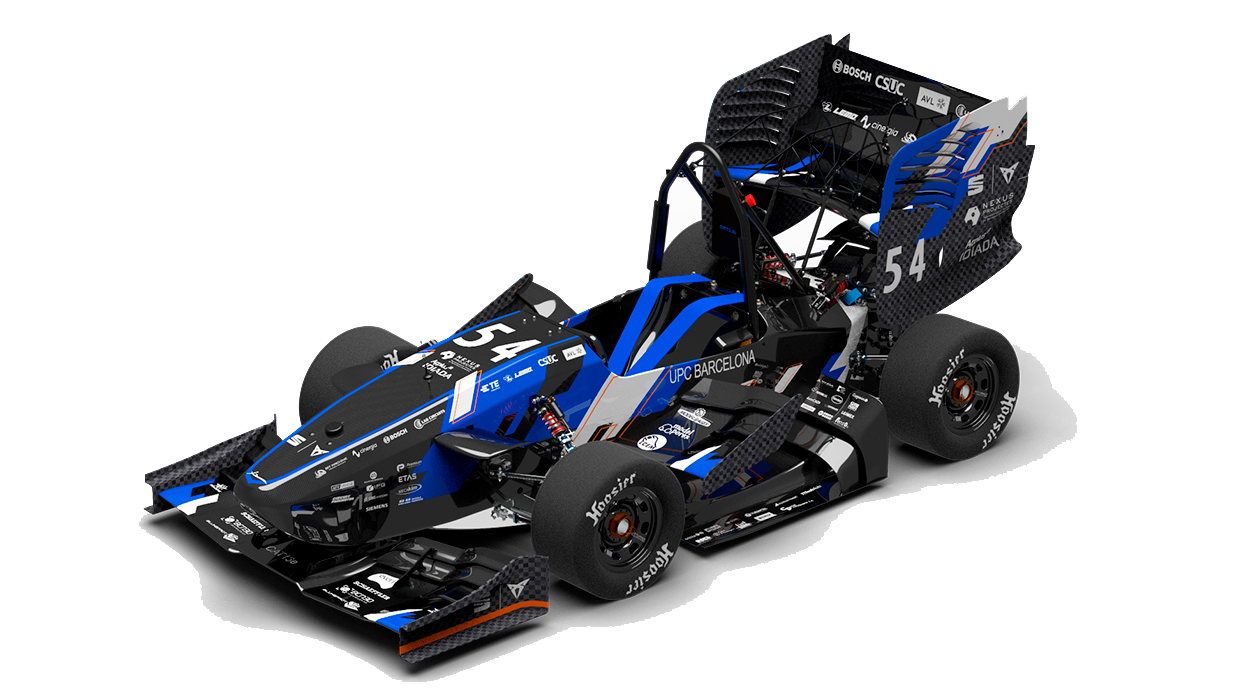

2021
Info
BCN eMotorsport is the new era of ETSEIB Motorsport, one of the oldest Formula Student Teams founded in 2007. After building four combustion cars, the team decided to change to the EV category. Since 2011, nine electric cars have been created by the team. This year, we bring up to the table the CAT13e, an evolution of the previous car, which was the first with 4WD. We are excited to come back to FSG, ready to race against the bests teams.
Engineering Design Priorities:
4WD
Torque Vectoring
FullAeropackage
VehicleDynamics
CFDMonocoque
RegenerativeBrakeSystem
Car Specifications
General
| Frame Construction | Single-piece CFRP Monocoque + fully laminated FH + steel rollover protection. |
|---|---|
| Material | Toray T800 & M40JB fibers, 5052 Aluminium Core, 6063 T6 FH, S355 Steel MH |
| Overall Length (mm) | 2963 |
| Overall Width (mm) | 1442 |
| Overall Height (mm) | 1131 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 78 |
| Weight Rear (kg) | 126 |
| Suspension | Double unequal A-Arm, direct acting from upper Arm |
| Tyres | Hoosier 18 x 7.5 - 10 R25B |
| Wheels | 7x10, 35mm offset, Laminated CF Rim |
| Drive Type | self-custom in-wheel planetary gearbox |
| Differential | n/a |
| Cooling | Two radiators placed on a rear diffuser with thermostatic controlled fans |
| Brake System | 4-disk system, self-developed steel rotoswith 182.5mm diameter, adjustable brake balance |
| Electronics | wiring harness sealed to IP67, Wifi-based Telemetry System and datalogging of 4 CAN Bus ch |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | 4WD |
| Max Motor Power | 35,4 |
| Motor Type | Fischer Elektromotoren TI085 |
| Max Motor RPM | 20000 |
| Motor Controller | Lenze DCU 60/60 |
| Max System Voltage (V) | 596V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 7.14kWh |
| Transmission Ratio Primary | 1:11,71 |
| Transmission Ratio Secondary | n/a |

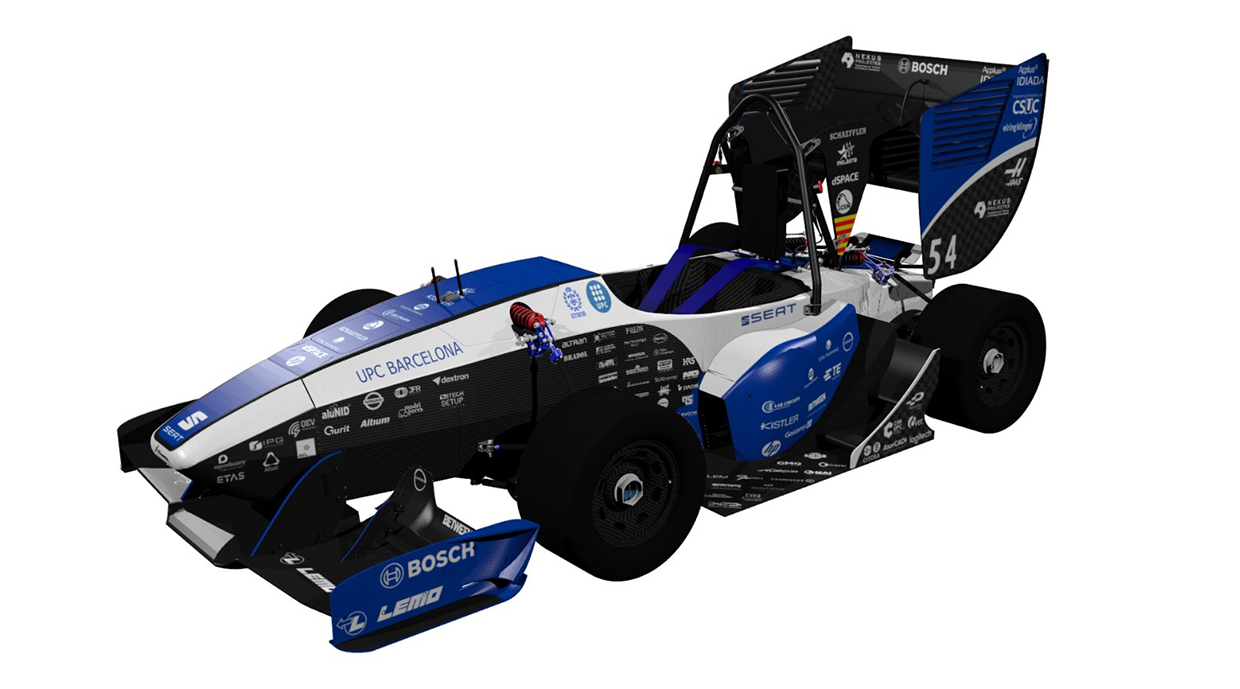

2018
Info
ETSEIB Motorsport is a FSE team established in 2007 at Barcelona. Since our foundation, we have developed a new car every year and for this season we are proud to introduce you the CAT11e. With a great basis from last year design, the new CAT keeps on the same philosophy but improves lots of details to achieve the best performance on track. After a year of hard work, the team is willing to see the CAT11e doing its best. Looking for further information about us? Do not hesitate to visit our pit.
Engineering Design Priorities:
Aerodynamics
Composites
Hardware Development
Vehicle Testing
Energy Storage
Car Specifications
General
| Frame Construction | Single-piece CFRP monocoque + fully laminated FH + steel roll over protection |
|---|---|
| Material | HS & IM CF plies +Aluminium core + Aluminium FH + Steel MH |
| Overall Length (mm) | 2925 |
| Overall Width (mm) | 1440 |
| Overall Height (mm) | 1160 |
| Wheelbase (mm) | 1540 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 121 |
| Weight Rear (kg) | 148 |
| Suspension | Double unequal length A-Arm. Push rod actuated spring and damper. Front and rear ARB |
| Tyres | 18x7,5 R10 Hoosier R25B / 18x7,5 R10 Hoosier R25B |
| Wheels | 7x10, ET35 mm. Laminated carbon fiber rim / 7x10, ET35 mm. Laminated carbon fiber rim |
| Drive Type | Self designed two-stage parallel gearbox |
| Differential | Clutch pack limited slip, 10 Nm preload, adjustable bias ratio |
| Cooling | Side mounted self-designed radiator |
| Brake System | 4-Disk system, self developed steel rotors with 179mm diameter, adjustable brake balance |
| Electronics | Self-developed BMS, front and rear ECU, live-telemetry and dashoard |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear center |
| Max Motor Power | 100kW |
| Motor Type | Axial flux synchronous permanent magnet mot |
| Max Motor RPM | 6500 |
| Motor Controller | Unitek BAMOCAR D3 700-400 |
| Max System Voltage (V) | 600V |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 7,1kWh |
| Transmission Ratio Primary | 1:3,67 |
| Transmission Ratio Secondary | n/a |

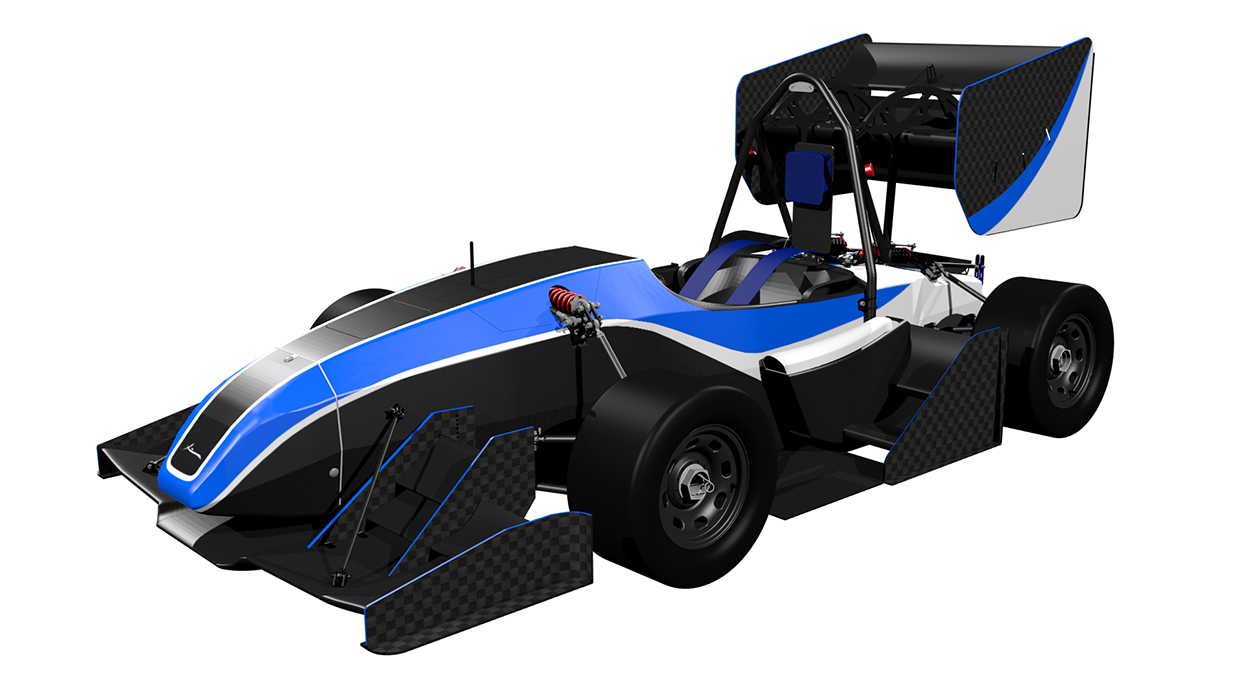

2017
Info
ETSEIB Motorsport is a FSE team established in 2007 at Barcelona. Since our foundation we have developed a new car every year and for this season we are proud to introduce you the CAT10e. With a great basis from last year design, the new CAT keeps on the same philosophy but improves lots of details to achieve the best performance on track. After a year of hard work, the team is willing to see the CAT10e doing its best. Looking for further information about us? Do not hesitate to visite our pit.
Engineering Design Priorities:
testing
reliability
performance
weight reduction
oneteamonegoal
54
Car Specifications
General
| Frame Construction | CFRP single piece monocoque with Aluminium Front Hoop and Steel Main Hoop |
|---|---|
| Material | CFRP and aluminium honeycomb |
| Overall Length (mm) | 2870 |
| Overall Width (mm) | 1440 |
| Overall Height (mm) | 1150 |
| Wheelbase (mm) | 1540 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 131 |
| Weight Rear (kg) | 152 |
| Suspension | Double unequal length A-Arm. Push rod |
| Tyres | 18x7,5 R10 Hoosier R25B |
| Wheels | 7x10 ET35 Laminated carbon fiber rim |
| Differential | mechanical differential |
| Cooling | Twin side pod including radiators. PWM controlled |
| Brake System | 4-Disk System, adjustable brake balance |
| Electronics | self-developed BMS, dashboard, live-telemetry and rear ECU. |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | rear axel |
| Max Motor Power | 100kW |
| Motor Type | Enstroj EMRAX 228 LC |
| Max Motor RPM | 5500 |
| Motor Controller | Unitek Bamocar D3 |
| Max System Voltage (V) | 436V |
| Transmission Ratio Primary | 1:3,67 |

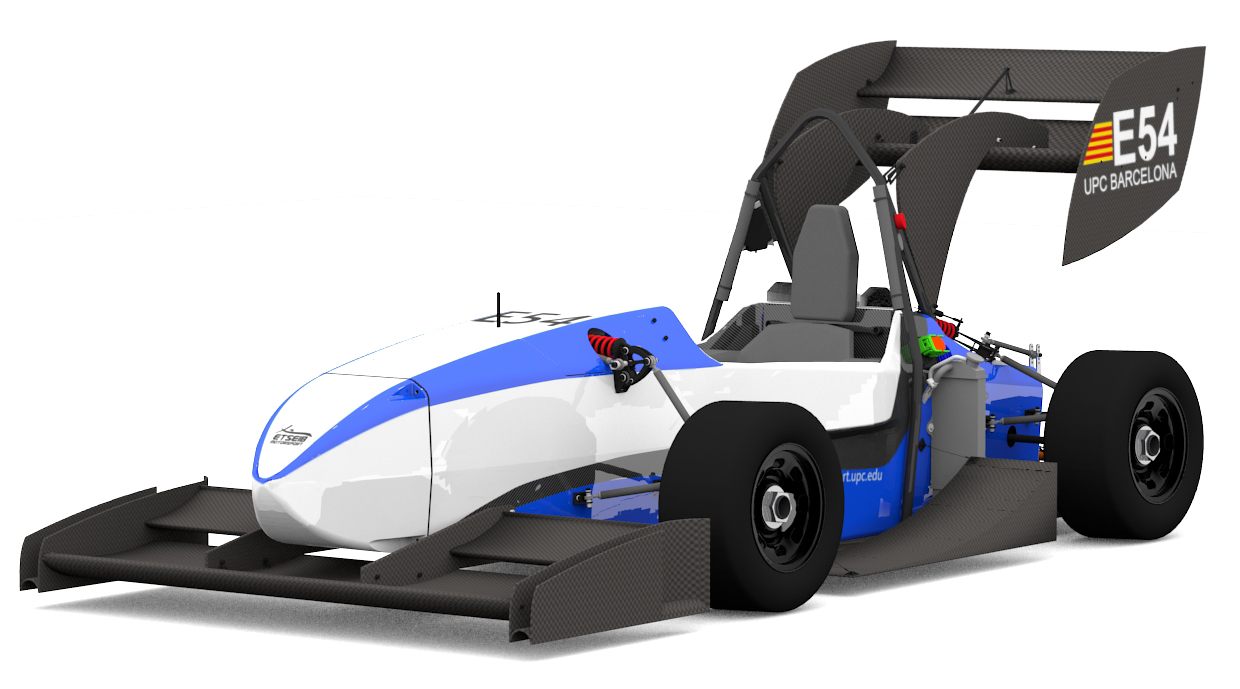

2015
Info
ETSEIB Motorsport is the FSE team from Barcelona. This year we are presenting our eitght car, totally new designed from scratch. New chassis, new powertain, new aero, new dynamics... Lots of effort done by the 30 members of the team, that for sure will result in the best results of the team in FS competitions. For further information you are welcome to visit our pit.
Engineering Design Priorities:
weight reduction
efficiency
simplicity
E54
Car Specifications
General
| Frame Construction | Full CFRP Monocoque |
|---|---|
| Material | 245 T2 carbon prepreg |
| Overall Length (mm) | 3086 |
| Overall Width (mm) | 1410 |
| Overall Height (mm) | 1178 |
| Wheelbase (mm) | 1600 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 127 |
| Weight Rear (kg) | 156 |
| Suspension | Double unequal length A-Arm. Push rod actuated. Horizontally oriented spring and damper |
| Tyres | Hoosier 18.0x6.0 R10 LCO |
| Wheels | 7x10, 35 mm Offset, 1 pc, Al Rim |
| Drive Type | Two-stage spur gear |
| Differential | Drexler LSD differential preload adjustment |
| Cooling | Left side mounted radiator, 30 mm electric fans |
| Brake System | 4-Disk system, self developed rotors with 179mm diameter, adjustable brake balance, |
| Electronics | wiring harness sealed to IP67, selfdesigned Live-Telemetry System, self-developet ECUs |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear middle |
| Max Motor Power | 80 kW |
| Motor Type | Enstroj Emrax 228 |
| Max Motor RPM | 5000 |
| Motor Controller | Unitek Bamocar D3 400/400 RS |
| Max System Voltage (V) | 398 |
| Electrode Materials | LiCoO2 |
| Transmission Ratio Primary | 1:3,65 |
| Transmission Ratio Secondary | N/A |

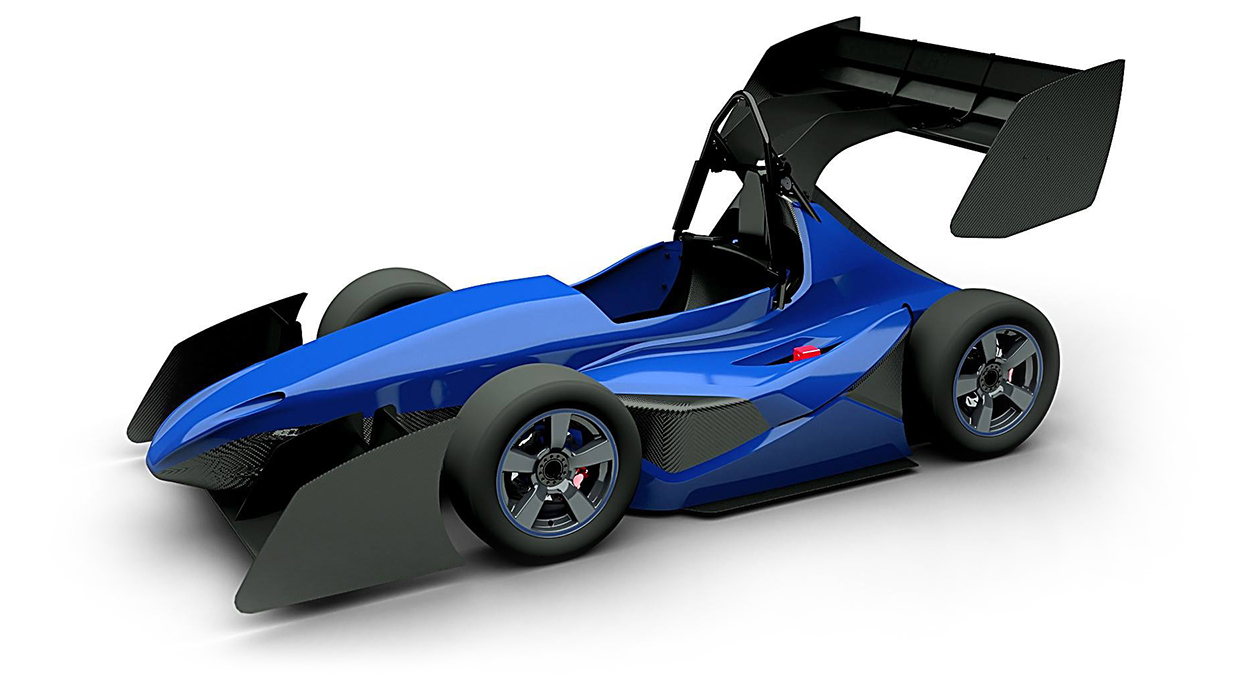

2014
Info
ETSEIB Motorsport is the FS Team of Barcelona. We seek reliability and high performance in our projects. We focus on self-developing our systems, achieving deep understanding of its functioning and collecting broad and useful know-how.The CAT07-e gathers this accumulated knowledge. We have manufactured more parts than ever, including our 3rd CF monocoque and our own motor controllers. We expect it to be fully operative and running at the highest level at FSG, it has been designed to succeed.
Car Specifications
General
| Frame Construction | Front CFRP Monocoque. Rear Steel tubular space frame. Structural CFRP floor. |
|---|---|
| Material | 245 T2 carbon prepreg. Steel round tubing St-52. Diameter 25 mm. |
| Overall Length (mm) | 2863 |
| Overall Width (mm) | 1320 |
| Overall Height (mm) | 1220 |
| Wheelbase (mm) | 1530 |
| Track Front (mm) | 1125 |
| Track Rear (mm) | 1090 |
| Weight Front (kg) | 147 |
| Weight Rear (kg) | 180 |
| Suspension | Double unequal length A-Arm. Pull rod actuated spring and damper. Front and rear anti-roll bar. |
| Tyres | 20.5x7.0 R13, Hoosier R25B |
| Wheels | 7.0x13, 22 mm offset, Al-Mg Rim / 7.0x13, 22 mm offset, Al-Mg Rim |
| Drive Type | Two independent pulley belt transmission |
| Differential | n/a |
| Cooling | Motors and inverters watercooled. Batteries aircooling. |
| Brake System | 4-Disk system, self developed steel rotors, adjustable brake balance. |
| Electronics | Selfdesigned Dash Panel, LV board, control box and data acquisition. dSPACE main ECU and TC. |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Left, Rear Right |
| Max Motor Power | 40 kW per Motor |
| Motor Type | Permanent Magnet Synchronous Machine |
| Max Motor RPM | 6000 rpm |
| Motor Controller | Self-designed |
| Max System Voltage (V) | 600V |
| Electrode Materials | Polymer Li-ion |
| Accumulator Capacity | 6.67 kWh |
| Transmission Ratio Primary | 1:4.5 |
| Transmission Ratio Secondary | n/a |

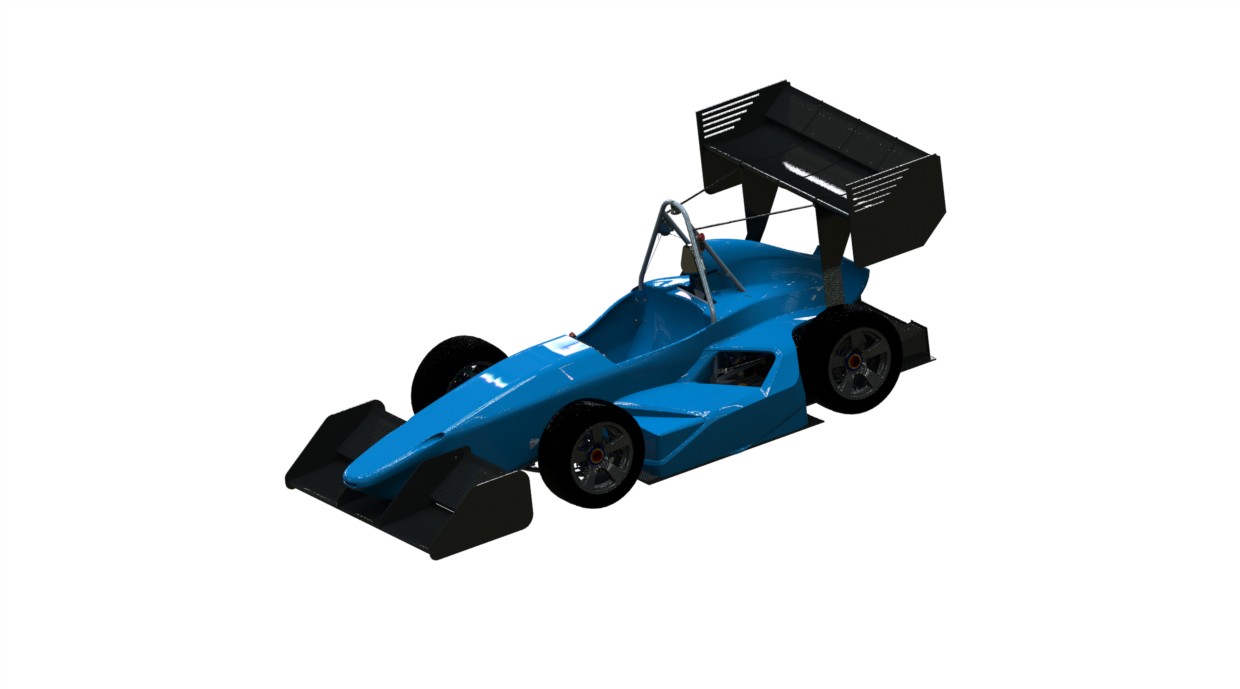

2013
Info
ETSEIB Motorsport, founded in 2007, is the Formula Student Team of the Engineering School of Barcelona. 35 students were involved in this year’s prototype: the CAT06-e. It is our second electric car. After a great experience with our first, the aims of this year are to improve reliability and to improve the performance of the car. Even though we focused on the systems that caused problems during last year’s competitions, all other parts of the car have been redesigned and optimized as well. We worked really hard this season in order to have enough testing time in June to make sure it is fully operative during competitions. This gives us even more credit considering that we have manufactured more and more parts than ever, including our second carbon fiber monocoque and our self-designed motor controllers. Finally, we would like to thank all our sponsors who make our project become a reality specially these complicated years.
Car Specifications
General
| Frame Construction | Front CFRP Monocoque. Rear Steel tubular space frame. Structural CFRP floor. |
|---|---|
| Material | 245 T2 carbon prepreg. Steel round tubing St-52. Diameter 25 mm. |
| Overall Length (mm) | 3122 |
| Overall Width (mm) | 1304 |
| Overall Height (mm) | 1203 |
| Wheelbase (mm) | 1535 |
| Track Front (mm) | 1095 |
| Track Rear (mm) | 1065 |
| Weight Front (kg) | 142 |
| Weight Rear (kg) | 174 |
| Suspension | Double unequal length A-Arm. Pull rod actuated spring and damper. Rear anti-roll bar |
| Tyres | 20.5x7 R13 Hoosier R25A / 20.5x7 R13 Hoosier R25A |
| Wheels | 7.0x13, 22 mm offset, Al-Mg Rim / 7.0x13, 22 mm offset, Al-Mg Rim |
| Drive Type | Two independent pulley belt transmission |
| Differential | N/A |
| Cooling | Motors and inverters watercooled. Batteries aircooling. |
| Brake System | 4-Disk system, self developed steel rotors, adjustable brake balance. |
| Electronics | Selfdesigned Dash Panel, LV board, control box and data acquisition. dSPACE main ECU and TC. |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power | 40kW, 40kW |
| Motor Type | Mavilor modified |
| Max Motor RPM | 6000 |
| Motor Controller | Self-designed |
| Max System Voltage (V) | 590 |
| Electrode Materials | LiFePO4 |
| Accumulator Capacity | 4.5 kWh |
| Transmission Ratio Primary | 1:4.5 |
| Transmission Ratio Secondary | N/A |

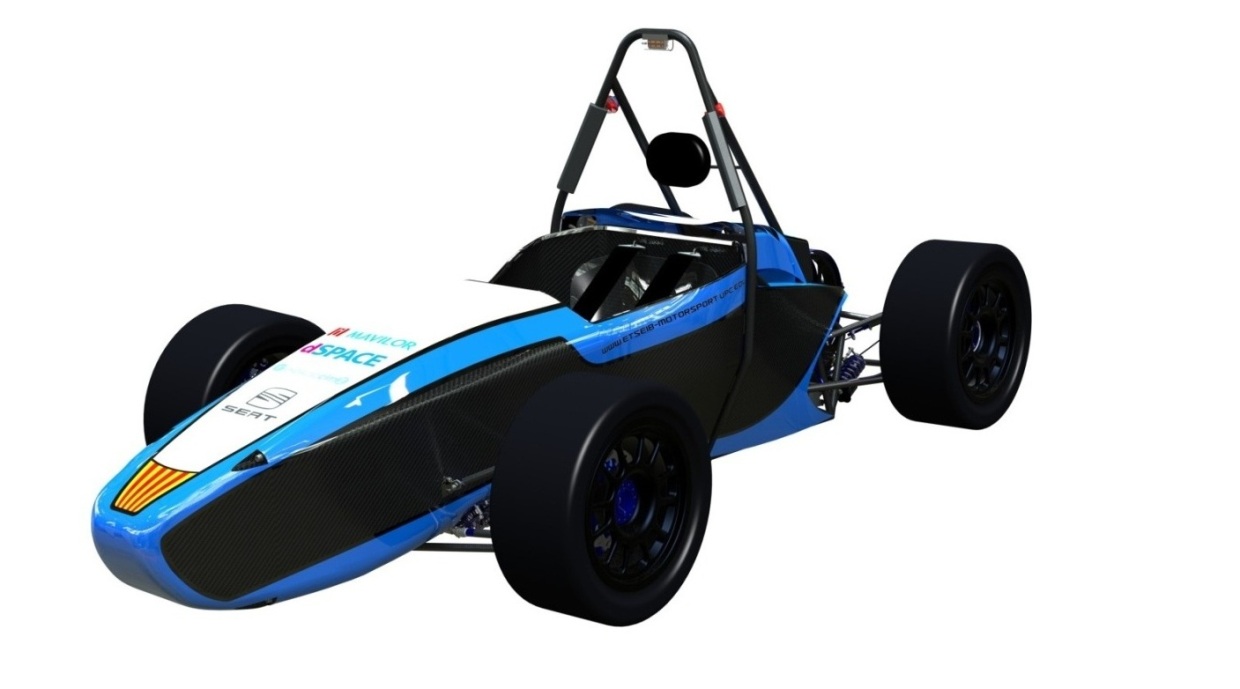

2012
Info
We ETSEIB E-Motorsport Barcelona introduce you to the CAT 05e! Our mind-blowing electric Formula Race car. ETSEIB E-Motorsport Barcelona was founded in 2007. After 4 years with combustion cars and improving the results each and every year with a really small budget we decided to go electric and adapt to the trends of the automotive industry. The CAT 05e is the first electric car from our team. We are 25 devoted students that have faced the electric car’s challenge with illusion. A lot of work has been put into this year’s project and even with the change of combustion to electric we expect to reduce 20 kg. The tractive system is composed of two independent powertrains to develop a traction and stability control with huge opportunities. We are really looking forward to FSE2012, #seeyouathockenheim
Car Specifications
General
| Frame Construction | CFRP Monocoque front. Rear steel tubular space frame |
|---|---|
| Material | MT49 200 gr. with Nomex core front. 18 to 25 diameter tube ST-52 rear |
| Overall Length (mm) | 2683 |
| Overall Width (mm) | 1320 |
| Overall Height (mm) | 1121 |
| Wheelbase (mm) | 1600 |
| Track Front (mm) | 1092 |
| Track Rear (mm) | 1063 |
| Weight Front (kg) | 134 |
| Weight Rear (kg) | 164 |
| Suspension | Double unequal length A-Arm. Pull wire actuated longitudinal oriented spring and damper |
| Tyres | Hoosier R25B 20.5x7.0-13 |
| Wheels | 7.0x13 1pc Al rim |
| Drive Type | Twin pulley-belt transmission |
| Differential | No differential. Independently controlled rear wheels |
| Cooling | waterpump and 2 fans for motor cooling, 2 fans for motor controller cooling |
| Brake System | 4-Disk system, self developed rotors with Fr:211mm Rr:170mm dia. 4 opposing piston 24mm calipers |
| Electronics | Self designed traction control and stability control, data logging, cockpit interface |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power | 35 kW, 35 kW |
| Motor Type | Mavilor MA55 modified |
| Max Motor RPM | 6169 |
| Motor Controller | Infranor CD1-k Modified |
| Max System Voltage (V) | 591V |
| Electrode Materials | LiFePO4 |
| Accumulator Capacity | 4,17kWh |
| Transmission Ratio Primary | 1:5,68 |
| Transmission Ratio Secondary | n/a |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.08 | 84 |
16. |
29. |
28. |
20. |
24. |
14. |
19. |
12. |
32. |
16. |
12. |
0.00 |
574.12 |
|
| 2025.08 | 37 |
10. |
11. |
10. |
7. |
- |
- |
6. |
- |
- |
- |
- |
-14.00 |
283.30 |
|
| 2025.07 | 40 |
19. |
30. |
8. |
15. |
17. |
- |
18. |
- |
22. |
17. |
15. |
0.00 |
451.90 |
|
| 2024.08 | 79 |
29. |
24. |
21. |
18. |
27. |
- |
46. |
13. |
31. |
- |
- |
0.00 |
334.78 |
|
| 2024.08 | 25 |
9. |
8. |
6. |
1. |
3. |
- |
- |
- |
5. |
- |
- |
0.00 |
408.60 |
|
| 2024.07 | 38 |
18. |
6. |
34. |
14. |
16. |
- |
19. |
- |
20. |
- |
- |
0.00 |
241.10 |
|
| 2023.08 | 70 |
30. |
15. |
48. |
22. |
25. |
- |
- |
- |
15. |
- |
- |
-20.00 |
253.64 |
|
| 2023.08 | 19 |
5. |
7. |
4. |
4. |
3. |
- |
7. |
- |
1. |
- |
- |
0.00 |
464.20 |
|
| 2023.07 | 29 |
6. |
4. |
10. |
5. |
- |
- |
- |
- |
5. |
- |
- |
0.00 |
314.21 |
|
| 2022.09 | 38 |
7. |
12. |
6. |
7. |
11. |
- |
10. |
- |
5. |
- |
- |
0.00 |
369.50 |
|
| 2022.08 | 63 |
30. |
4. |
25. |
10. |
- |
- |
- |
- |
23. |
- |
- |
0.00 |
261.99 |
|
| 2021.08 | 38 |
19. |
34. |
10. |
11. |
7. |
- |
13. |
- |
7. |
- |
- |
0.00 |
391.36 |
|
| 2021.08 | 16 |
8. |
4. |
10. |
7. |
1. |
- |
2. |
- |
2. |
- |
- |
-100.00 |
387.60 |
|
| 2021.07 | 27 |
13. |
13. |
12. |
7. |
11. |
- |
12. |
- |
7. |
- |
- |
-10.00 |
340.20 |
|
| 2021.07 | 28 |
13. |
14. |
2. |
10. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
250.47 |
|
| 2019.08 | 39 |
8. |
3. |
11. |
8. |
9. |
- |
25. |
- |
14. |
8. |
4. |
0.00 |
541.00 |
|
| 2018.08 | 38 |
18. |
2. |
9. |
8. |
14. |
- |
15. |
- |
19. |
- |
- |
0.00 |
365.20 |
|
| 2018.08 | 39 |
16. |
5. |
26. |
7. |
6. |
- |
10. |
- |
16. |
- |
- |
-5.00 |
401.54 |
|
| 2017.08 | 30 |
9. |
3. |
2. |
7. |
12. |
- |
11. |
- |
15. |
9. |
10. |
0.00 |
640.10 |
|
| 2017.08 | 34 |
7. |
17. |
1. |
13. |
8. |
- |
8. |
- |
12. |
8. |
11. |
0.00 |
632.60 |
|
| 2017.08 | 19 |
9. |
11. |
1. |
9. |
9. |
- |
5. |
- |
5. |
- |
- |
0.00 |
389.10 |
|
| 2016.08 | 29 |
12. |
4. |
18. |
9. |
11. |
- |
15. |
- |
16. |
11. |
1. |
0.00 |
541.40 |
|
| 2016.08 | 10 |
1. |
4. |
6. |
2. |
3. |
- |
5. |
- |
2. |
3. |
1. |
0.00 |
806.08 |
|
| 2016.07 | 20 |
6. |
1. |
5. |
4. |
4. |
- |
6. |
- |
4. |
6. |
2. |
0.00 |
603.56 |
|
| 2015.08 | 30 |
13. |
3. |
9. |
15. |
18. |
- |
13. |
- |
14. |
8. |
- |
0.00 |
309.35 |
|
| 2015.08 | 39 |
23. |
20. |
20. |
14. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
210.83 |
|
| 2014.08 | 23 |
16. |
3. |
10. |
14. |
17. |
- |
- |
- |
14. |
- |
- |
0.00 |
269.51 |
|
| 2014.08 | 39 |
24. |
22. |
11. |
11. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
237.60 |
|
| 2013.09 | 24 |
15. |
5. |
6. |
9. |
10. |
- |
15. |
- |
- |
16. |
- |
0.00 |
282.80 |
|
| 2013.09 | 16 |
9. |
5. |
3. |
6. |
5. |
- |
14. |
- |
13. |
- |
1. |
0.00 |
456.30 |
|
| 2013.08 | 40 |
24. |
11. |
1. |
18. |
- |
- |
- |
- |
21. |
- |
- |
0.00 |
247.00 |
|
| 2012.09 | 17 |
9. |
5. |
2. |
11. |
7. |
- |
6. |
- |
8. |
9. |
9. |
0.00 |
476.68 |
|
| 2012.09 | 13 |
12. |
8. |
5. |
8. |
5. |
- |
9. |
- |
10. |
- |
- |
-60.00 |
224.92 |
|
| 2012.08 | 32 |
27. |
29. |
2. |
27. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
179.77 |
|
| x 34 | |||||||||||||||
