Team Details

Dynamics e.V.

University Ostbayerische Technische Hochschule Regensburg
DE Regensburg OTH short 95
team logo
LocationRegensburg, Germany
Homepagehttps://dynamics-regensburg.de/
Social Media
CV Team Dynamics e.V. Combustion
DV Team Dynamics e.V. Driverless
Short Linktid.fsg.one/324
TIS Status
Accumulator InspectionElectrical InspectionMechanical InspectionDriverless InspectionRain TestEgress TestBrake TestBrake Test
Car Weight237.50 kg
Event Details car 62 - active

Team Description

In the years 2011, 2012 and 2013.the Formulastudent Electric team in Regensburg was listed under the name Regenics e.V.

In season 2019 Dynamics e.V. started to build electric cars in Regensburg in addition to their combustion car.

Since 2020, Dynamics e.V. only builds electric cars.

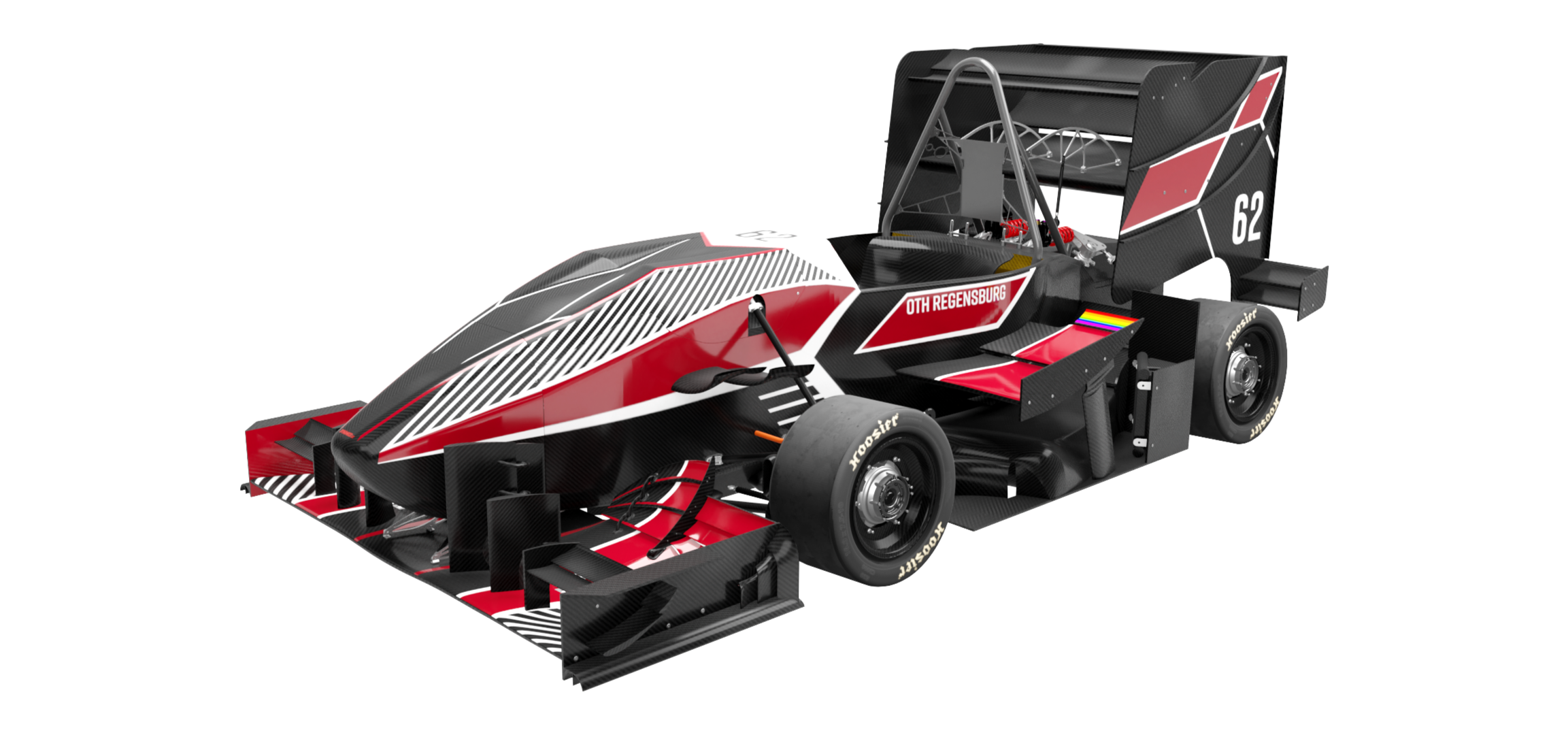

This Year's Car

Car 62
2026
Car #62 RP 26 e/d
Info
91x
Established in 2007, Dynamics e.V. shifted to electric racing in 2019. The RP26e — our seventh electric and fifth autonomous vehicle — puts reliability first. Following last season's DNFs, the team resolved motor overheating, reworked the cooling circuit, and remanufactured critical drivetrain components. Combined with a matured autonomous pipeline, the RP26e is built to finish — and to score.
Engineering Design Priorities:
#Reliability #ThermalManagement #AutonomousDriving #Drivetrain #Monocoque #VehicleDynamics
Car Specifications
General
Frame Construction CFRP monocoque with integrated front and rear suspension hardpoints
Material T700-300/150-DT806R carbon fibre prepreg with PAMG-XR1-4.5-1/8-10-N-5056 honeycomb core
Overall L 2953 mm
Overall W 1410 mm
Overall H 1095 mm
Wheelbase 1530 mm
Track (Fr) 1200 mm
Track (Rr) 1160 mm
Weight with 68kg driver (Fr) 153 kg
Weight with 68kg driver (Rr) 159 kg
Suspension Double unequal length A-Arm, push rod actuated horizontally oriented spring and damper
Tyres (Fr / Rr) Hoosier 186x70 D10 R20 / Hoosier 186x70 D10 R20
Wheels (Fr / Rr) 10" Kaizer Aluminium Wheels 7" Width at front and rear. Inserts for individualised offset.
Drive Type Two-stage planetary gearbox
Differential Torque vectoring via individual motor control, no mechanical differential
Cooling Reworked liquid cooling circuit with improved thermal symmetry across all four motors
Brake System Dual-circuit with balance bar, regenerative braking adjustment via regen settings
Electronics AN/LIN network; Power Distribution Unit with fuses and e-fuses; Deutsch Autosport / Souria
Powertrain
Number of Motors 4
Motor Location FL, FR, RL, RR
Max Motor Power (per motor) 35 kW
Motor Type FischerTI085-052-070-04B7S-
Max Motor RPM (highest) 20000 rpm
Motor Controller Unitek AMOCUBE-700-30/60
Max System Voltage 605 V
Electrode Materials LiCoO₂
Combined Accumulator Capacity 8.47 kWh
Transmission Ratio (Primary) 10.76 : 1
Transmission Ratio (Secondary) 1 : 1
Driverless System
Processing unit(s) Intel Core i5-1240, 32GB RAM
Floating Point Operations Per Second of all processing units that are working for the DV system 1611 GigaFLOPS
Power consumption of all processing units that are working for the DV system 65 W
Camera(s) -
Radar sensor(s) -
Lidar sensor(s) 1x Robosense M1, 5 channels, horizontal FOV 120°, range ~35 m
Other sensors 1x IMU (acceleration + rotation rate for EKF SLAM position correction)
Highlights of the DV system LiDAR-only pipeline on ROS2: Robosense M1 + IMU → cone detection → EKF SLAM → convolutional autoencoder path planning → RMA controller → actuation. Steering via harmonic drive motor; redundant pneumatic-hydraulic brake actuation (8 bar → 45 bar). Modular architecture enables independent simulation-based testing of each module.

Past Events

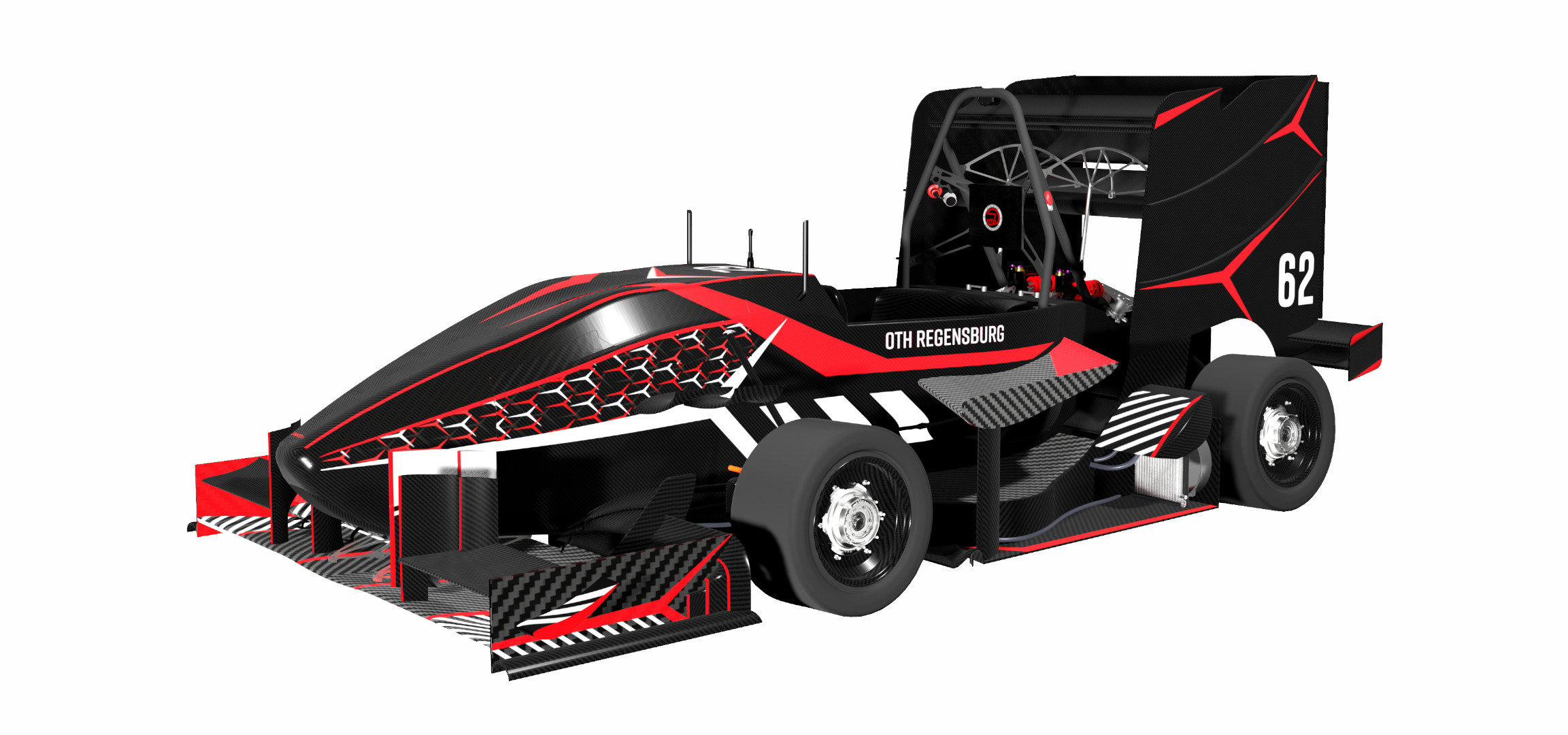

Car 62 – 2025
2025
Car #62
Info
66x
Established in 2007, Dynamics e.V. shifted to electric race cars in 2019. The RP25e, our sixth electric model and fourth autonomous vehicle, embodies our evolution. This season, saw the introduction of a new wheel package, leading to a new parametric model and a redesigned chassis. The RP25e boasts improved aerodynamics, battery tech, and control systems. With regenerative braking and user-friendly telemetry, it sets new standards, delivering top performance.
Engineering Design Priorities:
WheelPackageDesign ChassisRedesign TorqueVectoring RegenerativeBraking FrontwingRedesign EBSInnovation
Car Specifications
General
Frame Construction CFRP Monocoque
Material CFRP, Kevlar, Honeycomb, Rohacell
Overall L 2953 mm
Overall W 1410 mm
Overall H 1141 mm
Wheelbase 1530 mm
Track (Fr) 1213 mm
Track (Rr) 1174 mm
Weight with 68kg driver (Fr) 139 kg
Weight with 68kg driver (Rr) 149 kg
Suspension Double unequal Wishbone Push Rod actuated horizontally oriented springs and dampers system
Tyres (Fr / Rr) 16x7.5-10, 1pc CFK rim
Wheels (Fr / Rr) 16x7.5-10, 1pc CFK rim
Drive Type Planetary Gear drive
Differential n/a
Cooling Two radiators at the side of the vehicle, two cooling circuits, two 190mm electric fans
Brake System 4-Disk system, self developed rotors with 211,5mm diameter, adjustable brake balance
Electronics Remote Flashing System, High- Resolution Dashpanel, Power Distribution Unit
Powertrain
Number of Motors 4
Motor Location FR, FL, RR, RL
Max Motor Power (per motor) 35kW, 35kW, 35kW, 35kW kW
Motor Type Fischer Torque Motors
Max Motor RPM (highest) 18.000 rpm
Motor Controller Unitek
Max System Voltage 600V V
Electrode Materials LiIoPo
Combined Accumulator Capacity 8,47kWh kWh
Transmission Ratio (Primary) -10,8:1 : 1
Transmission Ratio (Secondary) n/a : 1
Driverless System
Processing unit(s) NXP S32k uC; Intel Core i5 1240p
Floating Point Operations Per Second of all processing units that are working for the DV system 2226 GigaFLOPS
Power consumption of all processing units that are working for the DV system 35 W
Camera(s) n/a
Radar sensor(s) n/a
Lidar sensor(s) 1, Robosense M1, 200m, 120°, hybrid-solid-state LiDAR
Other sensors 1, VectorNav VN-300 Rugged
Highlights of the DV system LiDAR only perception, with color independent path planning and a high performance EKF-SLAM. Low power x86 based processing unit.

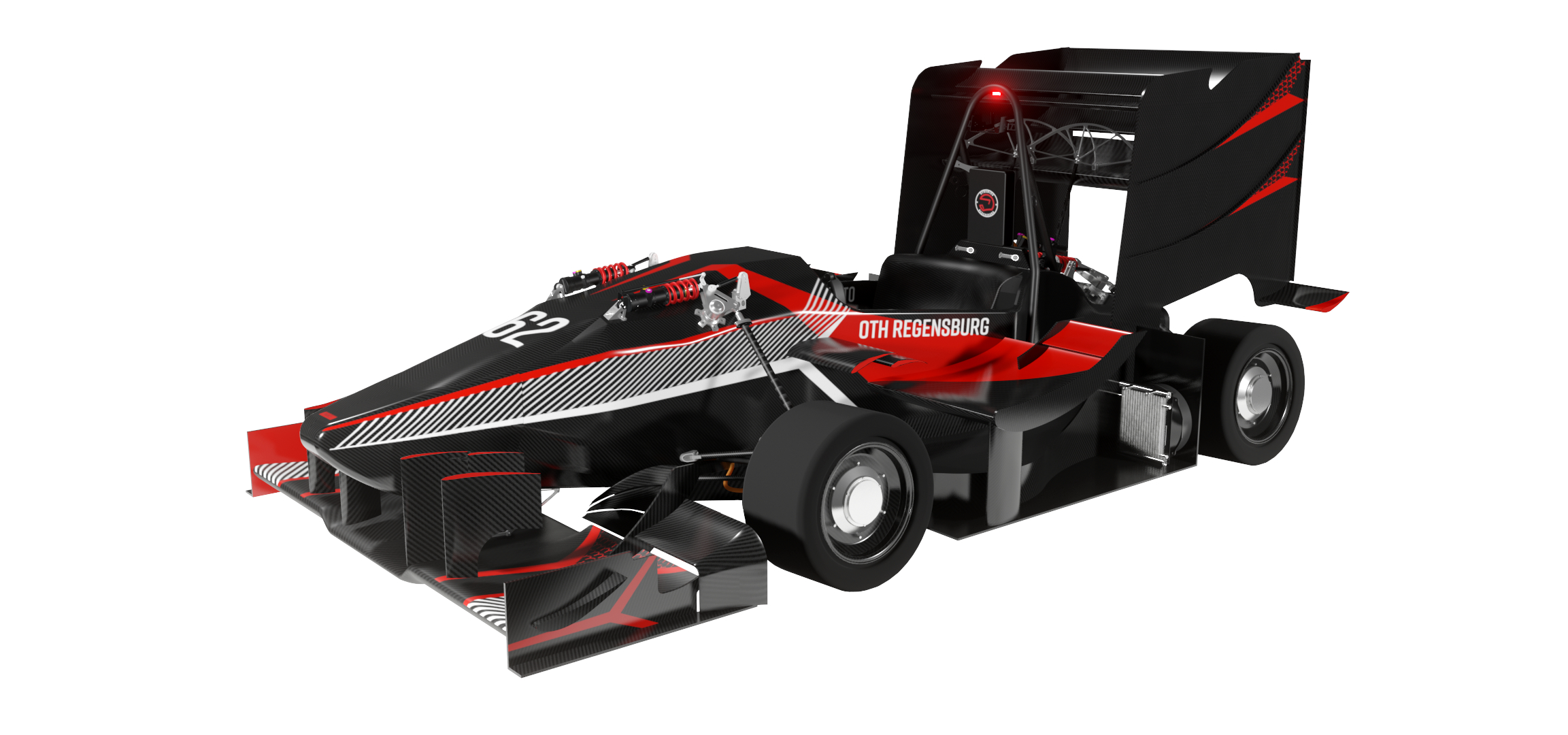

Car 62 – 2024
2024
Car #62
Info
73x
Established in 2007, Dynamics e.V. shifted to electric race cars in 2019. The RP24e, our fifth electric model, embodies our evolution. This season, we prioritize reliability, manufacturing excellence, and system enhancements. The RP24e boasts improved aerodynamics, battery tech, and control systems. We've also focused on lightweight materials, safety and optimized suspension. With regenerative braking and user-friendly telemetry, it sets new standards, delivering top performance.
Engineering Design Priorities:
Relieability Revision Ground effect Insight Performant Active aerodynamics
Car Specifications
General
Frame Construction CFRP Monocoque
Material CFRP, Kevlar, Honeycomb, Rohacell
Overall L 2963 mm
Overall W 1480 mm
Overall H 1157 mm
Wheelbase 1525 mm
Track (Fr) 1202 mm
Track (Rr) 1160 mm
Weight with 68kg driver (Fr) 127 kg
Weight with 68kg driver (Rr) 156 kg
Suspension Double unequal Wishbone Push Rod actuated horizontally oriented springs and dampers system
Tyres (Fr / Rr) 186x70 D10, Hoosier LC0
Wheels (Fr / Rr) 16x7.5-10, 1pc CFRP rim
Drive Type Planetary Gear drive
Differential n/a
Cooling two radiators at the side of the vehicle, two cooling circuits, two 190mm electric fans
Brake System 4- Steel-Disk system, self developed rotors with 245mm diameter, adjustable brake balance,
Electronics Remote Flashing System, High- Resolution Dashpanel, Power Distribution Unit
Powertrain
Number of Motors 4
Motor Location wheel hub
Max Motor Power (per motor) 35kW kW
Motor Type Fischer Torque Motor
Max Motor RPM (highest) 18000 rpm
Motor Controller Unitek
Max System Voltage 600 V
Electrode Materials LiIoPo
Combined Accumulator Capacity 7,456kWh kWh
Transmission Ratio (Primary) 10.96:1 : 1
Transmission Ratio (Secondary) n/a : 1
Driverless System
Processing unit(s) NXP S32k uC / SKEAZ128 for all custom ECUs, Intel Core i5 1240p
Floating Point Operations Per Second of all processing units that are working for the DV system 2226 GigaFLOPS
Power consumption of all processing units that are working for the DV system 35W W
Camera(s) n/a
Radar sensor(s) n/a
Lidar sensor(s) 1, Robosense M1, 200m, 120°, hybrid-solid-state LiDAR
Other sensors 1, VectorNav VN-300 Rugged
Highlights of the DV system LiDAR only perception, with color independent path planning and a high performance EKF-SLAM. Low power x86 based processing unit.

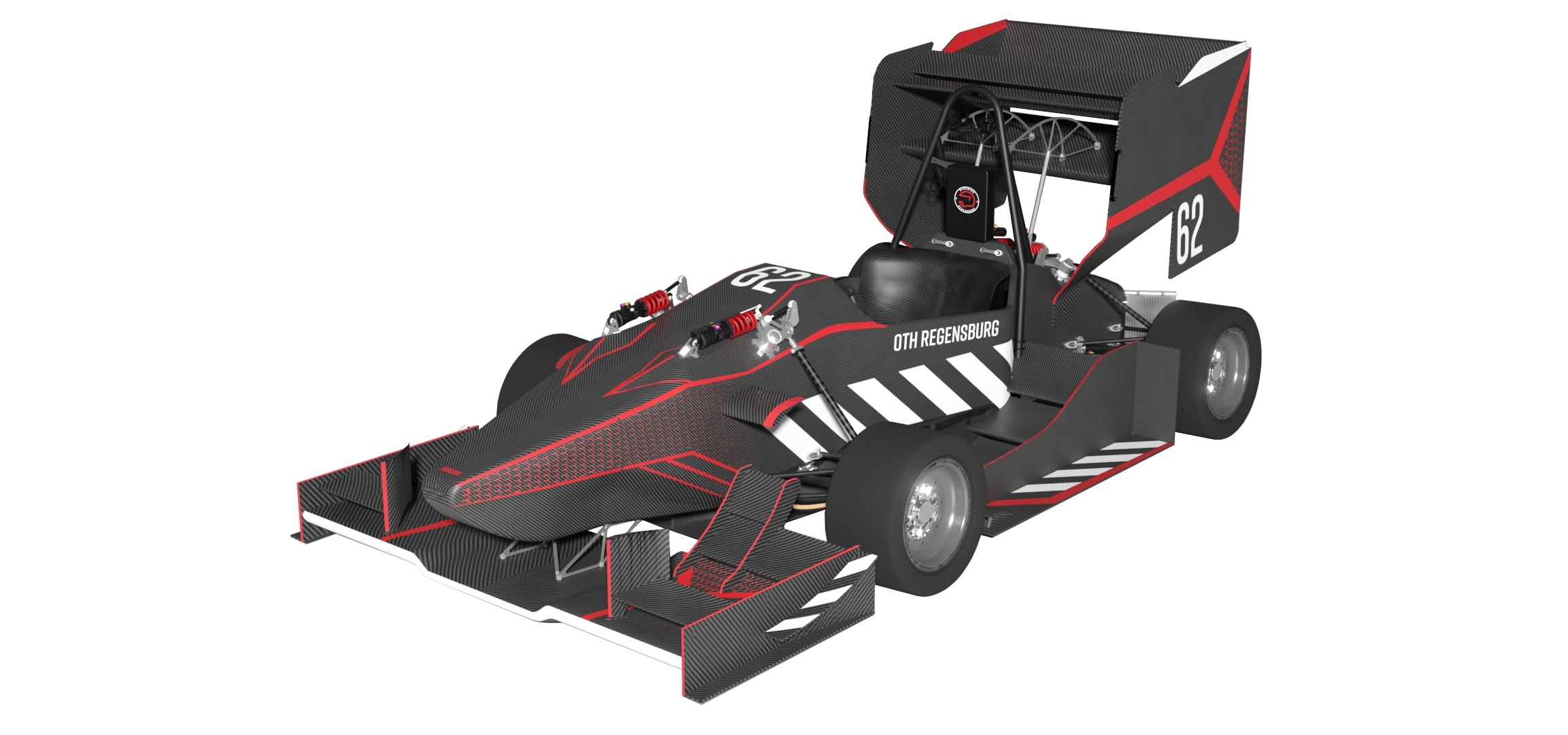

Car 62 – 2023
2023
Car #62
Info
38x
Dynamics e.V. was founded in 2007 to build combustion race cars until 2019. As the fourth electric race car and further development of the overall concept developed in the pre-season, the RP23e is our best and most sophisticated car to date. We compete the season with a focus on the reliability of the concepts, good manufacturing quality, but also the improvement of all systems.
Engineering Design Priorities:
Relieability DoItRightOrDoItTwice Four-Wheel Drive Driverless Carbon Fibre Rim Weight Reduction
Car Specifications
General
Frame Construction CFRP Monocoque
Material CFRP, Keclar, Honeycomb, Rohacell
Overall L 2960 mm
Overall W 1450 mm
Overall H 1160 mm
Wheelbase 1525 mm
Track (Fr) 1200 mm
Track (Rr) 1160 mm
Suspension Double unequal Wishbone Push Rod actuated horizontally oriented springs and dampers system
Tyres (Fr / Rr) 186x70 D10, Hoosier LC0
Wheels (Fr / Rr) 16x7.5-10, 1pc CFRP rim
Drive Type Planetary Gear drive
Differential n/a
Cooling two akg radiators at the rear of the vehicle, two cooling circuits, four 115mm electric fans
Brake System 4- Steel-Disk system
Electronics self designed Live-Telemetry, multifunctional Steering Wheel and High-Resolution Dashpanel
Powertrain
Number of Motors 4
Motor Location wheel hub
Max Motor Power (per motor) 35kW kW
Motor Type Fischer Torque Motor
Max Motor RPM (highest) 20.000 rpm
Motor Controller Unitek
Max System Voltage 600V V
Electrode Materials LiIoPo
Combined Accumulator Capacity 7.14kWh kWh
Transmission Ratio (Primary) 10.96:1 : 1
Transmission Ratio (Secondary) n/a : 1
Driverless System
Processing unit(s) NXP S32k uC / SKEAZ128 for all custom ECUs, Intel Core i5 1240p
Floating Point Operations Per Second of all processing units that are working for the DV system 2226 GigaFLOPS
Power consumption of all processing units that are working for the DV system 35W W
Camera(s) n/a
Radar sensor(s) n/a
Lidar sensor(s) 1, Robosense M1, 200m, 120°, hybrid-solid-state LiDAR
Other sensors 1, VectorNav VN-300 Rugged
Highlights of the DV system LiDAR only perception, with color independent path planning and a high performance EKF-SLAM. Low power x86 based processing unit.

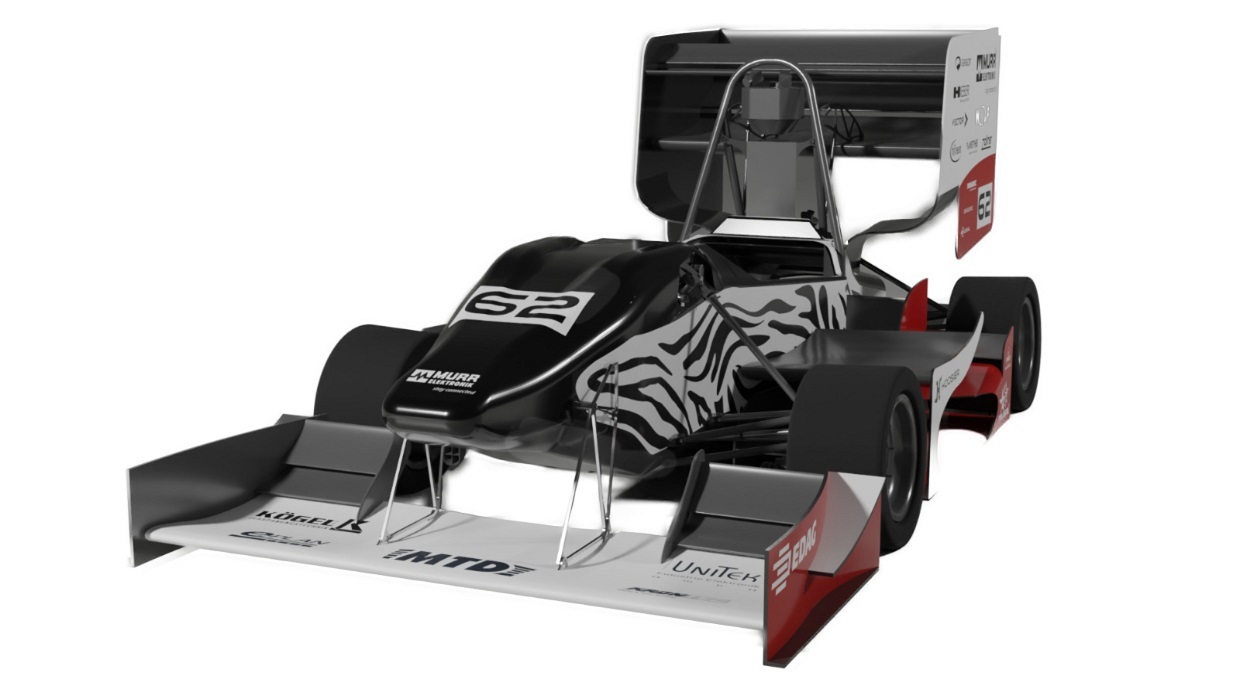

Car 62 – 2022
2022
Car #62
Info
37x
Dynamics e.V. was founded in 2007 building combustion vehicles until 2019. After two predecessors, the RP22e is the third and most sophisticated electric vehicle to leave our facility. This racecar is also the last step toward a completely electric platform that exploits all the advantages of this new driveline.
Engineering Design Priorities:
four-wheel-drive Driverless Carbon Fibre Rim Complete new Car flax fibre
Car Specifications
General
Frame Construction CFRP Monocoque
Material CFRP, Kevlar, Honeycomb, Rohacell
Overall L 2863 mm
Overall W 1450 mm
Overall H 1113 mm
Wheelbase 1525 mm
Track (Fr) 1200 mm
Track (Rr) 1160 mm
Weight with 68kg driver (Fr) 48 kg
Weight with 68kg driver (Rr) 52 kg
Suspension Double unequal length A-Arm, push-rod
Tyres (Fr / Rr) 186x70 D10, Hoosier LC0
Wheels (Fr / Rr) 16x7.5-10, 2pc CFRP rim
Drive Type Planetary Gear drive
Differential n/a
Cooling two akg radiators in the sidepods
Brake System 4-Disk system
Electronics selfdesigned Live-Telemetry System
Powertrain
Number of Motors 4
Motor Location one on eacht wheel
Max Motor Power (per motor) 35kW each kW
Motor Type Fischer Elektromotoren Torquemotor
Max Motor RPM (highest) 20000 rpm
Motor Controller UniTec
Max System Voltage 599V V
Electrode Materials Polymer Li-Ion
Combined Accumulator Capacity 7.14kWh kWh
Transmission Ratio (Primary) 1:13,14 : 1
Transmission Ratio (Secondary) n/a : 1
Driverless System
Processing unit(s) NVidia Jetson AGX Xavier IPC/RMLA3K22-D203S
Floating Point Operations Per Second of all processing units that are working for the DV system 1410 GigaFLOPS
Power consumption of all processing units that are working for the DV system 35 W
Camera(s) 2, 60°, Sony IMX265 color CMOS sensor
Radar sensor(s) n/a
Lidar sensor(s) 1, MRS6124R-131001, 200m, 120°, infrared Sensor
Other sensors GPS, VectorNav VN-300 Rugged
Highlights of the DV system LiDAR focused perception with camera assisted color classification. High performance EKF-SLAM with constant time position estimation. Low power ARM based processing unit. Asynchonous sensor shutters.

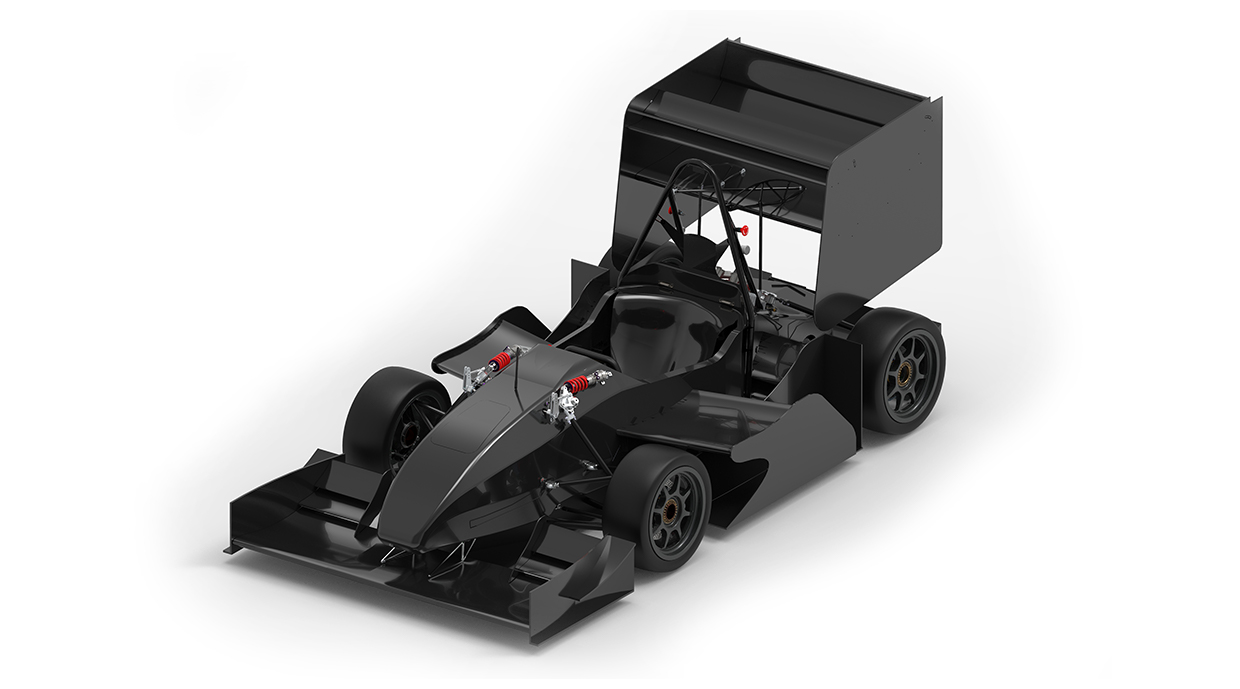

Car 62 – 2021
2021
Car #62
Info
51x
Dynamics e.V. was founded in 2007 and has built combustion vehicles until 2019. In 2019 we started to build electric cars. With our 2nd electric car we aim to be faster than with our combustion cars. Highlights of the RP21e are the further developed aerodynamic package, our new self developed planetary gearbox, the new rear chassis part, new rear axle, new accumulator cell type and better performing inverters.
Engineering Design Priorities:
Aerodynamics Planetary Gearbox
Car Specifications
General
Frame Construction CFRP Monocoque
Material CFRP, Kevlar, Honeycomb, Rohacell
Overall L 2947 mm
Overall W 1466 mm
Overall H 1200 mm
Wheelbase 1527 mm
Track (Fr) 1200 mm
Track (Rr) 1160 mm
Weight with 68kg driver (Fr) 126 kg
Weight with 68kg driver (Rr) 144 kg
Suspension double Wishbone, push-rod
Tyres (Fr / Rr) Continental 205x47 R13
Wheels (Fr / Rr) OZ Cast, 1 pc, 7x13 inch, Mg centerlock wheel
Drive Type Planetary Gear drive
Differential Torque vectoring system
Cooling Rear mountet mini radiator and electric fan
Brake System 4-Disk system
Electronics selfdesigned Multifunctional Steering Wheel, Live-Telemetry System, Control Unit, BMS
Powertrain
Number of Motors 2
Motor Location Rear Left, Rear Right
Max Motor Power (per motor) 52kW kW
Motor Type RR, RL: Emrax 188 LC
Max Motor RPM (highest) RL, RR: 8000 rpm
Motor Controller Unitek Bamocar PG D3 700 160
Max System Voltage 453V V
Electrode Materials Polymer Li-ion
Combined Accumulator Capacity 6,39 kWh kWh
Transmission Ratio (Primary) 1:5,172 : 1
Transmission Ratio (Secondary) n/a : 1

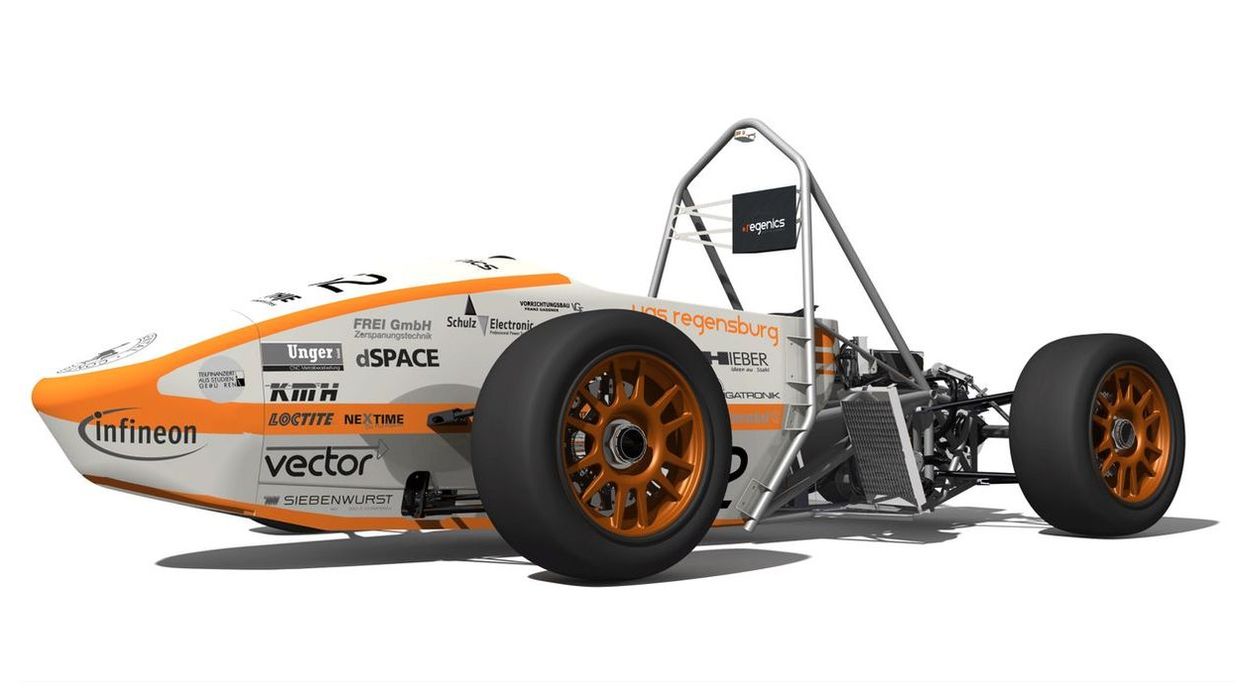

2012
Car #62
Info
The regenics Formula Student Electric Team of the University of Applied Sciences (UAS) in Regensburg was founded in 2010 by the experienced team members out of the Formula Student Combustion Team at the UAS Regensburg. We are very proud to integrate over 50 members from nearly all faculties of the university in one team. Every team member is part of a subteam and has clearly defined tasks for which he is fully responsible. This season we will participate the second time in the competition and we have learned from the past difficulties. One technical highlight of our 'RP12e' is the monocoque and the lithium polymer batteries which provide the lightness of our car. An additional advantage of the monocoque is an enhanced safety for the driver. Due to the two water-cooled, permanent exited synchronous motors we can gain a peak torque of more than 500 Nm per wheel controlled by a self-build ECU. We are looking forward to meet the other teams and to have a great competition!
Car Specifications
General
Frame Construction Hybrid CFRP-Moncoque with tubular steel rear
Material HM UD and twill Prepreg, Aluminium Honeycomb and Rohacell core material
Overall L 2695 mm
Overall W 1500 mm
Overall H 1078 mm
Wheelbase 1575 mm
Track (Fr) 1458 mm
Track (Rr) 1420 mm
Weight with 68kg driver (Fr) 112 kg
Weight with 68kg driver (Rr) 135 kg
Suspension Double unequal length A-Arms in front and rear; pullrod in front; pushrod in rear
Tyres (Fr / Rr) Continental C12
Wheels (Fr / Rr) 7.0x13'' O.Z. Racing wheels with self developped centerlock system
Drive Type Double belt drive
Differential Electronic active differential (with torque vectoring)
Cooling Single side mounted radiator with temperature controlled waterpump
Brake System 4-Disk System, self developed rotors, radial mounted rake calipers
Electronics Self-developed main ECU, telemetry via WLAN and radio frequency
Powertrain
Number of Motors 2
Motor Location Rear Right and Left
Max Motor Power (per motor) 63 kW, 63 kW kW
Motor Type Enstroj Emrax
Max Motor RPM (highest) 3500 rpm
Motor Controller Infineon Hybrid Kit 1 Pin-Fin
Max System Voltage 404V V
Electrode Materials LiNiCoMnO2
Combined Accumulator Capacity 7.1 kWh
Transmission Ratio (Primary) 1:2,65 : 1
Transmission Ratio (Secondary) -

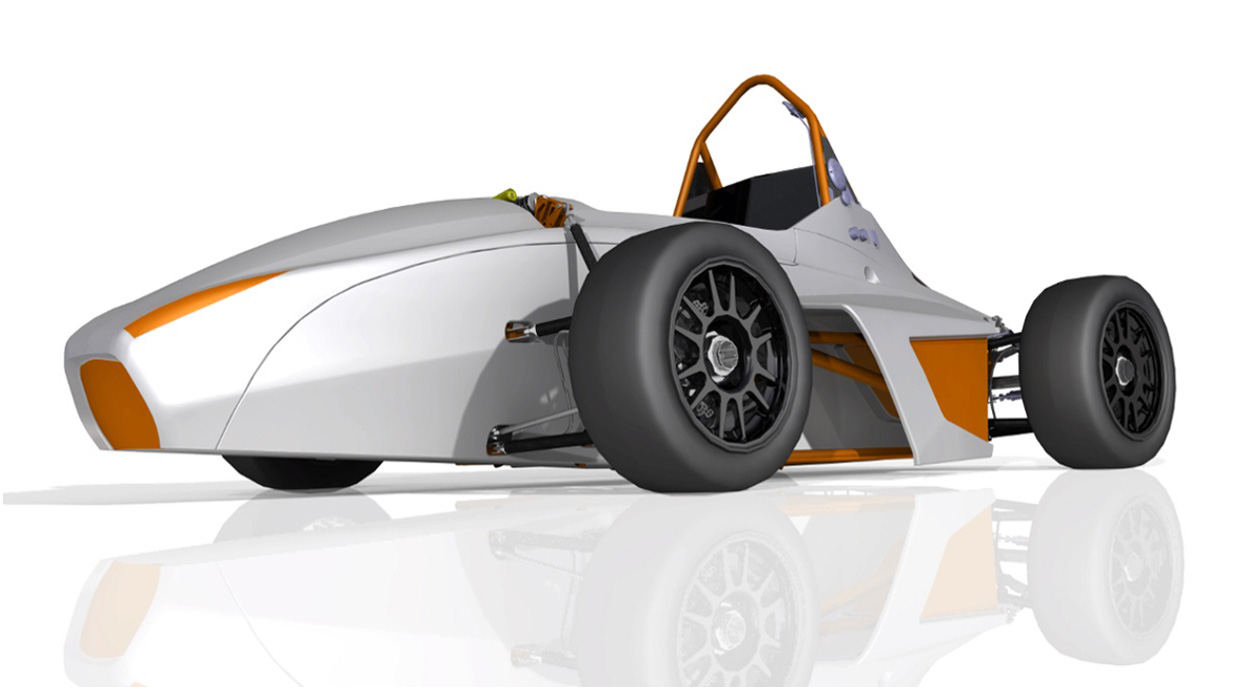

Car 62 – 2011
2011
Car #62
Info
The regenics Formula Student Electric Team of the University of Applied Sciences (UAS) in Regensburg was founded in 2010 by the experienced team members out of the Formula Student Combustion Team. We are very proud to integrate over 50 members from nearly all faculties of the university in one team. Every team member is part of a subteam and has clearly defined tasks for which he is fully responsible. This season we will participate the first time in the competition and tried to fulfill our own expectations of our first electric race car. One highlight of our 'RP 11e' is the virtual differential, which is provided by the use of two motors on separated rear driveshafts. Furthermore a light suspension consisting of carbon a-arms and aluminum wheel carriers should be mentioned. We are looking forward to meet the other teams and to have a great competition!
Car Specifications
General
Frame Construction Tubular space frame with carbonfibre sandwich floor panels
Material S235JR
Overall L 2715 mm
Overall W 1500 mm
Overall H 1069 mm
Wheelbase 1575 mm
Track (Fr) 1250 mm
Track (Rr) 1210 mm
Weight with 68kg driver (Fr) 163 kg
Weight with 68kg driver (Rr) 245 kg
Suspension Double unequal length A-Arm with anti-features. Pushrod actuated y-axis oriented spring and damper
Tyres (Fr / Rr) 205/510 R13 34M Continental
Wheels (Fr / Rr) 205/510 R13 34M Continental
Drive Type 428 chain drive
Differential Virtual, sensor-driven differential
Cooling Liquid cooled motors, liquid cooled power electronics
Brake System 4-Disk system, self developed rotors, adjustable brake balance
Electronics MicroAutoBox II as Drive-Controlunit, CAD designed wiring harness, multiple driving dynamics sensors
Powertrain
Number of Motors 2
Motor Location Rear Left, Rear Right
Max Motor Power (per motor) 30 kW, 30 kW kW
Motor Type Perm PMS-156W
Max Motor RPM (highest) 6000 rpm
Motor Controller Infineon HybridKit 2
Max System Voltage 475 V
Electrode Materials LiFePO4-based Cathode/Carbon-based Anod
Combined Accumulator Capacity 5,82 kWh kWh
Transmission Ratio (Primary) 1:1 : 1
Transmission Ratio (Secondary) 1:4,6 : 1

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2026.08
80
45.
42.
27.
31.
42.
-
38.
-
47.
24.
25.
-30.00
238.52
2026.07
38
25.
20.
1.
33.
-
-
19.
-
21.
-
-
0.00
245.30
2025.09
32
4.
20.
11.
15.
9.
-
7.
-
10.
4.
5.
0.00
503.38
2025.08
84
47.
52.
9.
40.
51.
-
42.
-
-
-
-
0.00
218.43
2025.08
53
35.
20.
32.
30.
-
-
-
-
-
-
-
0.00
201.20
2024.09
34
12.
2.
8.
14.
18.
-
12.
-
8.
12.
-
0.00
416.89
2024.08
79
50.
36.
46.
46.
-
-
-
-
21.
-
-
0.00
217.43
2024.08
47
25.
4.
8.
21.
-
-
-
-
12.
-
-
0.00
258.00
2023.08
29
22.
9.
7.
17.
16.
-
-
-
-
-
-
0.00
261.30
2023.08
70
36.
44.
13.
24.
-
-
34.
-
-
-
-
0.00
236.01
2022.08
63
41.
47.
35.
18.
-
-
-
-
-
-
-
0.00
206.83
2021.08
38
31.
20.
8.
24.
21.
-
22.
-
23.
-
-
-49.00
205.52
2019.08
39
21.
4.
5.
21.
23.
-
25.
-
20.
-
-
0.00
260.60
2019.08
24
16.
18.
20.
16.
-
-
-
-
-
6.
-
0.00
208.50
2013.09
16
5.
4.
2.
11.
6.
-
3.
-
8.
6.
8.
0.00
665.40
2013.08
39
26.
23.
20.
28.
18.
-
15.
-
28.
-
-
0.00
281.88
2013.07
83
53.
33.
36.
39.
-
-
-
-
-
-
-
0.00
198.50
2012.08
39
11.
8.
23.
13.
19.
-
23.
-
19.
12.
5.
0.00
704.20
2012.08
32
19.
28.
21.
9.
8.
-
18.
-
18.
-
-
0.00
283.17
2011.08
28
20.
28.
18.
16.
-
-
-
-
-
-
-
0.00
171.35
x 20

Sign in with a team account to see your team schedule.
