Team Details
mosTEC.racing
| University | Duale Hochschule Baden-Württemberg Mosbach
DE Mosbach DHBW short 584 |
 |
|---|---|---|
| Location | Mosbach, Germany | |
| CV Team | mosTEC.racing | |
| Short Link | tid.fsg.one/264 | |
Past Events
2010
Info
7x

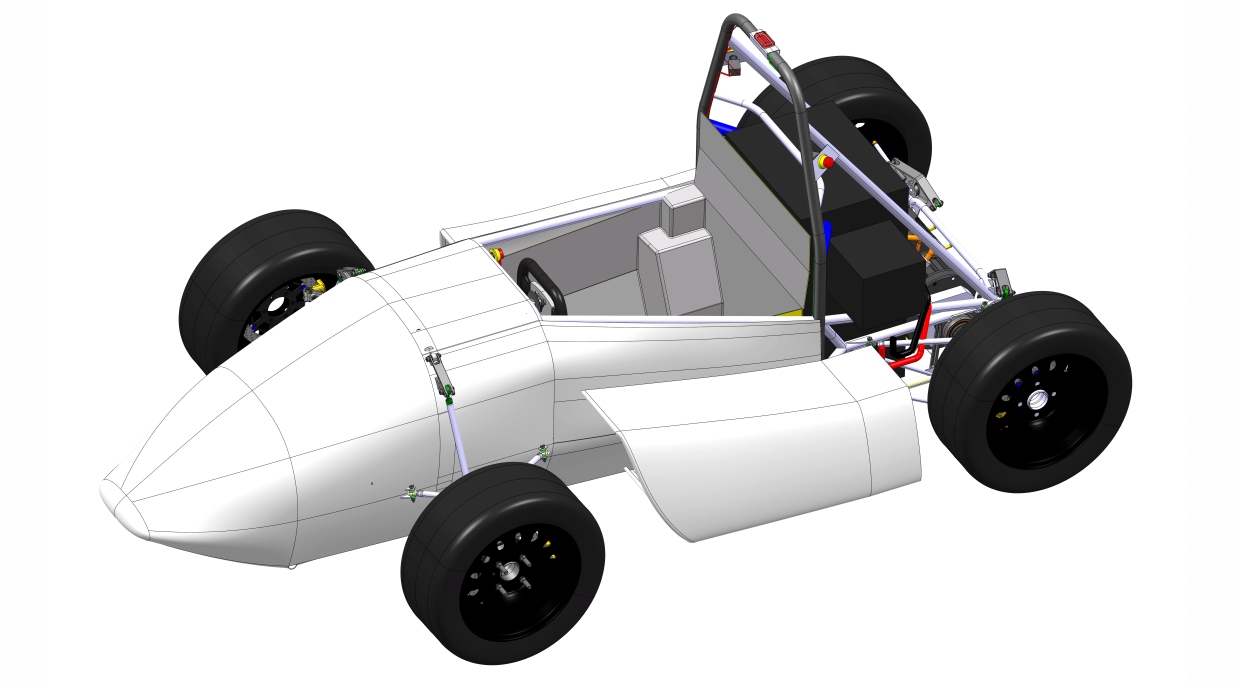

mosTEC.racing - the formula student team of the Baden-Wuerttemberg Cooperative State University Mosbach - was founded in summer 2009. The first competition mosTEC.racing will participate is the Hockenheim Event in 2010. The team consists of 23 team members from different fields of study. Our first year car bases upon a tubular space frame and features two synchronous motors. The maximum power output of one inserted motor amounts 23.3 kW. The motor torque is transferred to the sideshafts by planetary gears. Because each motor directly transfers its power to the rear tires there is no differential splitting the torque while cornering. Due to this the controllers have to adapt the function of a differential. We would like to thank our sponsors and everyone supporting us. For further information please visit us at www.mostec-racing.de.
Car Specifications
General
| Frame Construction | tubular space frame |
|---|---|
| Material | 25CrMo4 |
| Overall L | 2676 mm |
| Overall W | 1444 mm |
| Overall H | 1280 mm |
| Wheelbase | 1600 mm |
| Track (Fr) | 1254 mm |
| Track (Rr) | 1126 mm |
| Weight with 68kg driver (Fr) | 155 kg |
| Weight with 68kg driver (Rr) | 232 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated spring and damper. |
| Tyres (Fr / Rr) | 20,5 x 7 -13 Hoosier R25A |
| Wheels (Fr / Rr) | 20,5 x 7 -13 Hoosier R25A |
| Drive Type | planetary drive |
| Differential | electronic differential |
| Cooling | Side mounted radiator an electric fan |
| Brake System | steel, hub mounted, 240mm/220mm diam., ISR 4 piston calipers |
| Electronics | wiring harness sealed to IP67 |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power (per motor) | 25kW kW |
| Motor Type | Perm PMS 126W |
| Max Motor RPM (highest) | 6600 rpm |
| Motor Controller | Sigmadrive 950T01 |
| Max System Voltage | 96V V |
| Electrode Materials | LiFePO4 |
| Combined Accumulator Capacity | 8,76 kWh |
| Transmission Ratio (Primary) | 1:5 : 1 |
| Transmission Ratio (Secondary) | - |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2010.08 | 15 |
13. |
11. |
6. |
12. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
176.87 |
|
| x 1 | |||||||||||||||
