Team Details
Rennteam Uni Stuttgart
| University | Universität Stuttgart
DE Stuttgart U short 21 |
 |
|---|---|---|
| Location | Stuttgart, Germany | |
| Homepage | https://www.rennteam-stuttgart.de/ | |
| Social Media | ||
| CV Team | Rennteam Uni Stuttgart | |
| DV Team | GreenTeam Driverless Uni Stuttgart | |
| Short Link | tid.fsg.one/224 | |
| TIS Status |
        |
|

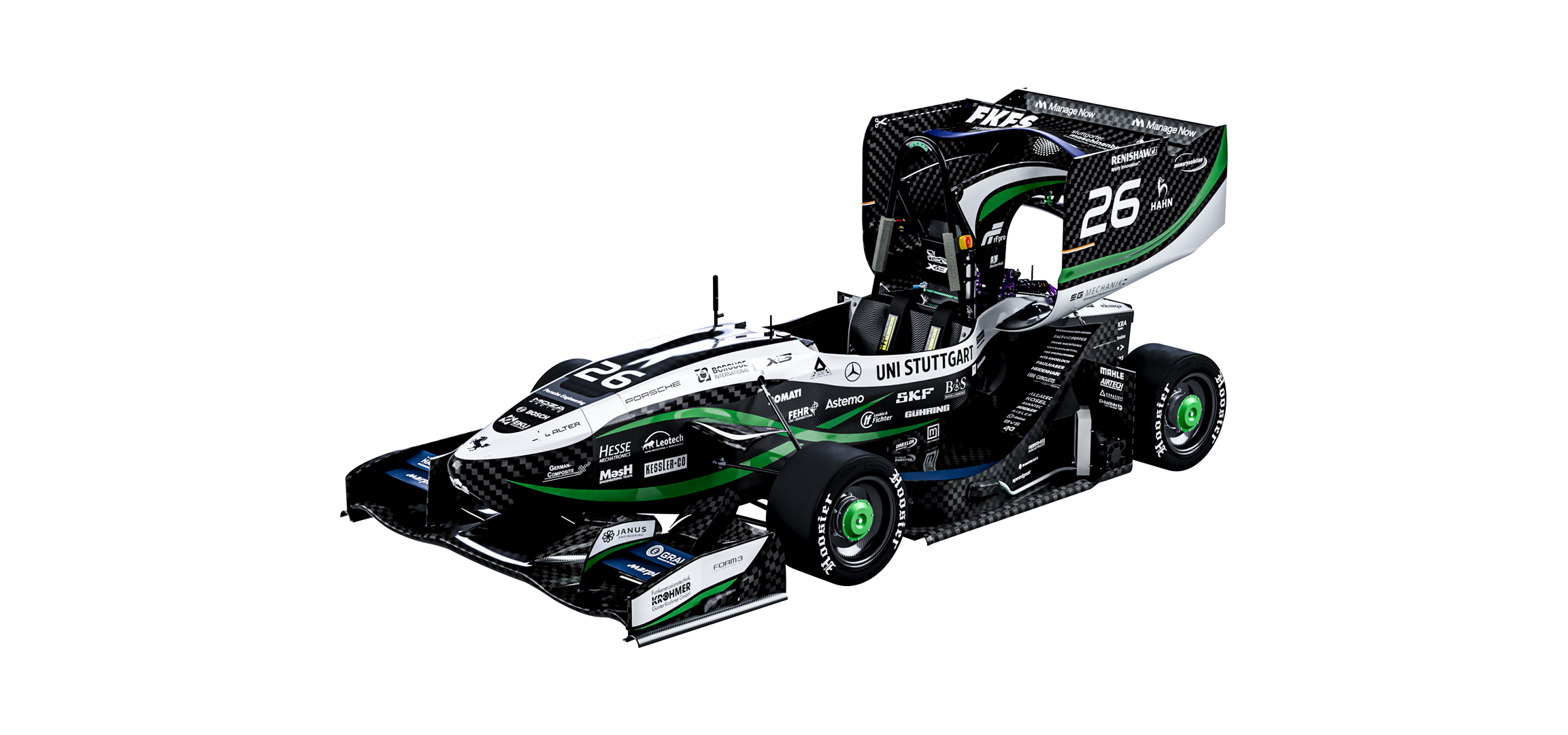

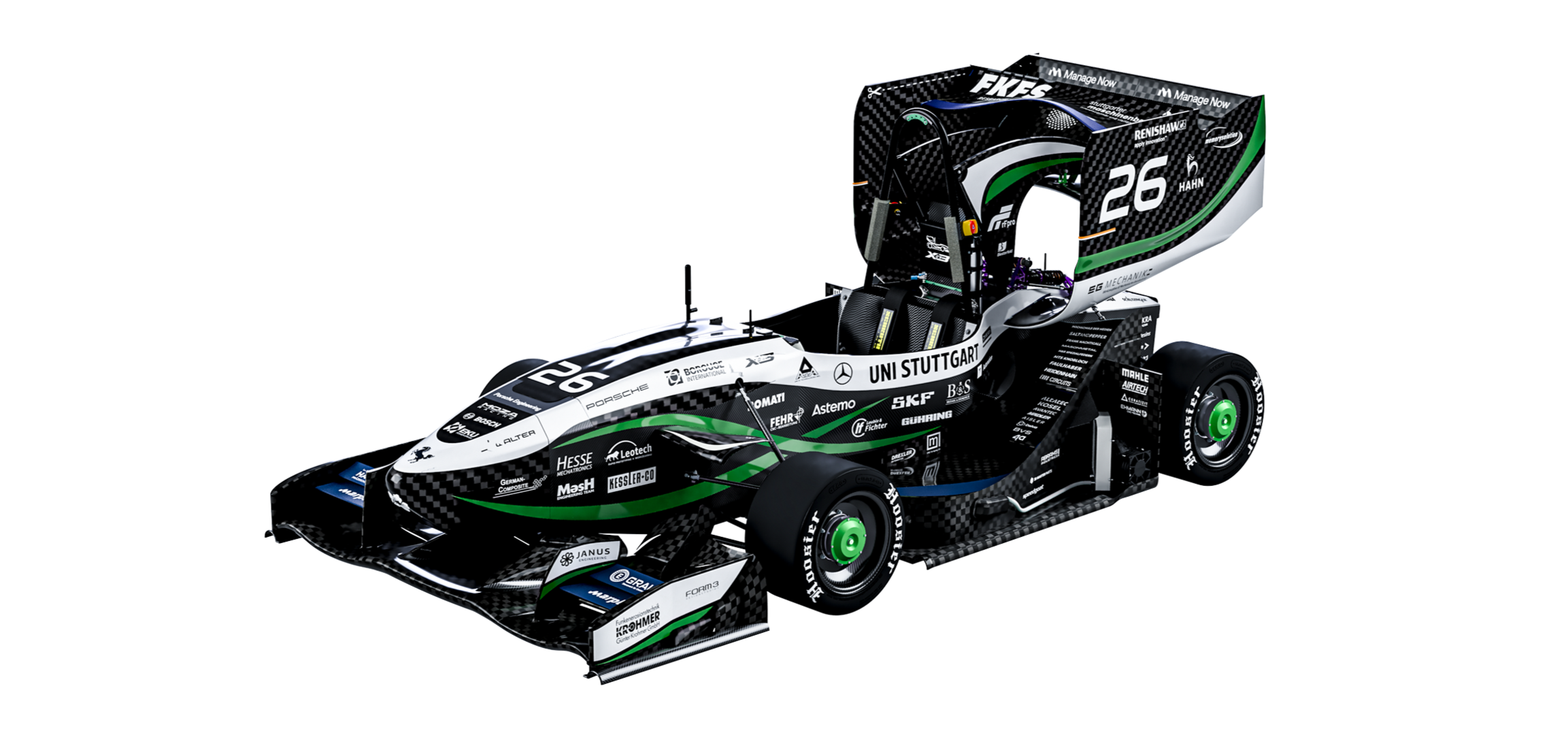

| Event Details | car 26 - active | |
Past Events

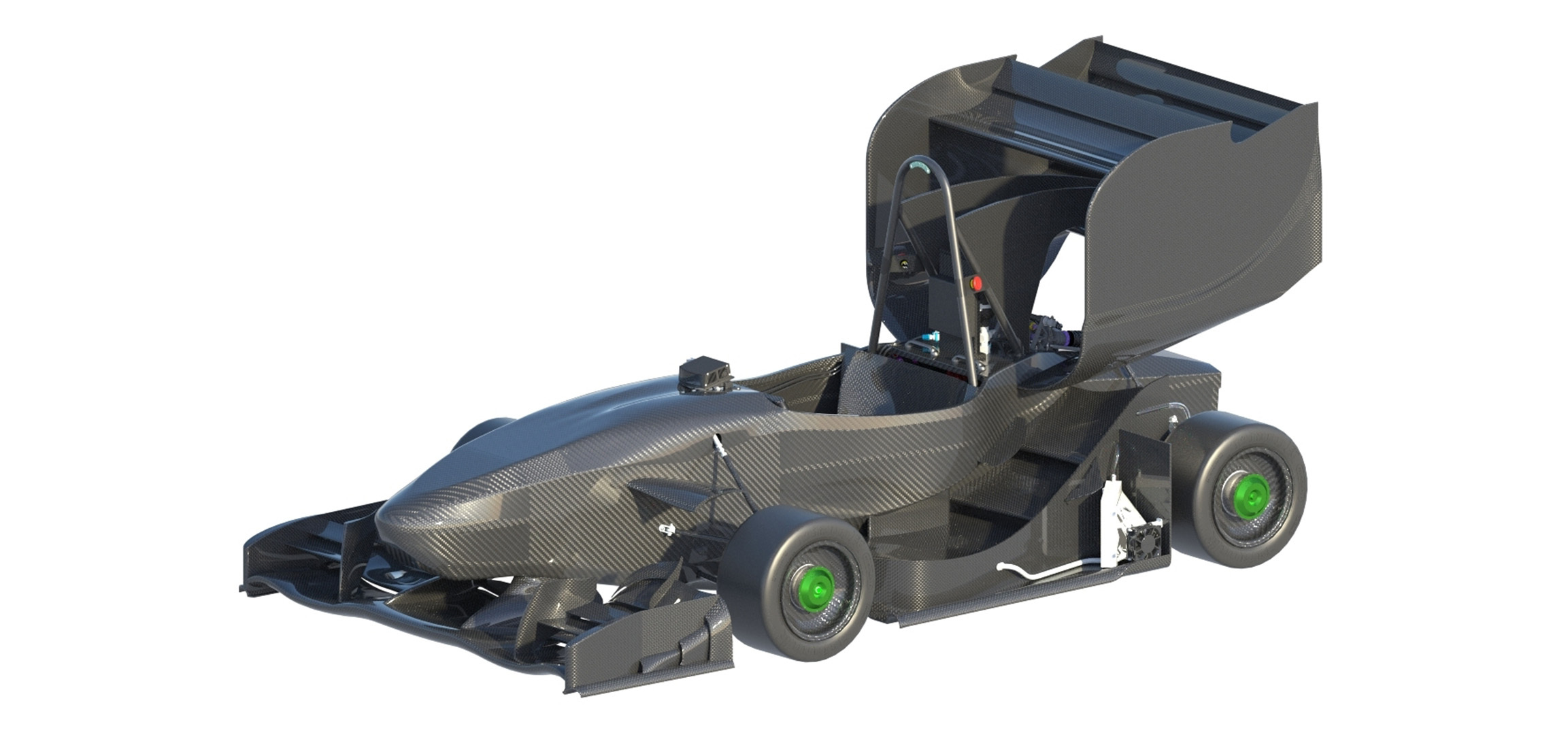

2025
Info
236x
Twenty years, two teams, one beast. As we charge into the second season of our GreenTeam fusion, Rennteam marks its 20th birthday with the ultimate statement of speed: the X0711-2. Highlights include a revised aero package with new front and rear wing, paired with a renewed emphasis on reliability throughout.
Engineering Design Priorities:
Reliability
Performance
Efficiency
Car Specifications
General
| Frame Construction | Single piece monocoque |
|---|---|
| Material | CFRP with aluminium honeycomb core |
| Overall L | 2973 mm |
| Overall W | 1465 mm |
| Overall H | 1198 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 121 kg |
| Weight with 68kg driver (Rr) | 126 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper |
| Tyres (Fr / Rr) | 16.0x7.5-10 Hoosier R20 on all wheels |
| Wheels (Fr / Rr) | self-developed CFRP rim |
| Drive Type | self-developed planetary gearset |
| Differential | none |
| Cooling | water cooling of AlSi10Mg motor housing; radiator on the sidewing of the car |
| Brake System | 4-Disk System, topology optimized brake calipers, 195mm Rotors, adjustable brake balance |
| Electronics | Self designed LV system with Live -Telemetry |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | FR, FL, RR, RL |
| Max Motor Power (per motor) | 43 kW each kW |
| Motor Type | Rennteam GT6, PMSM |
| Max Motor RPM (highest) | 21000 rpm |
| Motor Controller | AMK KW26-S5-FSE-4Q |
| Max System Voltage | 605 V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 7.67 kWh kWh |
| Transmission Ratio (Primary) | 1:11.68 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |
Driverless System
| Processing unit(s) | ASRock 155H Intell Core Ultra7 |
|---|---|
| Floating Point Operations Per Second of all processing units that are working for the DV system | 313.6 GigaFLOPS |
| Power consumption of all processing units that are working for the DV system | 95 W |
| Camera(s) | none |
| Radar sensor(s) | none |
| Lidar sensor(s) | Robosense M1 solid-state lidar with FOV120°×25°, resolution 0.2°×0.2° scanning frequency 10Hz |
| Other sensors | Xsens MTi-680g RTK GNSS/INS |
| Highlights of the DV system | lidar-only system, cone detection algorithm running time averages 10ms factor-based SLAM algorithm Delaunay triangulation algorithm and minimum curvature optimization based path planning Stanley algorithm based controller Docker based CI/CD/CT and SiL test automation hybrid CAN/UDP communication |

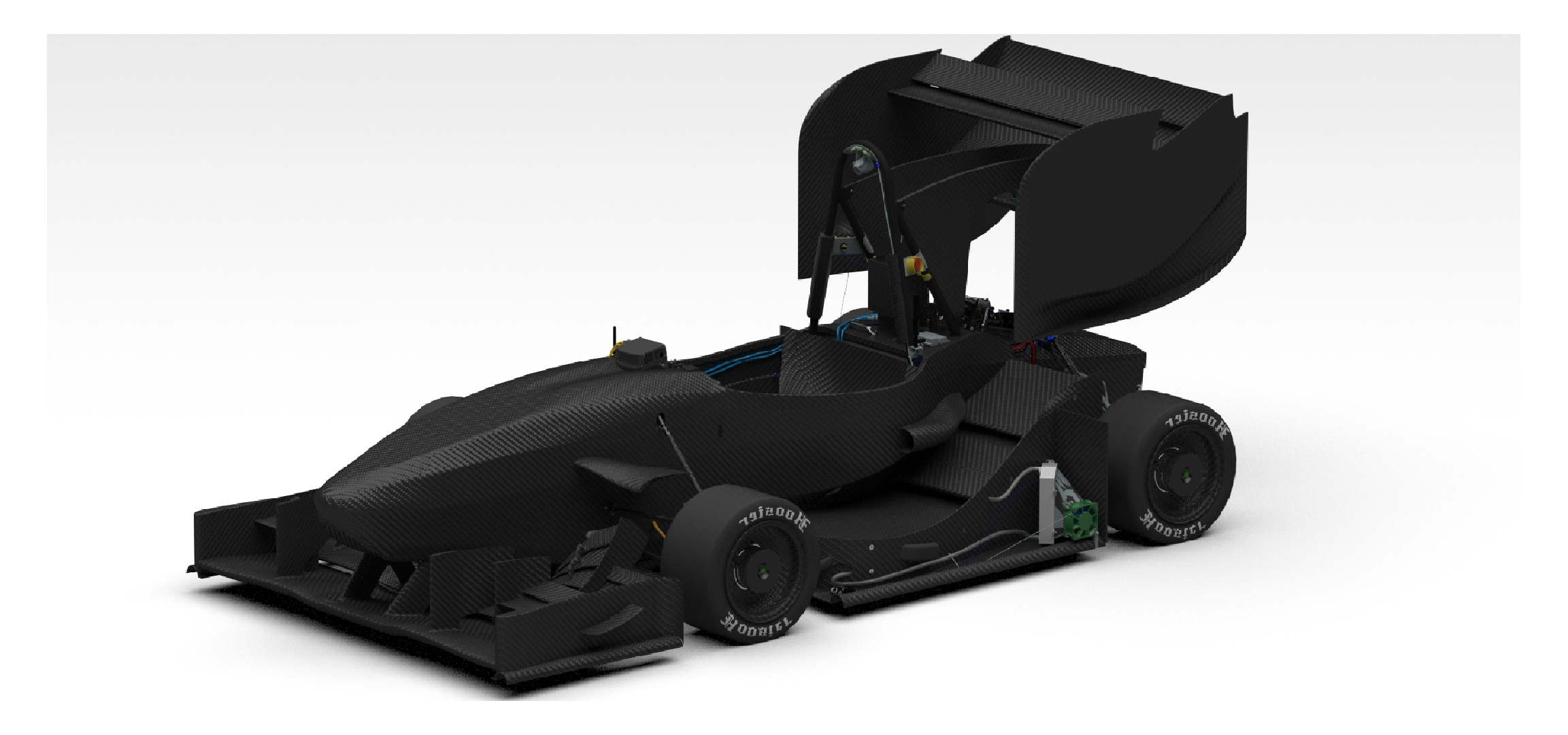

2024
Info
196x
In 2005 the Rennteam was founded by a group of engineering loving students with the task to build the fastest Formula Student car out there. Four years later in 2009, with the announcement of an all-electric category, a new team, called GreenTeam, emerged from the Rennteam.Since then the two teams have existed in parallel, sharing the same premises and achieved numerous successes. After 15 years, with the gradual end of the Formula Student combustion category, the two clubs have finally merged.
Engineering Design Priorities:
Aerodynamic performance
weight saving
reliability
powerlimits
success
learning by doing
Car Specifications
General
| Frame Construction | Single piece composite monocoque |
|---|---|
| Material | Carbon fiber prepregs (Twill,UD), Al honeycomb |
| Overall L | 2958 mm |
| Overall W | 1409 mm |
| Overall H | 1198 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 119 kg |
| Weight with 68kg driver (Rr) | 129 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper |
| Tyres (Fr / Rr) | 16.0x7.5-10 Hoosier R20/ 16.0x7.5-10 Hoosier R20 |
| Wheels (Fr / Rr) | self-developed CFRP rim |
| Drive Type | self-developed planetary gearset |
| Differential | n/a |
| Cooling | water cooling of AlSi10Mg motor housing; radiator on the sidewing of the car |
| Brake System | 4-Disk System, topology optimized brake calipers, 193mm Rotors, adjustable brake balance |
| Electronics | Self designed LV system with Live -Telemetry |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | FR, FL, RR, RL |
| Max Motor Power (per motor) | 43kW,43kW,43kW,43kW kW |
| Motor Type | FL,FR,RR,RL: Perm. Magnet Synchronous Motor |
| Max Motor RPM (highest) | FL,FR,RR,RL:210000 rpm |
| Motor Controller | AMK KW26-S5-FSE-4Q |
| Max System Voltage | 605 V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 7.67 kWh |
| Transmission Ratio (Primary) | 1:11,68 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |
Driverless System
| Processing unit(s) | Jetson AGX Orin, Raspberry Pi, Speedgoat Unit Real-Time Target Machine |
|---|---|
| Floating Point Operations Per Second of all processing units that are working for the DV system | 200000 GigaFLOPS |
| Power consumption of all processing units that are working for the DV system | 40 W |
| Camera(s) | 1, range: , opening angle: 110.3° x 93.6° , Frame rate: 160 fps, Resolution: 2.3 MP, IMX392 Sensor |
| Radar sensor(s) | n/a |
| Lidar sensor(s) | 1, range: 0.5m - 200m, FOV(vertical): 25°, FOV(horizontal): 120°, frame rate: 10Hz, RS-LiDAR-M1, sol |
| Other sensors | n/a |
| Highlights of the DV system | Integration of the Jetson AGX Orin module as it is providing better temperature property and requires less power. Enhanced RTK-GNSS setup to provide a higher update rate and better accuracy. New steering system that produces higher torque and results in less mechanical play. Better visualization of software pipeline to identify the potential iss |

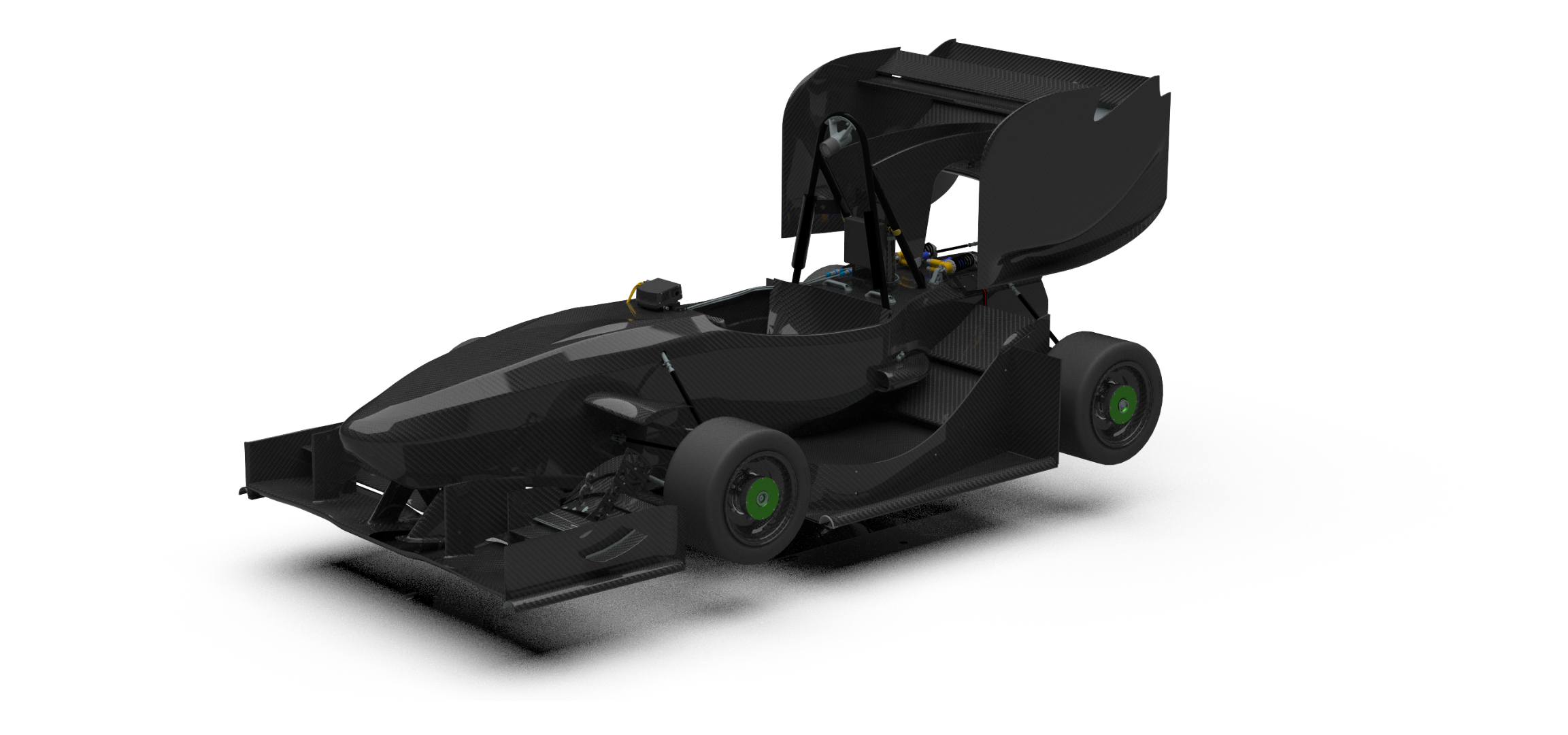

2023
Info
204x
The GreenTeam Uni Stuttgart e.V. was founded in 2009 by alumni of the Rennteam. Currently it consists of 48 members. Since its founding, the GreenTeam has established itself as one of the top teams in Formula Student competition, achieving numerous successes. With its recent success, a new world record was set for acceleration from 0 to 100 km/h in 1.461 s. This year, in addition to optimizing individual components, the team has focused on the driverless system in the E0711-13.
Engineering Design Priorities:
Driverless
Delf-developed PMSM
Vehicle Testing
New wheel package
Control-Engineering
Simulation-based design
Car Specifications
General
| Frame Construction | Single piece composite monocoque |
|---|---|
| Material | Carbon fiber prepregs (Twill,UD), Al honeycomb |
| Overall L | 2958 mm |
| Overall W | 1430 mm |
| Overall H | 1198 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 123 kg |
| Weight with 68kg driver (Rr) | 125 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper |
| Tyres (Fr / Rr) | 16.0x7.5-10 Hoosier R20 |
| Wheels (Fr / Rr) | 8.0x10, self-developed CFRP rim |
| Drive Type | self-developed planetary gearset |
| Differential | n/a |
| Cooling | water cooling of AlSi10Mg motor housing; radiator at the back of the car |
| Brake System | 4-Disk System, topology optimized brake calipers, 193mm Rotors, adjustable brake balance |
| Electronics | Self designed LV system with Live -Telemetry |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Front Right, Front Left, |
| Max Motor Power (per motor) | 43kW,43kW,43kW,43kW kW |
| Motor Type | FL,FR,RR,RL: Perm. Magnet Synchronous Motor |
| Max Motor RPM (highest) | FL,FR,RR,RL:210000 rpm |
| Motor Controller | AMK KW26-S5-FSE-4Q |
| Max System Voltage | 605 V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 7.67 kWh |
| Transmission Ratio (Primary) | 12.31 : 1 |
Driverless System
| Processing unit(s) | Intel core i7 12700,Nvidia RTX A2000,Raspberry Pi, Speedgoat Unit Real-Time Target Machine |
|---|---|
| Floating Point Operations Per Second of all processing units that are working for the DV system | 8973.00 GigaFLOPS |
| Power consumption of all processing units that are working for the DV system | 240.00 W |
| Camera(s) | 1,horizontal FOV:74.7° , vertical FOV 63°, basler industrie camera |
| Radar sensor(s) | n/a |
| Lidar sensor(s) | 1,200m, horizontal FOV:120° , vertical FOV 25°, solid state lidar |
| Other sensors | 1 RTK GPS |
| Highlights of the DV system | The most notable changes include the development of a new simulation environment, the addition of a monocular camera and an RTK GPS system, as well as the switch to graph-based simultaneous localization and mapping (SLAM). |

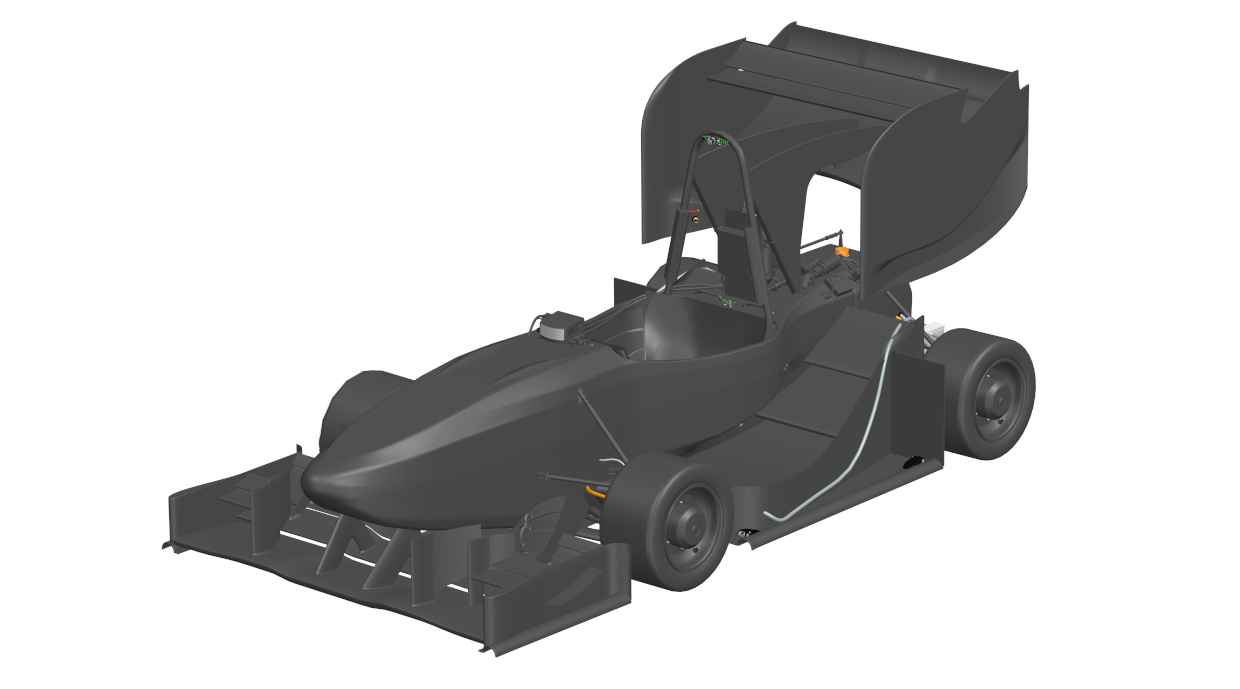

2022
Info
319x
We are GreenTeam Uni Stuttgart e.V., Electrical Formula Student Team of the University of Stuttgart. We've been developing electric prototype racecars since 2009. With 2 world records and constantly in Top 10, we're one of the best FS Teams worldwide. After getting #1 on the world ranking list, we are focusing on making the car 100% reliable, improving vulnerable sub systems on the car and efficiently integrate the autonomous system in the car. This year we will compete in 5 events around europe
Engineering Design Priorities:
Efficient AS Integration
Reliable High Performance
Extensive Testing & Setup
Sustainable Developement
Car Specifications
General
| Frame Construction | CFRP sandwich structure with tubular steel main / rectangular aluminum fronthoop |
|---|---|
| Material | CFRP prepreg (Twill, UD), aluminium honeycomb |
| Overall L | 2934 mm |
| Overall W | 1430 mm |
| Overall H | 1190 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 124 kg |
| Weight with 68kg driver (Rr) | 130 kg |
| Suspension | independent suspension with anti roll bar on both axles with stepless change in stiffness |
| Tyres (Fr / Rr) | Hoosier 16x7.5-10 LC0 |
| Wheels (Fr / Rr) | 8x10 single-piece full CFRP Rim |
| Drive Type | self-developed planetary gearset |
| Differential | N/A |
| Cooling | air cooled accumulator, water cooled drivetrain |
| Brake System | 4-disk, 6 floating piston front, 4 floating piston rear, self-developed |
| Electronics | decentral self develoved low voltage system |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | one at each wheel |
| Max Motor Power (per motor) | 39 kW |
| Motor Type | self-developed PMSM; FL,FR: GT5; RL,RR: GT4 |
| Max Motor RPM (highest) | 21000 rpm |
| Motor Controller | Modified AMK KW26 |
| Max System Voltage | 600V V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 7,67kWh kWh |
| Transmission Ratio (Primary) | 1:12.37 : 1 |
| Transmission Ratio (Secondary) | - |
Driverless System
| Processing unit(s) | Raspberry Pi, Speedgoat Real Time Target Machine |
|---|---|
| Floating Point Operations Per Second of all processing units that are working for the DV system | 10.07 TFLO GigaFLOPS |
| Power consumption of all processing units that are working for the DV system | 500.00 W |
| Camera(s) | Full HD driver camera |
| Radar sensor(s) | 0 |
| Lidar sensor(s) | 1 solid state lidar |
| Highlights of the DV system | LiDAR only concept, All new steering actuation system, All new EBS, Rebuild Development Infrastructure |

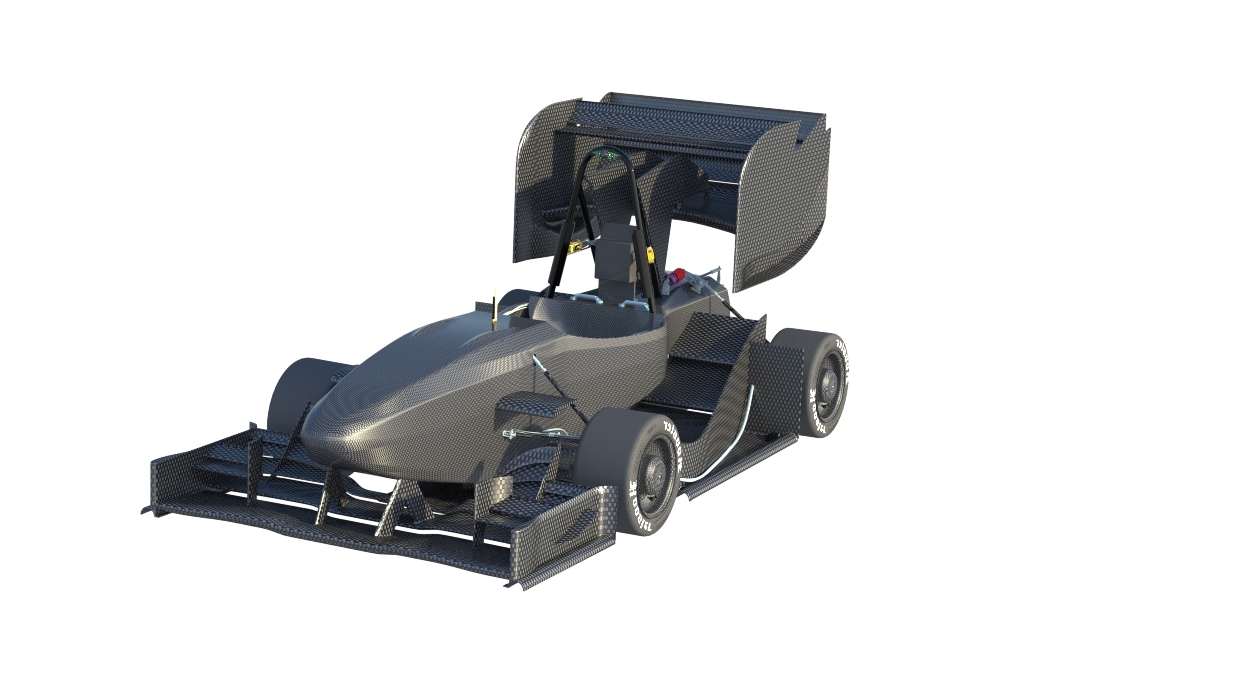

2021
Info
231x
GreenTeam was founded in 2009 and currently consists of around 65 students from several courses of study. Our new car, the E0711-11 EVO, is a comprehensive revolution conceived for the long term: A new wheel package with single-piece CFRP rims, a new independent suspension, a new single-piece monocoque with a narrower shaped body and big improvements to the aerodynamic package extract a new level of performance that will be powered by our overall self-developed electric powertrain.
Engineering Design Priorities:
Wheel package
Electric Propulsion
Aerodynamics
Monocoque
Vehicle Dynamics
LV system
Car Specifications
General
| Frame Construction | Carbon fiber sandwich structure monocoque with aluminium honeycomb |
|---|---|
| Material | CFRP pre-preg (Twill, UD), aluminium honeycomb |
| Overall L | 2928 mm |
| Overall W | 1430 mm |
| Overall H | 1197 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 61 kg |
| Weight with 68kg driver (Rr) | 61 kg |
| Suspension | independent suspension with anti roll bar on both axles with stepless change in stiffness |
| Tyres (Fr / Rr) | Hoosier LC0 16.0 x 7.5-10 |
| Wheels (Fr / Rr) | 8.0 x 10, single-piece CFRP |
| Drive Type | self-developed planetary gearset |
| Differential | N/A |
| Cooling | active air cooling and water cooling |
| Brake System | 4-disk system, self-developed brake calibers and brake disk |
| Electronics | self-designed system electronics, wireless CAN, live telemetry |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | one at each wheel |
| Max Motor Power (per motor) | 39 kW |
| Motor Type | self-developed GT4 PMSM in-runners |
| Max Motor RPM (highest) | 21000 rpm |
| Motor Controller | Self-developed GTI1 |
| Max System Voltage | 600V V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 7,67kWh kWh |
| Transmission Ratio (Primary) | 1:12.37 : 1 |
| Transmission Ratio (Secondary) | N/A : 1 |

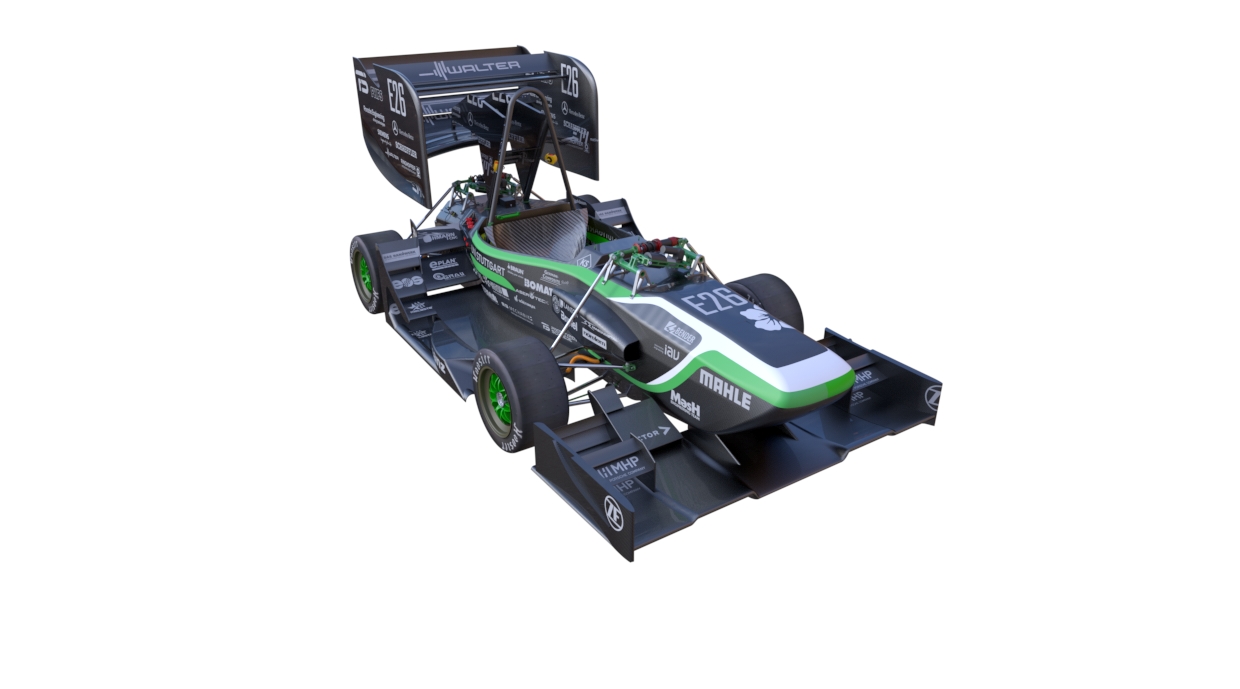

2019
Info
85x
2019 marks the 10th anniversary of the GreenTeam and therefore also the 10th time we participate at Hockenheim. As in previous years, the team of 50 students aimed to build a highly competitive vehicle. Our new car, the E7011-10, is a controlled revolution: Improving the strengths of its predecessor while introducing innovative concepts. For the first time we run our self-developed motors which in conjunction with our proven oil cooled accumulator enable us to extract a new level of performance.
Engineering Design Priorities:
Performance
Reliability
Downforce
Tire Grip
Lightweight
Drivability
Car Specifications
General
| Frame Construction | Carbon fiber sandwich structure monocoque |
|---|---|
| Material | Aluminum honeycomb sandwich panel |
| Overall L | 3000 mm |
| Overall W | 1440 mm |
| Overall H | 1200 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 116 kg |
| Weight with 68kg driver (Rr) | 120 kg |
| Suspension | Decoupled Monospring System with coil over springs and air springs, push rod, A-Arms |
| Tyres (Fr / Rr) | Hoosier LC0 16.0 x 7.5-10 |
| Wheels (Fr / Rr) | 8.0x10, 2 pc Hybrid (Al, CFRP) |
| Drive Type | Planetary gearbox |
| Cooling | Oil and water |
| Brake System | 4-Disk system, self developed steel brake disk |
| Electronics | Self-designed system electronics, wireless CAN and live video feed |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | One at each Wheel |
| Max Motor Power (per motor) | 34.5kW per Motor kW |
| Motor Type | Permanent Magnet Synchronous Machine |
| Max Motor RPM (highest) | 20000 rpm |
| Motor Controller | AMK Inverter |
| Max System Voltage | 600V V |
| Electrode Materials | LiCO2 |
| Combined Accumulator Capacity | 7.55 kWh kWh |
2018

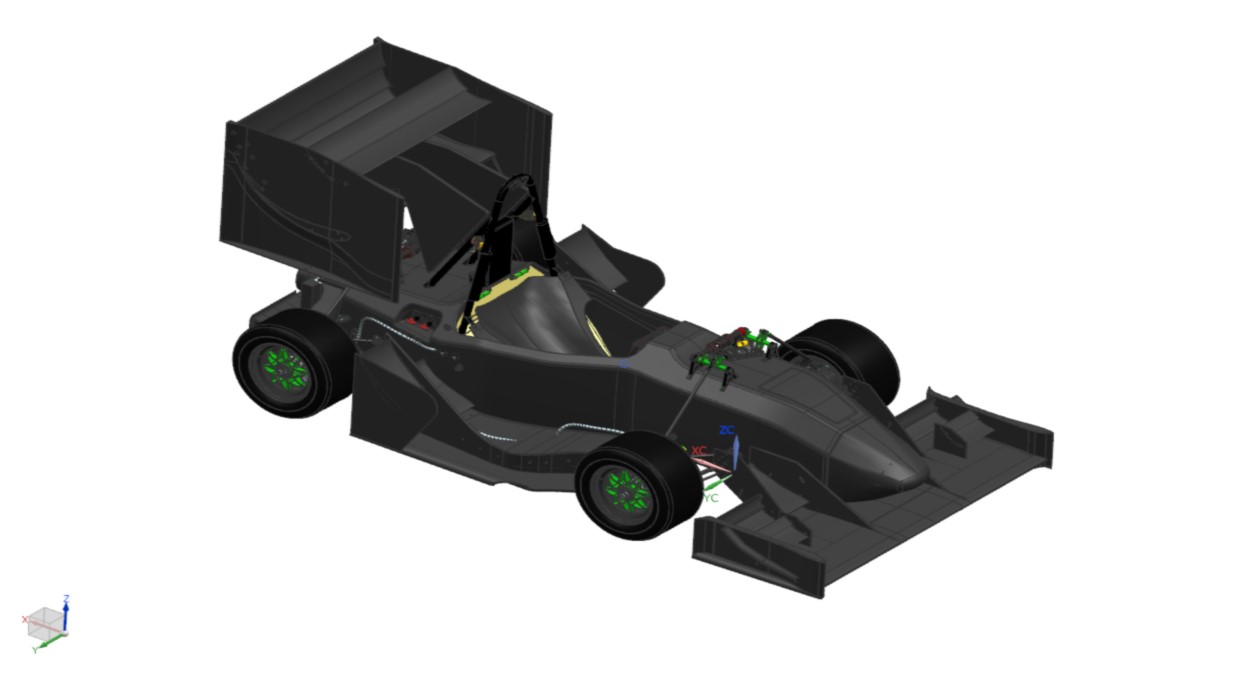

Info
102x
For nine years, the GreenTeam participates at Hockenheim. With the new E0711-9 we continue our successful story. With our 9th generation car we combined the benefits of its predecessor with new convincing innovations. The overall focus was set on performance and reliability for the E0711-9. Highlights this year are the aerodynamic package, vehicle dynamics, improved oil cooled accumulator and lightweight design.
Engineering Design Priorities:
accumulator cooling
aerodynamic package
vehicle dynamics
lightweight design
Car Specifications
General
| Frame Construction | Carbon fiber sandwich structure monocoque |
|---|---|
| Material | Aluminum honeycomb sandwich panel |
| Overall L | 3000 mm |
| Overall W | 1440 mm |
| Overall H | 1200 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 119 kg |
| Weight with 68kg driver (Rr) | 124 kg |
| Suspension | Double A-Arm, heave/roll spring-damper-system |
| Tyres (Fr / Rr) | 18 x 7.5 - 10, Hoosier R25B / 18 x 7.5 - 10, Hoosier R25B |
| Wheels (Fr / Rr) | 8.0 wide 2 pc Hybrid (Al, CFRP) / 8.0 wide 2 pc Hybrid (Al, CFRP) |
| Drive Type | planetary gearbox |
| Differential | - |
| Cooling | Oil and water circuit |
| Brake System | 4-Disk system, self developed coated aluminum brake disks |
| Electronics | self-designed system electronics, wireless CAN and live video feed |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Wheel hub mounted |
| Max Motor Power (per motor) | 34.5 per Motor kW |
| Motor Type | permanently excited synchronous machine |
| Max Motor RPM (highest) | 20000 rpm |
| Motor Controller | KW26-S5-FSE-4Q |
| Max System Voltage | 592 V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 6.8 kWh |
| Transmission Ratio (Secondary) | - |

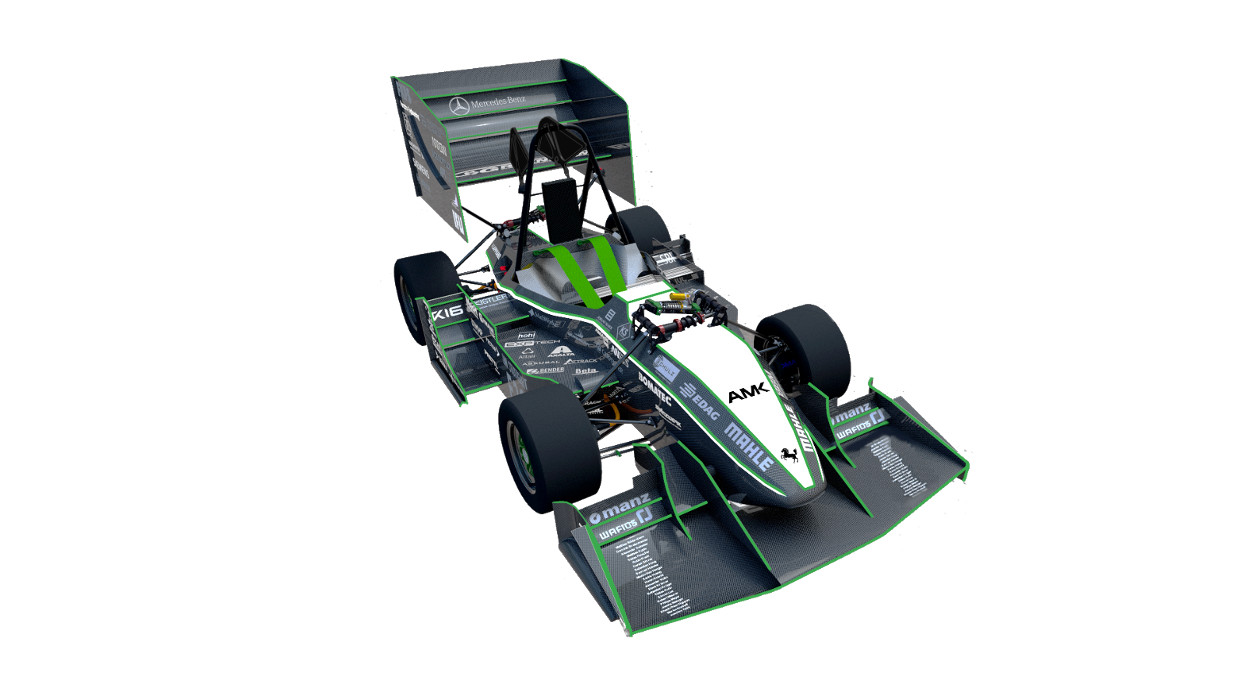

2017
Info
93x
For eight years, the GreenTeam participates at Hockenheim. With the new E0711-8 we continue our successful story. With our 8th generation car we combined the benefits of its predecessor with new convincing innovations. The overall focus was set on performance and reliability for the E0711-8. Highlights this year are the aerodynamic package, vehicle dynamics, improved oil cooled accumulator and lightweight design.
Engineering Design Priorities:
aerodynamic package
vehicle dynamics
accumulator cooling
lightweight design
Car Specifications
General
| Frame Construction | Carbon fiber sandwich structure monocoque |
|---|---|
| Material | Aluminum honeycomb sandwich panel |
| Overall L | 3000 mm |
| Overall W | 1400 mm |
| Overall H | 1200 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1160 mm |
| Track (Rr) | 1160 mm |
| Weight with 68kg driver (Fr) | 120 kg |
| Weight with 68kg driver (Rr) | 125 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated monospring system with additional roll damp |
| Tyres (Fr / Rr) | 18 x 7.5 - 10, Hoosier R25B / 18 x 7.5 - 10, Hoosier R25B |
| Wheels (Fr / Rr) | 8.0 wide 2 pc Hybrid (Al, CFRP) / 8.0 wide 2 pc Hybrid (Al, CFRP) |
| Drive Type | 2-stage planetary gearbox |
| Differential | - |
| Cooling | Oil and water circuit |
| Brake System | 4-Disk system, self developed coated aluminum brake disks |
| Electronics | self-designed system electronics, wireless CAN and live video feed |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | Wheel hub mounted |
| Max Motor Power (per motor) | 34.5 per Motor kW |
| Motor Type | permanently excited synchronous machine |
| Max Motor RPM (highest) | 20000 rpm |
| Motor Controller | KW26-S5-FSE-4Q |
| Max System Voltage | 592 V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 6.8 kWh kWh |
| Transmission Ratio (Primary) | 1:13.5 : 1 |
| Transmission Ratio (Secondary) | - |
2016

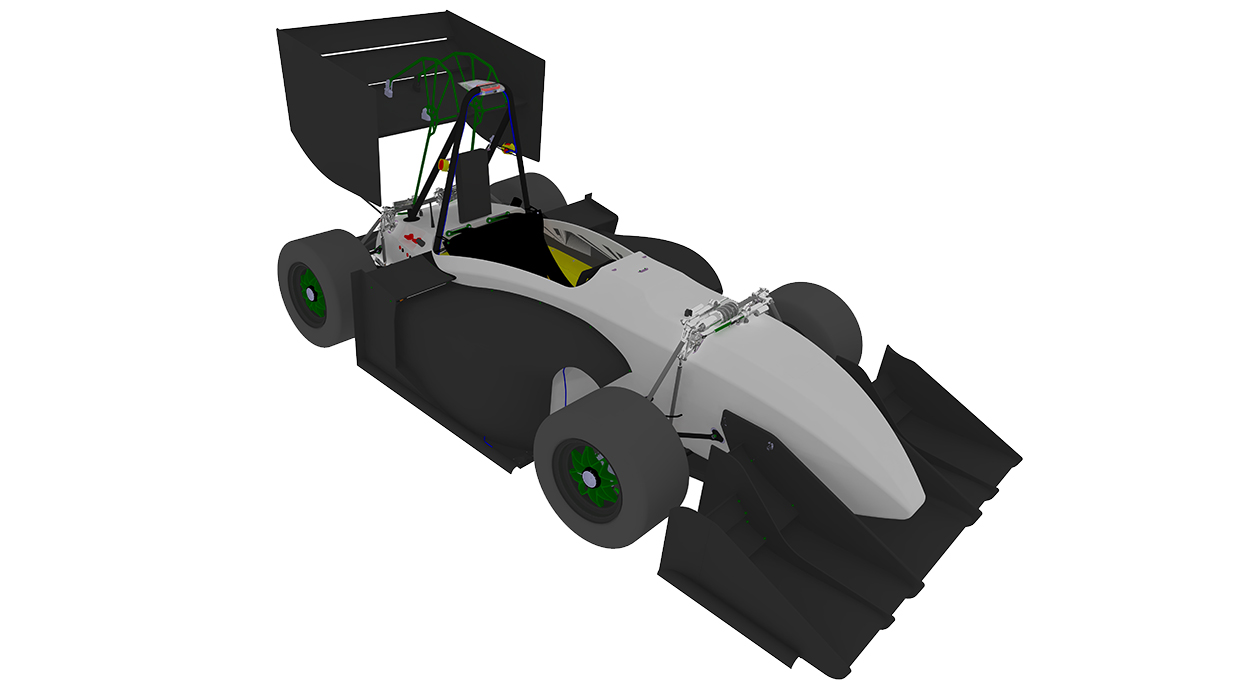

Info
49x
May we present: The E0711-7, the latest car made by GreenTeam Uni Stuttgart. This year’s overall goal has been especially challenging: our 35 team members aimed for 'Pfusch' at its finest. This has been achieved by the extensive use of gaffer and by colleagues asking questions like 'Does this part even have a function or is it just an aerodynamic component?' The overwhelming result: A nonetheless amazing car full of intended and unintended special features, a year full of work and fun.
Engineering Design Priorities:
#premiumpfusch
#dasmussso
#moregaffermorebetter
#applyscience
#feuerfrei
#greenandsexy
Car Specifications
General
| Frame Construction | one-piece monocoque with tubular steel main roll hoop and aluminium front roll hoop |
|---|---|
| Material | CFRP and aluminium honeycomb sandwich |
| Overall L | 2925 mm |
| Overall W | 1399 mm |
| Overall H | 1200 mm |
| Wheelbase | 1560 mm |
| Track (Fr) | 1160 mm |
| Track (Rr) | 1160 mm |
| Weight with 68kg driver (Fr) | 122 kg |
| Weight with 68kg driver (Rr) | 128 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated mono spring with U-ARB |
| Tyres (Fr / Rr) | 18.0x7.5 R10, Hoosier R25B |
| Wheels (Fr / Rr) | 10x8.0, 2pc CFRP-Aluminium wheels |
| Drive Type | 2-stage planetary gearbox |
| Differential | electronic torque vectoring |
| Cooling | sidepod mounted radiators for motors, inverters and accumulator |
| Brake System | self-developed rotors and adjustable pedalbox, adjustable brake balance |
| Electronics | self-designed system electronics, wireless CAN and live video feed, model based drive control |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | wheel carriers |
| Max Motor Power (per motor) | 34 kW |
| Motor Type | PESM AMK, DT5, 14-10-POW |
| Max Motor RPM (highest) | 20.000 rpm |
| Motor Controller | AMK KW26-S5-FSE-4Q |
| Max System Voltage | 595 V |
| Electrode Materials | LiCoO2 |
| Combined Accumulator Capacity | 6.8kWh kWh |
| Transmission Ratio (Primary) | 13.5:1 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |
2015

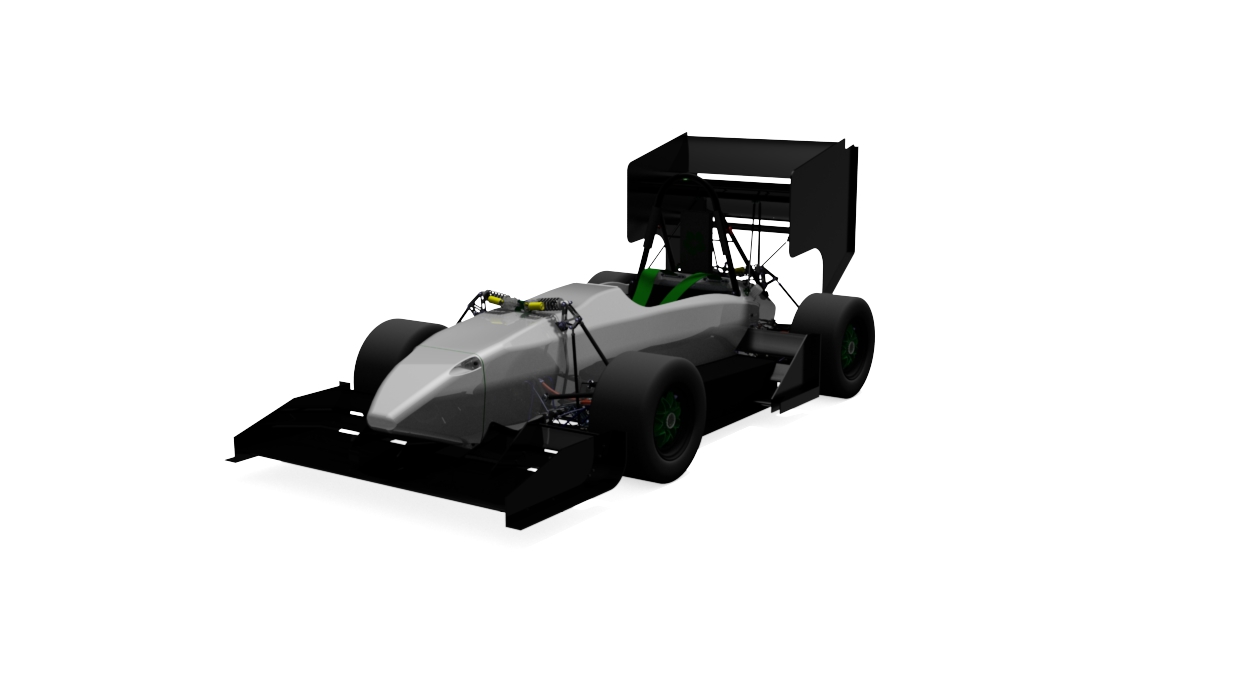

Info
23x
Six years full of passion for Formula Student and the participation at Hockenheim as a firm tradition: The GreenTeam continues last year’s successful story with the E0711-6, our 6th generation car that combines the benefits of its predecessor with new convincing innovations. This year’s highlights are the aerodynamic package, 4WD, rear wheel steering and many more. The overall focus for the E0711-6 was set on performance and reliability.
Engineering Design Priorities:
Performance
Lightweight
WINNING
Reliability
Green and sexy!
Feuer Frei!
Car Specifications
General
| Frame Construction | composite monocoque |
|---|---|
| Material | CFRP/ PBO and aluminium honeycombs |
| Overall L | 2920 mm |
| Overall W | 1388 mm |
| Overall H | 1200 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1160 mm |
| Track (Rr) | 1160 mm |
| Weight with 68kg driver (Fr) | 114 kg |
| Weight with 68kg driver (Rr) | 119 kg |
| Suspension | Double unequal length, unsymmetrical A-Arm, Push-rod actuated, front U bar-ARB, rear T bar-ARB |
| Tyres (Fr / Rr) | 10'', Hoosier 18.0 x 7.5-10 R25B |
| Wheels (Fr / Rr) | 10''x8'' offset 50mm, hybrid (Al, CFRP), self made |
| Drive Type | 2-stage planetary gearbox |
| Differential | electric torque vectoring |
| Cooling | Undertray radiator, independent cooling cycles |
| Brake System | selfmade steel rotors, Diameter 175mm, ISR 22-049 |
| Electronics | selfdesigned ECU, telemetry system, sensors and dashboard |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | attached to upright |
| Max Motor Power (per motor) | 30kW/Motor kW |
| Motor Type | AMK DT5-14 |
| Max Motor RPM (highest) | 20000 rpm |
| Motor Controller | AMK-KW26 |
| Max System Voltage | 600V V |
| Electrode Materials | LiPo |
| Combined Accumulator Capacity | 6,8kWh kWh |
| Transmission Ratio (Primary) | 1:12,7 : 1 |
| Transmission Ratio (Secondary) | n/a : 1 |
2014

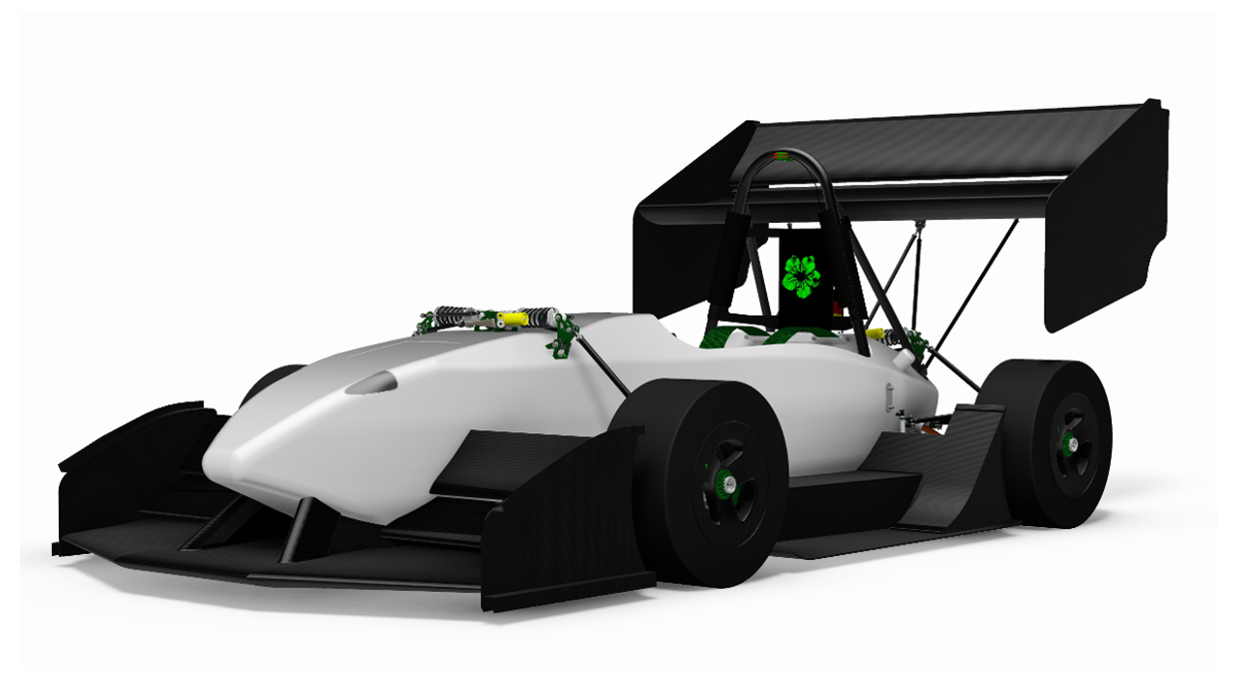

Info
70x
The GreenTeam is driven by a deep passion to always be one step ahead. We have never only developed the previous car, we revolutionized it! Our 5th generation car was designed to be faster, lighter and more efficient than all our Formula Student cars before. We combined intense hard work and smart ideas into a persuading concept. We freed our minds from earlier developments to design a car without compromises.
Engineering Design Priorities:
performance
integration
lightweight
power
reliability
adjustability
Car Specifications
General
| Frame Construction | full composite monocoque |
|---|---|
| Material | carbonfibre prepregs with aluminium honeycomb |
| Overall L | 3012 mm |
| Overall W | 1304 mm |
| Overall H | 1162 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1190 mm |
| Track (Rr) | 1190 mm |
| Weight with 68kg driver (Fr) | 113 kg |
| Weight with 68kg driver (Rr) | 119 kg |
| Suspension | double unequal length A-Arms, pushrod actuated, öhlins ttx25 MK II damper, integrated Z-ARB |
| Tyres (Fr / Rr) | Hoosier 18 x 7.5 - 10 R25B |
| Wheels (Fr / Rr) | 10 x 7.5'' CFRP |
| Drive Type | planetary gear |
| Differential | none |
| Cooling | Undertray radiator, independent cooling cycles, one pump each |
| Brake System | selfmade steel rotors, diameter 174mm, AP CP7003 |
| Electronics | selfdesigned ECU, telemetry system, sensors and dashboard |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | One at every wheel |
| Max Motor Power (per motor) | 25kW kW |
| Motor Type | AMK DT5-14 |
| Max Motor RPM (highest) | 20000 rpm |
| Motor Controller | AMK KW26 |
| Max System Voltage | 600V V |
| Electrode Materials | LiPo |
| Combined Accumulator Capacity | 6,62 kWh |
| Transmission Ratio (Primary) | 1:13,8 : 1 |
| Transmission Ratio (Secondary) | - |
2013

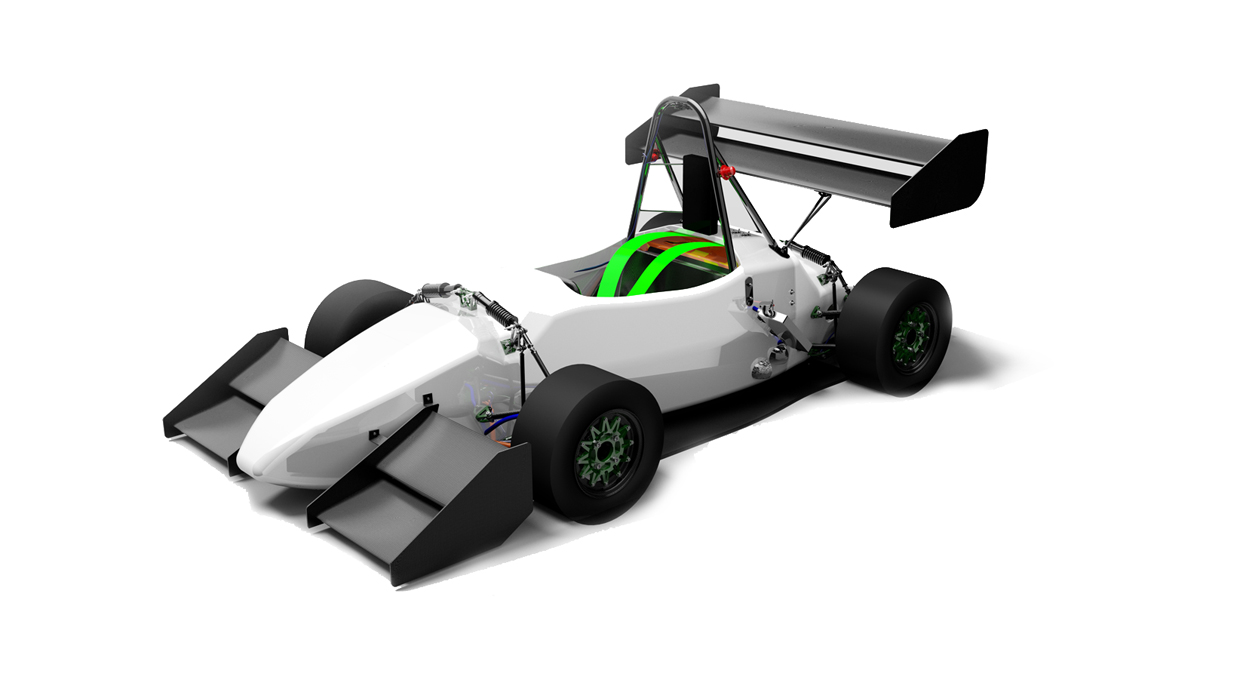

Info
37x
After long days and nights in our workshop the E0711-4 is ready for competition. We spent a lot of time to design the new race car, which is absolutely able to compete. This year we designed a four-wheel-drive, optimized the aerodynamics and downsized to 10” rims. Our self-made control is the brain of the car, equipped with software for torque vectoring, traction control. For the monocoque we continued our sandwich-technology and decided for a full monocoque. Consequent lightweight-design in every part of the car lead to cutting the 200kg-line, saving about 40kg to the last years car “E0711-3”. The most noticeable innovation is our aerodynamic package which includes wings at the front and the rear. Now it is time for the E0711-4 to show its many improvements on the track!
Car Specifications
General
| Frame Construction | Full composite monocoque |
|---|---|
| Material | Carbonfiber Prepregs with aluminum honeycombs |
| Overall L | 2900 mm |
| Overall W | 1418 mm |
| Overall H | 1102 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1210 mm |
| Track (Rr) | 1160 mm |
| Weight with 68kg driver (Fr) | 126 kg |
| Weight with 68kg driver (Rr) | 132 kg |
| Suspension | Double unequal length A-arm. Pushrod actuated ZF Sachs Formula Student damper |
| Tyres (Fr / Rr) | 190,5 x 53 R10 Hoosier R25B / 190,5 x 53 R10 Hoosier R25B |
| Wheels (Fr / Rr) | 7x10; 3 pc Al/Carbon Fibre; Offset 63 m / 7x10; 3 pc Al/Carbon Fibre; Offset 63 m |
| Drive Type | 4WD |
| Differential | Torque Vectoring with all four motors |
| Cooling | 1 radiator on each side |
| Brake System | 4-Disk system, self developed rotors with 190mm diameter, adjustable brake balance |
| Electronics | self-developed AMS and control unit, DashboardDisplay, |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | front outside,rear inside |
| Max Motor Power (per motor) | Front: 20kW , rear: 26kW kW |
| Motor Type | AMK, DT5-14, AMK DT5-26 |
| Max Motor RPM (highest) | Front: 14000, Rear: 11000 rpm |
| Motor Controller | 4 x AMK KW26 |
| Max System Voltage | 600 V |
| Electrode Materials | LiPo |
| Combined Accumulator Capacity | 6,18 kWh |
| Transmission Ratio (Primary) | F:1:7,4 : 1 |
| Transmission Ratio (Secondary) | R:1:6,5 : 1 |
2012

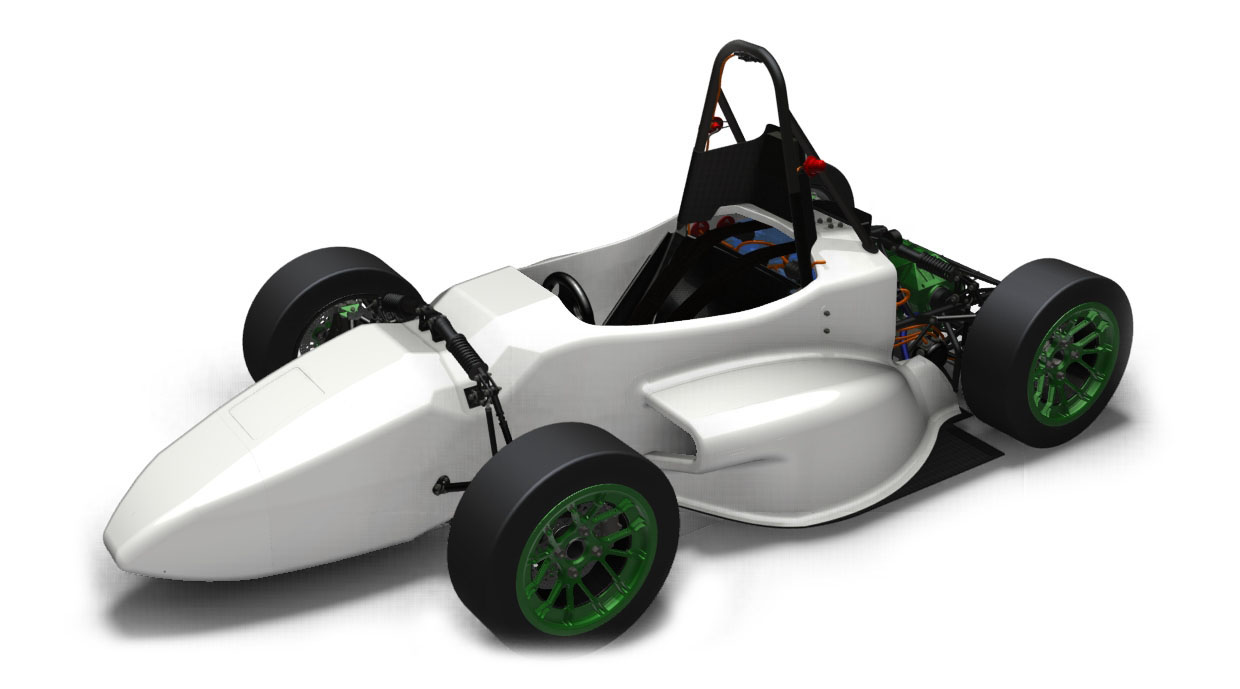

Info
37x
After two successful cars - E0711-1 and E0711-2 - the GreenTeam has been dedicated to design a completly new electric racing car with a higher power to weight ratio and a more innovative concept. The new E0711-3 is characterized by a hybrid way of construction. The two most striking examples are the frame construction and the wheels. The forward section is a CFRP-monocoque with aluminum honeycomb in sandwich construction. The rear end is a tubular steel space frame. Especially the self-designed wheels: the rim well is made of CFRP, which is screwed with the aluminum rim star. With these methods we succeeded that the E0711-3 is 14 % (30 kg) lighter than the E0711-2. Now is the time that the E0711-3 puts his ability to the test at the Hockenheimring (Germany), at the Redbull-Racing-Ring (Austria) and at the Catalunya-Circuit (Spain).
Car Specifications
General
| Frame Construction | Hybrid design: one piece CFRP-monocoque with space frame rear end |
|---|---|
| Material | Carbonfiber prepegs for the Monocoque and 25CrMo4 steeltubes for the spaceframe rear end |
| Overall L | 2700 mm |
| Overall W | 1432 mm |
| Overall H | 1102 mm |
| Wheelbase | 1610 mm |
| Track (Fr) | 1220 mm |
| Track (Rr) | 1160 mm |
| Weight with 68kg driver (Fr) | 134 kg |
| Weight with 68kg driver (Rr) | 158 kg |
| Suspension | double a-arms of CFRP with special Formula Student damper from ZF-Sachs actuated by push-rods |
| Tyres (Fr / Rr) | 205x70 R13, Hoosier R25B / 200x75 R13, Hoosier R25B |
| Wheels (Fr / Rr) | self developed hybrid rims: Aluminium rim star and CFRP-rim well |
| Drive Type | self designed gearbox made of aluminium |
| Differential | two-stage spur gear for each motor, electronically controlled Torque-Vectoring, traction control |
| Cooling | Single radiator, mounted in the left side pod, thermostatic controlled |
| Brake System | 4-Disk system, self designed floating disk, balance bar, 2x ISR 21-014 master cylinder, Bosch ABS M4 |
| Electronics | Integrated and concentrated ECU system, networking via Ethernet and CAN |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power (per motor) | 52kW, 52kW kW |
| Motor Type | AMK DT5-26-10-POW |
| Max Motor RPM (highest) | 16500, 16500 rpm |
| Motor Controller | AMK KW 60 |
| Max System Voltage | 600V V |
| Electrode Materials | NMC (cathode), graphite (anode) |
| Combined Accumulator Capacity | 6,9kWh kWh |
| Transmission Ratio (Primary) | 1:3.2 : 1 |
| Transmission Ratio (Secondary) | 1:3.13 : 1 |
2011

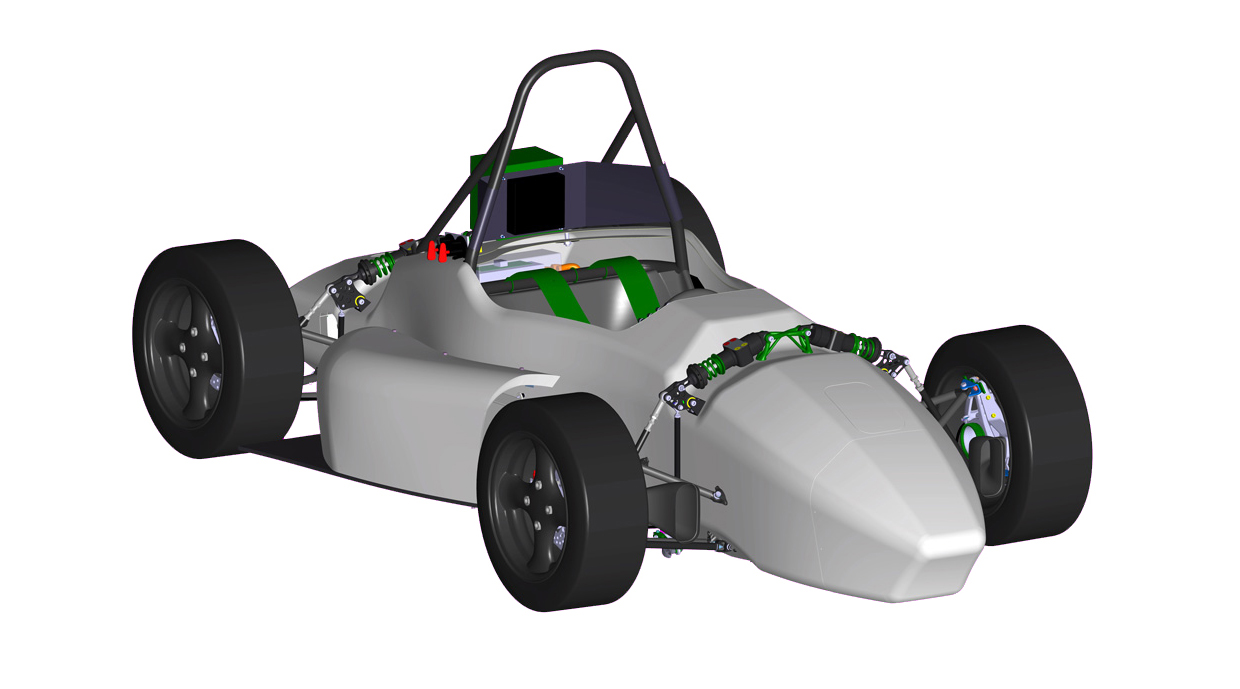

Info
2x
GreenTeam Uni Stuttgart e.V. - the formula student electric team of the University of Stuttgart - was founded in 2009. This year the GreenTeam participates in the formula student electric event in Hockenheim for the second time. The team consists of 30 students from different fields of study, which are very engaged to construct, manufacture and build the second electric car generation - the E0711-2. The aim was to optimize the old car in different aspects. For example by increasing the efficiency, improving the driving control and battery cells and further reducing weight. Furthermore the vehicle features a variety of innovative components, such as the self-developed battery-management-system. So for the GreenTeam the course is set to live up to last year's success.
Car Specifications
General
| Frame Construction | Two-piece carbon fiber reinforced plastic monocoque |
|---|---|
| Material | CFRP two piece monocoque, sandwich construction with epoxy matrix, 20mm aluminium honeycomb |
| Overall L | 2685 mm |
| Overall W | 1436 mm |
| Overall H | 1055 mm |
| Wheelbase | 1620 mm |
| Track (Fr) | 1234 mm |
| Track (Rr) | 1172 mm |
| Weight with 68kg driver (Fr) | 142 kg |
| Weight with 68kg driver (Rr) | 196 kg |
| Suspension | Double unequal length A-Arm. Pushrod actuated ZF Sachs Formula 3 Damper |
| Tyres (Fr / Rr) | 205x70 R13, Hoosier R25B / 200 X 75 R13 |
| Wheels (Fr / Rr) | 7.0x13 28mm offset Al Rim / 7.5x13 28mm offset Al Rim |
| Drive Type | Self designed gearbox |
| Differential | Seperate gearbox with two stage, straight tooth angular (90°) and spur gearing |
| Cooling | Single U-Flow Radiator Sidepod mounted with PWM controlled fan and waterpump |
| Brake System | 4-Disk system, self designed floating disk, balance bar, 2x ISR 21-014 master cyl., Bosch ABS M4 |
| Electronics | Self designed control-, diagnostic- and ECU network-system, selfdesigned pre- and discharge system |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power (per motor) | 50kW kW |
| Motor Type | AMK DT7-80-20-POW |
| Max Motor RPM (highest) | RR,RL: 9.000 rpm |
| Motor Controller | AMK KW 60 |
| Max System Voltage | 588V V |
| Electrode Materials | LiPO (Li: 1,1 NiCoMnO2: 0,9) |
| Combined Accumulator Capacity | 8,4 kWh kWh |
| Transmission Ratio (Primary) | 1:5,5 : 1 |
2010
Info
11x

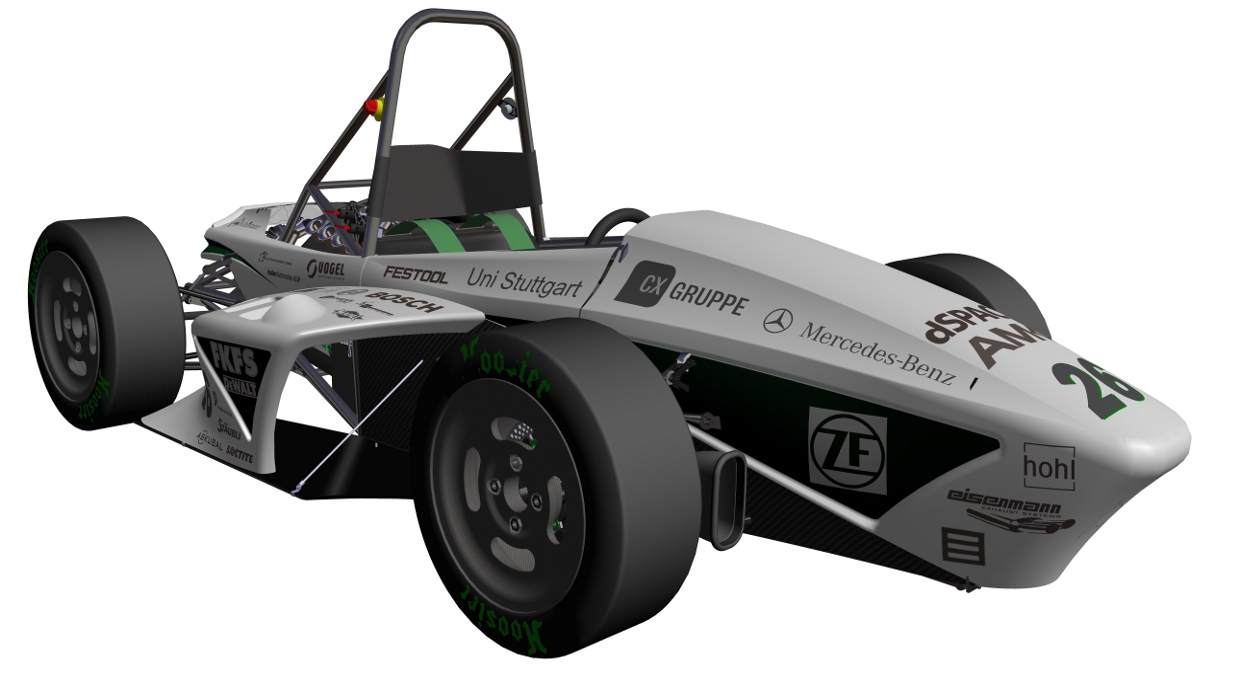

The GreenTeam Uni StuttgartThere is a new competition for cars with fully electrical drivetrains. Of course the Stuttgart Team did not want to miss this oppurtunity. In a very short time s a small group of former members of the Rennteam Uni Stuttgart and a handful Greenhorns formed a new team - the GreenTeam. Where green symbolizes not only ecological clean but also alternative concepts besides and on the race track. In only seven month the team developed a race car without CO2 emissions on basis of the former worldchampionship chassis. The E0711-1 is a race car of pure breed with two electrical motors in the rear serving each wheel seperatly. A tubular space frame, powerful Lithium polymere accumulators combined with a self developed battery management system and the benefits of the torque vectoring technique are the highlights of the E0711-1. We are looking forward to the exciting FSE competition and hope you are keeping yours green fingers crossed for us!
Car Specifications
General
| Frame Construction | Tubular space frame with carbonfibre sandwich floor panels |
|---|---|
| Material | 25CrMo4 tubes, multiaxial carbonfibre sandwich floor panels |
| Overall L | 2665 mm |
| Overall W | 1415 mm |
| Overall H | 1005 mm |
| Wheelbase | 1650 mm |
| Track (Fr) | 1214 mm |
| Track (Rr) | 1172 mm |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and adjustable damper. |
| Cooling | Single side pod mounted radiator with digital temperature controlled electric fan via PWM signals. |
| Electronics | wiring harness sealed to IP67, selfdesigned Live-Telemetry System, selfdesigned BMS |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right and Rear Left |
| Max Motor Power (per motor) | 2 x 47kW kW |
| Motor Type | AMK / DP7-60-10-POW-7200 |
| Max Motor RPM (highest) | 12500 rpm |
| Motor Controller | AMK KW60 |
| Max System Voltage | 597 V |
| Electrode Materials | Lithium Polymere |
| Combined Accumulator Capacity | 8,5 kWh |
| Transmission Ratio (Primary) | 1:5,5 : 1 |
| Transmission Ratio (Secondary) | 1:5,5 : 1 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.08 | 84 |
5. |
44. |
9. |
7. |
3. |
- |
3. |
6. |
4. |
2. |
9. |
0.00 |
767.66 |
|
| 2025.08 | 37 |
2. |
21. |
8. |
1. |
2. |
- |
1. |
- |
1. |
1. |
3. |
0.00 |
890.40 |
|
| 2025.07 | 40 |
2. |
10. |
11. |
6. |
11. |
- |
4. |
- |
12. |
1. |
9. |
0.00 |
854.90 |
|
| 2025.07 | 44 |
9. |
25. |
7. |
8. |
1. |
- |
1. |
- |
1. |
- |
- |
-20.00 |
475.84 |
|
| 2024.08 | 29 |
5. |
5. |
1. |
3. |
6. |
- |
2. |
- |
3. |
- |
- |
0.00 |
486.10 |
|
| 2024.08 | 79 |
24. |
2. |
8. |
6. |
- |
- |
5. |
- |
6. |
- |
- |
0.00 |
397.75 |
|
| 2024.07 | 38 |
14. |
4. |
21. |
6. |
- |
- |
- |
- |
6. |
- |
- |
0.00 |
342.80 |
|
| 2023.08 | 70 |
8. |
4. |
9. |
8. |
1. |
- |
3. |
3. |
3. |
- |
- |
0.00 |
504.31 |
|
| 2023.08 | 31 |
12. |
3. |
23. |
12. |
3. |
- |
2. |
- |
5. |
- |
- |
0.00 |
447.44 |
|
| 2023.07 | 34 |
11. |
13. |
16. |
7. |
5. |
- |
2. |
- |
1. |
- |
- |
0.00 |
484.20 |
|
| 2023.07 | 33 |
3. |
7. |
1. |
5. |
3. |
- |
1. |
- |
- |
- |
- |
-40.00 |
401.67 |
|
| 2022.09 | 38 |
1. |
29. |
2. |
1. |
1. |
- |
1. |
- |
1. |
1. |
5. |
0.00 |
960.40 |
|
| 2022.08 | 63 |
1. |
22. |
7. |
5. |
6. |
8. |
- |
2. |
2. |
1. |
2. |
0.00 |
862.57 |
|
| 2022.08 | 33 |
1. |
13. |
3. |
2. |
1. |
- |
1. |
- |
1. |
1. |
1. |
0.00 |
979.97 |
|
| 2022.07 | 30 |
1. |
3. |
16. |
5. |
1. |
- |
1. |
- |
1. |
1. |
1. |
0.00 |
950.90 |
|
| 2022.07 | 21 |
3. |
6. |
1. |
- |
1. |
- |
1. |
- |
2. |
- |
- |
-20.00 |
370.16 |
|
| 2021.08 | 38 |
1. |
17. |
2. |
3. |
4. |
- |
1. |
- |
1. |
1. |
10. |
0.00 |
937.71 |
|
| 2021.08 | 26 |
2. |
3. |
2. |
1. |
7. |
- |
1. |
- |
3. |
3. |
11. |
0.00 |
856.25 |
|
| 2021.07 | 27 |
14. |
4. |
15. |
2. |
5. |
- |
13. |
- |
- |
- |
- |
0.00 |
322.30 |
|
| 2019.08 | 39 |
3. |
15. |
6. |
1. |
5. |
- |
1. |
- |
3. |
3. |
8. |
0.00 |
827.70 |
|
| 2019.08 | 38 |
7. |
5. |
1. |
4. |
6. |
- |
1. |
- |
3. |
- |
- |
0.00 |
504.23 |
|
| 2019.08 | 24 |
8. |
8. |
8. |
6. |
9. |
- |
8. |
- |
5. |
- |
- |
0.00 |
413.70 |
|
| 2019.07 | 20 |
2. |
14. |
1. |
1. |
10. |
- |
2. |
- |
4. |
3. |
2. |
0.00 |
824.88 |
|
| 2018.08 | 38 |
1. |
21. |
11. |
3. |
4. |
- |
3. |
- |
3. |
1. |
8. |
0.00 |
880.50 |
|
| 2018.08 | 39 |
13. |
1. |
5. |
6. |
5. |
- |
6. |
- |
9. |
- |
- |
-5.00 |
476.49 |
|
| 2018.08 | 19 |
6. |
1. |
5. |
4. |
3. |
- |
7. |
- |
4. |
7. |
3. |
-5.00 |
698.50 |
|
| 2018.07 | 16 |
6. |
3. |
3. |
2. |
1. |
- |
1. |
- |
1. |
- |
- |
0.00 |
554.00 |
|
| 2017.08 | 30 |
2. |
17. |
2. |
4. |
6. |
- |
5. |
- |
6. |
2. |
7. |
0.00 |
877.00 |
|
| 2017.08 | 34 |
1. |
1. |
3. |
6. |
5. |
- |
4. |
- |
1. |
1. |
5. |
0.00 |
918.11 |
|
| 2017.08 | 19 |
3. |
1. |
2. |
4. |
3. |
- |
1. |
- |
3. |
4. |
3. |
0.00 |
809.60 |
|
| 2017.07 | 38 |
1. |
3. |
6. |
4. |
2. |
- |
3. |
- |
3. |
1. |
3. |
0.00 |
969.20 |
|
| 2016.08 | 29 |
11. |
3. |
5. |
5. |
2. |
- |
6. |
- |
9. |
- |
11. |
0.00 |
568.00 |
|
| 2016.08 | 37 |
3. |
12. |
13. |
2. |
6. |
- |
5. |
- |
6. |
4. |
6. |
0.00 |
834.33 |
|
| 2016.08 | 18 |
3. |
5. |
3. |
5. |
2. |
- |
3. |
- |
8. |
2. |
12. |
0.00 |
851.90 |
|
| 2016.07 | 106 |
32. |
76. |
59. |
23. |
3. |
- |
7. |
- |
6. |
- |
- |
0.00 |
411.90 |
|
| 2015.08 | 30 |
4. |
16. |
15. |
3. |
2. |
- |
1. |
- |
6. |
4. |
4. |
0.00 |
712.09 |
|
| 2015.08 | 18 |
2. |
11. |
11. |
4. |
2. |
- |
2. |
- |
1. |
2. |
11. |
0.00 |
868.20 |
|
| 2015.08 | 39 |
3. |
7. |
11. |
1. |
5. |
- |
15. |
- |
4. |
3. |
10. |
-20.00 |
825.26 |
|
| 2015.07 | 92 |
21. |
48. |
22. |
4. |
- |
- |
13. |
- |
1. |
32. |
- |
0.00 |
453.10 |
|
| 2014.08 | 23 |
8. |
9. |
1. |
9. |
4. |
- |
2. |
- |
2. |
- |
13. |
0.00 |
544.56 |
|
| 2014.08 | 18 |
7. |
1. |
3. |
5. |
5. |
- |
2. |
- |
1. |
14. |
- |
0.00 |
522.40 |
|
| 2014.08 | 39 |
2. |
1. |
2. |
2. |
7. |
- |
1. |
- |
3. |
2. |
10. |
0.00 |
889.33 |
|
| 2013.09 | 24 |
1. |
2. |
2. |
4. |
3. |
- |
2. |
- |
1. |
1. |
8. |
0.00 |
880.10 |
|
| 2013.08 | 39 |
5. |
12. |
5. |
4. |
- |
- |
3. |
- |
5. |
6. |
6. |
-20.00 |
785.66 |
|
| 2013.08 | 40 |
21. |
12. |
12. |
3. |
- |
- |
- |
- |
7. |
- |
- |
0.00 |
328.90 |
|
| 2013.07 | 83 |
14. |
48. |
21. |
5. |
9. |
- |
1. |
- |
2. |
58. |
- |
0.00 |
506.90 |
|
| 2012.09 | 13 |
3. |
3. |
6. |
3. |
2. |
- |
3. |
- |
3. |
1. |
5. |
0.00 |
825.20 |
|
| 2012.08 | 32 |
3. |
19. |
18. |
9. |
2. |
- |
4. |
- |
4. |
3. |
5. |
0.00 |
767.02 |
|
| 2012.07 | 37 |
7. |
21. |
15. |
16. |
1. |
- |
8. |
- |
10. |
9. |
3. |
0.00 |
684.70 |
|
| 2011.08 | 28 |
7. |
10. |
12. |
5. |
8. |
- |
- |
- |
9. |
6. |
7. |
0.00 |
592.35 |
|
| 2010.08 | 15 |
1. |
1. |
3. |
4. |
1. |
- |
1. |
- |
1. |
1. |
5. |
0.00 |
880.16 |
|
| x 51 | |||||||||||||||
Sign in with a team account to see your team schedule.
