Team Details

Centaurus Racing Team

University	University of Thessaly GR Volos U short 849
Location	Volos, Greece
Homepage	https://centaurusracing.gr/en/
Social Media
CV Team	Centaurus Racing Team
Short Link	tid.fsg.one/1448
Event Details	car 177 - withdrawn

Team Description

Centaurus Racing Team was founded in 2009 from 6 students of the Department of Mechanical Engineering of University of Thessaly. Since then the team has designed and manufactured 11 race cars, with its last PHOLUS, being the 1st EV of the team. Main objective behind the team's design procedure is to minimize the divergence between simulation-reality and to eliminate the need of trail & error during construction. General team goal is to try and lower the cost of non critical components in order to invest the money/sponsorships in parts that can guarantee better track time.

Event Profile

Past Events

2025

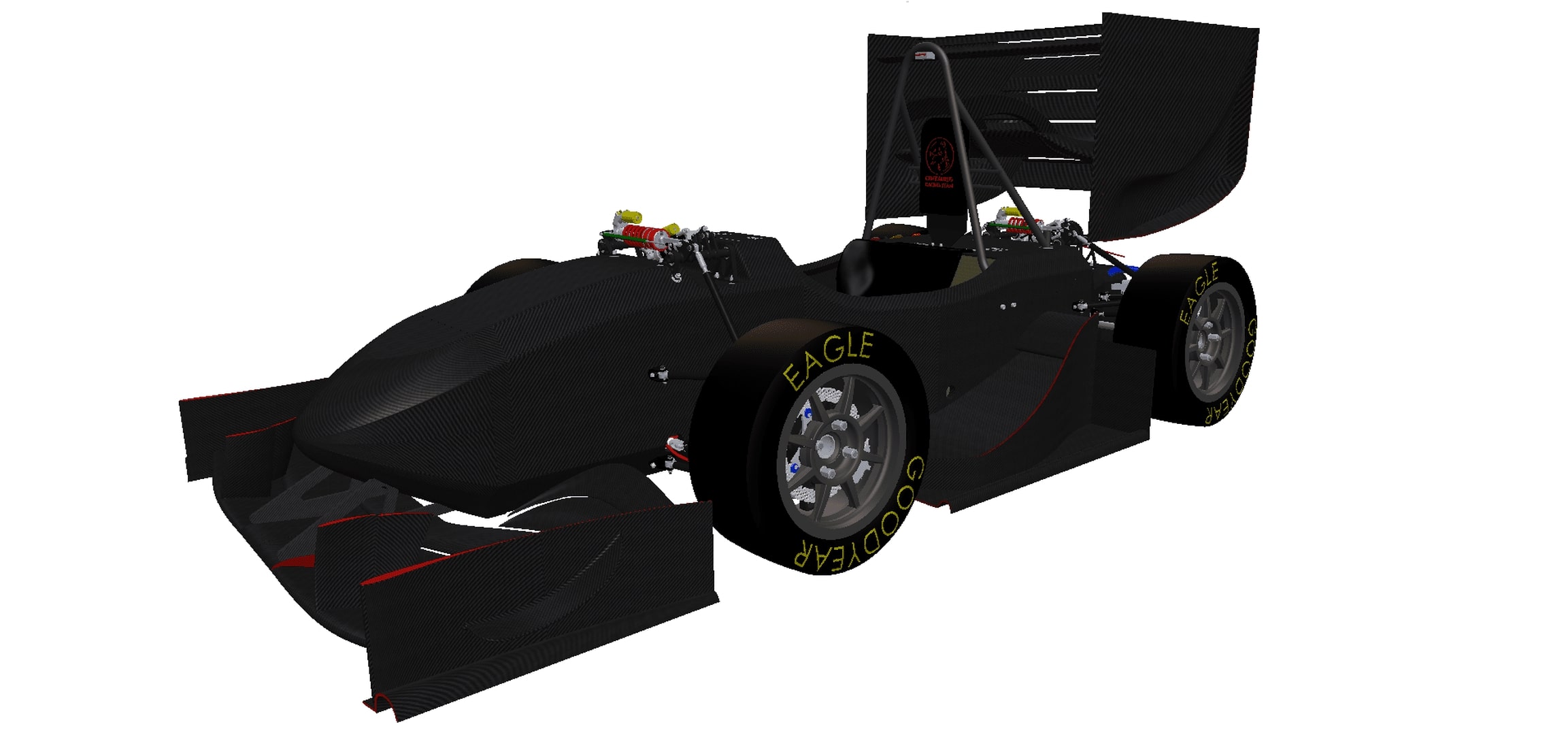

Car #77

Info

We Centaurus Racing have accumulated over 50 trophies in the CV category for the last 15 years since 2009. So now we wanted a challenge and became Electric in order to dominate the whole Formula Student. So the Rocketship you will see might explode (just joking) and for the 1st time when we became EV and FSG was already EV,we passed and thats a sign of dominance.About the car its the fastest of our local track (Sesklo) with the characteristics you will see below.So enjoy Eppasus,our masterpiece.

Engineering Design Priorities:

The lightest Chassis 27kg Limitless POWA 77kW Reliabhahahahha Breakable Aluminum Parts Waterproof Wiring Harness The best Nosecone of FSAE

Car Specifications

General

Frame Construction	Carbon fiber sandwich panel box structure with tubular steel roll bars
Material	Gurit Carbon fiber Aluminium honeycomb sandwich pane(15mm core , sides 1.5 and 1.5 mm)
Overall Length (mm)	2985
Overall Width (mm)	1310
Overall Height (mm)	1180
Wheelbase (mm)	1535
Track Front (mm)	1210
Track Rear (mm)	1180
Weight Front (kg)	130
Weight Rear (kg)	146
Suspension	Double unequal length wishbone .Push Rod actuated .Roll and Heave Decoupled suspension
Tyres	Goodyear D2704 20X7X13
Wheels	, 10.8 mm offset, 3 pc Al-Mg Rim / 8.0x13, 2.6mm offset, 3 pc Al-Mg Rim
Drive Type	Chain Sprocket
Differential	Torque sensitive limited slip bevel gear differential with external preload adjustment
Cooling	Sto poli peripou - 2 liters with 100mm fan
Brake System	4-Disk system, self developed rotors with 240mm diameter, adjustable brake balance
Electronics	Wiring Harness IP69, Multifun0ctional Wireless Steering Wheel,Selfdesigned 5GLiveTelemetry

Powertrain

Number of Motors	1
Motor Location	Rear Left
Max Motor Power	77kW
Motor Type	EMRAX 228 MV LC
Max Motor RPM	5500
Motor Controller	DTI HV 550
Max System Voltage (V)	600V
Electrode Materials	Li-Ion
Accumulator Capacity	7.776kWh
Transmission Ratio Primary	1:4,27
Transmission Ratio Secondary	-
