Team Details

HAWKS Racing e.V.

University Hochschule für Angewandte Wissenschaften Hamburg
DE Hamburg UAS short 19
team logo
LocationHamburg, Germany
Homepagehttps://www.hawksracing.de/
Social Media
CV Team HAWKS Racing e. V.
DV Team HAWKS Racing Driverless
Short Linktid.fsg.one/1286
TIS Status
Accumulator InspectionElectrical InspectionMechanical InspectionDriverless InspectionRain TestEgress TestBrake TestBrake Test
Car Weight209.20 kg
Event Details car 69 - active

Team Description

HAWKS Racing was founded in 2003 and participates in various Formula Student events since 2004.

This year we are designing and building our fifth high voltage electrical driven race car, the H21.

Currently, we are about 50 students from different specialties, working on the project in interdisciplinary groups.
We are looking forward to an awesome season and the upcoming FS-Events in 2026!

#69 #HAWKSRacing #69HAWKS #H21

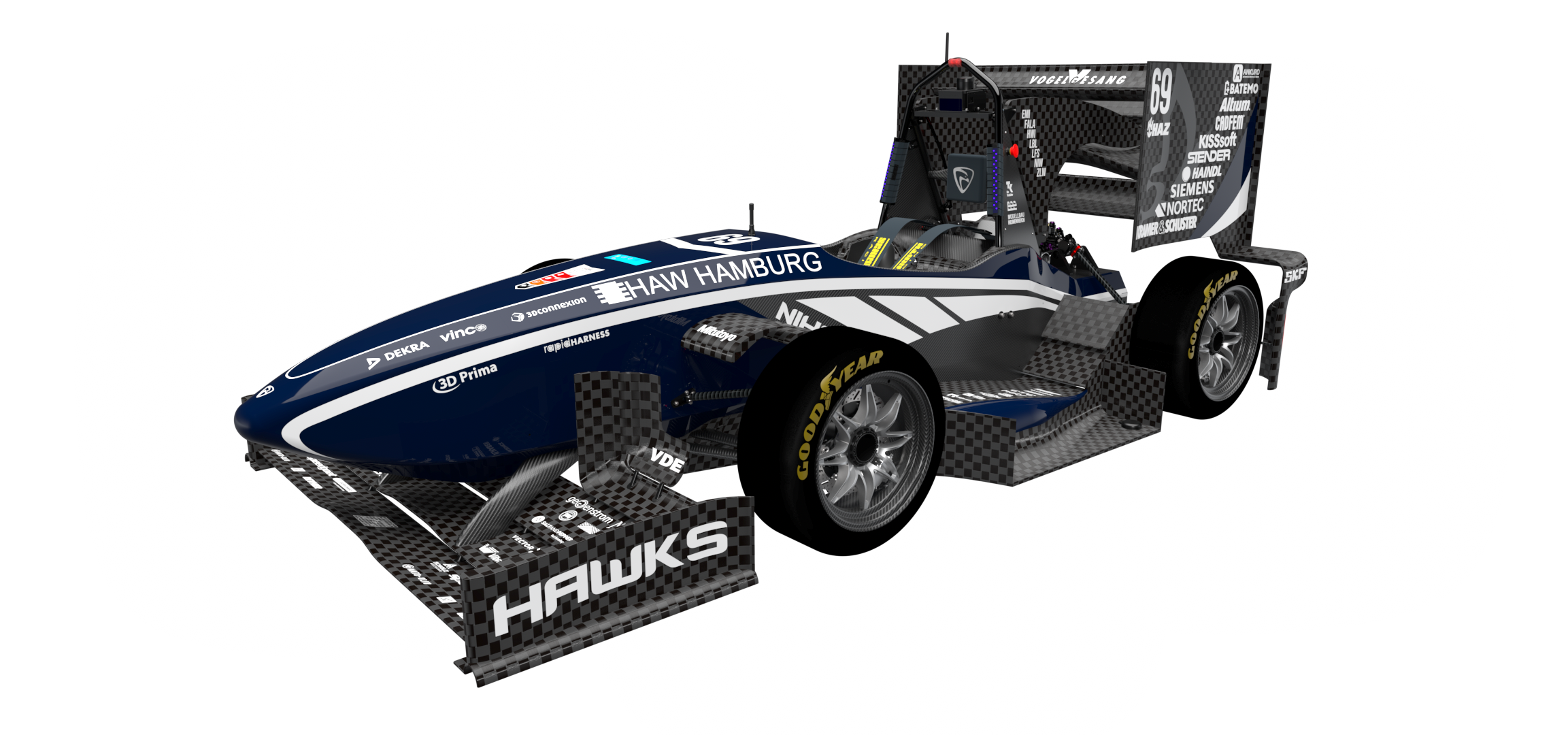

This Year's Car

Car 69
2026
Car #69 H21 - Nihaya
Info
With H21, Nihaya, HAWKS Racing presents it‘s 21st racecar. With last year's car, the H20, we developed a new generation of electric cars and set the foundation for this year. After last years success, we have now focused on realizing the concept's full potential. With the implementation of our autonomous system and the fine tuning of control systems, we aim to keep the pace at this years competitions.
Engineering Design Priorities:
Performance Reliability Data Analysis Controll Systems Autonomous driving Always keep it 69!
Car Specifications
General
Frame Construction CFRP sandwich structure with aluminium honeycomb
Material HTS carbon decksheets with 15-20 mm aluminium honeycomb
Overall L 3120 mm
Overall W 1450 mm
Overall H 1100 mm
Wheelbase 1530 mm
Track (Fr) 1250 mm
Track (Rr) 1225 mm
Weight with 68kg driver (Fr) 130 kg
Weight with 68kg driver (Rr) 147 kg
Suspension Double Wishbone Front and Rear, Pullrod actuated Heave Roll Decoupled Damper System Front
Tyres (Fr / Rr) Goodyear 20.0x7.0-13 D-2773/D-2703
Wheels (Fr / Rr) 7.0 x 13, 22 mm offset, center lock CFRP Rim
Drive Type Straight-toothed spur gear
Differential Torque distribution realised trought Yaw-rate optimized controller
Cooling 2 Rear Mounted radiators with 2 140 mm electric fans
Brake System 4-Disk System, self developed BMC, adjustable brake balance, 25 kW recuperation on Rr
Electronics Central LV-Box for most PCB's, Multifunctional Steering Wheel, selfdesigned Live-Telemetry
Powertrain
Number of Motors 2
Motor Location Rear Right, Rear Left
Max Motor Power (per motor) 60 kW
Motor Type RL, RR: Emrax 188 HVLC, PMSM out-runner
Max Motor RPM (highest) 6500 rpm
Motor Controller UniTek Bamocar D3 700-250
Max System Voltage 600 V
Electrode Materials LiCO2
Combined Accumulator Capacity 7.46 kWh
Transmission Ratio (Primary) 4.93 : 1
Transmission Ratio (Secondary) -
Driverless System
Processing unit(s) STM32, Raspberry Pi
Floating Point Operations Per Second of all processing units that are working for the DV system 1.69 GigaFLOPS
Power consumption of all processing units that are working for the DV system 200 W
Camera(s) -
Radar sensor(s) none
Lidar sensor(s) 1 Livox HAP LiDAR, range: 150 m, opening angle: 120° x 25°
Other sensors Kistler Correvit ground speed sensor
Highlights of the DV system Reliable cone detection
Robust sensor fusion
Real-time trajectory planning

Past Events

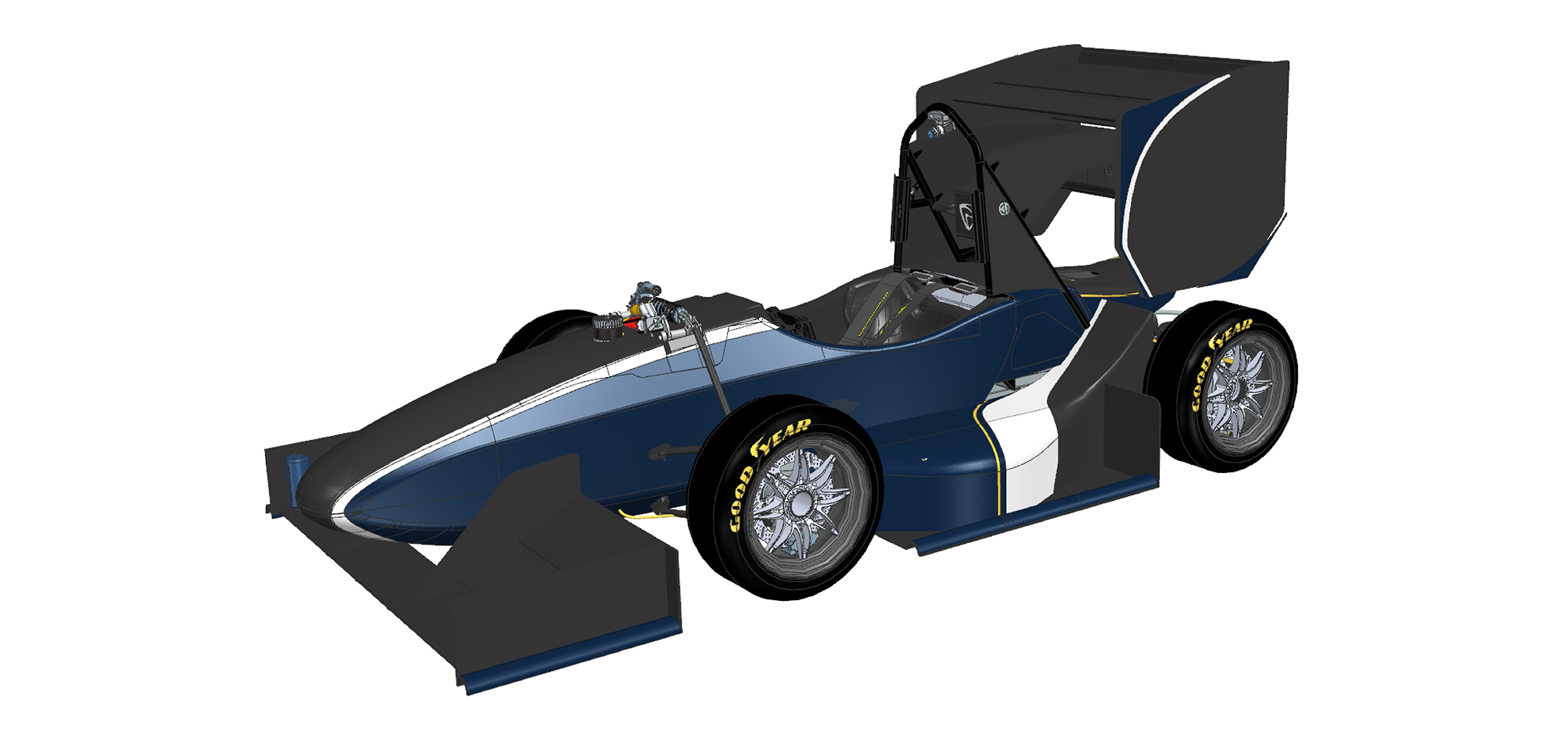

Car 69 – 2024
2024
Car #69
Info
237x
HAWKS Racing's 19th racecar, NOVA, is finally ready to show you how she performs on track! After making the switch to electric in 2021, it's now our third year of driving electric. This year, for the first time in HAWKS history, we will be competing autonomously at an event. In addition to the autonomous system, simulation and validation were also important to us this season in order to get the best out of our car.
Engineering Design Priorities:
Performance Autonomous System Simulation and Validation Rear packaging Accumulator Always keep it 69
Car Specifications
General
Frame Construction Hybrid Chassis with CFRP sandwich front structure and tubular rearframe
Material aluminum honeycomb, PACL-XR1-5.7-3/16-20-P-5052
Overall L 3100 mm
Overall W 1450 mm
Overall H 1190 mm
Wheelbase 1550 mm
Track (Fr) 1190 mm
Track (Rr) 1190 mm
Weight with 68kg driver (Fr) 127 kg
Weight with 68kg driver (Rr) 156 kg
Suspension Double Wishbone Suspension with adjustable camber, toe and compression and rebound
Tyres (Fr / Rr) Goodyear G19 D2773 20.0X7.0-13
Wheels (Fr / Rr) Selfmade 13
Drive Type 2 stage spur and bevelgear transmission
Differential limited slip differential with adjustable preload
Cooling Watercooled motor and inverter with 2 rear mounted radiators and fans and a Air cooled accumulator
Brake System ISR Brakes (Fr), Selfmade brake (Rr) with 248mm diameter 5mm Rotors front, 3mm Back.
Electronics Microcontroller based Vehicle-Contol-Unit, Live telemetrie self-developed LoRa based DTU
Powertrain
Number of Motors 1
Motor Location Rear Center
Max Motor Power (per motor) 109kW kW
Motor Type Emrax 228
Max Motor RPM (highest) 5500 rpm
Motor Controller UniTek Bamocar D3-700-400
Max System Voltage 540V V
Electrode Materials LiCoO2
Combined Accumulator Capacity 7,01kWh kWh
Transmission Ratio (Primary) 1:4,31 : 1
Transmission Ratio (Secondary) 1:1,8 : 1
Driverless System
Processing unit(s) Intel Core i9-13900E
Floating Point Operations Per Second of all processing units that are working for the DV system x GigaFLOPS
Power consumption of all processing units that are working for the DV system 80.0 W
Camera(s) 1 Basler ace - acA1440-73gc + 1 Basler Lens C125-0418-5M-P f4mm
Radar sensor(s) we do not have one
Lidar sensor(s) 1x Ouster OS1-64, 120 m range, 360° horizontal FOV, 45° vertical FOV, uniform beam angle
Other sensors Kistler Correvit SFII ground speed sensor, VectorNav VN-300
Highlights of the DV system Fully self-designed EBS actuators integrated inside pedal box, quickly decoupable steering actuator, robust lidar-based perception, localization using EKF fused lidar and odometry data, global trajectory planner

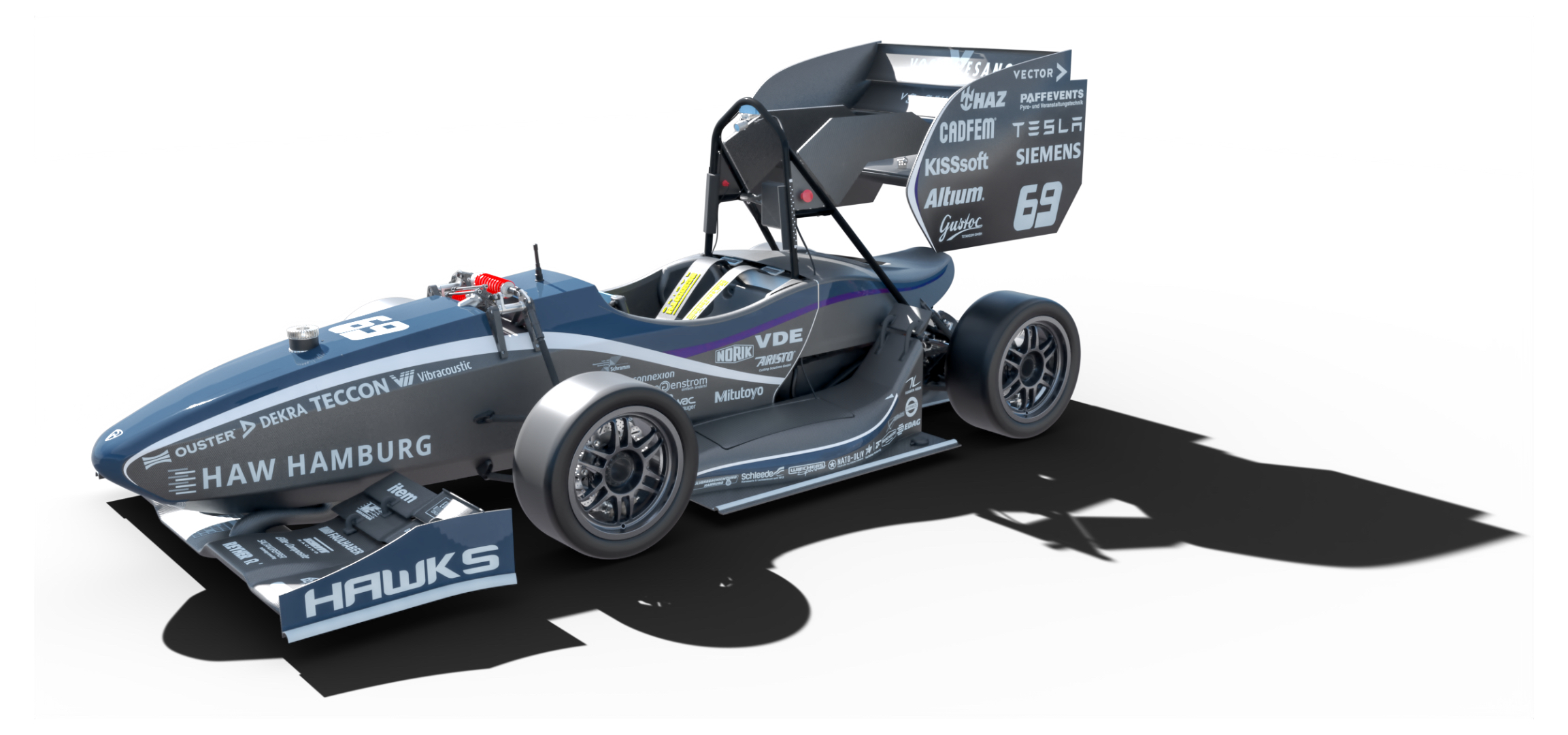

Car 196 – 2023
2023
Car #196
Info
121x
Last year we proved that electric cars don't have to be quiet. With our second electric vehicle "Nayra" we'll try to take it up a step and bring some more noise to the track. The eighteenth car built by HAWKS Racing inherits all of the history of the Team in true 69 spirit (even if the car number says something different). With a revised drive train concept and newly developed embedded systems we want to attack once again, even without a driver.
Engineering Design Priorities:
Rear packaging Manufacturing Energy storage Embedded systems Autonomous system Always keep it 69
Car Specifications
General
Frame Construction Front monocoque (sandwich structure) with tubular space frame rear section
Material Monocoque: CFRP Twill and UD, aluminum honeycomb, Rohacell; space frame: 1.7218 steel round tubing
Overall L 3172 mm
Overall W 1526 mm
Overall H 1247 mm
Wheelbase 1600 mm
Track (Fr) 1200 mm
Track (Rr) 1200 mm
Weight with 68kg driver (Fr) 138 kg
Weight with 68kg driver (Rr) 155 kg
Suspension Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper
Tyres (Fr / Rr) 205/470 R13, Continental C19 / 205/470 R13, Continental C19
Wheels (Fr / Rr) 7x13-22, 22 mm offset, 1 pc Mg Rim / 7x13-22, 22 mm offset, 1 pc Mg Rim
Drive Type self designed spur gear and beavel gear
Differential limited slip differential (drexler)
Cooling Rear mounted watercooler
Brake System 4-Disk system, self developed rotors, slef developed calipers (rear axle)
Electronics Driver interface unit, live telemetry, vehicle control unit, power distribution unit
Powertrain
Number of Motors 1
Motor Location Center rear
Max Motor Power (per motor) 109 kW
Motor Type Emrax 228, watercooled axial flux motor
Max Motor RPM (highest) 5500 rpm
Motor Controller Bamocar D3 400/700
Max System Voltage 540V V
Electrode Materials Li-Ion (NCM523+Gr)
Combined Accumulator Capacity 7,01 kWh kWh
Transmission Ratio (Primary) 1:4,1 : 1
Driverless System
Processing unit(s) Intel NUC with Intel Core i7-8559U
Floating Point Operations Per Second of all processing units that are working for the DV system no GPU GigaFLOPS
Power consumption of all processing units that are working for the DV system 28 W
Camera(s) none
Radar sensor(s) none
Lidar sensor(s) 1x Ouster OS1-64, 120 m range, 360° horizontal FOV, 45° vertical FOV, uniform beam angle
Other sensors Kistler Correvit SFII ground speed sensor, VectorNav VN-300
Highlights of the DV system Fully self-designed EBS actuators integrated inside the pedal box, quickly uncoupleable steering actuator, simple data processing pipeline, robust lidar-based perception, localization using EKF fused lidar and odometry data

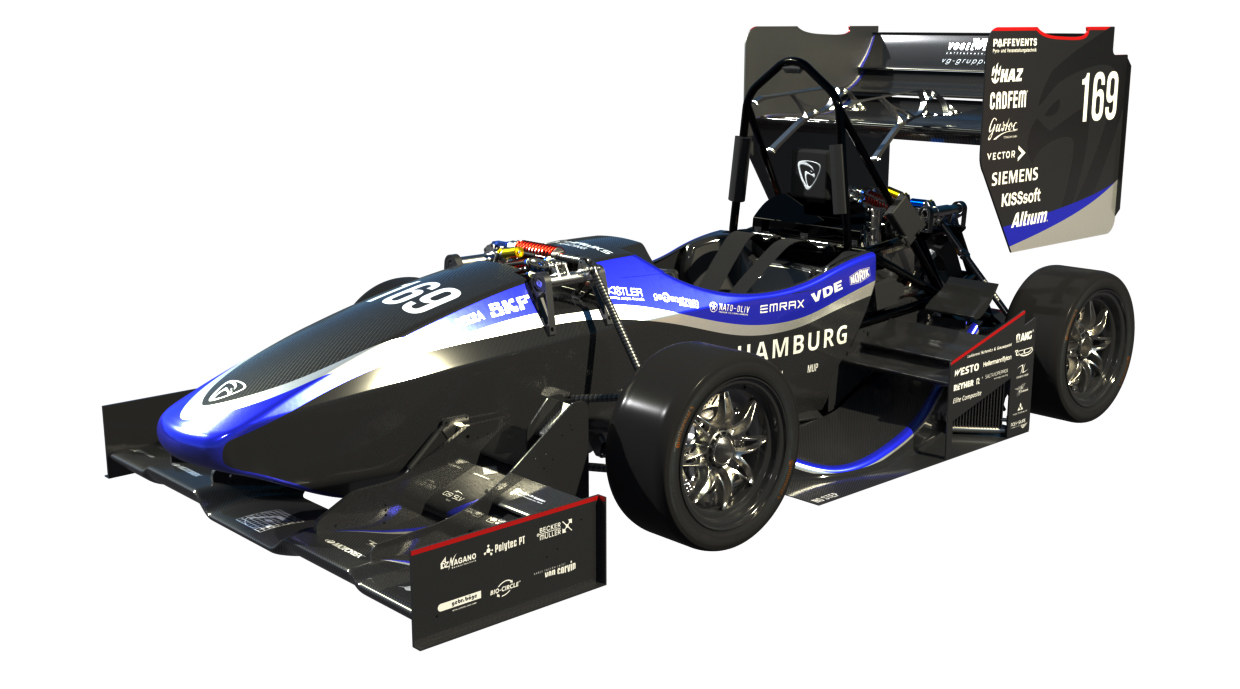

Car 169 – 2022
2022
Car #169
Info
81x
HAWKS Racing, known as one of the loudest combustion teams in FS history, has now been silenced. FSG hoped they wouldn´t have to clean up any more of our oil leaks on the track. But you know what? We won´t let anyone tell us what to do. With a completely new designed, liquid cooled HV-Accumulator and Tractive System, we are prepared to flood the hearts of every electric racing enthusiast. We proudly present: HAAVKE
Engineering Design Priorities:
TS Accumulator AMS Hybrid Chassis Motor Control Motor Housing Kinematics
Car Specifications
General
Frame Construction Hybrid monocoque and tubular rear frame
Material CFRP Monocoque with aluminium honeycomp, steel rear frame
Overall L 3129 mm
Overall W 1430 mm
Overall H 1188 mm
Wheelbase 1600 mm
Track (Fr) 1170 mm
Track (Rr) 1200 mm
Weight with 68kg driver (Fr) 136 kg
Weight with 68kg driver (Rr) 167 kg
Suspension short arm long arm (SLA) with push rods, roll and heave decoupled
Tyres (Fr / Rr) 205x96 R13 Continental C-20
Wheels (Fr / Rr) 7x13-22mm offset, OZ
Drive Type self designed spur gear drive
Differential limited slip differential (Drexler)
Cooling twin side radiators, electric water pump and electric fans
Brake System 4-Disk-system, self-designed, rotors with 250mm diameter, adjustable bias bar
Electronics self developed AMS, Powerhub w/ electronic and hardware fuses, distributed data collection
Powertrain
Number of Motors 1
Motor Location Center Rear
Max Motor Power (per motor) 109kW kW
Motor Type Emrax 228 MV LC
Max Motor RPM (highest) 5500 rpm
Motor Controller Bamocar D3 700/400
Max System Voltage 500V V
Electrode Materials LiCoO2
Combined Accumulator Capacity 8.06 kWh kWh
Transmission Ratio (Primary) 1:4.5 : 1
Transmission Ratio (Secondary) -

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2026.08
FS DE
80
41.
49.
9.
36.
30.
-
-
-
26.
-
-
0.00
256.95
2026.07
FS AT
38
22.
28.
5.
26.
18.
-
17.
-
-
-
-
0.00
263.00
2025.09
FSAE IT
32
3.
3.
1.
7.
7.
-
11.
-
7.
3.
3.
0.00
624.68
2025.08
FS CZ
53
16.
27.
3.
25.
25.
-
33.
-
19.
12.
14.
0.00
406.86
2024.09
FSAE IT
34
9.
23.
3.
10.
16.
-
17.
-
14.
8.
9.
-20.00
438.54
2024.08
FS DE
79
15.
27.
21.
51.
41.
-
-
-
34.
6.
4.
0.00
485.49
2024.08
FS CZ
47
8.
17.
18.
32.
18.
-
21.
-
12.
7.
4.
0.00
510.80
2024.07
FS AT
38
23.
-
12.
23.
16.
-
-
-
20.
9.
-
-15.00
207.10
2023.08
FS DE
70
32.
41.
17.
24.
36.
-
29.
-
31.
-
-
0.00
247.58
2023.08
FS East
31
14.
13.
12.
21.
15.
-
-
-
12.
11.
4.
0.00
381.52
2023.07
FS AT
34
16.
28.
14.
20.
18.
-
20.
-
17.
8.
1.
-10.00
388.70
2022.09
FS ES
38
16.
17.
19.
22.
13.
-
-
-
10.
6.
-
0.00
275.50
2022.08
FS DE
63
42.
42.
19.
45.
30.
-
29.
-
-
-
-
0.00
203.19
