Team Details
Formula Student FEUP
| University | University of Porto
PT Porto U short 1343 |
 |
|---|---|---|
| Location | Porto, Portugal | |
| Homepage | https://formulastudent.fe.up.pt | |
| Social Media | ||
| Short Link | tid.fsg.one/1282 | |
| Event Details | car 320 - withdrawn | |
Team Description
Formula Student FEUP is a team founded in 2021, committed to innovation and sustainability, focusing on the development and competition with electric prototypes featuring autonomous driving capabilities.
The 2025 season campaign centers around competing with the second-ever prototype! The team will compete at Netherlands, Portugal and Germany.
Past Events

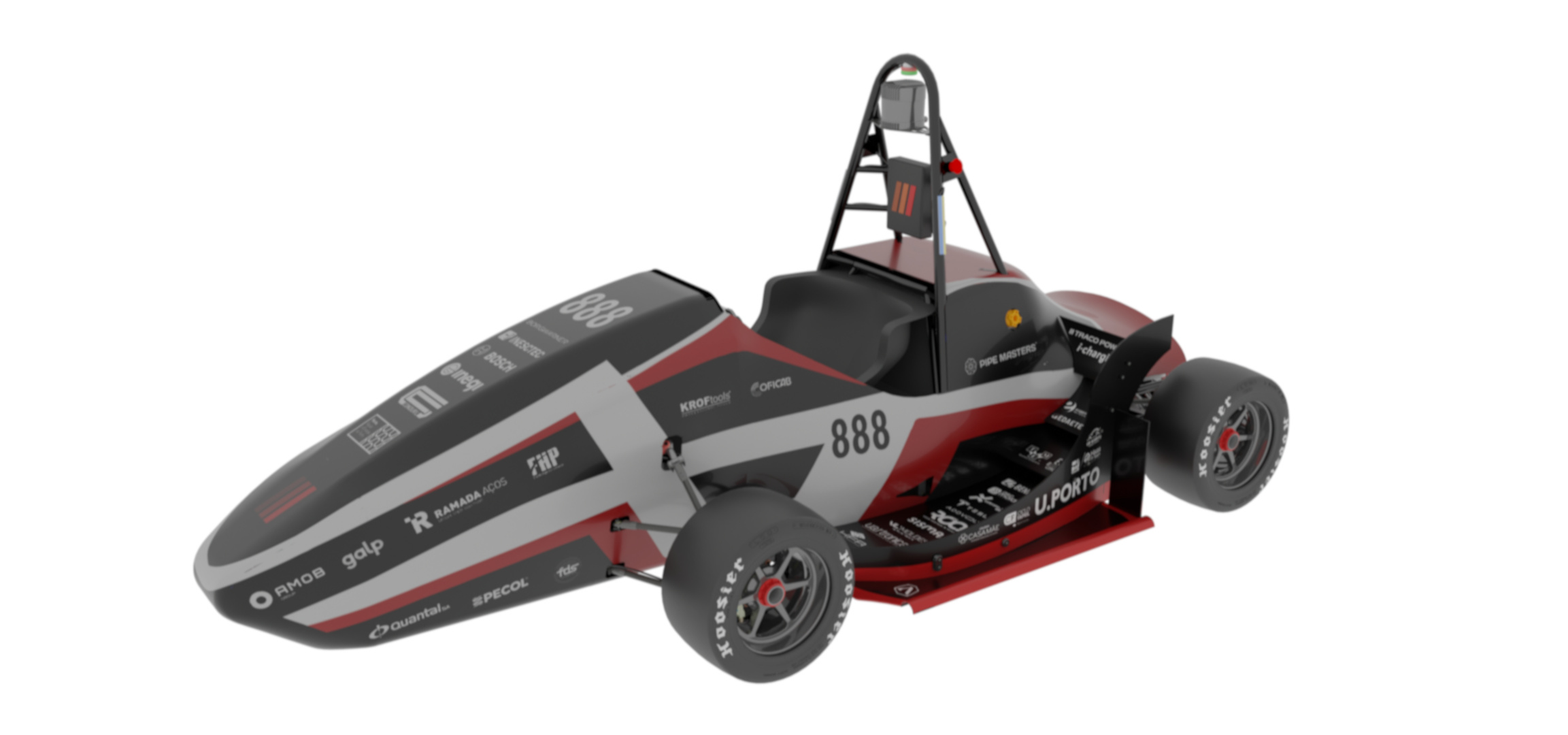

2025
Info
105x
Formula Student FEUP was founded in 2021 and competed internationally in the FS class for the first time in 2023 with an EV prototype. Since then, it has designed and manufactured an innovative EV with autonomous-driving capabilities, hoping to raise the bar once again! The team of around 75 members based at the University of Porto targets a successful 2025 summer campaign, competing in the FS Netherlands, FS Portugal and FS Germany competitions.
Engineering Design Priorities:
Driverless Capabilities
Electrical Reliability
Weight Reduction
Aero Pack Introduction
Improved Support Systems
Car Specifications
General
| Frame Construction | Steel Tubular Spaceframe |
|---|---|
| Material | Docol R8 |
| Overall L | 2915 mm |
| Overall W | 1414 mm |
| Overall H | 1230 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 146 kg |
| Weight with 68kg driver (Rr) | 142 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated with Coil-Over. |
| Tyres (Fr / Rr) | Hoosier 16.0x7.5-10 R20 / Hoosier 16.0x7.5-10 R20 |
| Wheels (Fr / Rr) | 7.0x10, 22 mm offset, 1pc Mg Rim/ 7.0x10, 22 mm offset, 1pc Mg Rim |
| Drive Type | Chain Drive |
| Differential | Limited slip bevel gear differential with internal preload adjustment |
| Cooling | Rear mounted radiator, liquid cooled |
| Brake System | 4-disk, in-wheel outboard braking, 184 mm diameter, with adjustable bias bar |
| Electronics | Modular wiring harness with military-grade connectors |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Rear In-board |
| Max Motor Power (per motor) | 124 kW |
| Motor Type | EMRAX 228 MV LC, PM synchronous |
| Max Motor RPM (highest) | 6500 rpm |
| Motor Controller | Unitek Bamocar D3-700/400 |
| Max System Voltage | 600 V |
| Electrode Materials | Lithium NMC - graphite |
| Combined Accumulator Capacity | 7.26 kWh |
| Transmission Ratio (Primary) | 4:1 : 1 |
| Transmission Ratio (Secondary) | N/A : 1 |
Driverless System
| Processing unit(s) | Teensy 4.0/4.1, Attiny, AMD Ryzen 7 7840U |
|---|---|
| Floating Point Operations Per Second of all processing units that are working for the DV system | 1305 GigaFLOPS |
| Power consumption of all processing units that are working for the DV system | 60 W |
| Camera(s) | 0 |
| Radar sensor(s) | 0 |
| Lidar sensor(s) | 1, 360º Horizontal / 40º Vertical FOV, Hesai Pandar40P Mechanical LiDAR |
| Other sensors | 4 Wheel Speed Sensors, one AHRS and one motot resolver |
| Highlights of the DV system | The DV System features a LiDAR Perception system and EKF Fusion of WSS and Motor RPM with AHRS data, which feed a Graph SLAM algorithm with parallel execution sliding-window optimisation. |

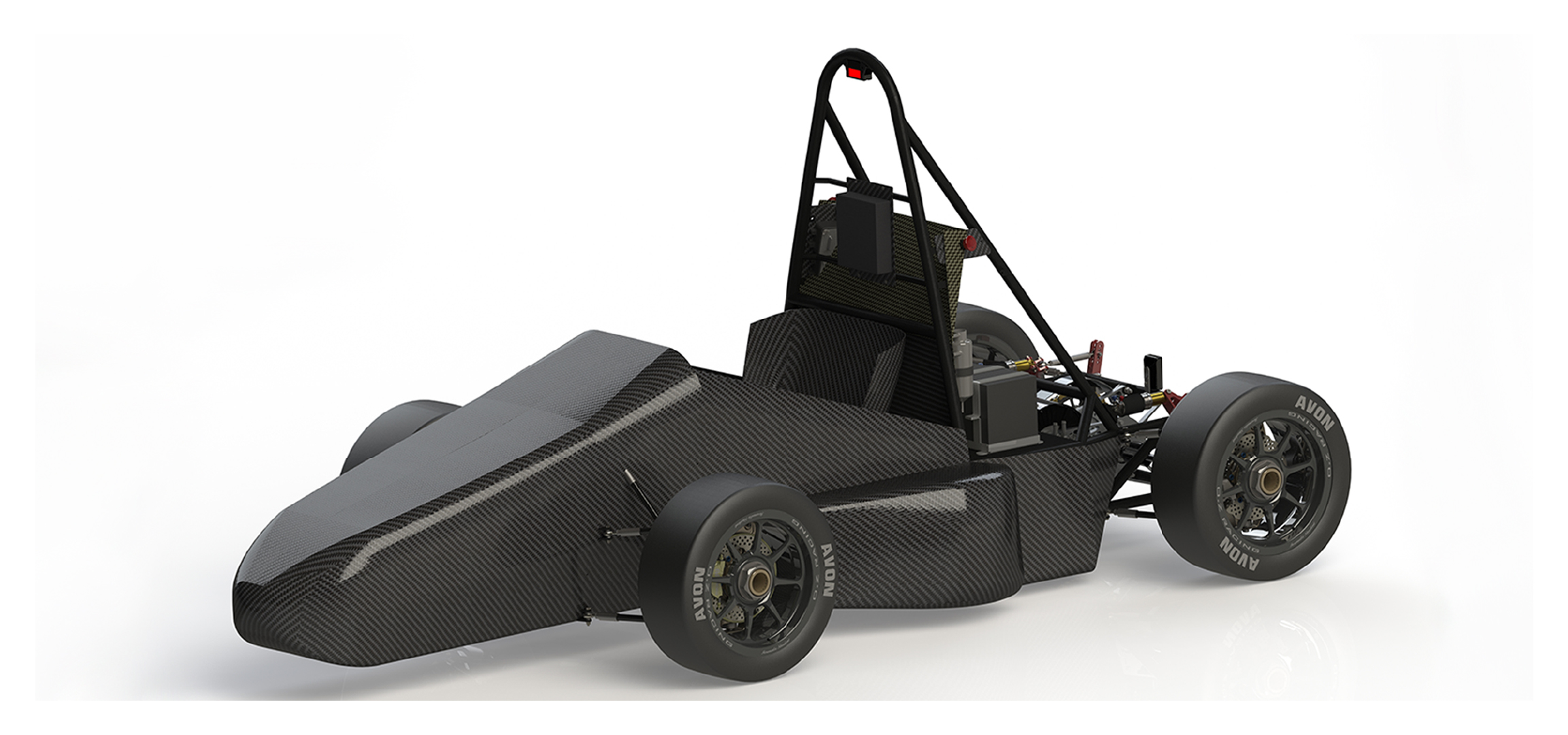

2023
Info
63x
FS FEUP was created in July 2021 with the clear objective of a 2-year beginning project. In the first year, the Team aimed to compete in Concept Class to gain FS knowledge and to validate the prototype design, and in the second year, compete with a working prototype in Class 1. Last year the Team competed in FS UK and FSAE Italy in Concept Class which enabled a strong preparation for the manufacturing process. This year the team will compete in FS UK, FS PT and FSG with our first ever EV.
Engineering Design Priorities:
Average cost
Medium performance
Reliability
Simplicity
Car Specifications
General
| Frame Construction | Tubular spaceframe |
|---|---|
| Material | AISI 4130 steel |
| Overall L | 2909 mm |
| Overall W | 1412 mm |
| Overall H | 1345 mm |
| Wheelbase | 1600 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1204 mm |
| Weight with 68kg driver (Fr) | 175 kg |
| Weight with 68kg driver (Rr) | 183 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated. Air spring-damper system |
| Tyres (Fr / Rr) | AVON 7.2/20.0-13 |
| Wheels (Fr / Rr) | 7x13 |
| Drive Type | Chain drive |
| Differential | Limited slip bevel gear differential with internal preload adjustment |
| Cooling | Side mounted radiators, liquid cooled |
| Brake System | 4-disk, in-wheel outboard braking, 220 mm diameter, with adjustable bias bar |
| Electronics | Security features, reliability focus. |
Powertrain
| Number of Motors | 1 |
|---|---|
| Motor Location | Center rear |
| Max Motor Power (per motor) | 109kW kW |
| Motor Type | Permanent magnet synchronous |
| Max Motor RPM (highest) | 6500rpm rpm |
| Motor Controller | Unitek BAMOCAR -PG-D3-700/250 |
| Max System Voltage | 454V V |
| Electrode Materials | LiFePO |
| Combined Accumulator Capacity | 7kWh kWh |
| Transmission Ratio (Primary) | 1:4 : 1 |
| Transmission Ratio (Secondary) | N/A : 1 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.08 | 84 |
36. |
9. |
3. |
25. |
51. |
- |
38. |
- |
38. |
- |
- |
0.00 |
273.28 |
|
| 2025.08 | 12 |
4. |
1. |
3. |
2. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
310.00 |
|
| 2025.07 | 44 |
16. |
1. |
3. |
12. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
272.00 |
|
| 2023.08 | 70 |
57. |
38. |
38. |
47. |
36. |
- |
40. |
- |
31. |
- |
- |
-30.00 |
166.96 |
|
| 2023.07 | 60 |
11. |
2. |
14. |
3. |
- |
- |
- |
- |
- |
14. |
- |
0.00 |
334.30 |
|
