Team Details
FS Vitoria
| University | Vitoria-University of the Basque Country
ES Vitoria UPV-EHU short 1226 |
 |
|---|---|---|
| Location | Vitoria, Spain | |
| Homepage | https://www.fsvitoria.eus/ | |
| Social Media | ||
| Short Link | tid.fsg.one/1055 | |
| Event Details | car 75 - withdrawn | |
Team Description
Established in May 2018, Formula Student Vitoria is a new team from the Basque Country. We decided to take more time to design and manufacture our first car instead of making a one-year prototype so that we could set two main ambitious goals: carbon fiber monocoque chassis and in wheel motors 4WD traction system.
Mainly supported by local institutions and enterprises FSV shares its knowledge with every educational levels from primary schools to professional training centers.
Past Events

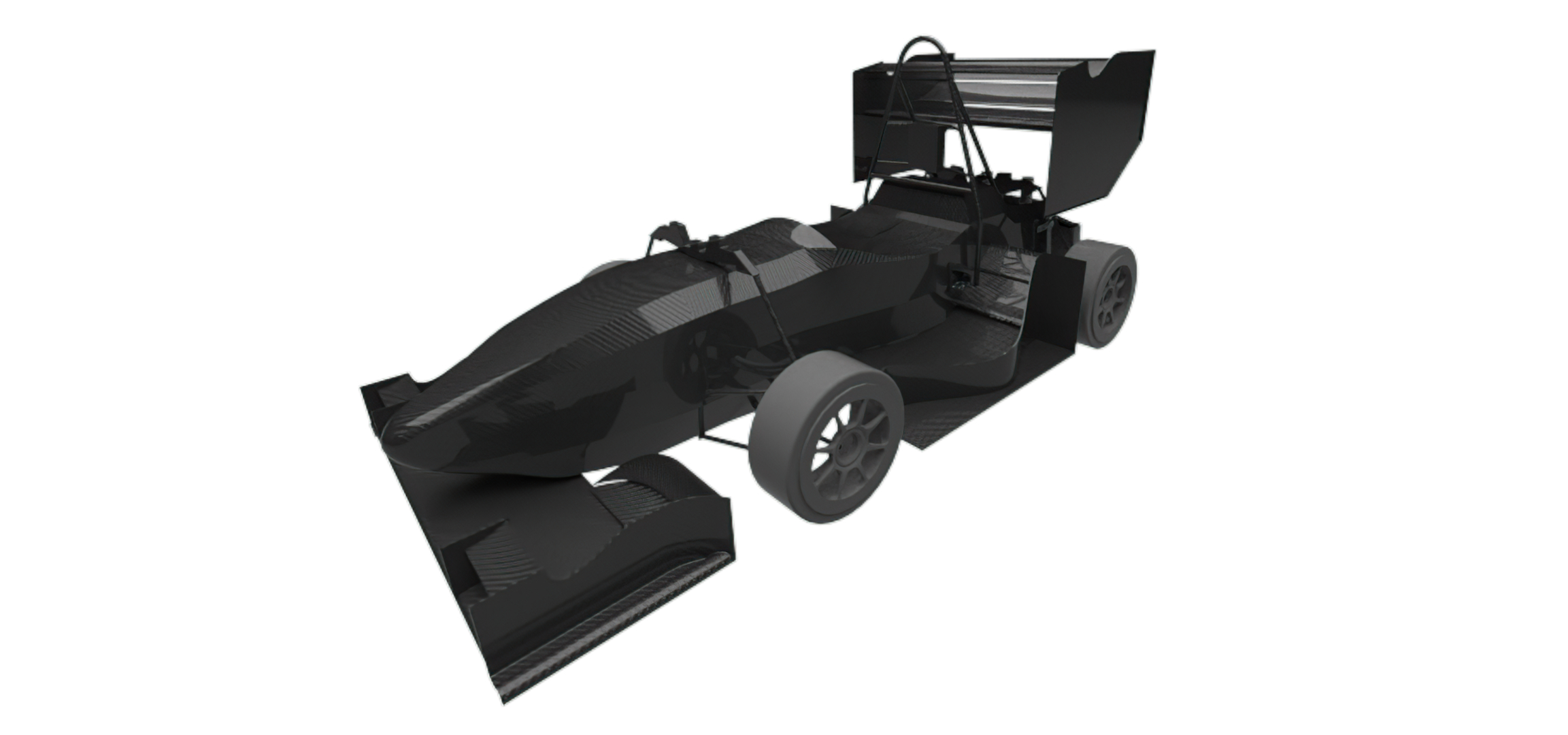

2024
Info
25x
Established in May 2018, Formula Student Vitoria is a team from the Basque Country. They competed last year for the first time as formula student class. They didn´t complete the scrutineering, but this year they are fully focused and aimed to have their car running on track, participating in dinamic events for the first time. For their concept they decided to set big ambitious goals: design and manufacture of a carbon fibre monocoque chassis and an in wheel 4WD electric tractive system.
Engineering Design Priorities:
Mechanical Reliability
Electrical easy implement
Lighter aero pack
Lighter monocoque
More efficient cooling
Regulable suspension
Car Specifications
General
| Frame Construction | Composite monocoque in unique section |
|---|---|
| Material | Aluminum honeycomb core, covered with 3 to 5 layers of cured carbon fibre |
| Overall L | 2972 mm |
| Overall W | 1441 mm |
| Overall H | 1305 mm |
| Wheelbase | 1550 mm |
| Track (Fr) | 1250 mm |
| Track (Rr) | 1250 mm |
| Weight with 68kg driver (Fr) | 144 kg |
| Weight with 68kg driver (Rr) | 168 kg |
| Suspension | Double wishbone independent suspension, convergence rod connect to the chassis. Push syste |
| Tyres (Fr / Rr) | 205x47 R13, Hoosier |
| Wheels (Fr / Rr) | 7x13, 65mm offset, 1pc Mg Rim |
| Drive Type | Four wheel drive system with in-wheel co |
| Differential | n/a |
| Cooling | Parallel coolant system with two radiators in the rearend above the engines |
| Electronics | An automotive standard is used for wiring. Live telemetry is used for monitoring the car. |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | On wheels |
| Max Motor Power (per motor) | 32 kW kW |
| Motor Type | AMK DD5-14-10-POW |
| Max Motor RPM (highest) | 20000 rpm |
| Motor Controller | AMK KW26-S5-FSE-4Q inverter |
| Max System Voltage | 600V V |
| Electrode Materials | LiFePO |
| Combined Accumulator Capacity | 6.3kWh kWh |
| Transmission Ratio (Primary) | 13,94 : 1 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2026.07 | 64 |
37. |
45. |
25. |
22. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
204.67 |
|
| 2025.08 | 12 |
12. |
11. |
11. |
11. |
- |
- |
- |
- |
- |
- |
- |
-60.00 |
91.01 |
|
| 2025.07 | 59 |
30. |
46. |
39. |
4. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
229.24 |
|
| 2024.08 | 79 |
77. |
71. |
72. |
63. |
- |
- |
- |
- |
- |
- |
- |
-40.00 |
78.65 |
|
| 2024.08 | 25 |
18. |
25. |
13. |
16. |
- |
- |
- |
- |
- |
- |
- |
-28.00 |
166.90 |
|
| 2024.07 | 51 |
19. |
40. |
16. |
6. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
272.90 |
|
| 2023.08 | 19 |
14. |
15. |
10. |
13. |
- |
- |
9. |
- |
- |
- |
- |
0.00 |
177.80 |
|
| 2023.07 | 60 |
35. |
33. |
45. |
17. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
209.60 |
|
| x 8 | |||||||||||||||
