Formula Student Team Weingarten Driverless
| University | University of Applied Sciences Ravensburg-Weingarten
DE Weingarten UAS short 171 |
 |
|---|---|---|
| Location | Weingarten, Germany | |
| Homepage | https://www.fsteamweingarten.de/ | |
| Social Media | ||
| CV Team | Formula Student Team Weingarten | |
| EV Team | Formula Student Team Weingarten | |
| Short Link | tid.fsg.one/867 | |
Past Events

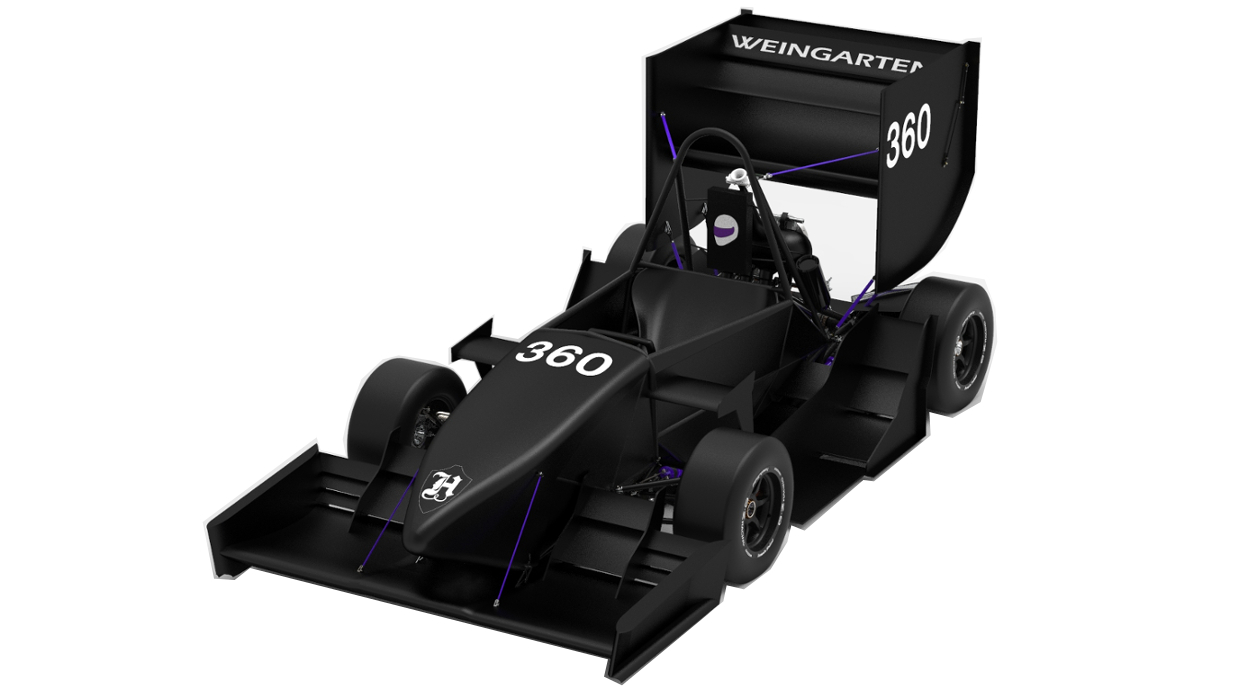

2019
Info
42x
The Driverless Team from Weingarten is now in their second season and build up again a driverless racecar with four cylinders! They decided to take the 2018 combustion car, the Stinger18C and equip it with the necessary hardware to make it drive autonomously. We would like to express our sincere thanks to our sponsors and everyone supporting the project!
Car Specifications
General
| Frame Construction | tubular steel frame with CFRK inlays |
|---|---|
| Material | steel |
| Overall L | 2979 mm |
| Overall W | 1413 mm |
| Overall H | 119 mm |
| Wheelbase | 1540 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1180 mm |
| Weight with 68kg driver (Fr) | 110 kg |
| Weight with 68kg driver (Rr) | 117 kg |
| Suspension | Double unequal length A-Arm, Pull-Rod actuated horizontally oriented spring and damper sys |
| Tyres (Fr / Rr) | 16x7,5-10 lco |
| Wheels (Fr / Rr) | OZ FSAE 7x10 E22 - Casted magnesium |
| Drive Type | Chain Drive |
| Differential | Drexler |
| Cooling | Rear mounted with radiators |
| Brake System | 4 disks system, self developed half floating rotors, self dev. balance bar, prop. valves |
| Electronics | Bosch MS6 ECU, self developed Stinger Control Unit, self developed Battery pack |
Powertrain
| Engine | modified Honda CBR 600 rr / PC40 |
|---|---|
| Bore | 69,0 mm |
| Stroke | 42,5 mm |
| Cylinders | 4 |
| Displacement | 636 ccm |
| Compression Ratio | 13,5:1 : 1 |
| Fuel System | Aluminium fuel tank, brushless fuel pump, 8 injection valves |
| Fuel | E85 |
| Max Power Design | 10000 rpm |
| Max Torque Design | 8500 rpm |

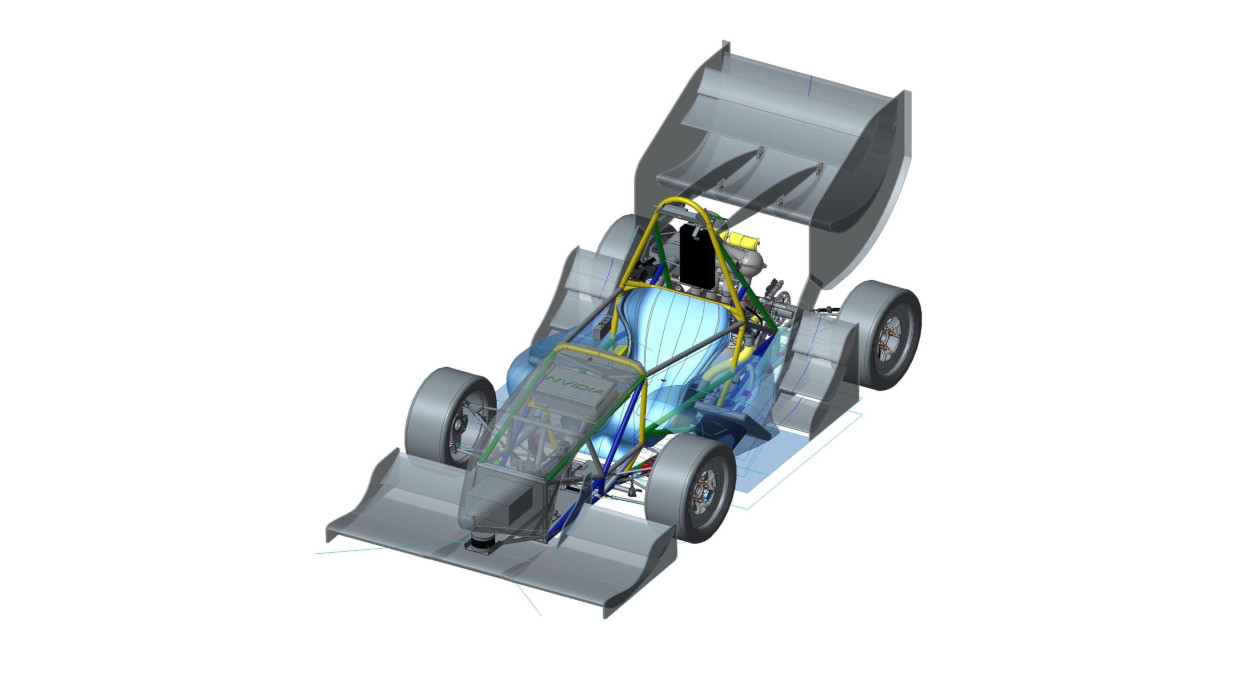

2018
Info
36x
The new Driverless Team from Weingarten takes on a fresh challenge and fields their first driverless racecar this season – with four cylinders! For their the tenth season in Formula Student, the team from Weingarten decided to take the 2017 model, the Stinger17 and equip it with the necessary hardware to make it drive autonomously. We would like to express our sincere thanks to our sponsors and everyone supporting the project!
Car Specifications
General
| Frame Construction | Tubular steel space frame |
|---|---|
| Material | CFRP prepreg sandwich panels |
| Overall L | 3148 mm |
| Overall W | 1431 mm |
| Overall H | 1194 mm |
| Wheelbase | 1580 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1180 mm |
| Weight with 68kg driver (Fr) | 86 kg |
| Weight with 68kg driver (Rr) | 99 kg |
| Suspension | Double unequal length A-Arm, Pull-Rod actuated horizontally oriented spring and damper |
| Tyres (Fr / Rr) | Continental 205/470 R13 |
| Wheels (Fr / Rr) | 6.5x13, OZ magnesium |
| Drive Type | Chain drive |
| Differential | Drexler Sperrdifferenzial |
| Cooling | two symmetric mounted 72645mm^2, core double passradiator,285 cfm fan mounted |
| Brake System | Rear mono brake, selfdesigned rotors & balance bar |
| Electronics | selfdesigned power distribution module, brushless fans, self-designed displa |
Powertrain
| Engine | Modified Honda CBR 600 RR (PC 40) |
|---|---|
| Bore | 67 mm |
| Stroke | 42.5 mm |
| Cylinders | 4 |
| Displacement | 599 ccm |
| Compression Ratio | 12.2:1 : 1 |
| Fuel System | intake-manifold fuel injection with four injection valves |
| Fuel | E85 |
| Max Power Design | 11000 rpm |
| Max Torque Design | 9000 rpm |
Driverless System
| Processing unit(s) | Nvidia Drive PX 2 Autochauffeur |
|---|---|
| Camera(s) | Intel RealSense D435 x 1 |
| Lidar sensor(s) | Velodyne VLP-16 x 1 |
| Highlights of the DV system | - Automatic Clutch & shifting - Neural network for cone detection - Sensor fusion between camera & lidar - ROS |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | DV SP | DV AC | AX | EN | EF | Pe | Total | Engine |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2019.08 | 8 |
8. |
6. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
52.50 |
||
| 2019.08 | 20 |
12. |
12. |
5. |
12. |
- |
- |
- |
- |
- |
-28.00 |
270.22 |
||
| 2018.08 | 17 |
10. |
8. |
5. |
5. |
- |
- |
- |
- |
- |
-90.00 |
250.28 |
||
| 2018.07 | 7 |
5. |
5. |
4. |
6. |
- |
- |
- |
- |
- |
0.00 |
339.00 |
||
| x 4 | ||||||||||||||
