e-gnition driverless

University Technische Universität Hamburg
DE Hamburg TU short 728
LocationHamburg, Germany
Homepagehttps://www.egnition.hamburg/
Social Media facebook
CV Team e-gnition
EV Team e-gnition Hamburg
Short Linktid.fsg.one/790

Event Profile

Past Events

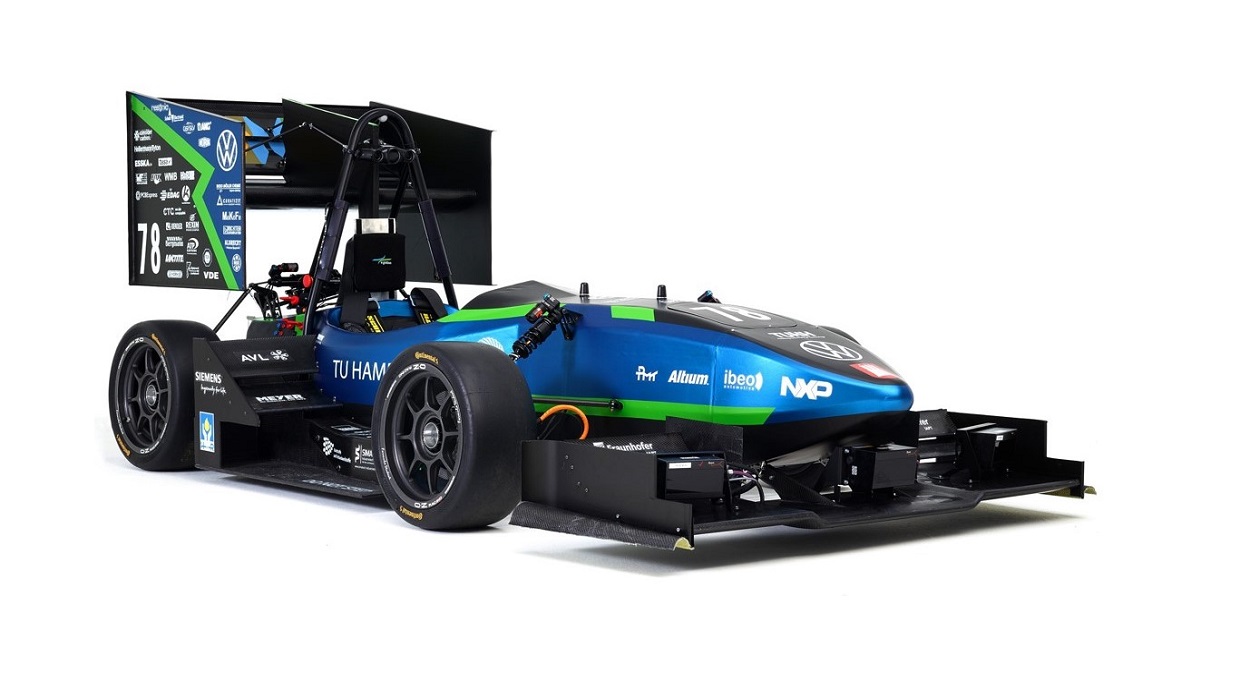

Car 878 – 2021
2021
Car #878
Info
The egn20 is the most innovative and forward-thinking car e-gnition has ever build. In the coming years FSG is looking to integrate driverless technology into every car participating in the event. We decided to start this integration one year early. The egn20 is able to run EV and with a quick change of the steering wheel and front wing it is capable to drive DV as well. The steering actuation is fully integrated into the steering wheel and easily exchangeable with a quick release.
Engineering Design Priorities:
Driverless integration Reliability Battery Management System Low center of gravity Validation Wing inner structure
Car Specifications
General
Frame Construction Monocoque structure with prep- reg and aluminium honeycomb core
Material Unidirectional fibers M21T800S + different kinds of aluminium honeycomb structure
Overall Length (mm) 2935
Overall Width (mm) 1422
Overall Height (mm) 1175
Wheelbase (mm) 1530
Track Front (mm) 1200
Track Rear (mm) 1150
Weight Front (kg) 112
Weight Rear (kg) 142
Suspension double unequal length a-arms, pushrod actuated bellcranks, heave-roll-decoupled system
Tyres 470 x 205 R13 Continental
Wheels 7x13“ 30mm offset, CFRP rim
Drive Type two staged planetary gear
Differential n/a
Cooling Water cooling. Two fans and heat exchangers, four motors, two inverters and a DV computer
Brake System self developed rotors 222mm diameter, lasersintered self manufactured brake callipers
Electronics ECU, AMS, ACU, fuse board and sensor boards self designed.
Powertrain
Number of Motors 4
Motor Location Every wheel
Max Motor Power 35 kW, 35kW, 35kW, 35kW
Motor Type All: Fischer TI085-052-070-04B7S-07S04BE2
Max Motor RPM All: 20000
Motor Controller Lenze Schmidhauser Mobile Drives
Max System Voltage (V) 588V
Electrode Materials LiCoO2
Accumulator Capacity 6,216kWh
Transmission Ratio Primary 1:12,78
Transmission Ratio Secondary n/a
Driverless System
Processing Units Intel Core i7-6700K, NVIDIA Jetson TX2 module
Processing Units FLOPS 1231
Processing Units Power (W) 350
Cameras "2 x Basler - daA1600-60ucArea Scan Camera with Global Shutter, USB 3.0, Res: 1600 x 1200 pixels
Radar Sensors n/a
LiDAR Sensors "4x Ibeo Lux 2010. 4 Layer rotating mirror LIDAR scanner (3 forward and 1 rearward)
Other Sensors 1x Xsens - MTi-G-710-GNSS/INS (IMU)
DV System Highlights The integration of the DV components without generating disadvantages for each of the disciplines. Creation of a structured electrical/mechanical overall system by merging components that were previously added separately.The egn20 can be changed form EV to DV configuration and vice versa with a few steps.

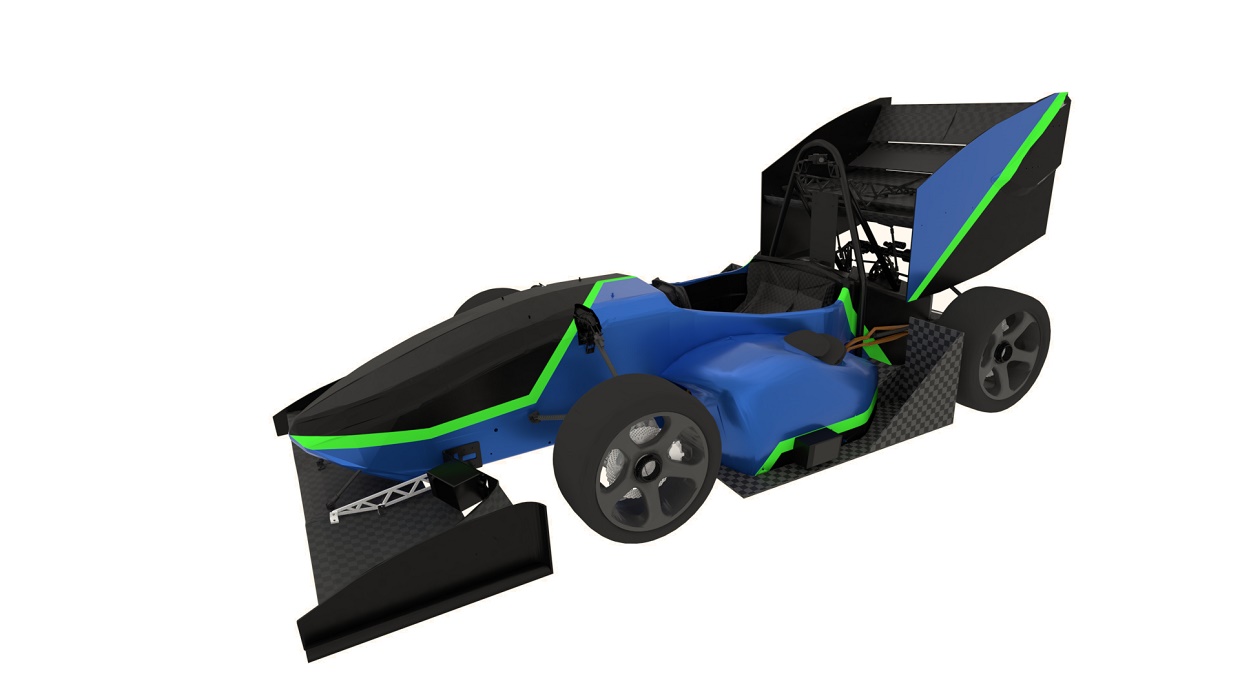

Car 478 – 2019
2019
Car #478
Info
For the third time in a row the egn19-dv will enter the glowing asphalt of the Hockenheimring. After last year's extensive hardware and software conversion, the focus this season is on software optimizations. The two additional LIDARs, which increase the lateral field of vision of the racing car, also ensure better performance. For his last season, "Horst" has undergone another optical makeover and will not only look great on but also off the track.
Engineering Design Priorities:
Bundle Adjustment Extended Kalman Filter 360°Vision PressureTranslator Model Predictive Control #1000Strom
Car Specifications
General
Frame Construction Monocoque structure with prepreg and aluminium honeycomb core
Material IMS65 UD Fibres prepreg, aluminium honeycomb
Overall Length (mm) 2920
Overall Width (mm) 1385
Overall Height (mm) 1140
Wheelbase (mm) 1530
Track Front (mm) 1200
Track Rear (mm) 1150
Weight Front (kg) 114
Weight Rear (kg) 116
Suspension Double A-Arms, push rod, air spring and damper, anti-rollbar with torsion spring
Tyres Continental C18 470x205 R13
Wheels 7x13, 22,5 mm offset, magnesium rim / 7x13, 22,5 mm offset, magnesium rim
Drive Type One stage planetary gear system in wheel
Differential Intelligent torque vectoring
Cooling Water cooling with side mounted selfdesigned radiators
Brake System 4-Disk system, self-developed rotors, adjustable breake balance
Electronics Self-developed and programmed ECU, AMS and sensor boards
Powertrain
Number of Motors 4
Motor Location In the wheelhubs
Max Motor Power 30kW
Motor Type AMK DD5-14-10-POW-18600-B5
Max Motor RPM 18617
Motor Controller KW26-S5-FSE-4Q
Max System Voltage (V) 600V
Electrode Materials LiCoO2
Accumulator Capacity 6,7kWh
Transmission Ratio Primary 1:12,6
Transmission Ratio Secondary n/a
Driverless System
Processing Units LPC 4337, Intel Core i7-6700K, Jetson TX2 module, Raspberry Pi
Processing Units FLOPS 6573
Processing Units Power (W) 300
Cameras 2 x Basler - daA1600-60ucArea Scan Camera with Global Shutter, USB 3.0, Res: 1600 x 1200 pixels
Radar Sensors n/a
LiDAR Sensors 5x Ibeo Lux 2010, 85 deg. angle, 30m range, 4 Layer rotating mirror LIDAR scanner
Other Sensors 1x Xsens - MTi-G-710-GNSS/INS (IMU), self-developed angle sensor at steering rack
DV System Highlights In processing our LiDAR data we use Bundle
Adjustment to retrieve both the car movement and a cone map, effectively using it for SLAM.
We gather color information out of the camera data to simplify our path planning. We have
also a smooth integration of the dv components in the ev car. To improve our lap times we
optimized our torque vectoring.

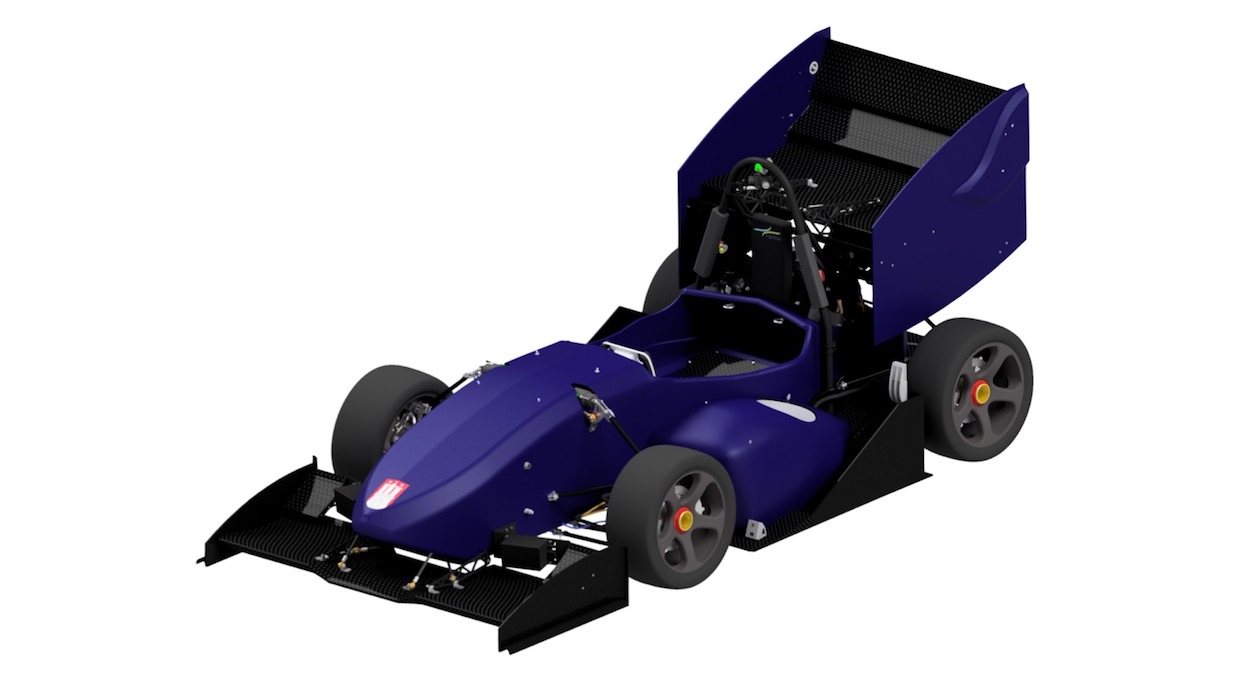

Car 478 – 2018
2018
Car #478
Info
"Horst" was built in 2017 and took part in several competitions this year. It is our first all-wheel drive vehicle and was able to complete the Endurance in FSE17. After this eventful year Horst decided that it was time to take the next step. So he returned to our workshop for a few months to complete his transformation. With new skills and the newest drivers, he wants to face the challenges of the race track alone. But Horst, we will always sit on the grandstand and send our support and love.
Engineering Design Priorities:
1000STROM e-gnition 2Cars1Team 1000Horstpower geflasht DieAutonomenausHamburg
Car Specifications
General
Frame Construction Monocoque structure with prepreg and aluminium honeycomb material
Material IMS65 UD Fibres
Overall Length (mm) 2920
Overall Width (mm) 1385
Overall Height (mm) 1140
Wheelbase (mm) 1530
Track Front (mm) 1200
Track Rear (mm) 1150
Weight Front (kg) 114
Weight Rear (kg) 116
Suspension Double unequal length A-Arms, Push rod actuated horizontally air spring and damper
Tyres Continental C18
Wheels 7x13, 22.5mm offset, magnesium rim
Drive Type One stage planetary gear system in wheel
Differential Intelligent torque vectoring
Cooling Water cooling with side mounted selfdesigned radiators
Brake System 4-Disk system, self-developed rotors, adjustable breake balance
Electronics Self-developed and programmed ECU, AMS and sensor boards
Powertrain
Number of Motors 4
Motor Location In the Wheelhubs
Max Motor Power 30 kW each
Motor Type AMK DD5-14-10-POW
Max Motor RPM 18000
Motor Controller AMK Inverter KW26-S5-FSE-4Q
Max System Voltage (V) 600V
Electrode Materials LiCoO2 - Graphite
Accumulator Capacity 6,7 kWh
Transmission Ratio Primary 1:12,6
Transmission Ratio Secondary n/a
Driverless System
Processing Units LPC 4337, Intel Core i7-6700K, Jetson TX2 module
Processing Units FLOPS 6573.00
Processing Units Power (W) 300.00
Cameras 2 x Basler - daA1600-60ucArea Scan Camera with Global Shutter, USB 3.0, Res: 1600 x 1200 pixels
Radar Sensors n/a
LiDAR Sensors 3x Ibeo Lux 2010. 4 Layer rotating mirror LIDAR scanner
Other Sensors 1x Xsens - MTi-G-710-GNSS/INS (IMU), self-developed angle sensor at steering rack
DV System Highlights In processing our LiDAR data we use Bundle Adjustment to retrieve both the car movement and a cone map, effectivly using it for SLAM.
The pneumatic EBS system, which is supplied by a compressor, can directly pressurize the hydraulic brake system.
We have also a smooth integration of the dv components in the ev car. It is nearly invisible.

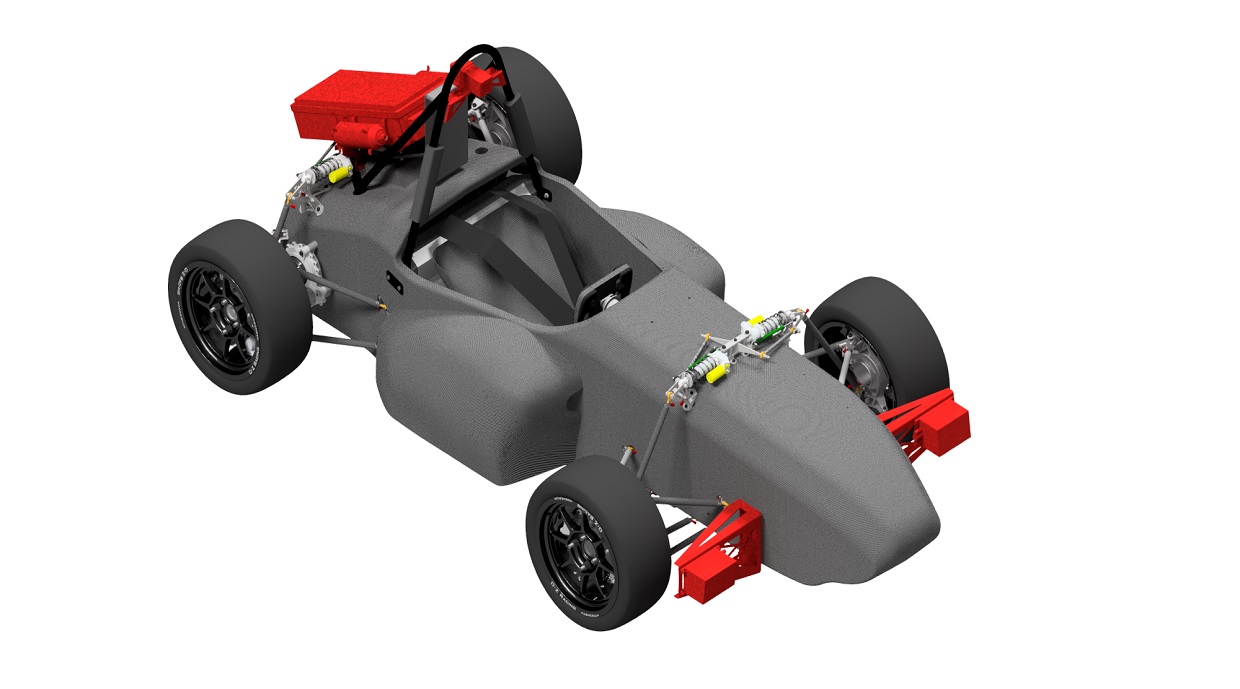

Car 478 – 2017
2017
Car #478
Info
Many Formula Student veterans made a return to the team to take on this fascinating new challenge. Together with some newly found teammates we turned "Uwe", our very reliable last year's car, the egn16, into the egn_dv17. Giving it a bunch of new sensors and actuators as well as a lot of additional processing power, "Uwe" will face his new task. We can't wait to see all the different approaches the teams have taken to make their FS car drive autonomously!
Engineering Design Priorities:
1000STROM UweIstAuchDabei driverless TUHH e-gnition
Car Specifications
General
Frame Construction Carbon fibre monocoque
Material HTS Fibres with Rohacell IGF-71 Core
Overall Length (mm) 2336
Overall Width (mm) 1385
Overall Height (mm) 1125
Wheelbase (mm) 1560
Track Front (mm) 1200
Track Rear (mm) 1150
Weight Front (kg) 80
Weight Rear (kg) 140
Suspension double unequal length a-arms,push rod actuated horizontally oriented spring/damper, anti-r
Tyres Continental 470 x 205 R13
Wheels 7x13”, 30mm offset, magnesium rim
Drive Type Spur Gear
Differential torque vectoring
Cooling side mounted selfdesigned radiators
Brake System 4-Disk system, self developed rotors
Electronics wiring harness, self-developed BMS, selfdesigned Live-Telemetry System,
Powertrain
Number of Motors 2
Motor Location Rear Right, Rear Left
Max Motor Power 2x 40kW
Motor Type Enstroj Emrax 208
Max Motor RPM 6000
Motor Controller Unitek Bamocar-D3 700/400
Max System Voltage (V) 404V
Electrode Materials LiPo
Accumulator Capacity 6,7 kWh
Transmission Ratio Primary 1:3,7
Driverless System
Processing Units LPC 4337, Intel Core i7-6700K, Nvidia GTX 1070
Processing Units FLOPS 6573
Processing Units Power (W) 300W
Cameras 1x Basler - acA1300-200uc. Industrial high speed CMOS camera with global shutter. USB3
LiDAR Sensors 2x Ibeo Lux 2010. 4 Layer rotating mirror LIDAR scanner.
Other Sensors 1x Xsens - MTi-G-710-GNSS/INS (IMU), wheel speed sensors, angle sensor at steering wheel
DV System Highlights Redundant multi-sensor perception system, highly adaptive path finding, ideal racing line generation

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED DV SP DV AC AX EN EF Pe Total Engine
2025.08
FS DE DV
42
5.
-
-
18.
9.
-
6.
2.
-
0.00
400.76
2025.08
FS CZ DV
24
12.
-
-
12.
-
-
-
-
-
0.00
224.40
2024.08
FS DE DV
27
25.
-
-
25.
-
11.
-
-
-
0.00
68.75
2024.08
FS East DV
13
13.
13.
8.
12.
-
-
-
-
-
0.00
244.07
2023.08
FS DE DV
30
15.
-
-
27.
5.
5.
-
-
-
0.00
113.21
2023.08
FS East DV
22
2.
15.
7.
13.
3.
3.
3.
3.
2.
0.00
775.06
2022.08
FS DE DV
19
7.
-
-
18.
1.
4.
-
-
-
0.00
164.99
2022.08
FS East DV
22
4.
11.
3.
5.
2.
6.
5.
-
-
0.00
542.63
2021.08
FS DE DV
17
6.
3.
9.
3.
-
-
-
-
-
0.00
329.50
2021.08
FS East DV
12
8.
8.
4.
8.
-
-
-
-
-
0.00
360.70
2019.08
FS DE DV
20
5.
11.
4.
9.
3.
5.
3.
5.
-
0.00
386.86
2019.07
FS East DV
14
3.
11.
2.
8.
3.
2.
-
-
-
0.00
405.60
2018.08
FS DE DV
17
3.
12.
6.
4.
3.
5.
-
2.
-
-10.00
506.44
2017.08
FS DE DV
15
3.
7.
9.
2.
2.
4.
-
2.
-
0.00
443.96
