Team Details
As of 2022, this class has been integrated into the other two classes.
Beijing Institute of Technology FSD
| University | Beijing Institute of Technology
CN Beijing IT short 730 |
|---|---|
| Location | Beijing, China |
| Homepage | https://www.bitfsd.com/ |
| CV Team | BIT-RACING |
| EV Team | Beijing Institute of Technology FSAE |
| Short Link | tid.fsg.one/789 |
Event Profile
Past Events
2017
Info

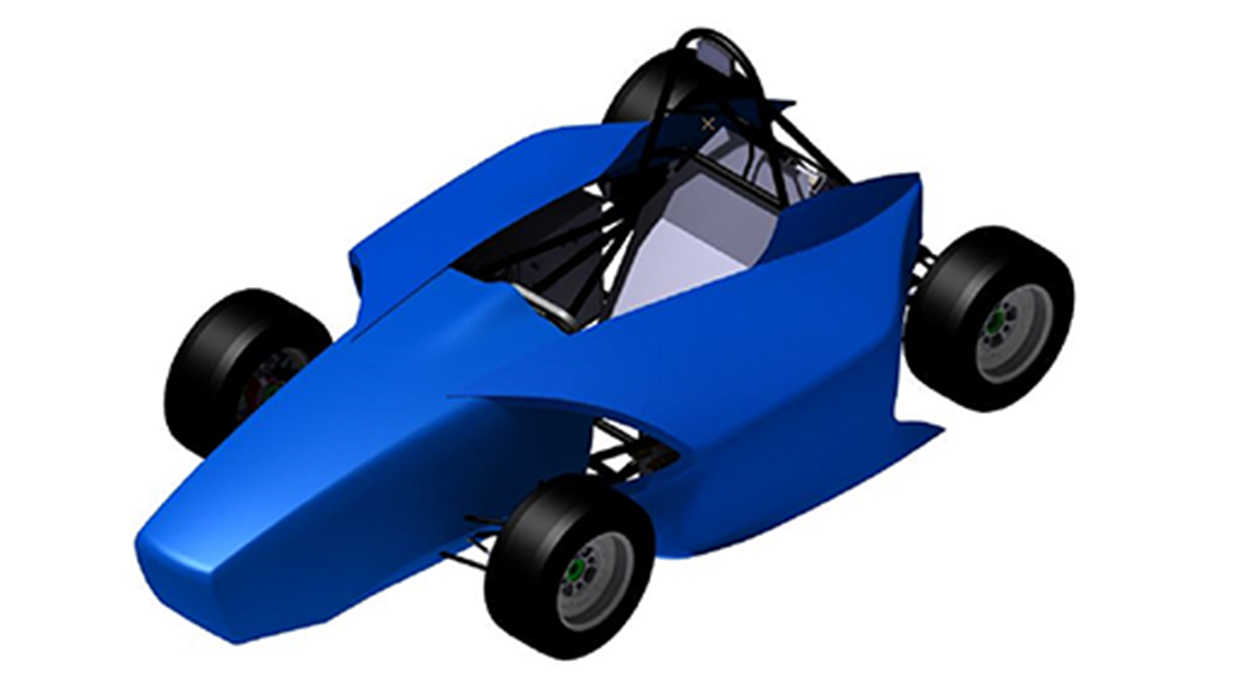

Beijing Institute of Technology FSD is a new team for the FSD competition. We built up in the last year and design the formula student racing car is based on the electric racing car of FSAE team in our school. In our FSAE team, combustion car called black shark, electric car called sliver car, but we decide the car name is smart shark! This year, we will bring the smart shark I to FSG and learn more knowledge about driverless car.
Engineering Design Priorities:
autonomous system
steering system
braking system
drivetrain
suspension system
power system
Car Specifications
General
| Frame Construction | 4130 tubes welded. |
|---|---|
| Material | 4130 steel |
| Overall Length (mm) | 2803 |
| Overall Width (mm) | 1370 |
| Overall Height (mm) | 1047 |
| Wheelbase (mm) | 1676 |
| Track Front (mm) | 1225 |
| Track Rear (mm) | 1175 |
| Weight Front (kg) | 128 |
| Weight Rear (kg) | 136 |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper (co |
| Tyres | 20x6.5-13 R25A Hoosier/20x8-13 R25A Hoosier |
| Wheels | 8 inch, 3pc Al Rim, 20mm neg. offset/9 inch, 1pc Al Rim, 34mm neg. offset |
| Drive Type | double motors with reducer. |
| Differential | n/a |
| Cooling | two water tanks with two water pumps. |
| Brake System | 4-Disk system, self developed rotors with 245mm diameter, mom-adjustable brake balance. |
| Electronics | wiring harness sealed to IP67, autonomous system power supply. |
Powertrain
| Number of Motors | 2 |
|---|---|
| Motor Location | Rear Right, Rear Left |
| Max Motor Power | 80kw,80kw |
| Motor Type | RR,RL:Perm synchronous Motor |
| Max Motor RPM | RR,RL:6000 |
| Motor Controller | UNITEK-Bamocar D3 700-400 |
| Max System Voltage (V) | 403 |
| Electrode Materials | LiCoO2 |
| Accumulator Capacity | 4.032 |
| Transmission Ratio Primary | n/a |
| Transmission Ratio Secondary | n/a |
Driverless System
| Processing Units | Intel Core i7-6820HK |
|---|---|
| Processing Units FLOPS | 83.20 |
| Processing Units Power (W) | 550 |
| Cameras | 1,U3S 1600-H 1,60 degree |
| Radar Sensors | n/a |
| LiDAR Sensors | 1,Encradar-Zen-1 1,360 degree |
| Other Sensors | n/a |
| DV System Highlights | lidar and camera in detective environment and the servo-system for the steering and braking; the people can operat |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | DV SP | DV AC | AX | EN | EF | Pe | Total | Engine |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2017.08 | 15 |
15. |
14. |
- |
14. |
- |
- |
- |
- |
- |
-70.00 |
60.85 |
||
| x 1 | ||||||||||||||
