Team Details

U Motorsport

University Universidad Rey Juan Carlos
ES Móstoles URJC short 1016
team logo
LocationMóstoles, Spain
Homepagehttps://u-motorsport.com/
Social Media
DV Team Driverless Ü Motorsport
Short Linktid.fsg.one/767

Past Events

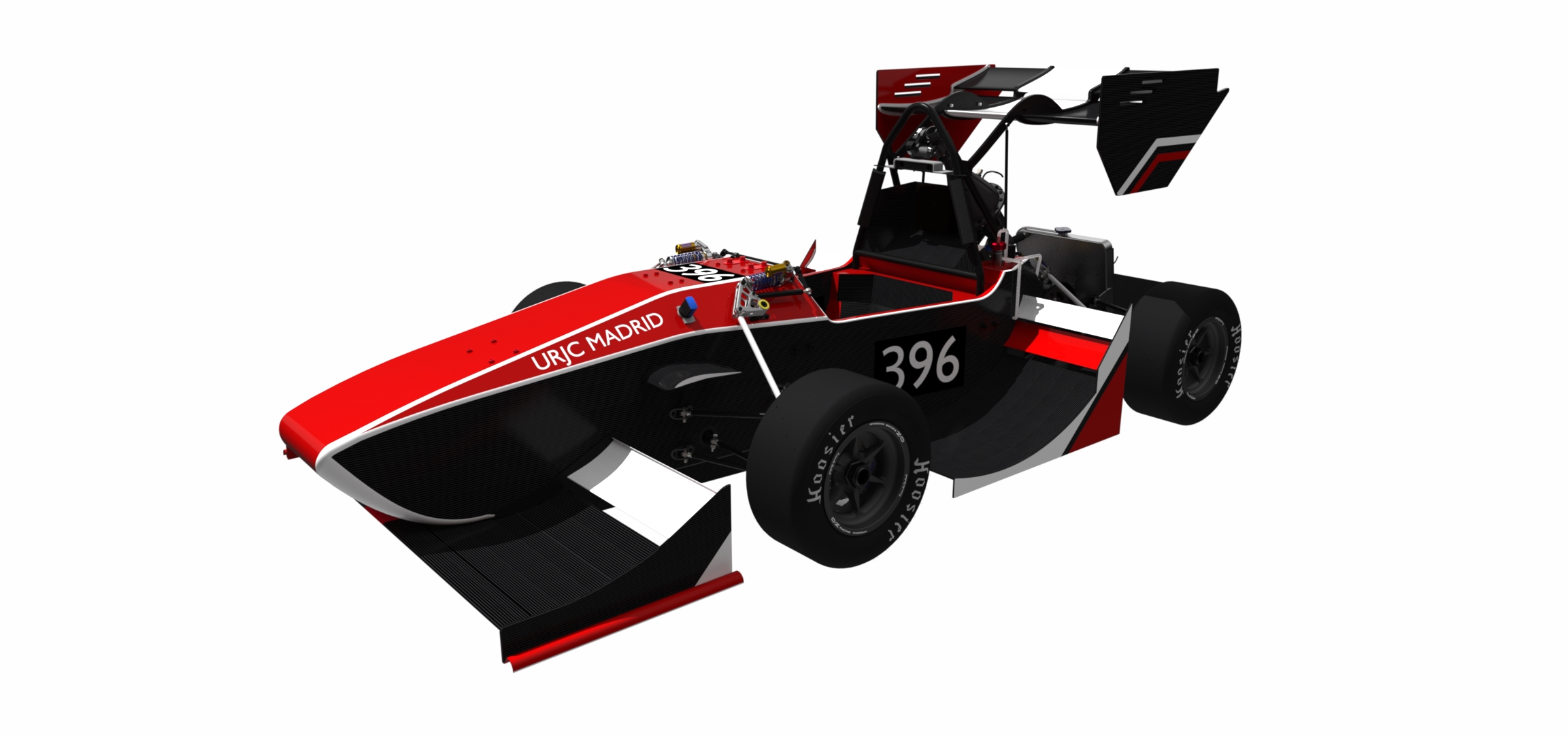

Car 396 – 2023
2023
Car #396
Info
17x
Ü Motorsport is the Formula Student team of the Rey Juan Carlos University, founded in 2016. This season our team developed the seventh prototype, UM07, which incorporates an autonomous system. Among the newest enhancements, noteworthy the development of the monocoque and a redesigned conical-spinlane-intake which achieves a remarkable power and torque increase, as well as new aero package and 3D printed uprights and bellcranks.
Engineering Design Priorities:
Reliability Safety Evolution Versatile Low cost Esthetic
Car Specifications
General
Frame Construction Monocoque primary structure (CFRP + Al honeycomb core). Tubular steel rear frame
Material Biaxial-UD prepreg CFRP plies monocoque. Al honeycomb. E355 steel rear frame
Overall L 3078 mm
Overall W 1512 mm
Overall H 1104 mm
Wheelbase 1540 mm
Track (Fr) 1300 mm
Track (Rr) 1262 mm
Weight with 68kg driver (Fr) 126 kg
Weight with 68kg driver (Rr) 189 kg
Suspension Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper
Tyres (Fr / Rr) 160x75 R10, Hoosier R20
Wheels (Fr / Rr) 7x13
Drive Type 520 step, 795 mm chain
Differential Limited slip Drexler FS Differential V2
Cooling Single radiator, with electric fan, located on the rear
Brake System 4-Disk system, rotors with 155 and 140mm diameters, adjustable brake balance
Electronics Multifunctional Steering Wheel, Electric Shifting System, selfdesigned Live-Teleme
Powertrain
Engine CBR 600 RR
Bore 67 mm
Stroke 42.5 mm
Cylinders 4
Displacement 599 ccm
Compression Ratio 12.4:1 : 1
Fuel System Sequential fuel injection controlled by haltech ECU and direct spark ignition
Fuel 98 octane gasoline
Max Power Design 12000 rpm
Max Torque Design 11000 rpm
Driverless System
Processing unit(s) Jetson Orin AGX
Floating Point Operations Per Second of all processing units that are working for the DV system 5300 GigaFLOPS
Power consumption of all processing units that are working for the DV system 60 W
Camera(s) 2 stereo cameras with FoV: Max 110º (H) x 70º (V) x 120º (D) and depth range 0.3m to 20m
Radar sensor(s) no
Lidar sensor(s) no
Other sensors Accelerometer, GPS, 2 reluctor sensors
Highlights of the DV system Camera-based cone detection system, mono with possibility of stereo if found necessary, Jetson Orin miniaturised computer for driverless processing, distributed CAN system for sensor and actuator communication. Python real-time system

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2025.08
FS ES
16
11.
12.
9.
6.
-
-
9.
-
7.
-
-
-10.00
182.90
2025.08
FS PT
6
4.
5.
2.
3.
-
-
4.
-
4.
-
-
0.00
275.40
2024.08
FS ES
18
11.
4.
12.
6.
-
-
-
-
-
-
-
0.00
205.10
2023.08
FS DE
27
27.
15.
26.
14.
-
-
-
-
-
-
-
-30.00
85.74
2023.08
FS East
18
18.
18.
17.
15.
-
-
-
-
-
-
-
-120.00
11.85
2022.09
FS ES
15
14.
10.
10.
9.
-
-
-
-
-
-
-
0.00
166.50
2021.08
FS ES
17
13.
11.
13.
12.
12.
-
12.
-
9.
-
-
0.00
198.70
2021.07
FS NL
26
24.
26.
19.
18.
-
-
-
-
-
-
-
0.00
114.71
2019.08
FS ES
28
21.
21.
12.
22.
20.
-
19.
-
18.
11.
-
0.00
217.30
2018.08
FS ES
37
30.
15.
23.
30.
-
-
-
-
22.
-
-
0.00
150.50
2017.08
FS ES
31
28.
27.
24.
28.
-
-
-
-
-
-
-
0.00
125.00
2016.08
FS ES
36
35.
33.
33.
35.
-
-
-
-
-
-
-
0.00
69.00
