Team Details

MAD Formula Team

University	University Carlos III of Madrid ES Leganés UC3M short 964
Location	Leganés, Spain
Homepage	https://madformulateam.com/
Social Media
DV Team	dMAD Formula Team
EV Team	eMAD Formula Team
Short Link	tid.fsg.one/706

Team Description

We are MAD Formula Team, the Formula Student team of Universidad Carlos III de Madrid. Since our foundation, we have worked with passion, dedication, and effort to evolve year after year, facing new challenges and pushing our engineering to the limit in every competition.

With almost a decade of experience, we have established ourselves as a strong and constantly growing team. This year, we take on a new challenge with our ninth combustion single-seater, the MFT-05, a car that reflects the talent, innovation, and hard work of our entire team.

More than just a competition team, we are a family united by our passion for motorsport and engineering. Perseverance, continuous learning, and teamwork are the values that drive us to improve each season and overcome the challenges of Formula Student.

Past Events

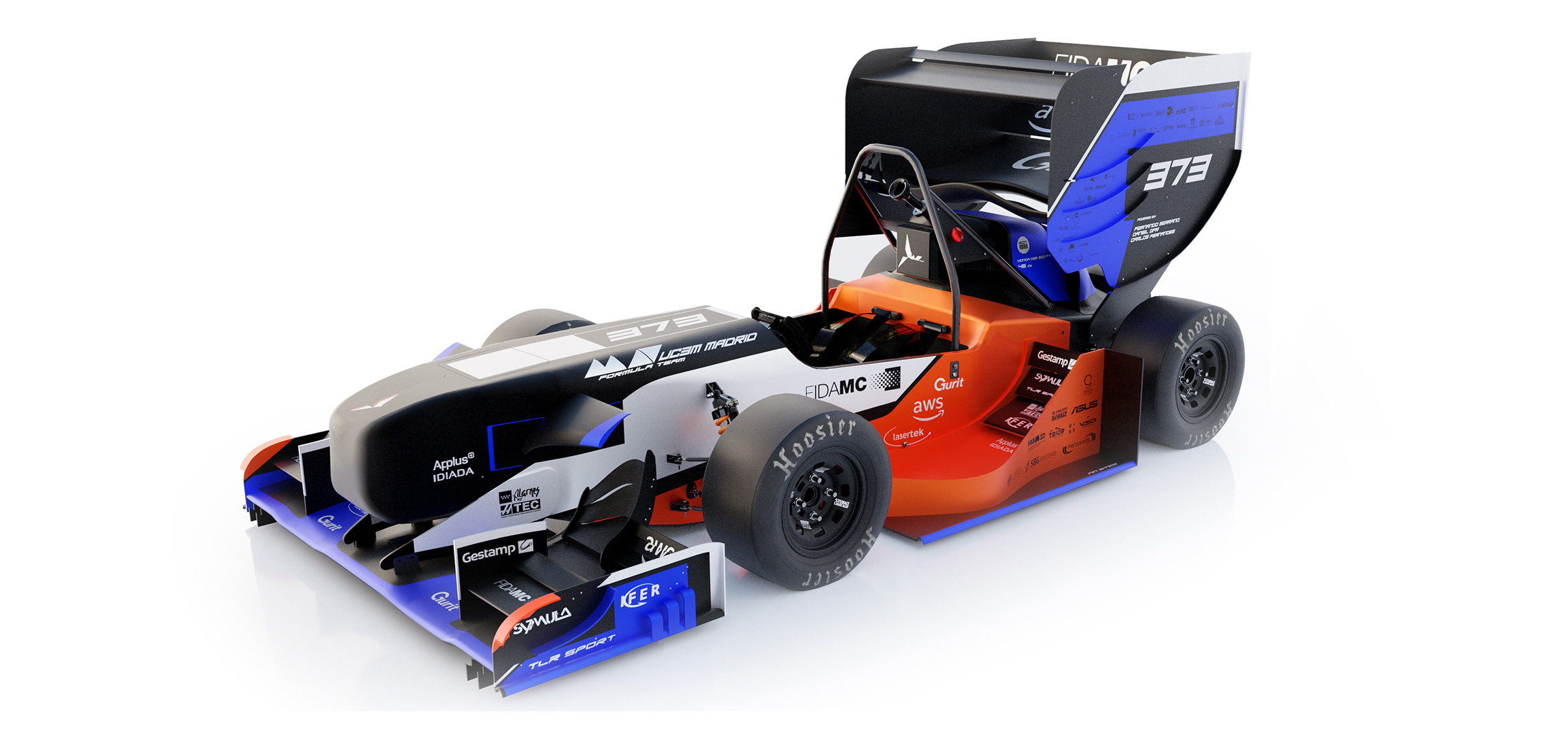

2023

Car #373

Info

22x

MAD Formula Team is the Formula Student team from Carlos III de Madrid University, in Leganés, Spain. Composed of 81 students, mostly from engineering disciplines, we base our approach to race car design on three core concepts: resource management, a clear design approach based on understanding first principles, and continuously learning from previous mistakes.

Engineering Design Priorities:

Reliability Cost Efficiency Composites development Own Software Development Team building

Car Specifications

General

Frame Construction	CFRP Integral Monocoque
Material	Gurit CFRP (twill, NCF and unidirectional) with aluminium honeycomb
Overall L	2922 mm
Overall W	1380 mm
Overall H	1180 mm
Wheelbase	1545 mm
Track (Fr)	1170 mm
Track (Rr)	1170 mm
Weight with 68kg driver (Fr)	135 kg
Weight with 68kg driver (Rr)	165 kg
Suspension	Double unequal length A-Arm. Pull rod actuated
Tyres (Fr / Rr)	18x7-8, Hoosier R20
Wheels (Fr / Rr)	10x7.5 Braid Sturace Mg rim
Drive Type	Rear wheel drive by a 520 chain
Differential	Limited Slip differential
Cooling	Diffuser mounted radiator with engine cover air intakes electric fan mounted on radiator
Brake System	4 disk system with self developped steel rotors
Electronics	Self-made wiring, CAN Bus communication protocol with electronic clutch and shifter.

Powertrain

Engine	Honda CBR600 F4i
Bore	67.0 mm
Stroke	42.5 mm
Cylinders	4
Displacement	599 ccm
Compression Ratio	12.0 : 1
Fuel System	Inline fuel pump with direct injection
Fuel	98 octane unleaded gasoline
Max Power Design	10200 rpm
Max Torque Design	6800 rpm

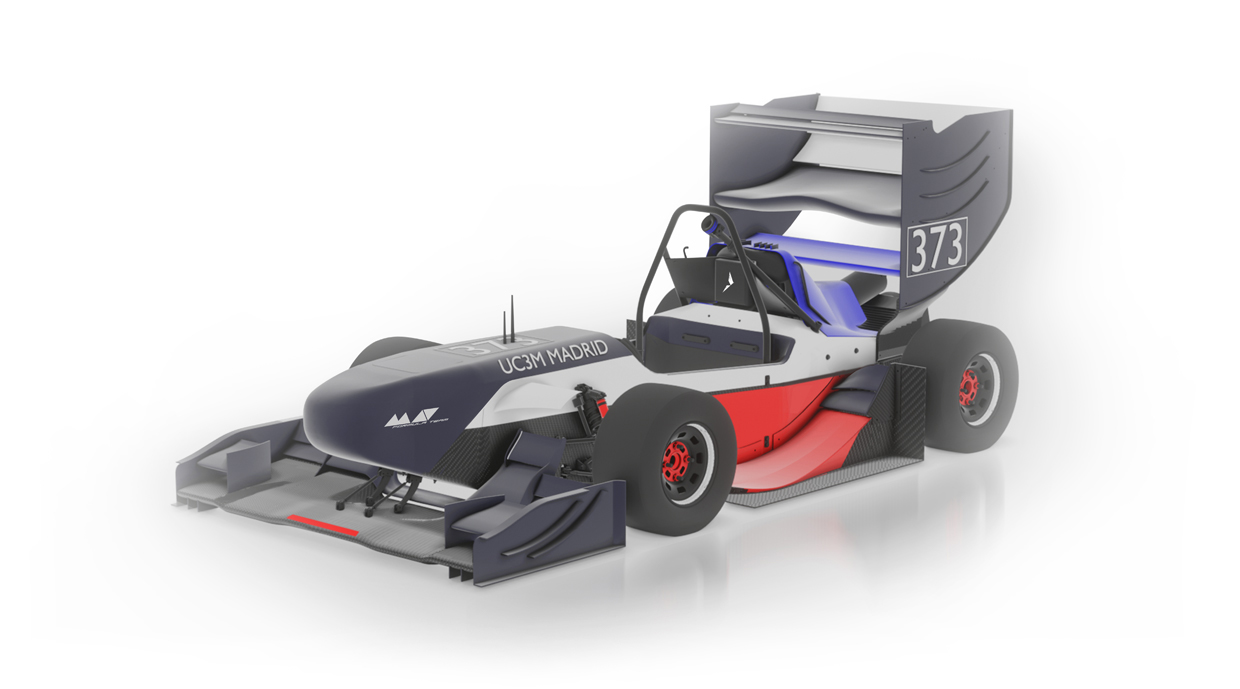

2022

Car #373

Info

29x

We are a group of students who have united our personal goals to make something special happen, together. In the process, we want to push ourselves to the limit and we want to self-improve and improve as a team. During the pandemic, we decided to rebrand our team changing our name, logo and, most importantly, our mindset. We are designing our new car considering the four values that determine what MAD Formula Team is: Original-practical thinking, dedication, organization, and love.

Engineering Design Priorities:

Reliability Cost Efficiency Composites development Own Software Development

Car Specifications

General

Frame Construction	CFRP Integral Monocoque
Material	Gurit CFRP (twill and unidirectional) with aluminium honeycomb
Overall L	2950 mm
Overall W	1416 mm
Overall H	1160 mm
Wheelbase	1545 mm
Track (Fr)	1170 mm
Track (Rr)	1170 mm
Weight with 68kg driver (Fr)	132 kg
Weight with 68kg driver (Rr)	161 kg
Suspension	Double unequal length A-Arm Pull rod actuated spring and damper.
Tyres (Fr / Rr)	18x7-8, Hoosier R20
Wheels (Fr / Rr)	10x7.5 Braid Sturace Mg rim
Drive Type	Rear wheel drive by a 520 chain
Differential	Limited Slip differential
Cooling	Diffuser mounted radiator
Brake System	4 disk system with self developed steel rotors
Electronics	Self-made wiring, CAN Bus communication protocol with electronic clutch and shifter.

Powertrain

Engine	Honda CBR600 F4i
Bore	67.0 mm
Stroke	42.5 mm
Cylinders	4
Displacement	599 ccm
Compression Ratio	12.0 : 1
Fuel System	Inline fuel pump with direct injection
Fuel	98 octane unleaded gasoline
Max Power Design	10200 rpm
Max Torque Design	6800 rpm

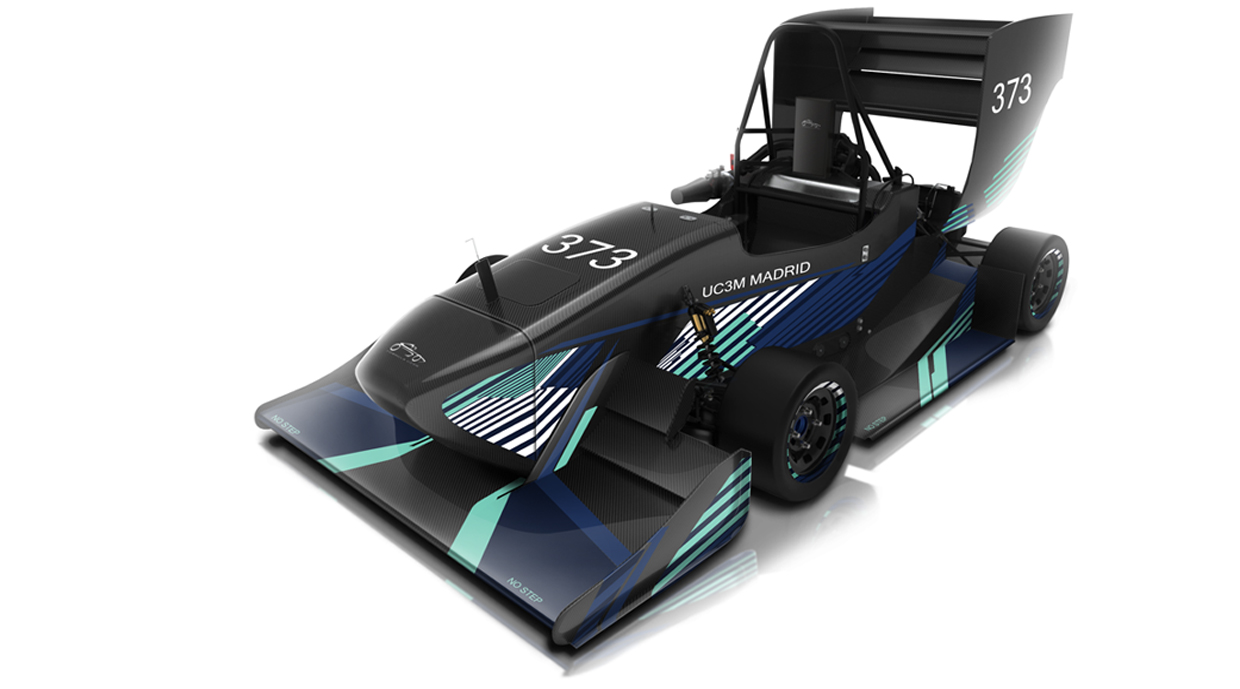

2019

Car #373

Info

10x

Formula UC3M started back in 2016 with its first prototype C3-R16. Each year the team tries to achieve its maximum. The first prototype includes a complete aero package, our second car was a completely new concept. Our goal is simple: get good results putting together all the resources, experience and passion. In order to achieve our goals the team is always trying to improve the designs, manufacturing process, statics events and performance. This C3-R19 put all these goals together in a car.

Engineering Design Priorities:

FUC3M ANIMOOOOOOO FormulaUC3M 373 UC3M

Car Specifications

General

Frame Construction	Hybrid chassis: Carbon fiber + foam monocoque and rear tubular steel frame.
Material	Carbon fibre-Foam sandwich structure
Overall L	2884 mm
Overall W	1447 mm
Overall H	1179 mm
Wheelbase	1580 mm
Track (Fr)	1230 mm
Track (Rr)	1170 mm
Weight with 68kg driver (Fr)	131 kg
Weight with 68kg driver (Rr)	181 kg
Suspension	Double unequal wishbone arms, pull-rod actuated in front and push activated in rear.
Tyres (Fr / Rr)	AVON 7.0/16.0-10
Wheels (Fr / Rr)	Braid Sturace 10
Drive Type	Chain
Differential	Mechanical limited slip differential - Drexler 2010
Cooling	Rear mounted 600cc radiator with a self developed fan
Brake System	4-Disk system, self developed steel rotors (4mm front, 3mm rear)
Electronics	Custom desinged telemetry, radiator fans and flatshifter with servo motor for clutch.

Powertrain

Engine	Honda CBR 600 F4i
Bore	67.0 mm
Stroke	42.5 mm
Cylinders	4
Displacement	599 ccm
Compression Ratio	12:1 : 1
Fuel System	Inline fuel pump, 300lph and injectors
Fuel	RON 98
Max Power Design	11500 rpm
Max Torque Design	6800 rpm
