Team Details
BITS Dubai Motorsports
| University | Birla Institute of Technology and Science, Pilani - Dubai
AE Dubai BPDC short 962 |
 |
|---|---|---|
| Location | Dubai, United Arab Emirates | |
| Short Link | tid.fsg.one/702 | |
Team Description
BITS Dubai Motorsports is the official racing team from the Dubai branch of BITS Pilani.
Past Events
2016
Info
2x
Formula6 Racing is the brainchild of a bunch of friends, enrolled into our undergraduate studies in Engineering, at BITS Pilani Dubai Campus. With a common passion for automobiles,machines and motorsports, we decided to take our passion to the next level by forming a racing team and competing at Formula Student Germany 2016. This year’s competition is a first for Formula6 Racing, but that will not stop us from giving it all we’ve got, and learning from the experience.
Engineering Design Priorities:
Lightweight
Fuel Efficiency
Cost Effective
Power to Weight Ratio
Telemetry
Ergonomic

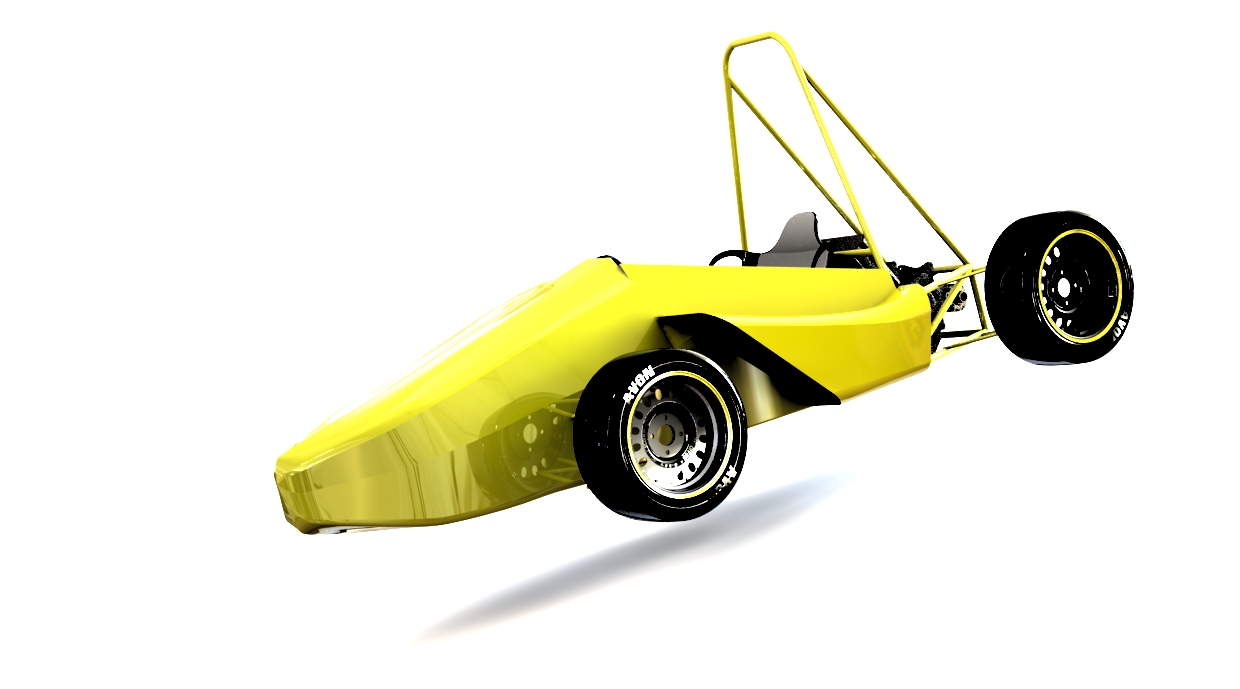

Car Specifications
General
| Frame Construction | Tubular Space Frame |
|---|---|
| Material | Mild Steel 1020, 1inch OD |
| Overall L | 2760 mm |
| Overall W | 1400 mm |
| Overall H | 1200 mm |
| Wheelbase | 1550 mm |
| Track (Fr) | 1300 mm |
| Track (Rr) | 1350 mm |
| Weight with 68kg driver (Fr) | 100 kg |
| Weight with 68kg driver (Rr) | 130 kg |
| Suspension | Double unequal length A-Arm.Push-rod to Rocker/Damper. Adj. compression and rebound |
| Tyres (Fr / Rr) | 183x49 R13, Avon Tires |
| Wheels (Fr / Rr) | 6.2in wide, 1 pc Al Rim, 30mm offset |
| Drive Type | Chain Driven |
| Differential | Torsen LSD with preload adjustment |
| Cooling | 1150cc Aluminum Radiator with cooling fan |
| Brake System | Four 8in Disk brake with wilwood caliper, Adjustable wilwood balance bar and pedal |
| Electronics | Mitsubishi ECU with AEM Piggyback, Live Telemetry |
Powertrain
| Engine | 2012 Yamaha YFZ450R |
|---|---|
| Bore | 95 mm |
| Stroke | 62 mm |
| Cylinders | 1 |
| Displacement | 440 ccm |
| Compression Ratio | 11.9:1 : 1 |
| Fuel System | Returnless fuel injection, high pressure, AEM Piggyback |
| Fuel | 98 octane |
| Max Power Design | 8000 rpm |
| Max Torque Design | 7500 rpm |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2022.07 | 14 |
13. |
3. |
12. |
13. |
- |
- |
- |
- |
- |
- |
- |
-40.00 |
66.18 |
|
| 2017.07 | 43 |
40. |
39. |
38. |
41. |
- |
- |
- |
- |
- |
- |
- |
-10.00 |
85.99 |
|
| 2016.08 | 73 |
68. |
61. |
12. |
71. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
146.72 |
|
| 2015.09 | 43 |
38. |
40. |
26. |
37. |
- |
- |
- |
- |
- |
- |
- |
-10.00 |
145.81 |
|
| 2014.05 | 107 |
104. |
- |
96. |
- |
- |
- |
- |
- |
- |
- |
- |
0.00 |
51.10 |
|
| x 5 | |||||||||||||||
