Team Details

Details

Hyperion Racing Team

University	Pillai College Of Engineering IN Navi Mumbai PIIT ^short 861
Location	Navi Mumbai, India
Social Media
EV Team	Spark Racing Team
Short Link	tid.fsg.one/601

Team Description

We are Hyperion Racing, the Formula Student team from Pillai College of Engineering, Navi Mumbai.
We are a dedicated team of undergraduate engineers committed to designing, building, and racing formula-style cars with precision and purpose.
From the first sketch to the final lap, every component, circuit, and line of code is engineered by us.
With our minds always racing — in design labs, workshops, and on the competition track — we bring classroom theory to life through hands-on engineering action.
Why We Do It
Gain hands-on engineering experience beyond textbooks
Foster cross-disciplinary collaboration
Emphasize safety and reliability in real-world builds
Work with industry-standard tools like CAD, CFD, FEA
Represent Mumbai’s youth at tech expos, summits, and public showcases

Past Events

2014

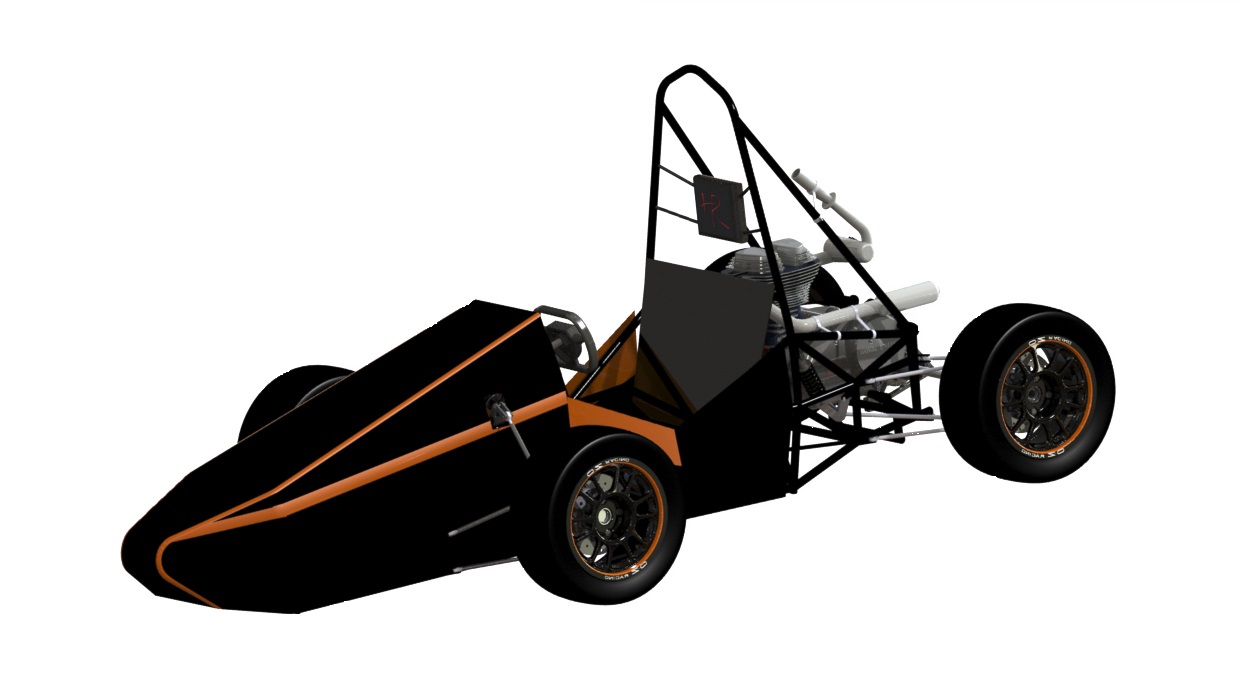

Car #34

Info

Hyperion Racing is a team comprising of engineering students from Pillai Institute of Information Technology,India with the objective of competing in Formula Student racing events,both nationally and at a global stage. They like to think of their team as a democratic culmination of 30 different thought processes and mind sets into one efficient unit.Hyperion,in Greek Mythology was the Titan of light,and one of the four pillars that held the universe,responsible for the cycles of the sun and moon

Engineering Design Priorities:

reliability speed expierience testing wheeltoframe efficient

Car Specifications

General

Frame Construction	Total Tubular Spaceframe
Material	AISI 1018 (25.4 mm OD with thickness 1.5 mm to 2.4 mm )
Overall L	3040 mm
Overall W	1518 mm
Overall H	1318 mm
Wheelbase	1600 mm
Track (Fr)	1300 mm
Track (Rr)	1200 mm
Weight with 68kg driver (Fr)	140 kg
Weight with 68kg driver (Rr)	210 kg
Suspension	Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper (coil-over).
Tyres (Fr / Rr)	R2B 13inch-20.56 / R2B 13inch-20.56
Wheels (Fr / Rr)	7 inch wide, 1 pc Al Rim, 20mm neg. offset / 7 inch wide, 1 pc Al, 34mm neg. offset
Drive Type	Chain Driven (Stock Royal Enfield 500)
Differential	Open Differential
Cooling	Air Cooled.
Brake System	4-Disk System,self developed rotors with 240mm diameter,adjustable brake balance.
Electronics	Selfdesigned Live Telemetry System,Data Acquisition System and Power Distribution Module.

Powertrain

Engine	Royal Enfield Classic 500 Efi-Twin Spark/ air cool
Bore	90mm mm
Stroke	90mm mm
Cylinders	1
Displacement	572 ccm
Compression Ratio	9.2:1 : 1
Fuel System	fuel injection student built manifold
Fuel	98 Octane
Max Power Design	5250 rpm
Max Torque Design	4000 rpm

FS past achievements due to World Ranking Data Base

Date	Event	Teams	Rank	BP	CM	ED	SP	DV SP	AC	DV AC	AX	EN	EF	Pe	Total
2026.01	F Bharat	26	16.	15.	-	-	-	-	-	-	-	-	-	-270.00	0.00
2023.01	F Bharat	27	16.	14.	9.	20.	-	-	-	-	-	-	-	0.00	148.05
2020.01	F Bharat	41	32.	37.	-	19.	-	-	-	-	-	-	-	-10.00	77.79
2014.08	FS DE	74	73.	71.	-	-	-	-	-	-	-	-	-	0.00	22.67
