Team Details

Road Arrow Combustion Team

University University of Belgrade
RS Belgrade U short 784
team logo
LocationBelgrade, Serbia
Homepagehttps://fsra.stt.org.rs/
Social Media
EV Team Road Arrow
Short Linktid.fsg.one/548

Team Description

Road Arrow Team was founded in late 2010. as a representer of Uni Belgrade. We are the first FS team in Serbia and the only one to compete. In 2011. we competed in Silverstone in Class 2 and took 3rd place. In 2012. we went back with our first race car and since then our cars and our results are constantly improving.


Past Events

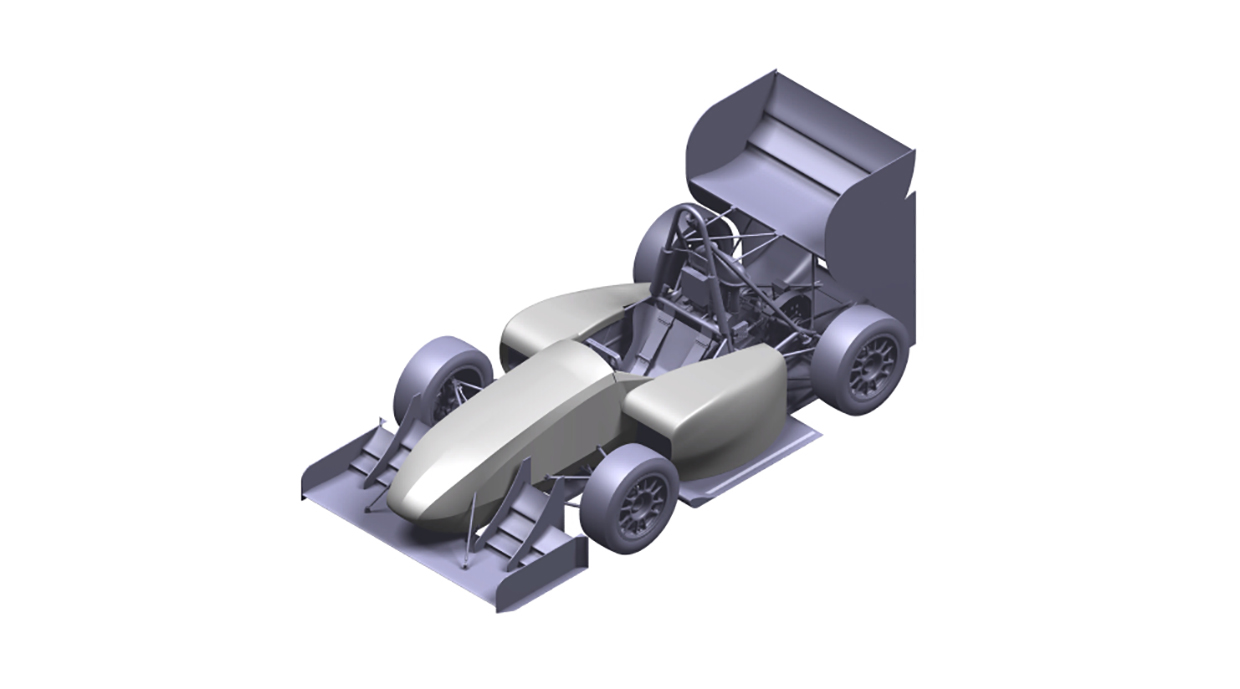

Car 350 – 2017
2017
Car #350
Info
39x
Formula Student team Road Arrow is the first Serbian FS team ever representing University of Belgrade. Our team is competing in C category since 2011, and we are proud to present to you our 6th vehicle that takes part for the first time in FSG! While bringing our work on this vehicle to an end, we have upgraded our suspenison and brake system, aerodynamics, sleeping for 2 hours per day and successfully finishing our tasks right before deadlines.
Engineering Design Priorities:
lower center of gravity reduced vehicle mass centrailised mass reliable vehicle system new materials better team atmosphere
Car Specifications
General
Frame Construction steel space-frame
Material E235 and T45 steel
Overall L 3050 mm
Overall W 1420 mm
Overall H 1195 mm
Wheelbase 1600 mm
Track (Fr) 1250 mm
Track (Rr) 1200 mm
Weight with 68kg driver (Fr) 141 kg
Weight with 68kg driver (Rr) 154 kg
Suspension Double unequal length A-Arm. Pull rod actuated in front and directly actuated on rear
Tyres (Fr / Rr) Avon 7.2/20.0-13
Wheels (Fr / Rr) OZ Superleggera 13''
Drive Type Chain driven LSD
Differential Torque sensitive limited slip bevel gear differential with internal preload adjustment
Cooling right side pod mounted radiator
Brake System self developed rotors with 220mm diameter, adjustable brake balance, Brembo calipers
Electronics Multifunctional Steering Wheel,Electropneumatic Shifting System, selfdesigned Telemetry
Powertrain
Engine Yamaha YZFR-R6
Bore 67 mm
Stroke 42,5 mm
Cylinders 4
Displacement 599 ccm
Compression Ratio 13.1 : 1
Fuel System OEM Injectors actuated via ECU
Fuel RON 98
Max Power Design 13000 rpm
Max Torque Design 9000 rpm

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2021.08
FS East
23
19.
10.
10.
15.
-
-
-
-
-
-
-
0.00
236.13
2021.07
FS AT
27
24.
-
15.
21.
-
-
-
-
11.
-
-
-10.00
155.70
2019.07
FS East
25
21.
8.
23.
22.
13.
-
12.
-
18.
-
-
0.00
242.33
2019.07
FS NL
28
16.
5.
17.
13.
-
-
-
-
-
-
-
0.00
200.11
2018.07
FSAE IT
46
16.
14.
44.
27.
6.
-
19.
-
17.
15.
20.
0.00
481.64
2017.08
FS DE
64
51.
27.
54.
49.
30.
-
40.
-
37.
-
-
-60.00
218.06
2017.08
FS CZ
33
26.
22.
21.
12.
28.
-
18.
-
21.
-
-
0.00
347.44
2017.07
FSAE IT
43
20.
19.
4.
10.
15.
-
16.
-
21.
-
-
0.00
380.42
2016.08
FS CZ
25
17.
15.
21.
20.
18.
-
9.
-
19.
11.
-
0.00
275.48
2016.07
FSAE IT
38
14.
16.
15.
10.
-
-
-
-
8.
12.
7.
0.00
417.22
2015.09
FS CZ
22
9.
19.
14.
12.
13.
-
10.
-
7.
4.
10.
0.00
636.49
2014.09
FSAE IT
44
15.
25.
4.
15.
17.
-
12.
-
15.
19.
15.
0.00
501.51
2014.08
FS AT
19
17.
15.
12.
15.
13.
-
7.
-
18.
17.
-
-10.00
238.90
2013.09
FSAE IT
42
10.
9.
5.
18.
13.
-
10.
-
26.
10.
12.
0.00
508.10
2013.08
FS HU
37
16.
21.
29.
27.
26.
-
20.
-
22.
14.
11.
0.00
474.60
2012.09
FSAE IT
37
30.
17.
23.
35.
28.
-
30.
-
22.
22.
-
0.00
212.76
2012.07
FS UK
97
70.
29.
37.
77.
-
-
-
-
-
-
-
0.00
166.10
