Team Details
Formula Technion
| University | Technion - Israel Institute of Technology
IL Haifa Technion short 815 |
![]() |
|---|---|---|
| Location | Haifa, Israel | |
| Homepage | https://www.formulatechnion.com/ | |
| Social Media |
|
|
| DV Team | Formula Technion Driverless | |
| EV Team | Formula Technion EV | |
| Short Link | tid.fsg.one/531 | |
Team Description
Formula Technion was established in 2013 at the Technion: Israel Institute of Technology. #savecombustion
Event Profile
Past Events

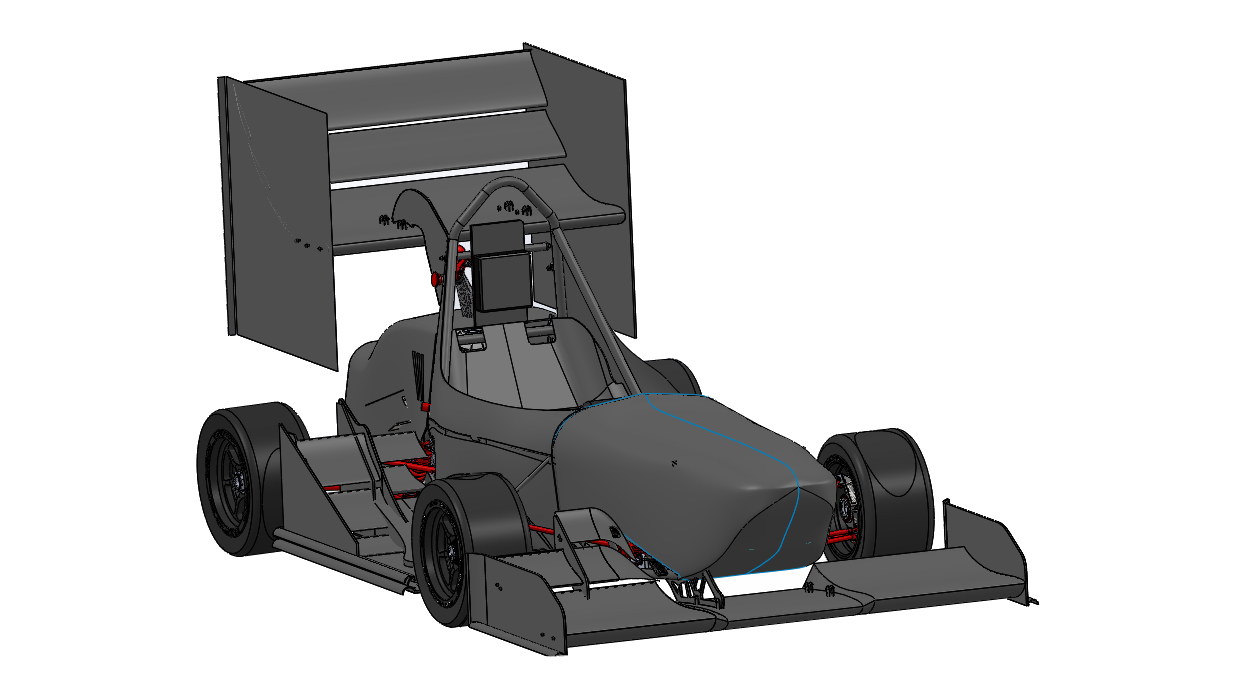

2019
Info
Formula Technion is building its seventh racecar. With a lot of potential in last year's car, a lot of effort was invested in the car's reliability to ensure that the team has a fast, yet reliable car at FSG 2019. With tight system packaging and integration optimization, the FT19C weighs a mere 128 kg and the team is eager to test it on track against the tough competition from around the world.
Engineering Design Priorities:
Lightweight
Compact
Car Specifications
General
| Frame Construction | Hybrid spaceframe |
|---|---|
| Material | Docol R8 with CFRP inlays and rear Ti-Gr9 structure |
| Overall Length (mm) | 2865 |
| Overall Width (mm) | 1360 |
| Overall Height (mm) | 1185 |
| Wheelbase (mm) | 1525 |
| Track Front (mm) | 1150 |
| Track Rear (mm) | 1120 |
| Weight Front (kg) | 98 |
| Weight Rear (kg) | 98 |
| Suspension | double unequal length A-Arm. Pull rod. Horizontally oriented spring and damper |
| Tyres | Hoosier 16.0 x 6.0 - 10 |
| Wheels | 10 |
| Drive Type | 520 Chain |
| Differential | Drexler FS Limited Slip Differential |
| Cooling | Twin side-mounted radiators under seat |
| Brake System | 4-disk system |
| Electronics | Wiring harness sealed to IP67, electrohydraulic anti-roll system, electronic shifting |
Powertrain
| Engine | 2019 KTM SX-F 450 |
|---|---|
| Bore (mm) | 95 |
| Stroke (mm) | 63.4 |
| Cylinders | 1 |
| Displacement (ccm) | 449 |
| Compression Ratio | 12.75:1 |
| Fuel System | Motec M130 ECU with self-developed fuel pump control |
| Fuel | 98 octane unleaded gasoline |

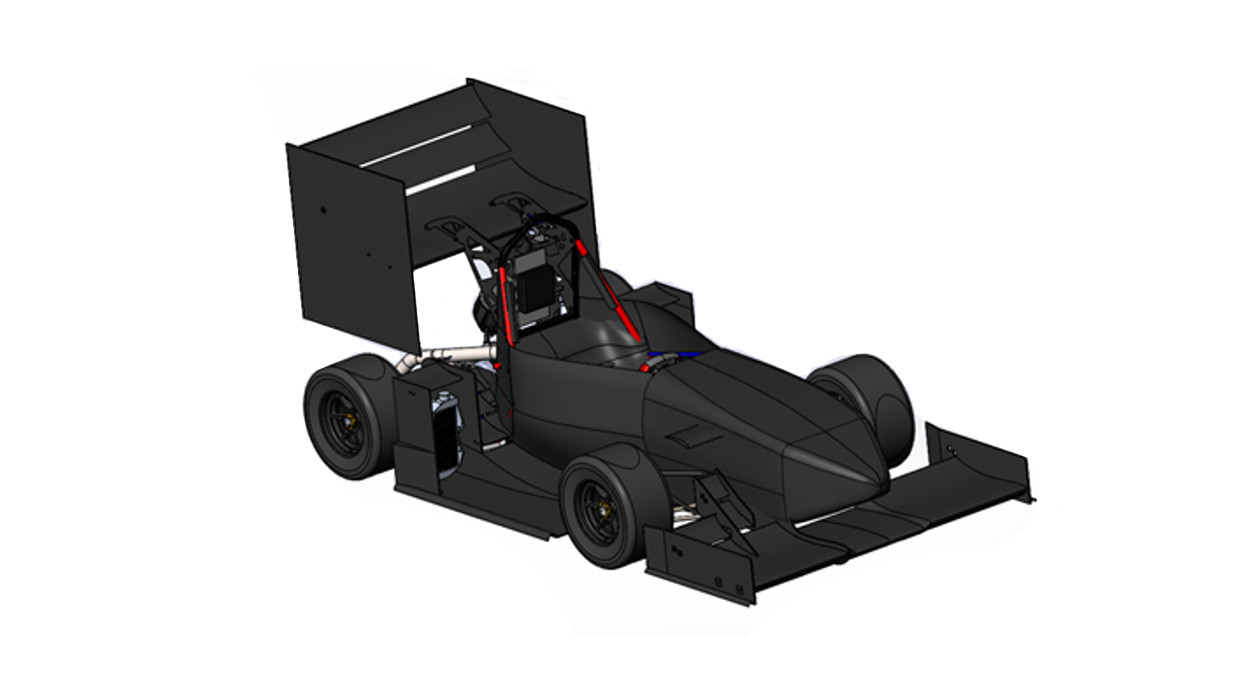

2018
Info
Formula Technion is participating in its sixth season in Formula Student. After switching to a single cylinder engine last year, the team was able to optimize engine systems and the rest of the car to reduce almost 50kg from the car's overall weight. Highlights of the car include custom electronic gear shifting and clutch actuators, low overall weight and a significant increase in aerodynamic performance.
Engineering Design Priorities:
Weight reduction
Engine performance
Active drivetrain
Car Specifications
General
| Frame Construction | Welded Space Frame |
|---|---|
| Material | Steel |
| Overall Length (mm) | 1920 |
| Overall Width (mm) | 1400 |
| Overall Height (mm) | 1180 |
| Wheelbase (mm) | 1550 |
| Track Front (mm) | 1170 |
| Track Rear (mm) | 1130 |
| Weight Front (kg) | 105 |
| Weight Rear (kg) | 105 |
| Suspension | Double unequal length A-Arm. Pull rod |
| Tyres | Hoosier LC0 |
| Wheels | OZ 10" Mg Rim |
| Drive Type | 4-speed gearbox |
| Differential | Drexler Limited Slip |
| Cooling | Twin side-mounted radiator |
| Brake System | 3-disk monobrake system |
| Electronics | Custom electronic gear shifting and clutch actuator |
Powertrain
| Engine | Modified KTM EXC-F 450 |
|---|---|
| Bore (mm) | 95 |
| Stroke (mm) | 63.4 |
| Cylinders | 1 |
| Displacement (ccm) | 449 |
| Compression Ratio | 12.8:1 |
| Fuel System | Motec M1 sequential injuection |
| Fuel | 98 octane unleaded gasoline |
| Max Power (kW) | 8000 |
| Max Torque (Nm) | 7000 |

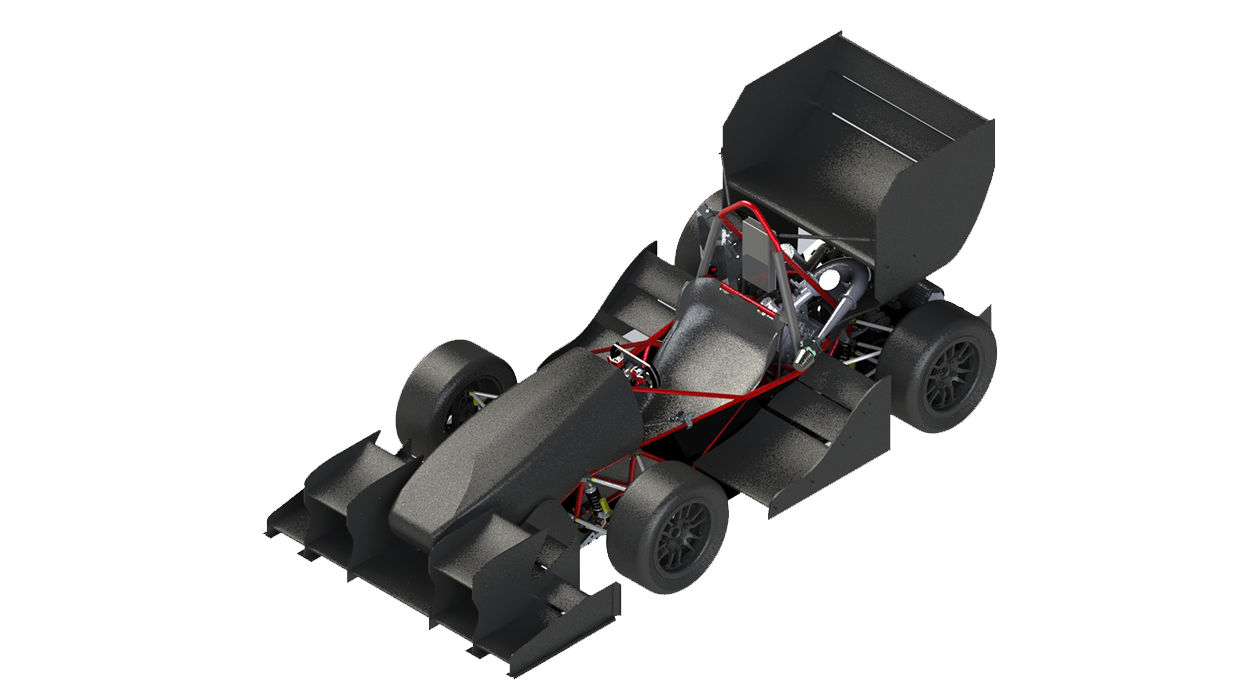

2017
Info
Formula Technion is an Israeli-based team out of the Technion: Israel Institute of Technology. This will be the team's fifth year competing in Formula Student. A significant change in the vehicle concept was made as the team moved to a single cylinder engine from a four-cylinder. As a result, the entire vehicle was redesigned and the team is excited to compete for the first time at Formula Student Germany.
Engineering Design Priorities:
Low weight
Low center of mass
Average track width
Downforce to weight ratio
Power to weight ratio
Drag to power (80km/h)
Car Specifications
General
| Frame Construction | Steel Space Frame |
|---|---|
| Material | Chromoly Steel |
| Overall Length (mm) | 3020 |
| Overall Width (mm) | 1420 |
| Overall Height (mm) | 1185 |
| Wheelbase (mm) | 1560 |
| Track Front (mm) | 1200 |
| Track Rear (mm) | 1150 |
| Weight Front (kg) | 129 |
| Weight Rear (kg) | 119 |
| Suspension | Double unequal length A-Arm. Pull rod actuated vertically oriented spring and damper |
| Tyres | Hoosier 20.0 X 7.5 - 13 |
| Wheels | OZ Magnesium Rim |
| Drive Type | 510 Chain |
| Differential | Drexler Limited-Slip DIfferential |
| Cooling | Rear mounted radiator with 5 |
| Brake System | 3-disc system (mono-rear brake) |
| Electronics | Wiring Harness IP67, Telemetry, CAN-Bus, Electric gear shifting system |
Powertrain
| Engine | KTM 450 EXC-F (2017) |
|---|---|
| Bore (mm) | 95 |
| Stroke (mm) | 63.4 |
| Cylinders | 1 |
| Displacement (ccm) | 450 |
| Compression Ratio | 11.8:1 |
| Fuel System | PE3 ECU with semi-sequential injection and wasted-spark ignition |
| Fuel | 98 octane unleaded gasoline |
| Max Power (kW) | 8000 |
| Max Torque (Nm) | 6000 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2019.08 | 33 |
18. |
9. |
10. |
13. |
1. |
- |
24. |
- |
20. |
- |
- |
0.00 |
402.88 |
|
| 2019.08 | 60 |
44. |
29. |
39. |
26. |
- |
- |
- |
- |
44. |
- |
- |
0.00 |
214.40 |
|
| 2019.08 | 34 |
21. |
24. |
6. |
21. |
21. |
- |
18. |
- |
20. |
- |
- |
-20.00 |
250.40 |
|
| 2018.08 | 57 |
35. |
5. |
45. |
21. |
30. |
- |
40. |
- |
29. |
- |
- |
-5.00 |
320.55 |
|
| 2018.08 | 30 |
18. |
12. |
28. |
10. |
17. |
- |
15. |
- |
13. |
- |
- |
0.00 |
299.80 |
|
| 2017.08 | 64 |
50. |
20. |
5. |
16. |
38. |
- |
46. |
- |
42. |
23. |
- |
-70.00 |
249.76 |
|
| 2017.08 | 31 |
8. |
17. |
5. |
15. |
24. |
- |
22. |
- |
14. |
7. |
5. |
0.00 |
481.00 |
|
| 2016.08 | 25 |
8. |
14. |
7. |
11. |
9. |
- |
8. |
- |
10. |
8. |
11. |
0.00 |
661.38 |
|
| 2016.07 | 28 |
11. |
12. |
12. |
9. |
8. |
- |
9. |
- |
11. |
9. |
14. |
0.00 |
581.70 |
|
| 2015.09 | 43 |
25. |
3. |
31. |
16. |
- |
- |
26. |
- |
16. |
19. |
- |
0.00 |
344.32 |
|
| 2014.09 | 44 |
28. |
12. |
18. |
25. |
30. |
- |
20. |
- |
17. |
27. |
- |
-50.00 |
291.56 |
|
| 2013.09 | 42 |
19. |
21. |
28. |
22. |
19. |
- |
24. |
- |
27. |
16. |
11. |
0.00 |
333.90 |
|
| x 12 | |||||||||||||||
