Team Details
Neftegaz Engineering
| University | Tyumen Industrial University
RU Tyumen TYUIU short 806 |
 |
|---|---|---|
| Location | Tyumen, Russia | |
| Homepage | https://m.vk.com/neftegazengineering | |
| Social Media | ||
| Short Link | tid.fsg.one/523 | |
Past Events
2017
Info
18x
Neftegaz Engineering team was organized in 2012 in Tyumen State Oil and Gas University and in the beginning was called Formula Neftegaz. The team has already taken part in 8 Formula Student events in 4 countries (they're Italy, Hungary, China and Russia). The team is also an organizer of a special Formula Student Festival called Formula Tyumen hold in Tyumen city for 4 times.Neftegaz Engineering team has already realized 3 racing cars. New racing car of 2017 will take place in FSG 2017.

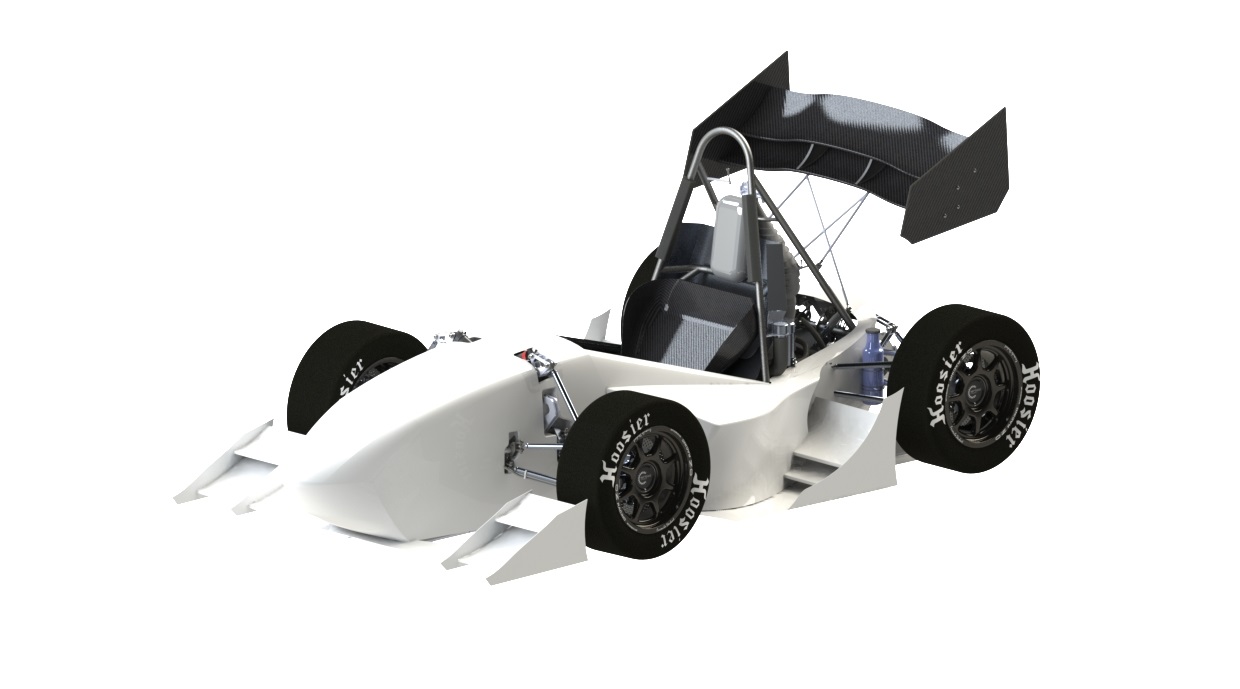

Car Specifications
General
| Frame Construction | Tube Space Frame |
|---|---|
| Material | Steel |
| Overall L | 2769 mm |
| Overall W | 1450 mm |
| Overall H | 1120 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1225 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 80 kg |
| Weight with 68kg driver (Rr) | 215 kg |
| Suspension | Double unequal length A-Arm, Push rod and Rocker Arms |
| Tyres (Fr / Rr) | Hoosier R13, 20.5x7 |
| Wheels (Fr / Rr) | OZ Magnesium, 7x13 |
| Drive Type | sequential gearbox |
| Differential | Drexler (SAE) Preloaded |
| Cooling | Radiator, Fan |
| Brake System | 4-Disk, Self Developed |
| Electronics | PowerCommander, QuickShifter, Ignistion Module |
Powertrain
| Engine | Honda CBR600RR |
|---|---|
| Bore | 67 mm |
| Stroke | 42.5 mm |
| Cylinders | 4 |
| Displacement | 599 ccm |
| Compression Ratio | 12.2:1 : 1 |
| Fuel System | Dual-Stage Fuel Injection |
| Fuel | 98 oct. gasoline |
| Max Power Design | 16000 rpm |
| Max Torque Design | 11250 rpm |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2018.07 | 46 |
41. |
42. |
26. |
33. |
- |
- |
- |
- |
34. |
38. |
- |
-60.00 |
91.50 |
|
| 2017.08 | 64 |
63. |
63. |
45. |
63. |
- |
- |
- |
- |
- |
- |
- |
-49.00 |
75.09 |
|
| 2014.09 | 44 |
44. |
25. |
- |
43. |
- |
- |
- |
- |
- |
33. |
- |
-60.00 |
12.44 |
|
| 2013.09 | 42 |
42. |
36. |
- |
38. |
- |
- |
- |
- |
- |
- |
- |
-50.00 |
27.70 |
|
| x 4 | |||||||||||||||
