Team Details
McGill Racing Team
| University | McGill University
CA Montréal U McGill short 300 |
 |
|---|---|---|
| Location | Montréal, Canada | |
| Social Media | ||
| EV Team | McGill Formula Electric | |
| Short Link | tid.fsg.one/497 | |
Past Events

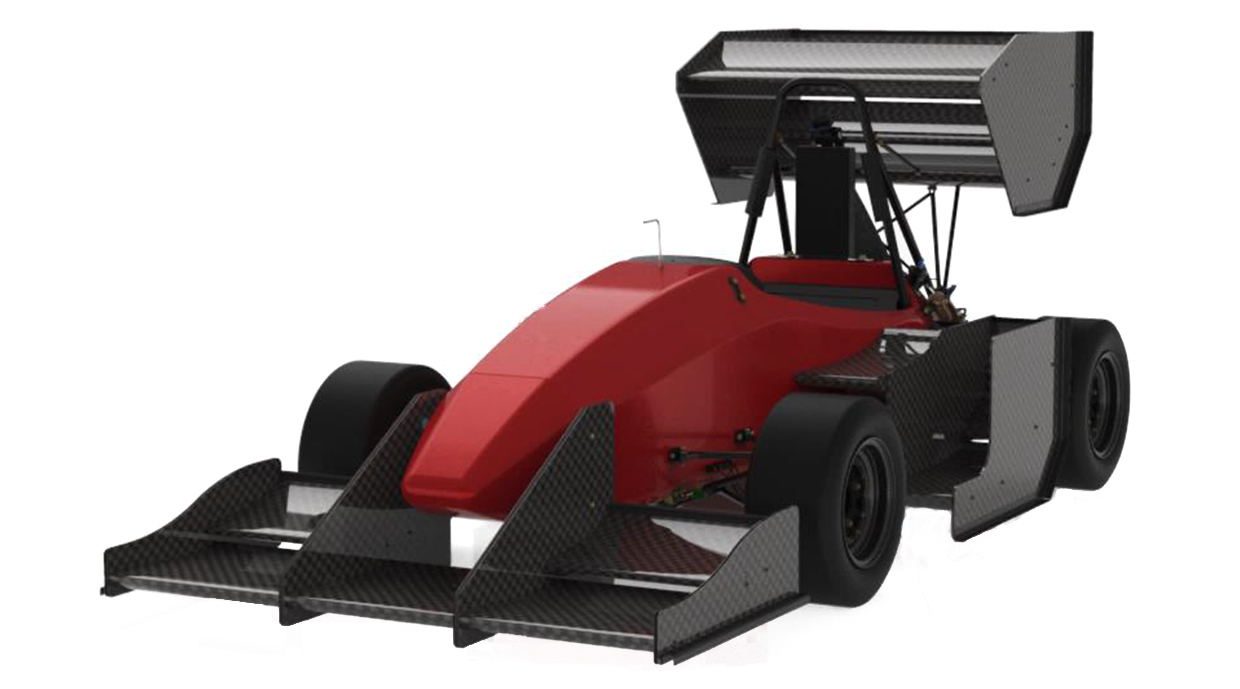

2016
Info
15x
The vehicle targets were based on a point mass lap time simulation. As a result, the MRT17 features a CFRP monocoque, an improved aerodynamics package (front, mid, and rear wings),and an E85-powered naturally aspirated single cylinder engine. Alongside vehicle development, the McGill Racing Team focuses on increasing documentation of the design process including simulation, analysis, and testing, as well as improving project management and team communication.
Engineering Design Priorities:
System Integration
Lap-Time Simulation
Weight Reduction
Manageable Power
Maximized Downforce
Electronic Reliability
Car Specifications
General
| Frame Construction | CFRP monocoque chassis with integral joint layup, tubular steel roll bars. |
|---|---|
| Material | Textreme Plain Weave/Unidirectional Tape, Aluminum/Nomex/Polyurethane foam core |
| Overall L | 2917 mm |
| Overall W | 1328 mm |
| Overall H | 1181 mm |
| Wheelbase | 1550 mm |
| Track (Fr) | 1118 mm |
| Track (Rr) | 1118 mm |
| Weight with 68kg driver (Fr) | 103 kg |
| Weight with 68kg driver (Rr) | 126 kg |
| Suspension | Double Unequal A-Arm F/R, Pullrod F, Pushrod R, Coilover Double-Adjustable Damper, ARB F/R |
| Tyres (Fr / Rr) | 18x6-10 Hoosier LC0 F/R |
| Wheels (Fr / Rr) | 7x13, 3 pc Aluminum |
| Drive Type | 5-speed sequential |
| Differential | Drexler limited slip, fixed preload, adjustable ramp angles |
| Cooling | 2x Side mounted 25mm core aluminum radiator, oil cooler, 2x 200CFM box fans |
| Brake System | Front 4-piston calipers, rear 2-piston calipers, AP racing calipers & master cylinders |
| Electronics | Traction control, Shift-without-lift, Launch-Control and Auto-up shift, Motec ECU and Dash Logger |
Powertrain
| Engine | BRP-Rotax GmbH, Type 449 |
|---|---|
| Bore | 97 mm |
| Stroke | 60.8 mm |
| Cylinders | 1 |
| Displacement | 449 ccm |
| Compression Ratio | 13.6:1 : 1 |
| Fuel System | Port Injection, Manifold-Pressure Regulated, TPS, MAP, IAT, ECT, EGT, AFR |
| Fuel | E85 Ethanol |
| Max Power Design | 9000 rpm |
| Max Torque Design | 8000 rpm |

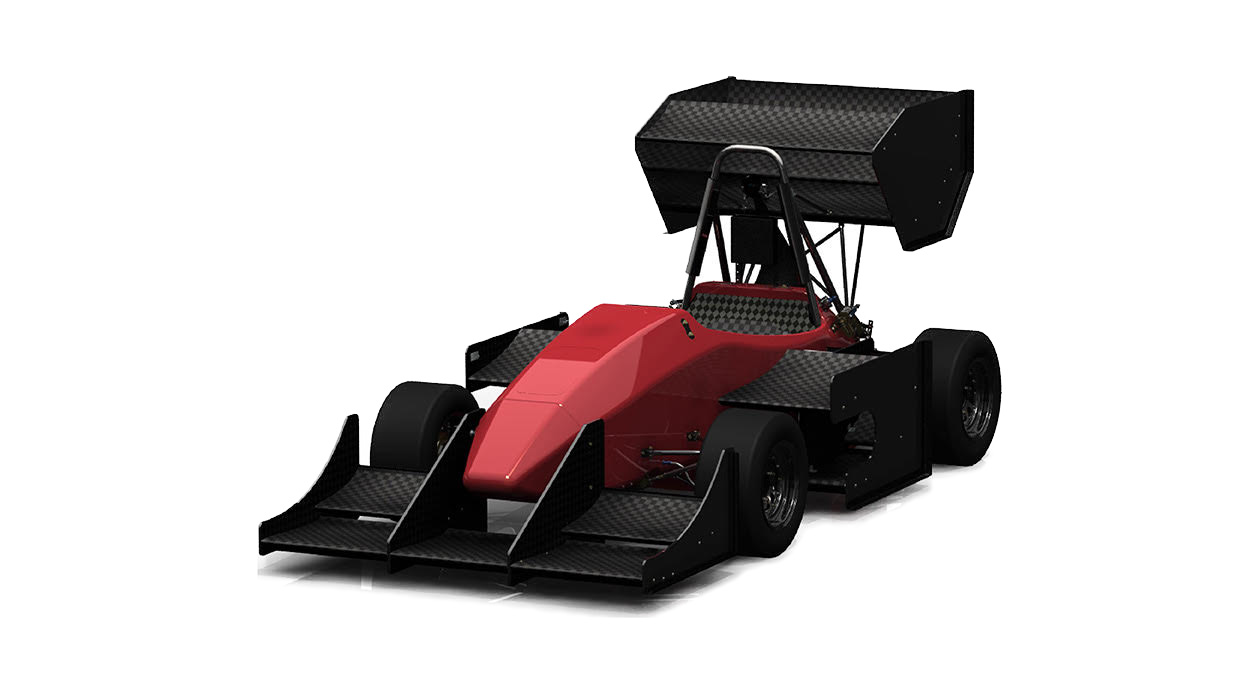

2015
Info
13x
The vehicle targets were based on a point mass lap time simulation. As a result, the MRT16 features a CFRP monocoque for the first time, a re-designed aerodynamics package (front, mid, and rear wings),and an E85-powered naturally aspirated single cylinder engine. Alongside vehicle development, the McGill Racing Team focused on increasing documentation of the design process including simulation, analysis, and testing, as well as improving project management and team communication.
Engineering Design Priorities:
Lap Time Simulation
Manageable power
Weight reduction
Maximized downforce
Electronic reliability
enhanced ergonomics
Car Specifications
General
| Frame Construction | CFRP monocoque chassis with integral joint layup, tubular steel roll bars. |
|---|---|
| Material | Textreme Plain Weave/Unidirectional Tape, Aluminum/Nomex/Polyurethane foam core |
| Overall L | 2917 mm |
| Overall W | 1328 mm |
| Overall H | 1181 mm |
| Wheelbase | 1550 mm |
| Track (Fr) | 1118 mm |
| Track (Rr) | 1118 mm |
| Weight with 68kg driver (Fr) | 103 kg |
| Weight with 68kg driver (Rr) | 126 kg |
| Suspension | Double Unequal A-Arm F/R, Pullrod F, Pushrod R, Coilover Double-Adjustable Damper, ARB F/R |
| Tyres (Fr / Rr) | 18x6-10 Hoosier LC0 F/R |
| Wheels (Fr / Rr) | 7x13, 3 pc Aluminum |
| Drive Type | 5-speed sequential |
| Differential | Drexler limited slip, fixed preload, adjustable ramp angles |
| Cooling | 2x Side mounted 25mm core aluminum radiator |
| Brake System | Front 4-piston calipers, rear 2-piston calipers, AP racing calipers & master cylinders. |
| Electronics | Traction control, Shift-without-lift, Launch-Control and Auto-up shift, Motec M130, AIM Dashlogger |
Powertrain
| Engine | BRP-Rotax GmbH, Type 449 |
|---|---|
| Bore | 97 mm |
| Stroke | 60.8 mm |
| Cylinders | 1 |
| Displacement | 449 ccm |
| Compression Ratio | 13.6:1 : 1 |
| Fuel System | Port Injection, Manifold-Pressure Regulated, TPS, MAP, IAT, ECT, EGT, AFR |
| Fuel | E85 Ethanol |
| Max Power Design | 9000 rpm |
| Max Torque Design | 8000 rpm |

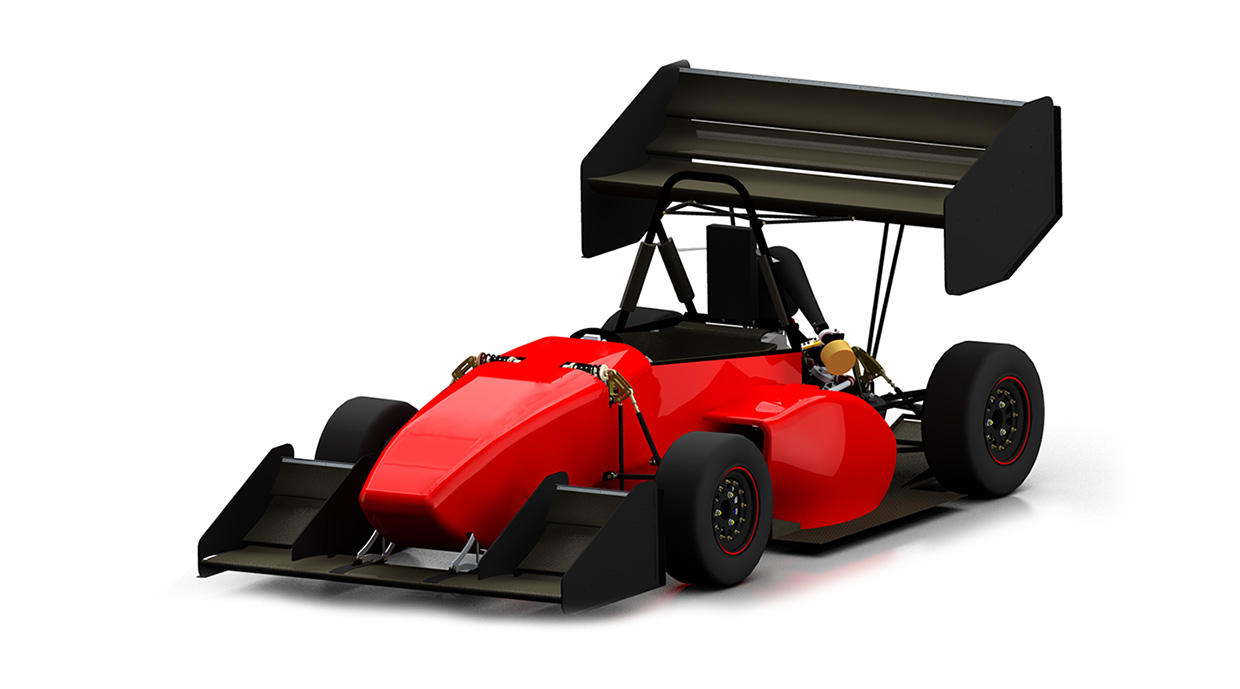

2013
Info
24x
The MRT15 combustion prototype will mark the McGill Racing Team's 15th entry into the FSAE series. For the first time, MRT and the former McGill Hybrid Racing Team have joined forces to design and build both an electric and a combustion vehicle from the ground up. MRT15 is powered by the Rotax DS450 single-cylinder engine and features a full aerodynamics package. Focus has been set on developing a reliable yet competitive package backed by simulation and physical validation.
Car Specifications
General
| Frame Construction | Steel space frame |
|---|---|
| Material | AISI 1020 Mild Steel Tubing |
| Overall L | 2876 mm |
| Overall W | 1380 mm |
| Overall H | 1164 mm |
| Wheelbase | 1575 mm |
| Track (Fr) | 1194 mm |
| Track (Rr) | 1194 mm |
| Weight with 68kg driver (Fr) | 125 kg |
| Weight with 68kg driver (Rr) | 124 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated spring and damper. |
| Tyres (Fr / Rr) | 216x47 R10, Hoosier LC0 / 216x47 R10, Hoosier LC0 |
| Wheels (Fr / Rr) | 7.0x10, 25.4 mm offset, 3 pc Al Rim / 7.0x10, 25.4 mm offset, 3 pc Al Rim |
| Drive Type | Slipper Clutch, Sequential Gearbox |
| Differential | Torsen Differential |
| Cooling | Water Cooled |
| Brake System | AP Racing Master Cylinders & CP4227/CP4226 |
| Electronics | Vi-Pec V88 ECU; AiM Data Acquisition |
Powertrain
| Engine | Rotax DS450 |
|---|---|
| Bore | 97.0 mm |
| Stroke | 60.8 mm |
| Cylinders | 1 |
| Displacement | 449 ccm |
| Compression Ratio | 13.0:1 : 1 |
| Fuel System | Injection |
| Fuel | 95 octane |
| Max Power Design | 8500 rpm |
| Max Torque Design | 7000 rpm |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2016.08 | 73 |
26. |
21. |
37. |
20. |
22. |
- |
17. |
- |
31. |
- |
11. |
0.00 |
423.32 |
|
| 2016.06 | 25 |
6. |
7. |
15. |
2. |
7. |
- |
9. |
- |
23. |
7. |
4. |
0.00 |
719.29 |
|
| 2016.05 | 114 |
45. |
68. |
78. |
12. |
57. |
- |
48. |
- |
84. |
49. |
13. |
0.00 |
489.40 |
|
| 2015.08 | 71 |
35. |
1. |
15. |
3. |
- |
- |
- |
- |
24. |
- |
- |
0.00 |
330.80 |
|
| 2015.06 | 18 |
12. |
7. |
8. |
4. |
7. |
- |
12. |
- |
6. |
15. |
- |
0.00 |
421.79 |
|
| 2015.05 | 108 |
68. |
10. |
87. |
12. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
235.70 |
|
| 2013.08 | 74 |
14. |
8. |
30. |
4. |
9. |
- |
44. |
- |
27. |
19. |
13. |
0.00 |
648.00 |
|
| 2013.06 | 60 |
25. |
6. |
36. |
7. |
1. |
- |
17. |
- |
12. |
- |
- |
0.00 |
473.80 |
|
| 2013.05 | 104 |
58. |
21. |
65. |
10. |
- |
- |
69. |
- |
32. |
- |
- |
0.00 |
316.50 |
|
| 2012.06 | 65 |
11. |
15. |
4. |
6. |
18. |
- |
34. |
- |
24. |
9. |
8. |
0.00 |
701.00 |
|
| 2012.05 | 104 |
31. |
67. |
23. |
11. |
38. |
- |
70. |
- |
39. |
31. |
19. |
0.00 |
478.10 |
|
| 2011.05 | 97 |
34. |
12. |
16. |
15. |
8. |
- |
64. |
- |
26. |
37. |
- |
0.00 |
414.20 |
|
| 2010.05 | 101 |
60. |
37. |
31. |
15. |
55. |
- |
60. |
- |
56. |
- |
- |
0.00 |
272.20 |
|
| 2009.05 | 90 |
14. |
79. |
29. |
29. |
52. |
- |
63. |
- |
25. |
4. |
- |
0.00 |
575.20 |
|
| 2008.05 | 104 |
87. |
54. |
23. |
61. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
188.80 |
|
| 2007.05 | 105 |
50. |
74. |
38. |
38. |
61. |
- |
67. |
- |
50. |
36. |
- |
0.00 |
375.39 |
|
| 2006.05 | 118 |
71. |
97. |
98. |
40. |
40. |
- |
39. |
- |
62. |
- |
- |
0.00 |
246.42 |
|
| 2005.05 | 114 |
55. |
74. |
76. |
14. |
45. |
- |
47. |
- |
36. |
- |
- |
0.00 |
369.18 |
|
| 2004.05 | 129 |
15. |
97. |
72. |
48. |
17. |
- |
72. |
- |
11. |
13. |
- |
0.00 |
659.88 |
|
| 2003.05 | 111 |
36. |
49. |
23. |
15. |
30. |
- |
64. |
- |
5. |
- |
- |
0.00 |
393.03 |
|
| 2002.05 | 121 |
13. |
68. |
90. |
46. |
25. |
- |
49. |
- |
20. |
15. |
- |
0.00 |
585.79 |
|
| 2001.05 | 108 |
19. |
68. |
18. |
63. |
21. |
- |
41. |
- |
29. |
18. |
- |
0.00 |
536.35 |
|
| 2000.05 | 94 |
91. |
- |
83. |
- |
- |
- |
- |
- |
- |
- |
- |
0.00 |
45.25 |
|
| 1999.05 | 89 |
39. |
27. |
65. |
20. |
30. |
- |
43. |
- |
16. |
- |
- |
0.00 |
343.83 |
|
| 1998.05 | 81 |
21. |
47. |
- |
23. |
19. |
- |
33. |
- |
42. |
13. |
- |
0.00 |
558.25 |
|
| 1995.05 | 69 |
23. |
34. |
39. |
21. |
12. |
- |
17. |
- |
34. |
20. |
34. |
0.00 |
499.28 |
|
| x 26 | |||||||||||||||
