Team Details

raceyard

University Kiel University of Applied Sciences
Hochschule für Angewandte Wissenschaften Kiel local
DE Kiel UAS short 46
LocationKiel, Germany
EV Team Raceyard E
Short Linktid.fsg.one/49

Event Profile

Past Events

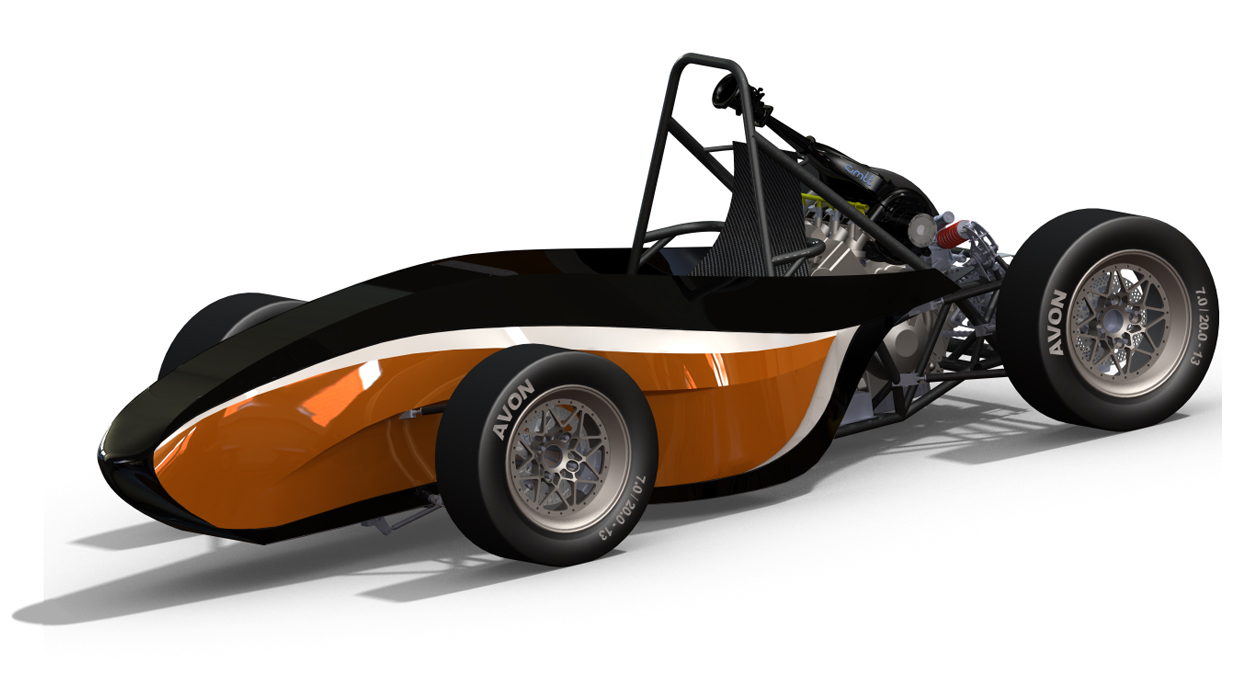

Car 53 – 2011
2011
Car #53
Info
Raceyard Kiel, the northernmost of the German Formula Student Teams, started to participate in Formula Student Events in 2006. After we had won four awards in the last years and were placed 9th in the last FSUK Event, the mission for this year is to take on the international Top-5. Therefore we have analysed last year's T-Kiel A 10 thoroughly and found a lot of potential for improvement. Also we have redesigned our team structure and all processes to increase the effectivity of our team work, improve the team documentation and create a sound team knowledge. New developments on our T-Kiel A 11 include an innovative intake system, which features a fully variable inlet port geometry in order to maximise the torque output over the whole rev band. This contributes towards the driveability of the car, but also reduces the fuel consumption. We are looking forward to the 2011 competition series and wish good luck to every team. We invite you all to visit our pit for further informations.
Car Specifications
General
Frame Construction Tubular spaceframe
Material Steel 25CrMo4/AISI 4130
Overall Length (mm) 2785
Overall Width (mm) 1405
Overall Height (mm) 1053
Wheelbase (mm) 1600
Track Front (mm) 1200
Track Rear (mm) 1150
Weight Front (kg) 135
Weight Rear (kg) 153
Suspension Double unequal length A-Arm. Push/Pull rod actuated horizontally oriented spring and damper
Tyres 7.0 / 20.0 - 13, Avon A50 front and rear
Wheels 7.0x13, 18mm offset, 5 pc hollow Al Rim front and rear
Drive Type Chain Drive
Differential GKN Salisbury type limited slip differential in lightweight aluminium housing
Cooling Single radiator with single fan mounted in left sidepod
Brake System 4-Disk system,self developed rotos,235mm fr,215mm re,brake calipers with 4 pistons fr, 2 pistons re
Electronics CAN Bus System, Shifting System, full variable air intake, multifuctional cockpit display
Powertrain
Engine Modified Honda CBR600RR (PC37)
Bore (mm) 67.0
Stroke (mm) 42.5
Cylinders 4
Displacement (ccm) 599
Compression Ratio 14:1
Fuel System Student designed full sequential fuel injection system using Kawasaki Injectors and Euro 4 ECU
Fuel 98 octane unleaded gasoline
Max Power (kW) 10000
Max Torque (Nm) 10000

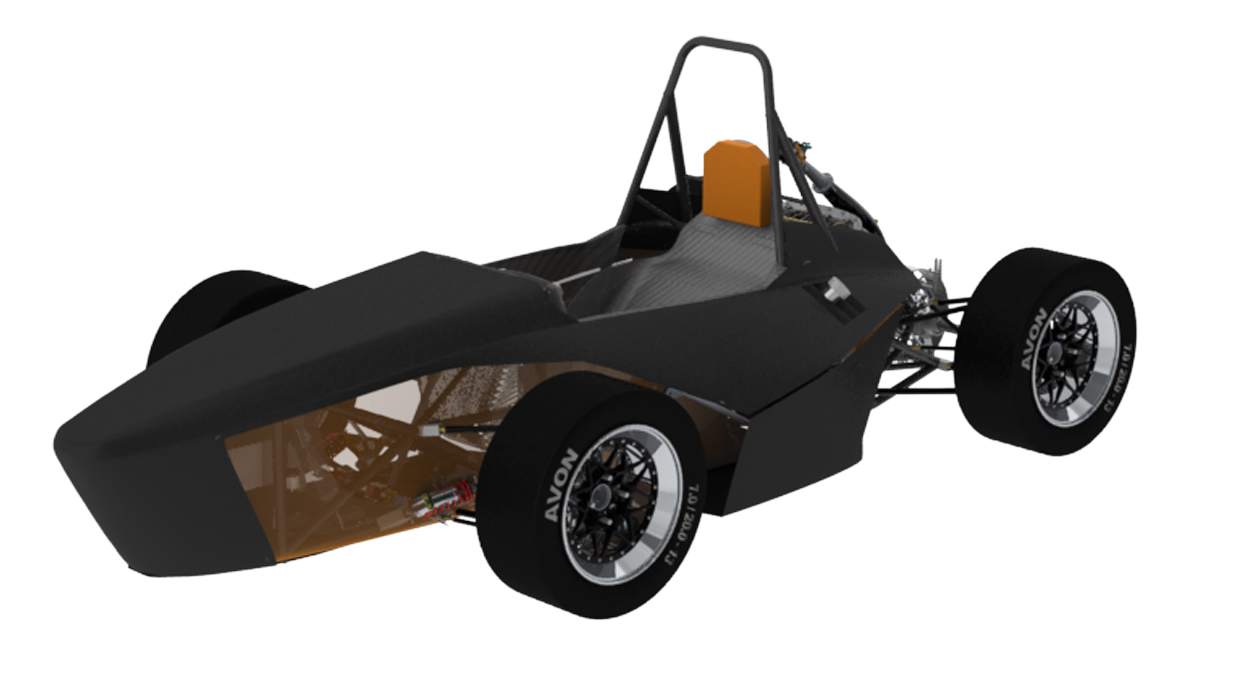

Car 53 – 2010
2010
Car #53
Info
Raceyard Kiel, the northernmost of the German Formula Student Teams, started to participate in Formula Student Events in 2006, when the Team made an impressive debut to the Hockenheim ring.In 2009, the team completed its most successful season so far, finishing 11th in Silverstone and winning the acceleration event both in Silverstone and Hockenheim. Having proven that Raceyard can build vehicles that go fast in a straight line, our goal for the 2010 competitions is to improve cornering capabilities.The team had gained a lot of knowledge in this competition, so we are confident to achieve our goals and get our footprint among the top 10 teams in the European FS events. In order to improve the performance in dynamic events , the suspension of the vehicle had to be changed drastically. The main changes include the choice of new tyres and the reduction of the wheelbase. We would like to thank all our sponsors for their magnificent support! And always remember: we are NORDISH BY NATURE
Car Specifications
General
Frame Construction Tubular spaceframe
Material Steel 25CrMo4/AISI 4130
Overall Length (mm) 2785
Overall Width (mm) 1405
Overall Height (mm) 1053
Wheelbase (mm) 1600
Track Front (mm) 1200
Track Rear (mm) 1150
Weight Front (kg) 133
Weight Rear (kg) 145
Suspension Double unequal length A-Arm. Pull rod actuated horizontally oriented spring and damper (coilover).
Tyres 7.0 / 20.0 - 13, Avon A50 front and rear
Wheels 7.0x13, 18mm offset, 5 pc hollow Al Rim front and rear
Drive Type Chain drive
Differential GKN Salisbury type limited slip differential in lightweight aluminium housing
Cooling Single radiator with dual fans mounted in left sidepod
Brake System 4-Disk system with identical calipers and brake cylinders for all wheels, balanced by disc diameters
Electronics Temperature and enigine monitoring via Bluetooth, electric shifting system
Powertrain
Engine Modified Honda CBR600RR (PC37)
Bore (mm) 67.0
Stroke (mm) 42.5
Cylinders 4
Displacement (ccm) 599
Compression Ratio 14:1
Fuel System Student designed full sequential fuel injection system using Kawasaki Injectors and Walbro ECU
Fuel 100 octane unleaded gasoline
Max Power (kW) 10000
Max Torque (Nm) 8300
2009
Car #35

No media information available for this year.

Car Specifications

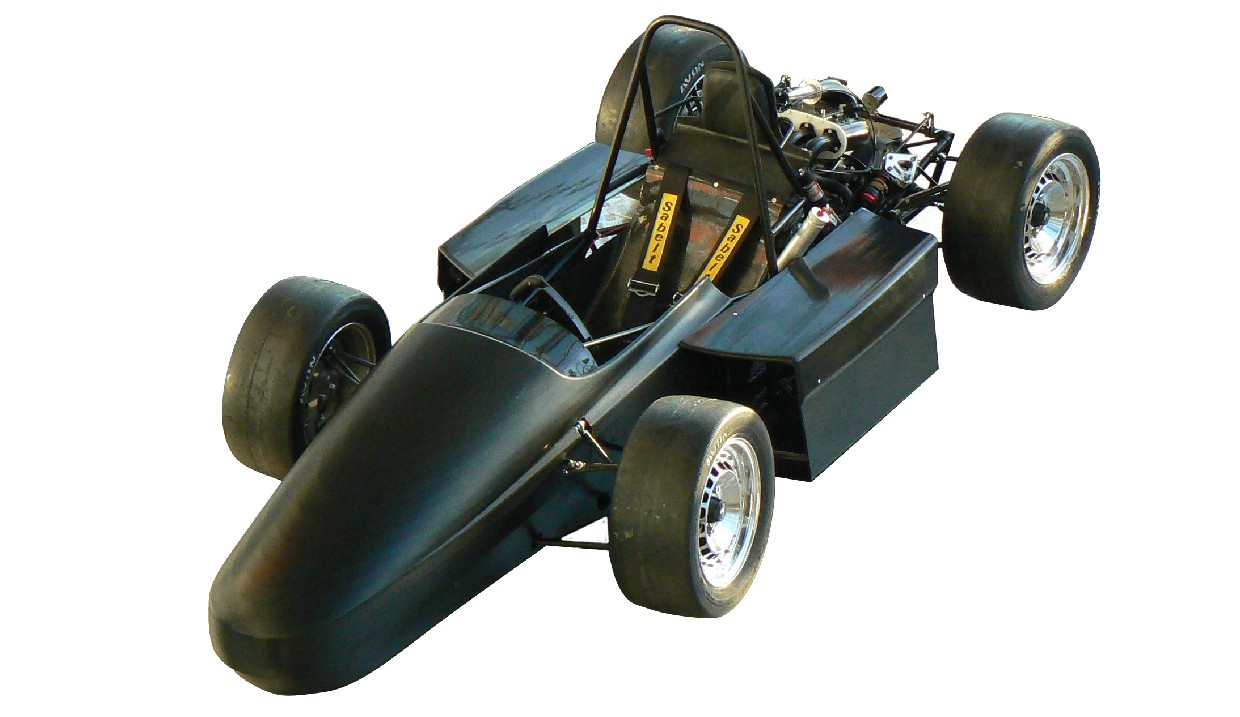

Car 53 – 2008
2008
Car #53
Info
RACEYARD Kiel was founded in August 2005 and quickly grew to about 15 members. After taking a long time to build the right team, the first car was designed and built in only four months (T-KIEL-A 06)! After winning the award for the best Newcomer at FSG 2006 in Hockenheim the team continued to grow, reaching 30 members. The team further established its skills and talent winning the 1st place in the acceleration competition. In 2008 RACEYARD Kiel grew to 40 members, all of whom are extremely motivated to continue the team’s success and secure one of the top places at FSG in Hockenheim 2008.
Car Specifications
General
Frame Construction Tubular space frame
Material 25CrMo4 steel round tubing, 12mm to 25mm diameter
Overall Length (mm) 2965
Overall Width (mm) 1417
Overall Height (mm) 1023
Wheelbase (mm) 1680
Track Front (mm) 1200
Track Rear (mm) 1150
Weight Front (kg) 149
Weight Rear (kg) 169
Suspension Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper
Tyres 190/530 R13 AVON A15
Wheels three-part aluminum, Schmidt Revolution, 13"x7" ET 18
Drive Type chain drive
Differential torque biasing differential. Selfmade housing based on Quaife differential
Cooling Twin side pod mounted radiators with thermostatic controlled electric fans
Brake System Floating brake disks, Front: 4 piston calipers, Rear: 2 piston calipers, adjustable brake balance bar, brake proportional valve
Electronics wiring harness, Multifunctional Sterring Wheel, electric Shifting System
Powertrain
Engine Honda CBR600RR (2003,PC37)
Bore (mm) 67
Stroke (mm) 42.5
Cylinders 4
Displacement (ccm) 599
Compression Ratio 12.0:1
Fuel System Walbro, fuel injection, sequential
Fuel 100 octane unleaded gasoline
Max Power (kW) 12500
Max Torque (Nm) 8300
2007
Car #53

No media information available for this year.

Car Specifications
2006
Car #53

No media information available for this year.

Car Specifications

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2011.08
74
14.
7.
45.
33.
15.
-
34.
-
26.
14.
9.
0.00
564.44
2011.07
77
12.
23.
29.
13.
19.
-
20.
-
23.
16.
4.
0.00
522.60
2010.08
75
31.
54.
9.
14.
15.
-
11.
-
13.
-
-
0.00
412.04
2010.07
72
9.
37.
25.
23.
7.
-
3.
-
26.
9.
8.
0.00
656.80
2009.08
77
20.
25.
12.
60.
56.
-
1.
-
33.
16.
26.
0.00
562.71
2009.07
78
11.
45.
31.
26.
5.
-
1.
-
18.
15.
-
-2.00
662.10
2008.08
77
17.
28.
35.
23.
10.
-
4.
-
29.
16.
23.
-15.00
660.15
2007.09
20
17.
12.
11.
8.
14.
-
1.
-
17.
-
-
0.00
344.38
2007.08
53
29.
41.
35.
21.
14.
-
1.
-
24.
-
-
0.00
355.79
2007.07
69
21.
30.
34.
38.
27.
-
3.
-
-
17.
9.
0.00
454.70
2006.09
17
12.
9.
10.
5.
9.
-
7.
-
14.
12.
-
0.00
448.30
2006.08
38
14.
15.
32.
29.
12.
-
12.
-
17.
14.
5.
0.00
592.10
x 12
